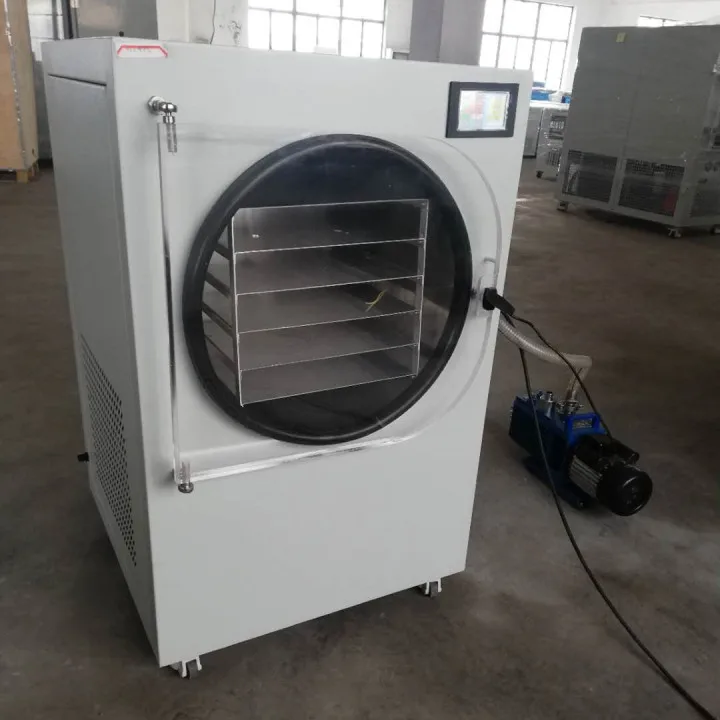

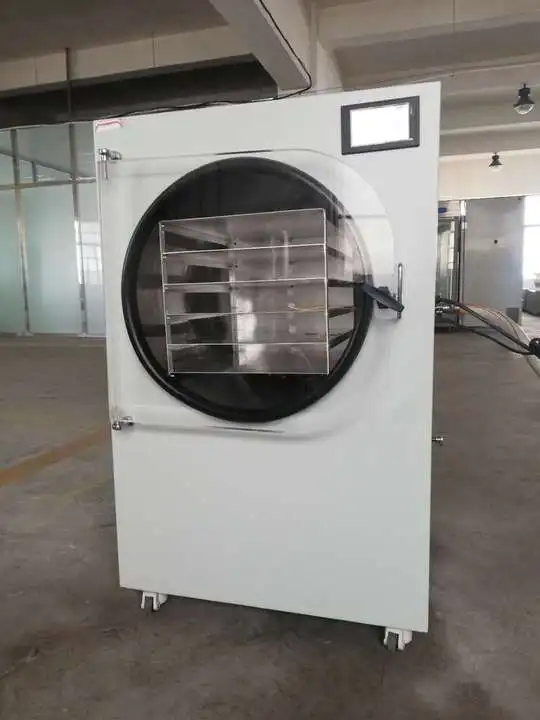

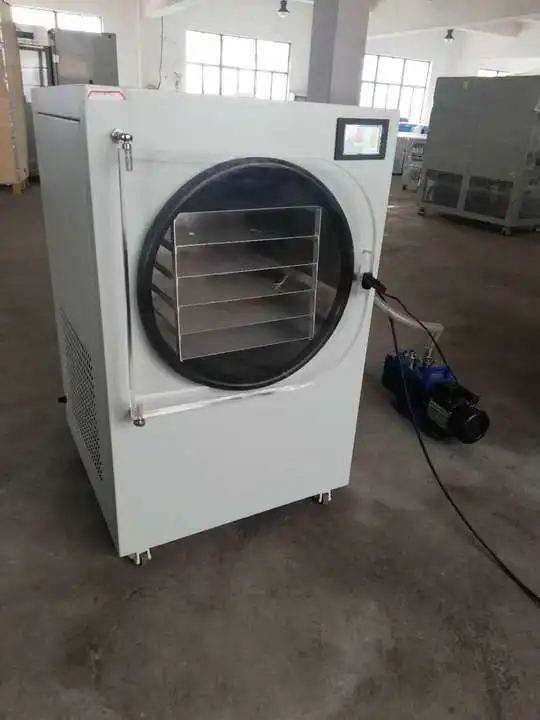

4 6kg Freeze Dryer Strawberry Pitaya Lyophilizer for Fruits and Vegetables
- Category: >>>
- Supplier: Henan Workers Machinery Co. Ltd.
Share on (1600876032069):
Product Overview
Description
Introduction
Vacuum freeze-drying technology is widely applied in biological engineering, pharmaceutical industry, food industry, materials science and deep processing of agricultural and sideline products.
working principle

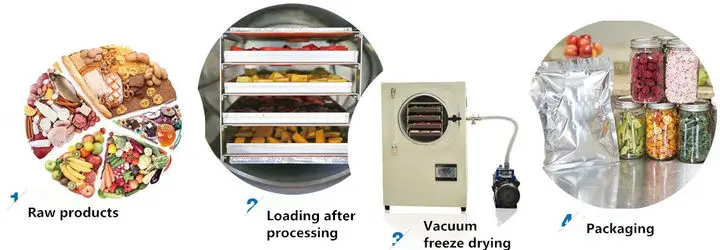

Applying the principle of sublimation for drying. Rapid freezing of the material is achieved in low temperature , and then in a suitable vacuum environment the frozen water molecules will be directly sublimated into water vapor and then escape.
The product obtained by drying is called lyophilisate and this process is called lyophilisation.
The product obtained by drying is called lyophilisate and this process is called lyophilisation.
Technical parameter
Model | FK-01 | FK-04 | FK-06 | ||
Drying area | 0.1m2 | 0.4m2 | 0.6m2 | ||
Cold trap temp. | minus 40℃ | ||||
Limit vacuum | 15Pa | ||||
Capacity per batch | 1~2kg | 4~6kg | 6~8kg | ||
Shelf gap | 45mm | 45mm | 50mm | ||
Voltage | 220V, 50/60Hz, single phase | ||||
Power | 750W | 1200W | 2300W | ||
Weight | 50kg | 90kg | 165kg | ||

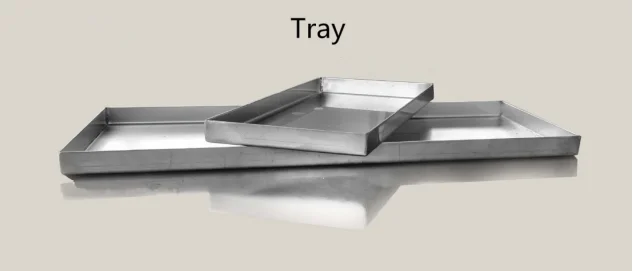

Tray | 140*278mm, 3pcs | 205*385*20mm, 5pcs | 230*510*20mm, 5pcs | ||
Dimension | 350*420*650mm | 588*470*760mm | 620*694*1100mm | ||

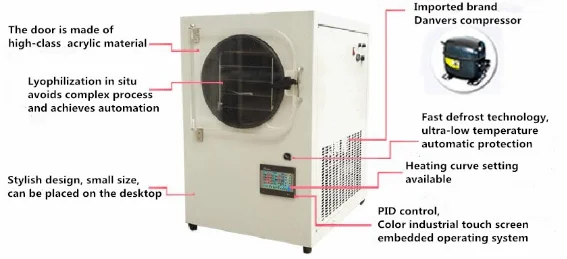

Main features
1. Perfect appearance, compact size;
2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;
3. Key components with imported brands, small noise, large capacity, high quality and high performance;
4. Advanced system, with low operating current and low energy consumption;

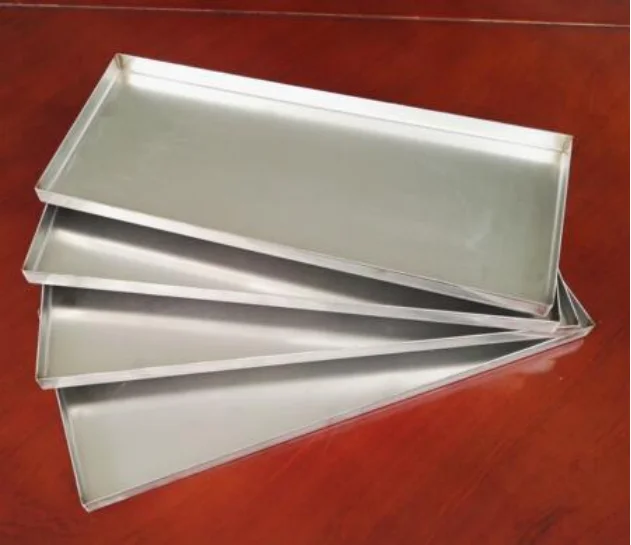

5. 304 stainless steel food tray and inside liner, safety and easy clean;

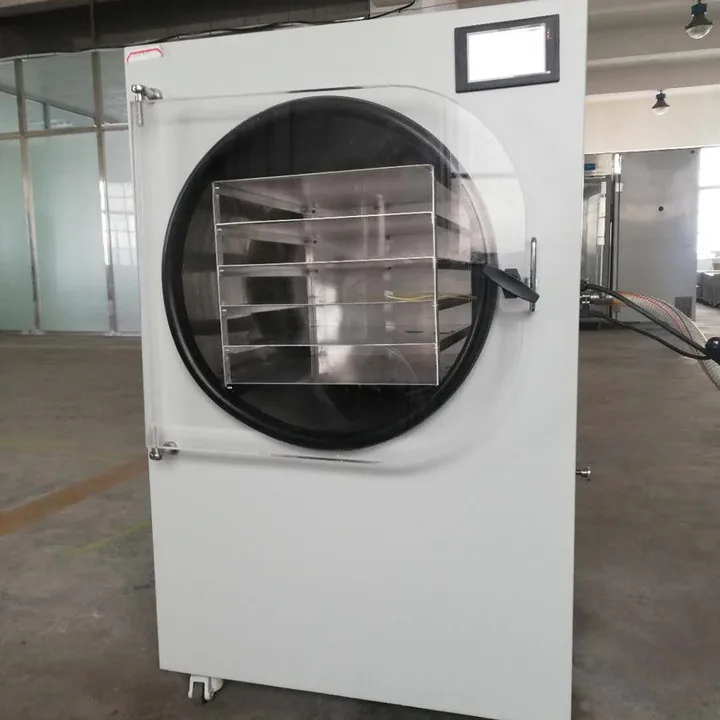

6. Transparent organic glass door, the direct observation of food processing.
2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;
3. Key components with imported brands, small noise, large capacity, high quality and high performance;
4. Advanced system, with low operating current and low energy consumption;
5. 304 stainless steel food tray and inside liner, safety and easy clean;
6. Transparent organic glass door, the direct observation of food processing.
Application

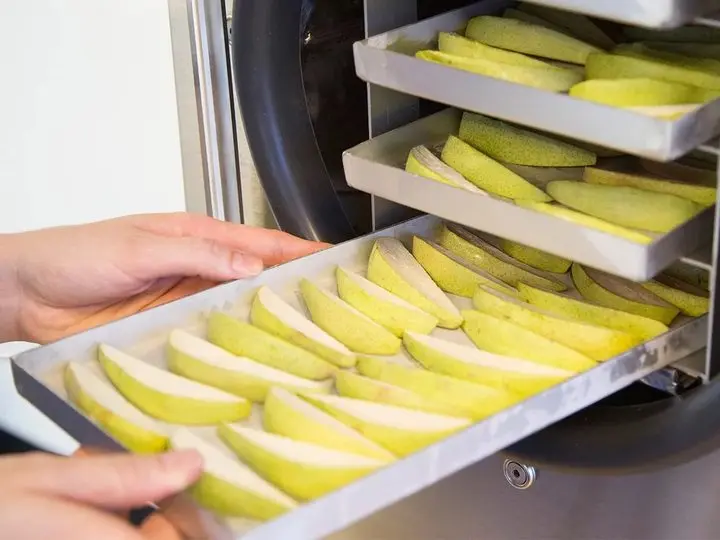

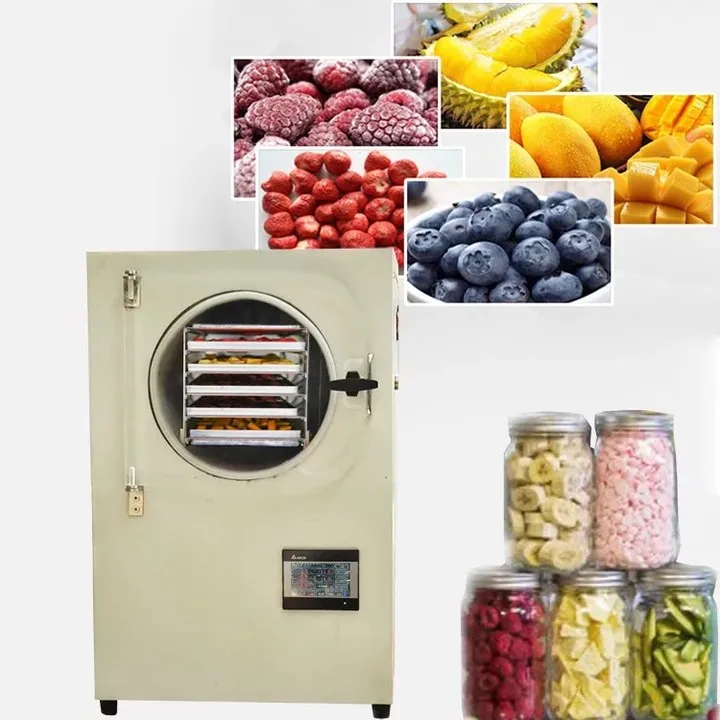

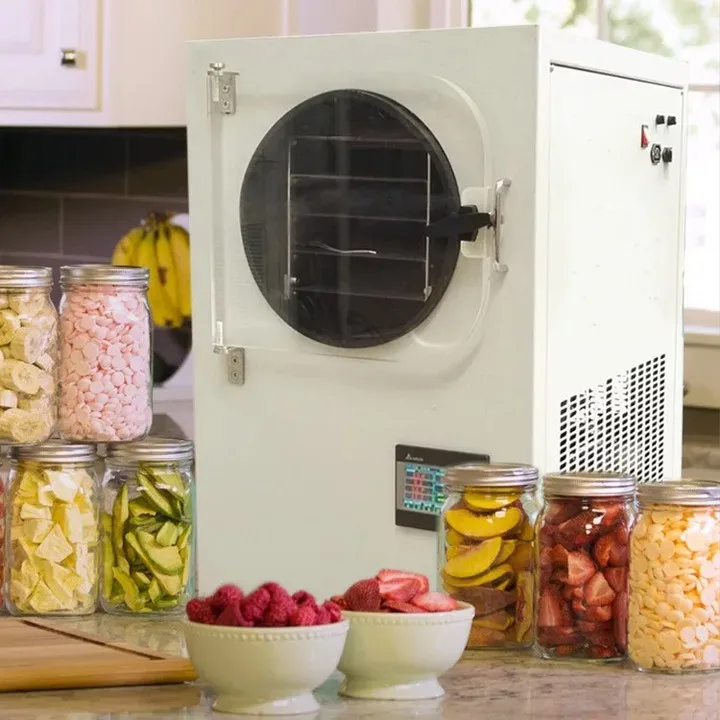

Small Vacuum Freeze Dryer Mini Lyophilizer is used for freeze dry of food, flowers, dairy product, fruit, herb at home, or,
samples in laboratory,hospitals, food industry and pharmaceutical industry as well as for food industry.
samples in laboratory,hospitals, food industry and pharmaceutical industry as well as for food industry.
