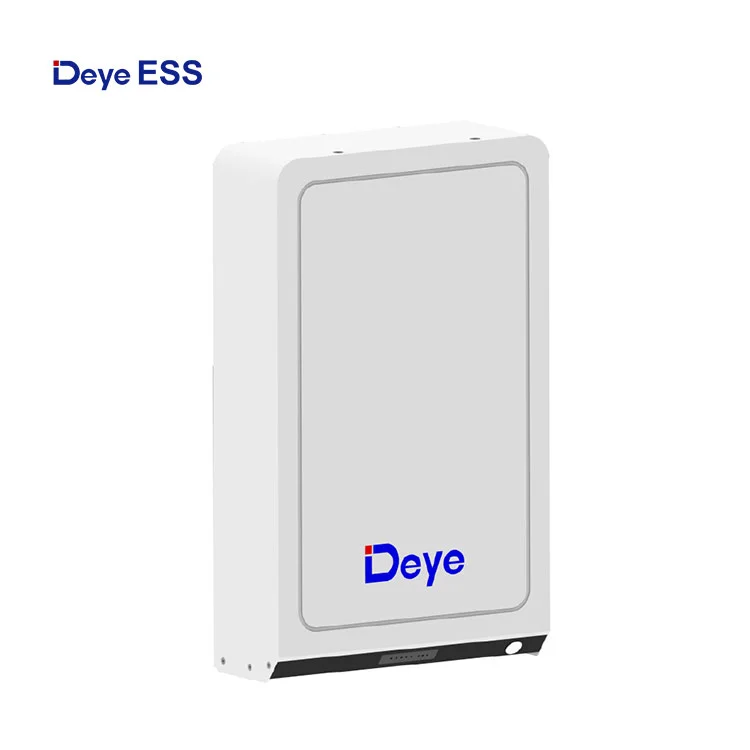

Deye RW M5.3 51.2V 104AH lithium iron phosphate battery wall mounted 5.32Kwh energy storage LiFePO4 battery 32pcs in Parallel
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (1600876034839):
Product Overview
Description
Recommend Products
Products Description

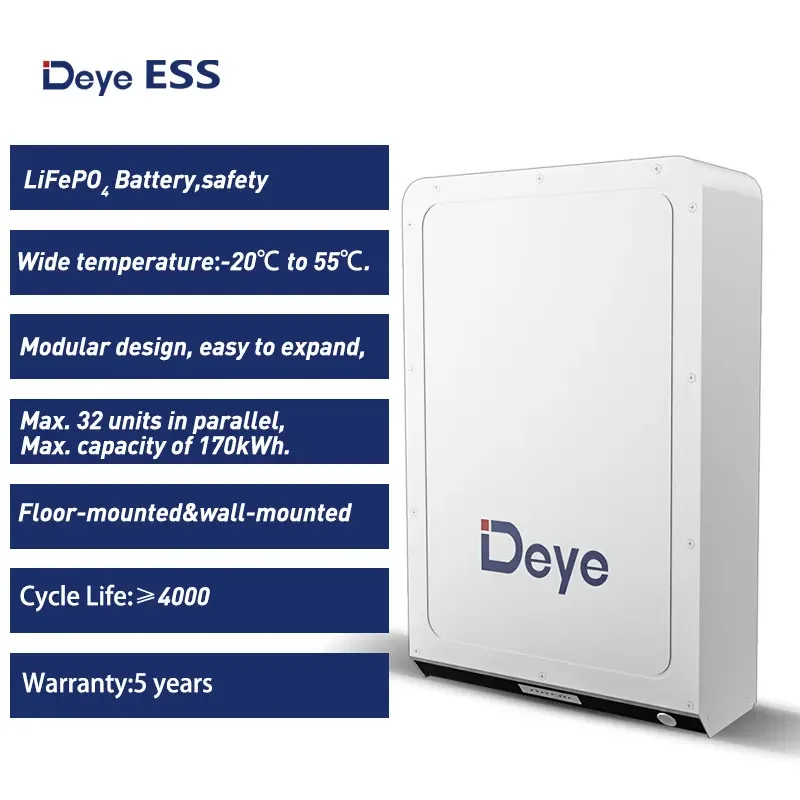

◆ Safer
Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long lifespan, high efficiency and high-energy density.
◆ Reliable
Intelligent BMS, providing complete protection. Natural cooling, IP54, wide temperature range: -20℃ to 55℃.
◆ Flexible
Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 170kWh. Suited to residential and commercial applications for increasing the self consumption ratio.
◆ Convenient
Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
◆ Eco-Friendly
Use environmental protection materials, the whole module non-toxic, pollution-free.

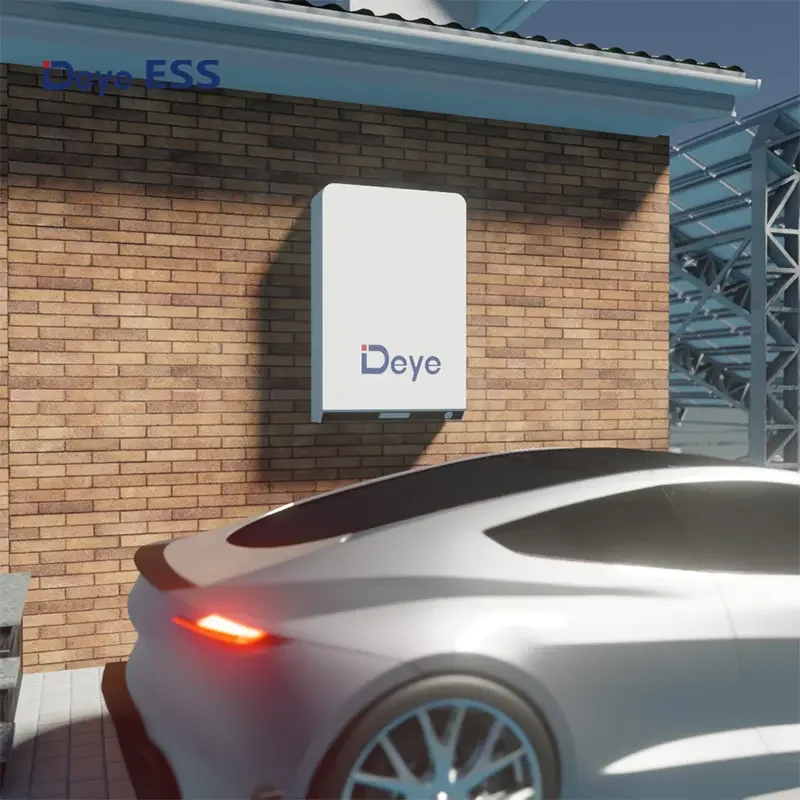

◆ Wall-Mounted
Flat design, wall-mounted, saving installation space.
Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long lifespan, high efficiency and high-energy density.
◆ Reliable
Intelligent BMS, providing complete protection. Natural cooling, IP54, wide temperature range: -20℃ to 55℃.
◆ Flexible
Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 170kWh. Suited to residential and commercial applications for increasing the self consumption ratio.
◆ Convenient
Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
◆ Eco-Friendly
Use environmental protection materials, the whole module non-toxic, pollution-free.
◆ Wall-Mounted
Flat design, wall-mounted, saving installation space.
Product Paramenters
Model | RW-M5.3 | ||
Main Parameter | |||
Battery Chemistry | LiFePO4 | ||
Capacity (Ah) | 104 | ||
Scalability | Max.32 pcs in Parallel(170kWh) | ||
Nominal Voltage (V) | 51.2 | ||
Operating Voltage(V) | 43.2~57.6 | ||
Energy (kWh) | 5.32 | ||
Usable Energy (kWh) [1] | 4.79 | ||
Current (A) | Recommend [2] | 34 | |
Charge/Discharge Current (A) | Max. [2] | 60 | |
Peak(3mins,25℃) | 75 | ||
Other Parameter | |||
Recommend Depth of Discharge | 90% | ||

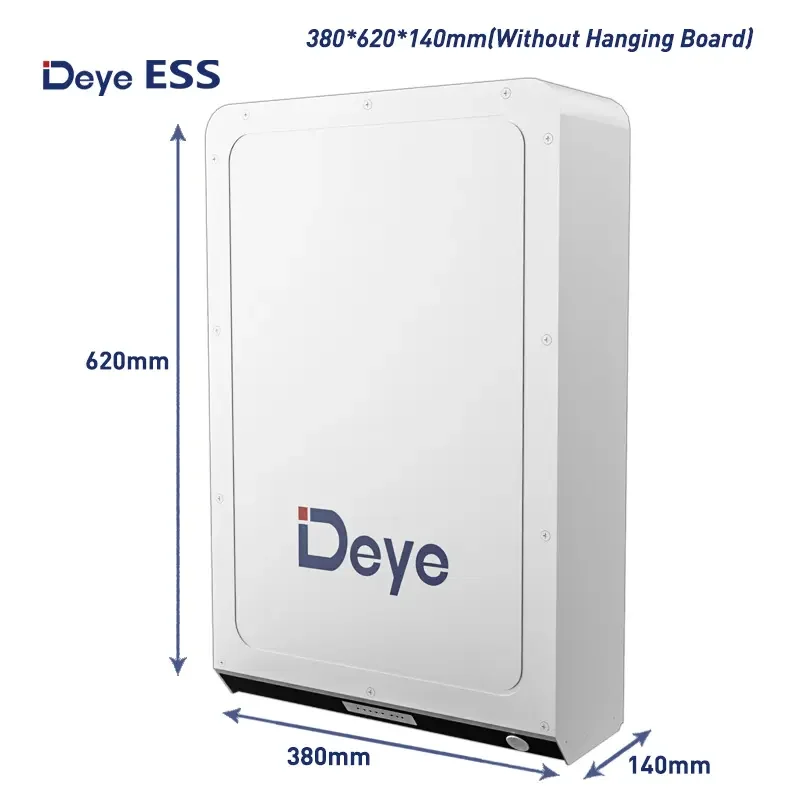

Dimension (W/H/D, mm) | 380*595*145(depth of 165mm with Hanging Board) | ||
Weight Approximate(kg) | 44 | ||
Master LED Indicator | 5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting) | ||
IP Rating of Enclosure | IP54 | ||
Operating Temperature | Charge:0～55℃ / Discharge:-20℃～55℃ | ||
Storage Temperature | 0℃～35℃ | ||
Humidity | 5%~95% | ||
Altitude | ≤2000m | ||
Cycle Life | ≥4000(25℃±2℃,0.2C/0.2C,70%EOL) | ||
Installation | Wall-Mounted | ||
Communication Port | CAN2.0, RS485 | ||
Warranty Period [3] | 5 years | ||
Energy Throughput [3] | 8MWh@70%EOL | ||
Certification | UN38.3, IEC62619, CE, CEI 0-21 | ||

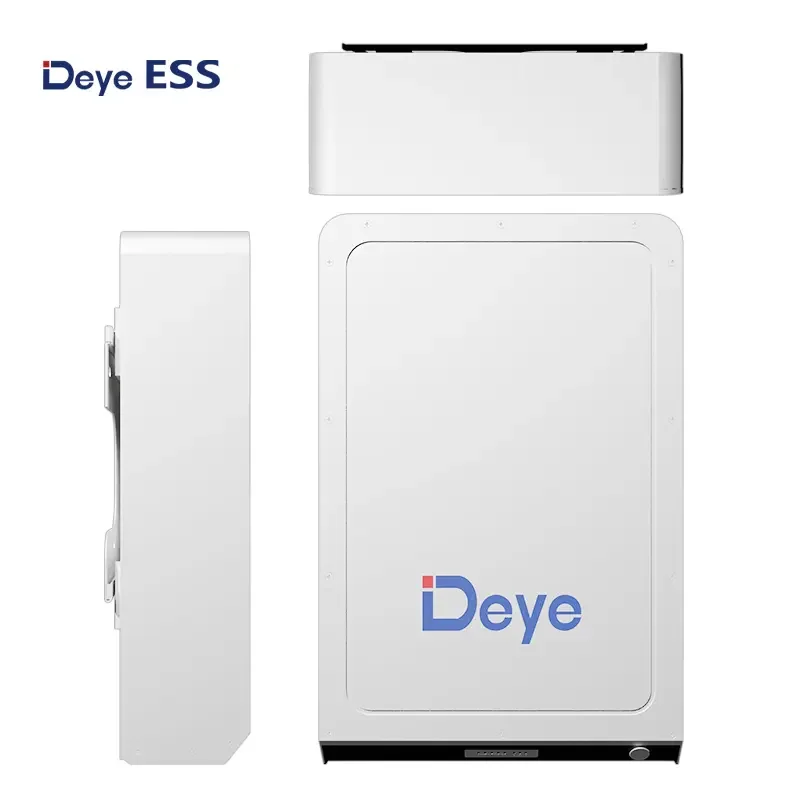

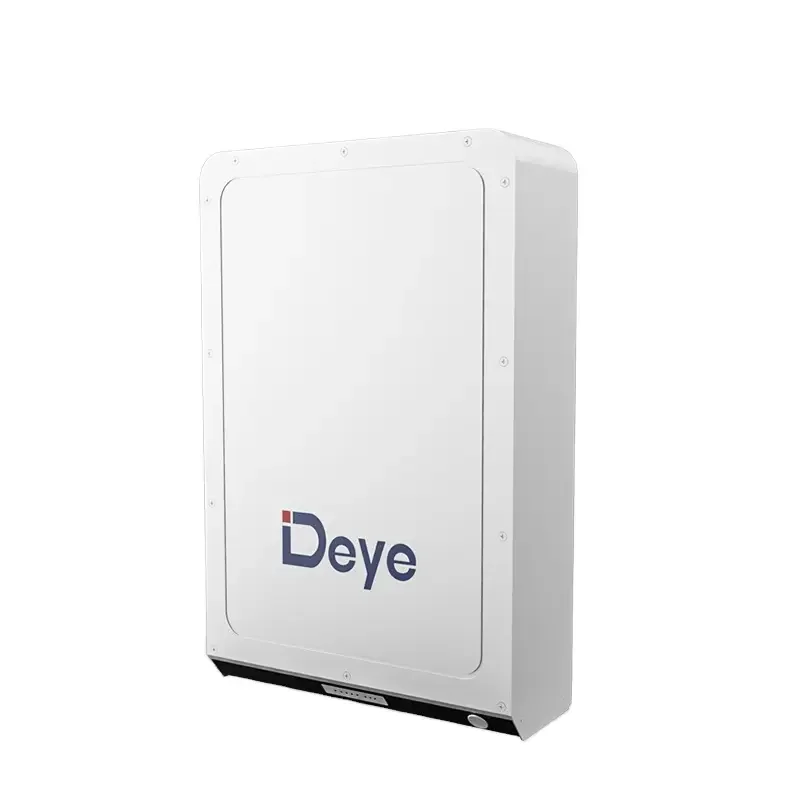

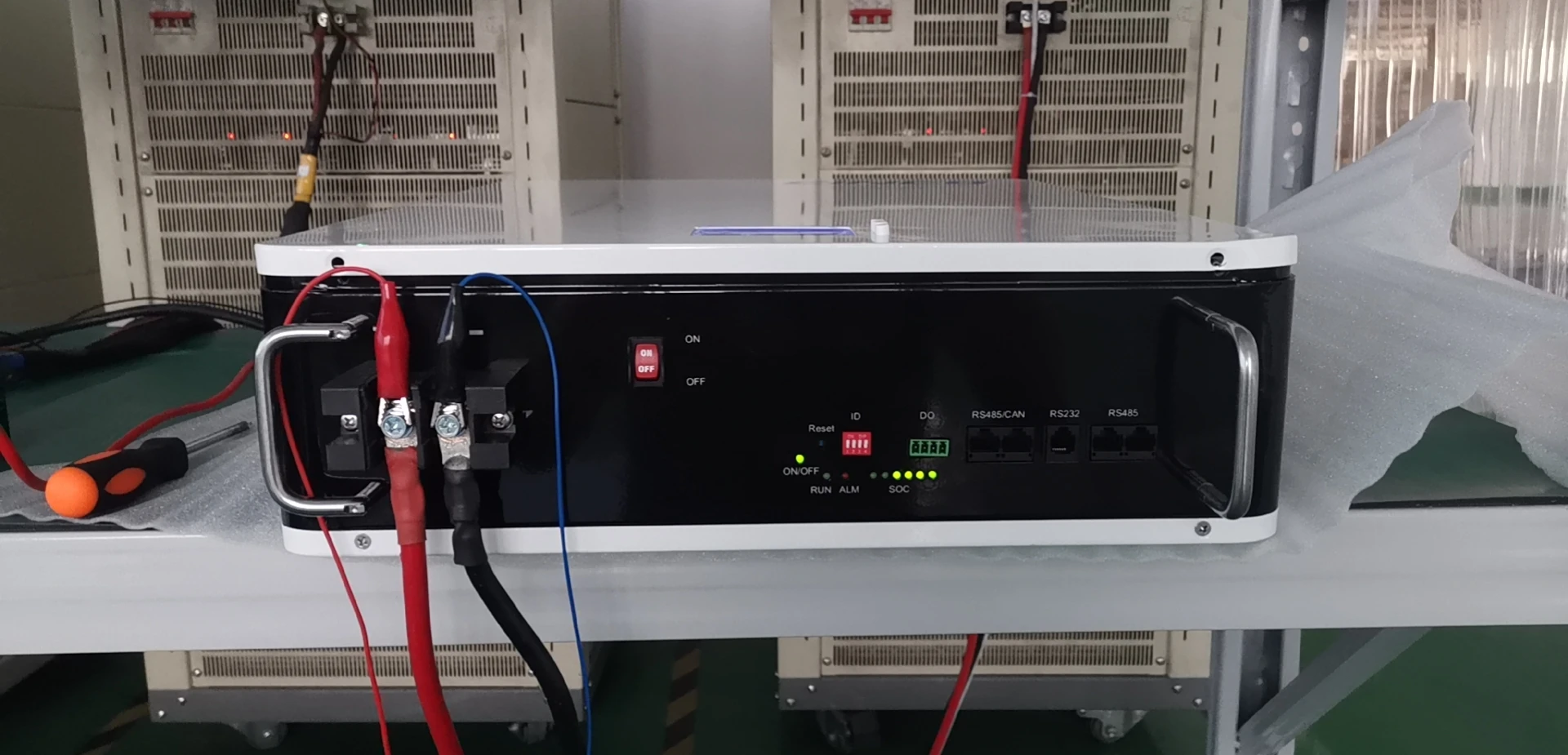

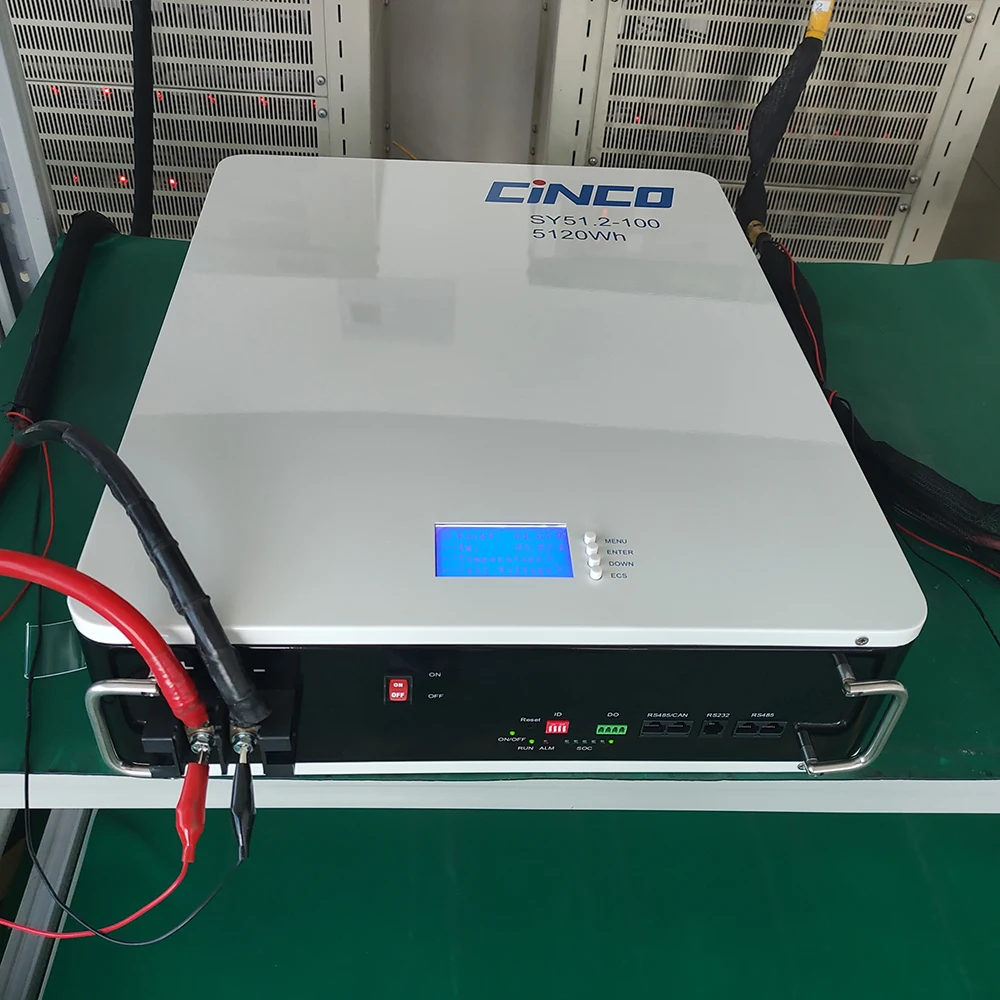

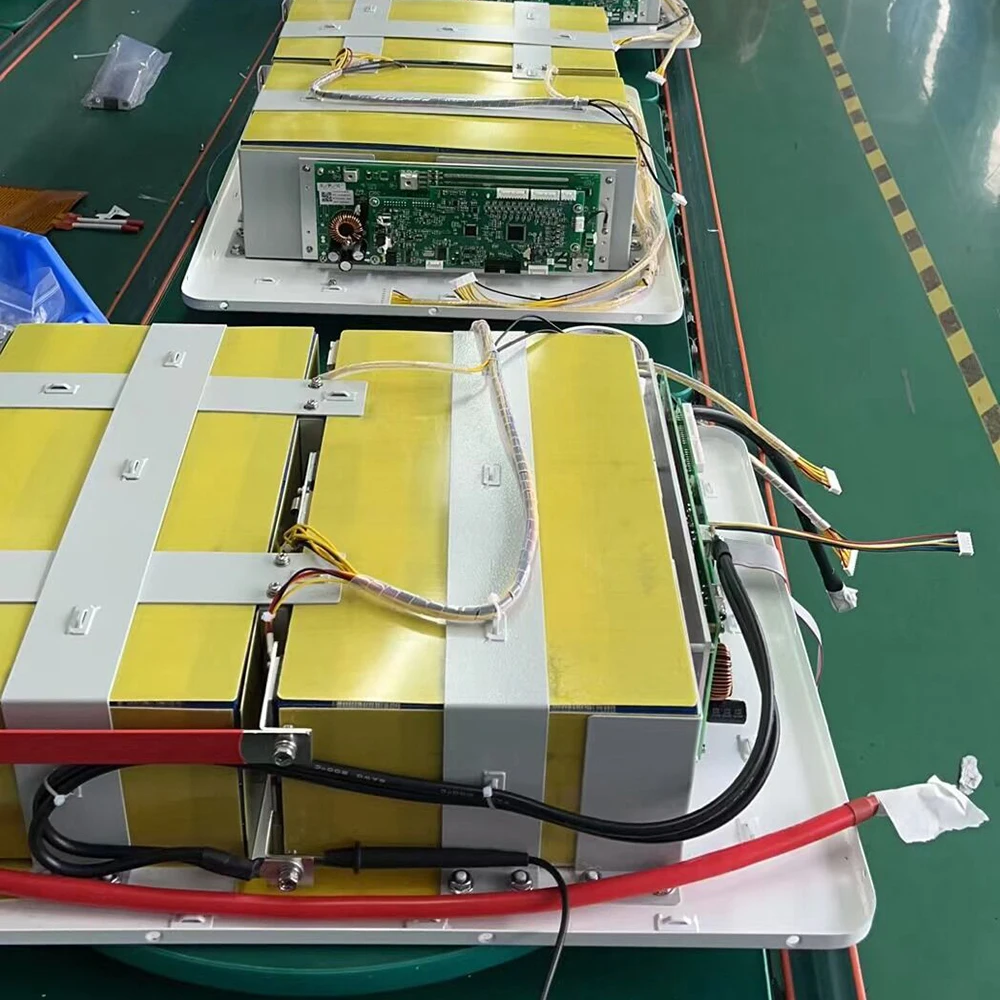

Details Images

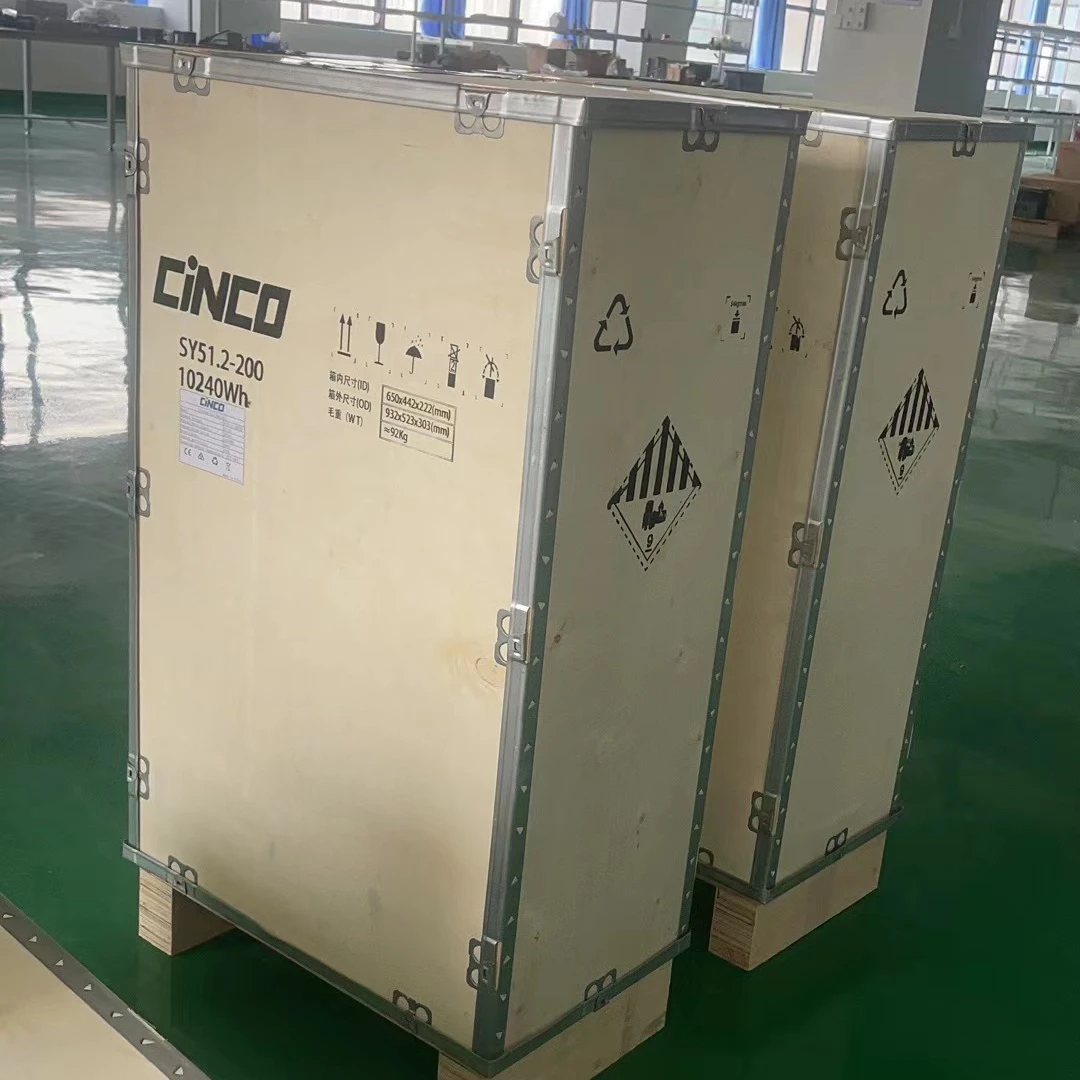

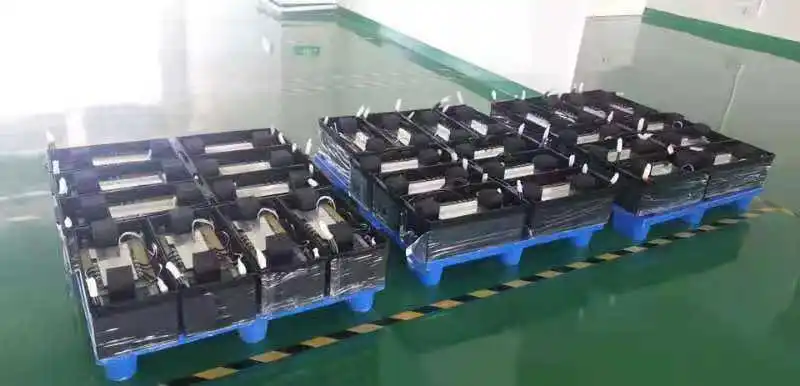

Product packaging

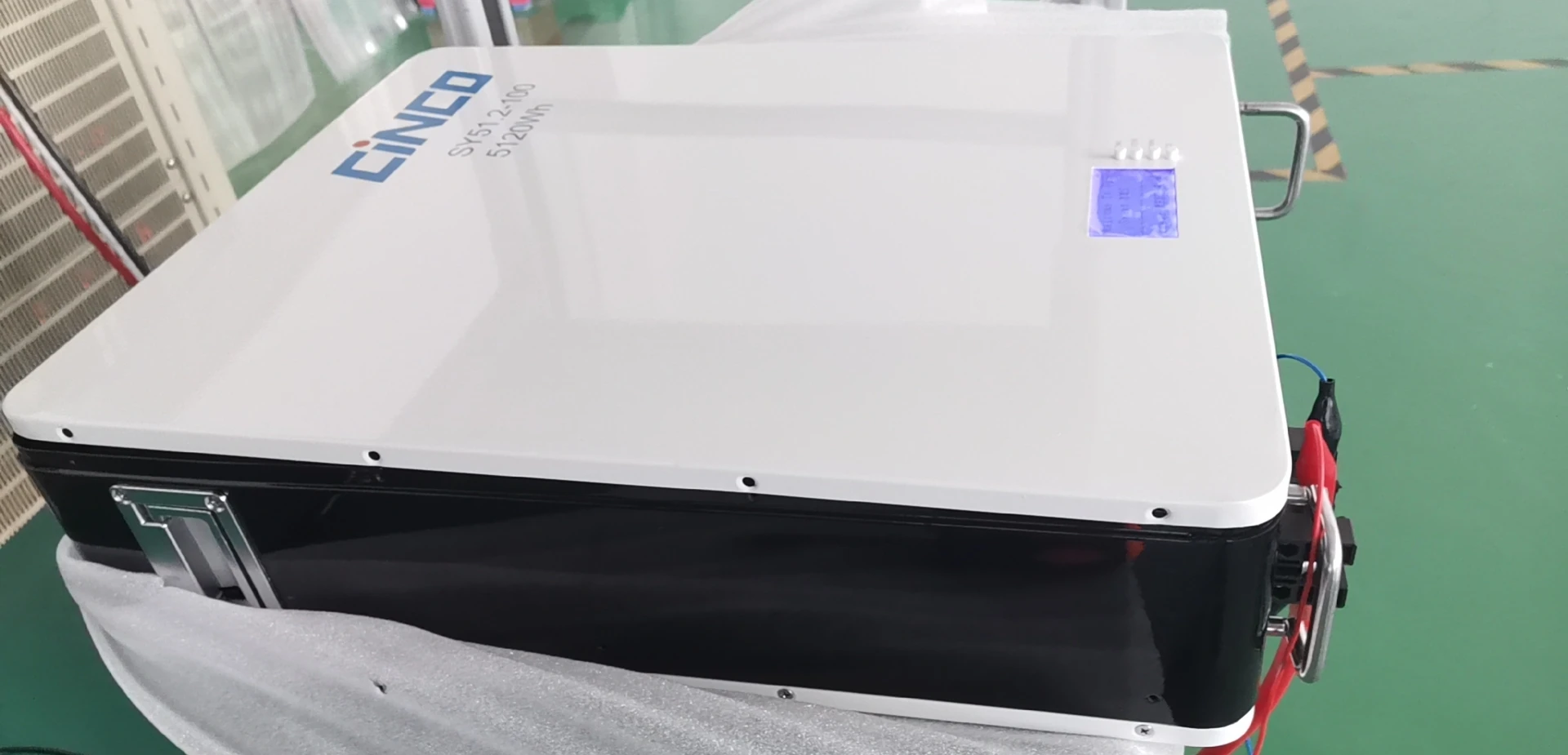

Customer Photos
