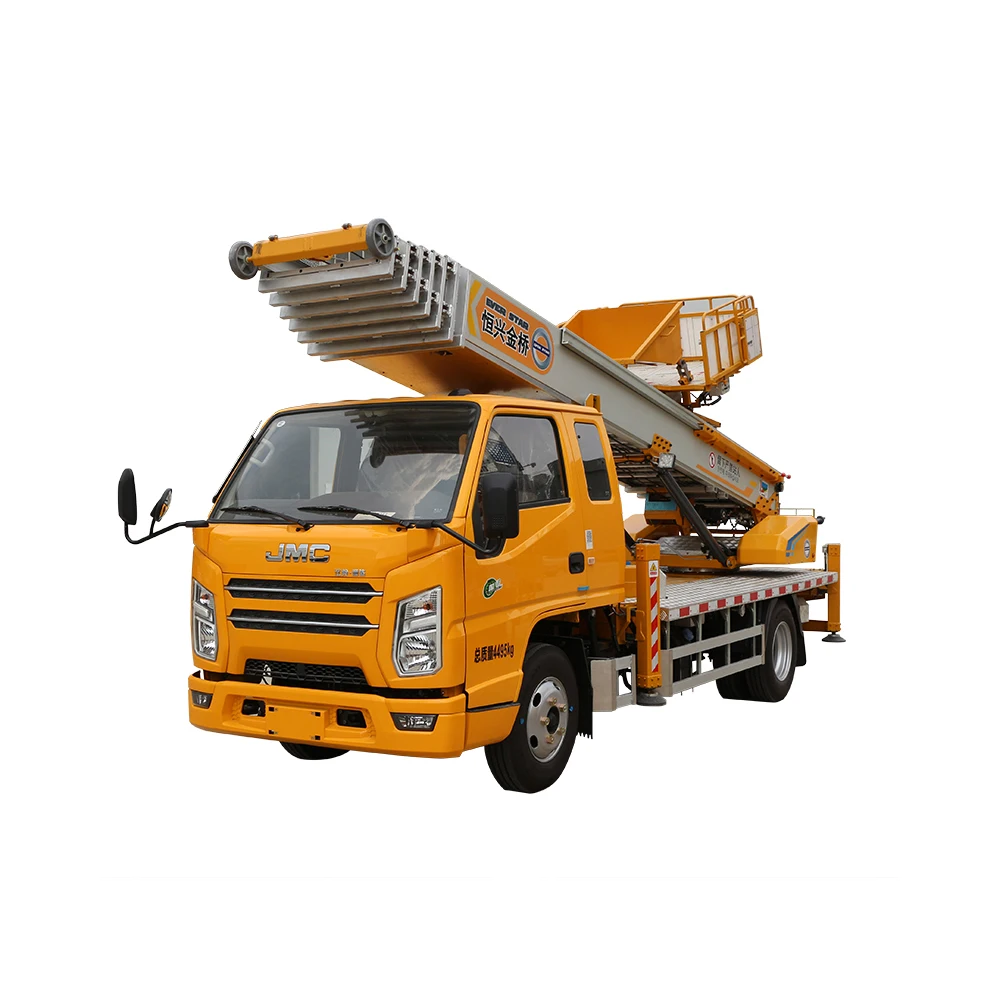

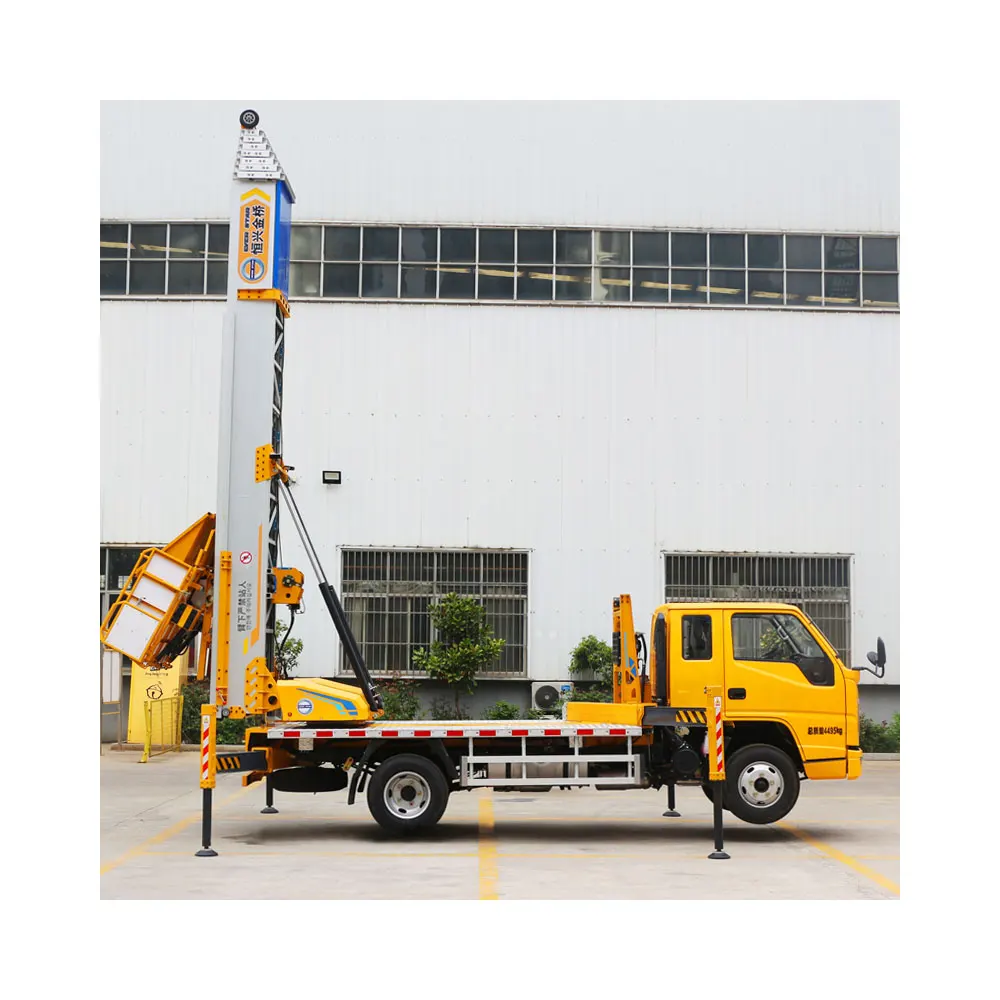

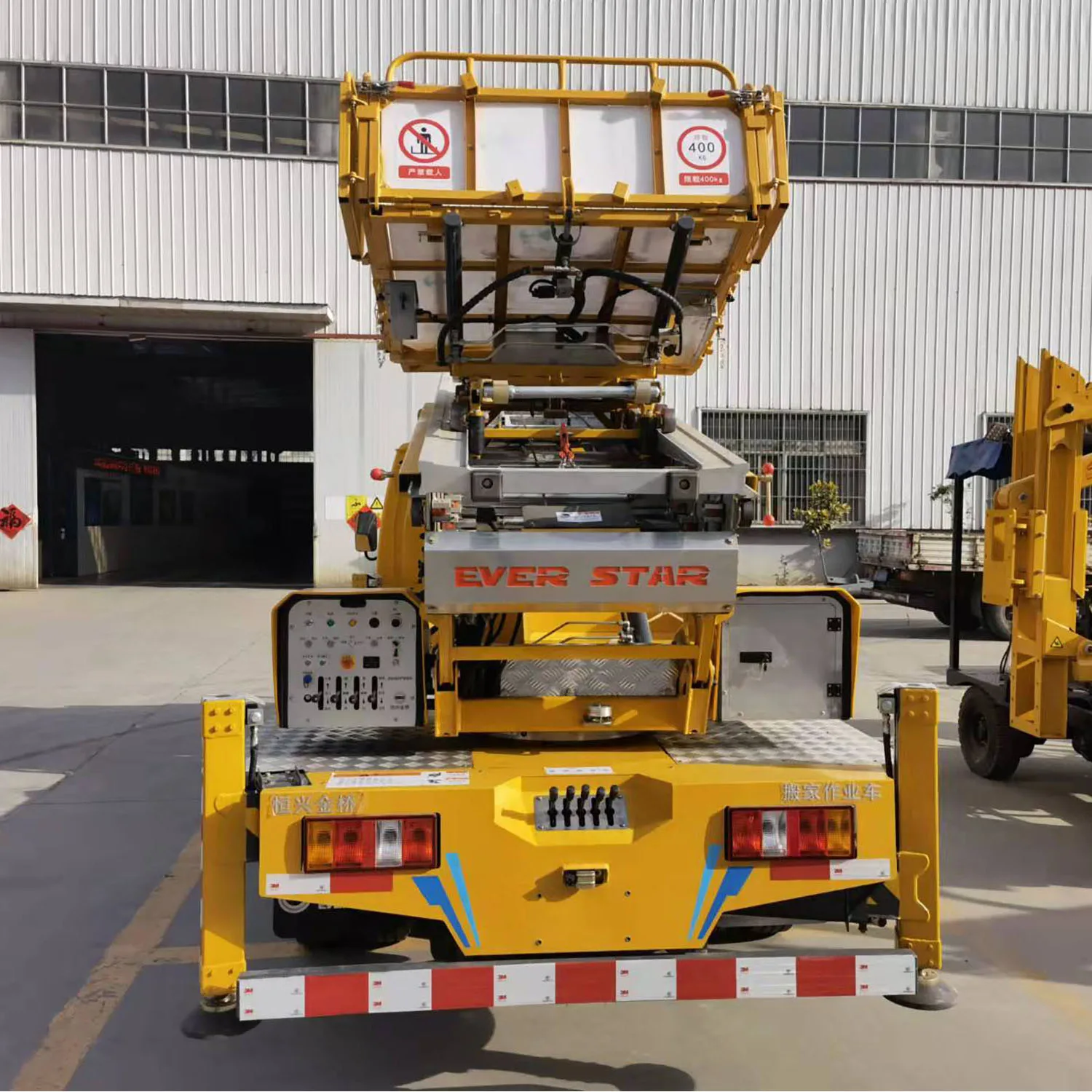

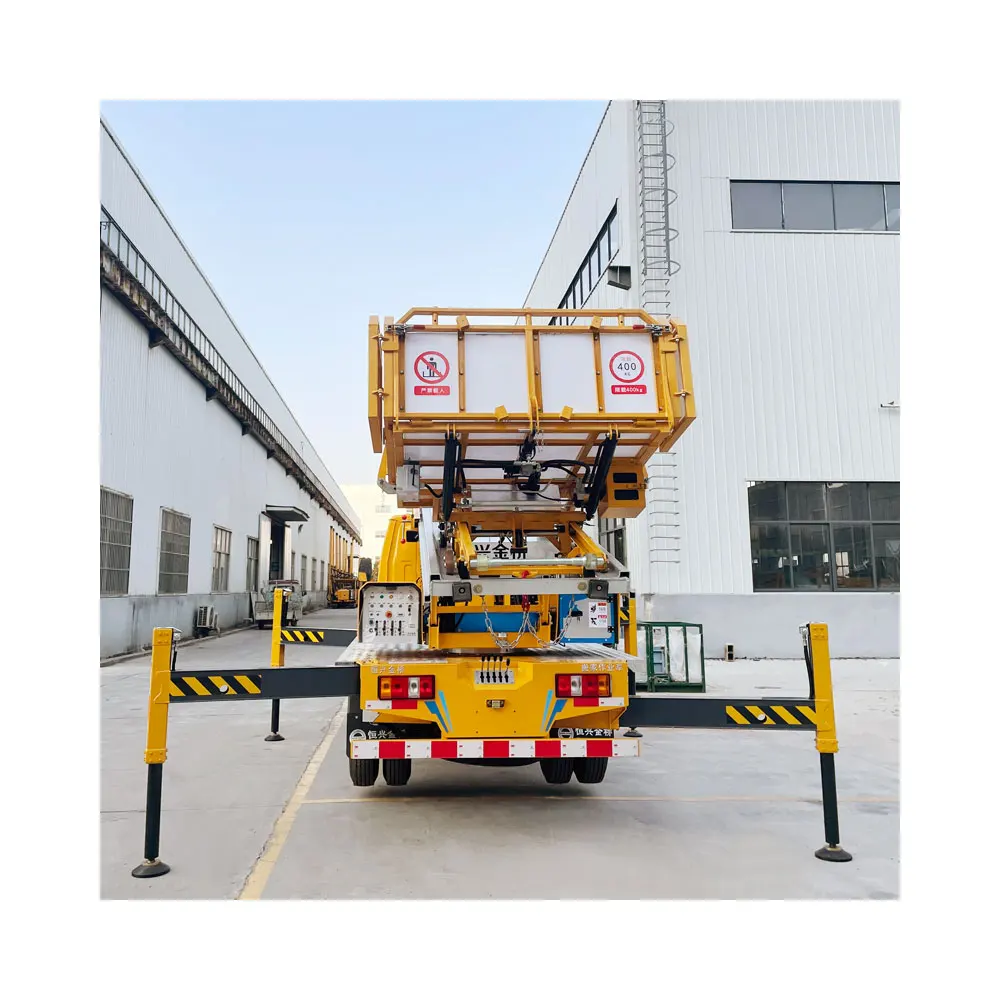

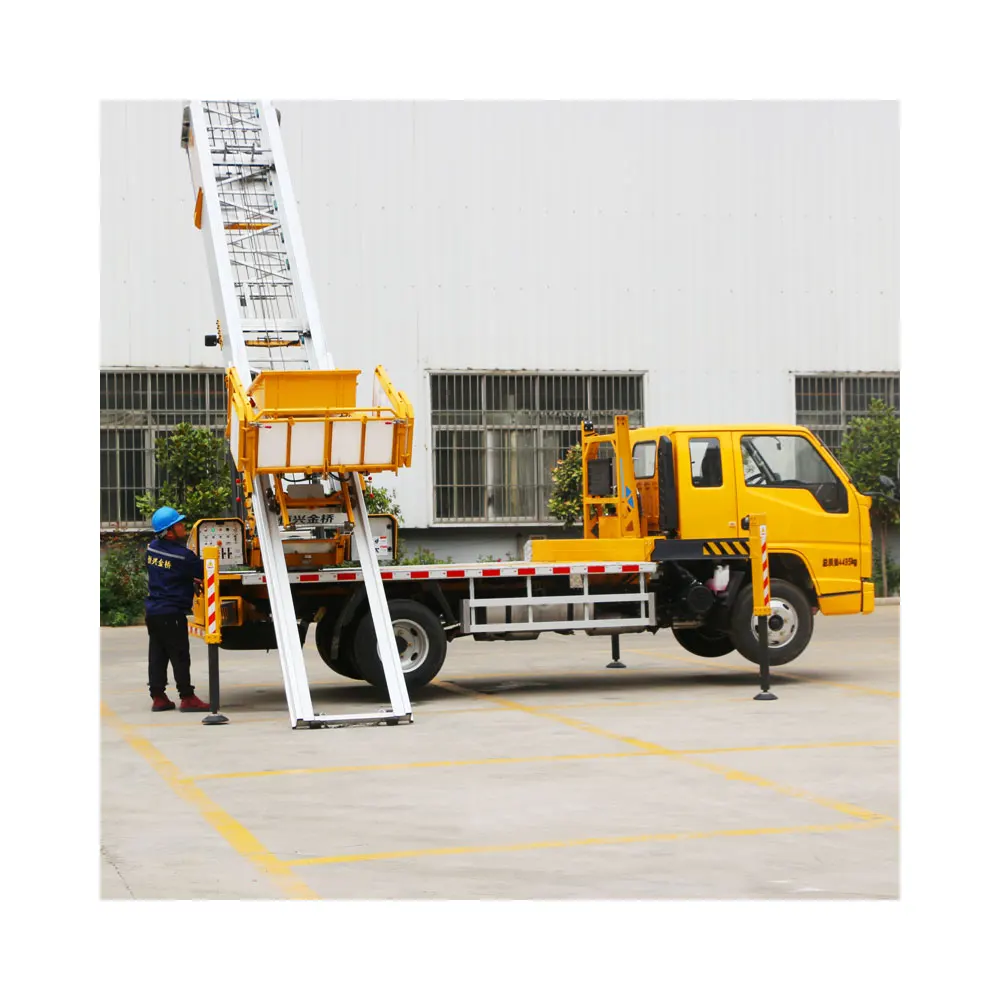

32m Lift Platform High altitude Transportation Ladder Lift Truck Car
32m Lift Platform High-altitude Transportation Ladder Lift Truck Car
32m Lift Platform High-altitude Transportation Ladder Lift Truck Car
32m Lift Platform High-altitude Transportation Ladder Lift Truck Car
32m Lift Platform High-altitude Transportation Ladder Lift Truck Car
32m Lift Platform High-altitude Transportation Ladder Lift Truck Car
32m Lift Platform High-altitude Transportation Ladder Lift Truck Car

32m Lift Platform High altitude Transportation Ladder Lift Truck Car

Share on (1600876106380):


Price:$26,500.00 - $34,000.00

Quantity:


Product Overview

Description



Mainly Specification


Specification
Items
Overall Dimension
Length
5995
mm
Width
2080
mm
Height
2760
mm
Weight
Weight
4495
kg
Passengers (including driver)
2
People

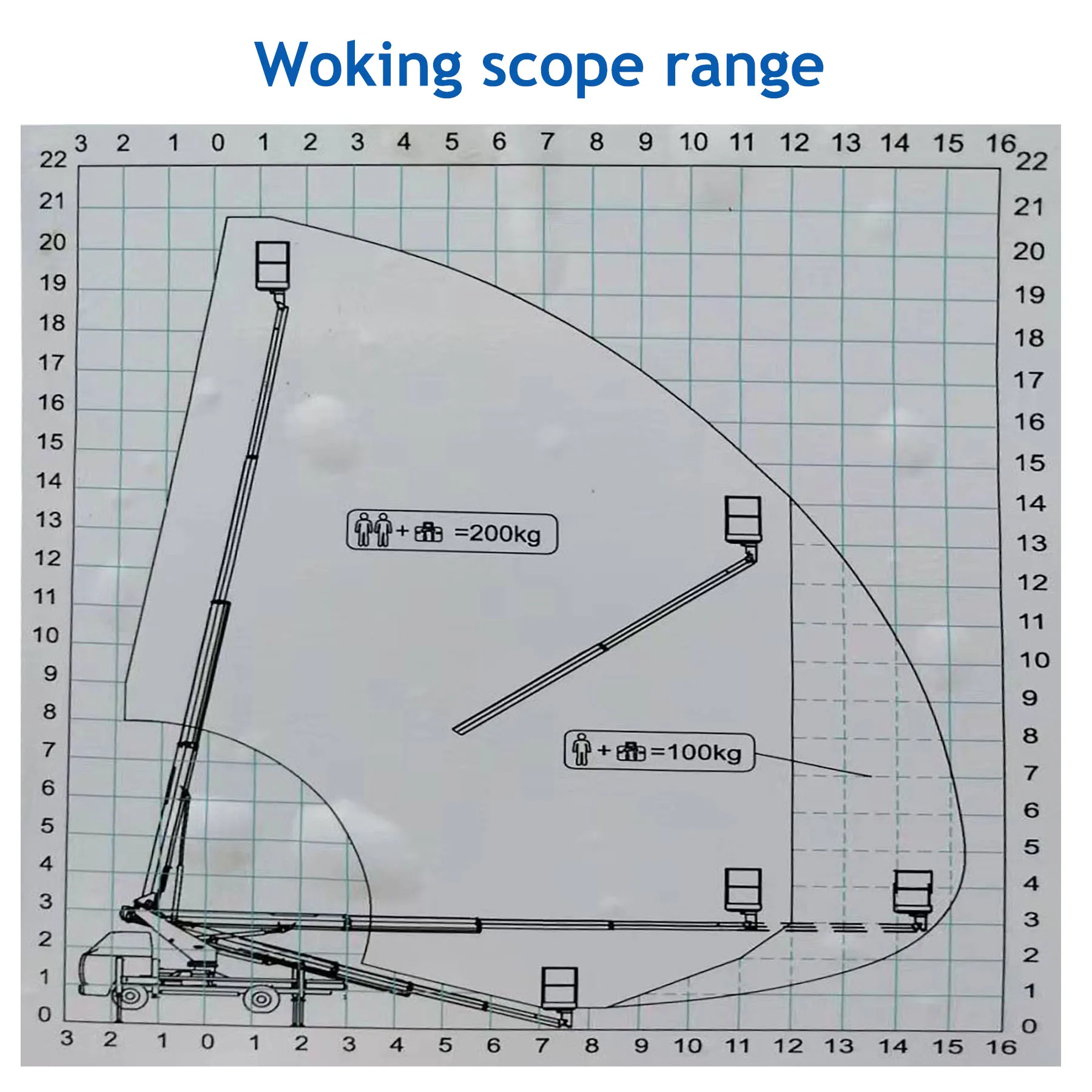

Mainly technical data sheet
Bucket rated weight
200
kg
Bucket max height
20.7
m
Maximum working span
12
m
Outrigger Lateral span
Front 4350/back4020
mm
Outrigger Longitudinal span
3970
mm
Drive specification
Front/Rear suspension
1075/1815
mm
Front/rear extend
0/305
mm
Approaching/Departure Angle
19/13
°
Max. Driving Speed
100
km/h
Maximum grade ability
30
%


Configuration


Parts description
HXE5041 JGKJ6 Truck Mounted Aerial Platform
Truck chassis
JMC JX1041TCD26 chassis
Engine
JMC JX4D30B6H, Engine power: 85KW
Cab
JMC National VI CAB，Fit 2 passages(including driver)
Work platform configuration
working platform dimension:1380x700x1100mm
Boom type
4-section polygon synchronous telescopic boom
Slewing type
360 ° continuous rotation
Frame
high strength box frame
outrigger
Front V + rear H outrigger, high-strength steel box-type outrigger, built-in pipeline
Operation
Chassis equipped with a five-handle hydraulic valve group, and the outriggers are fully hydraulical
driven both horizontally and vertically.
The truck above chassis is equipped with a load-sensitive proportional valve, which can be operated purely manually.

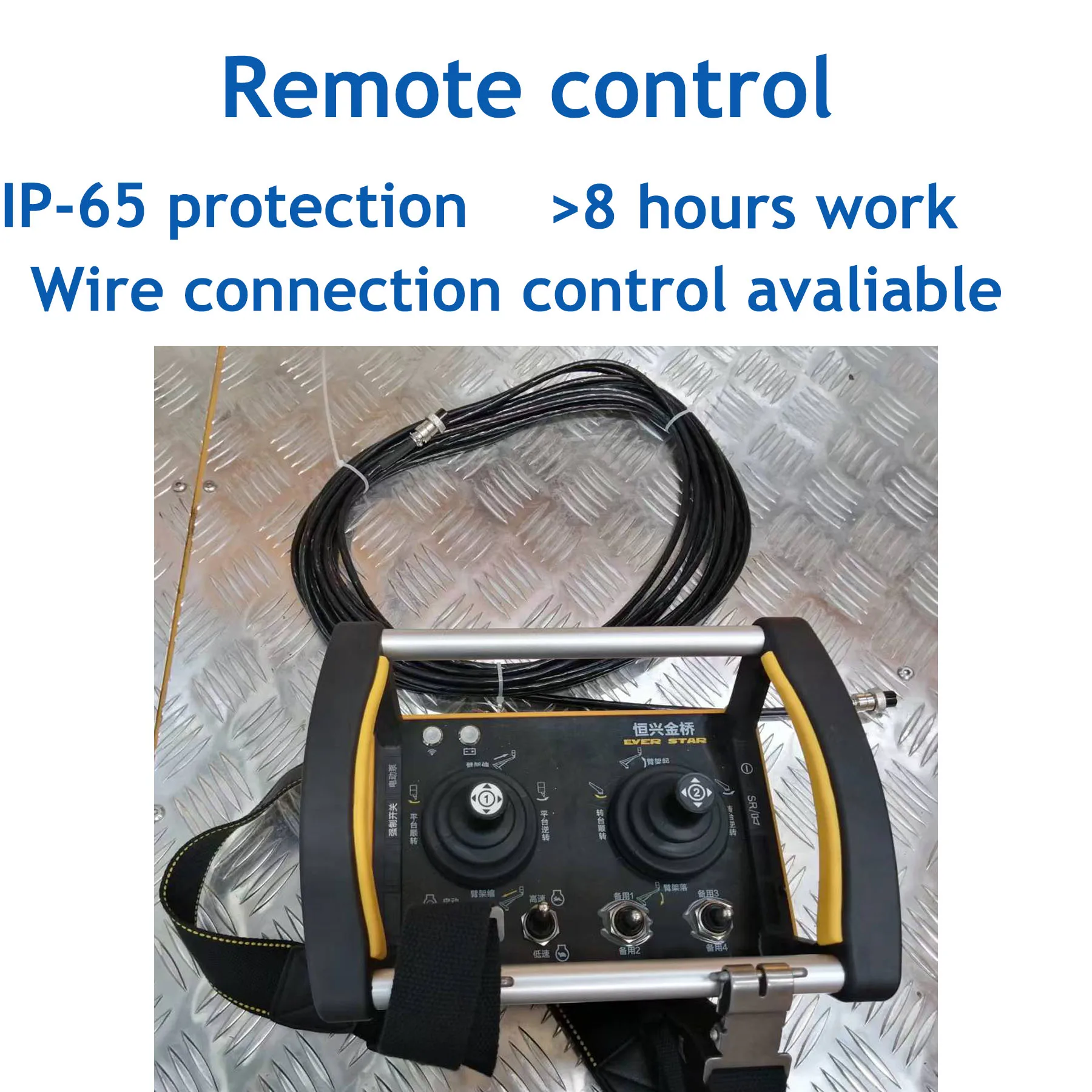

Loading system with wireless handheld remote control,boom luffing, telescoping and slewing can be combined.
Controller
Equipped with intelligent controller and LCD, it can realize amplitude control, automatic throttle, load, amplitude, height
display and other operation information.


Video




Exhibition

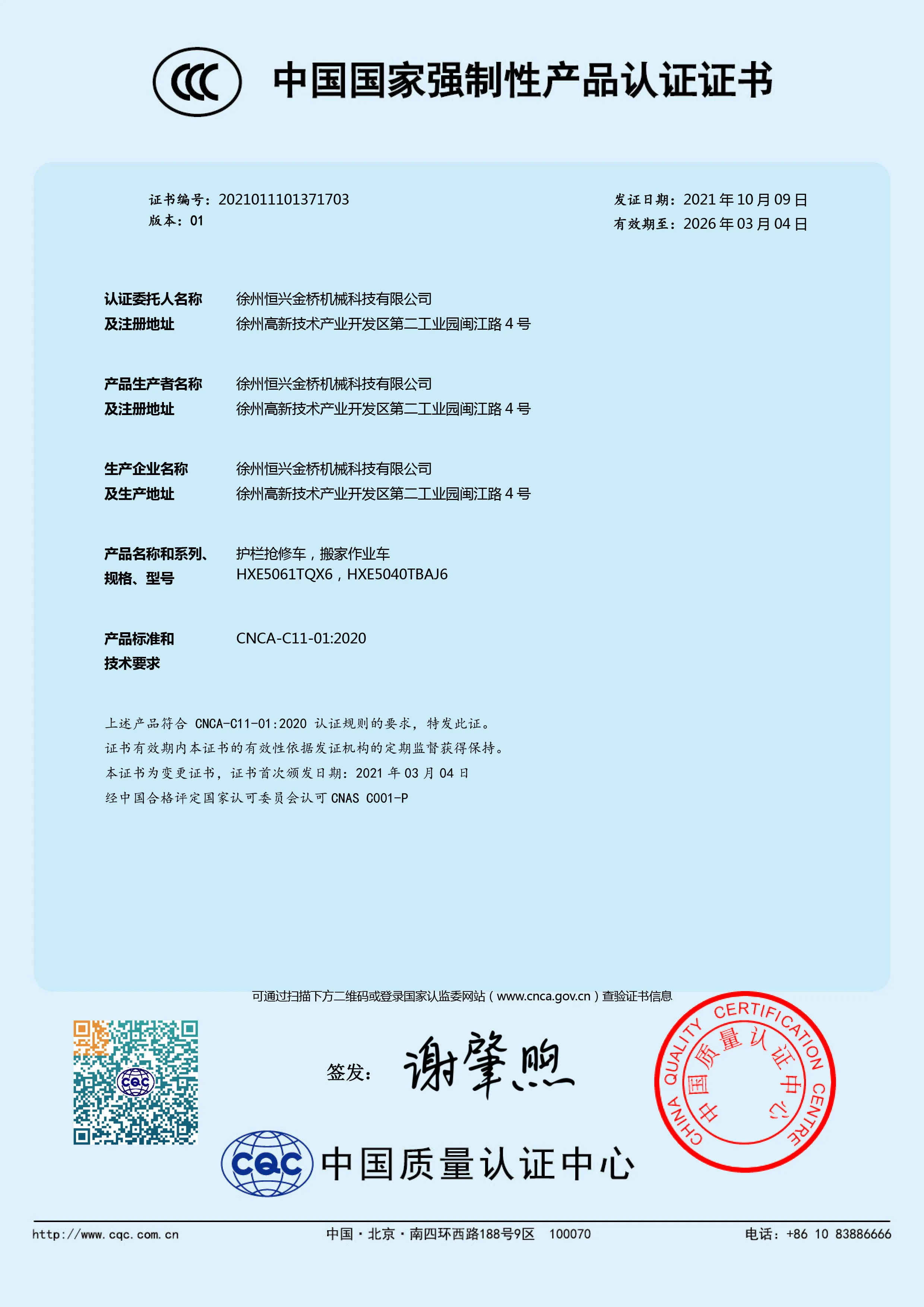

Certifications
