solar tiles china solar panel price panel 1000v photovoltaic pv solar shingles
- Category: >>>
- Supplier: Baoding Jiasheng Photovoltaic Technology Co. Ltd.Baoding Ltd.
Share on (1600876138556):
Product Overview
Description
Recommend Products
Place of Origin:Hebei, China | Brand Name:Gain Solar/ Yingli Solar |
Model Number:JS XXXD-7b (XXX=Pmax) | Glass:low-iron tempered glass / 3.2mm+3.2mm |
Size: 2094mm / 1038mm / 35mm | Panel Efficiency: 10.1%-10.4% |
Certificate:TUV/CE,TUV/IEC61215/IEC61730/ISO | Warranty: 25 years Linner Warranty |
Solar cell: Mono 14 Cell 158.75*158.75mm | Junction Box:IP67 Rated |
Frame: Anodized Aluminium Alloy | Frame Color:Frame Color |
Backsheet: Black and White | Front Glass: Temperd Glass |
Connector: MC4 | Cable: PV 4mm2 |
Cable:800mm / 4mm² / Also can be Customized | OEM Order:Acceptable |
Model Number:JS XXXD-7b (XXX=Pmax) | ||||||||
75W | 70W | |||||||
STC | NOCT | STC | NOCT | |||||
Power output | 75 | 57 | 70 | 53.2 | ||||
Voltage at Pmax | 7.76 | 7.37 | 7.61 | 7.23 | ||||
Current at Pmax | 9.66 | 7.73 | 9.2 | 7.36 | ||||
Open-circuit voltage | 9.33 | 8.85 | 9.21 | 8.74 | ||||
Short-circuit current | 10.2 | 8.21 | 9.71 | 7.82 | ||||
Module efficiency | 14.8%-15.9% | |||||||
Color | Black | |||||||
Power output tolerances ΔPmax | 0-5 | |||||||
Max. system voltage | 1500VDC | |||||||
Max. series fuse rating* | 15A | |||||||
Power Valley International Hotel
Time: 2006
Location: Baoding, Hebei
Capacity: 300KW Installed area:4111㎡
Location: Baoding, Hebei
Capacity: 300KW Installed area:4111㎡
Gain Solar Office Building
Time: 2007
Location: Baoding, Hebei
Capacity: 26KW Installed area:945㎡
Location: Baoding, Hebei
Capacity: 26KW Installed area:945㎡
Yingli PV Exhibition
Time: 2010
Location: Baoding, Hebei
Capacity: 40KW
Installed area:544㎡
BIPV Fire Station
Time: 2010
Location: Baoding, Hebei
Capacity: 250KW Installed area:2650㎡
Location: Baoding, Hebei
Capacity: 250KW Installed area:2650㎡
Yingli HQ Noisy Barriers
Time: 2011
Location: Baoding, Hebei
Capacity: 90KW Installed area:1100㎡
Location: Baoding, Hebei
Capacity: 90KW Installed area:1100㎡
State Key Laboratory of Photovoltaic Materials and Technology
Time: 2010
Location: Baoding, Hebei
Capacity: 1.4MW Installed area:11618㎡
Location: Baoding, Hebei
Capacity: 1.4MW Installed area:11618㎡
Power Valley Low-Carbon Park
Time: 2014
Location: Baoding, Hebei
Capacity: 2.39MW Installed area:27692㎡
Location: Baoding, Hebei
Capacity: 2.39MW Installed area:27692㎡
Yuangsheng Power Valley Square
Time: 2014
Location: Baoding, Hebei
Capacity: 400KW Installed area:5114㎡
Location: Baoding, Hebei
Capacity: 400KW Installed area:5114㎡
Seoul Noisy Barrier
Time: 2017
Location: Seoul, South Korea
Capacity: 30KW Installed area:214㎡
Location: Seoul, South Korea
Capacity: 30KW Installed area:214㎡
Photovoltaic+ Passive Intelligent Demonstration Building
Time: 2018
Location: Baoding, Hebei
Capacity: 100 KW Installed area:728㎡
Location: Baoding, Hebei
Capacity: 100 KW Installed area:728㎡
Hefei Gongjie Office Building
Time: 2020
Location: Hefei,Anhui
Capacity: 140KW Installed area:1400㎡
Location: Hefei,Anhui
Capacity: 140KW Installed area:1400㎡
Green Smart Ecological Town
Time: 2020
Location: Baoding, Hebei
Capacity: 45 KW Installed area:350㎡
Location: Baoding, Hebei
Capacity: 45 KW Installed area:350㎡
Company Strength
Certifications
Up to now, our company's BIPV and solar modules have obtained lots of certification, such as:
☑ CE:CONFORMITE EUROPEENNE
☑ ISO9001, ISO14001, ISO45001
☑ CCC: China Compulsory Certification
☑ TUV:TUV Rheinland.
☑ CGC:China General certification.etc.
☑ ISO9001, ISO14001, ISO45001
☑ CCC: China Compulsory Certification
☑ TUV:TUV Rheinland.
☑ CGC:China General certification.etc.
Company Profile
BAODING JIASHENG PHOTOVOLTAIC TECHNOLOGY Co.,LTD. (Hereby"GAIN SOLAR").
Wholly subsidiary of Yingli Group
More than 20 years of PV Production and 3 world-leading R&D facilities in the US Spain and China
No.1 Patents and authorizations QTY in PV industry
2389 patents and 13 PCT international patents application till now
2073 Granted patents
693 invention patents
TUV Rheinland in Europe, UL in North America and Inmetro in Brazil
One-stop solution
Wholly subsidiary of Yingli Group
More than 20 years of PV Production and 3 world-leading R&D facilities in the US Spain and China
No.1 Patents and authorizations QTY in PV industry
2389 patents and 13 PCT international patents application till now
2073 Granted patents
693 invention patents
TUV Rheinland in Europe, UL in North America and Inmetro in Brazil
One-stop solution
Why Choose Us

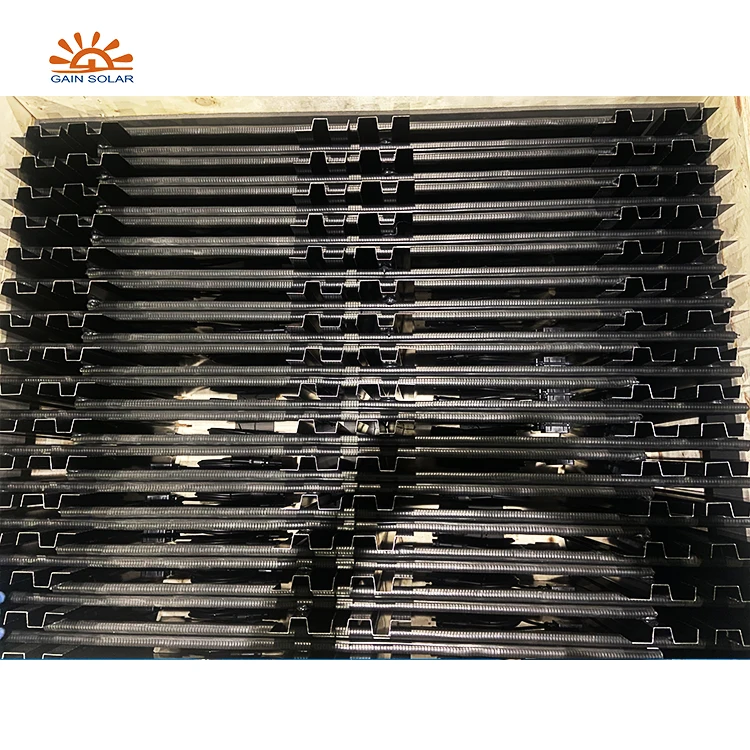

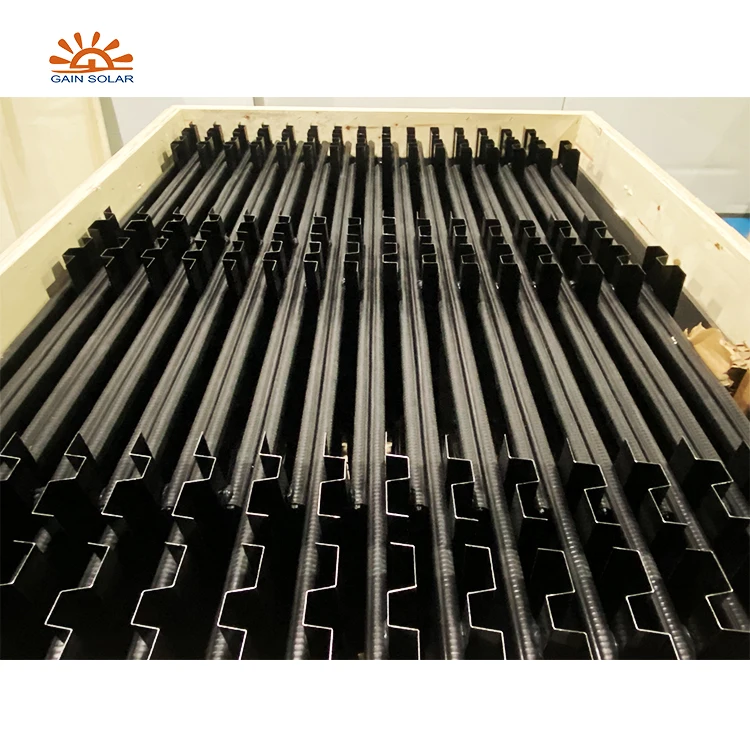

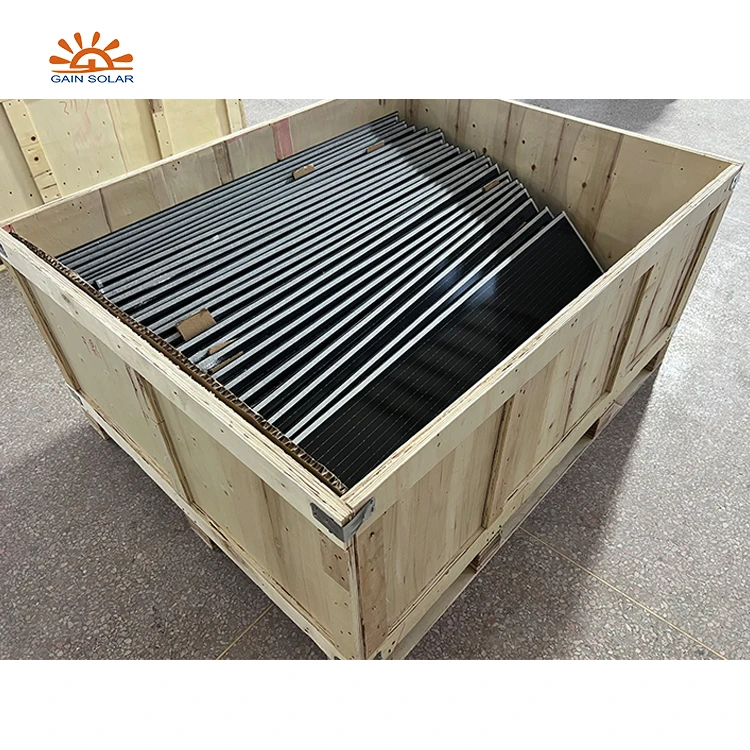

Product packaging
payment
Payment Term | T/T | EXW | 30% T/T in advance,Balance payment before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, Balance payment against copy of BL | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Eest Union | Amount lower than 5000usd | ||||
Eest Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
