Flexible Industrial Video Endoscope Camera with 6mm Probe, 2Mts Testing Cable, 360 Degree Joystick Articulation

Model

SZH602J

Diameter

6mm

Pixels

1MP

DOF

10-200mm  /15~infinity

FOV

70-140°Side view/front view/dual lens

Light

Optical fiber Light + LED Light

Illuminance

More than 12000 LUX

Articulation

360 Degree all way joystick rotation

Probe Length

Standard 1.5m cable, others can be customized.

Working Temperature

-30℃ ~80℃

Display

5.2’’ IPS Touch Screen, resolution 1024x768

Display Size

360*160*60mm

Storage

Standard 32G

Interface

Type-C (data interface)/USB2.0 (U disk, keyboard or mouse)/HDMI (external display)/3.5mm earphone/power supply DC (8.4V~12V/2A)

Battery

rechargeable lithium battery pack; available charged online, battery working time≥4 hours Battery: 8.4V/6800mAh

IP Level

Main Unit IP55, Insertion Tube IP65

Relative humidity

Max90%,no condensation

Operation System

Android smart operating system

Operation Method

Full touch screen and operation keys

File Management

Picture-in-picture display on the same screen, take photo, recording video,dynamic browsing, screen freeze, image zoom, screen rotation, file renaming, text annotation,Negatives, photo editing, graffiti annotation

Image/video Format

JPEG(JPG)/MP4

System Language

Chinese, English

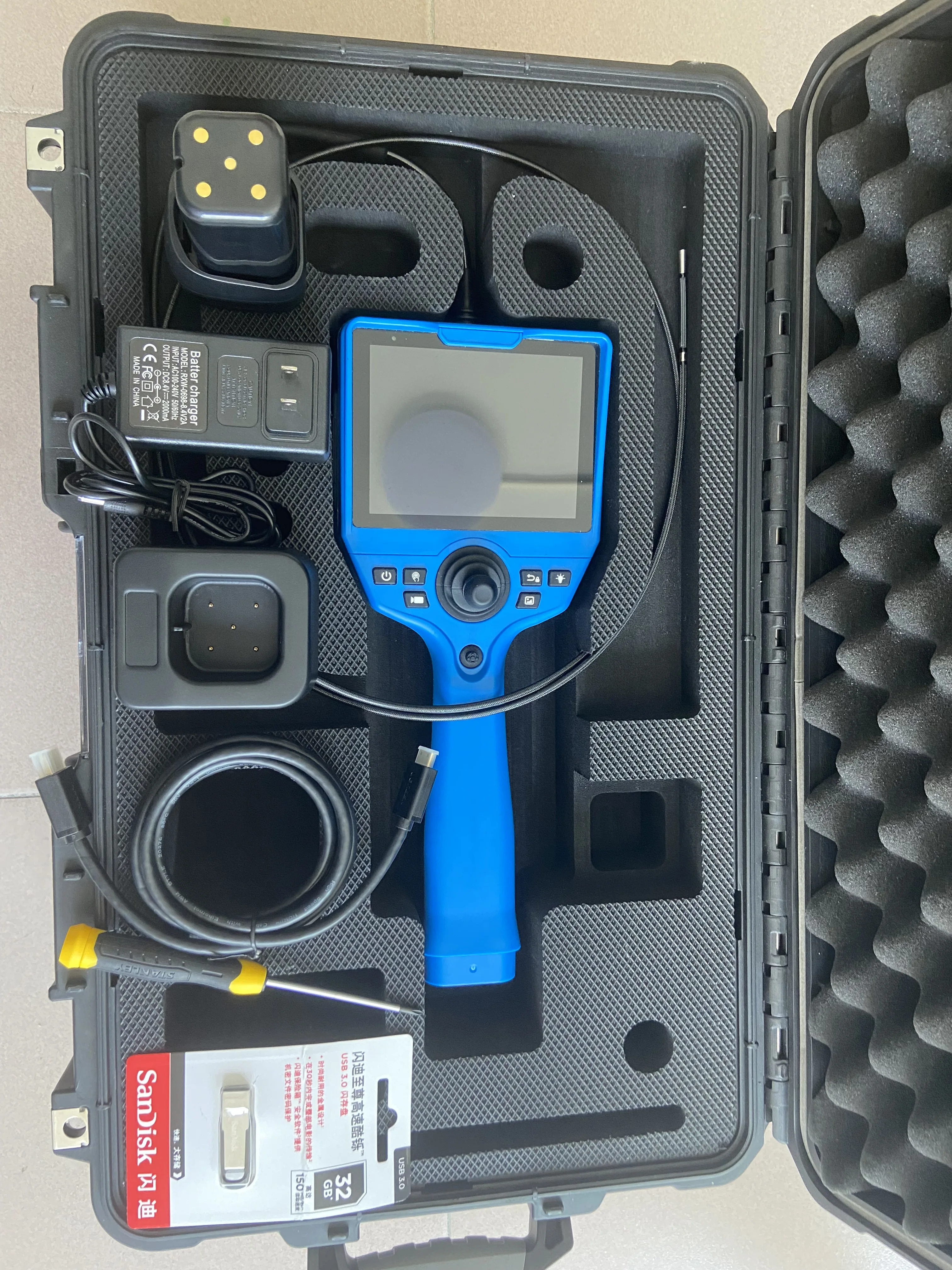

Items

Specifications

Qty

Unit

1

Borescope host

1

pcs

2

probe

1

pcs

3

Lithum battery(18650)

2

pcs

4

Power adapter

1

pcs

5

Card reader

1

pcs

6

Micro sd card(32G)

1

set

7

Micro USB cable

1

pcs

8

HDMI cable

1

pcs

9

Instruction manual

1

pcs
