5L 10L 20L 30L 50L 100L Single Layer Glass Reactor Chemical Reactor with Heating Coil
- Category: >>>
- Supplier: Henan Baize Instrument Co. Ltd.
Share on (1600876147607):
Product Overview
Description
Products Description

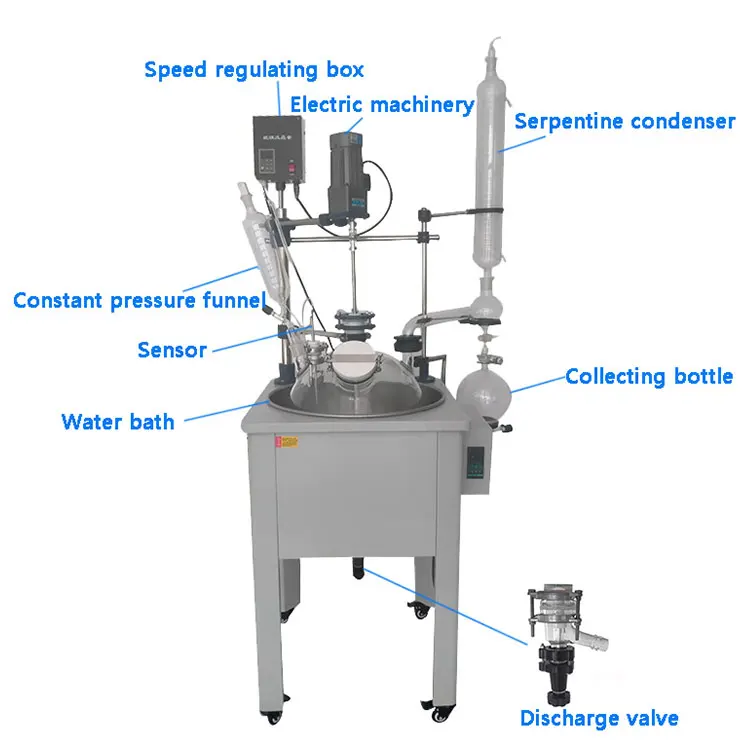

Single glass reactor inner placed reaction solvent which can be stirred, interlayer can be filled with cold or hot liquid(frozen
liquid, water, gas or hot oil) to do the thermostatic heating/cooling reaction, single layer glass reaction kettle is heated by
computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological
pharmaceuticals and making new materials, used for preparation experiment and production equipment.
liquid, water, gas or hot oil) to do the thermostatic heating/cooling reaction, single layer glass reaction kettle is heated by
computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological
pharmaceuticals and making new materials, used for preparation experiment and production equipment.

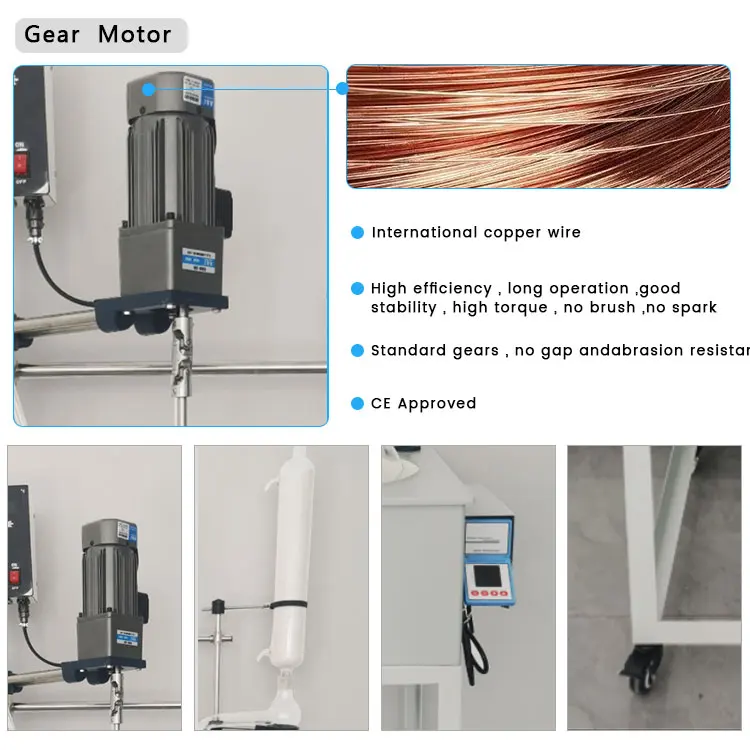

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful
Our Advantages
Why Choose Us
High borosilicate glass
Adopting high-tech firing methods, high borosilicate glass has stable chemical properties, high strength, high hardness, and high transmittance. High and low temperature conversion is not prone to cracking, and low-quality products have been phased out for safer use.
Various stirrers
Stirrer material is 316L stainless steel wrapped with PTFE coat, which has high corrosion resistant performance. (316L stainless steel material optional) Stirring blade can be customized. We also provide various blade shape for your reference.

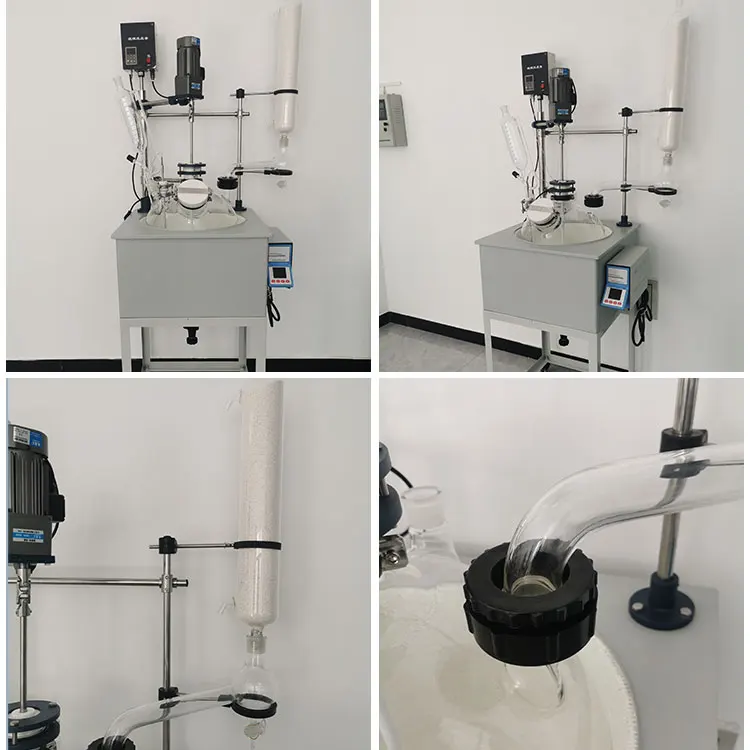

Details Images
Model | DF-1L | DF-2L | DF-3L | DF-5L | |||
Reactor capacity (L) | 1 | 2 | 3 | 5 | |||
Constent pressure funnel (ml) | 500 | 500 | 500 | 500 | |||
Stirring power (W) | 40 | 60 | 60 | 90 | |||
Without Ex- proof Motor | |||||||
Stirring speed (rpm) | 60 - 1000 | ||||||
Dia. Stirring Paddle (mm) | 7 | ||||||
Power (KW) | 1 | 1 | 1.5 | 1.5 | |||
Discharge valve | PDFE Discharge valve | ||||||
Vacuum degree | 0.098Mpa | ||||||
Stirring Rod | Stainless steel inside and PDEF outside | ||||||
Voltage ( V / Hz ) | 220V/50Hz | ||||||
Discharge valve | PTFE ( Teflon ) Bottom Discharge Valve | ||||||
Size | 360*300*900 | 390*330*1000 | |||||
