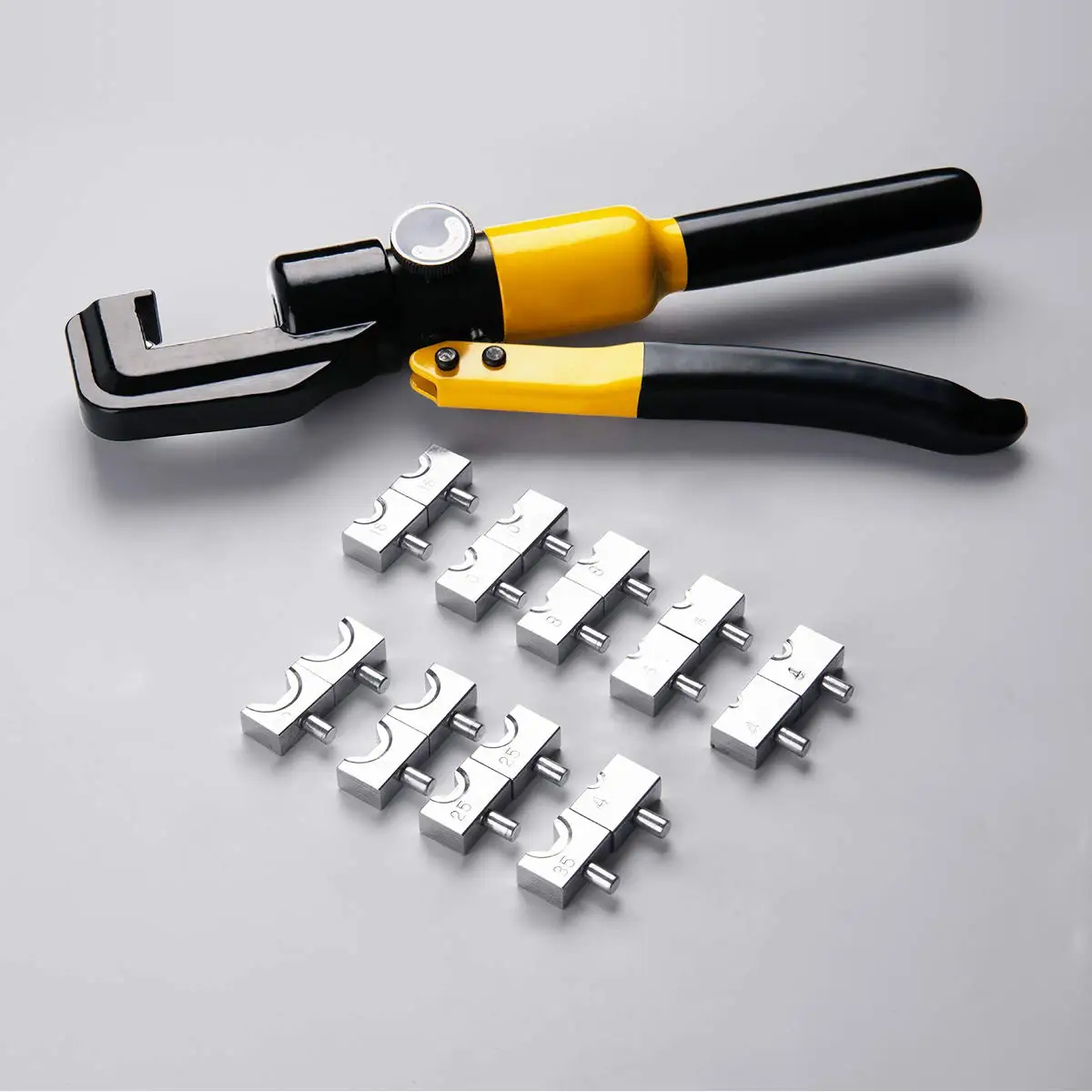

10 Tons Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool With 9 Pairs of Dies
- Category: >>>
- Supplier: Yueqing Baym Electric Co. Ltd.
Share on (1600876167672):
Product Overview
Description

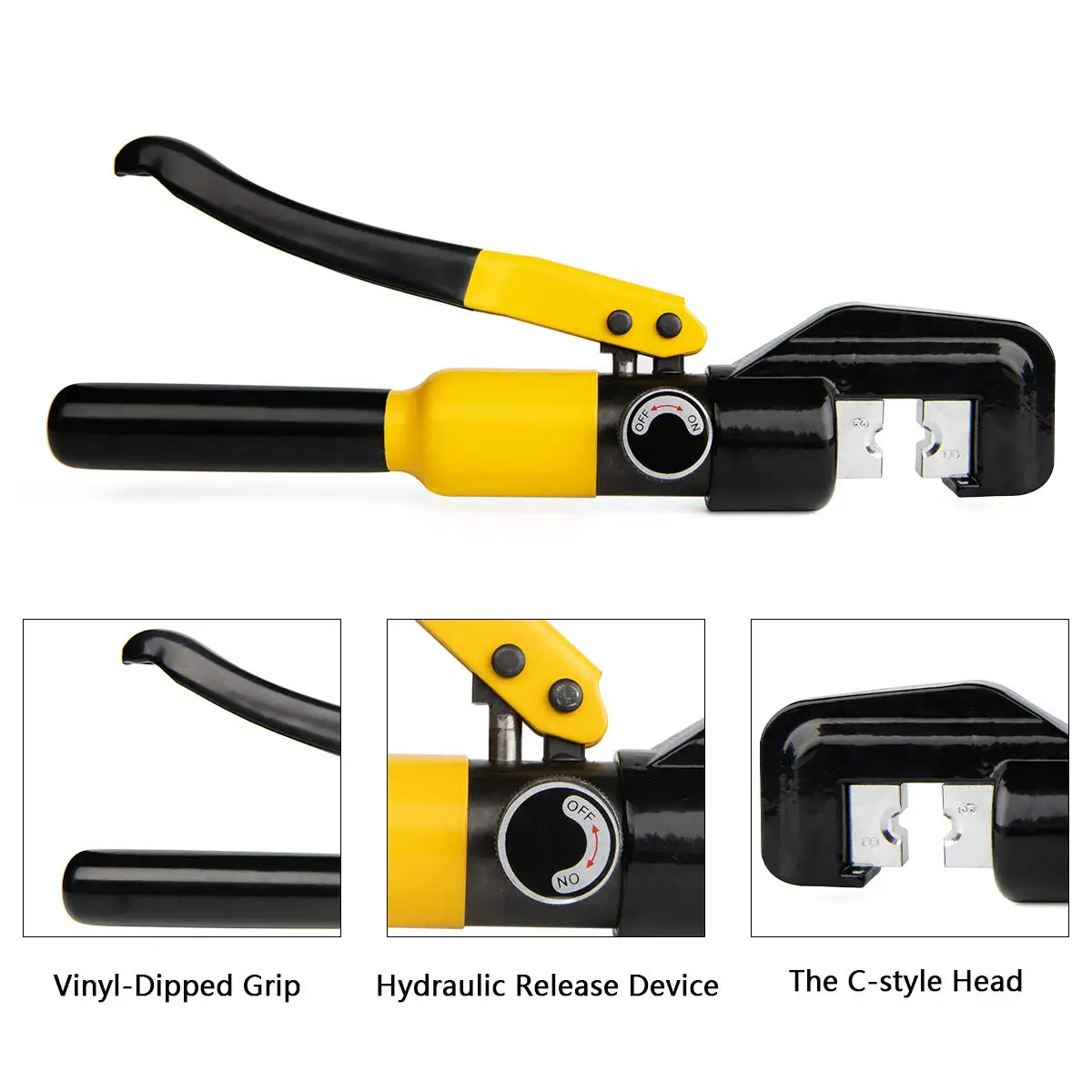

* Professional tool to attach lugs to the ends of heavy duty power cables and wires. The C-style head makes side entry easy to
access and operate. Crimps 12 AWG to 2/0 AWG size copper and aluminum wires.

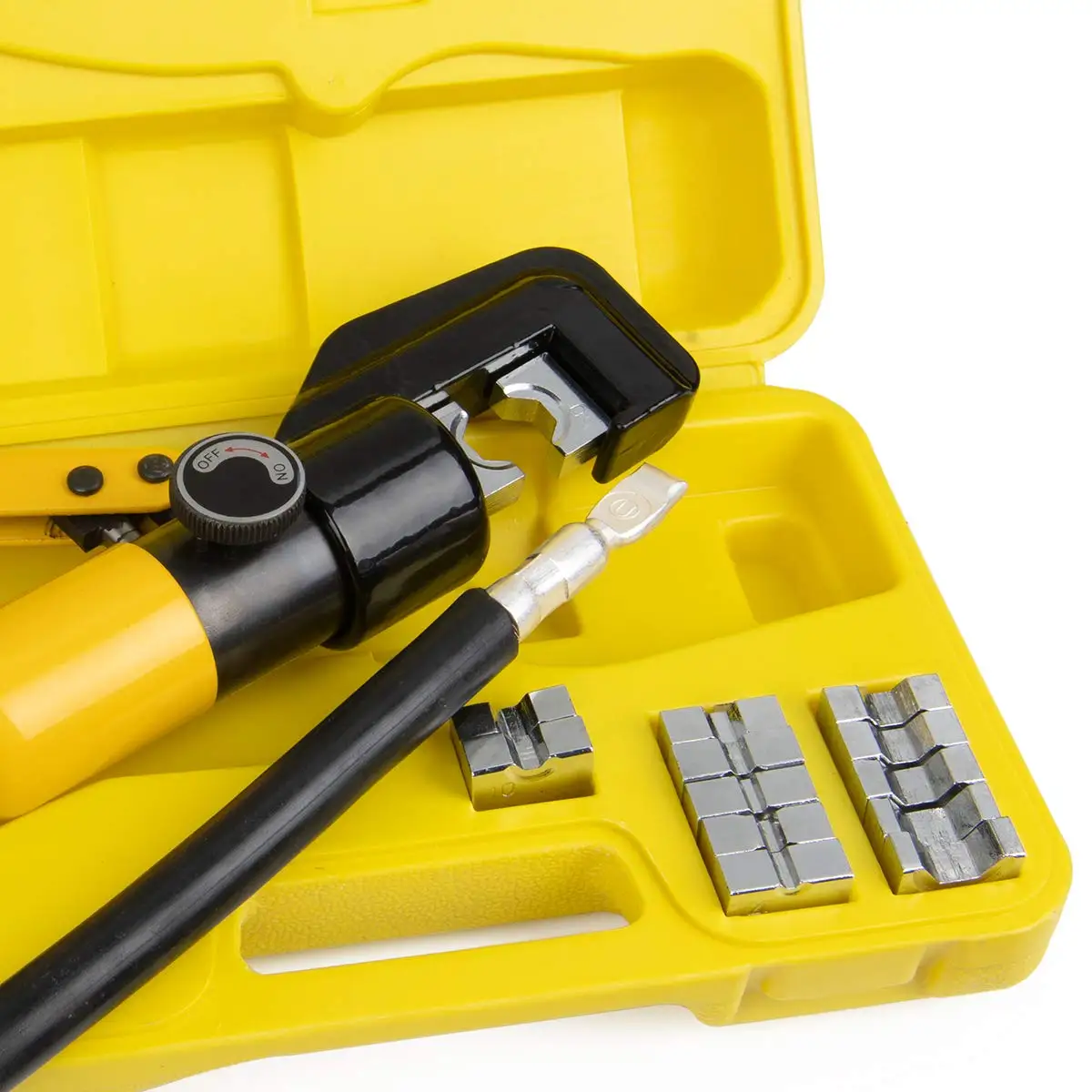

* Crimping range is from 4 to 70 mm2. Maximum crimping power 10 tons. Vinyl-dipped grip for comfort and easy control. A carrying
case is included to sort of all necessary parts
* Easy operation and easy to change the dies. On-Off control for speedy operations
* Package includes: 1x Hydraulic Crimper; 9 pairs of hexagon dies: a Hydraulic Crimping Tool Instruction.
access and operate. Crimps 12 AWG to 2/0 AWG size copper and aluminum wires.
* Crimping range is from 4 to 70 mm2. Maximum crimping power 10 tons. Vinyl-dipped grip for comfort and easy control. A carrying
case is included to sort of all necessary parts
* Easy operation and easy to change the dies. On-Off control for speedy operations
* Package includes: 1x Hydraulic Crimper; 9 pairs of hexagon dies: a Hydraulic Crimping Tool Instruction.
Specification
Material: #45 steel + PPE(Handle)
Size of Crimper : 30*6*5cm/ 11.8*2.36*2in
Crimping range:12-2/0 AWG/ 4-70mm²
Setting levels: AWG: 2/0, 1, 2, 4, 6, 8, 9, 10, 12

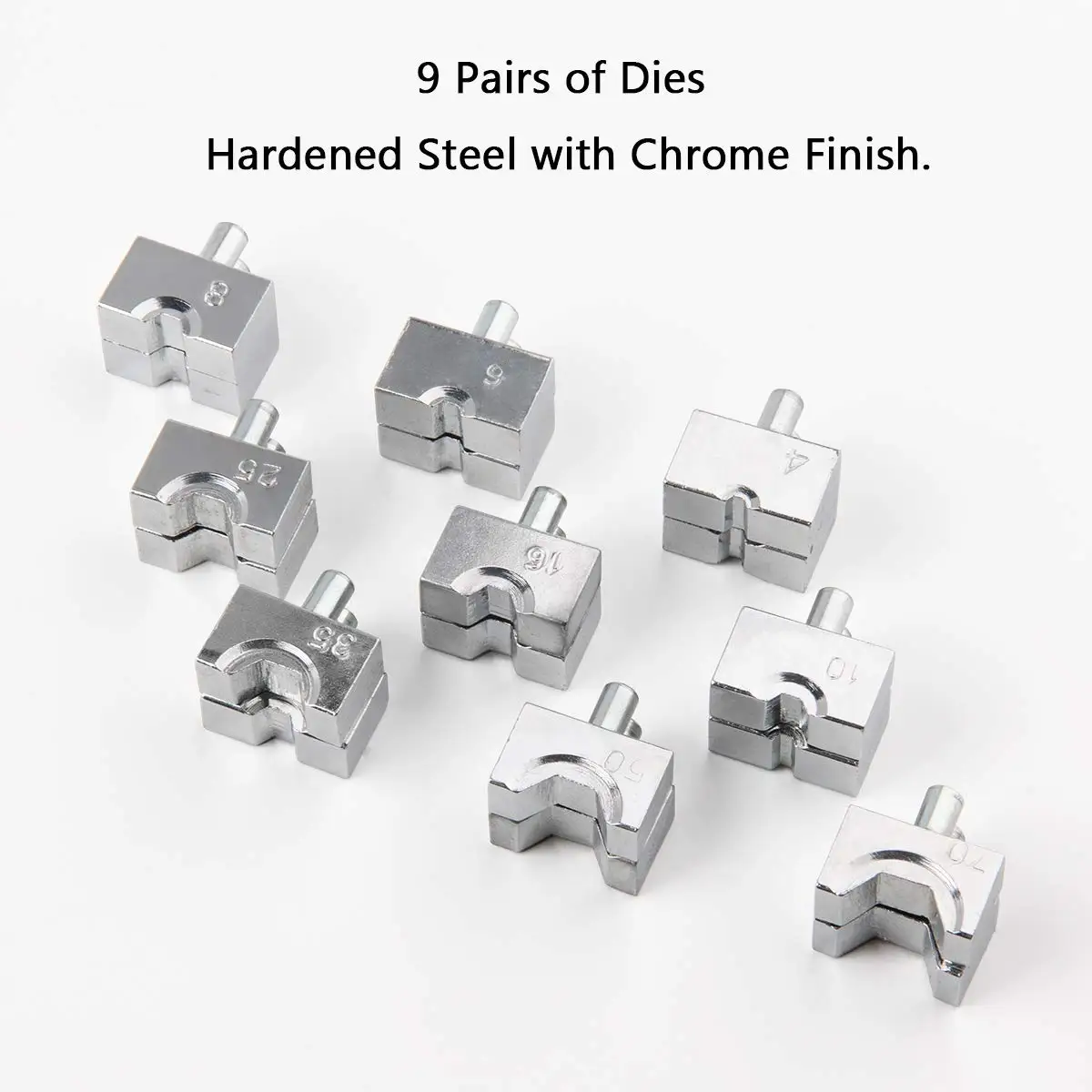

Die: 70, 50, 35, 25, 16, 10, 8, 6, 4

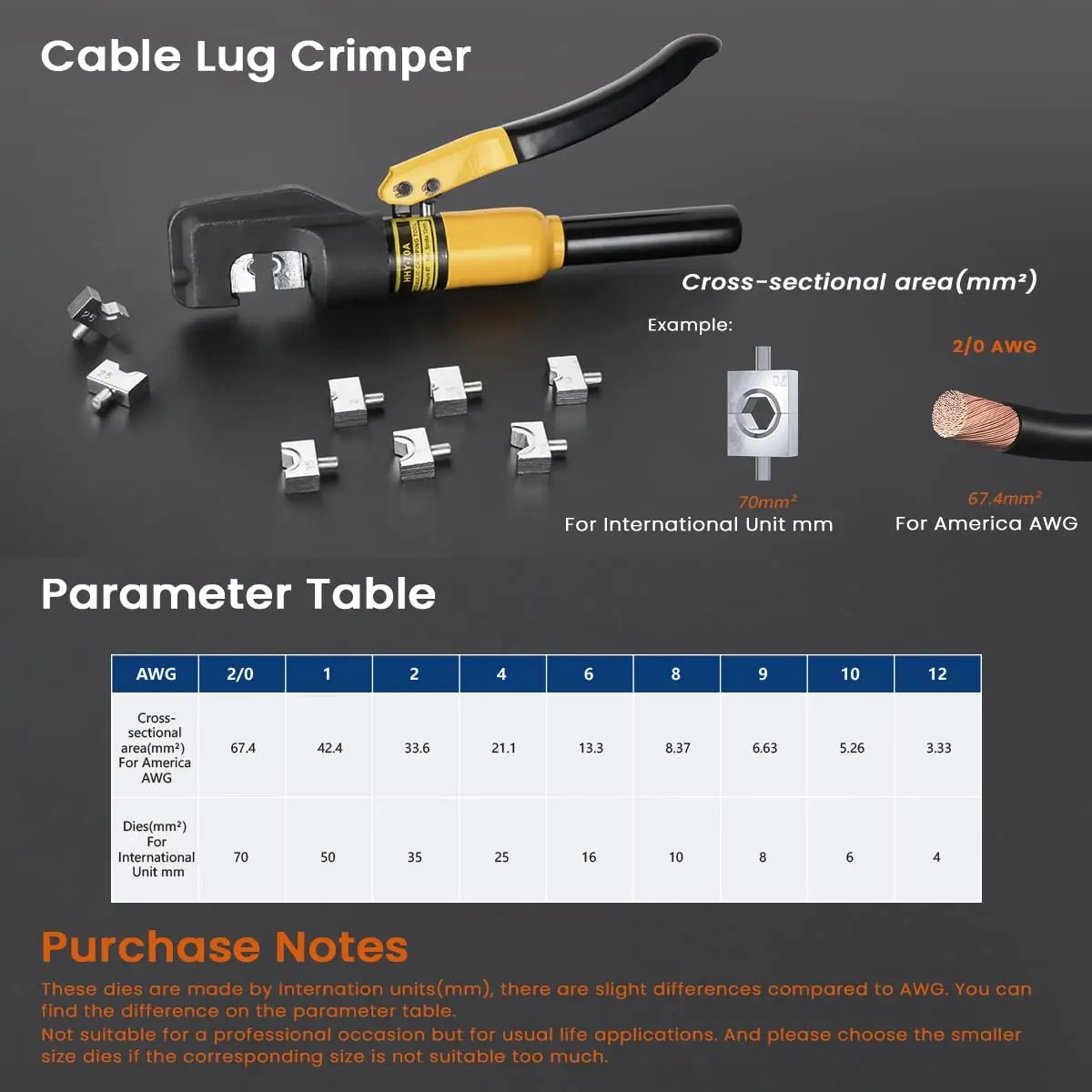

Size Chart
1. 4 mm² = 12 AWG
2. 6 mm² = 10 AWG
3. 8 mm² = 9 AWG
4. 10 mm² = 8 AWG
5. 16 mm² = 6 AWG
6. 25 mm² = 4 AWG
7. 35 mm² = 2 AWG
8. 50mm² = 1 AWG
9. 70mm² = 2/0 AWG
Material: #45 steel + PPE(Handle)
Size of Crimper : 30*6*5cm/ 11.8*2.36*2in
Crimping range:12-2/0 AWG/ 4-70mm²
Setting levels: AWG: 2/0, 1, 2, 4, 6, 8, 9, 10, 12
Die: 70, 50, 35, 25, 16, 10, 8, 6, 4
Size Chart
1. 4 mm² = 12 AWG
2. 6 mm² = 10 AWG
3. 8 mm² = 9 AWG
4. 10 mm² = 8 AWG
5. 16 mm² = 6 AWG
6. 25 mm² = 4 AWG
7. 35 mm² = 2 AWG
8. 50mm² = 1 AWG
9. 70mm² = 2/0 AWG
Using Guide - Easy to crimp
Step 1: Please confirm the pressed terminals match the cable specifications.
Step 2: Select the pressing die to match the crimping terminal and tight the dies with the crimper.
Step 3: Put the connecting terminal into the tool head, operate the movable handle and start pressing.
Step 4: Loosen the oil return switch and the piston is automatically reset.
Step 2: Select the pressing die to match the crimping terminal and tight the dies with the crimper.
Step 3: Put the connecting terminal into the tool head, operate the movable handle and start pressing.
Step 4: Loosen the oil return switch and the piston is automatically reset.
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
