T Box 2 in 1 GPS 4G Car Antenna Car Telematics Antenna with Fakra Connector IoV T BOX Antenna
T-Box 2-in-1 GPS 4G Car Antenna Car Telematics Antenna with Fakra Connector IoV T-BOX Antenna
T-Box 2-in-1 GPS 4G Car Antenna Car Telematics Antenna with Fakra Connector IoV T-BOX Antenna
T-Box 2-in-1 GPS 4G Car Antenna Car Telematics Antenna with Fakra Connector IoV T-BOX Antenna
T-Box 2-in-1 GPS 4G Car Antenna Car Telematics Antenna with Fakra Connector IoV T-BOX Antenna
T-Box 2-in-1 GPS 4G Car Antenna Car Telematics Antenna with Fakra Connector IoV T-BOX Antenna

T Box 2 in 1 GPS 4G Car Antenna Car Telematics Antenna with Fakra Connector IoV T BOX Antenna

Share on (1600876243135):


Price:$2.30 - $3.00

Quantity:


Product Overview

Description

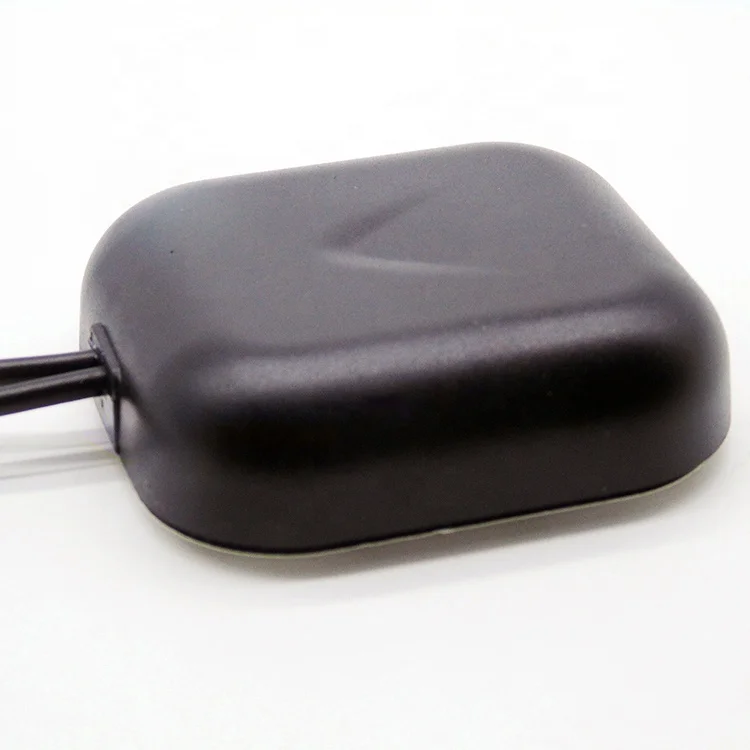

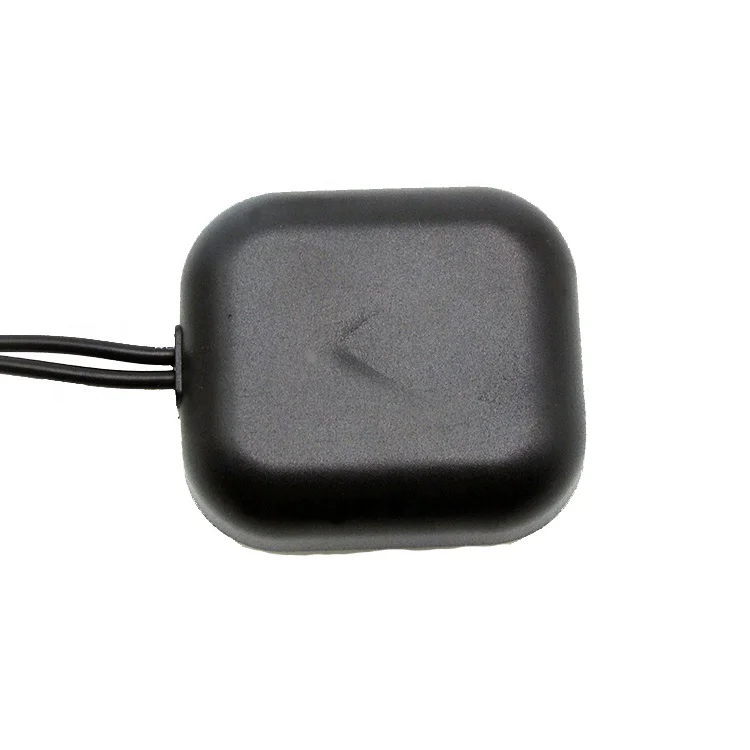

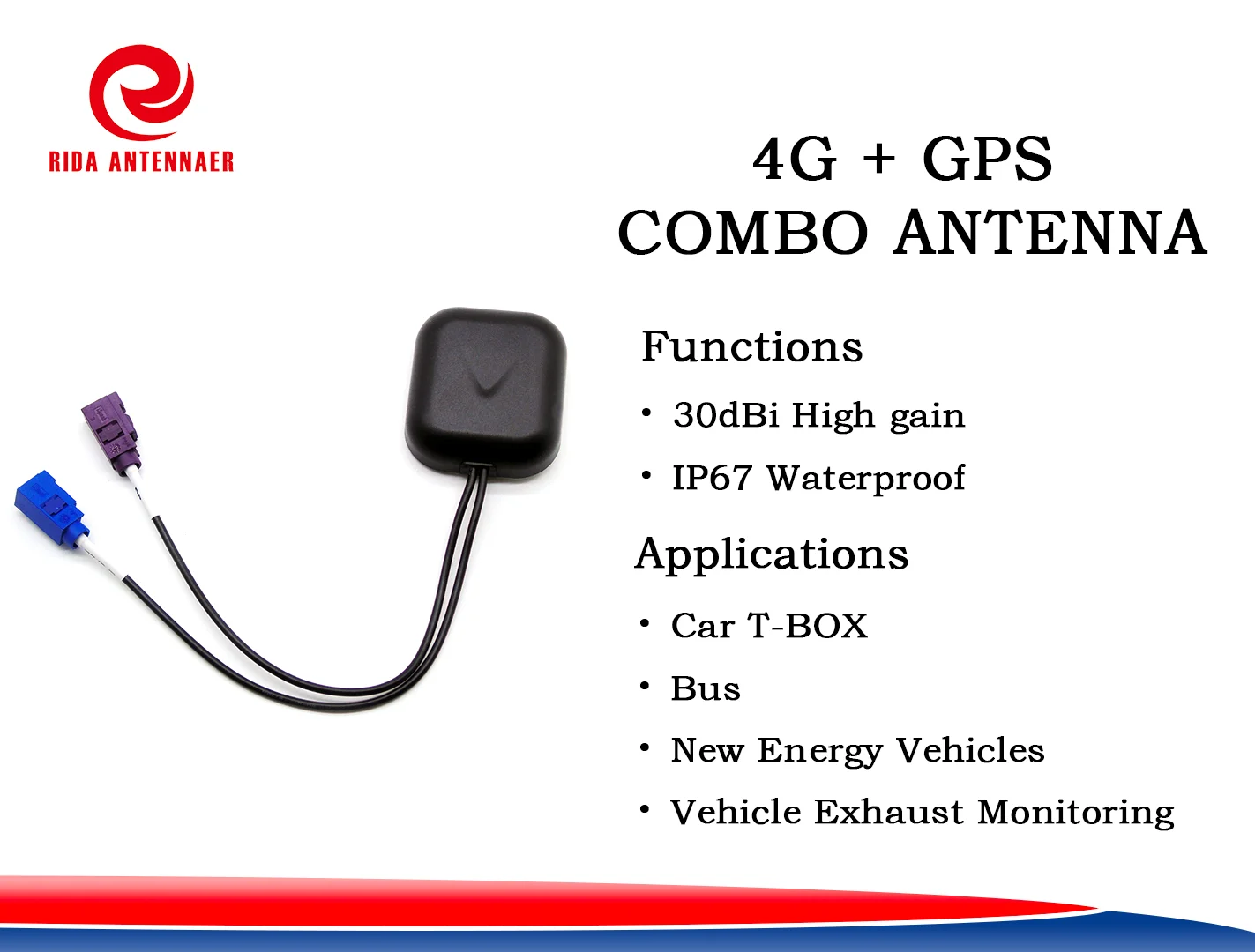

T-Box 2-in-1 GPS 4G Car Antenna Car Telematics Antenna with Fakra Connector
Customization scope：Antenna Performance,Appearance style, Appearance color, Cable length, Connector type
Click here tell me your needs ， We customize the antenna for you !




Products Description






Product Parameters & Customizable Range


GPS Antenna
Dielectric Antenna
Center Frequency
1575.42±1MHz
Band Width
CF±5MHz
Polarization
RHCP
Gain
3dBic
V.S.W.R
<2.0
Impendance
50Ω
Axial Ratio
3dB
LNA
Gain
28±2dB
Noise Figure
<1.5
V.S.W.R
<2.0
Supply Voltage
3~6V DC
Current Consumption
<10mA
GSM Antenna
Frequency Range
824-960MHz/1710-2696MHz
V.S.W.R
<2.0
Polarization
Linear
Gain
3.0dBi
Impendance
50Ω
Mechanical
Cable
RG174
Connector

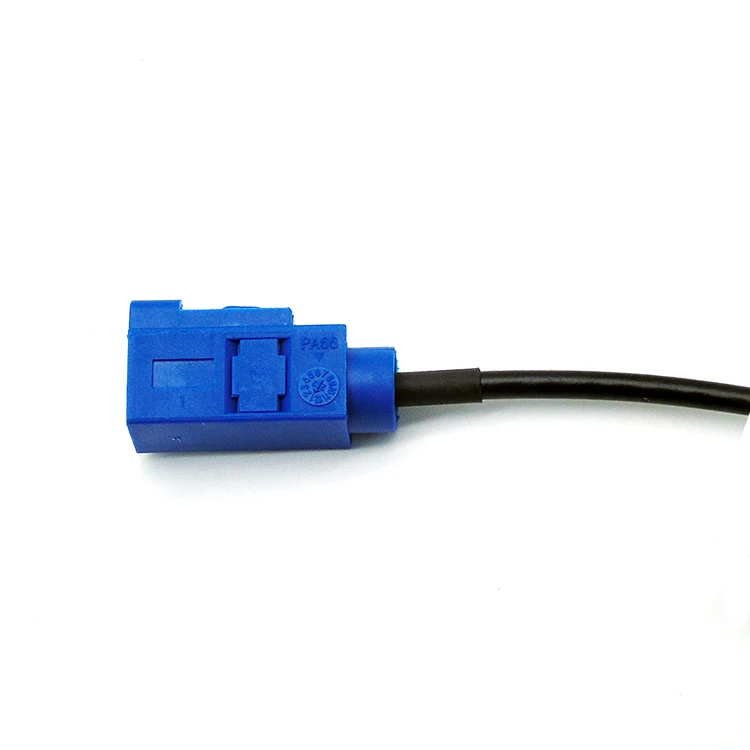

FAKRA/SMA/MCX or others
Material
ABS
Mounting Method

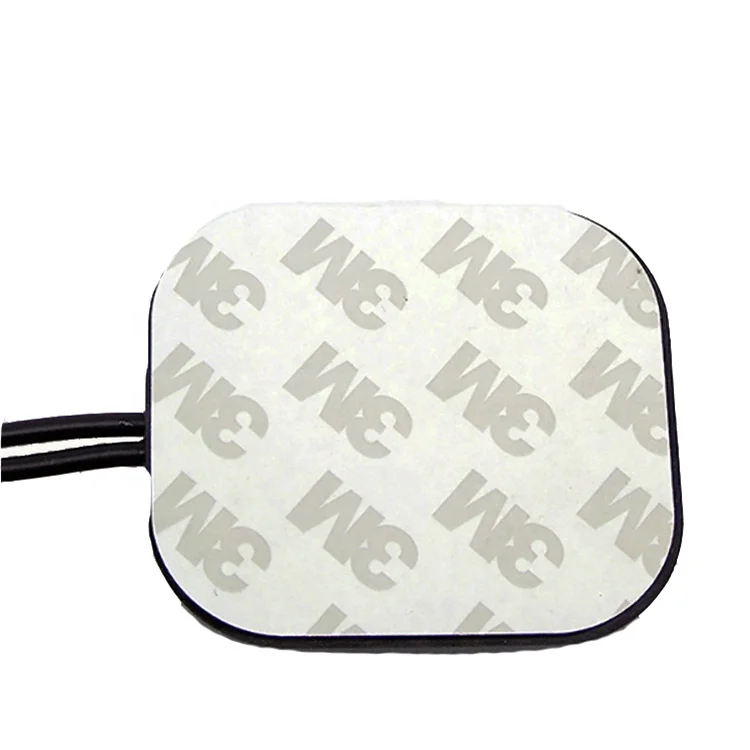

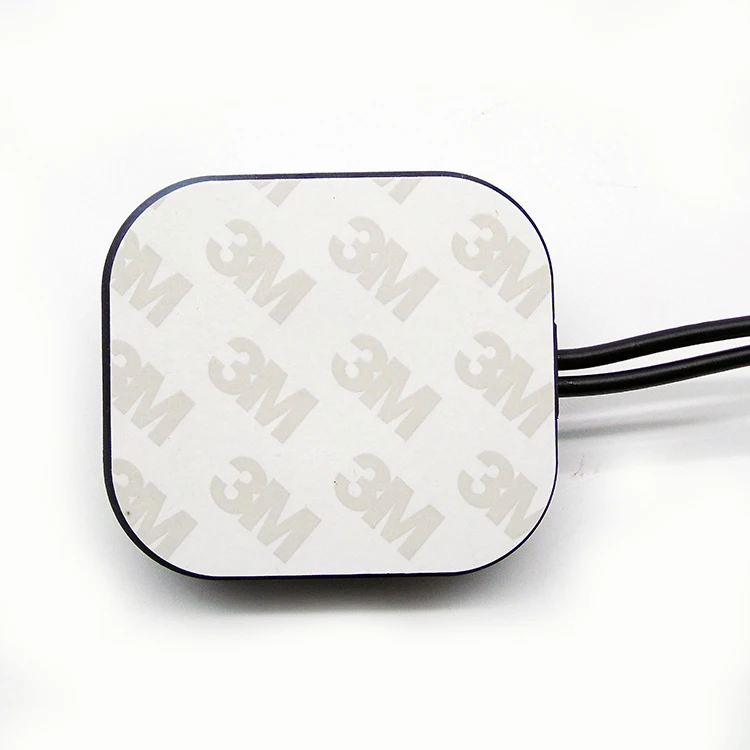

Magnetic/Adhesive
Environmental
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 95%
Ingress Protection
IP67
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant








Company Profile

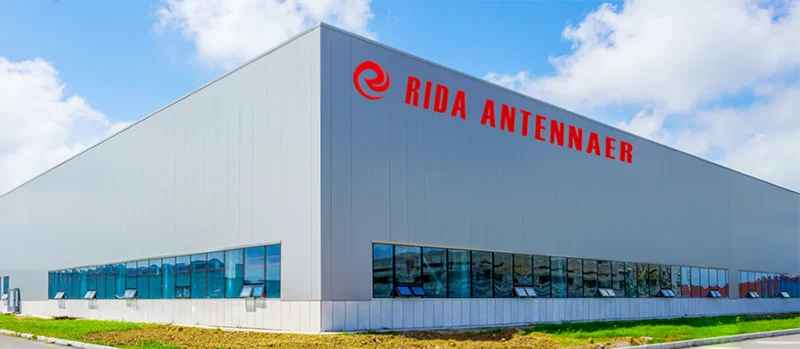

Shenzhen Ruida Yongli Technology Co., Ltd.（RIDA Antennaer） has focused on producing high quality antennas for 11 years, won the national high-tech enterprise certificate, and has a number of antenna patents.Our main products are GNSS/GPS/ GLONASS positioning antennas, WIFI/GSM/5G/4G communication antennas, combo antennas, and the connectors used for them.

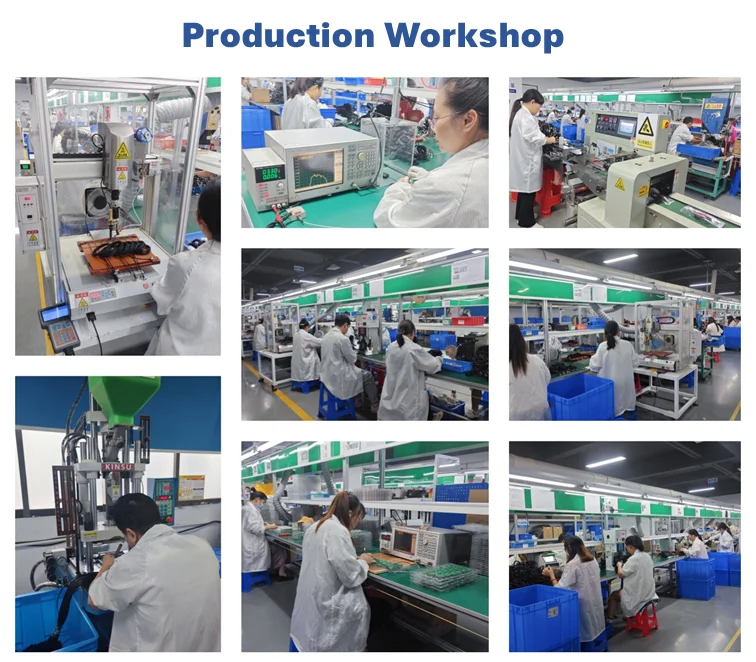

We have professional antenna lab and antenna production plant to ensure our customers' OEM & ODM needs and are recognized by overseas customers. The annual production capacity is over 5,000,000 antennas per year.
Company address is located in plant B301, No.5 South Tongle Avenue, Tongle Community, Baolong Street, Longgang District,Shenzhen, covering an area of 4000 ㎡.






Why Choose Us






From consultation to after-sales, we have professional antenna engineers to solve your problems throughout the whole process. And we have a one year warranty and can repair for the whole life.




So far, we have many patents, and we were awarded as a high-tech enterprise by Shenzhen in 2021.
We have passed IATF 16949, ISO9001 certification. And our products meet the requirements of CE, ROHS, RED, REACH, WEEE certification.






We have more than 100 partners and our business covers automotive positioning and navigation, communication towers, drones and industrial robots, industrial mapping, and high precision positioning.




Payment & Shipping & Packaging & Warehouse

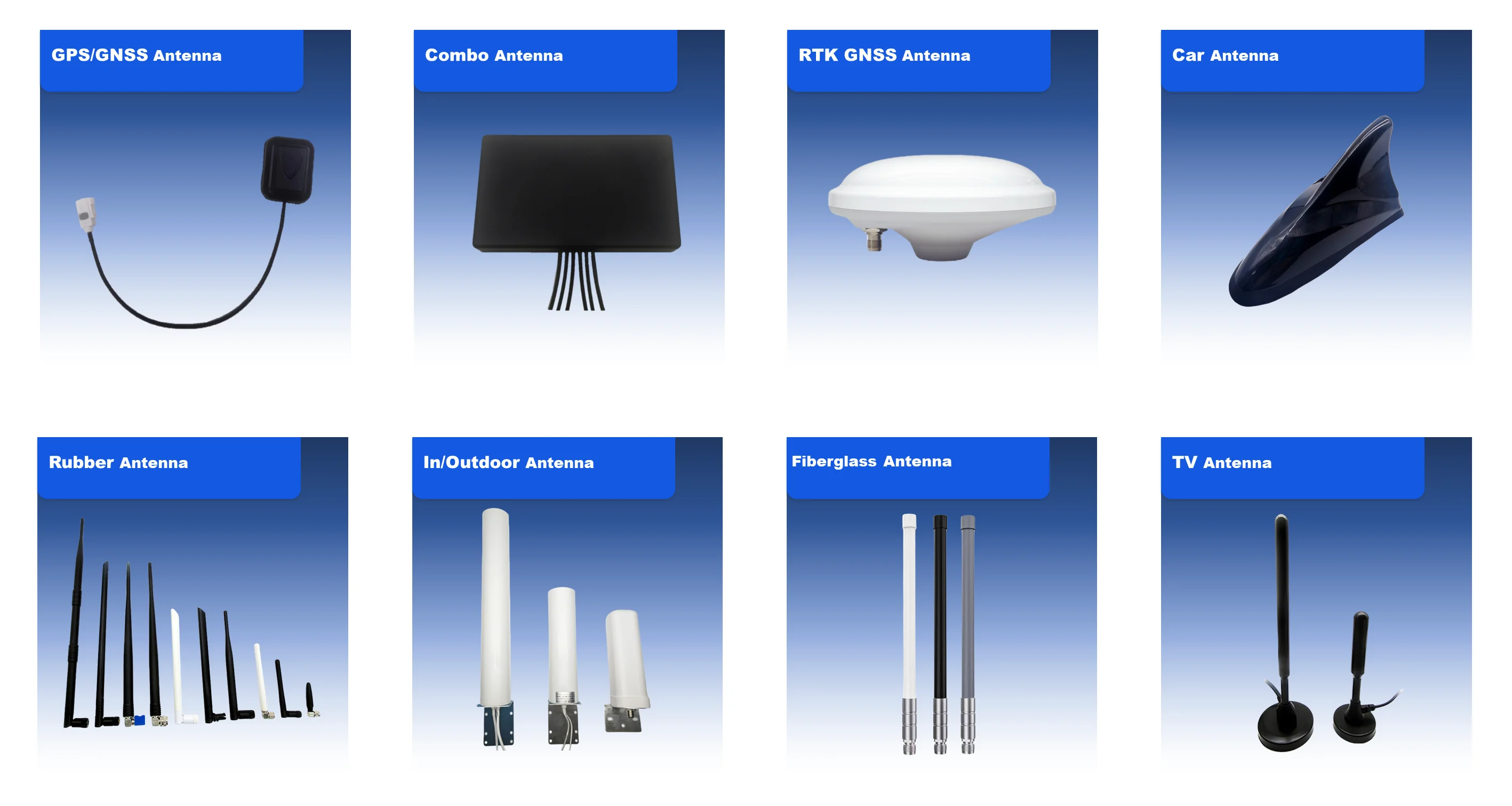

More Product




FAQ


Q1: Can I get one sample?
A: Yes, sample is for free.

Q2: Are you a manufacturer or a trading company?
A: We have our own factory, not a trading company or cooperative factory, and we have been manufacturing antennas for over 10 years.

Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.

Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days

Q5: Are all your antennas in stock?
A: No, our antennas are custom made to order.

Q6: How long is your after-sales service?
A: We provide one year quality warranty.
