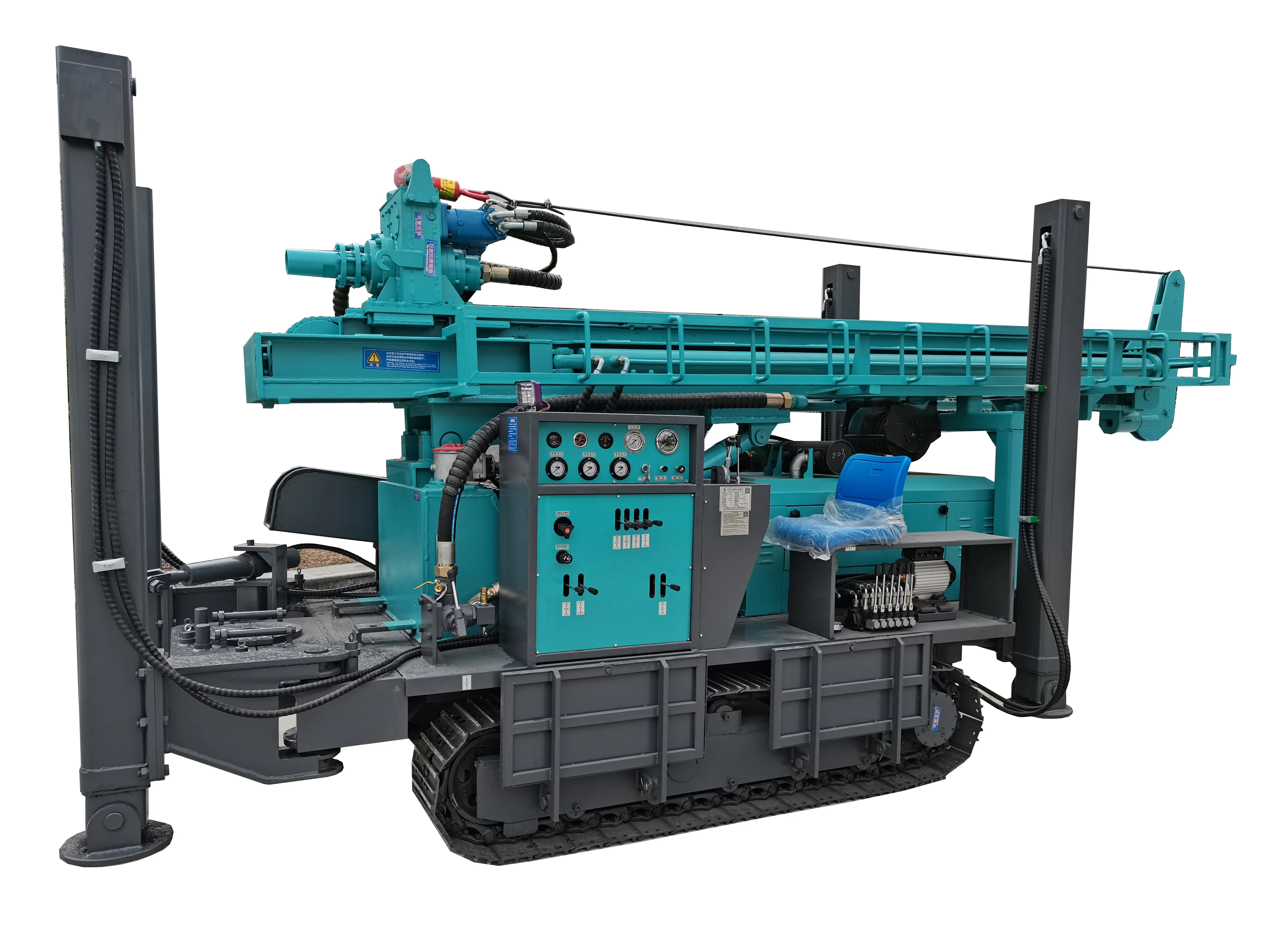

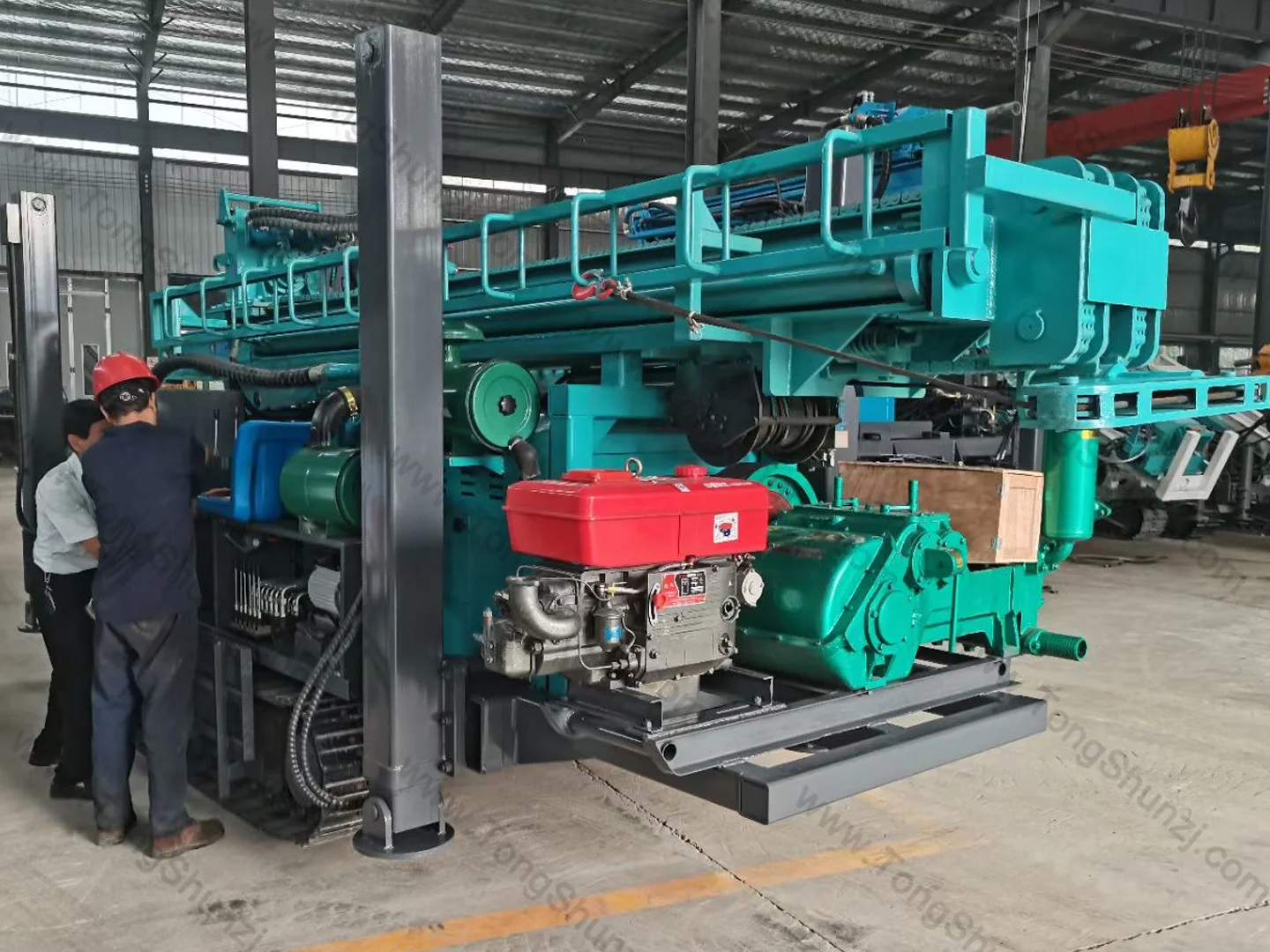

Second Hand Portable Percussion Drilling Rig Borehole Mine Drilling Rig Water 400m 800 Meter Drilling Rig



Tongshun crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
Tongshun deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air,the hydraulic water well drilling rig suitable for drilling complicated geological conditions.


Drilling Machine More :
1.It is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well,agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratumwater sourcing project.
2. This machine can drill in different stratum, The maximum bore diameter can be 325mm.
3. This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.
4.Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
5.This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on atruck to make it more maneuverability.
6. Two gears rotation and feeding speed makes it work in soil and rock layers.


Products Detail

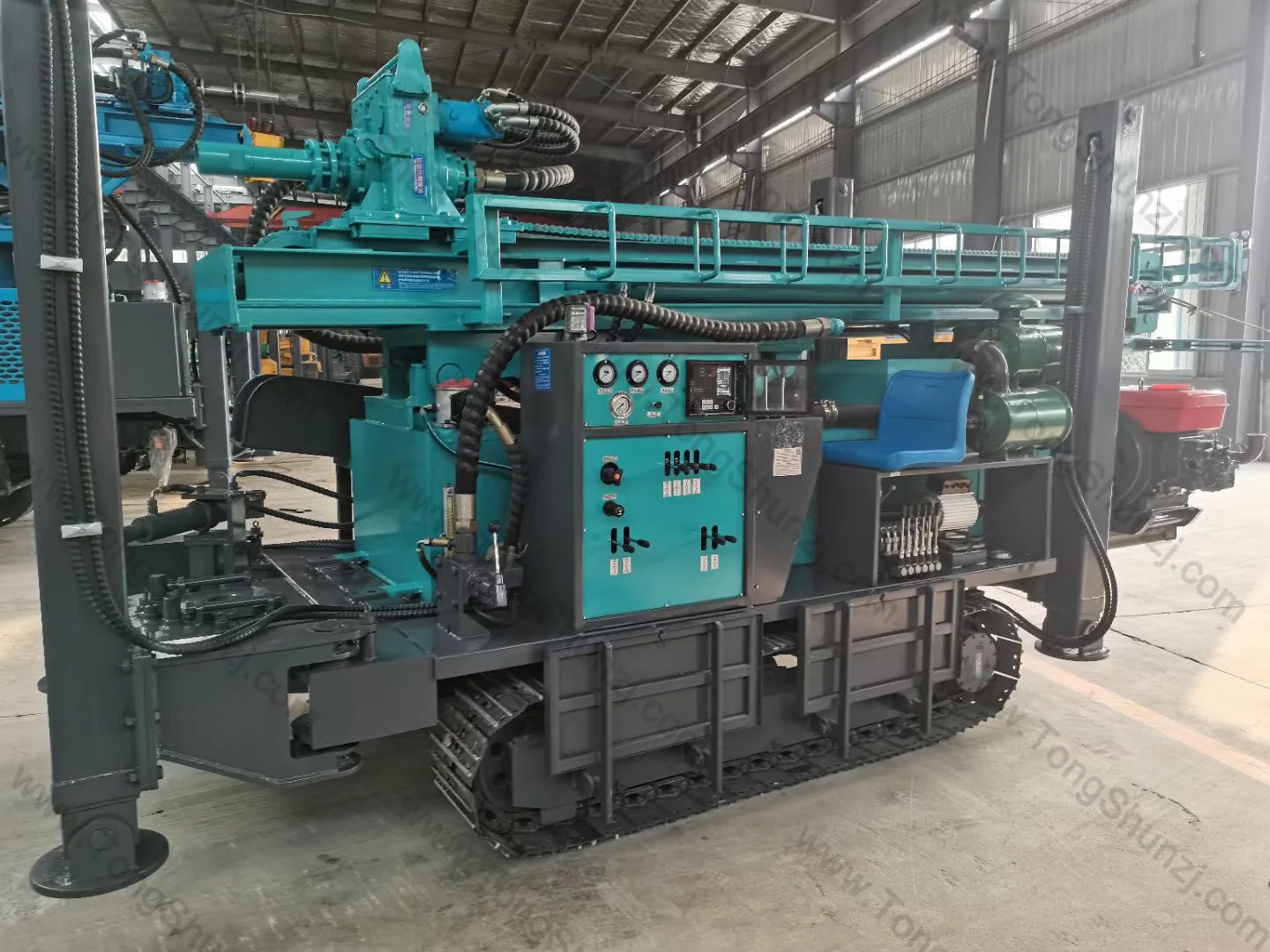

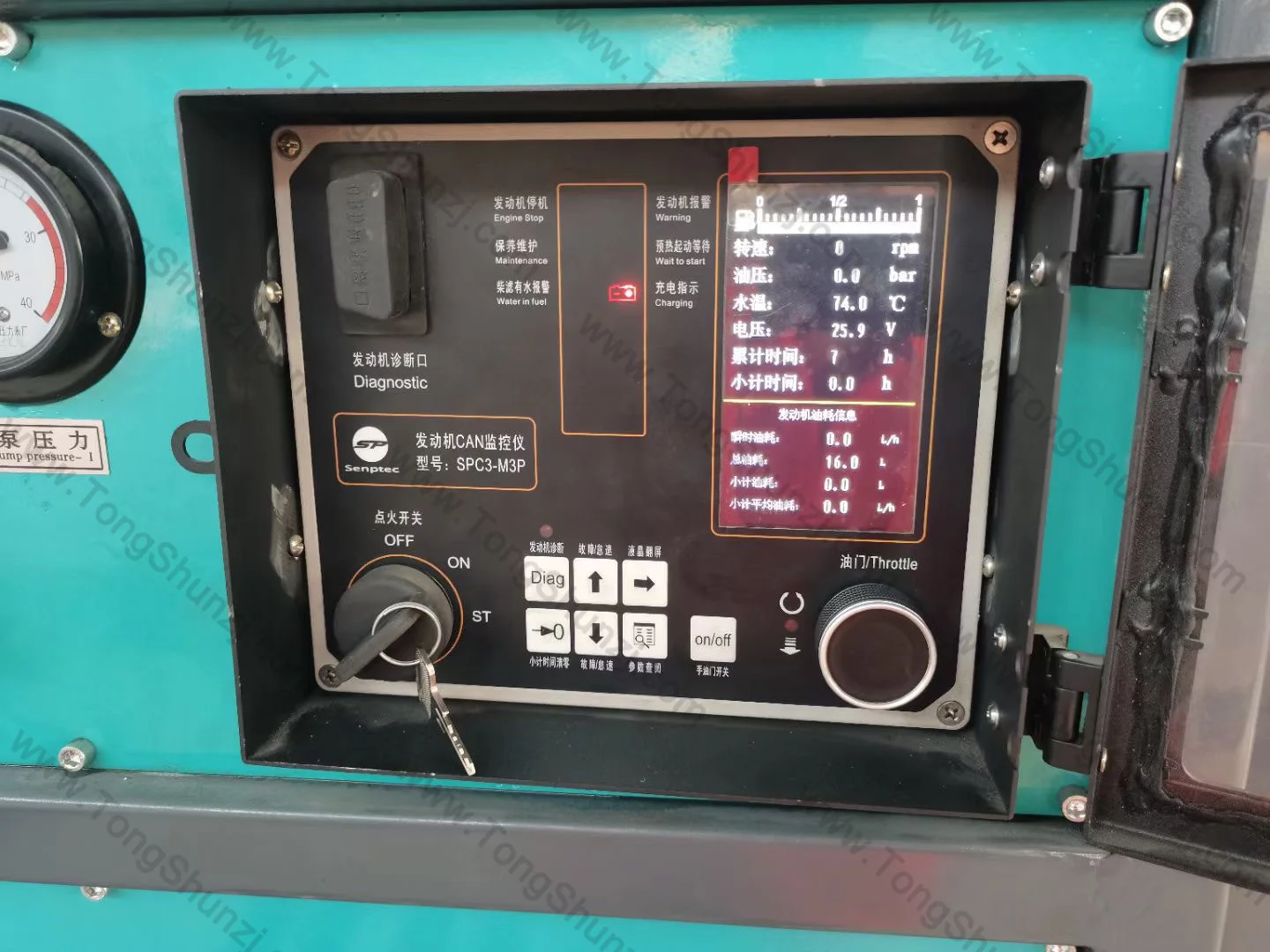

Intergrated operation
The vehicle control joystick and instrument integrated platform are simple to oprate and reduce labor costs.

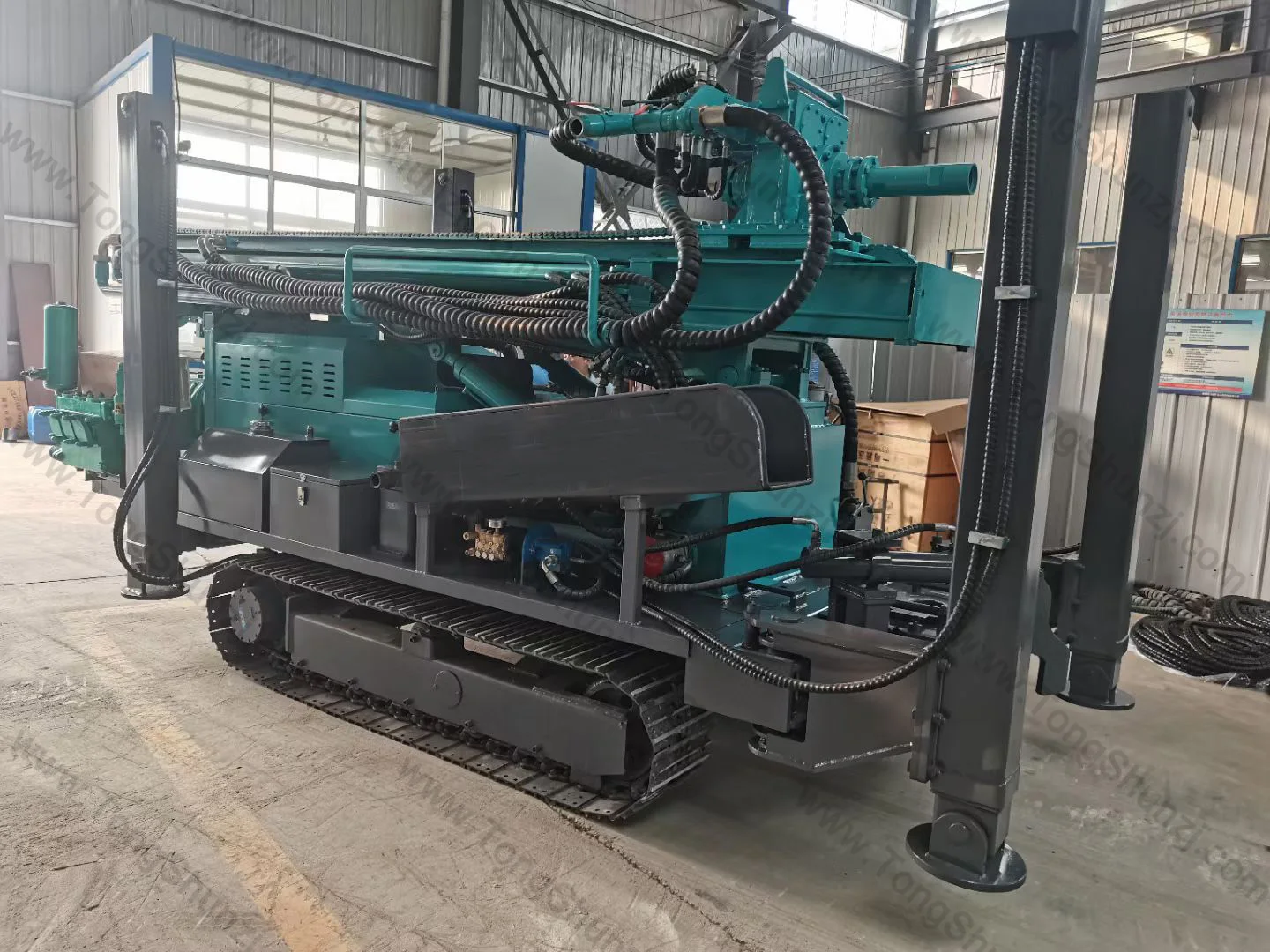

Tracked chassis
The all-terrain crawler chassis increases the stability of the whole machine while increasing the of application of the drilling rig.

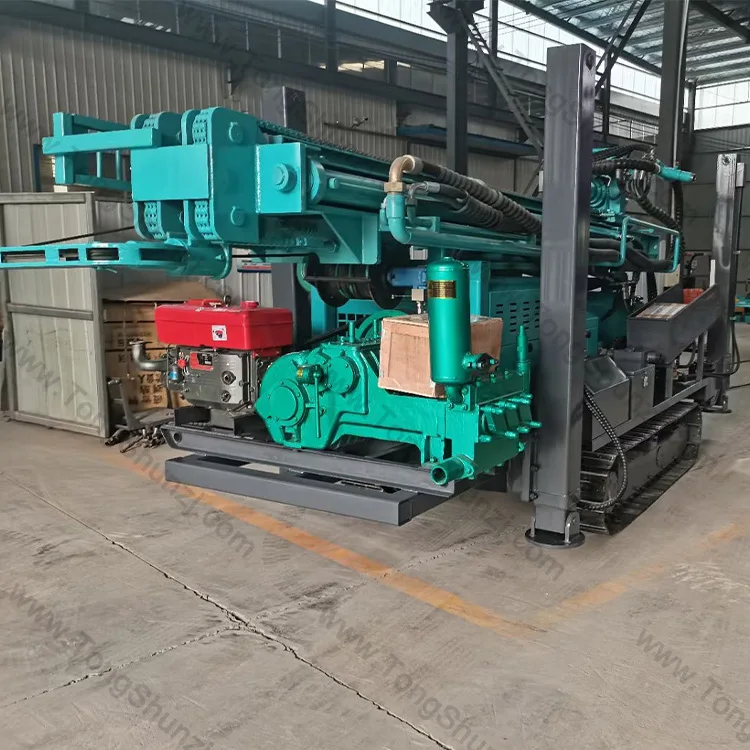

Modular design
The drilling rig is compact in structure,small in size,light in weight, detachable,easy to install,can work in a small space,easy to move,suitable for plain mountainous work.






Product Specifications


Modle
TSH-450
TSH-500
TSH580
TSH680
TSH800
The weight（kg/set）
9400
11500
12000
13000
13000
The hole diameter（mm）
140-305
140-350
140-350
140-400
140-400
Drilling depth（m）
450
500
580
680
800
One-time advance length（mm）
6600
6600
6600
6600
6600
Walking speed（km/h）
2.5
2.5
2.5
2.5
2.5
Climbing angles（Max.）
30
30
30
30
30
Equipped capacitor（kW）
103
118
132
153
194
Using air pressure（MPA）
1.7-3.5
1.7-3.5
1.7-3.5
1.7-3.5
1.7-3.5
Air consumption
（m³/min）
17-36
17-42
17-42
17-42
17-42
Swing speed（rpm）
50-135
40-130
45-140
45-140
45-140
The penetration efficiency（m/h）
15-35
15-35
15-35
15-35
15-35
The engine brand
Yuchai engine
Yuchai engine
Cummins engine
Cummins engine
Cummins engine
Drill pipe diameter（mm）
89mm/102mm
102mm/108mm/114mm
102mm/108mm/114mm
102mm/108mm/114mm
102mm/108mm/114mm/117mm
Drill pipe length（m）
1.5m/2.0m/3.0m/6.0m
1.5m/2.0m/3.0m/6.0m
1.5m/2.0m/3.0m/6.0m
1.5m/2.0m/3.0m/6.0m
1.5m/2.0m/3.0m/6.0m
Rig lifting force（T）
25
26
28
30
36
Rapid rise speed（m/min）
20
20
20
20
20
Fast feeding speed
（m/min）
40
40
40
40
40
Width of loading（m）
2.8
2.85
2.85
2.95
2.95
Hoisting force of winch（T）
2
2
2
2
2
Swing torque（N.m）
7000-9500
7500-10000
8500-11000
8850-13150
9000-14000
Dimension（mm）
5950*2100*2550
6200*2200*2650
6200*2200*2650
6300*2300*2650
6300*2300*2650
Equipped with hammer
Medium and high wind pressure series
Medium and high wind pressure series
Medium and high wind pressure series
Medium and high wind pressure series
Medium and high wind pressure series
High leg stroke（m）
1.6
1.7
1.7
1.7
1.7
