double shaft coal mixer
US $7999-$8699
Portable electric cement mixer mobile construction sand mixer diesel engine concrete mixing machine
- Category: >>>
- Supplier: Zhengzhou Jinhe Machinery Co. Ltd.
Share on (1600876458284):
Product Overview
Description
Products Description
The concrete mixer is a machine that mixes cement, sand and water into a concrete mixture.
Maintenance:
1. Maintain the cleaning of the body, remove dirt and obstacles on the body.
2. Check the circuit and control equipment, and the oil in each lubrication, add the lubricating oil as required.
3. Before working, the water is vacant from 1 to 2 minutes, and the reliability of the clutch and brake device works.
4. During the operation of the concrete mixer, the noise of the motor, the speed, the transmission gear should be detected at any time, whether the temperature rise is too high.
5. After the work of each class, the concrete mixer should be carefully cleaned.

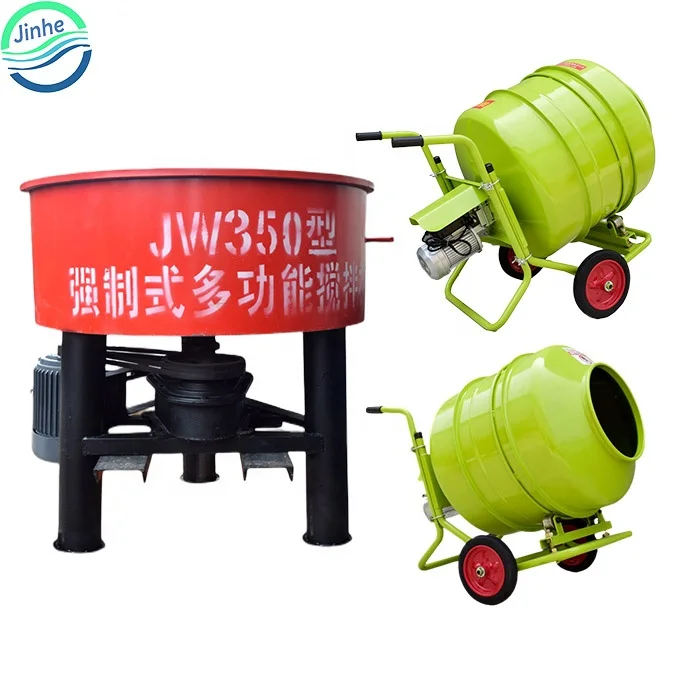

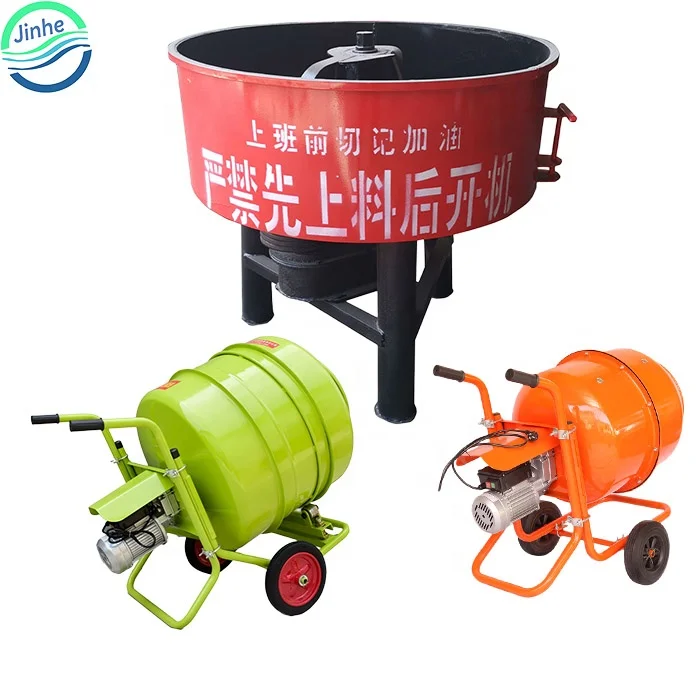

JH-JBM The hand-push mixer
JH-JBP The flat mouth mixer
Details Images

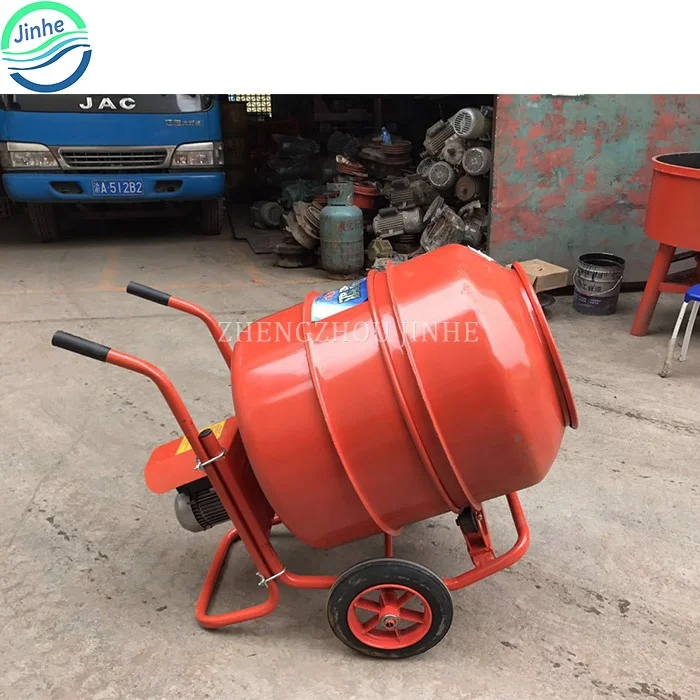

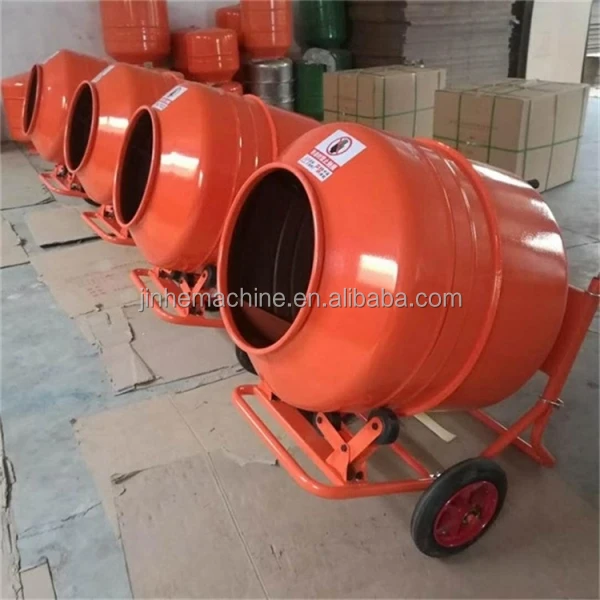

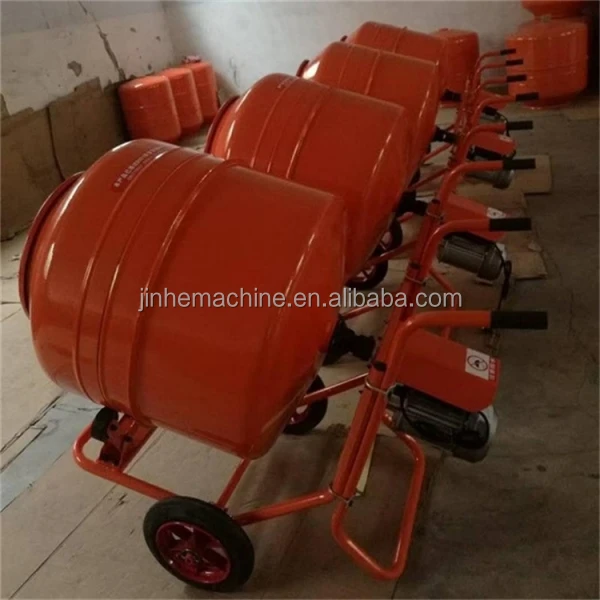

1.JH-JBM The hand-push mixer
1. Wide range of use: suitable for any working environment
2. High cost-effectiveness: economical, value for money
3. Small size and large capacity: small footprint, saving construction space
4. Easy to move: hand push type for easy movement
5. Multifunctional mixing: suitable for solid and liquid concrete, sand and gravel, mortar, and plaster
1. Wide range of use: suitable for any working environment
2. High cost-effectiveness: economical, value for money
3. Small size and large capacity: small footprint, saving construction space
4. Easy to move: hand push type for easy movement
5. Multifunctional mixing: suitable for solid and liquid concrete, sand and gravel, mortar, and plaster
Power: electric motor
Power: gasoline engine
Model | JH-JBM280 | JH-JBM350 | JH-JBM400 | JH-JBM500 | JH-JBM600 | JH-JBM800 | |||||
Capacity | 280L | 350L | 400L | 500L | 600L | 800L | |||||
Roller diameter | 780mm | ||||||||||
Roller length | 730mm | 800mm | 860mm | 900mm | 980mm | 1100mm | |||||
Machine length | 1270mm | 1300mm | 1380mm | 1500mm | 1520mm | 1660mm | |||||
Machine height | 100mcm | 1070mm | 1070mm | 1070mm | 1300mm | 1300mm | |||||
Voltage | 220v, single phase, 50/60hz | ||||||||||
Power | 4kw | ||||||||||
Mixing weight | 250kg | 300kg | 350kg | 380kg | 420kg | 500kg | |||||
Machine weight | 85kg | 90kg | 95kg | 100kg | 110kg | 120kg | |||||
Anti slip handle
Ergonomic design, hard and stable, comfortable to touch and convenient to use
Enlarge the drum
The drum is increased by 5%, with a large diameter and convenient feeding and discharging
Pure copper motor
High quality pure copper motor with sufficient power
Solid casters
Durable and wear-resistant, easy to move

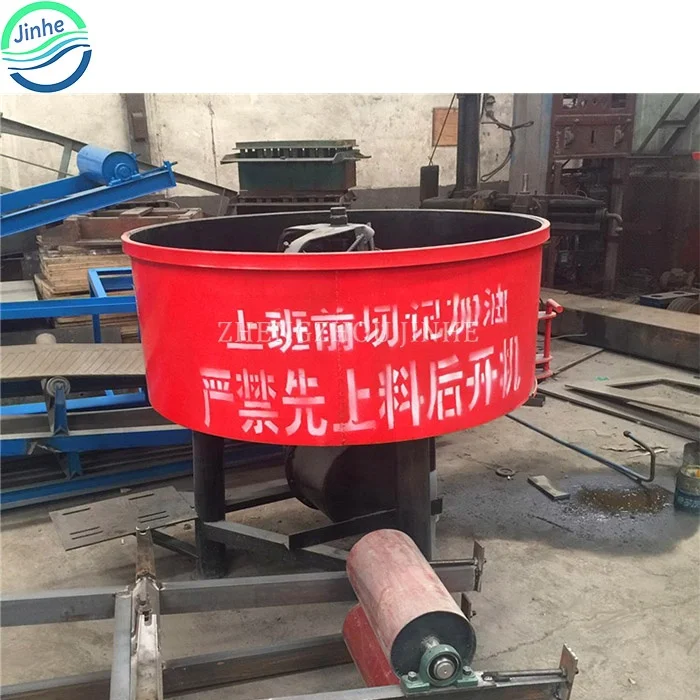

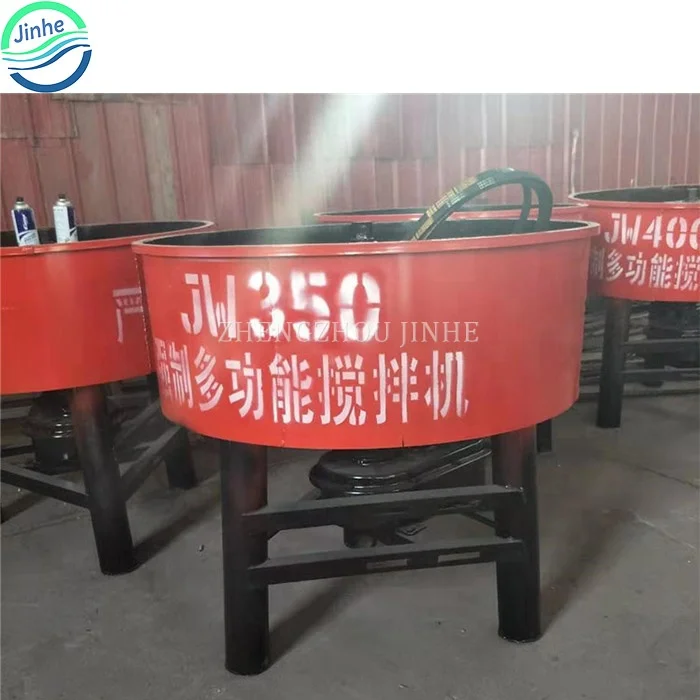

2.JH-JBP The flat mouth mixer
It is a new type of concrete mixer. Applicable to highway, power station, dam construction, construction site, road, bridge, and other projects.
It has the advantages of stable operation, low energy consumption, compact structure and high production efficiency, unloading quickly clean, convenient maintenance time and effort saving.
It is a new type of concrete mixer. Applicable to highway, power station, dam construction, construction site, road, bridge, and other projects.
It has the advantages of stable operation, low energy consumption, compact structure and high production efficiency, unloading quickly clean, convenient maintenance time and effort saving.
Power: electric motor
Power: diesel engine
Model | JH-JBP400 | JH-JBP500 | JH-JBP750 | JH-JBP1000 | |||
Drum size | Φ1.1*0.4 | Φ1.3*0.5 | Φ1.5*0.5 | Φ1.8*0.5 | |||
Mixing capacity | 0.37m3 | 0.5m3 | 0.75m3 | 1m3 | |||
Mixing weight | 600kg | 700kg | 800kg | 950kg | |||
Voltage | 380v, three phase, 50/60hz / diesel engine | ||||||
Power | 5.5kw | 7.5kw | 11kw | 15kw | |||
Size | 1.1*1.1*1.1m | 1.3*1.3*1.3m | 1.5*1.5*1.3m | 1.8*1.8*1.3m | |||
Weight | 230kg | 480kg | 550kg | 680kg | |||
Stirring blade
Flat iron stirring blades for faster and more uniform mixing
Bracket
Triangle bracket makes the machine more stable
Reducer
Different models with different sizes of reducers
Discharge port
Rotating discharge port for more convenient and fast discharge
Application:
The two mixer suitable for solid and liquid concrete, sand and gravel, mortar.
stone mixing
sand mixing
concrete mixing

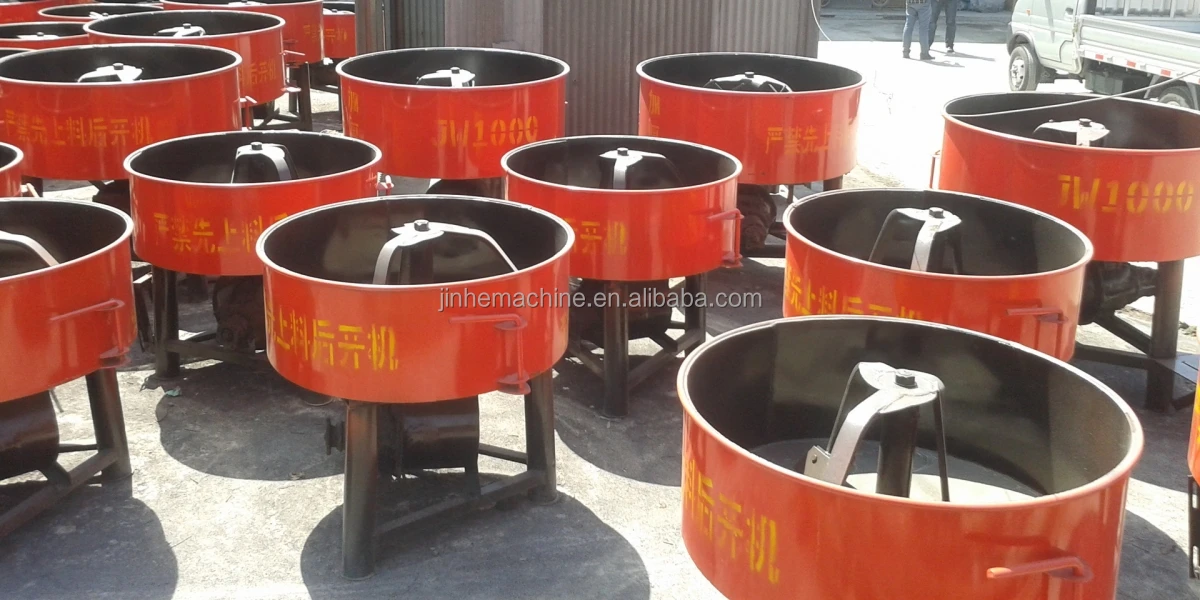

Workshop:
For this two machine, we will have stock available and the delivery time will be shorter
Transaction and Feedback
Company Profile
Zhengzhou Jinhe Machinery Co., Ltd. engaged in a wide range of machine business. We have more than 11 years of production experience. We are committed to producing top-quality machines and solutions for global users in machinery fields from the single machine to the automatic product line. We focus on the needs of customers, professional research and development of a lot of advanced equipment.
You are very welcome to consult us and welcome you to visit our workshop
Packing & Delivery
Packing: We usually use standard export plywood packaging
Delivery: By land transportation, express, air, and sea.
FAQ
MOQ | Usually 1 set | ||||
Voltage | 110V /220V /380V, 50/60hz, single/three phase , we will customize it according to your local voltage. | ||||
Guarantee | Quality guarantee term is for one year. During guarantee period, free technical support and free spare parts supply. | ||||
Payment term | T/T, Credit card, Western Union, RMB, Alipay, Wechat, MoneyGram, L/C, etc. | ||||
Documents offer | By express:express waybillBy air: airway bill By sea: B/L, commercial invoice, packing list, sales contract, CO, FE, FTA or as your request. | ||||
How to install and maintain the machine | we can teach you install or maintain the machine by video, email ,pictures, etc. You need to install or maintain the machine in your country. If you need spare parts, we can supply for free or cost price, you pay express cost. | ||||
Assignment of engineers and training | we can supply manual book, work video, install video, pictures first. If necessary, we can also assign our engineers to go abroad for installing or training machines for our users. | ||||
