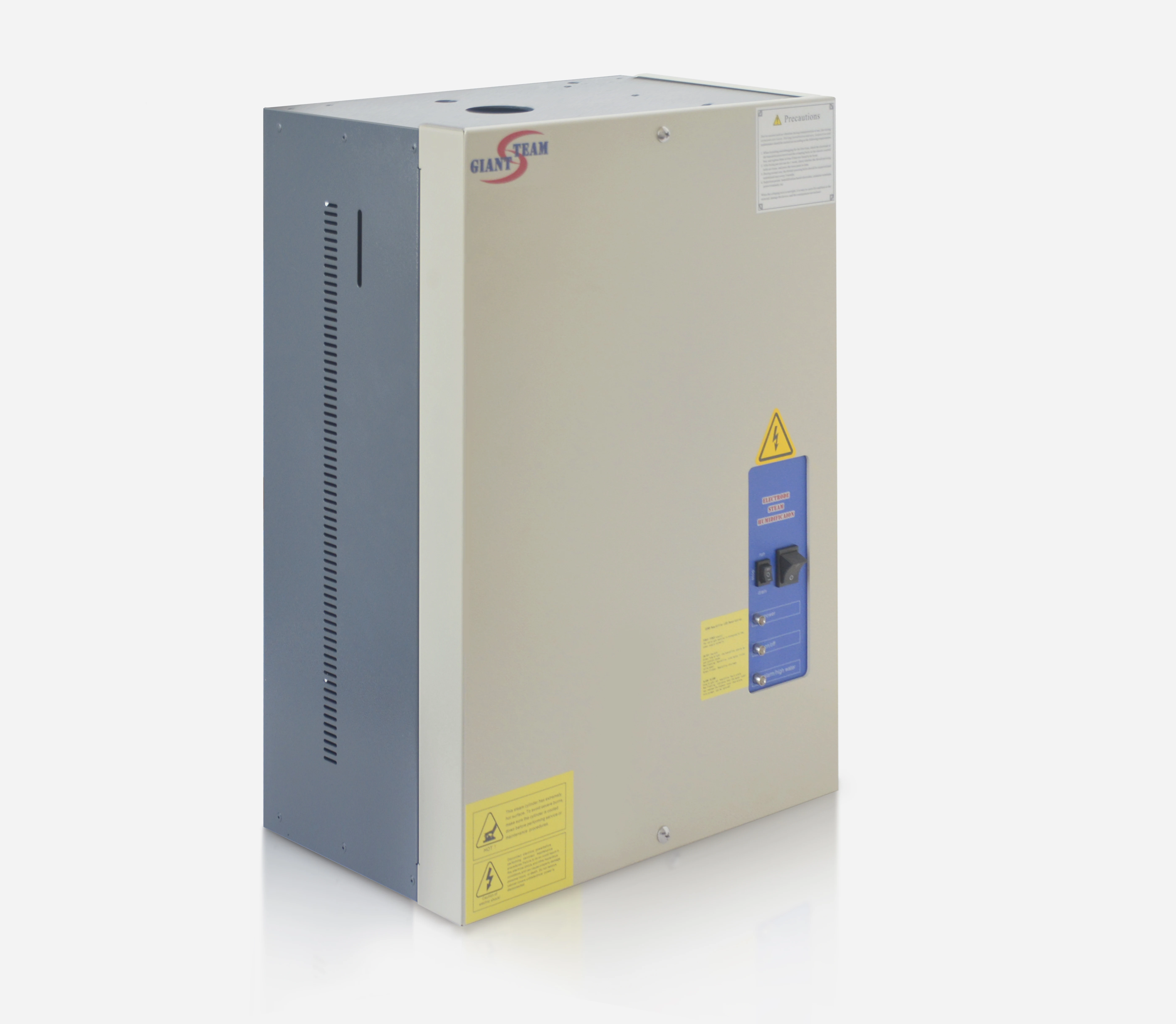

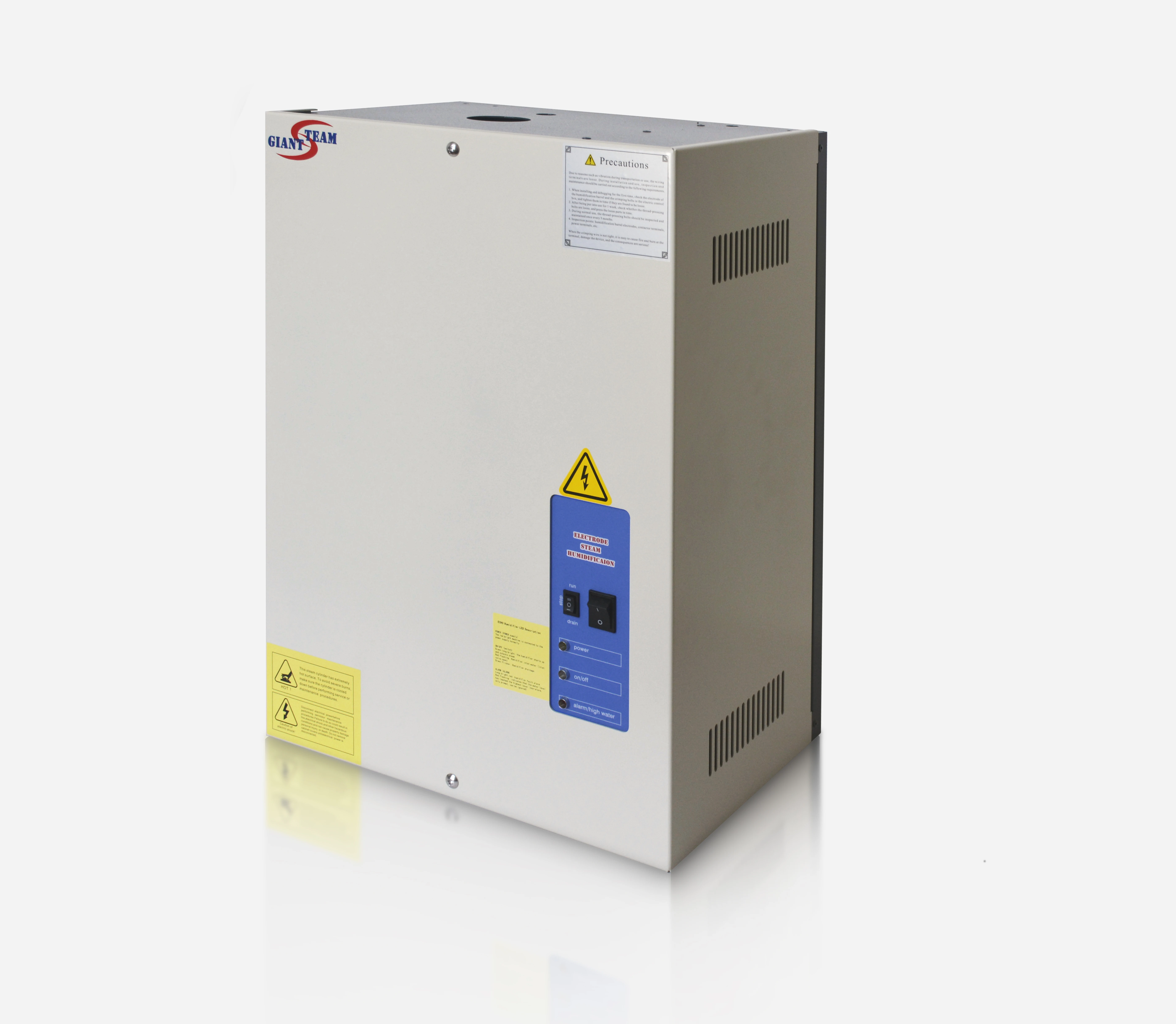

130kg/H Industrial Humidifier Fresh Air Fogging Machine Steam Electrode Humidifier
- Category: >>>
- Supplier: Anhui Giantsteam Environmental Technology Co. Ltd.
Share on (1600876479098):
Product Overview
Description
Products Description
Basic Info.
Model NO. | ECHO-130 |
Control | on-off Control/Proportional Control |
Water | Tap Water |
Water Tank Capacity | >10L |
Installation | Wall-Mounted/Hanging/Mobile |
Humidification | 130kg/H |
Voltage | 380V |
Trademark | GIANTSTEAM |
Specification | 89*36.5*72(cm) |
HS Code | 8479892000 |
Certification | ISO, CE |
Effective Area | 300-400 Square Meter |
Function | Comfortability, Usability |
Humidification Method | Mist Discharge |
Type | Electrode |
Power | 97.5kw |
Current | 143A |
Transport Package | Standard Export Packaging |
Origin | China |
Conditions of Use:
1. Tap water pressure: 1-10bar (0.1-1Mpa)
2. Water conductivity: 125~1250 micro-siemens/cm
3. Ambient air pressure: 0 bar
4. Air pressure in the air duct: +/- 1000Pa
5. Ambient temperature: 1-50ºC
6. Protection level: IP 43 (electric control system)
2. Water conductivity: 125~1250 micro-siemens/cm
3. Ambient air pressure: 0 bar
4. Air pressure in the air duct: +/- 1000Pa
5. Ambient temperature: 1-50ºC
6. Protection level: IP 43 (electric control system)
Functional characteristics:
1.Many control way for your choice than meet customer different requirement.
2.Fix timing: Can open & close humidifier on fix time.
3.Moisture control: fixed humidity automatically.
4.Automatic water intake and drainage control.
5.The humidification barrel can be replaced.
2.Fix timing: Can open & close humidifier on fix time.
3.Moisture control: fixed humidity automatically.
4.Automatic water intake and drainage control.
5.The humidification barrel can be replaced.
Control System:

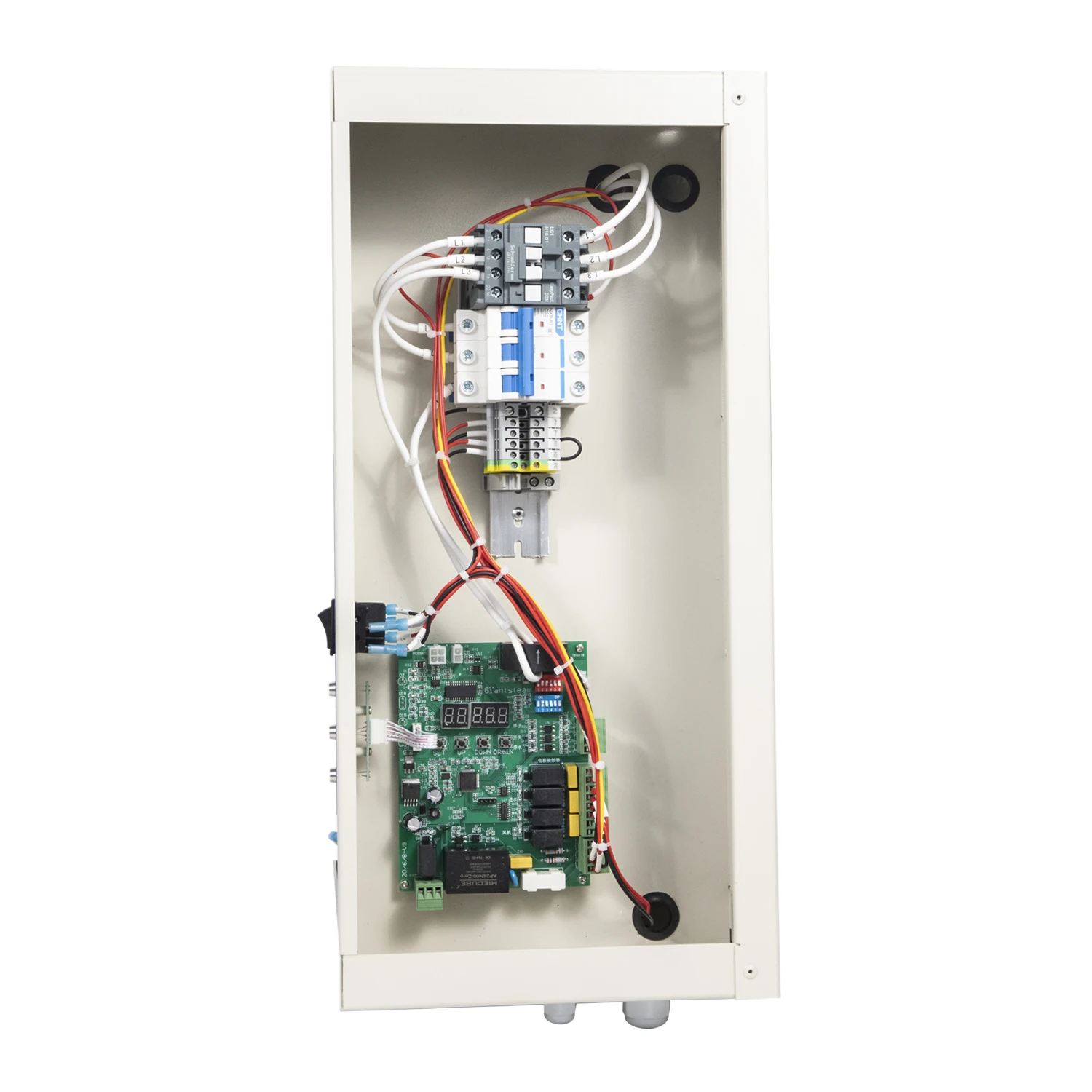

1. The GiantSteam humidifier uses a 32-bit CPU as the main control chip, which has the advantages of high reliability and fast calculation speed.
2. A monitoring chip is installed in the humidifying barrel of the GiantSteam humidifier, which is used to monitor the running status of the humidifying barrel in real time and feed it back to the CPU to achieve an optimized operating effect.
3. The GiantSteam control system uses artificial neural network artificial intelligence algorithms to intelligently adjust the
internal operating parameters of the system and automatically adapt to external conditions such as water quality in different areas to reduce energy consumption, improve response speed, improve reliability, improve adaptability, and optimize operation effect.
4. Optional WIFI module can be installed to realize network monitoring based on internet. The headquarters of Gasdi provides 24X7 monitoring duty to help customers monitor the operating status of their humidifiers at any time.
At the same time, GiantSteam humidifier provides RS485 communication interface, which can support multiple ways of networked monitoring mode, such as building automation.

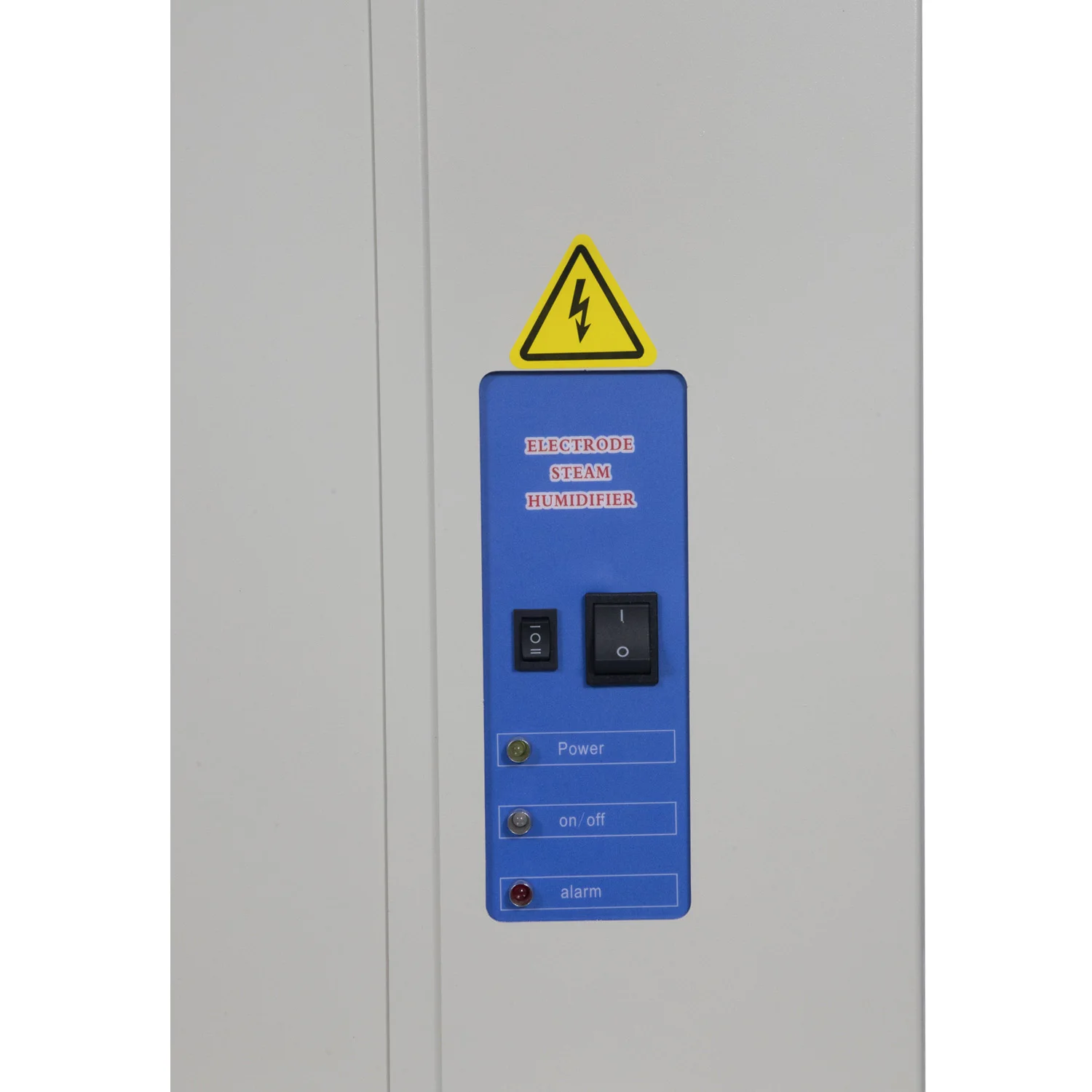

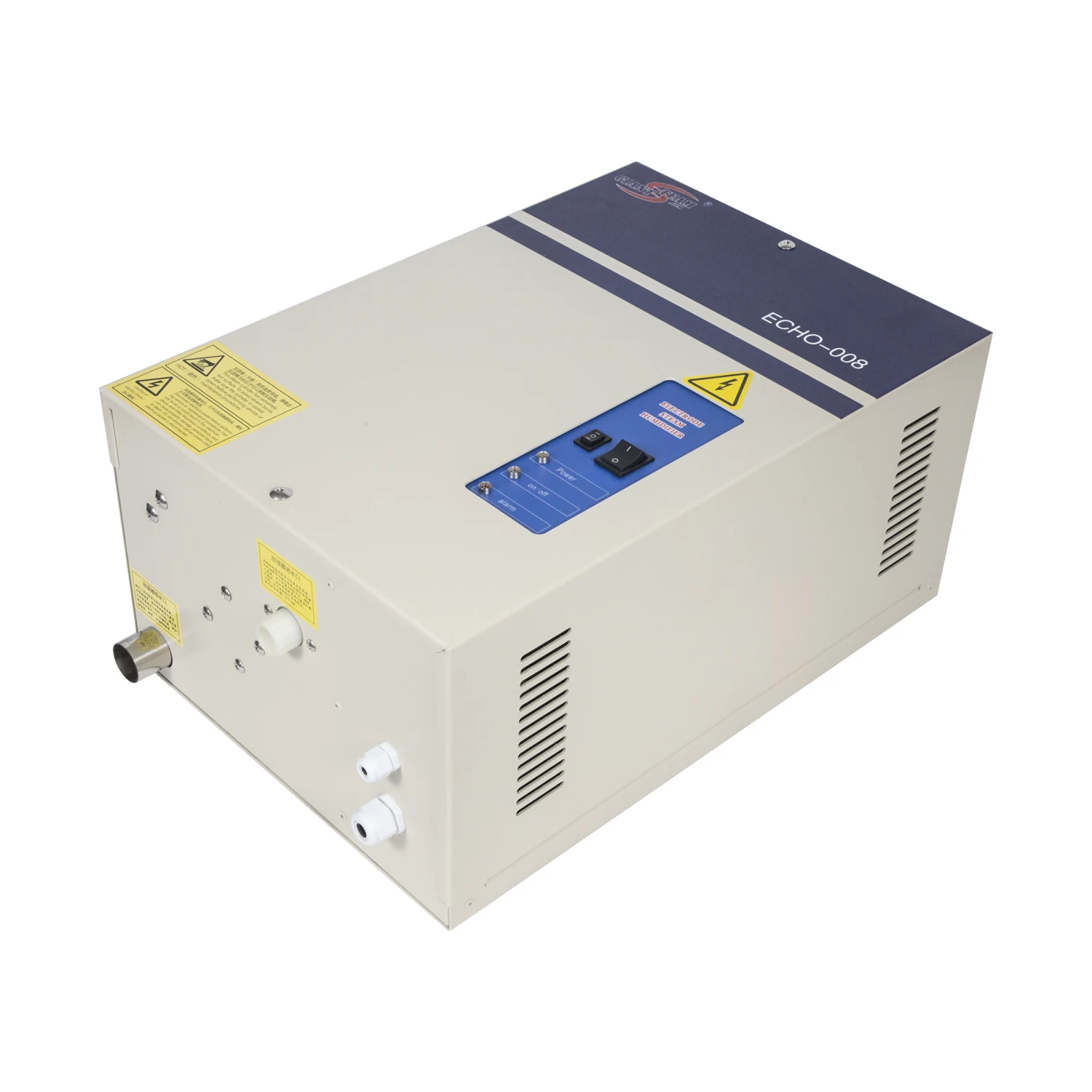

5. The ECHO series humidifiers provide a digital tube display module; the MAX series humidifiers provide a large-screen dot matrix LCD module that can switch between Chinese and English.
2. A monitoring chip is installed in the humidifying barrel of the GiantSteam humidifier, which is used to monitor the running status of the humidifying barrel in real time and feed it back to the CPU to achieve an optimized operating effect.
3. The GiantSteam control system uses artificial neural network artificial intelligence algorithms to intelligently adjust the
internal operating parameters of the system and automatically adapt to external conditions such as water quality in different areas to reduce energy consumption, improve response speed, improve reliability, improve adaptability, and optimize operation effect.
4. Optional WIFI module can be installed to realize network monitoring based on internet. The headquarters of Gasdi provides 24X7 monitoring duty to help customers monitor the operating status of their humidifiers at any time.
At the same time, GiantSteam humidifier provides RS485 communication interface, which can support multiple ways of networked monitoring mode, such as building automation.
5. The ECHO series humidifiers provide a digital tube display module; the MAX series humidifiers provide a large-screen dot matrix LCD module that can switch between Chinese and English.
The password-protected multi-level menu setting makes the user need not worry about damage to the humidifier by irrelevant personnel.
6. On-off control/proportional control:
On-off control: control the start or stop of the humidifier according to the signal of the humidifier. When it is turned on, it
outputs according to the set humidification amount.Proportional control: according to the input proportional signal to control the humidification output of the humidifier.
6. On-off control/proportional control:
On-off control: control the start or stop of the humidifier according to the signal of the humidifier. When it is turned on, it
outputs according to the set humidification amount.Proportional control: according to the input proportional signal to control the humidification output of the humidifier.
A variety of proportional signals can be connected, such as 0-10V, 0-5V, 1-5V, 0.5-4.5V, 0-20mA, 4-20mA, 2-10V, etc., to achieve continuous stepless adjustment of humidification.
Packing:
Our packing is in conformity with export standard
Technicals
Model | 004 | 008 | 015 | 023 | 032 | 045 | 065 | 090 | 130 | ||||||||
Steam Kg/h Capacity Lb/h | 4 | 8 | 15 | 23 | 32 | 45 | 65 | 90 | 130 | ||||||||
9 | 18 | 33 | 51 | 71 | 100 | 145 | 200 | 290 | |||||||||
Power Supply/V | 3 phases,380V(380V~440V),50/60Hz | ||||||||||||||||
Cylinders/No. | 1 | 2 | |||||||||||||||
Cylinder Model | C4 | C8 | C15 | C23 | C32 | C45 | C65 | 2*C45 | 2*C65 | ||||||||
Steam nozzle type/standard layout | D22- 300 | D22- 450 | D32- 450 | D32- 600 | D32- 600 | D32- 600 | D32- 600 | D32- 600 | D32- 600 | ||||||||
Nozzle number/Pcs | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 4 | ||||||||
Size:Width/mm | 360 | 360 | 430 | 430 | 530 | 530 | 530 | 890 | 890 | ||||||||
Thickness/mm | 240 | 240 | 300 | 300 | 365 | 365 | 365 | 365 | 365 | ||||||||
Height/mm | 560 | 560 | 650 | 650 | 720 | 720 | 720 | 720 | 720 | ||||||||
Height with blower/mm | 730 | 730 | 820 | 820 | - | - | - | - | - | ||||||||
Net weight/Kg | 8.8 | 9.3 | 13.0 | 14.0 | 16.0 | 16.5 | 20.0 | 33.0 | 39.0 | ||||||||
Run weight/Kg | 12.5 | 13.2 | 26.0 | 27.0 | 39.5 | 41.0 | 44.5 | 82.0 | 88.0 | ||||||||
Diameter of steam outlet/mm | 22 | 35 | |||||||||||||||
Diameter of water inlet | 3/4male thread | ||||||||||||||||
Diameter of drainage outlet/mm | 32 | ||||||||||||||||
