Product Overview

Description





Tables of forces
Thrust force (daN)
 Pressuro in bar
2Bore
Section/cm²
90
120
140
160
180
200
25
490
441
588
686
784
882
980
32
8.04
723
965
1126
1286
1447
1608
40
1256
1130
1500
1760
2009
2260
2512
50
1963
1766
2350
2740
3140
3530
3925
63
3117
2805
3740
4363
4987
5610
6230
80
5026
4523
6031
7036
8040
9045
10052
100
7854
7065
9420
10995
12565
14135
15705
125
122.72
11045
14725
17180
19635
22090
24540


Pull force (daN)
Pressure in bar
2Bore
Rod
Annulor areu
90
120
140
160
180
200
25
16
290
261
348
406
464
522
580
32
18
550
495
660
770
880
990
1100
40
22
876
789
1052
1227
1402
1578
1753
50
28
1348
1213
1617
1888
2155
2425
2695
63
36
2100
1885
2515
2935
3355
3775
4195
80
45
3436
3090
4120
4810
5495
6185
6870
100
56
5391
4850
6465
7545
8525
9700
10780
125
70
8424
7580
10105
11790
13475
15160
16845

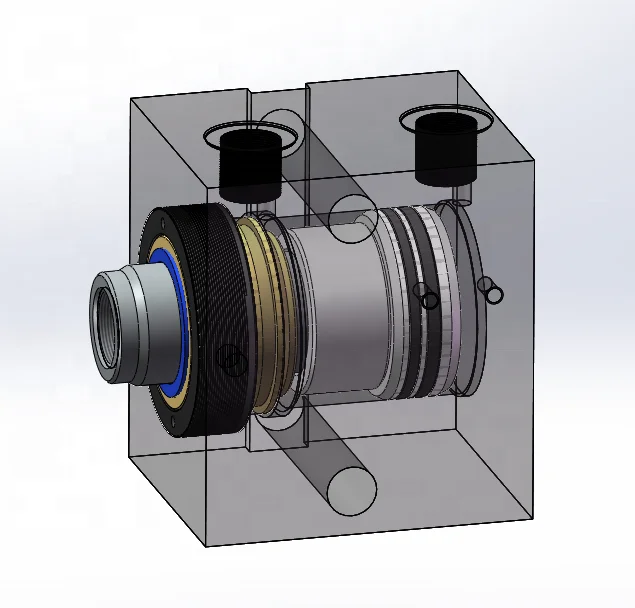

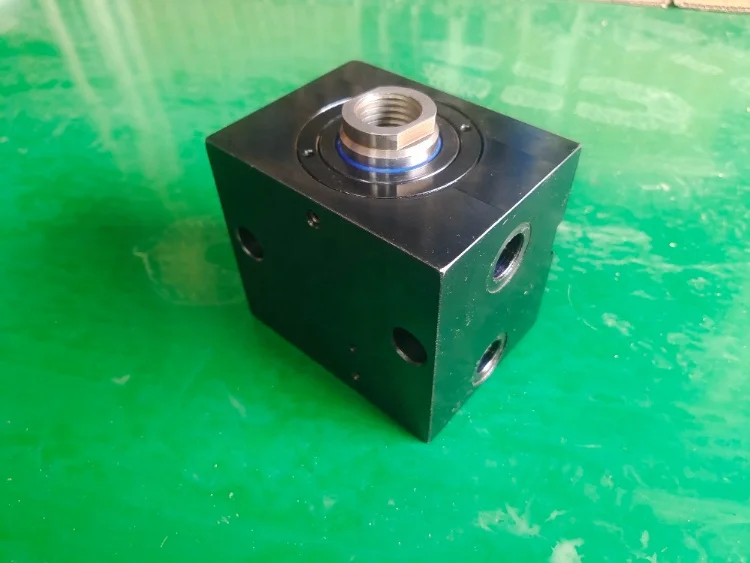

Square block hydraulic cylinder brief introduction

1.Square hydraulic cylinder, that is, square cylinder.

2.It has the characteristics of good sealing effect, strong pressure resistance, small occupied space, sensitive action, compact structure and diversified installation forms.

3.Compared with hydraulic cylinders of other structural forms, the square hydraulic cylinder can provide higher thrust.

4.According to the number of piston rods, it can be divided into single rod, double rod and three rod square hydraulic cylinder.

5.The maximum pressure level of the square hydraulic oil cylinder is 50MPa.

6.Square hydraulic cylinder widely used in molds, rubber and plastic products, mining machinery, woodworking machinery, machine tools, paper making, steel making, balers and other industrial fields.

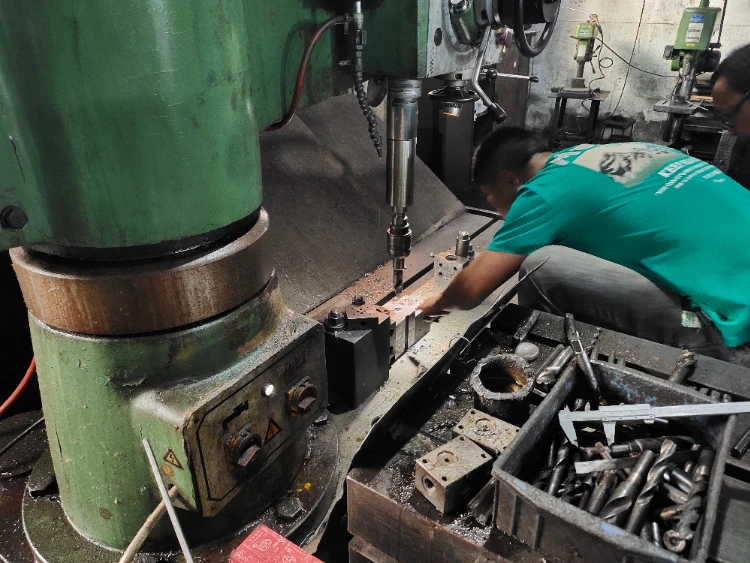

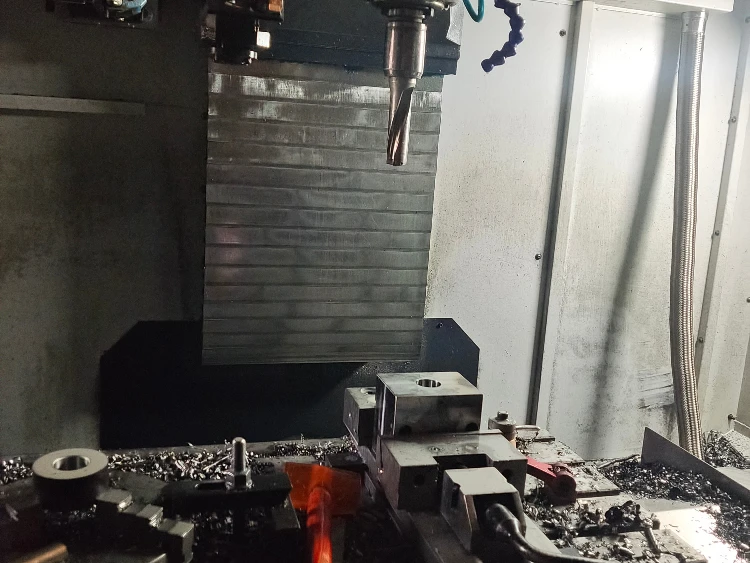

7.The cylinder body adopts CNC processing center one time clamping positioning with Lathing, milling , boring and grindering in one.

8.Ensure the same axia of the cylinder and thread, concentric and the verticality of the end surface
