JY A70 4G GPS DASHCAM ADAS DSM Driver Status Monitor 4G 2 Channel Internet GPS Storage Card Video

Product Overview

Description

Product features

l Hd 1080p, front and rear dual recording integrated, plus 1-way ahd camera.

l The video file adopts H264 compressed format

l Connect the recorder WiFi hotspot and log in the mobile app to realize 0 traffic Hd Preview, three-way video, video playback and parameter configuration.

l 4G all Netcom supports global frequency bands.

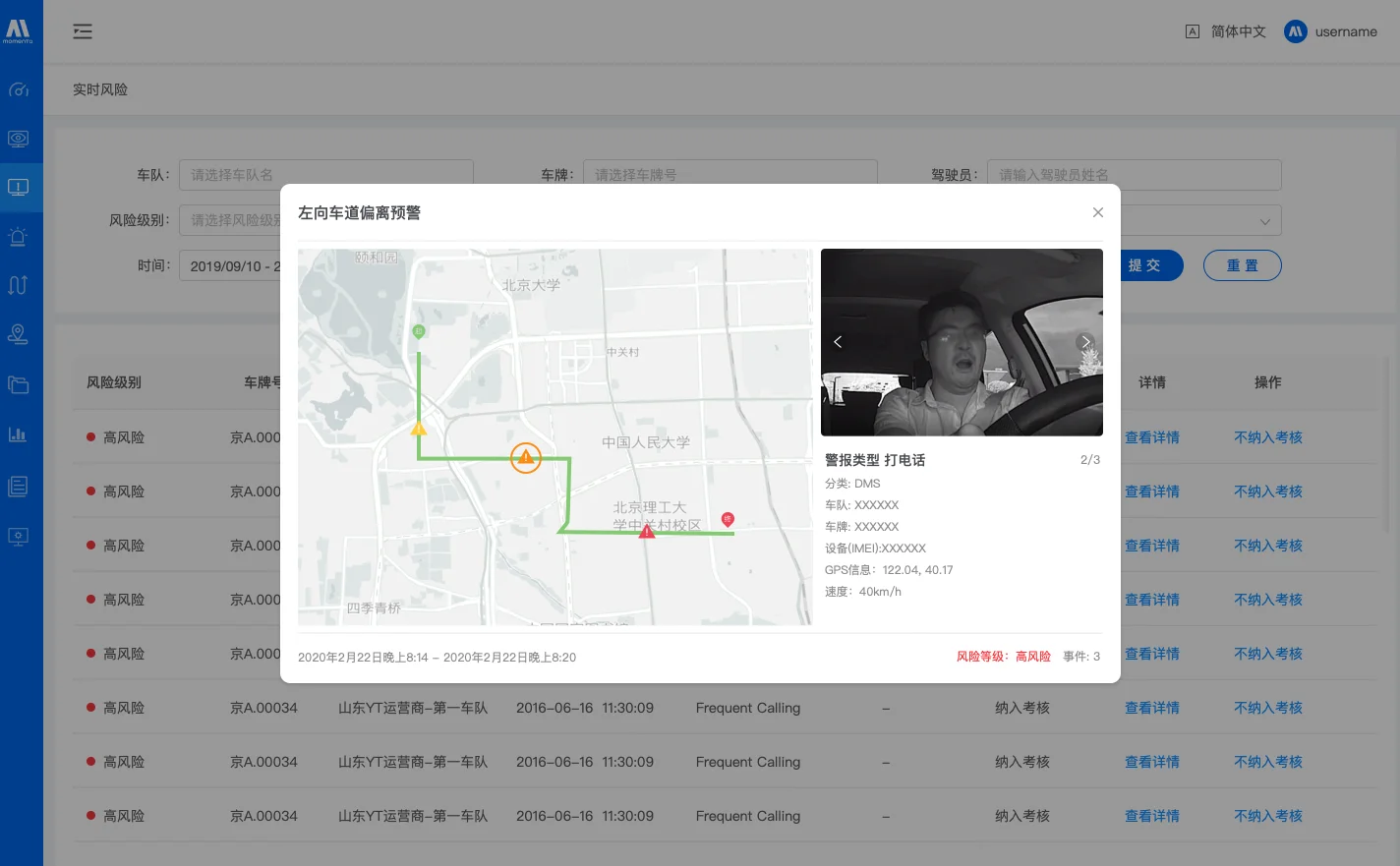

l Report to the network platform, real-time 4G preview monitoring, and two-way voice intercom with the platform.

l One button SOS emergency call, one button photo upload.

l Integrate DSM and ADAS algorithms. (optional)

l The built-in AI algorithm can carry out face recognition, monitor the driver's abnormal behavior, such as fatigue driving, smoking, answering and making calls, distracted driving, etc., and give an alarm to remind the driver to drive safely to ensure driving safety.

l At the same time, it also has vehicle monitoring during driving, such as lane offset, forward collision, pedestrian collision, too close vehicle distance, etc. it gives an alarm to remind the driver, so that the driver can predict the imminent danger in advance and make the driver feel more at ease.

l The G-sensor collision video is locked and linked to upload video and take photos.

l GPS + Beidou dual-mode precise positioning.

l Obtain accurate vehicle speed information and have overspeed alarm function to make the driver drive more standardized on the road.

l TF card recording (up to 256gbtf card).

l The built-in super capacitor ensures that the recorder can continue to work for 5 seconds under abnormal power failure to protect the integrity of video files.

l It has information acquisition interface, which can collect video, log information, etc.

l Wide power input to meet the requirements of automotive electrical characteristics.

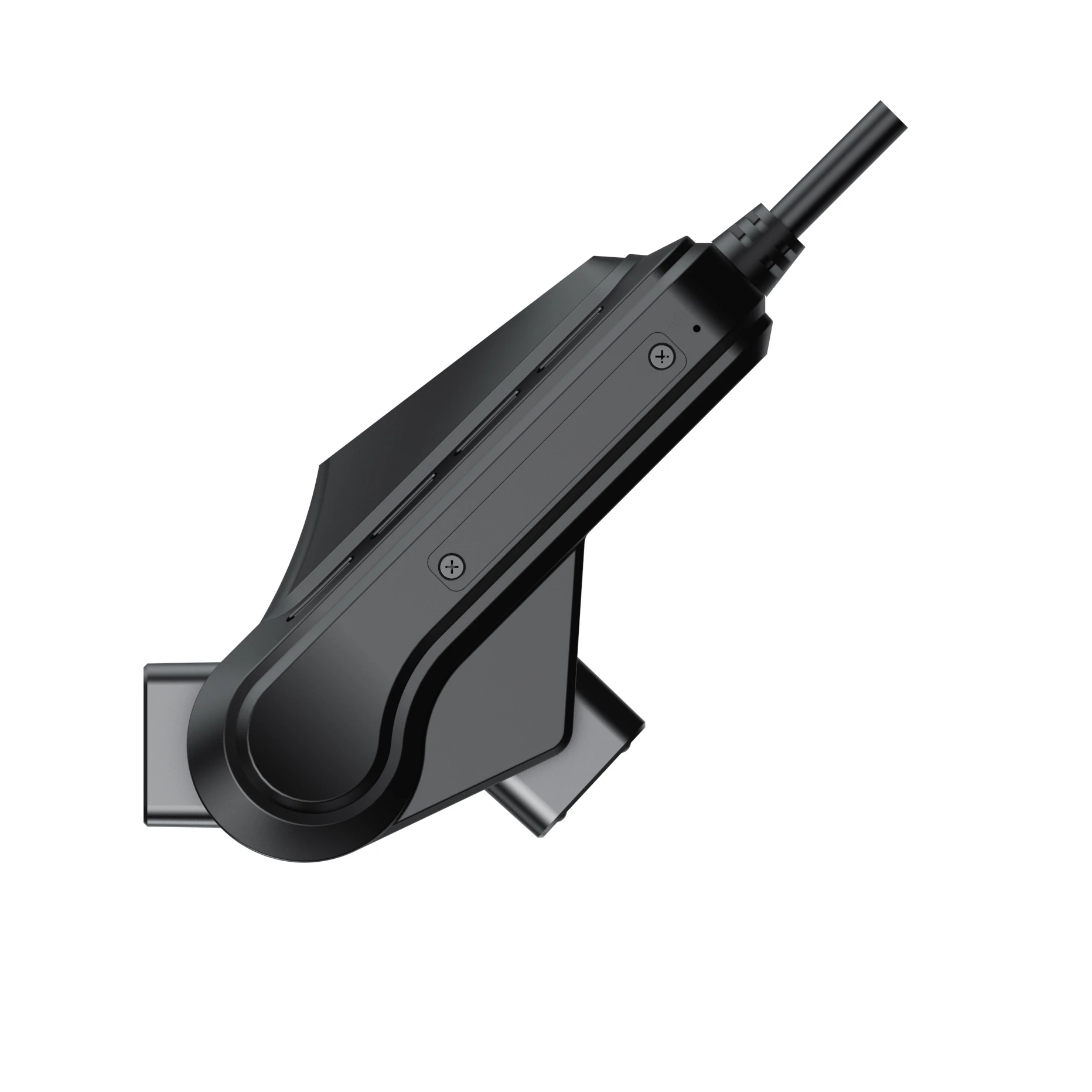

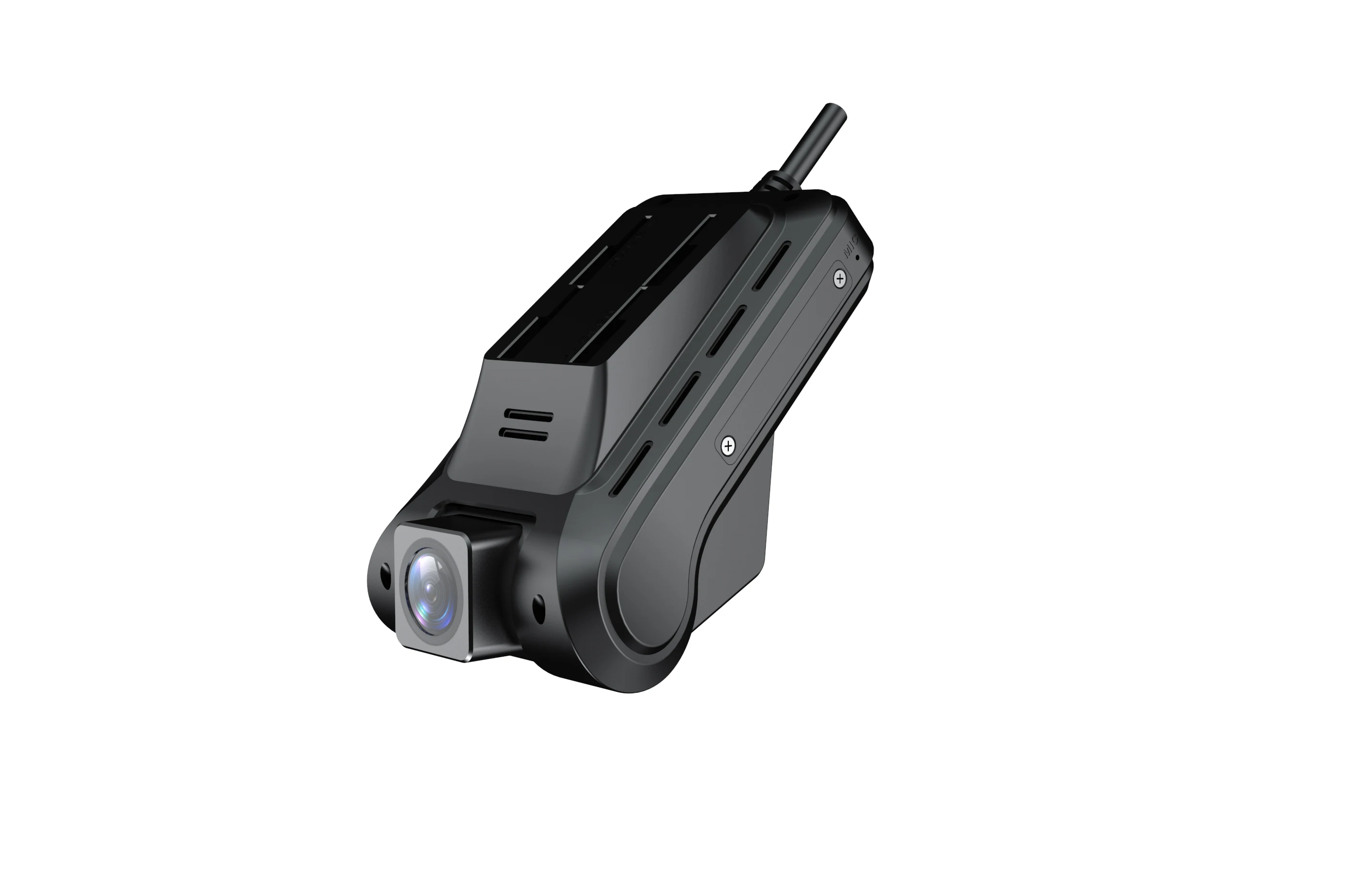

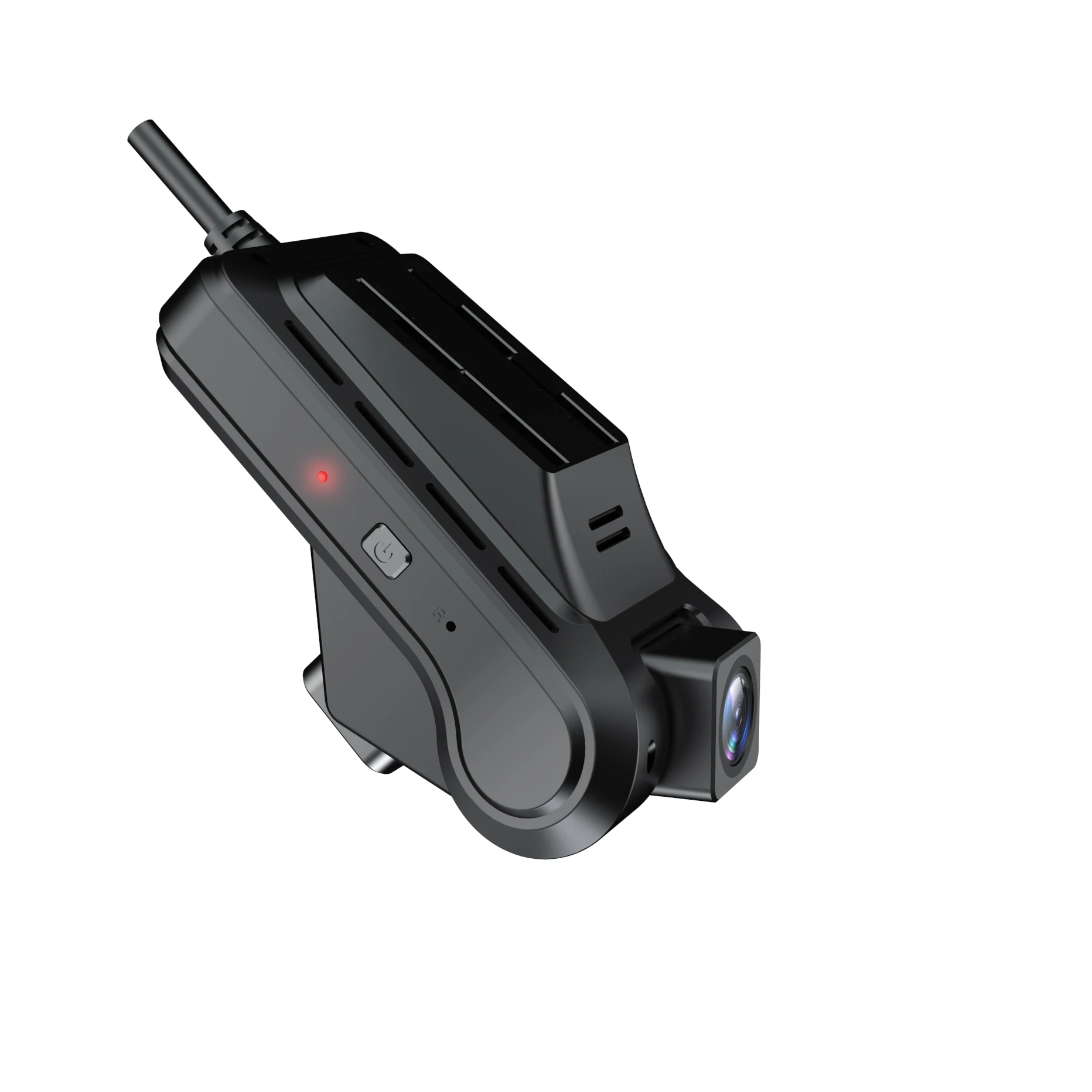

Product appearance

Hardware Specifications
Model					GT10All-in-one car-hailing machine
CPU	Vehciles grade ZX				Cortex-A53 Duel core 1.3GHz
RAM	MCP				2Gb+4Gb
ROM
OS	Linux
DVR	video parameters				Front1080P+ Rear 720P
	video compression standard				H.264
	video format				ts
Audio	audio input				Built-in MIC
	recording method				Simultaneous recording of sound and video
Storage	TF card extension				MAX 1*256GB
GPS	GPS BEIDOU				GPS+BDS
Wireless communication	WiFi				Built-in WiFi 2.4GHz hotspot transmitter
	4G				4G (FDD_LTE)
Sensor	Gravity sensor				x, y, z three-axis gravity sensor, support collision microcosm
button	Pull out one-button alarm				SOS
	Reset button				1*emergency reset button
speaker	Built-in high-fidelity speakers				8Ω1.5W
LIGHT	Working light				Three-color LED indicators, indicating working status, network status and positioning status
POWER	DC12V				BMW line input voltage 12V, support wide voltage range 9~16V
ACC	Support ACC detection				ACC12V, switch detection
Operating temperature	-20℃~70℃
Software maintenance	Support software update via TF card, OTA online upgrade
Main industry
Online car-hailing, rental vehicles, logistics deployment, operating fleets, driving schools, official vehicles, personal location services, real-time monitoring and vehicle operating status.
