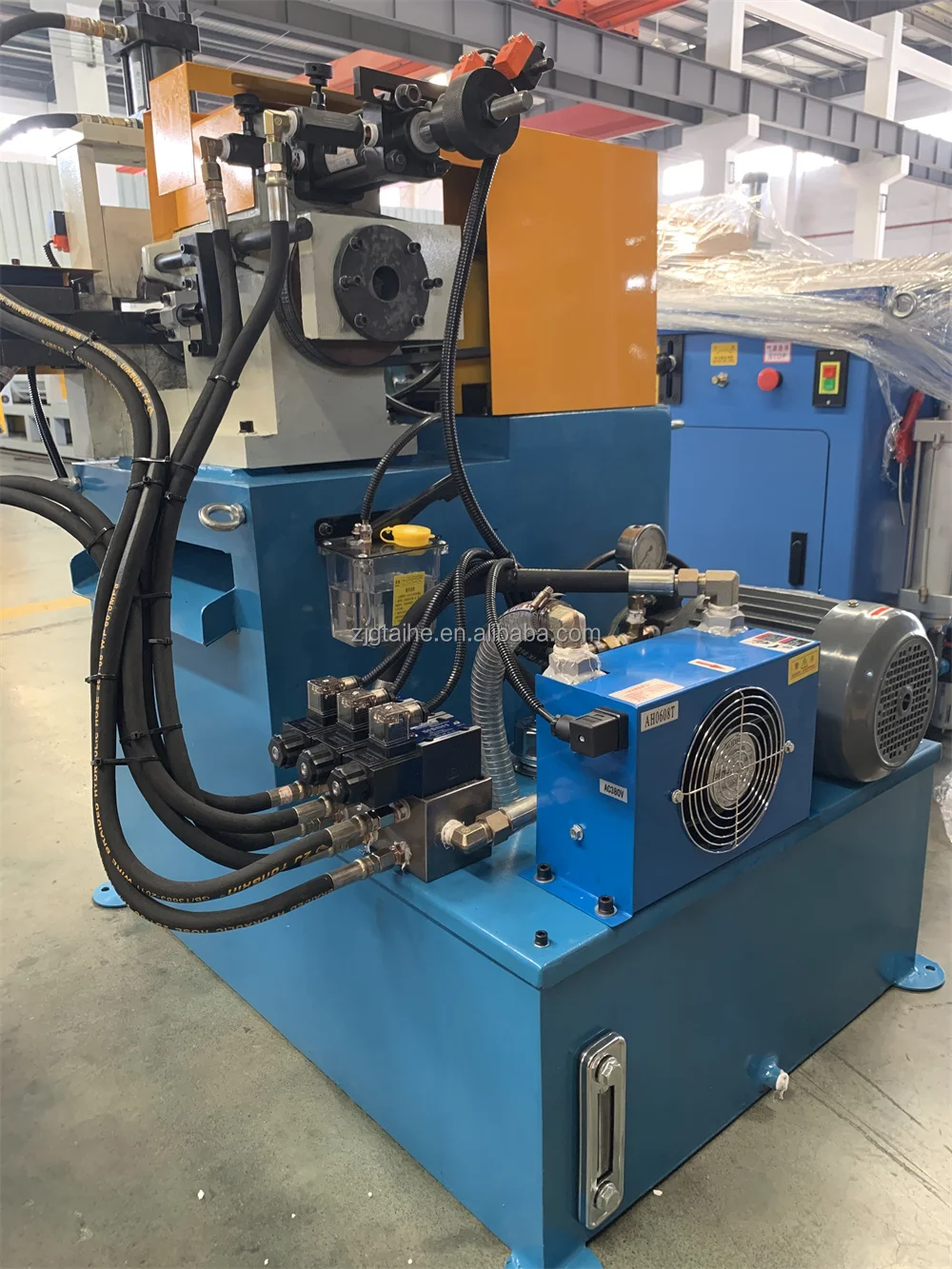

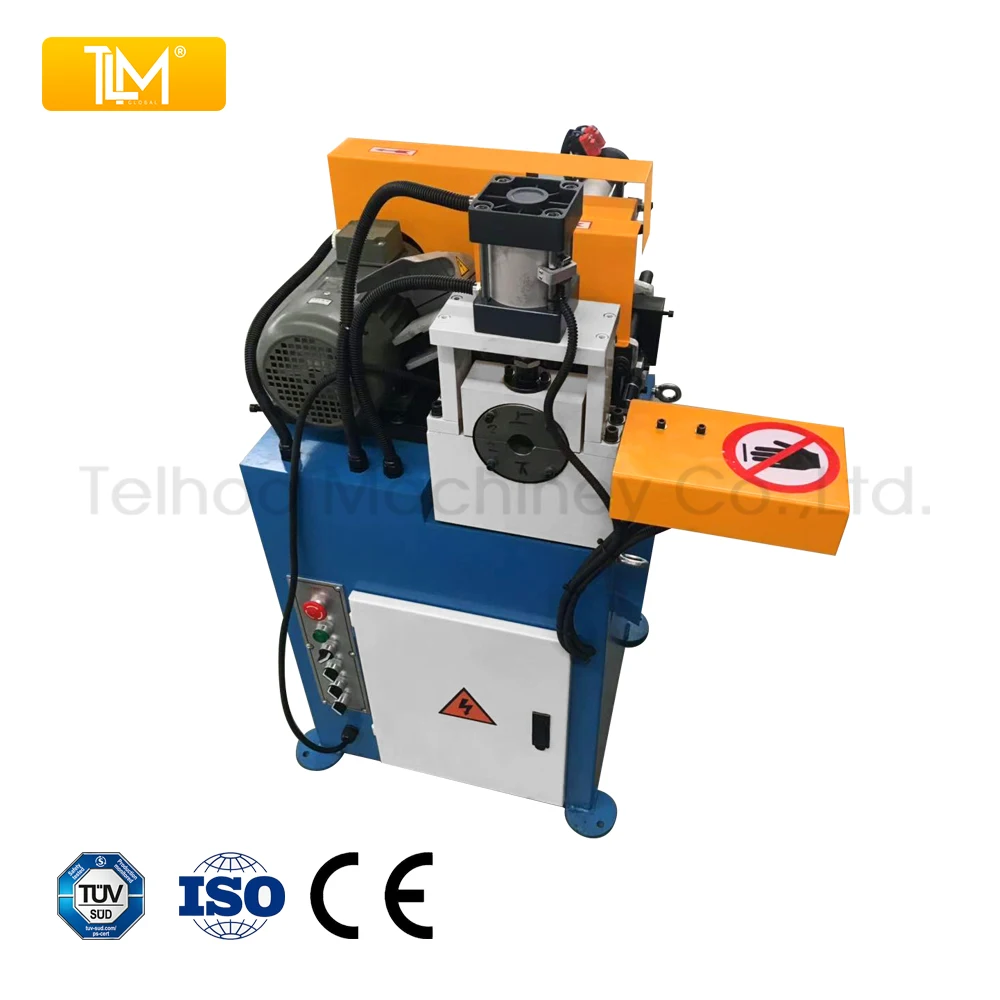

DJ52 steel pipe beveling machine solid bar chamfering machine steel pipe chamfering machine
- Category: >>>
- Supplier: Jiangsu Telhoo Machinery Manufacture Co. Ltd.
Share on (1600876966423):
Product Overview
Description
Product Description
Mechinical characters:
1. Sophisticated design of clamping mould and cutter ensure constant accuracies of center-lines of workpiece under machining and cutter; machining of inside corner and outside corner of pipe end and pipe end can be completed uniformly at a time.
2. Changes in pulleys can be used to change a plurality of speeds to adapt to different mate- rials of metal materials and obtain the longest service life of cutter.
3. Two feeding speeds save time, slow and easy to adjust, and machining perfect.
Specification
MODEL | |
SPEC. | |
Main motor | 2.2Kw |
Air pressure | 0.6-0.8Mpa, 120ml/min. |
Cutter head range | Φ30-Φ82mm for steel pipe |
Weight | 250Kg |
Size | 1100*1250*1300 |

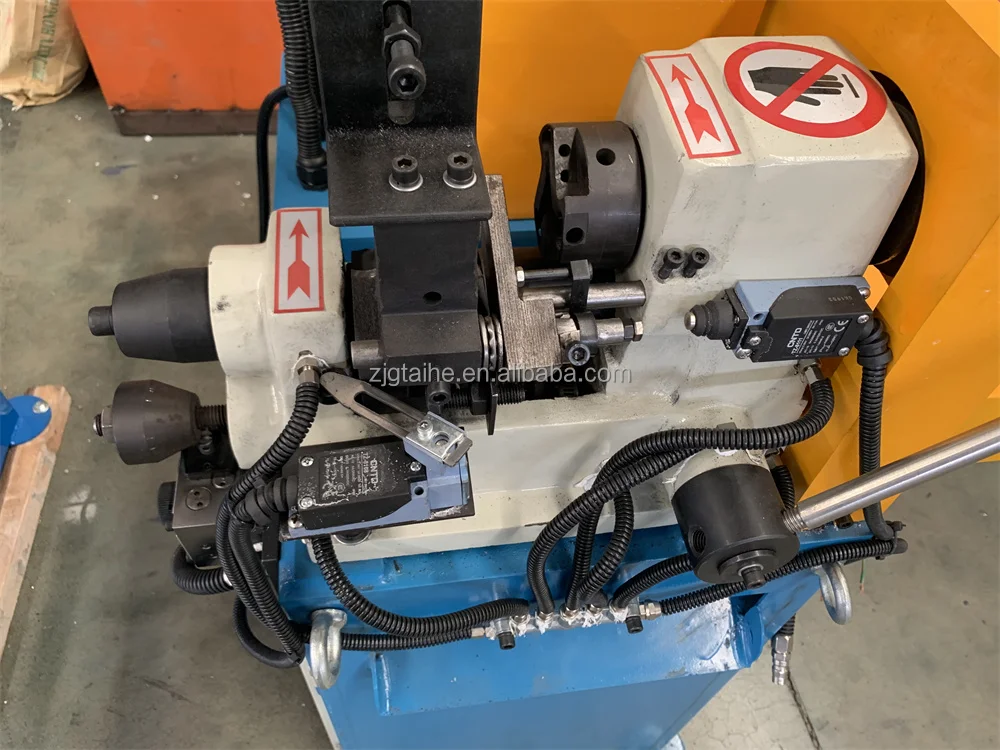

Feed cylinder
The end of feeding cylinder is feeded with a limit nut and sensor.Ajust the limit nut and cooperate with the sensor to determine the screw forward and backword.

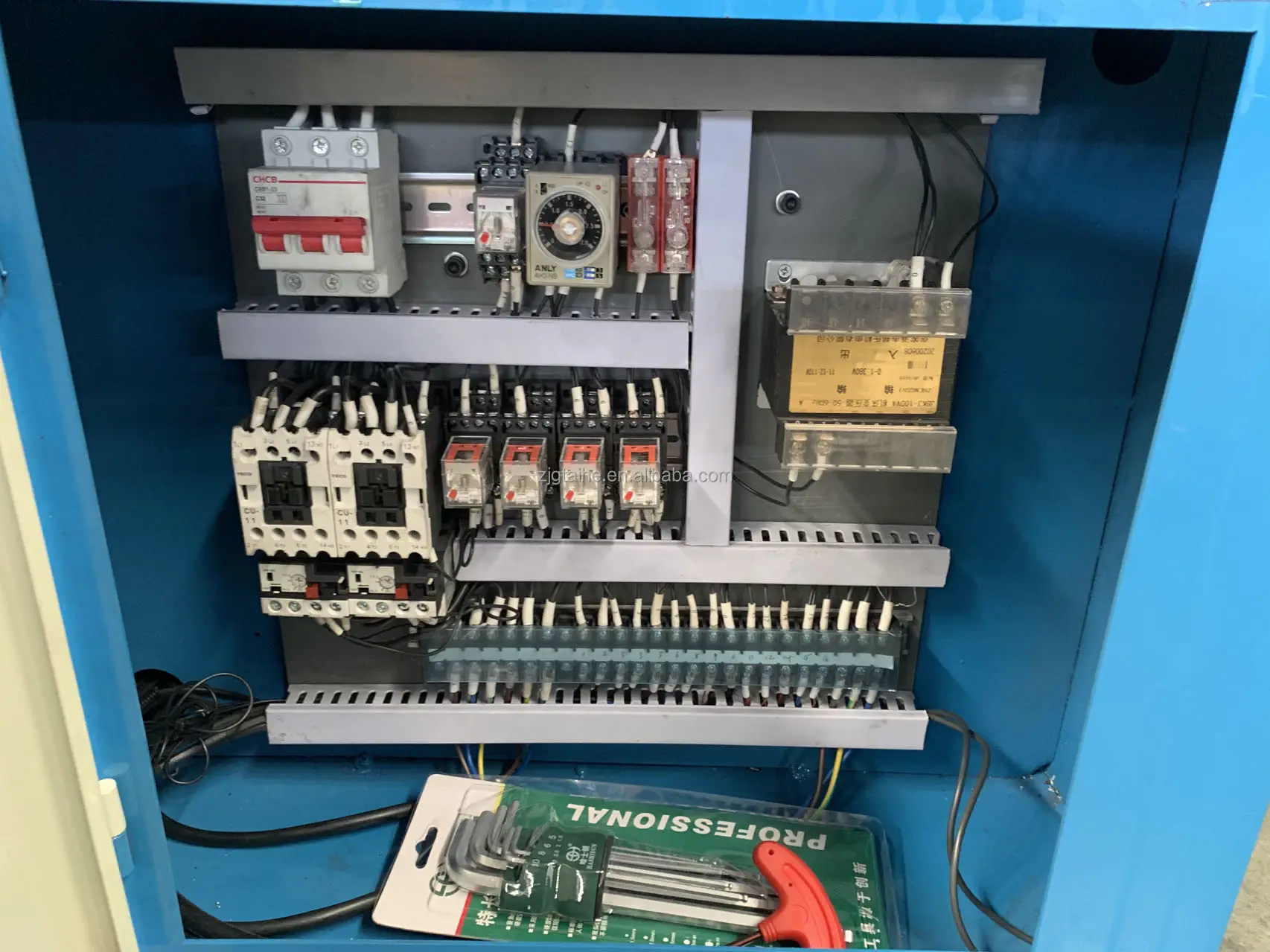

Control box
With famous brand of electrical element.

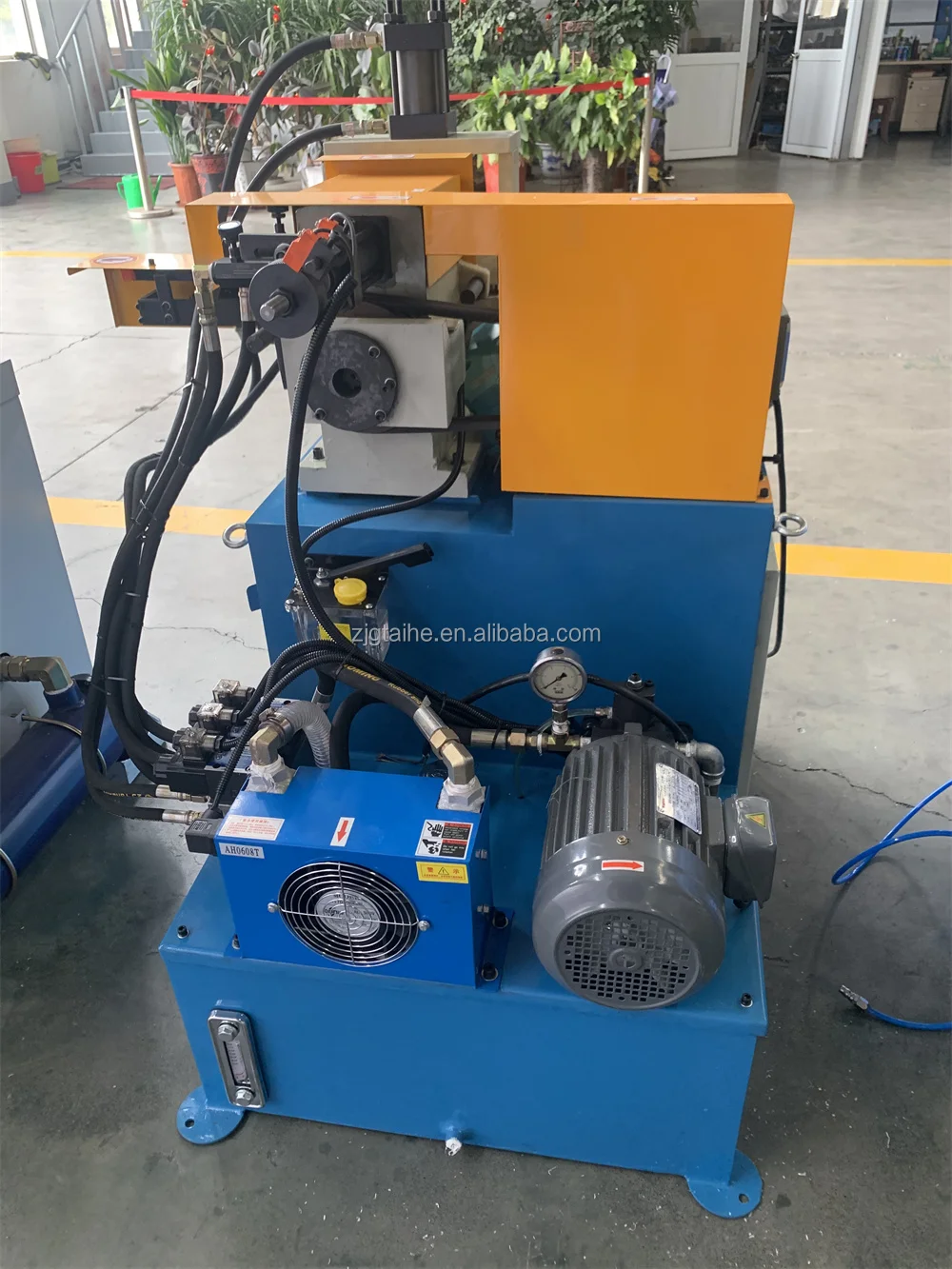

Semi automatic oil pump
Operation panel
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Max. outside diameter:
- Wall thickness range: - Bending radius (CLR):
- The pipe material: - The drawings if possible:
2. Q: What is the difference for NCB, NCBL and CNC machines?
A: NCB is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic. NCBL is semi-automatic pipe bending machines, mechanical gear feeding, servo motor automatic angle rotation and hydraulic automatic bending.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending,multiple tooling stack are available for two and more different bending radius (CLR).
3. Q: What is the machine's control?
A: Standard control is Mitsubishi PLC, Special is IPC controls. IPC with function of 3D view, DWG readout, remote assistance etc.
4. Q: What is the biggest bending capacity you could offer?
A: As of now the biggest bending capacity is 325mm outside diameter for cold bending.
5. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
6. Q: What is the certificates available?
A: CE & ISO9001
7. Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service , or we can send our professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals, andUSD100-USD150 per day.
A: You have to inform us following details:
- Max. outside diameter:
- Wall thickness range: - Bending radius (CLR):
- The pipe material: - The drawings if possible:
2. Q: What is the difference for NCB, NCBL and CNC machines?
A: NCB is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic. NCBL is semi-automatic pipe bending machines, mechanical gear feeding, servo motor automatic angle rotation and hydraulic automatic bending.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending,multiple tooling stack are available for two and more different bending radius (CLR).
3. Q: What is the machine's control?
A: Standard control is Mitsubishi PLC, Special is IPC controls. IPC with function of 3D view, DWG readout, remote assistance etc.
4. Q: What is the biggest bending capacity you could offer?
A: As of now the biggest bending capacity is 325mm outside diameter for cold bending.
5. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
6. Q: What is the certificates available?
A: CE & ISO9001
7. Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service , or we can send our professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals, andUSD100-USD150 per day.
