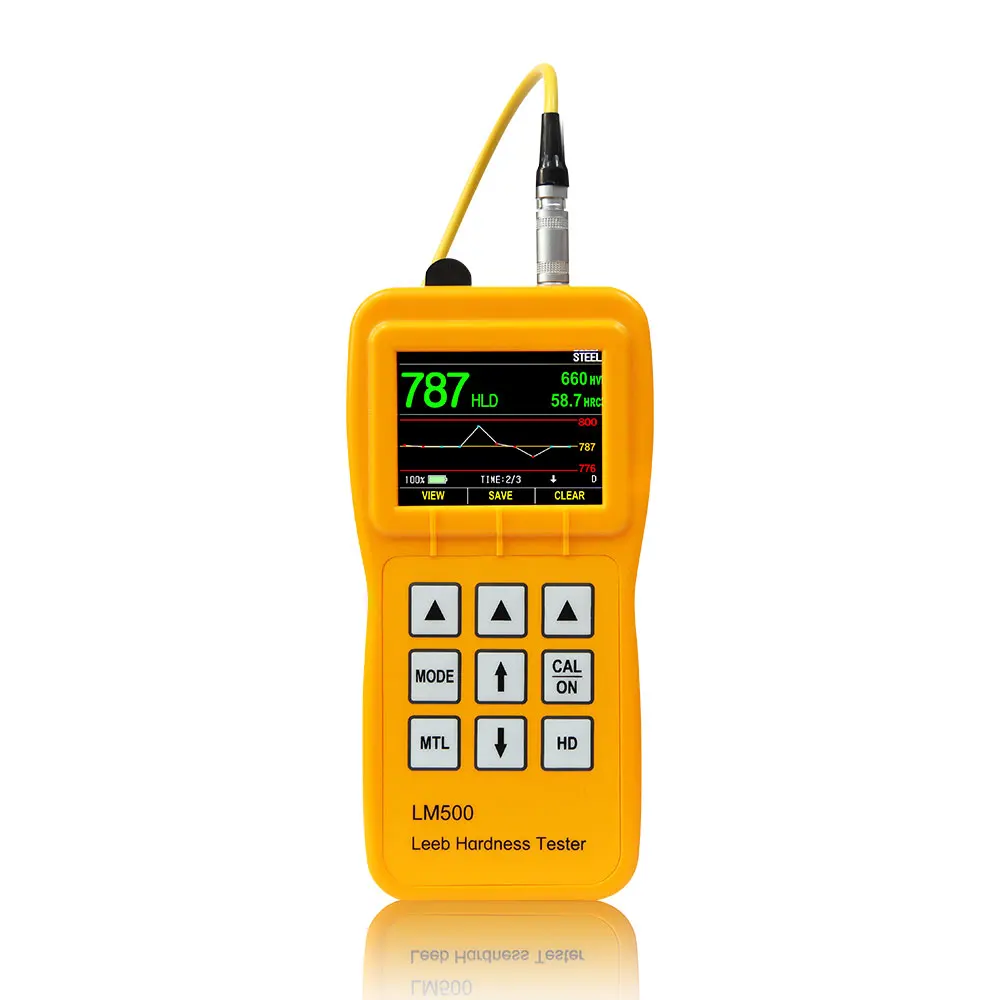

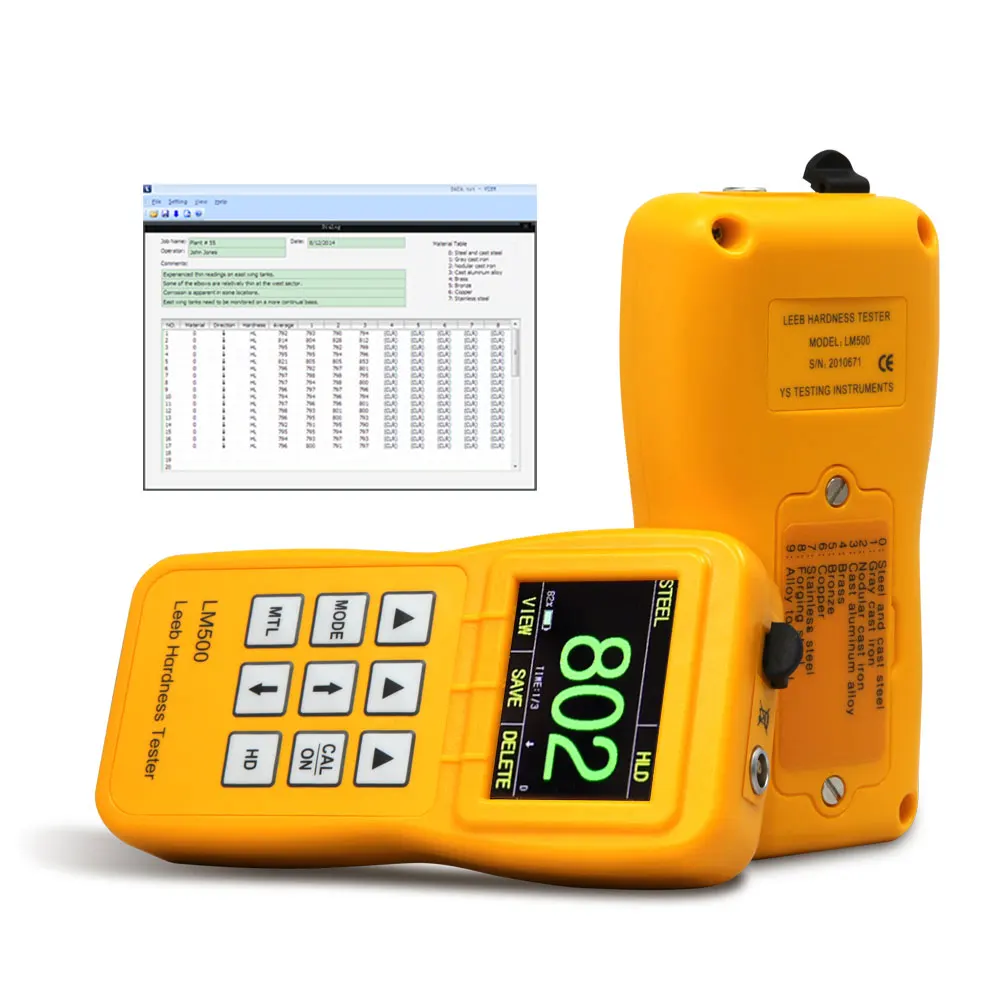

YUSHI PORTABLE HANDHELD DUROMETER LM500
- Category: >>>
- Supplier: YUSHI INSTRUMENTS
Share on (1600876991981):
Product Overview
Description
LM500
LEEB HARDNESS TESTER•High-Definiation 2.4'' IPS Screen
•Stable & Precision Readings
•Leeb + 2 Hardness Conversions display on the same screen
•Bright&Bold Easy to Read disply
•Visual Graph with Hi /Lo Tolerances display
•Clear storage statistics display
•Larger data logger& with LmView software
•Various impact devices can be configured(Standard D Type)
Products Description
Bold Font Display Interface
Large font display interface, impact value in large font display. which are legible and striking.
Multi-standard Display Interface Much Convenient for Users
Multi-standard interface display impact values of three different hardness standard simultaneously meet
requirements of multi-standard without conversion.
requirements of multi-standard without conversion.
Intuitive Display Curve Interface
Curve interface display the latest ten times impact values, get a better observation to the uniformity of the test piece.
Mass Storage Load Interface More Simple and Clear
Stores up to 11000 groups impact values each group contains1~8 impact values and average value .the average value displays with three different hardness standard imultaneously and also displays the maximal error, maximum value&the minimum value of the current group, which facilitate users to analyze the test results.
Display | 2.4 inch lPS with resolution 320×240 pixels |
Measuring Method | Leeb Hardness Method |
Hardness Scale | HL, HB, HRB, HRC, HV, HS. σb. |
Measuring Range | HLD (200-960) HRC（19.8-68.5） HB（30-651） HV（80-976） HS（26.4-99.5） HRB（13.5-100）σb.(375-2639) |

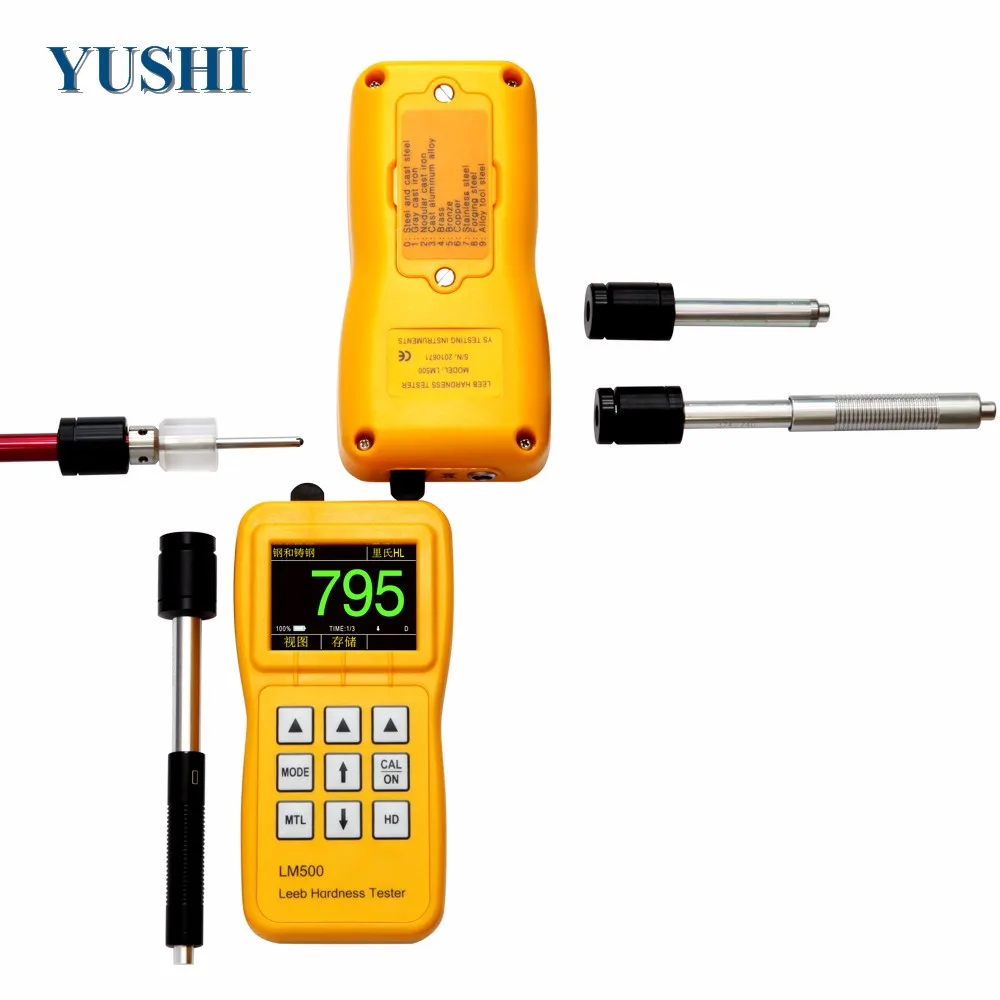

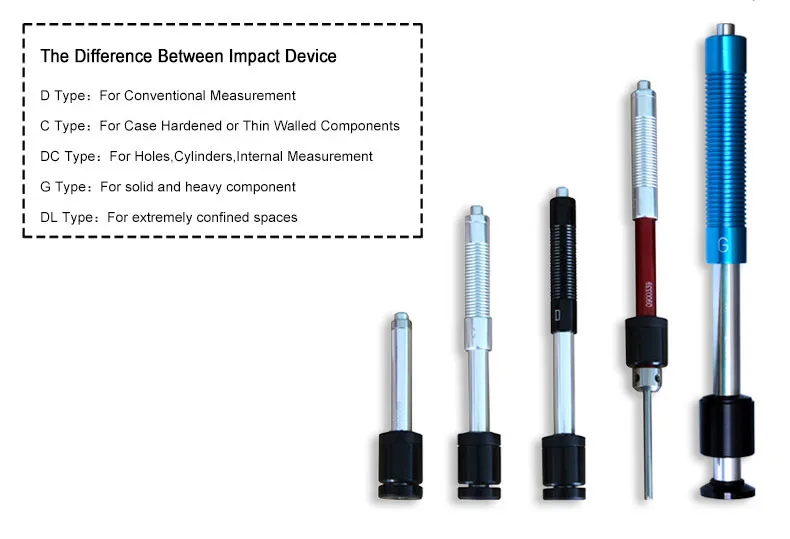

Impact Device | Standard D type impact device , optional C/G/DC/DL/D+15 |
Accuracy | ±6HLD (HLD=800), Repeatability ﹤6HLD (HLD=800) |
Measuring Direction | Vertically Downwards, Downward Sloping, Horizontal, Upwardly Sloping, Vertically Upwards |
Material | Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass,Alloy Tool Steel,Forged Steel |
Resolution | 1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS |
Language | English , Chinese, French , Japanese , Italian |
Data Memory | 200 files，11000 groups (each group contains 1-8 hardness values and 1 mean value) |
communication | USB port (standard) |
Software | Standard LmView software, the measurement data can be managed, archived and printed |
Power | Two 1.5V AA batteries |
Temperature | -10℃ to +50℃ |
Size | 153*76*37mm(H*W*D) |
Weight | 242g include batteries |
Standard | GB/T 17394-1998, ASTM A956 |

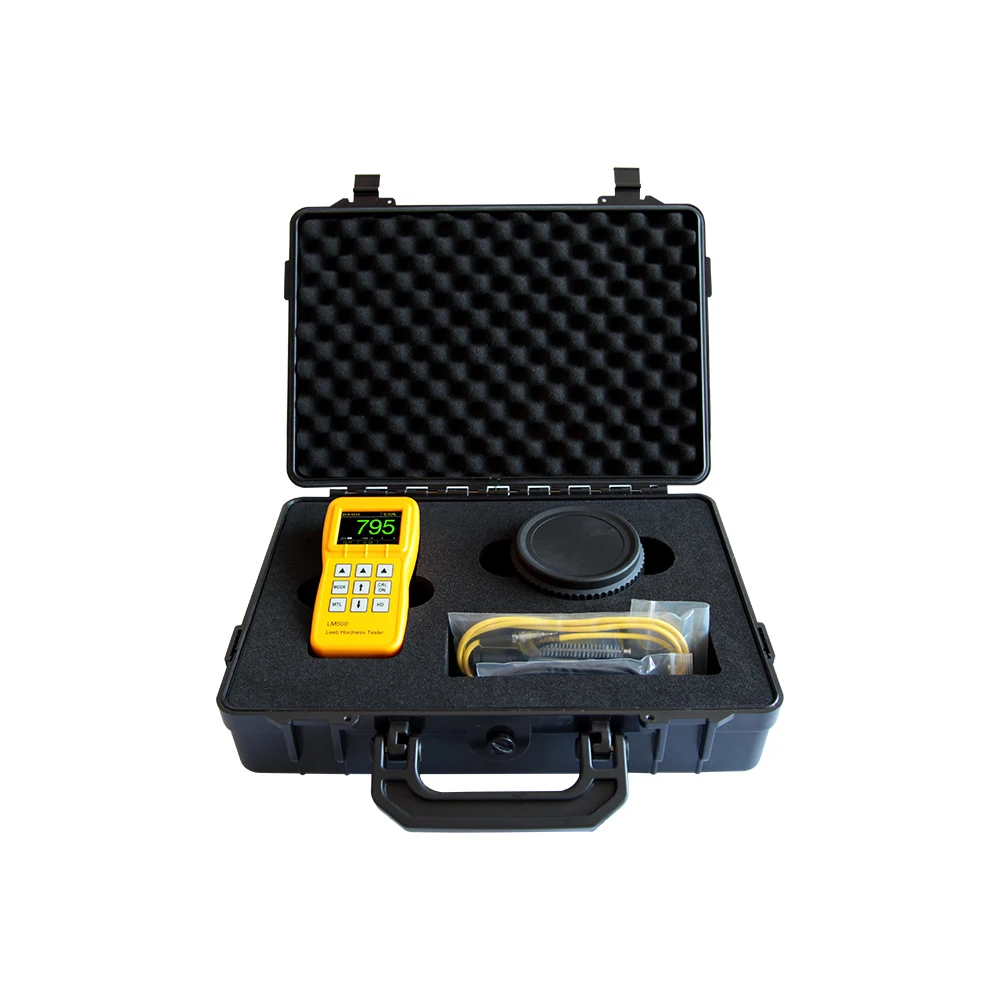

Product Configuration
Names | Unit | Numbers |
Leeb Hardness Tester | Set | 1 |
D type impact device | Piece | 1 |
Standard test block | Case | 1 |
Communication software | Piece | 1 |
USB cable | Piece | 1 |
Small support ring | Piece | 1 |
Cleaning brush | Piece | 1 |
Carrying case | Case | 1 |
Operation manual | Copy | 1 |
Certification of Quality | Copy | 1 |
Warranty card | Copy | 1 |

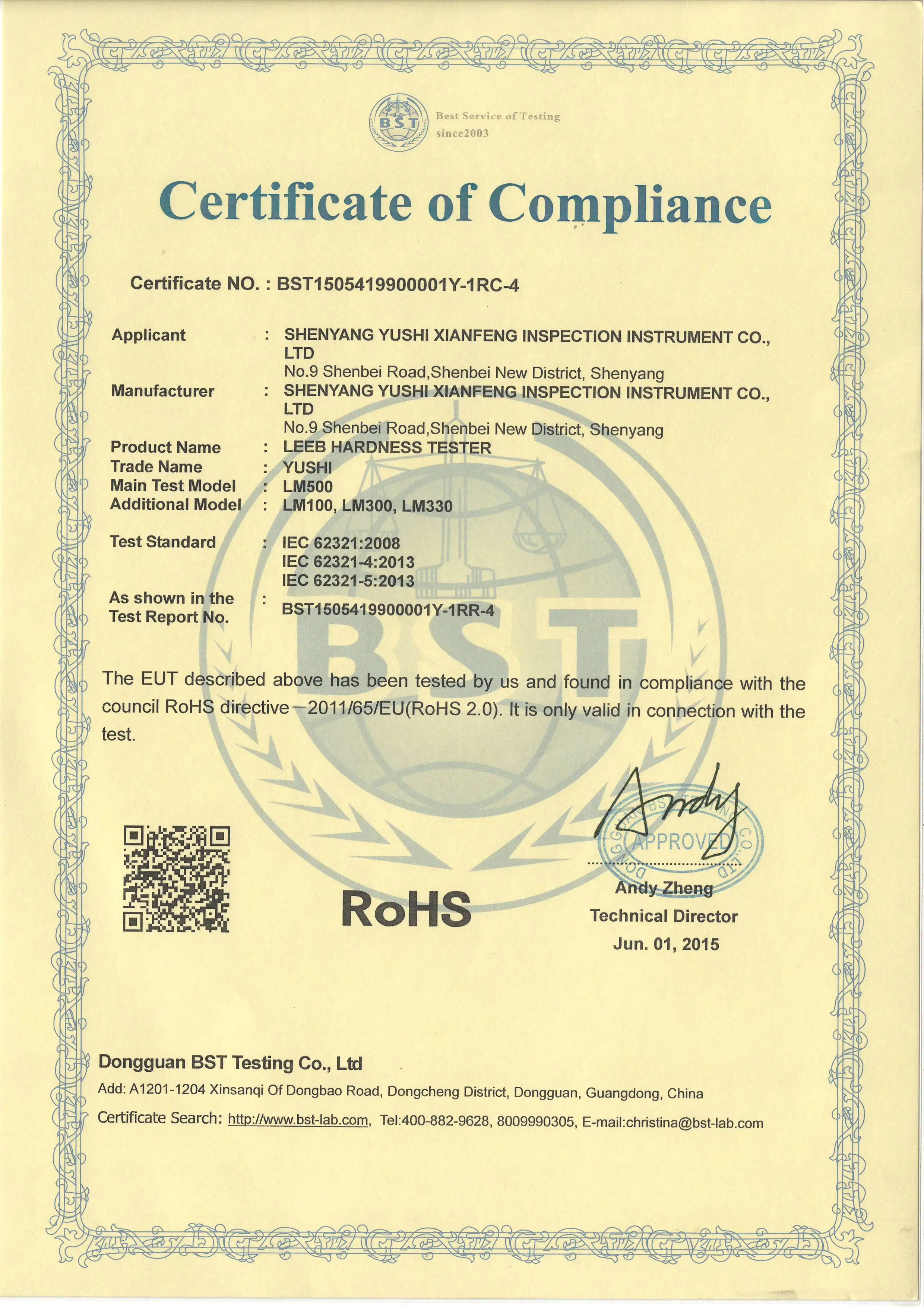

Certifications
