Industrial grinder pin mill pulverizer grinder machine powder thyme grinding sumac grinder machine
- Category: >>>
- Supplier: Xinxiang Dongzhen Machinery Co. Ltd.
Share on (1600876997265):
Product Overview
Description
Product Description
DZ series universal crusher adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow which produced when crushing, crushing fineness can be decided by different sieves.
Size Information
Model | Capacity (KG/H) | speed (r/min) | Feed size (mm) | Crush size (mm) | Power (kw) | Weight (kg) | Dimensions (mm) |
DZ20 | 20-150 | 4500 | <6 | 12-120 | 4 | 280 | 590*650*1350 |
DZ30 | 30-300 | 3800 | <10 | 12-120 | 5.5 | 350 | 650*800*1500 |
DZ40 | 40-500 | 3400 | <12 | 12-120 | 7.5 | 480 | 800*950*1700 |
DZ60 | 60-600 | 2400 | <15 | 12-120 | 22 | 650 | 950*1050*1900 |
DZ80 | 80-1000 | 2200 | <15 | 12-120 | 37 | 1050 | 2500*1500*2100 |
Application field
1.The Universal grinder may be widely applied in industries, such as medicine, chemical and food,etc., for grinding of dry and fragile materials. Materials with low softening point and big viscosity are not appropriate for this machine.
2.The Universal grinder is used for all kinds of spices, peppers, star anise, cinnamon, pepper, turmeric, etc

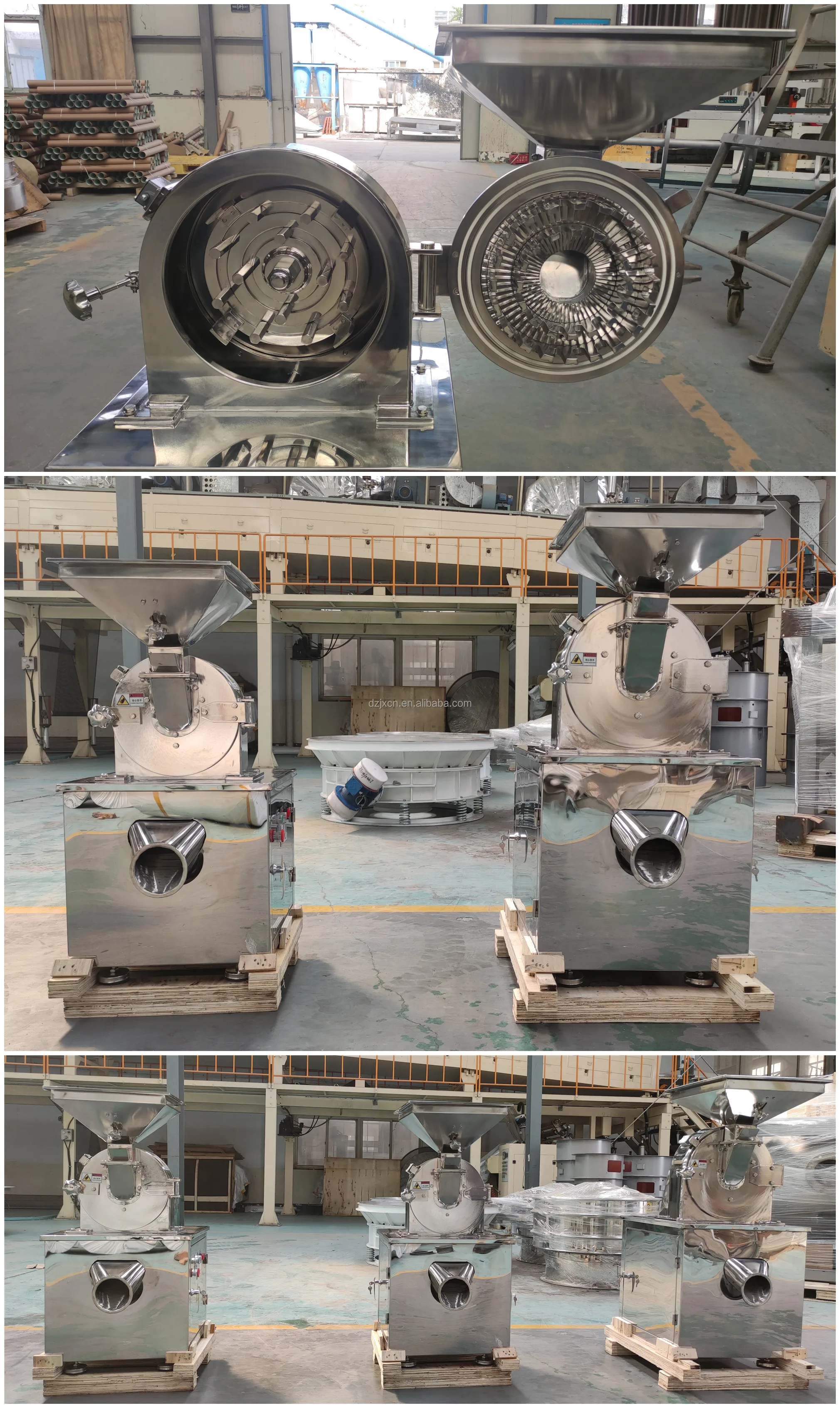

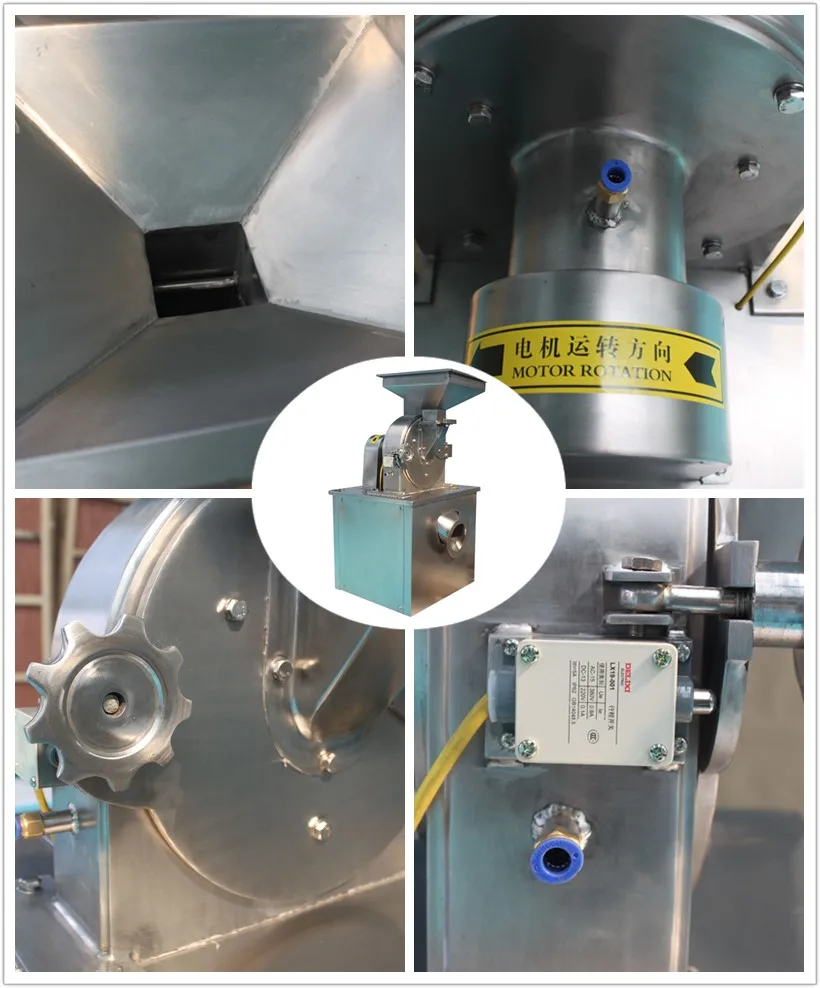

Detailed Images
Inside the machine there are several groups moving knives (or prisms or hammerheads) in rotary wheel, and a group fixed knives in gear ring. Within the cutting and collision of moving knives and fixed knives, the material was crushed. At meanwhile the grinding chamber has produced airflow, which put heat and the finished product outflow together from the sieve and discharge.
Its strong cutter suit for grinding hard materials
Suitable for fibrous materials and heat sensitive materials
Suitable for fibrous materials
Suit for general materials
Certifications
Company Introduction
Our factory
Our cooperative customers
FAQ
Q1: What's the raw material you want to grind?
-Like chili, sugar, herbs...etc
Q2: What's the size of your raw material?
-Such as 10mm,15mm...etc
Q3: What's the capacity of the machine you need?
-Like 50kg/hr, 300kg/hr,500kg/hr..etc
Q4: What's the finished powder fineness you want to get?
-mesh, mm or micron
Q5: What power do you use in your factory?-V,-Hz, 3 phase or single phase?
-like 220V,50Hz,single or 380V,60Hz,3 phase...
