3.7 KW 5HP 8 10 bar variable speed industrial centrifugal fans screw air compressor
- Category: >>>
- Supplier: Dehaha Compressor Jiangsu Co. Ltd.
Share on (1600876998727):
Product Overview
Description
Product Description

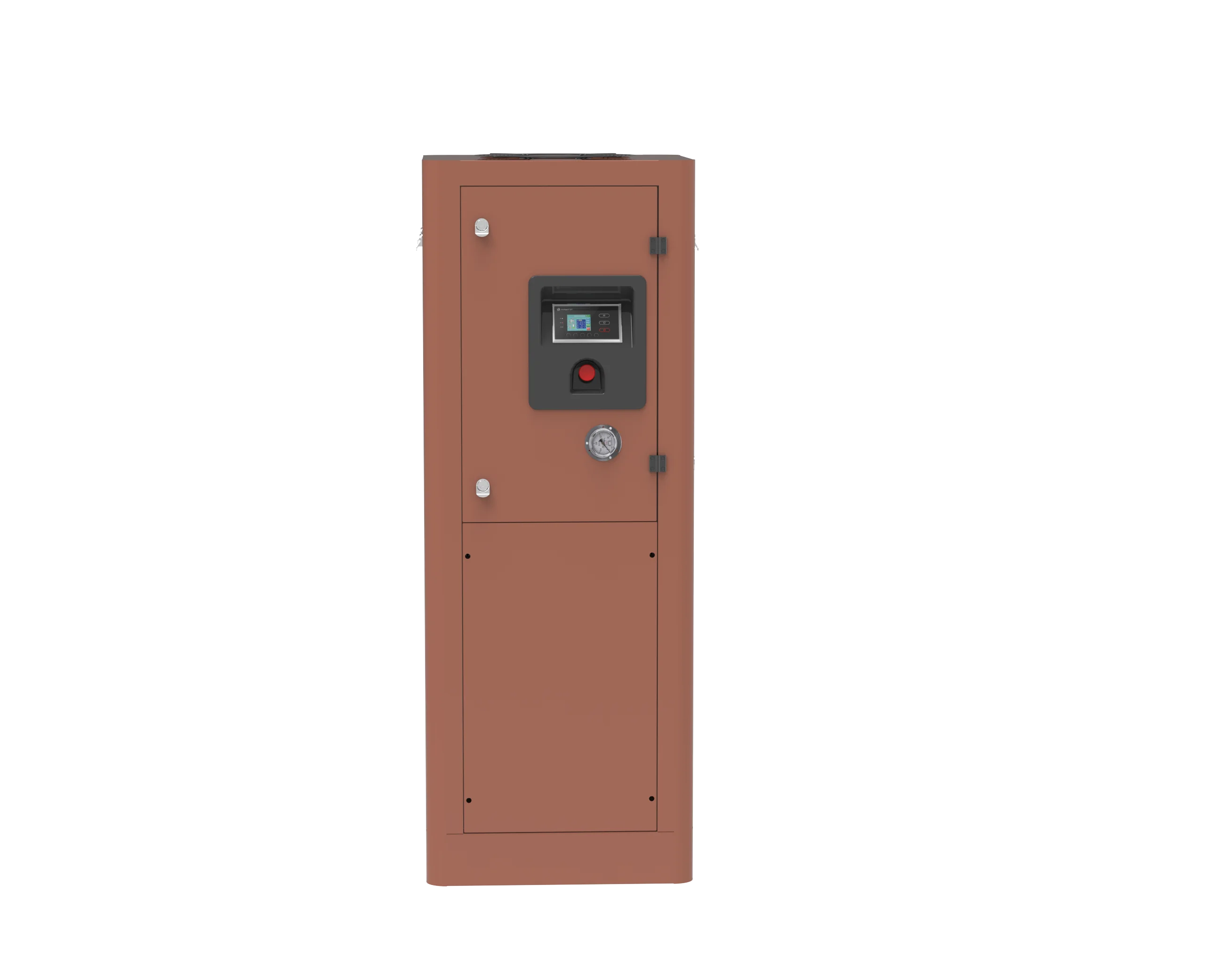

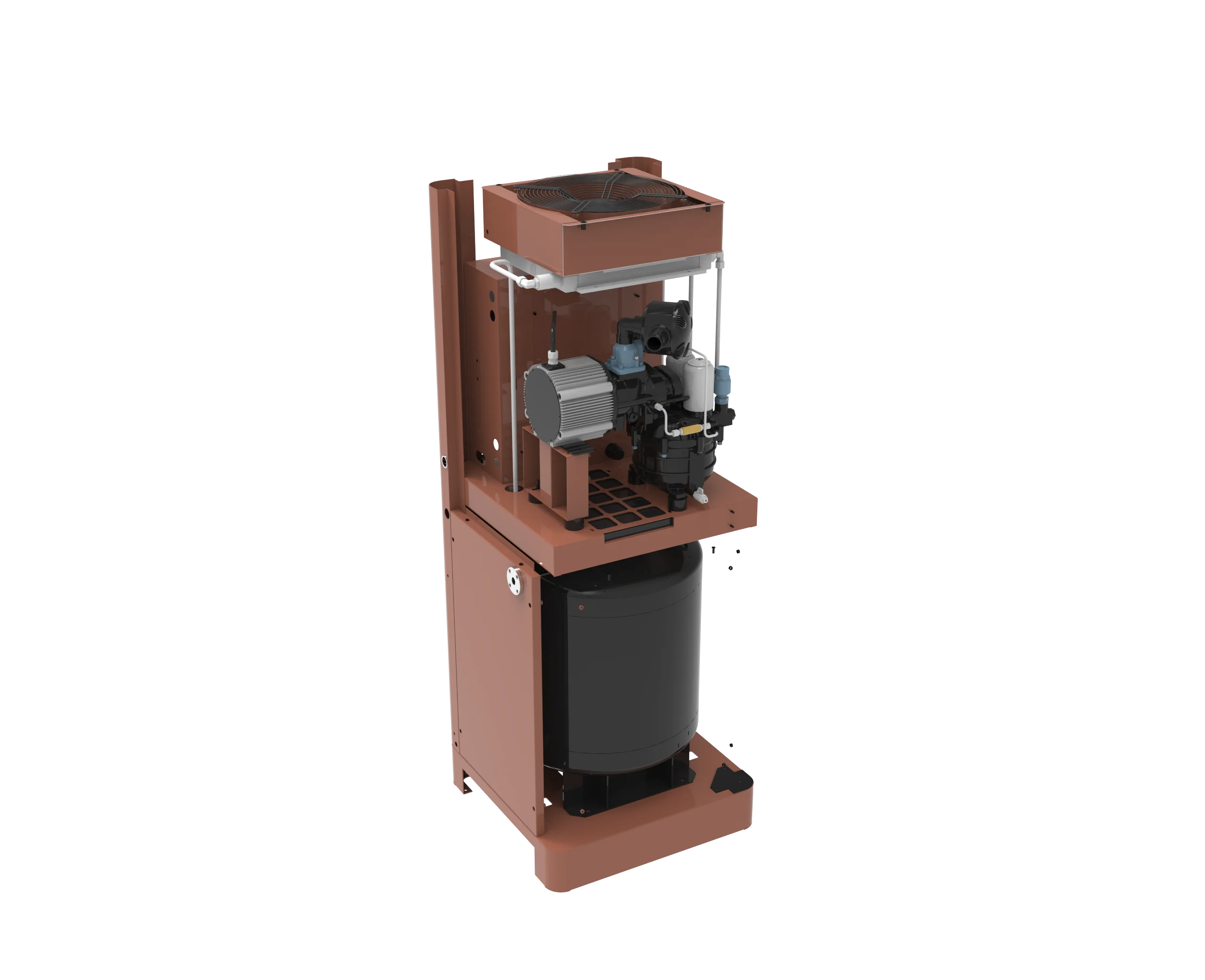

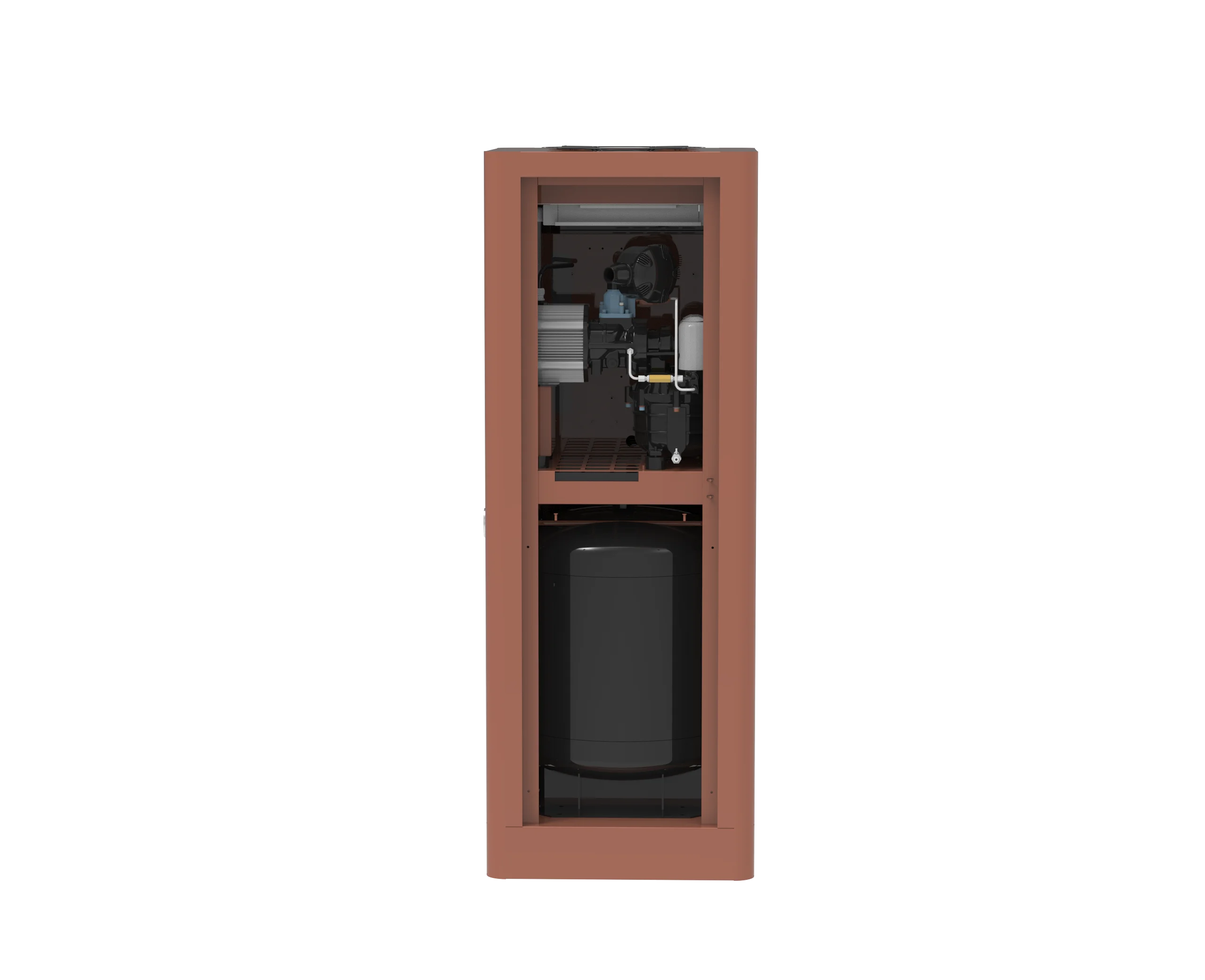

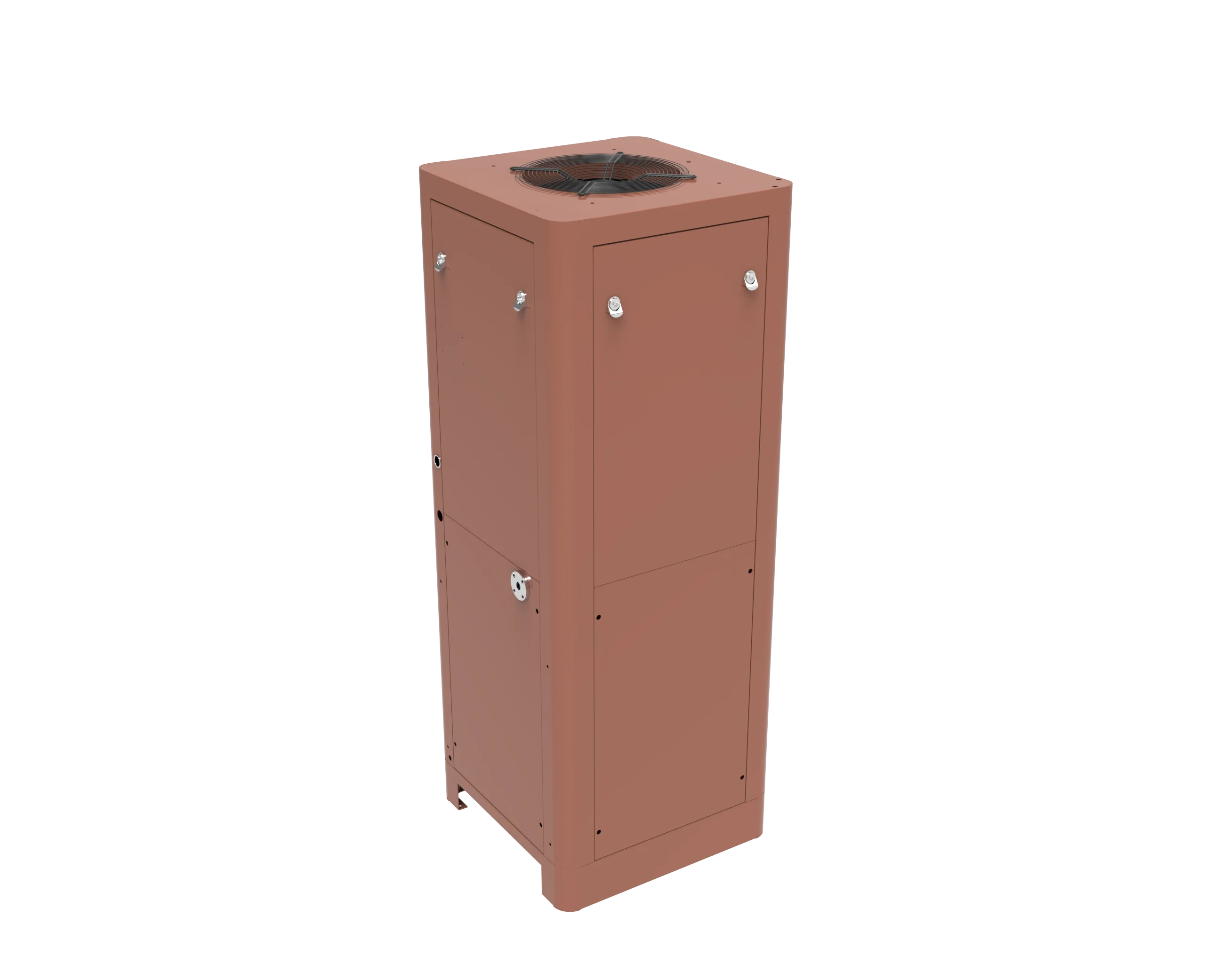

3.7 KW 5HP 8 10 bar variable speed industrial centrifugal fans screw air compressor
Model: C5K2
Air delivery: 150-400 L/min
Exhaust pressure: 0.8-1.25 MPa
Motor Power: 3.7kW
Voltage frequency: 220V/380V
Exhaust pressure: 0.8-1.25 MPa
Motor Power: 3.7kW
Voltage frequency: 220V/380V
Drive mode: Permanent magnet frequency conversion
Automatic start method: Frequency conversion start
Outlet size: G1/2
Dimension: 690*690*1750mm
Automatic start method: Frequency conversion start
Outlet size: G1/2
Dimension: 690*690*1750mm
Technical Parameters
Model | Air delivery(L/min) | Power(kW) | Noise(db) | Outlet diameter | Dimension(mm) | Weight(kg） | ||||||
8 bar | 10 bar | 12.5 bar | 16 bar | |||||||||
C5K2 | 200-400 | 175-375 | 150-300 | / | 2.2 | / | G1/2 | 690*690*1750 | / | |||
C5K2 | 200-400 | 175-375 | 150-300 | / | 3.7 | / | G1/2 | 690*690*1750 | / | |||
C6K2 | 250-500 | 250-420 | 250-360 | / | 4.5 | / | G1/2 | 690*690*1750 | / | |||
C6K2 | 300-700 | 300-550 | 300-420 | 150-300 | 5.5 | / | G1/2 | 690*690*1750 | / | |||
C10K2 | 490-980 | 400-900 | 400-800 | 300-600 | 7.5 | / | G1/2 | 690*690*1750 | / | |||
Application Industry

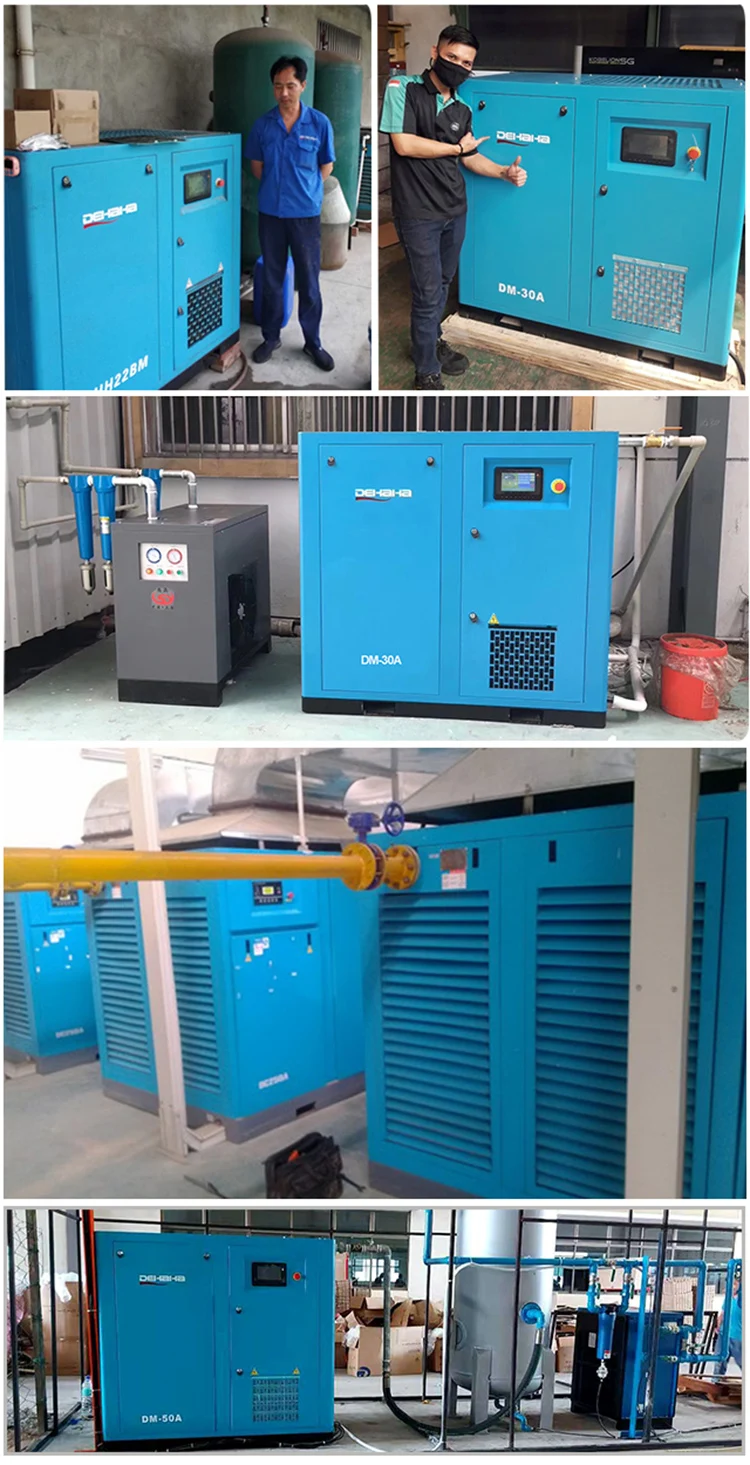

Project Case
