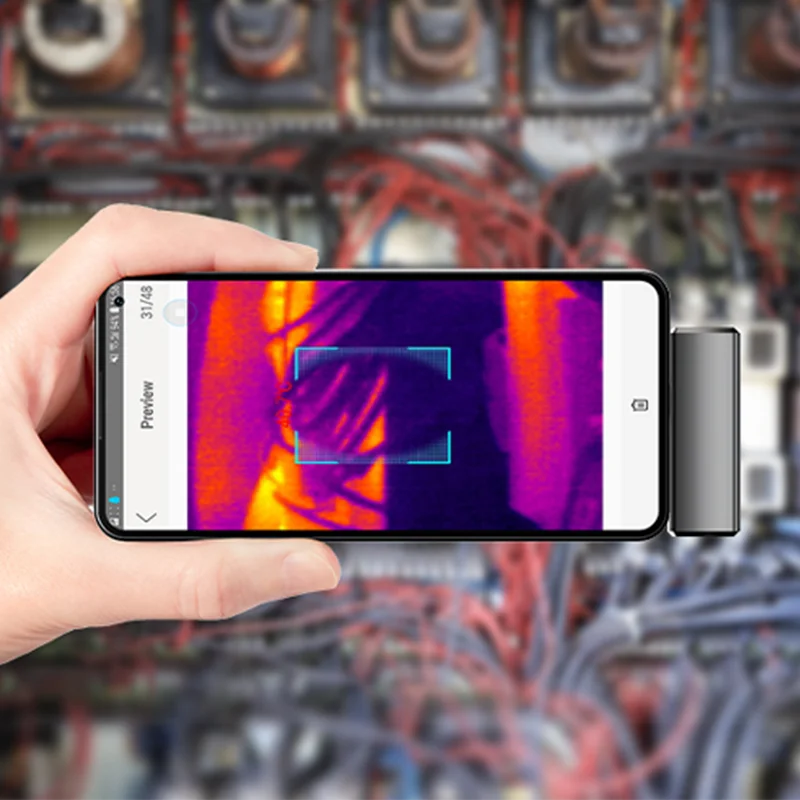

Android smartphonec ellphone use infrared thermal imaging camera mobile phone thermal camera
- Category: >>>
- Supplier: Shenzhen VeeZoom Technology Corporation
Share on (1600877133209):
Product Overview
Description
Android smartphonec ellphone use infrared thermal imaging camera mobile phone thermal camera
Product Description

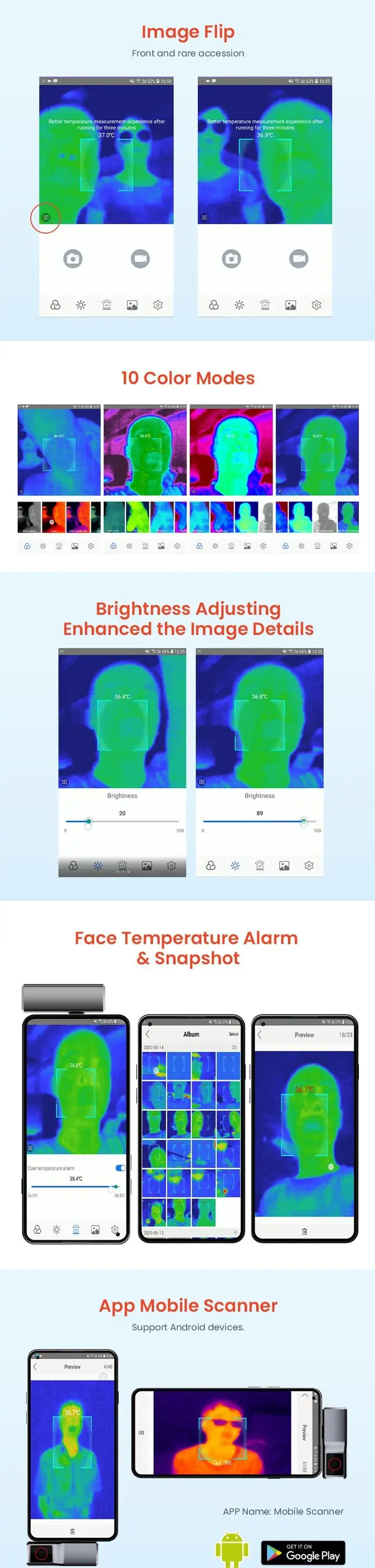

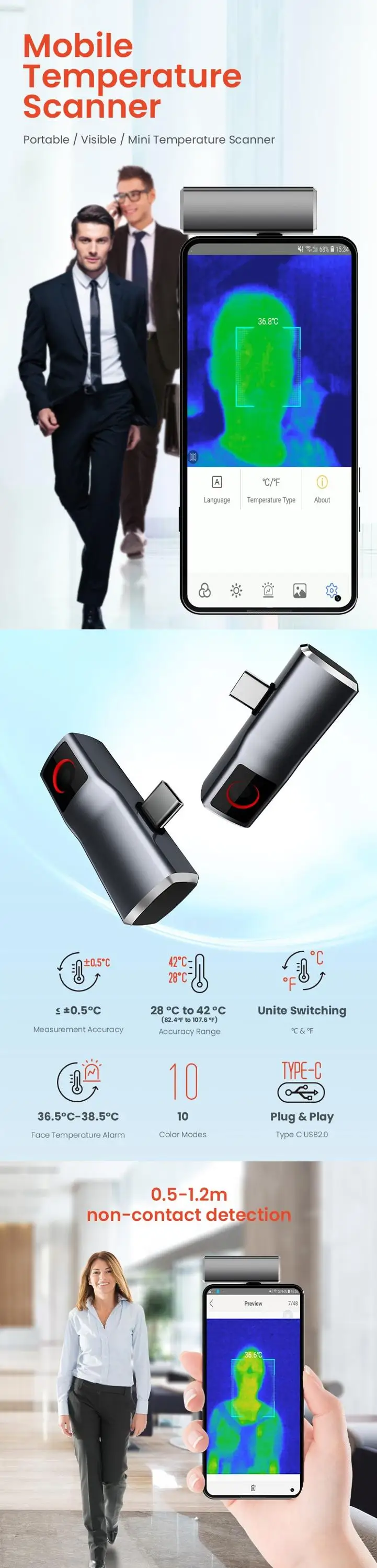

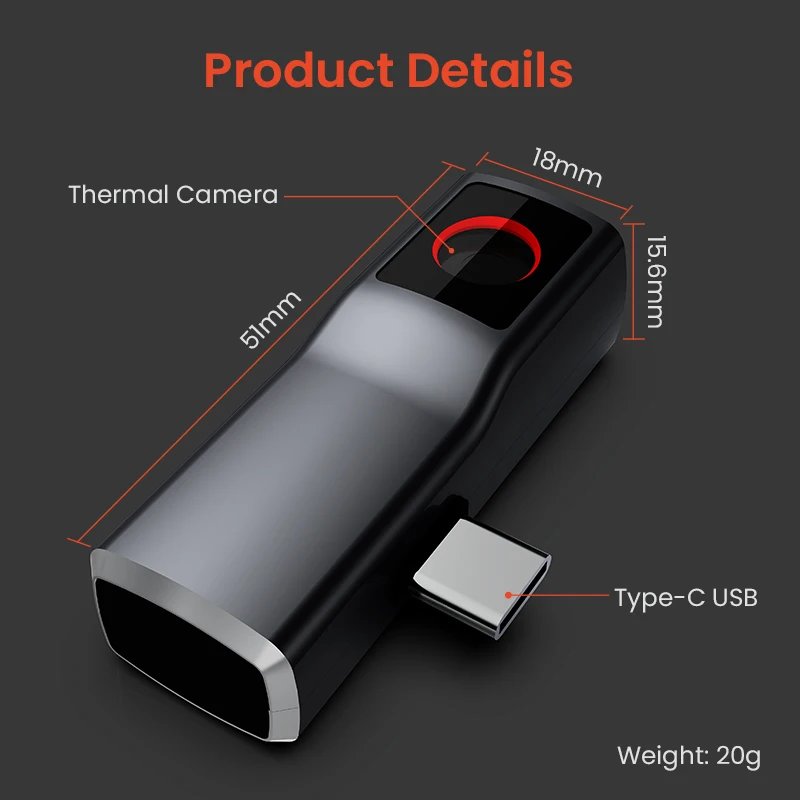

Details Images

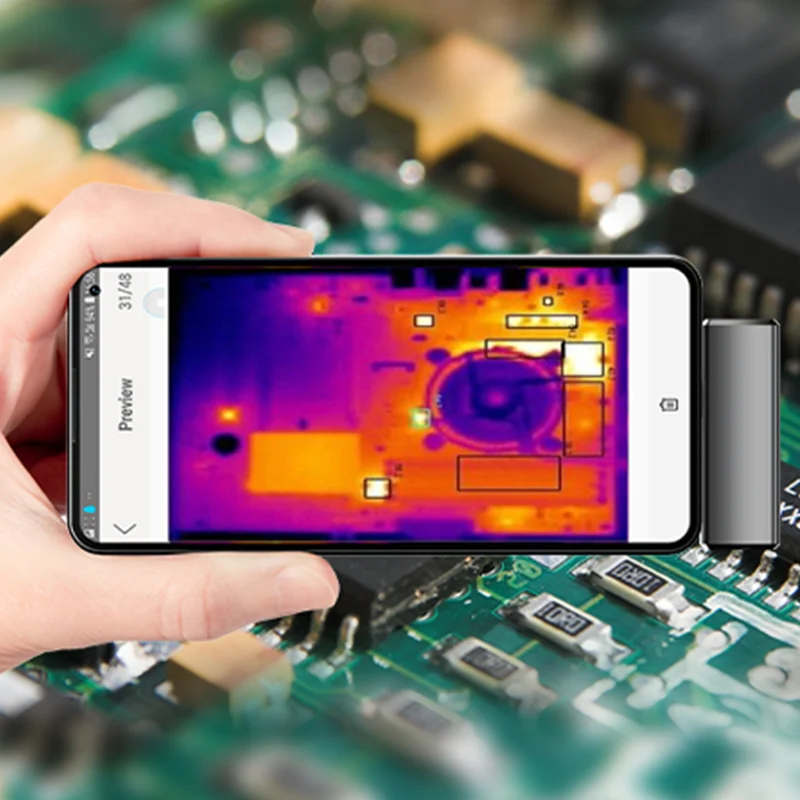

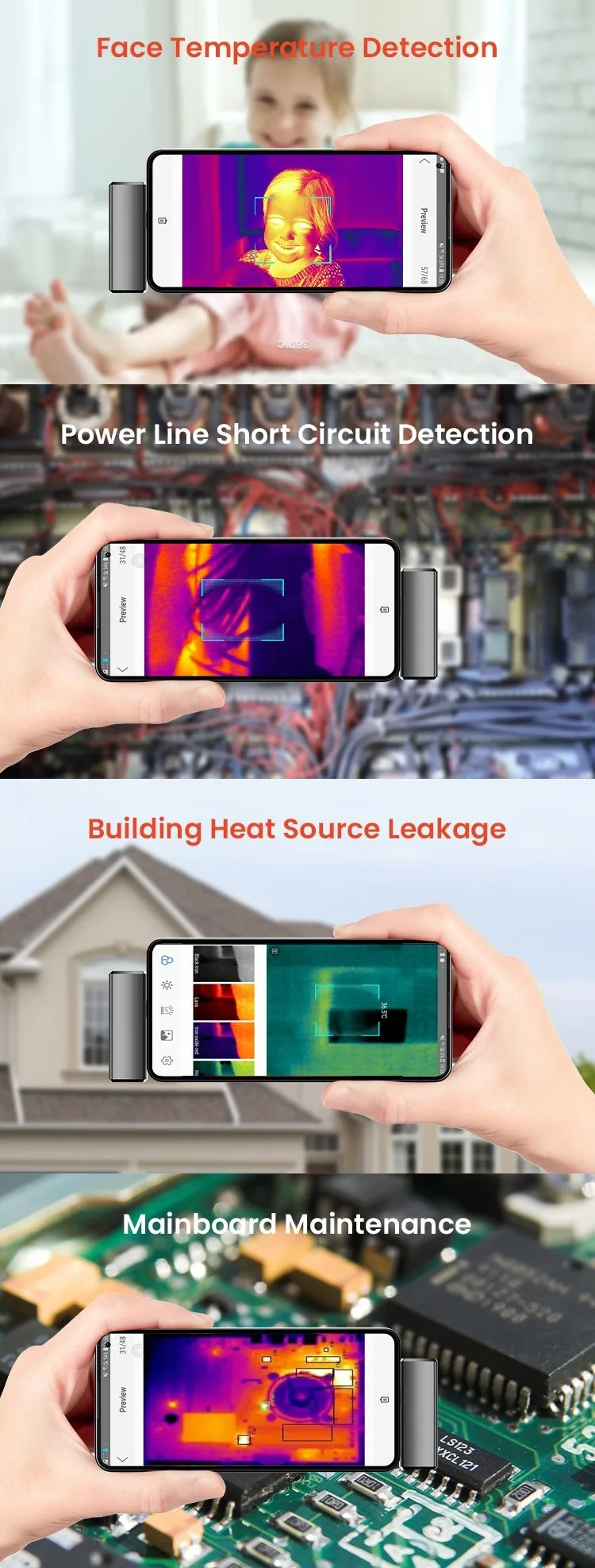

Applicable Scenarios
Specification
IR Detector | ||
Sensor | Vanadium Oxide uncooled sensor | |
Resolution | 120×90 | |
Spectral Range | 8~14 μm | |
Pixel Interval | 17 μm | |
Lens | ||
Focal Length | 2.3mm | |
Aperture | F1.1 | |
Field Of View | 50°±1° | |
Shutter Mode | Auto | |
Temperature Measurement | ||
Temperature Range | 20 °C to 50 °C (68 °F to 122 °F) Accuracy Range: 28 °C to 42 °C (82.4°F to 107.6 °F) | |
Measurement Accuracy | ≤ ±0.5℃, Working Temperature: 16 °C to 32 °C (60.8°F to 89.6 °F) | |
Measuring Distance | 0.5m~1.2m | |
Output | ||
Data Format | 120×90 14Bit temperature data | |
Image Frame Rate | 25fps | |
Interface | USB Type-C: USB 2.0 | |
Function | ||
Color Palettes | White-Heat / Black-Heat / Rainbow / Iron-Red | |
Capture | Support | |
Recording | Support | |

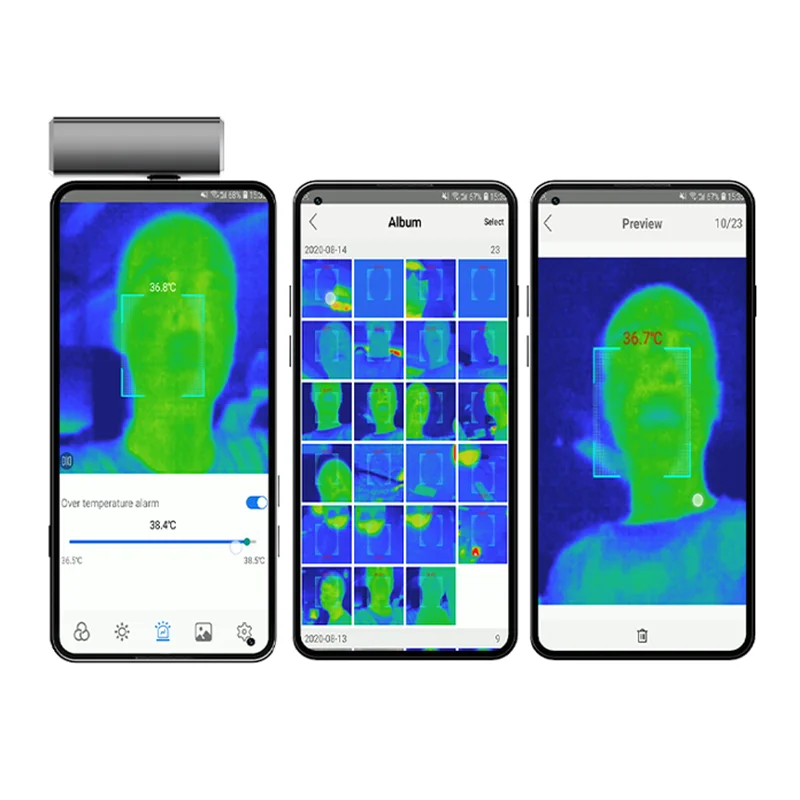

Alarm | Vibration, Sound | |
Self-timer | Support | |
Double Light Fusion | Support | |
General | ||
Power Supply | USB (5 ~ 6V), Powered by smartphone | |
Power Consumption | <150mW | |
Peak Current | ≤100mA（5V） | |
Standby Current | ≤30mA（5V） | |
Working Current | ≤30mA（5V） | |
Working Temperature | 0℃ ~ 40℃(32°F ~ 104°F) | |
Storage Temperature | -40℃~ +70℃ | |
Company Profile
Packaging & Shipping
FAQ
Q: How long is the warranty ?
A: All goods have been checked before dispatch. Warranty for 1 years, have lifetime technical service.
Q: Could you support OEM&ODM ?
A:Of course you can. Color, logo, function, packaging or other. Welcome to do OEM.
Q: How long is the delivery time ?
A: Normally the package will be sent within 3-7 working days after your payment is verified by Alibaba.
Q: After-sales services ?
A: All goods will be inspected and tested before shipment.Customer's satisfactory is most important to us. If you have any problem or questions regarding our transaction.Please contact us by Trade manager or Skype and so on. It will be responded within 24 hours.
If you any further problem, welcome to contact us.Thanks for your interest.
