Product Overview

Description

The "comprehensive" function of the Electronic Comprehensive Therapy Instrument includes:

             It is a physical therapy equipment with multiple therapeutic functions such as electric pulse, ultrasound, laser, magnetoelectric hyperthermia, etc.

        For this kind of physiotherapy equipment, the enterprise has experienced two generations of efforts since the 1970s, and has reached the peak of perfection.

        Let's find a typical model to illustrate:

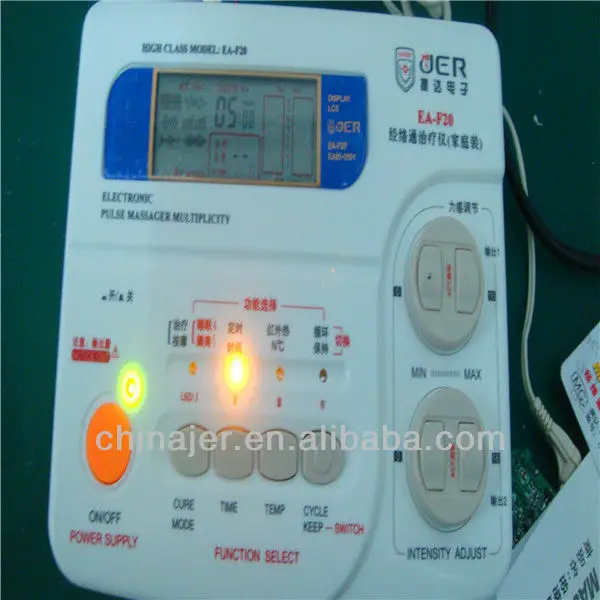

        First, from the appearance interface: reasonable layout, clear and clear, very easy to operate.

       Then open the back cover to have a look at the internal structure and the composition of relevant components and PCB:

              1.The power transformer is composed of two components, and the ultrasonic is independent, so that the ultrasonic high frequency is not easy to affect other circuits; The other one constitutes an independent power supply system, which makes it exclusively subject to laser, electric pulse, magnetic heating and other circuits. The result of this is that EMC is qualified.

         2.The output transformer is designed as an inverted push-pull circuit, so that the positive and negative half-cycle (symmetrical and asymmetrical pulse wave) in the circuit can pass smoothly. The silicon iron sheet selected is the quenched sheet of Baoshan Iron and Steel Plant of China, the model is Z11, and the volume is also increased correspondingly: the E1-24 stack thickness is 7mm, which makes the frequency characteristics wide and the high-frequency band easier to pass. The key is: in practical effect, our special output transformer is installed, the output of the instrument is more powerful, more direct to the depth of the organization, more extensive, and users feel more comfortable, just like the two powerful hands of a professional masseur to help massage.



         3. All PCB boards are made of R4 copper-coated double-sided materials, and components are made of SMT mounting process as much as possible. The layout is in accordance with the rules of SMC and ESR to make the process more advanced.

         4. All output sockets All with metal shell,Make the following electromagnetic compatibility qualified.



 (1)Conducted disturbance (CE)

 (2)Radiation disturbance (RE)

 (3)Radio frequency electromagnetic field immunity (RS)

 (4)Immunity to conducted disturbances induced by radio frequency fields (CS)

 (5)Electrostatic discharge immunity (ESD)

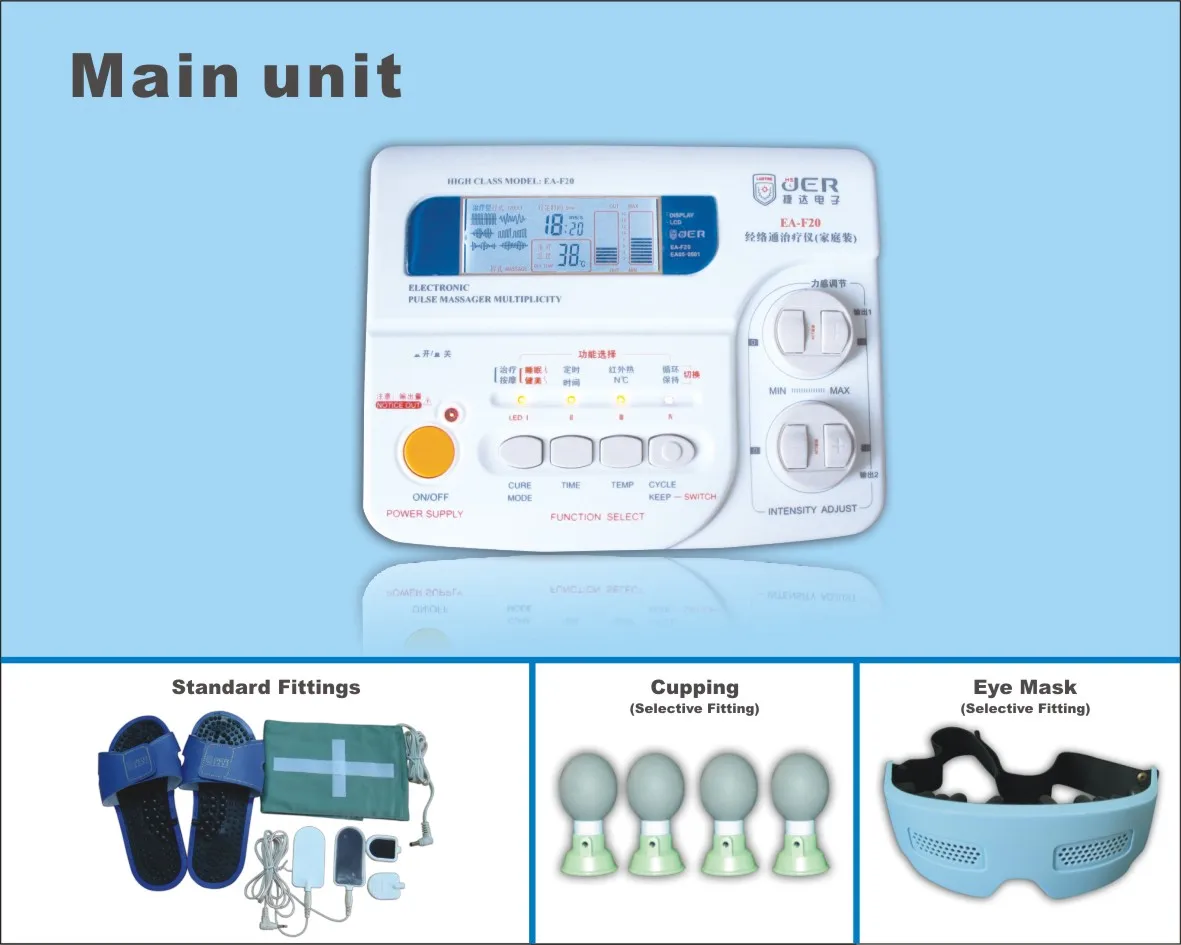

5.Peripheral accessories are manufactured by our own factory (notpurchased).such

 as :

 Pulse shoes ,made of new 55 hardness PVC material.

 And our unique electric cupping:



And water magnetic therapy electrode:



 And PVC thin hard shell (flexible) massage eye mask. The market feedback is very good.

         In a word, the details show the rigorous technology and exquisite design, which bring extraordinary high-level experience to the distinguished customers.

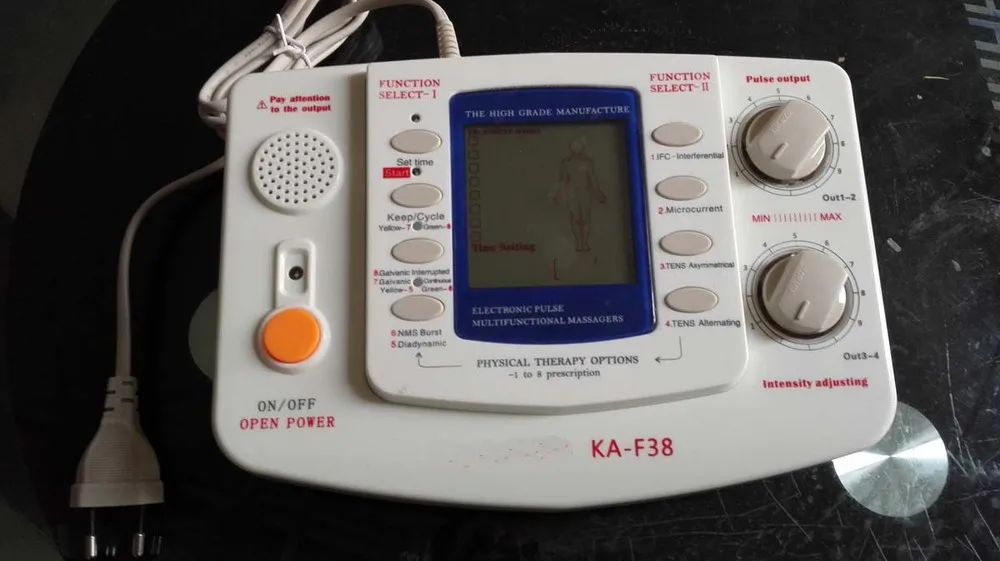

EA-F38 digital 4 channels pulse massager with 8 electrodes



4 channels,8 kinds of therapy modes,9 intensity levels

electric therapy,improve blood circulation

wide application for arthritis,hyperosteogeny,lumbar muscle,etc.

A.Features:

1) LCD,easy to operate,elegant appearance----------with body acupuncture point display during the treatment;

2) Power supply:A.C 220V±22V net power supply direct supply/ 5 NO.5 batteries;

3) Frequency range:Low frequency (1Hz-1000Hz) is used for Epidermis & shallow muscle; middle frequency (1000Hz-3000Hz) can be to deep muscle & Skeletons.

4) 8 kinds of therapy and massage programs: IFC-interferential,Microcurrent,TENS Asymmetrical,TENS Alternating,Diadynamic,NMS Burst,Galvanic Continuous,Galvanic Interrupted. All of the programs can be set automatic cycle or keeping one mode.

5) 4 channels for electronic muscle stimulate with 8 electrodes

B.Efficacy Scope:

1. Rheumatoid arthritis,hyperosteogeny,muscle,strain vertebra cervical syndrome, head-ache, neuropathic, gastritis, pericoronitis, cramp
2. Neurasthenic, insomnia, faint, headache, trigeminal nerve painful, hemiplegia,toothache, hucklebone neuralgia
3. High blood pressure, brain arteriosclerosis, apoplexy, menopause synthesize,galactophore flocculi hyperplasia
4. Rhinitis, stomach-ache, calculus, constipation;
5. Impotence, premature ejaculation, disorder of sexual function,emmeniopathy,dysmenorrhea,
6. Breast shaping and keep fit of shoulders, arms, back, waist, leg massage,belly,thigh, and so on.

C.Specification:

NO.	Model Specification	Models EA-F38
1	Power supply and voltage	a.c. 220V±22V,50Hz±1Hz net power supply direct supply
2	Power	less than 28VA
3	Frequency range	0.5Hz-1000Hz, 1000Hz-3000Hz
4	Pulse duration	0.07ms-1.2ms
5	Single electrode max output energy	less than 300mj
6	Single electrode output effective voltage	less than 25V
7	Fuse	φ5×20mm F1A250V  Notes: installed inside the apparatus, don't disassemble at will !
8	Output pulse feature curve	B mode linear continually adjustable V out min less than V out max ×2% (v)
9	Far-Infrared thermotherapeutic temperature	Within 35°C~58°C
10	Time setting	Six grades for 5,10,15,20,25,30min
11	Environmental requirement for apparatus application
	<1> operation	Environmental temperature range 5°C~40°C
		Relative temperature range less than 80%
		Atmospheric pressure range: 86Kpa~106KPa
	<2> transportation and storage	Environmental temperature range: -50°C~55°C
		Relative temperature range less than 93%
		Atmospheric pressure range: 50Kpa~106KPa
12	Dimensions(main unit)	195mm×155mm×75mm
13	Weight	3.0 kg
14	Electrode pad size	82mmx43mm

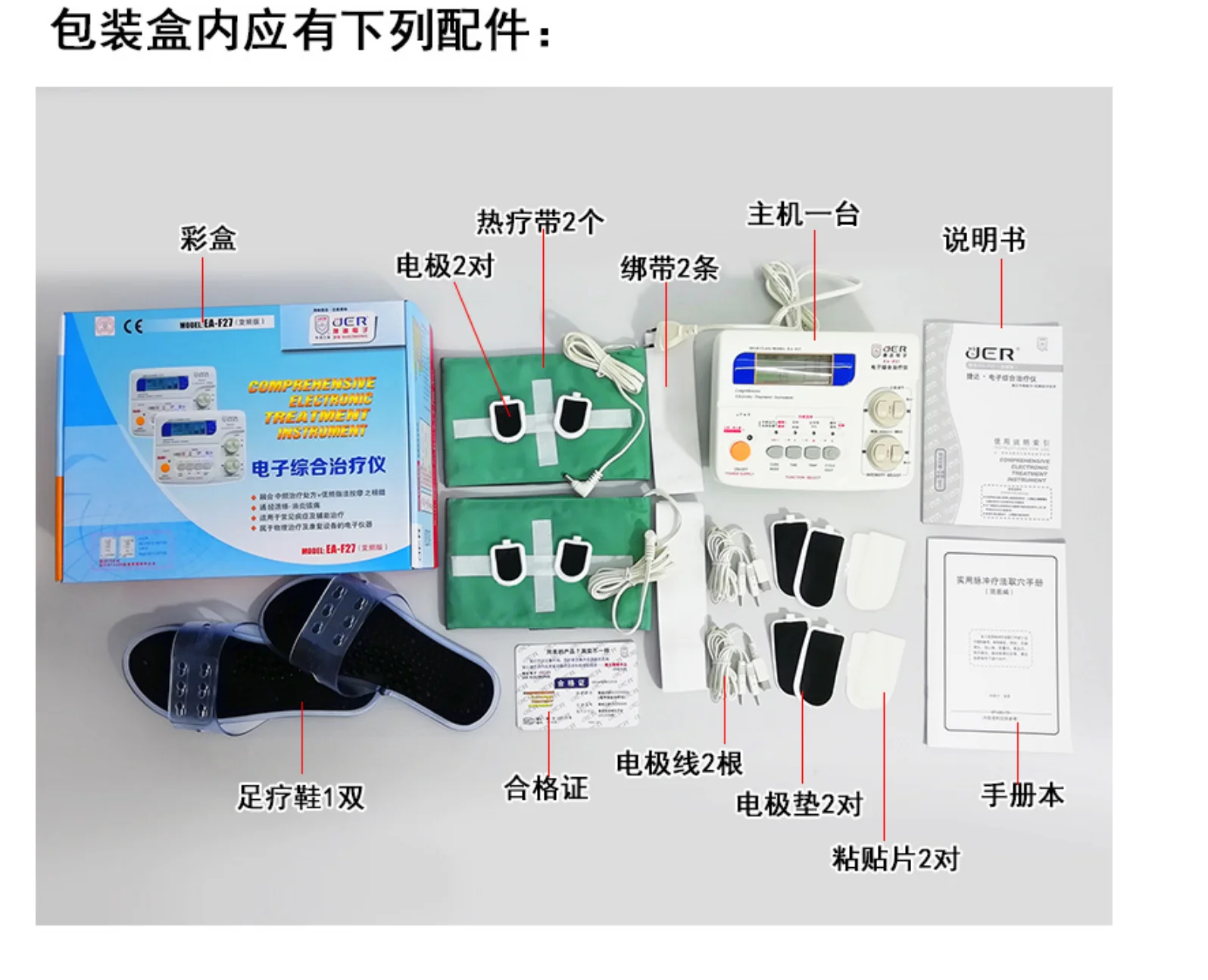

D.Components:

1) 1×main unit

2)4×electrode cables

3)4×electrode pad(pair)

4) 1×usage Instruction Index



E.Sample:

The sample need to be charged,but it will be refunded once the order quantity is up to 200pcs.

F.Certifications:

Professional technology,over 20 years experience.

We are sure to give you better support offer

Sincerely hope our machine will bring more wealth and health to you.
