Product Overview
Description

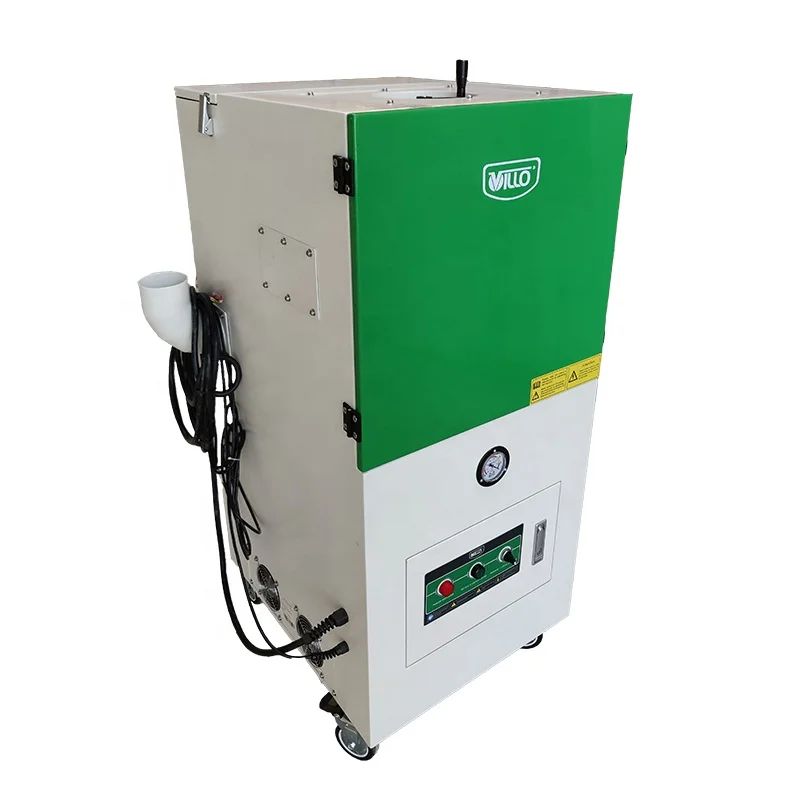

VX Series Cabinet Type High Pressure Industrial Dust Collector
Product description
VX series is an industrial dust collector with high negative pressure, stable design, small footprint and flexible movement.
Applications
A manual cleaning dust collector with high negative pressure for continuous working applications such as metal working (grinding, cutting, drilling, sandblasting); PCB machining; battery manufacturing, etc.
VX series is an industrial dust collector with high negative pressure, stable design, small footprint and flexible movement.
Applications
A manual cleaning dust collector with high negative pressure for continuous working applications such as metal working (grinding, cutting, drilling, sandblasting); PCB machining; battery manufacturing, etc.
Features
* Equipped with auto filter cleaning device for easy filter cleaning. User can set the pulse frequency depending upon the requirements.
* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns. * Equipped with filter cleaning device for easy filter cleaning.
* Maintenance free powerful turbine motor can work continuously for 24 hours.
* Pressure gauge to detect filter clogging.
* Easy dust container cleaning
Technology Parameters
VX-150 | VX-220 | VX-300 | VX-400 | VX-550 | VX-750 | |||||||||
VX-150F | VX-220F | VX-300F | VX-400F | VX-550F | VX-750F | |||||||||
Voltage (V / Hz) | 380/50 | |||||||||||||
Starting current (A) | 25 | 30 | 40 | 60 | 85 | 100 | ||||||||
Rated current (A) | 4.3 | 5.6 | 7.2 | 9 | 12.9 | 16.7 | ||||||||
Power (kW) / (HP) | 1.6 / 2.15 | 2.2 / 3.0 | 3.0 / 4.0 | 4.0 / 5.5 | 5.5 / 7.5 | 7.5 / 10.0 | ||||||||
Max air flow (m³/h) / (CFM) | 188/110 | 245/144 | 285/168 | 385/226 | 432/254 | 600/353 | ||||||||
Noise dB (A) | 75±2 | 75±2 | 77±2 | 77±2 | 78±2 | 78±2 | ||||||||
Dia. air inlet (mm) / (in) | Ø 50 / 2 | |||||||||||||
Filter efficiency | >99% | |||||||||||||
VX series | ||||||||||||||
Filter area (m²)/ (sq.ft) | 1.4/15.0 | 3.0/32.3 | ||||||||||||
Capacity of collection barrel (L) / (gal) | 10/2.6 | 12/3.2 | 15/4.0 | |||||||||||
Dimension [L*W*H] (mm) / (in) | 620*540*1040 / 24.4*21.3*40.9 | 670*640*1250 / 26.4*25.2*49.2 | 780*680*1355 / 30.7*26.8*53.4 | 785*750*1365/31.0*29.6*53.8 | ||||||||||
VX-F series | ||||||||||||||
Filter area (m2)/ (sq.ft) | 2 / 21.5 | 5.3/57 | ||||||||||||
Capacity of collection barrel (L) / (gal) | 10/2.6 | 12/3.2 | 15/4.0 | |||||||||||
Dimension [L*W*H] (mm) / (in) | 670*540*1230 / 26.4*21.3*48.4 | 680*640*1410 / 26.8*25.2*55.5 | 760*680*1540 / 29.9*26.8*60.6 | |||||||||||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||||||||||
Product Configuration
PTFE coated filter cartridge
Negative pressure gauge
Turbine Motor
Optional Configuration
Siemens Inverter
Multi Tower Light
Soft Starter

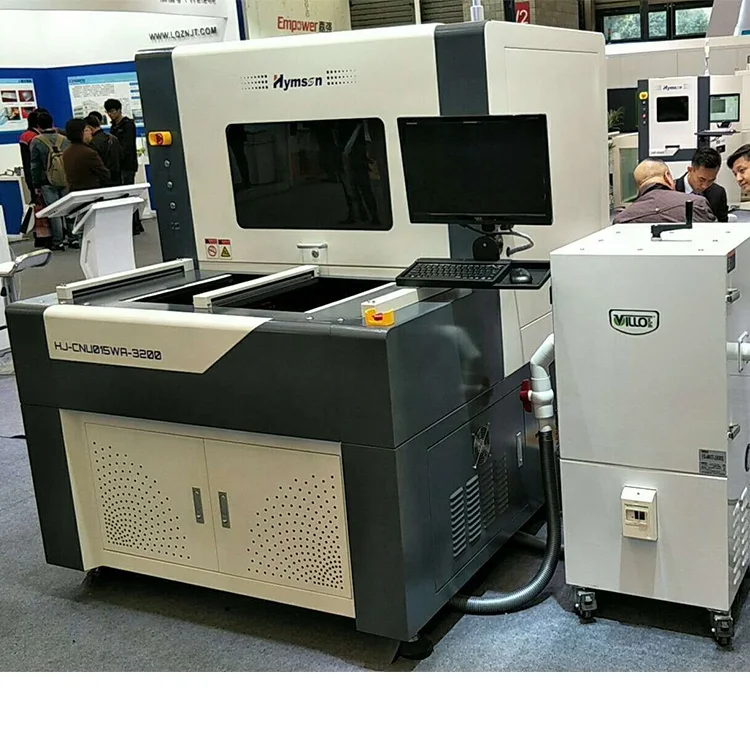

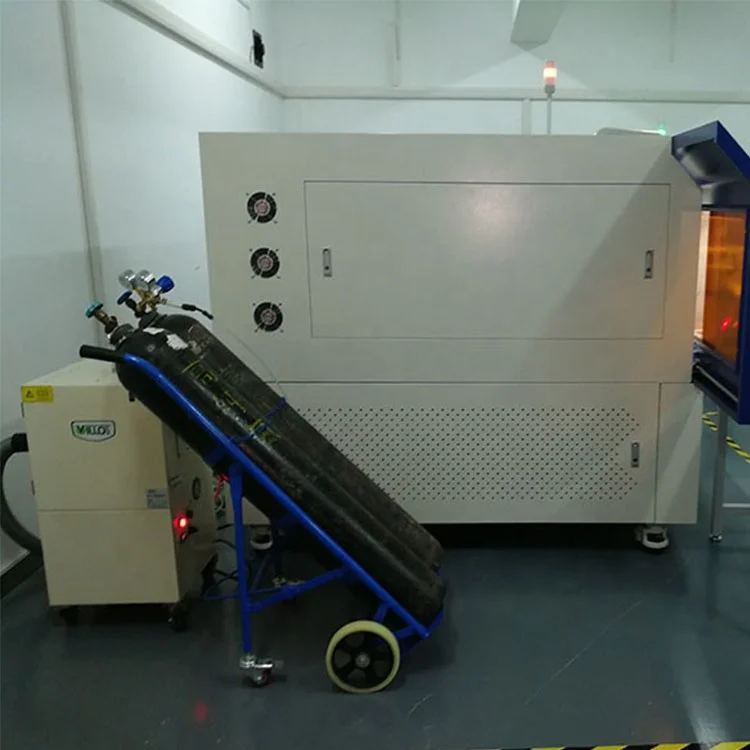

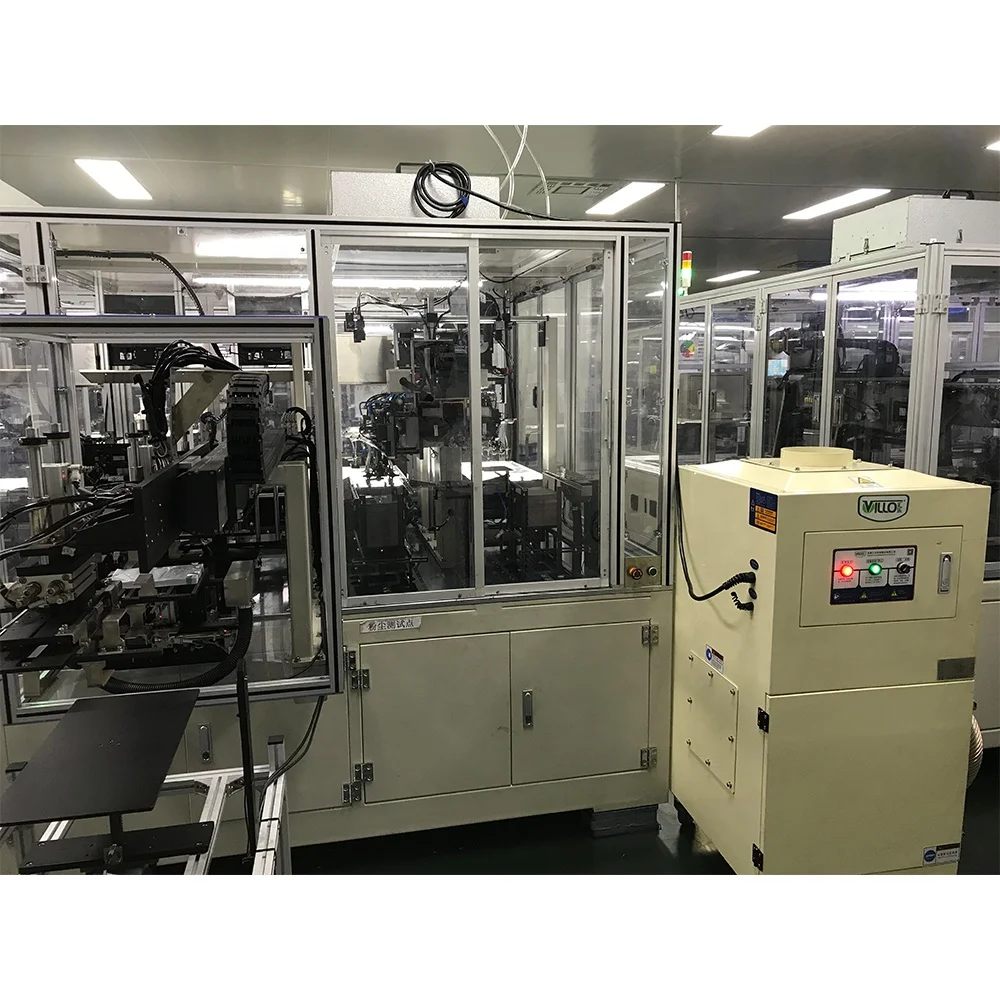

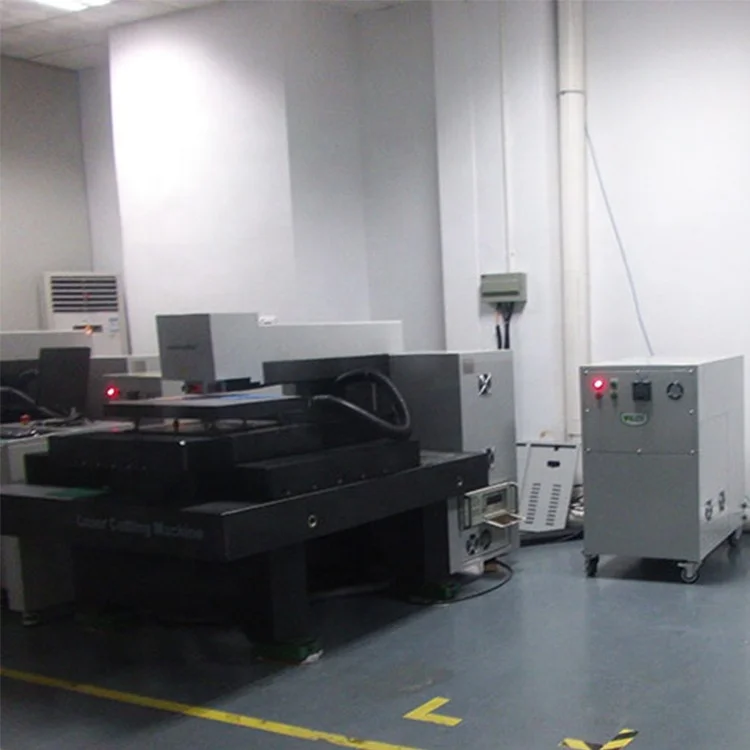

Successful Project
