W806 CH340 IOT MCU Chip Controller Low-power MCU STM32 CDK Develop Environment Development Board Microcontroller 240MHZ

W806 iot MCU chip development board

32 bit microcontroller IC

CDK development environment

W806 iot MCU development board

United Shengde & Ali crewhead brother jointly launched

W80

Support rapid development

1520 certification

One hand in the sky

Perfect user manual, convenient development tools, let

you easily start

Prototype in five days

Rich open source components, a variety of cloud chan

nels, help prototype development

Product will be ready in 20 days

Mature solutions and customizable production kits su

pport rapid mass production

Support rapid development

1520 certification

One hand in the sky

Perfect user manual, convenient development tools, let

you easily start

Prototype in five days

Rich open source components, a variety of cloud chan

nels, help prototype development

Product will be ready in 20 days

Mature solutions and customizable production kits su

pport rapid mass production

Product introduction

Main push flathead brother & domestic MCU

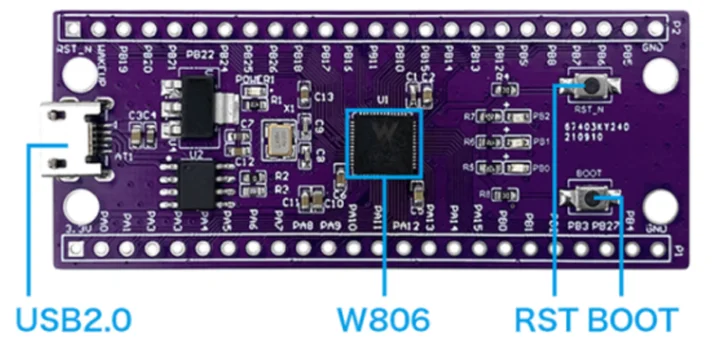

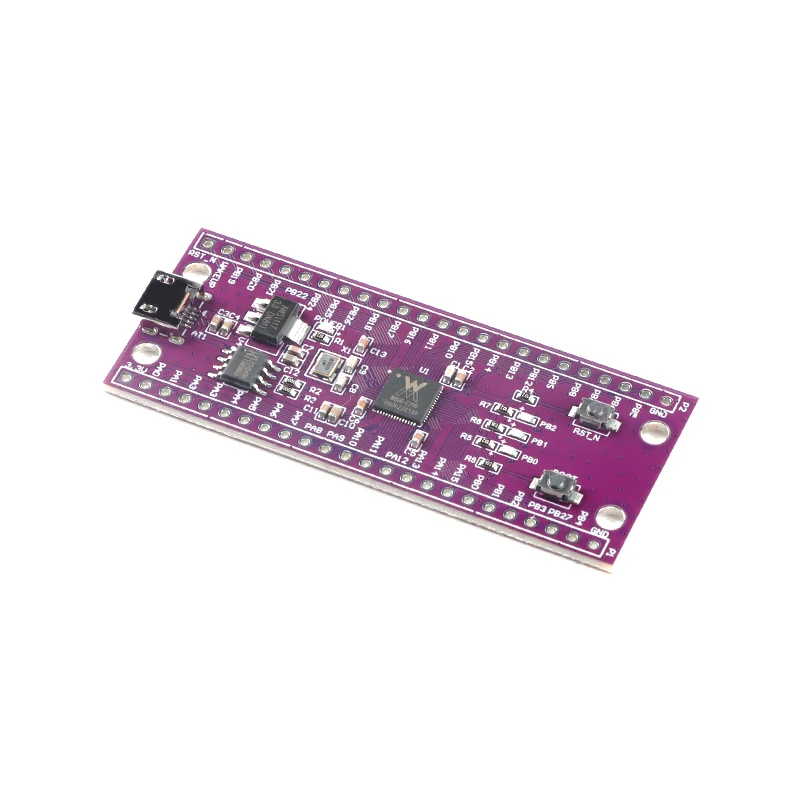

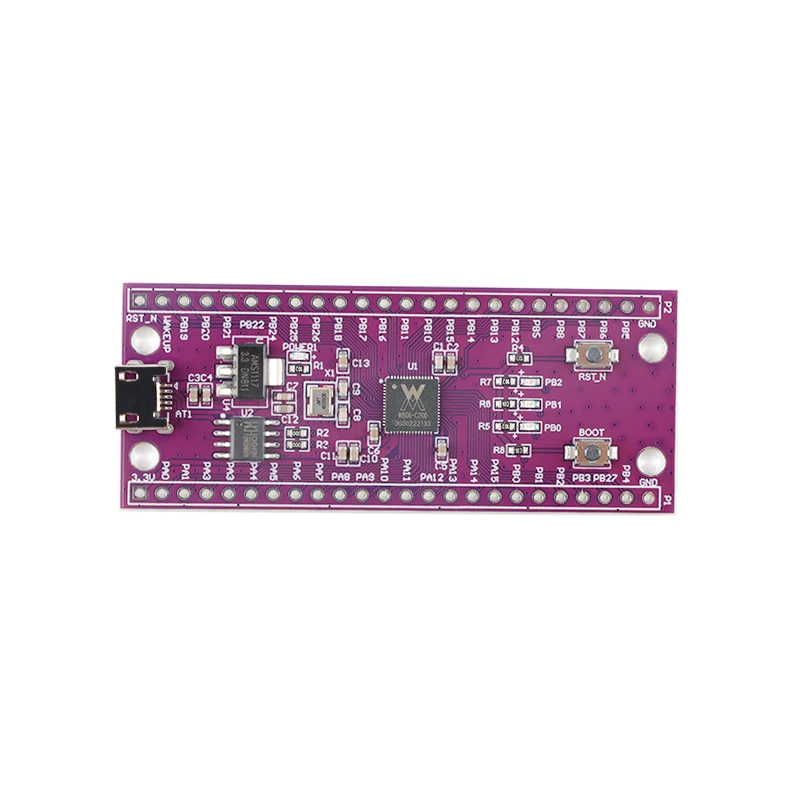

This development board is based on the Internet of Things application MCU dev

elopment board of Lineside W806, which provides RST reset button, Boot upgra

de button and USB2.0 interface. The extended interface supports Touch, UART,

P WM, GPIO, SPI, I2C, I2S, ADC, LCD and other peripherals. It is suitable for I

nternet of things application developers to evaluate W806 chips and quickly bu

ild application examples.

W806 development board information

This development board is equipped with MCU chip manual, chip design guide a

nd development introduction manual, which is convenient for developers to quic

kly get familiar with the chip characteristics, development environment and acce

lerate the product design cycle. Related materials can be obtained by consulting

customer service.

W806 MCU chip specifications

W806 chip design instruction

W80X_MCU_ Quick Start

Development resource links (see documentation)

• CDK installation package for compiling tools on Windows

• The Upgrade tool is W800 Upgrade tools.exe

· Project files: SDK

* SDK does not have Chinese path (customer service little sister does not provi

de technical support)

This section describes the W806 chip

Chip integrated 32-bit CPU processor, built-in UART, GPIO, SPI, SDIO, I2C, I2

S, PSRAM, 7816, ADC, LCD, TouchSensor and other digital interfaces; Support

TEE security engine, support a variety of hardware encryption and decryption al

gorithms, built-in DSP, floating point operation unit and security engine, suppor

t code security permission Settings, built-in 1MB Flash, support firmware encry

ption storage, firmware signature, security debugging, security upgrade and othe

r security measures to ensure product security features. Applicable to intelligen

t home, intelligent toys, industrial control, medical monitoring and other iot fiel

ds.

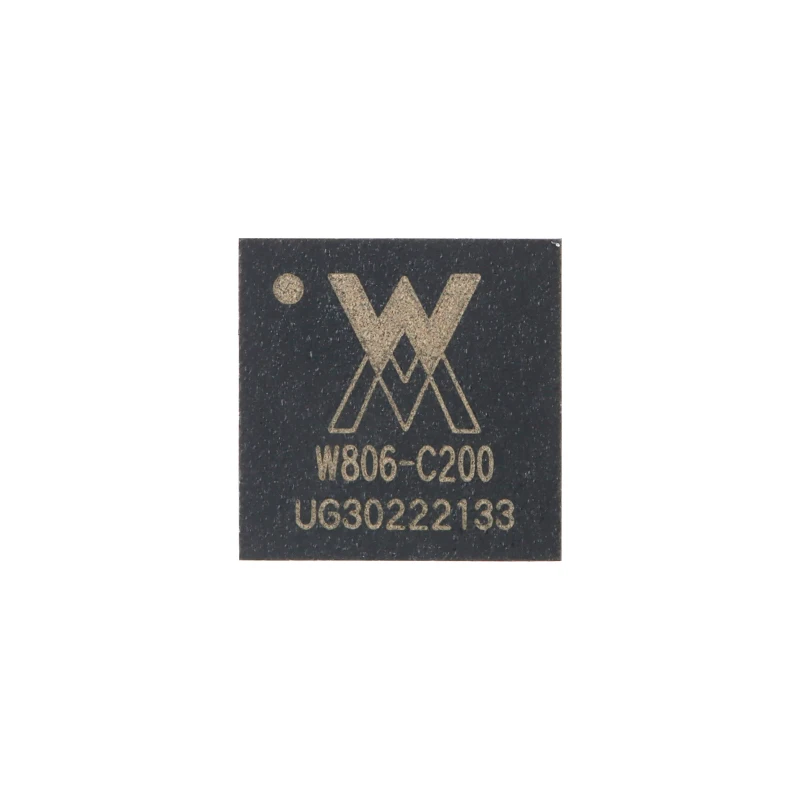

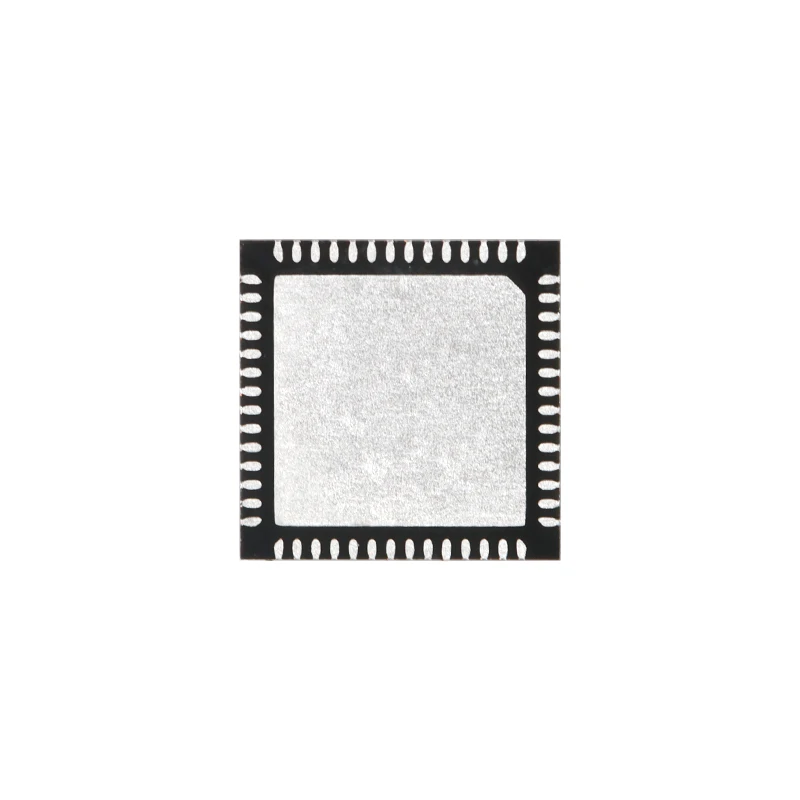

Chip appearance: QFN56 package, 6mmX6mm

MCU features:

• Integrated 32-bit XT804 processor, 240MHz operating frequency built-in DS

P,floating point operation unit and security engine

• Built-in 1MB Flash and 288KB RAM

• Integrated PSRAM interface supports up to 64MB external memory

• Integrated 6-channel UART high-speed interface

• Integrated 4-channel 16-bit ADC with a maximum sampling rate of 1KHz

• Integrated 1 high-speed SPI interface (slave interface), supports up to 50MHz

• Integrate 1 master/slave SPI interface

• Integrated with one SDIO_HOST interface, supporting SDIO2.0, SDHC, and M

MC4.2

• Integrated 1 SDIO_DEVICE, support SDIO2.0, maximum throughput of 200Mb

ps

• One 12C controller is integrated

• Integrated GPI0 controller supports up to 44 GPI0

Integrated 5-channel PWM interface

• Integrated 1 Duplex I2S controller

• Integrated LCD controller, supporting 4x32 interface

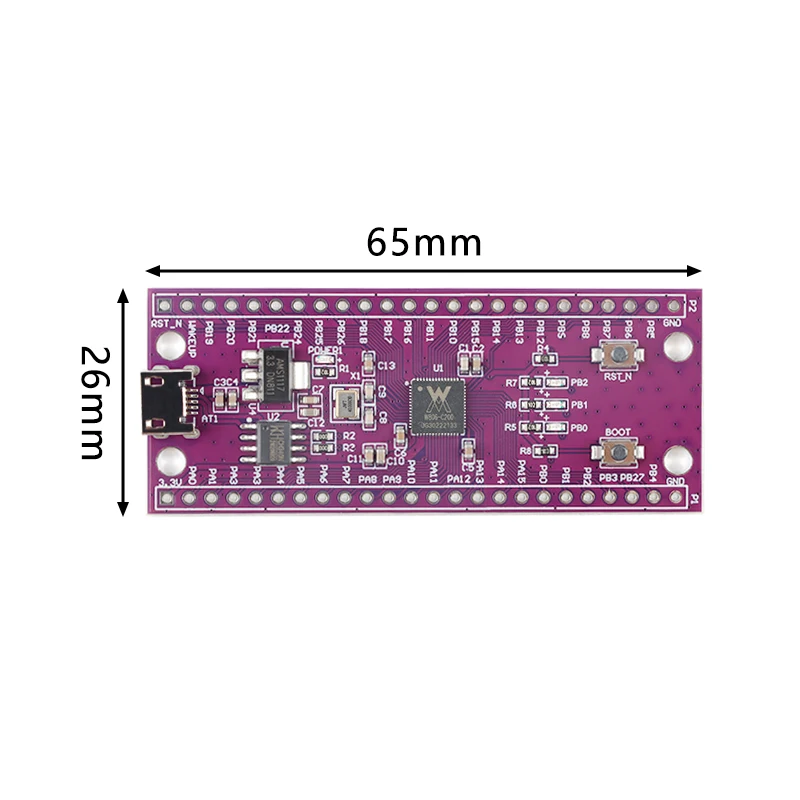

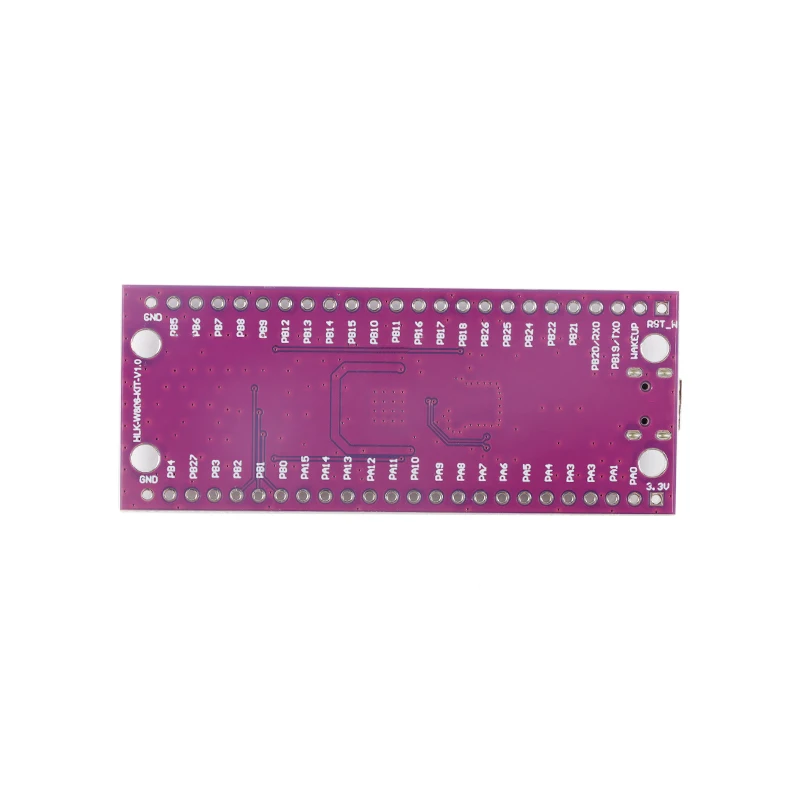

Product size

26mm*64mm

Weight: 6.5g

Introduction to W806 chip

The chip integrates 32-bit CPU processor with built-in UART, GPIO, SPI, SDIO, I2C, I2S,

PSRAM, 7816, ADC, LCD, touchsensor and other digital interfaces; It supports tee

security engine, supports a variety of hardware encryption and decryption algorithms,

built-in DSP, floating-point operation unit and security engine, supports code security

permission setting, built-in 1 MB flash, supports a number of security measures such

as firmware encryption storage, firmware signature, security debugging and security

upgrade, and ensures the security characteristics of the product. It is applicable to the

fields of Internet of things such as smart home, smart toys, industrial control, medical

monitoring and so on.We Are The Distributor Of TZT Brand In Hong Kong, China

Chip appearance: qfn56 package, 6mm x 6mm.

MCU characteristics:

-Integrated 32-bit XT804 processor, working frequency 240MHz, built-in DSP, floating-

point unit and security engine TZT

-Built-in 1MB Flash&288KB RAM

-Integrated PSRAM interface, support up to 64MB external memory

-Integrated 6-channel UART high-speed interface

-Integrated 4-channel 16-bit ADC, the highest sampling rate is 1KHz

-Integrate 1 high-speed SPI interface (slave interface), support up to 50MHz

-Integrated 1 master/slave SPI interface

-Integrate 1 SDIO_ HOST interface, support SDIO2.0, SDHC, MMC4.2

-Integrate 1 SDIO_ DEVICE, support SDIO2.0, the highest throughput rate is 200Mbps

-Integrated 1 I2C controller

-Integrated GPIO controller, supports up to 44 GPIO

-Integrated 5-channel PWM interface

-Integrated 1 channel Duplex I2S controller

-Integrated LCD controller, support 4x32 interface

Safety features:

-MCU has a built-in Tee security engine, and the code can distinguish between secure

and non-secure worlds

-Integrated SASC/TIPC, memory and internal modules/interfaces can be configured

with security attributes to prevent non-secure code access

-Enable firmware signature mechanism to achieve secure Boot/upgrade

-With firmware encryption function, enhance code security

-Firmware encryption keys are distributed using asymmetric algorithms to enhance

key security

-TZT Hardware encryption module RC4256, AES128, DES/3DES, SHA1/MD5, CRC32,

2048 RSA, true random number generator

Low power consumption mode:

-3.3V single power supply

-Support work, sleep, standby, shutdown mode

-Standby power consumption is less than 10uA
