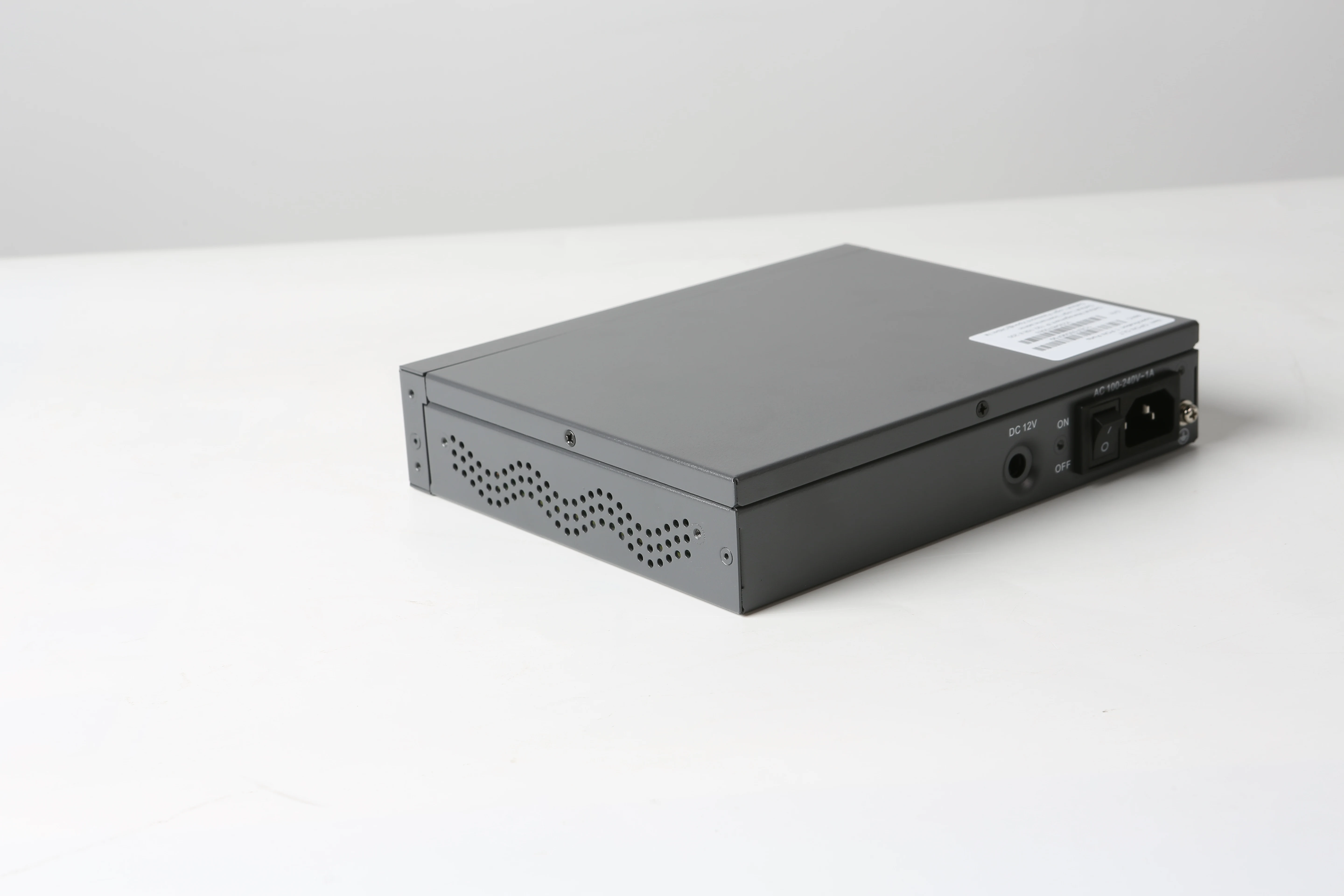

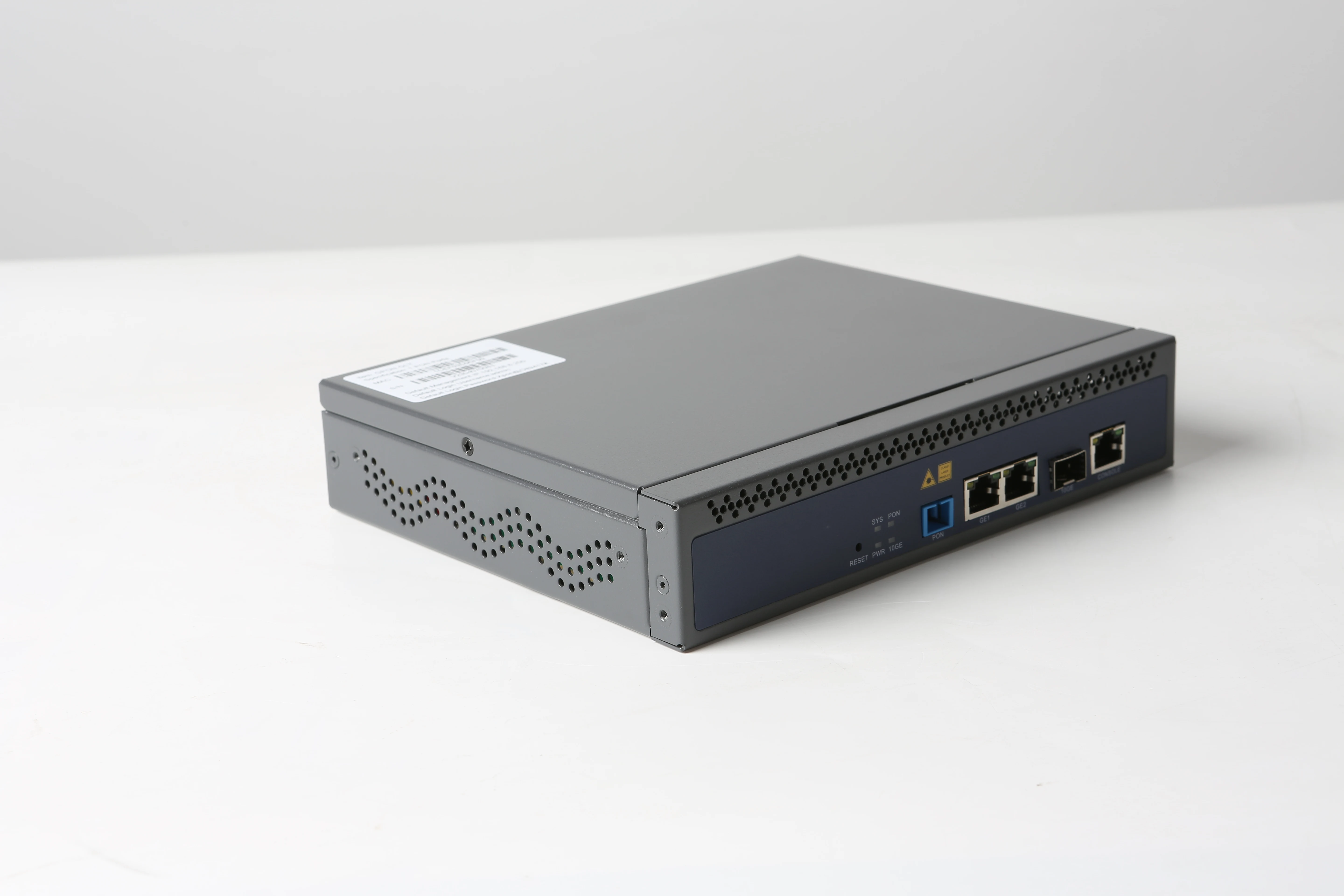

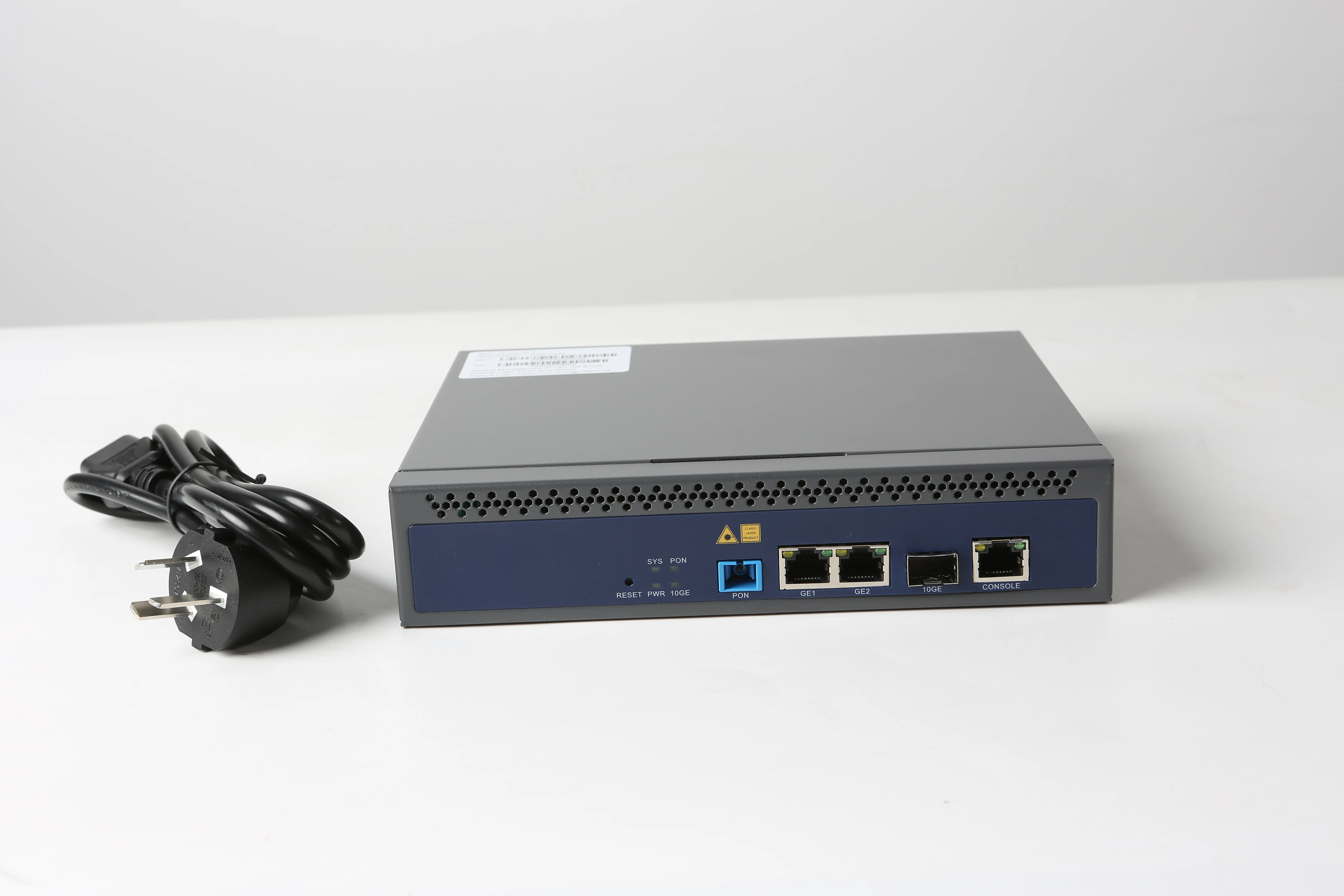

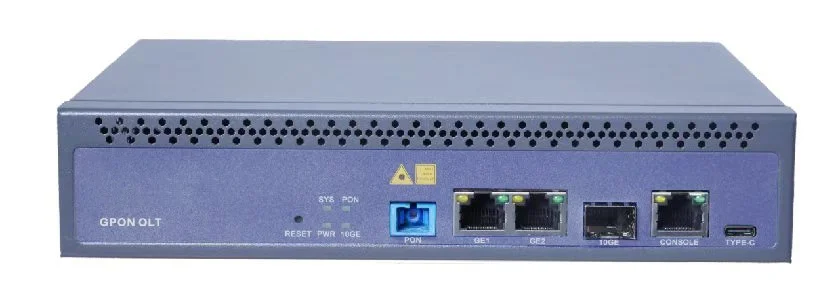

HA7301GS 1PON GPON OLT
Overview
HA7301GS is a box-type GPON OLT with one PON port (built in PON module), 2 1000M RJ45 uplink and 1 10G SFP+ uplink. The splitting ratio support maximum 1:128,maximum distance is 20KM. Its uplink and downlink bandwidth is as high as: 1.25Gbps/2.5Gbps.It can be widely used in FTTH, SOHO, small business office and other application scenarios..
HA7301GS OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
HA7301GS Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” VPN, IP Camera, Enterprise LAN and ICT applications.
Features
1PON,maximum 128 users
Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
Friendly EMS/Web/Telnet/CLI management
Support other brands GPON and XPON ONUs
Support 4096 VLANs, port VLAN and protocol VLAN;
Support storm control based on port;
Support port isolation,port rate limitation;
Support static LACP;QoS based on port, VID, TOS and MAC address;
Access control list;
Support IGMP snooping, 256 IP Multicast Groups,DHCP snooping
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
Support broadcasting storm resistance function;
Support port isolation between different ports;
Support ACL and SNMP to configure data packet filter flexibly;
Support RSTP,IGMP Proxy;
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/link detection/remote upgrade of software
Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
Friendly EMS/Web/Telnet/CLI management
Support other brands GPON and XPON ONUs
Support 4096 VLANs, port VLAN and protocol VLAN;
Support storm control based on port;
Support port isolation,port rate limitation;
Support static LACP;QoS based on port, VID, TOS and MAC address;
Access control list;
Support IGMP snooping, 256 IP Multicast Groups,DHCP snooping
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
Support broadcasting storm resistance function;
Support port isolation between different ports;
Support ACL and SNMP to configure data packet filter flexibly;
Support RSTP,IGMP Proxy;
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/link detection/remote upgrade of software
Technical Specification
Parameter | Specification |
PON standard. | GPON ITU-T G.984.x, G.988 |
PON interface | 1*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3～ +7dBmTransmission distance: 20KM. Max splitting ratio1:128 |
Upstream 2.488G Downstream 1.244G | |
Wavelength | Tx1310nm, Rx 1490nm |
Uplink | 2*GE(copper Ethernet) |
1*10GE (SFP+) | |
Management Ports | 1*CONSOLE port 1*USB Type-C |
Management Mode | SNMP, Telnet, CLI, WEB |
PON Function | Tcont DBA In compliant with ITU-T984.x standard Up to 20KM transmission Distance Support data encryption, multi-cast, port VLAN, separation, etc Support ONT auto-discovery/link detection/remote upgrade of software Support VLAN division and user separation to avoid broadcast storm Support power-off alarm function, easy for link problem detection Support broadcasting storm resistance function |
L2 Switch function | 1K Mac address Support 4096 VLANs Support port VLAN Support VLAN tag/Un-tag, VLAN transparent transmission Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W Access control list IEEE802.x flowcontrol Port stability statistic and monitoring |
Management function | Telnet,CLI,WEB; Port Status monitoring and configuration management Online ONTconfiguration and management User management Alarm management |
Backplane Bandwidth (Gbps) | 16 |
Port Forwarding Rate(Mpps) | 23.808 |
Operating condition | Operating temp: 0 ~ +50℃ |
Storing condition | Storing temp: -40 ~ +85℃ |
Humidity | 5~90%(non-condensing) |
Power Supply | DC 12V/2.5A AC 85~264V, 47/60Hz(Optional) |
Power consumption | ≤45W |
Dimension | 224mm*199mm*43.6mm (L×W×H） |
Net weight | 1.1Kg |

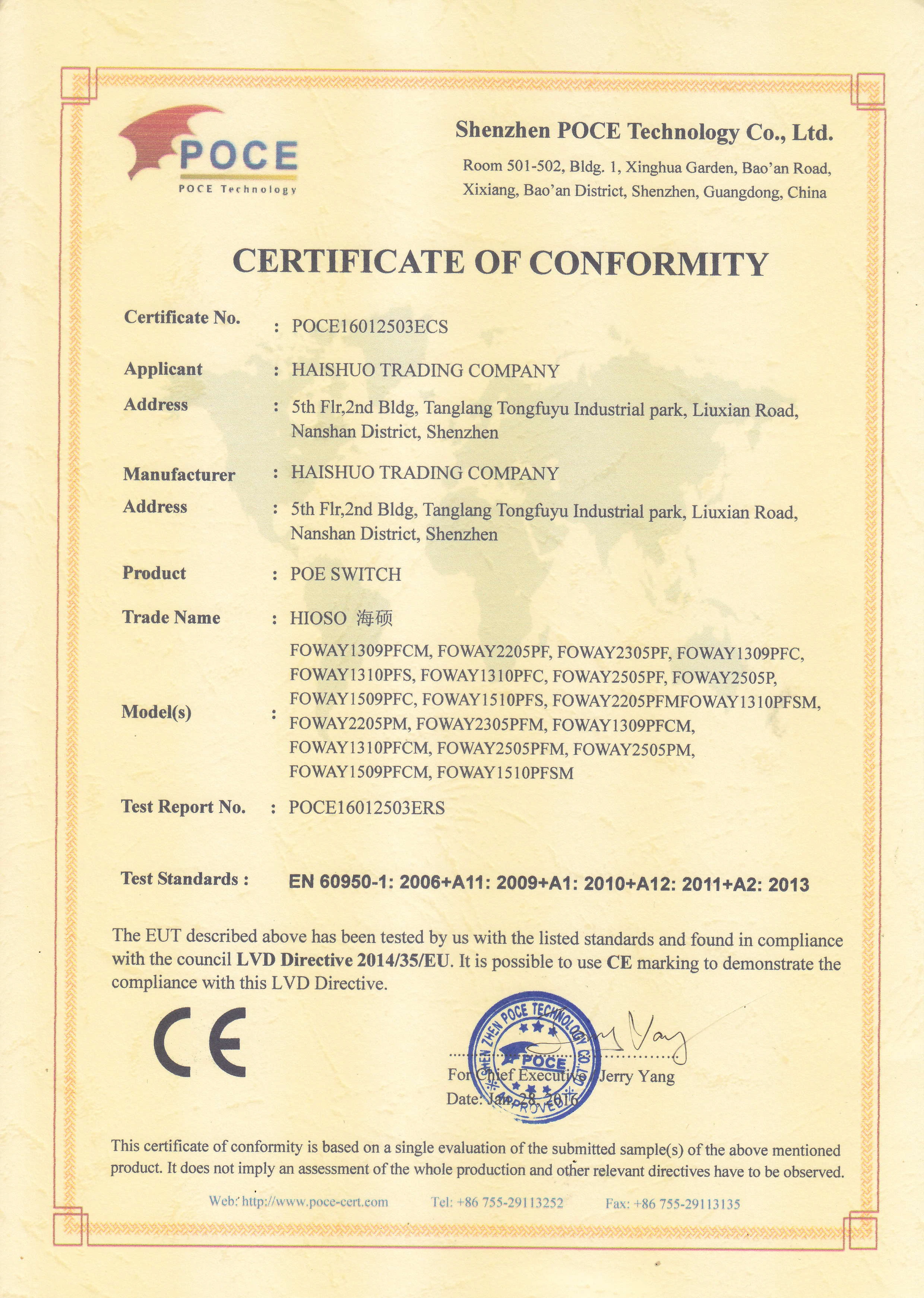

Certification
Company Profile

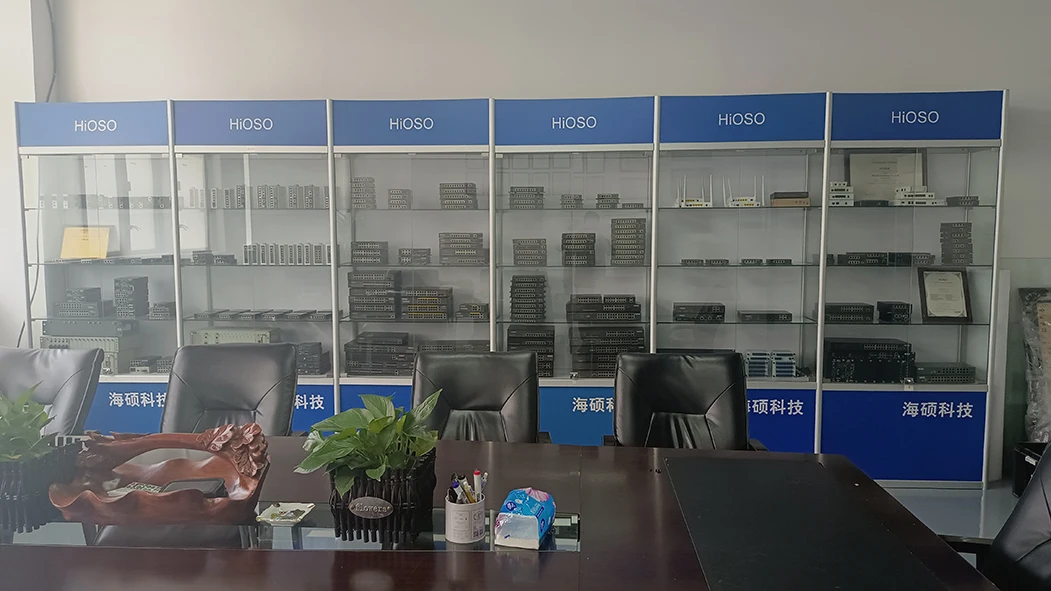

3D Reality Showroom
VR

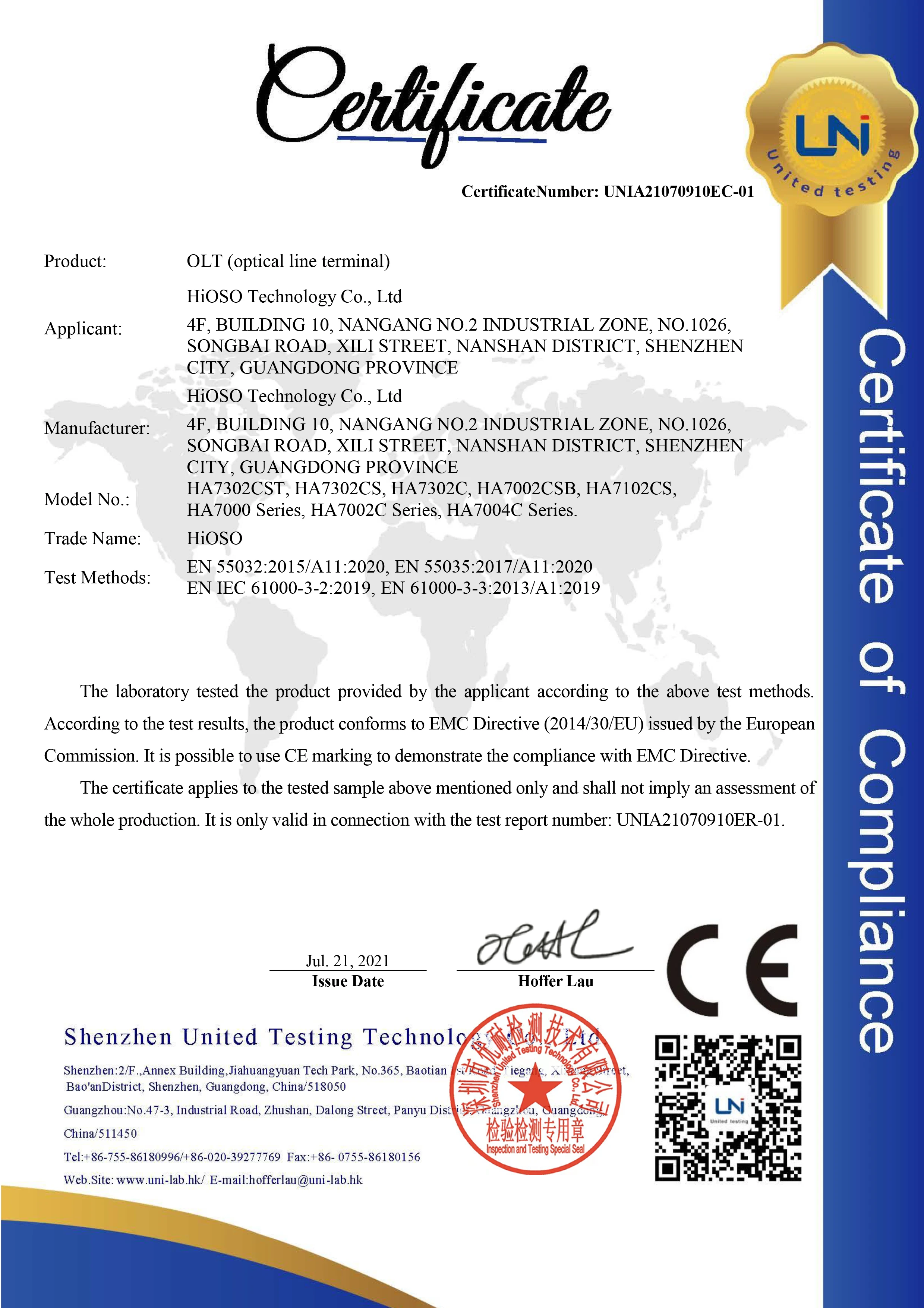

Certification

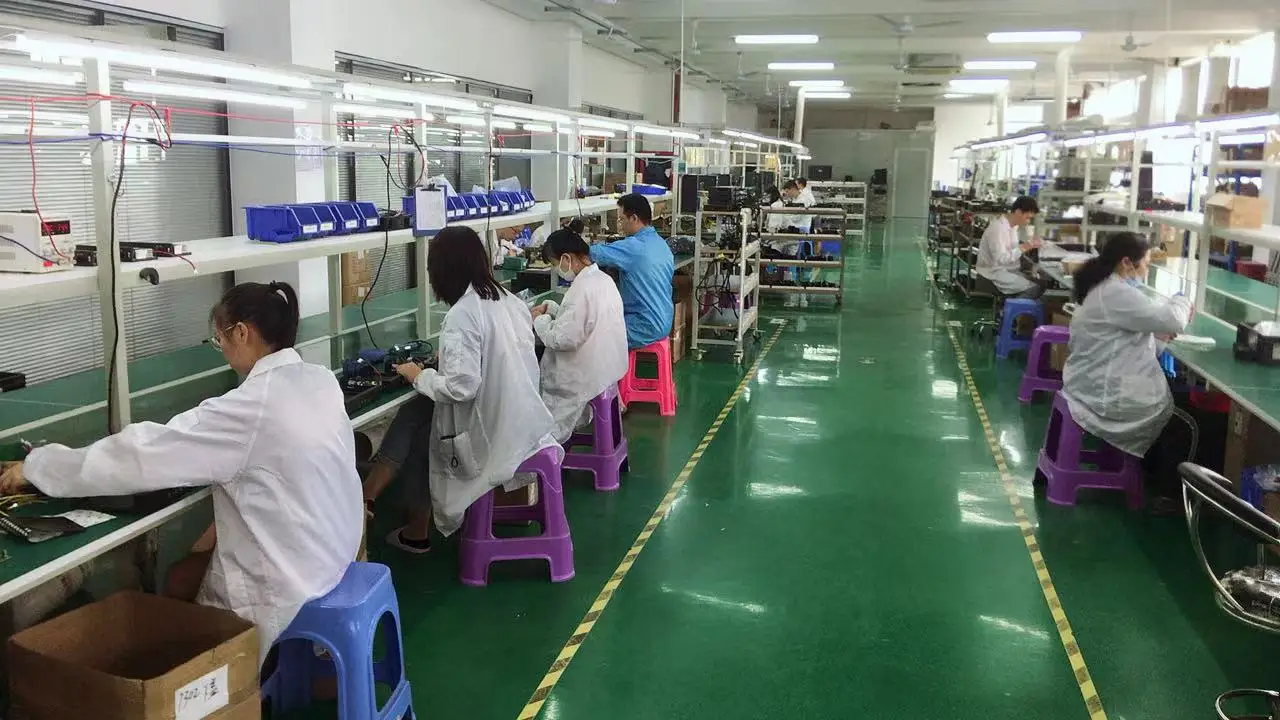

Our Factory
Exhibition
Our Advantages

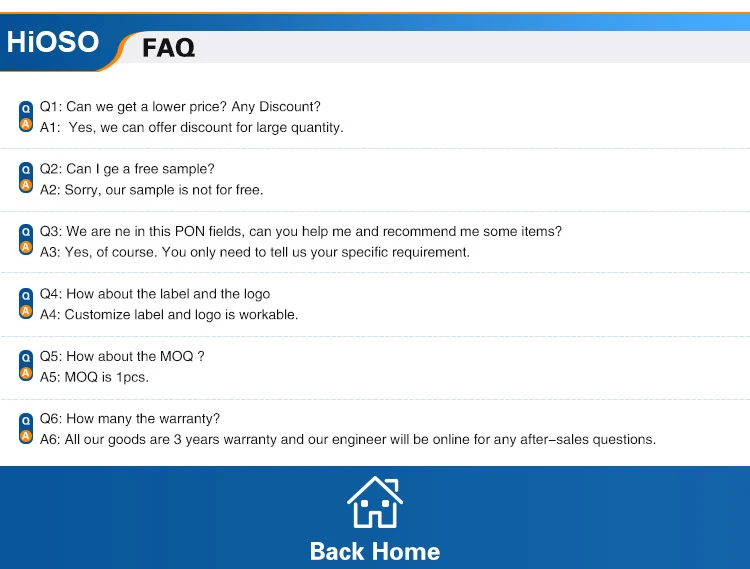

FAQ
