Semi automatic cardboard corrugated making machine for cardboard box making
- Category: >>>
- Supplier: Qinyang City Shunfu Paper Making Machinery Co. Ltd.
Share on (1600877237657):
Product Overview
Description

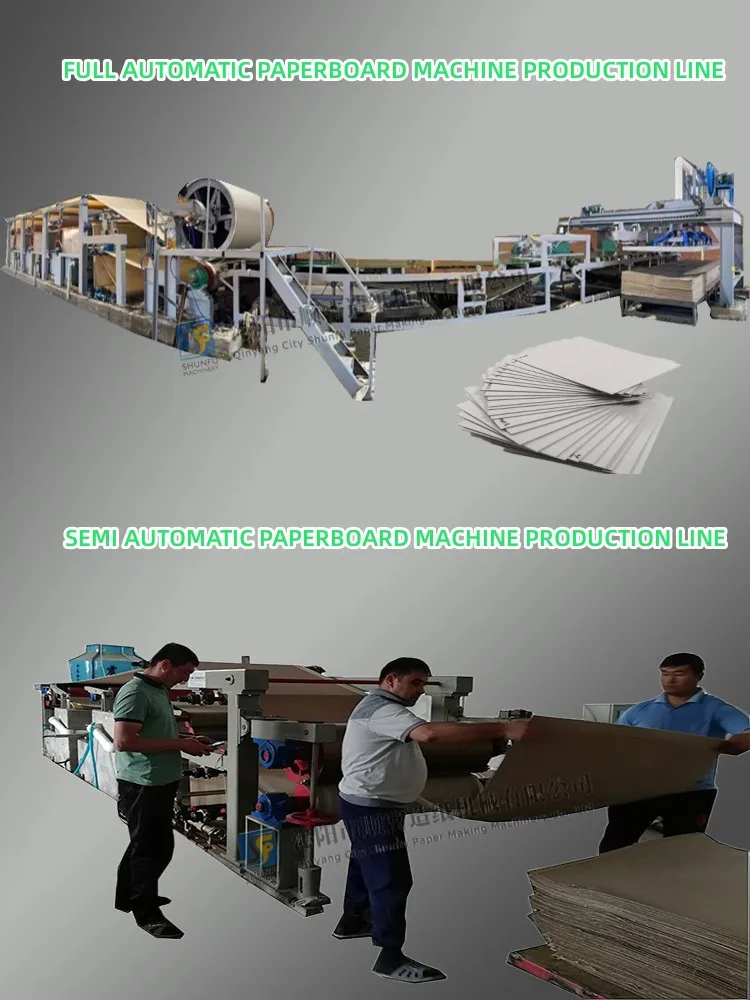

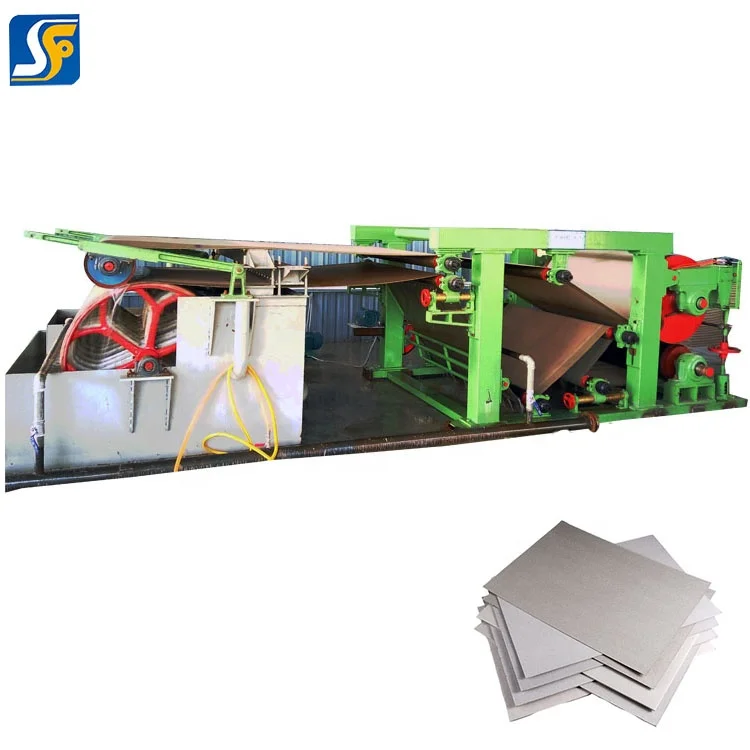

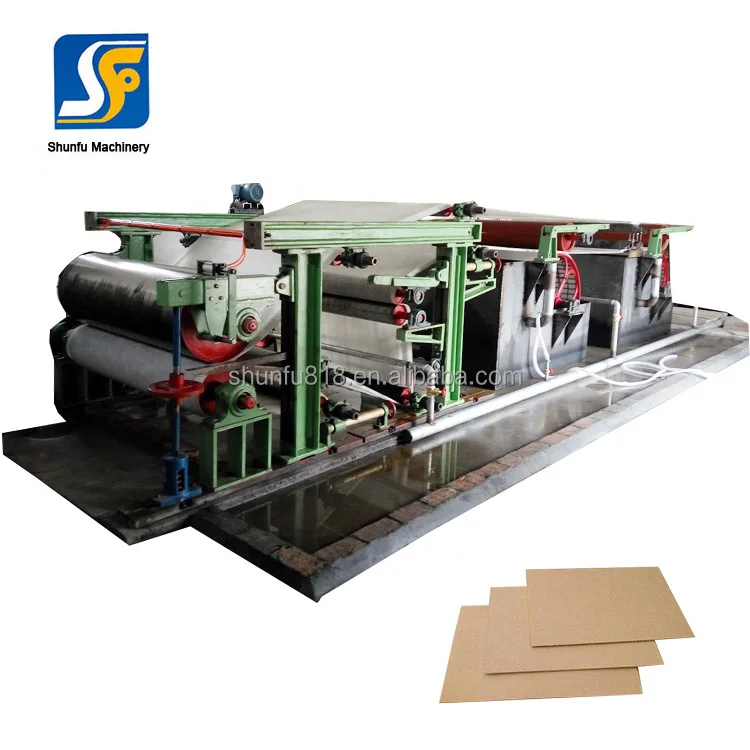

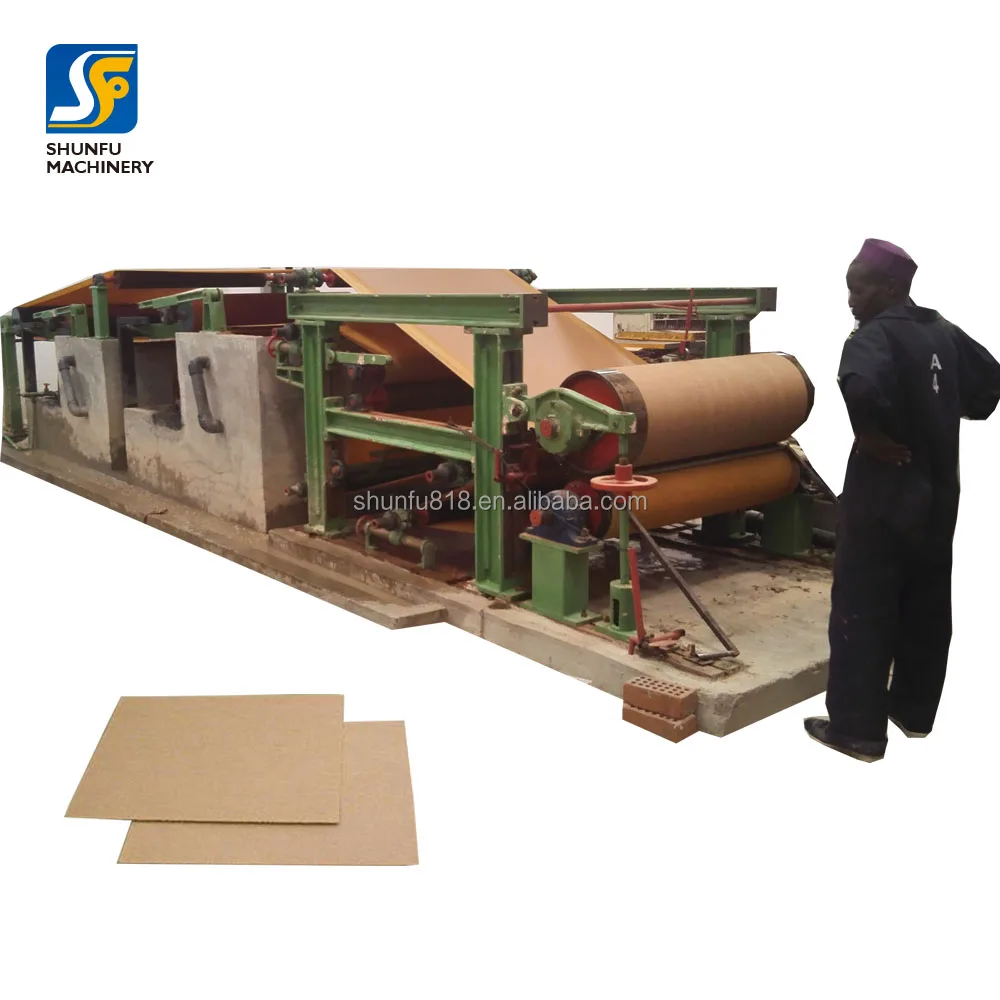

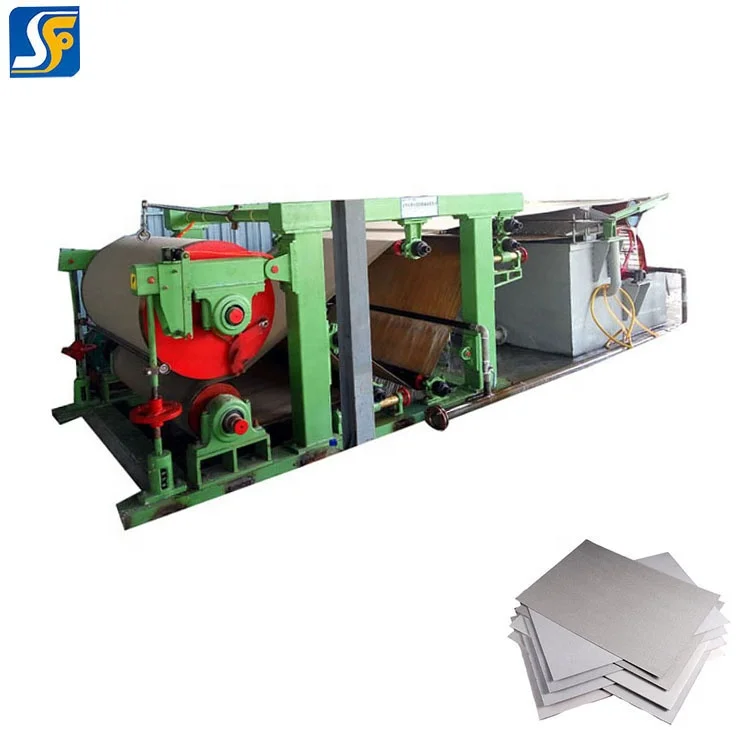

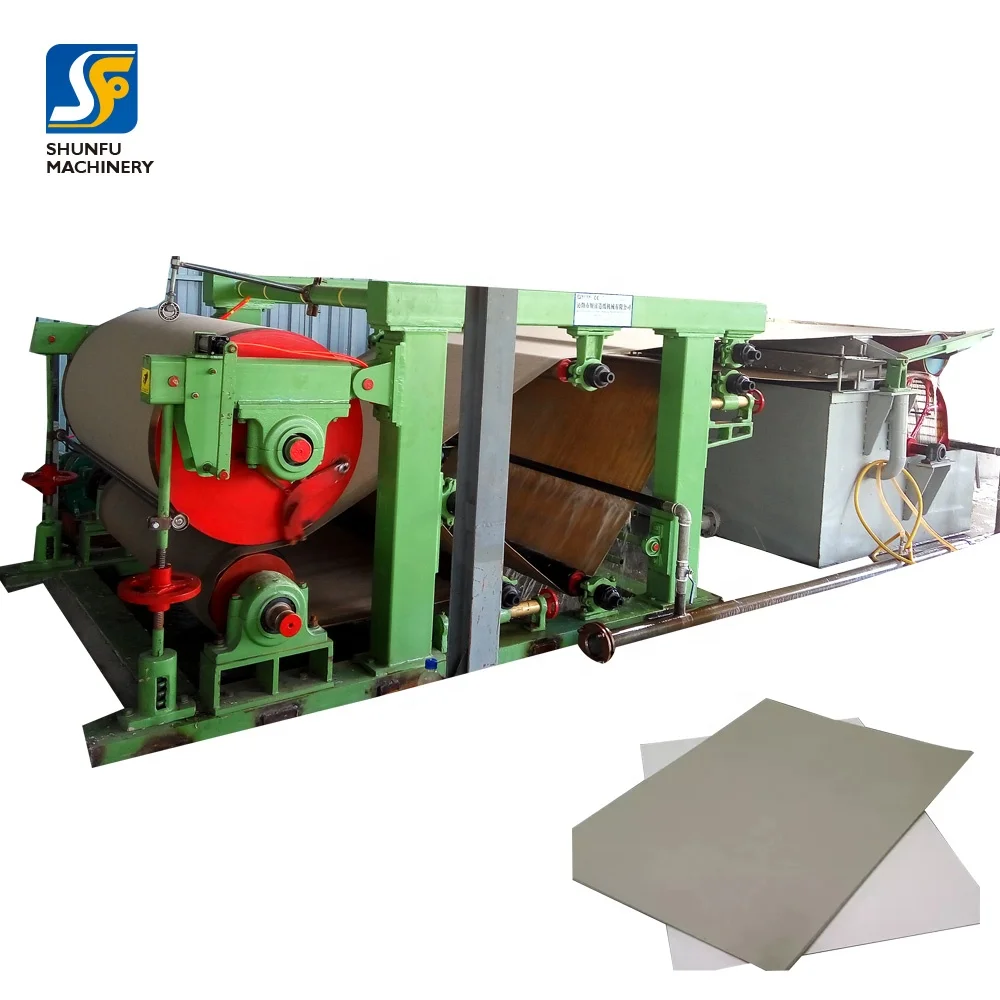

Semi-automatic cardboard corrugated making machine for cardboard box making
Product Description
Paperboard machine/ Paperboard making machine/cardboard making machine /cardboard machine/corrugated cardboard production line/hardboard making machine...
Sludge Paper board machine is classified according to the structure and type of forming device and a drying part, a single long mesh paperboard machine, fourdrinier board machine, combined paperboard machine, multi cylinder board machine, which is the most widely used.
The board thickness is large because it is a multilayer combination, so the board machine is made from the same type of the same or different types of forming device, and equipped with multi-channel pre press and multi-channel main press. Thin board a multi cylinder contact drying, the cardboard is often equipped with other drying device. The pressure of light after finishing the cardboard, can be cut into flat sheets or rolled into a complex web.

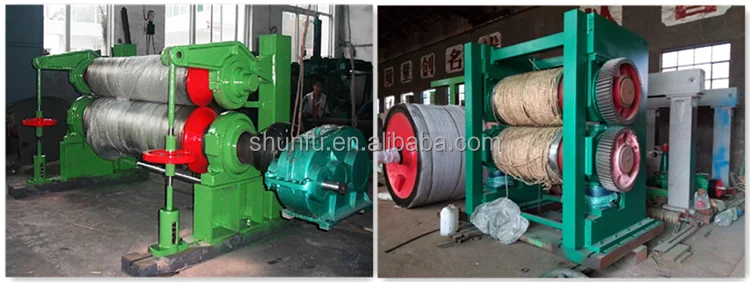

Calender: A process in which paper or cardboard containing a certain amount of moisture is processed by a calender to improve the smoothness and gloss of the paper and to a certain extent to control the thickness of the paper or cardboard.

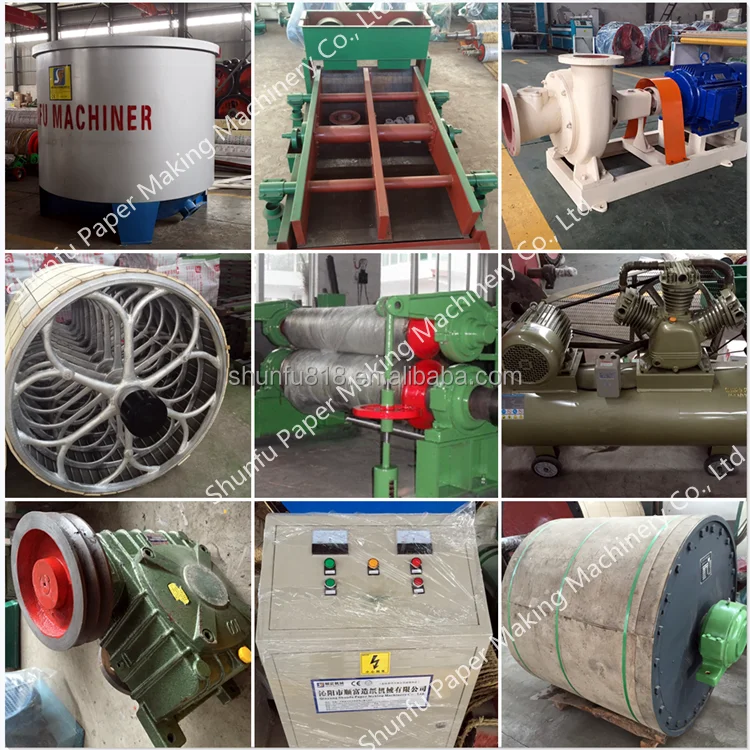

Paperboard Machine -- Parts
Paperboard Machine -- Technical Parameter
| Thickness of paper | can debugging(1-5mm) |
| Specifications | 1300mm×1000mm |
| Work Speed | 30~50m/min |
| 1set capacity | 10t/d (If you need to add the capacity, you need to buy many sets) |
| Consistency of pulp | 0.8~1% |
| Host power | 4kw |
| Appearance size | 7000mm×2700mm×2000mm |
Paperboard Machine -- Raw Materials

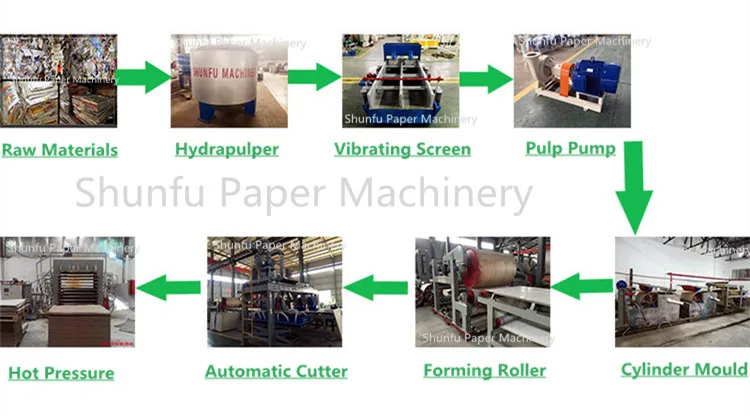

Paperboard Machine -- Flow Chart

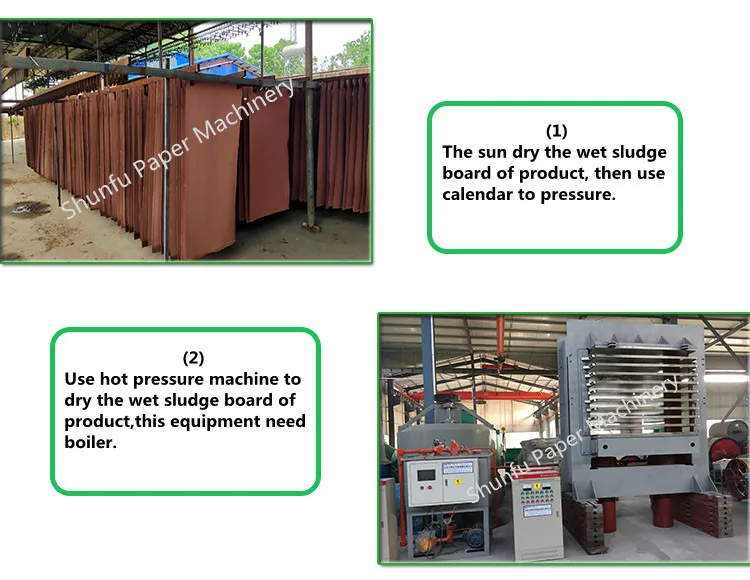

Paperboard Machine --Drying Ways
Hot Pressure Machine: It is composed of a frame, a hot pressing plate and a pressurizing device for oil pump. There are evenly distributed pipes in the hot pressing plate, which are used to circulate heating medium such as superheated steam and oil. The wet paperboard or fiberboard pressed by the press machine is tiled on each hot pressing board. At the same time, the oil pump is used to boost the pressure to make the water evaporate, and the dry and compact finished products can be obtained. (Compare two kinds price, the second is more expensive than the first.)

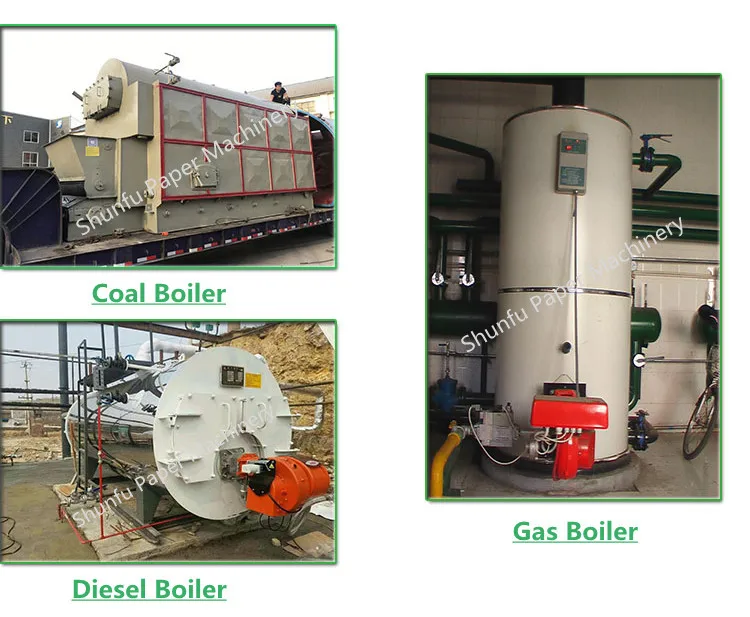

Paperboard Machine -- Boiler

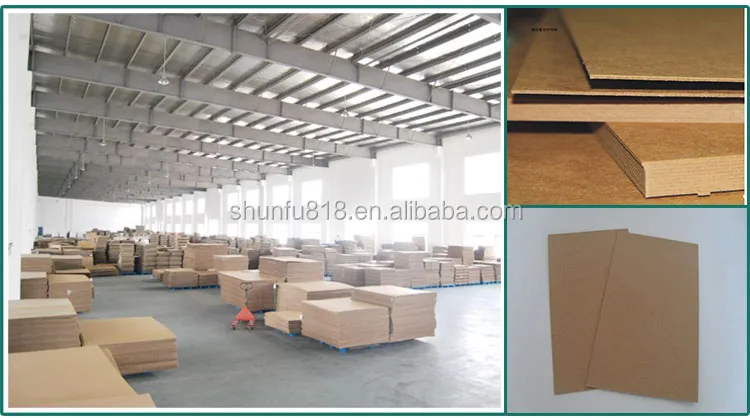

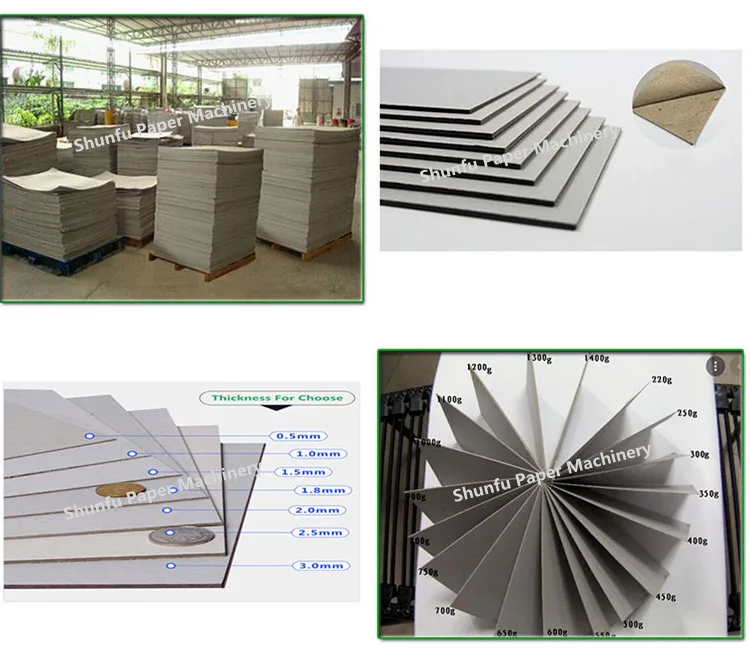

Paperboard Machine -- Finished Products
Additives Can Be Added In The Manufacturing Process
Color can be added to make different colors paper board. Because the machine can be customized according to different customer needs. Sometimes the customer wants to make some beautiful colors due to their idea. Just put the color into the mixer, the pulp color will change. Then the paper board for sale can be processed into any colors you want.

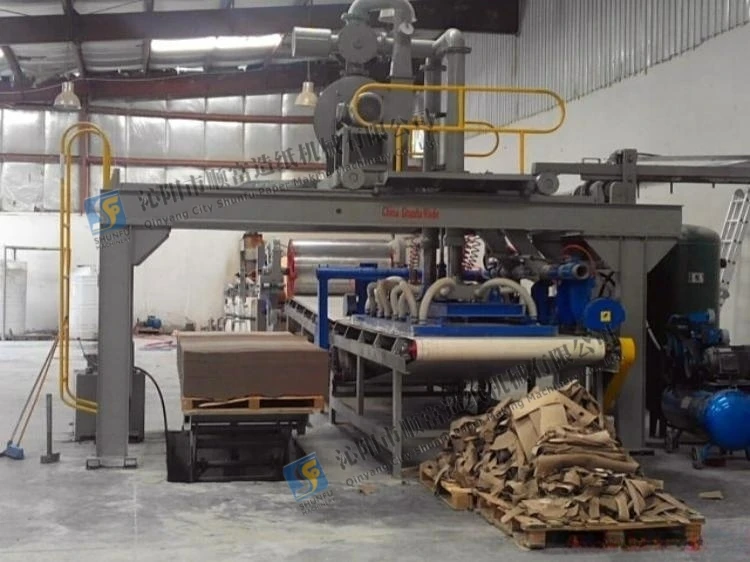

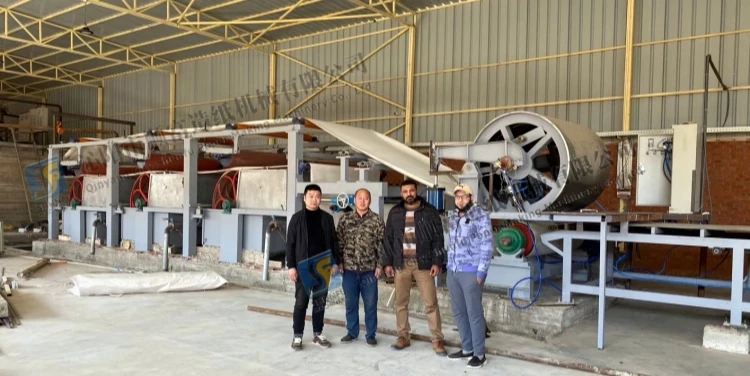

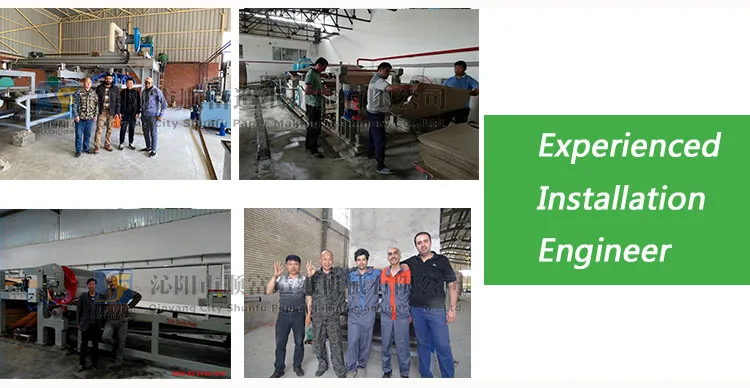

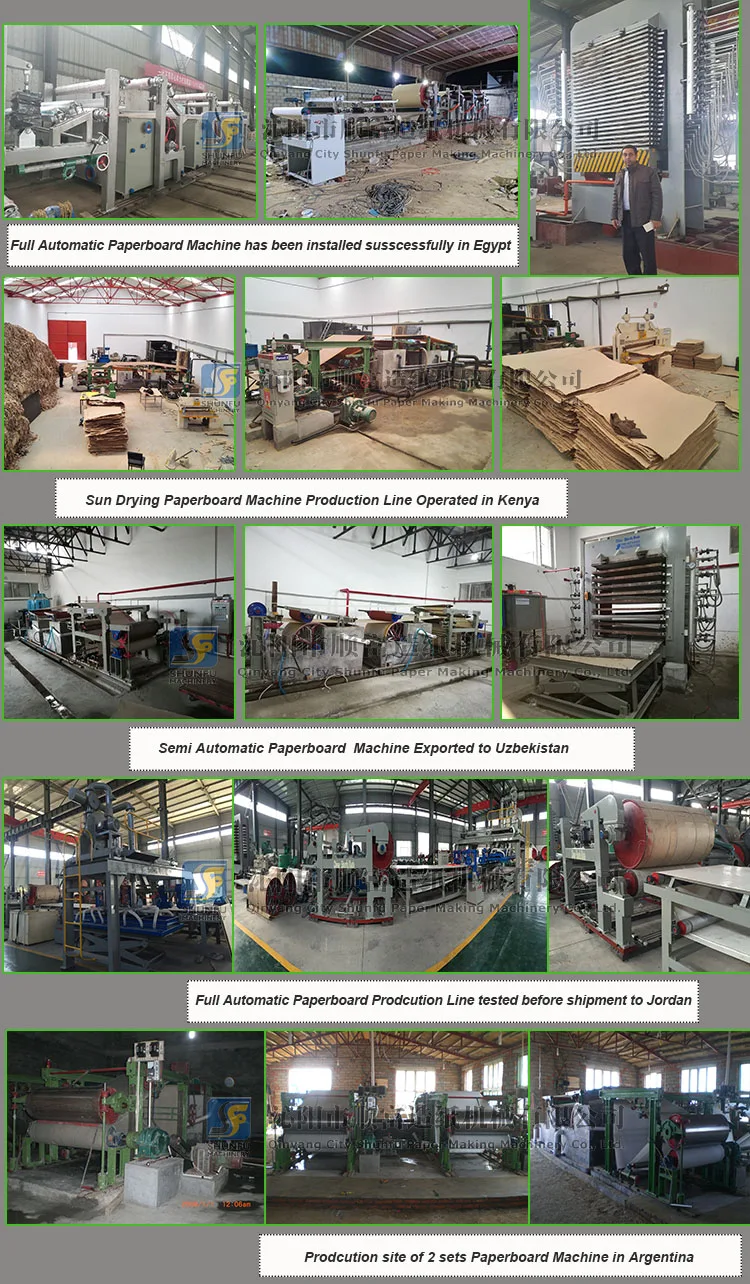

Installation Site
There are too many paperboard making machine case to show,here just show some cases for your references.
Related machine
We are supplying not only Paperboard machine production line, but also other paper making machine and processing machine. For more information, pls check it as below:
- Egg Tray Making Machine
- Kraft Paper Making Machine
- Kraft Paper Slitting Machine
- Paper Tube Making Machine

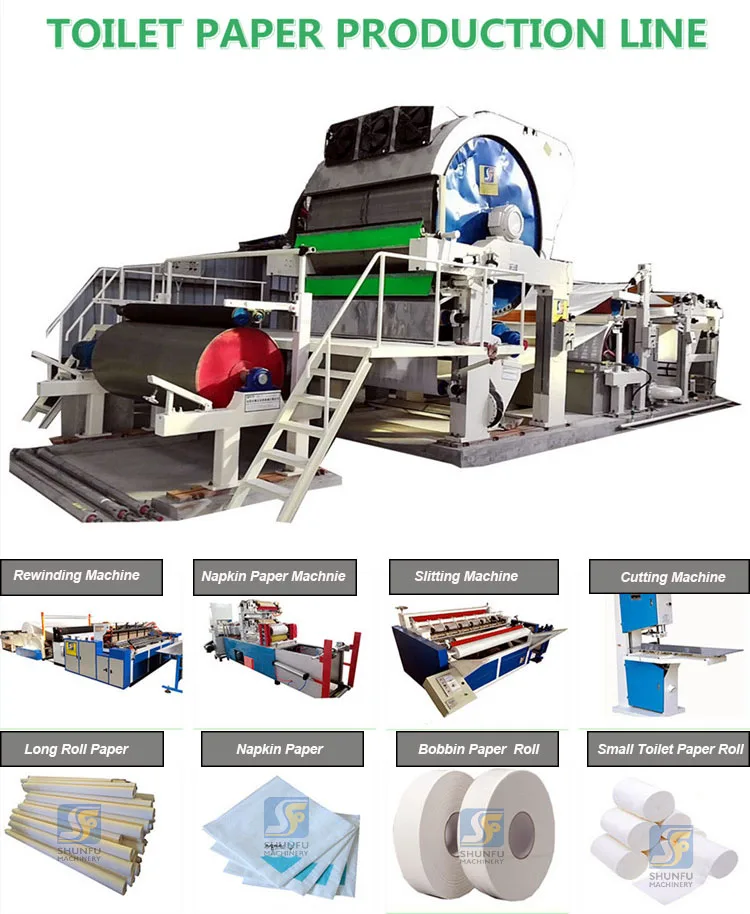

- Toilet Paper Making Machine
- Toilet Paper Rewinding Machine
- Napkin Paper Machine

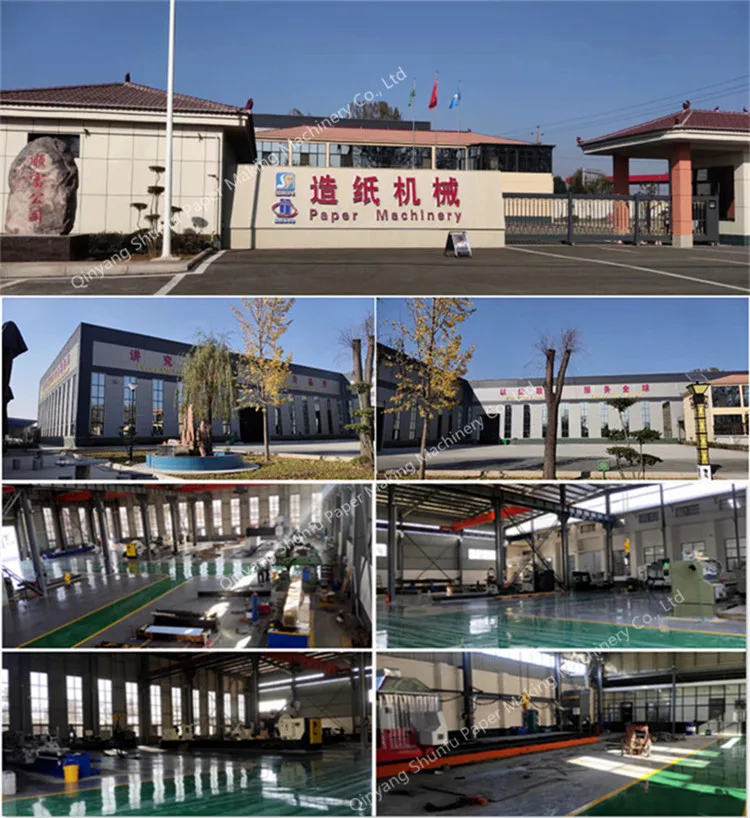

Company Information

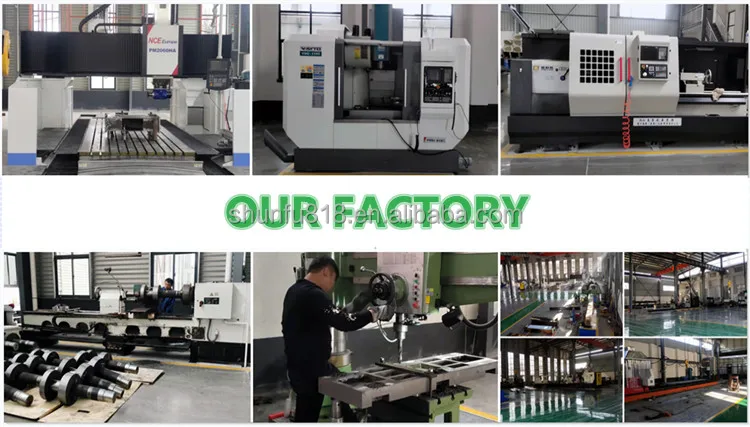

Qinyang City Shunfu Paper Making Machinery Co.,Ltd. Founded in 1988 May, we are the factory of specializing in the production paper making machinery, pulping equipment and paper processing equipment, these years we committed to the development of high-quality, high efficiency, energy saving, environmental protection new products, service in paper making machinery industry, is a collection of scientific research, production in one of technology enterprise.
In 2020, Shunfu Branch Factory--Huatuo Paper Making Machinery Co., Ltd have established, which have fully automated workshop. the rapid development of enterprise, Production capability and production level rises ceaselessly, cale of production expands with each passing day, all products have passed ISO9001: 2008 quality management system certification, many times awarded the contract,observe the credibility of enterprise.

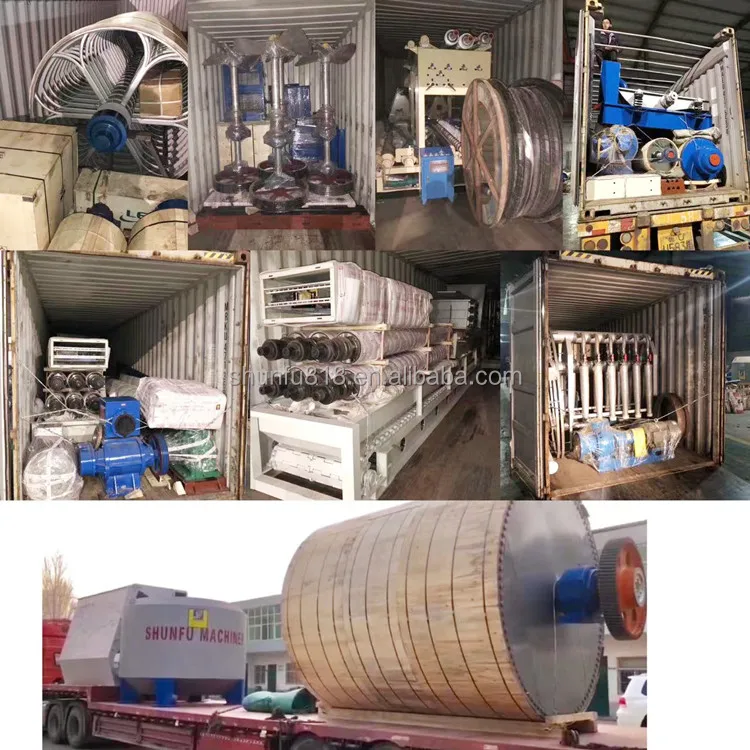

Packaging & Shipping
PACKAGE: The dryer is packed with wood chips for protecting its surface .The large diameter roll is packed with wood chips. The steel rolls are packed with plastic film and straw ropes . Speed reducer, oil station, and suction box, hydraulic station is packed with wooden box. Electric control cabinet is packed with three-ply board box.
FAQ
1: Are you trading company or manufacturer
A: We are professional manufacturer in China over 30 years, We can give you more competitive and have the direct control in quality and delivery date.
2:What's your term of payment?
A:T/T,L/C at sight,WESTERN UNION, MONEY GRAM, ESCROW...
3:Can you design the production line for customer?
A: Yes, we have a professional team with rich experience of paper mill design by CAD software.
4:How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
