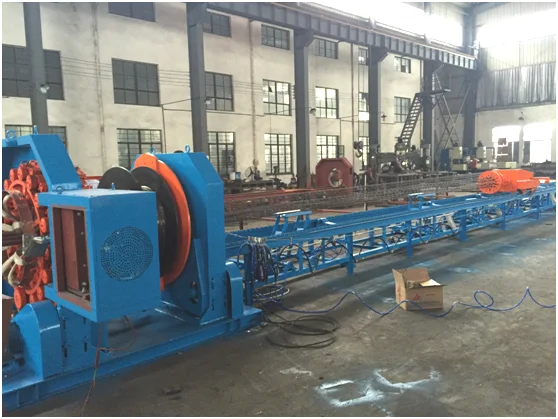

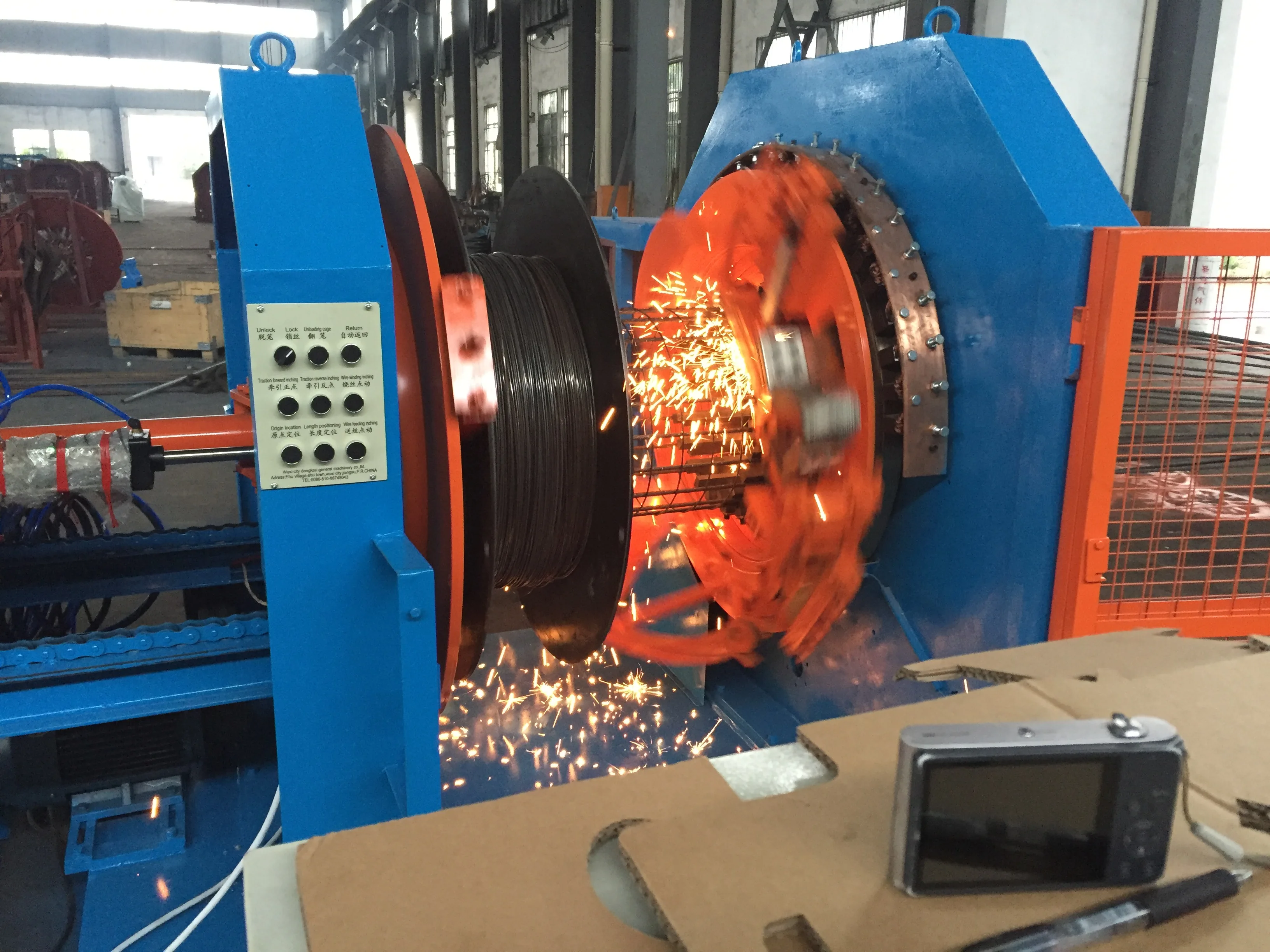

Welding machine for prestressed concrete pole reinforcement cage
- Category: >>>
- Supplier: Shanghai Oceana Construction Machinery Co. Ltd.
Share on (1600877258654):
Product Overview
Description
Product Overview

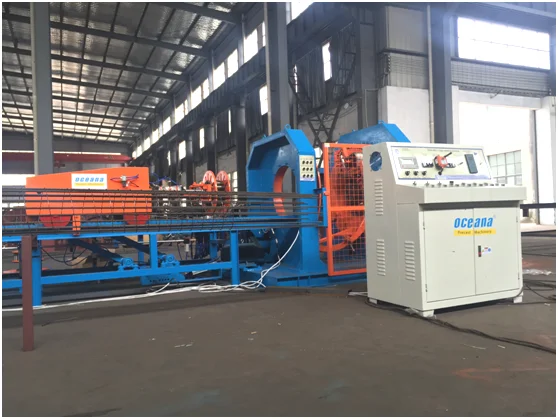

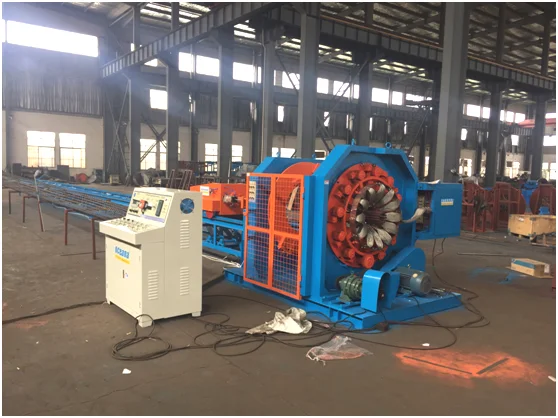

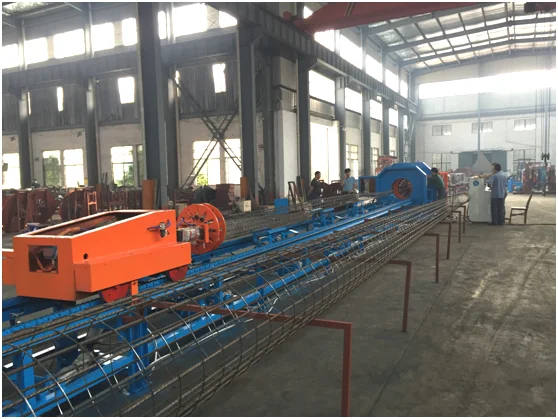

HTSN12 prestressed concrete poles cwelding machine
During the production of reinforced or prestressed concrete poles, the process of wire cage production is the very important one. The reinforced wire cage not only influence the concrete pole quality, but also decide the production time and efficiency.
The Traditional way is making the cages by manually. Or the cages are welded by labor. But all the cages are not standard.
After two years research and large quantity of testing in China market, we have improved our full-automatic cage welding machine to worldwide standards.
It is both for taper diameter cages or equal diameter cages, diameter from 140-465mm, length 1-15m, or 17, 18m.
Full-automatic PLC control, very easy to learn and use!
If you own a concrete pole plant, and making the cages by manually,
Please welcome to enquiry us for the lowest price in Promotion!
The Traditional way is making the cages by manually. Or the cages are welded by labor. But all the cages are not standard.
After two years research and large quantity of testing in China market, we have improved our full-automatic cage welding machine to worldwide standards.
It is both for taper diameter cages or equal diameter cages, diameter from 140-465mm, length 1-15m, or 17, 18m.
Full-automatic PLC control, very easy to learn and use!
If you own a concrete pole plant, and making the cages by manually,
Please welcome to enquiry us for the lowest price in Promotion!
FEATURES AT A GLANCE
Advantages or characteristics
1.Fast automation molding speed
2.Stable quality of mechanized operations
3.Automatic processing of equal diameter and variable diameter
4.The quantity of main reinforcement can be adjusted
5.Significant reduction in processing costs
6.The fatigue intensity of workers is greatly reduced
6.The fatigue intensity of workers is greatly reduced
PRODUCT SPECIFICATIONS
Model Item | HTSN12 | notes | |||||
Reinforcement cage diameter | 150~450 | Can be used for equal and variable diameter pipes | |||||
Variable path method | Automatic diameter reduction | ||||||
Length of reinforcement cage | Basic 12 meters | Can grow or shorten | |||||
productivity | 20min/root | The auxiliary time is about 5 minutes | |||||
Main diameter diameter | 7~12 | ||||||
Number of main reinforcement | 8~26 | ||||||
Disc reinforcement diameter | 2~6 | ||||||
Circumferential spacing | 50~200 Can be adjusted arbitrarily | ||||||
Rated power | 6.5KW | Excluding impact welding machine 150KVA | |||||
Main equipment size | 16m*2.5m*1.8m | ||||||
area covered | 28m*3m | ||||||
explain | 1 This machine adopts a fully automatic welding method, and changing the number of main diameters requires replacing the groove plate; 2. Adopting collision welding technology without the need for welding rods; 3 Generally, two people can operate (with one person assisting) | ||||||
PRODUCT CONFIGURATION
I
SALES AND SERVICE NETWORK
Successful Project
FAQ
Q1：*****
A1：*****
