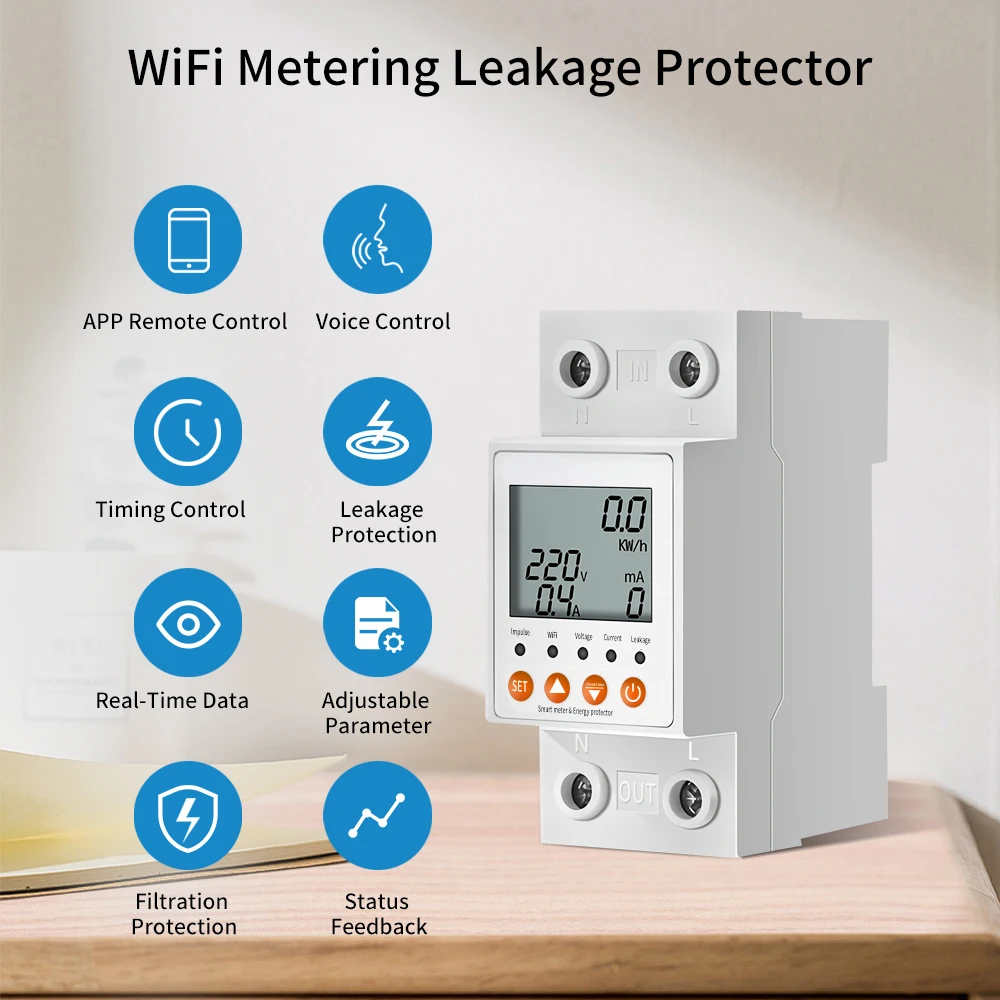

eMylo Smart Electricity Meter DIN Rail 1 Phase Digital AC Meter 220V, Tuya WLAN Automatic Circuit Breaker with Power Consumption
- Category: >>>
- Supplier: Shenzhen Emylo Technology Co. Ltd.
Share on (1600877305013):
Product Overview
Description
Product Description
Specification
item | WIFI Leakage Protection Meter |
Place of Origin | China |
Brand Name | eMylo |
Model Number | GQ-63W |
Display Type | Analog and Digital |
Output Voltage | 80-400V |
Accuracy | Level 1 |
Rated current | 63A |
Pulse frequency | 1200imp/kwh |
Material | ABS |
Ambient temperature | -30 to 70℃ |
Installation | 35mm Din Rail |
Product size | 2.56*1.22*3.27inch |
1.【Highest Accuracy and Reliable】This smart meter use high quality core, large-scale integrated circuit and SMT technology, can directly and accurately measure active energy of the energy consumption. Small and compact design saves installation space and makes installation more beautiful. (Smart meter only support Wifi 2.4GHz, not 5GHz)
2.【Overload protection】Supports current, voltage, or leakage protection set thresholds, once the threshold is reached the switch will automatically switch off, and extended disconnection time can be preset. It is can used for distribution and protection of facilities from damage caused by overload and short circuit.
3.【Remote control and voice control】The eMylo Smart 1-Phase Digital Energy Meter can be remotely connected to switch appliances on and off anytime, anywhere via a smartphone or tablet PC. It is also compatible with Alexa and Google Home and can control devices by voice command.
4.【Timer and countdown function】Your home appliances can be automatically turned on and off at preset times according to your needs anytime and anywhere via the Smart life and Tuya app. For example, if you need to heat the water before you get home to take a bath, just set it up to heat the water for 20 minutes.

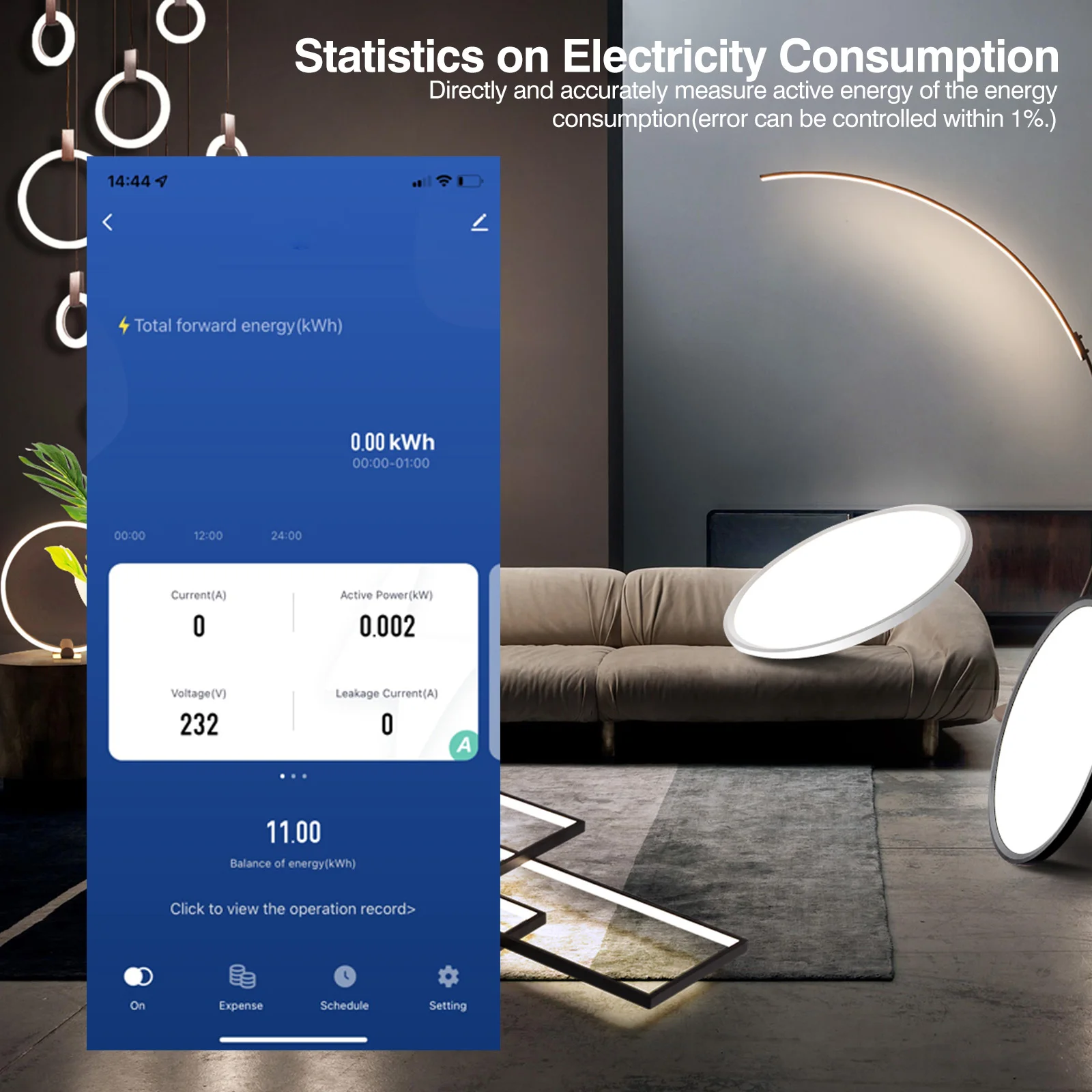

5.【Real-time monitoring】Track power, current, voltage and cumulative power consumption of your devices in real time on the LCD screen and app. So you can see the power consumption of electric appliances more clearly, manage your appliances easily and create a smart home environment for you.
2.【Overload protection】Supports current, voltage, or leakage protection set thresholds, once the threshold is reached the switch will automatically switch off, and extended disconnection time can be preset. It is can used for distribution and protection of facilities from damage caused by overload and short circuit.
3.【Remote control and voice control】The eMylo Smart 1-Phase Digital Energy Meter can be remotely connected to switch appliances on and off anytime, anywhere via a smartphone or tablet PC. It is also compatible with Alexa and Google Home and can control devices by voice command.
4.【Timer and countdown function】Your home appliances can be automatically turned on and off at preset times according to your needs anytime and anywhere via the Smart life and Tuya app. For example, if you need to heat the water before you get home to take a bath, just set it up to heat the water for 20 minutes.
5.【Real-time monitoring】Track power, current, voltage and cumulative power consumption of your devices in real time on the LCD screen and app. So you can see the power consumption of electric appliances more clearly, manage your appliances easily and create a smart home environment for you.
Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
This is a kind of fine quality single phase WiFi intelligent energy meter, with LCD display, real-time display voltage, current, power, total energy kWh. Calculate total consumption, real-time view of power consumption via mobile phone. Can be fixed in a 35mm mounting din rail, simple and convenient. Timing function, use countdown timers to turn on/off at a specified time. APP remote control, you can manage connected devices at any time through Tuya application or the Smartlife application, no matter where you are. Make your life more easier.
Why Choose eMylo Wifi energy meter
Some time you may forget to turn off the appliances because of hurry out, you can control OFF by Tuya APP or Smart Life APP at anytime from anywhere, this help you saving bills greatly.

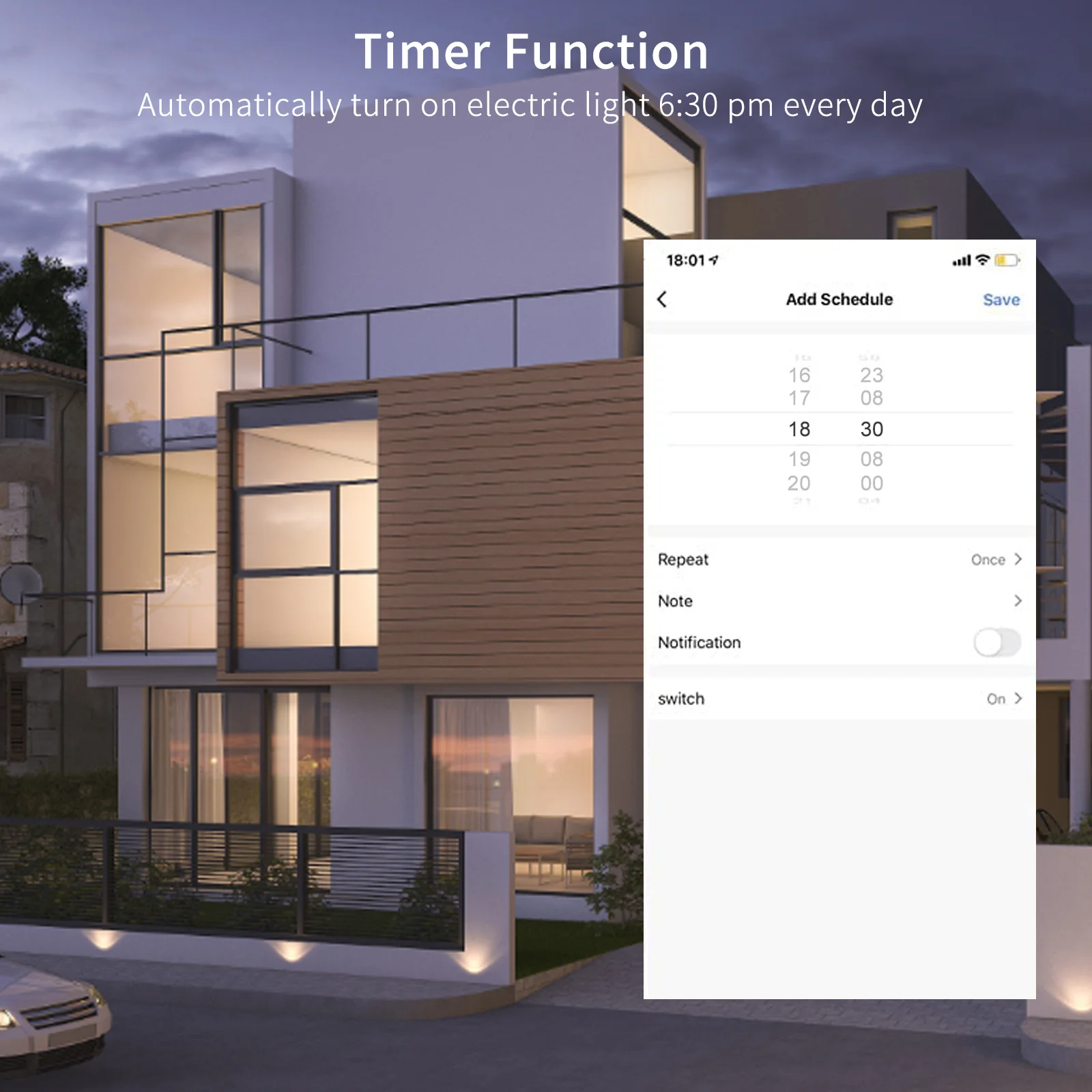

Timing & Delay function
Automatically turn on appliance according to your schedule. For example, you can set automatically trun on water heater before you back home, then you can enjoy your bath time after getting home, or turing off the air conditioning at midnight, this wil avoid catch cold as too low temperatures.
Data accuracy
High quality core, using large scale integrated circuit and SMT technology to make sure accurate measurement,meanwhile it's very stable.
Visible LED display
Visible LED Display let you manage your device more easily,know the total power consumption clearly.
This is a kind of fine quality single phase WiFi intelligent energy meter, with LCD display, real-time display voltage, current, power, total energy kWh. Calculate total consumption, real-time view of power consumption via mobile phone. Can be fixed in a 35mm mounting din rail, simple and convenient. Timing function, use countdown timers to turn on/off at a specified time. APP remote control, you can manage connected devices at any time through Tuya application or the Smartlife application, no matter where you are. Make your life more easier.
Why Choose eMylo Wifi energy meter
Some time you may forget to turn off the appliances because of hurry out, you can control OFF by Tuya APP or Smart Life APP at anytime from anywhere, this help you saving bills greatly.
Timing & Delay function
Automatically turn on appliance according to your schedule. For example, you can set automatically trun on water heater before you back home, then you can enjoy your bath time after getting home, or turing off the air conditioning at midnight, this wil avoid catch cold as too low temperatures.
Data accuracy
High quality core, using large scale integrated circuit and SMT technology to make sure accurate measurement,meanwhile it's very stable.
Visible LED display
Visible LED Display let you manage your device more easily,know the total power consumption clearly.
Wifi: 2.4GHz
Size：2.56*1.22*3.27inch
Weight: 0.34lb
Rated supply voltage: AC 220V
Operating voltage range: Ac80v-400v (single-phase)
Rated frequency. 50/60Hz
Current adjustment range: 1~63A
Operating temperature: (-30 to 70℃)
Undervoltage protection : 90v-190v ( adjustable ) , default : 170V
Overvoltage protection : 230v-300v ( adjustable ) , default : 270V
Over-current protection : 1A-63A ( adjustable ) , default : 63A
Leakage protection : 10-300MA
Package Included:
1 x WIFI Leakage Protection Meter
1 x Instruction Manual
1 Set Accessories
Size：2.56*1.22*3.27inch
Weight: 0.34lb
Rated supply voltage: AC 220V
Operating voltage range: Ac80v-400v (single-phase)
Rated frequency. 50/60Hz
Current adjustment range: 1~63A
Operating temperature: (-30 to 70℃)
Undervoltage protection : 90v-190v ( adjustable ) , default : 170V
Overvoltage protection : 230v-300v ( adjustable ) , default : 270V
Over-current protection : 1A-63A ( adjustable ) , default : 63A
Leakage protection : 10-300MA
Package Included:
1 x WIFI Leakage Protection Meter
1 x Instruction Manual
1 Set Accessories
