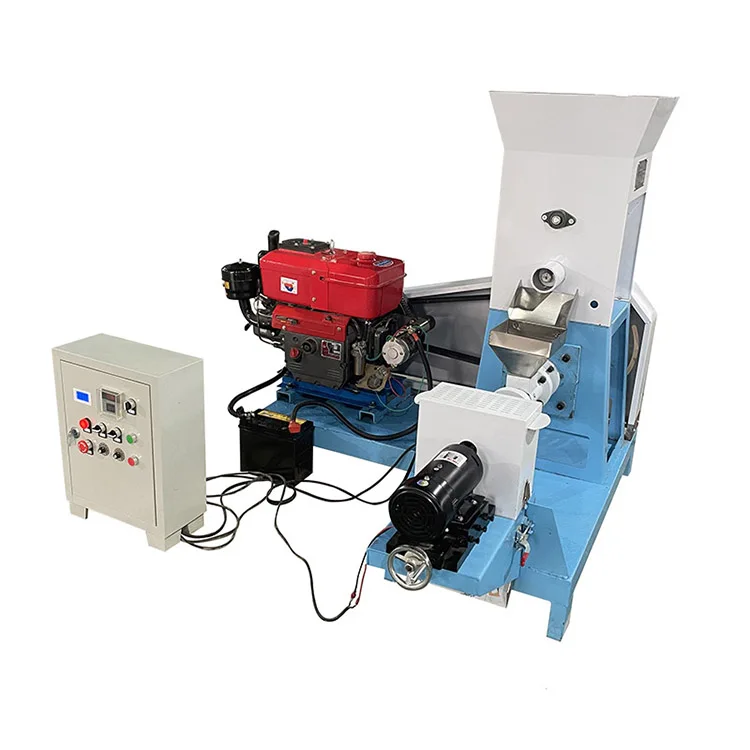

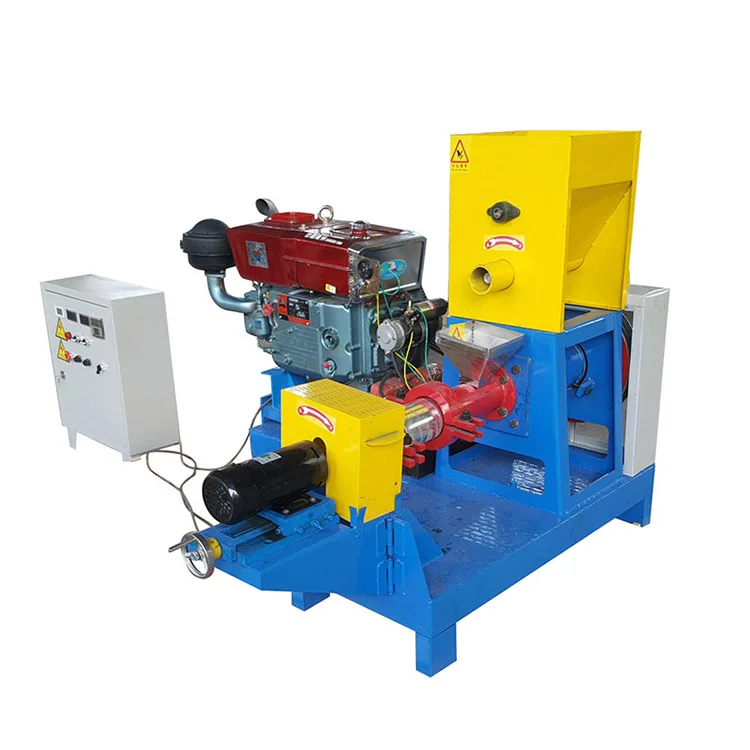

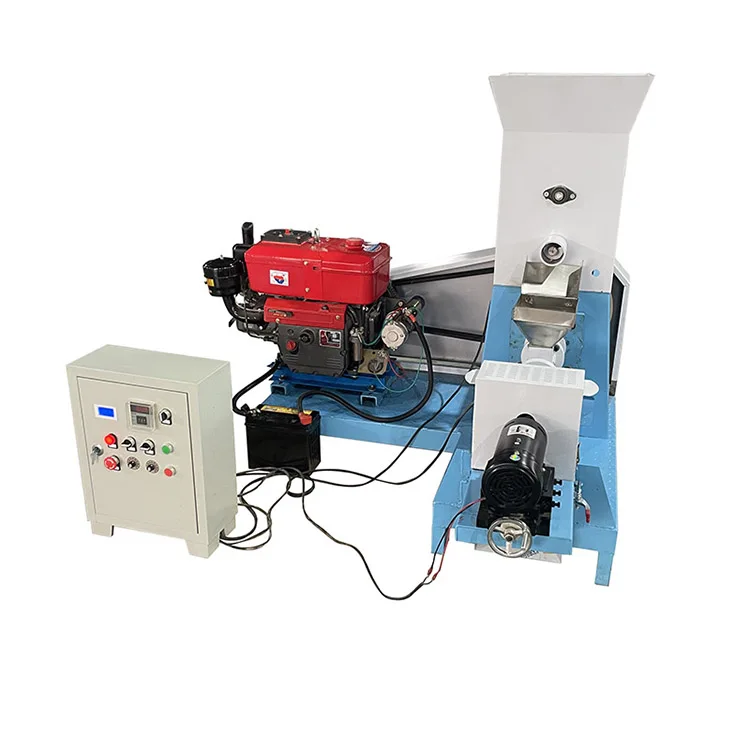

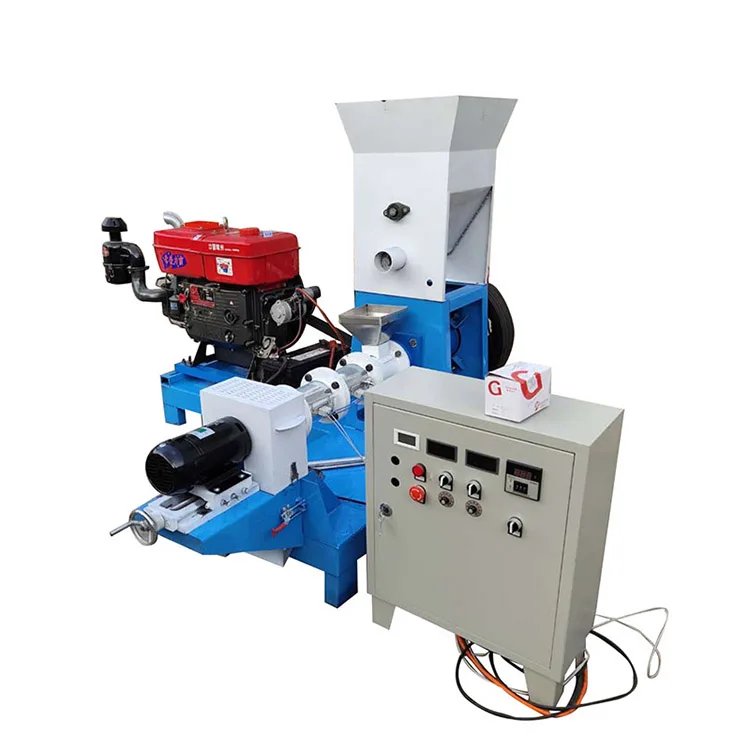

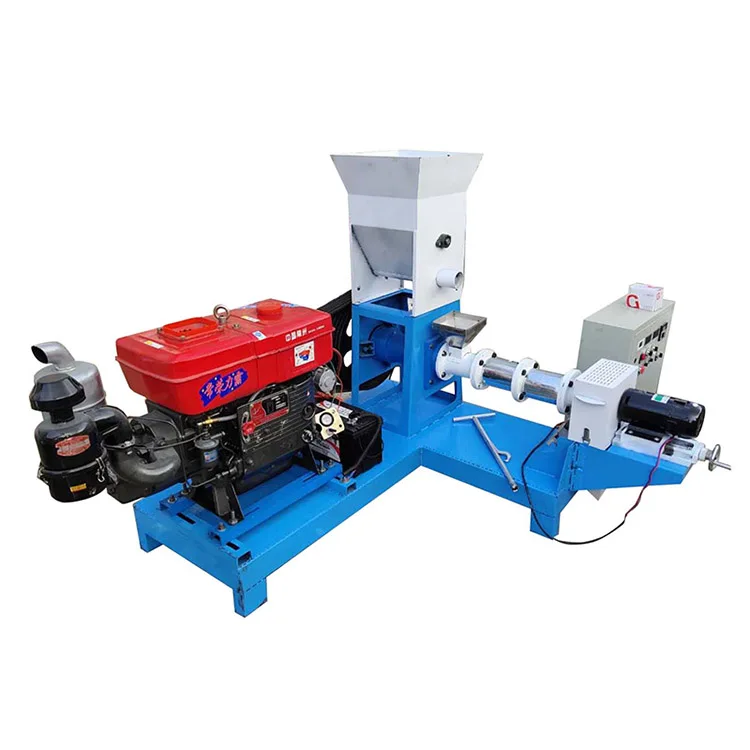

floating fish feed pellet making machine extruder with diesel engine
- Category: >>>
- Supplier: Zhengzhou Maosu Machinery Equipment Co. Ltd.
Share on (1600877307331):
Product Overview
Description
Easy operate high efficient floating fish feed pellet machine
Product Overview

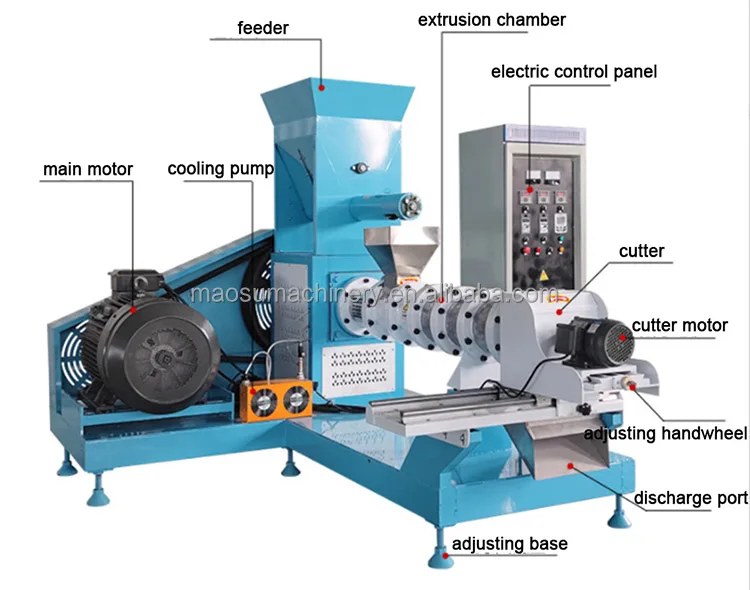

Working Principle:
Put raw materials into feeder, they will be pressed by the screw with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed materials will be formed into pellets by shaping mould.It can make different size and shapes pellets by changing molds.
Last the cutter device cut the formed pellets into different length as required.
Last the cutter device cut the formed pellets into different length as required.
Application
Raw Material:
(1). Raw materials like flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal,vitamin etc.
(2). Raw materials Powder Size: 60-80 Mesh.
(3). Raw materials moisture content: 20-25%.
(4). Diameter of Final Pellets: 1mm-15mm (Optional).
(5). Length of the pellets can be adjustable by control the cutting knife
(1). Raw materials like flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal,vitamin etc.
(2). Raw materials Powder Size: 60-80 Mesh.
(3). Raw materials moisture content: 20-25%.
(4). Diameter of Final Pellets: 1mm-15mm (Optional).
(5). Length of the pellets can be adjustable by control the cutting knife
Our Advantages
1.Pet dog cat food extruder make pet food with the amount of nutrition, digestible structure, novel shape, and unique taste to meet with the needs of modern market.Easy operation and accurate control can ensure the food quality under stable temperature,pressure, humidity and other circumstances.

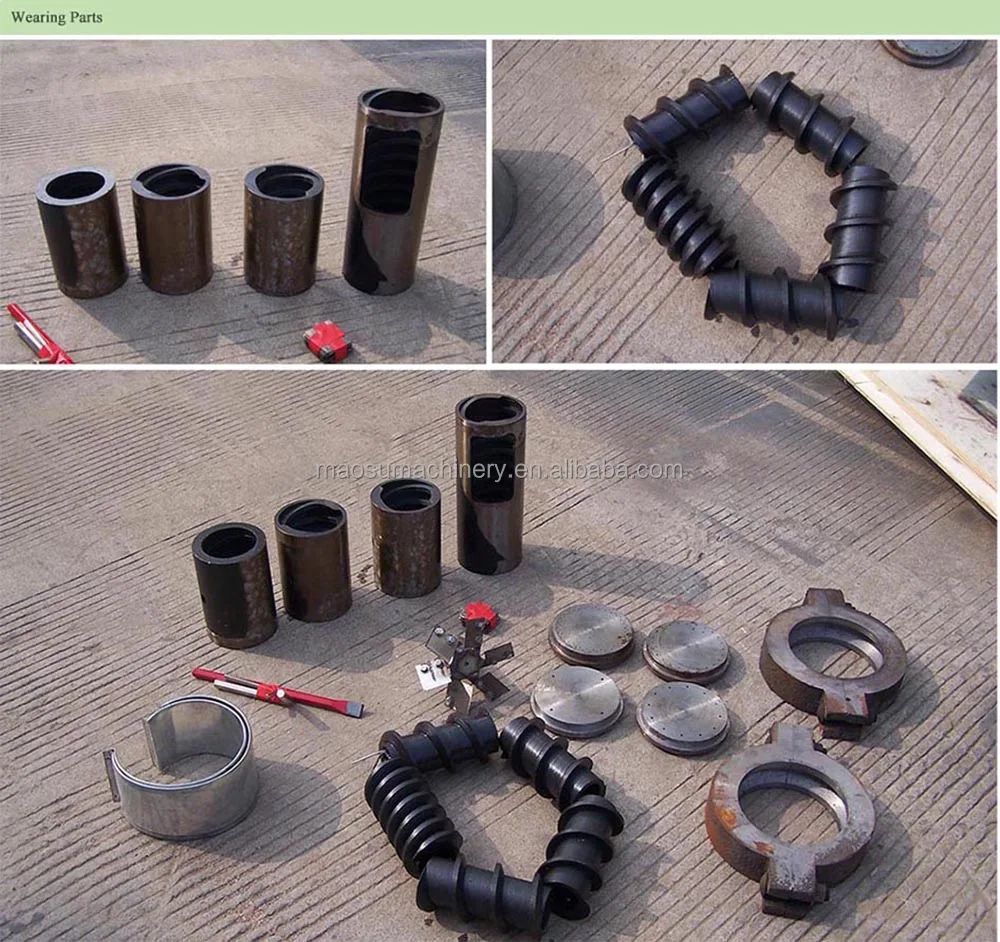

2.Screw and pressure ring are made of wear-resistant alloy processing, long service life, low operating cost.
3.Screw sleeve adopts inlaid alloy steel bar structure, long service life
4.The feeder adopts speed regulating feeding motor, which is easy to adjust the feeding amount and makes the feeding more stable
5.The production of floating pellet puffed feed can float and keep at least 12 hours without bubble, fish and birds like to eat easy digestion, will not pollute the water quality. The material can effectively kill Escherichia coli, salmonella and other harmful bacteria through high temperature and high pressure to ensure the hygiene of the feed, which is conducive to the absorption of protein degeneration and starch gelatinization, and easy to be absorbed by fish and poultry. Generally, the expanded floating property saves 8-15% of the feed compared with the powder or granular feed
6.It can produce sinking aquatic products, poultry pellet feed, anti-trypsin and urinary enzyme which can eliminate most toxins and health nutrition factors contained in materials, because it is conducive to the digestion and absorption of animals, and improve the digestibility rate of nutrients.
2.Screw and pressure ring are made of wear-resistant alloy processing, long service life, low operating cost.
3.Screw sleeve adopts inlaid alloy steel bar structure, long service life
4.The feeder adopts speed regulating feeding motor, which is easy to adjust the feeding amount and makes the feeding more stable
5.The production of floating pellet puffed feed can float and keep at least 12 hours without bubble, fish and birds like to eat easy digestion, will not pollute the water quality. The material can effectively kill Escherichia coli, salmonella and other harmful bacteria through high temperature and high pressure to ensure the hygiene of the feed, which is conducive to the absorption of protein degeneration and starch gelatinization, and easy to be absorbed by fish and poultry. Generally, the expanded floating property saves 8-15% of the feed compared with the powder or granular feed
6.It can produce sinking aquatic products, poultry pellet feed, anti-trypsin and urinary enzyme which can eliminate most toxins and health nutrition factors contained in materials, because it is conducive to the digestion and absorption of animals, and improve the digestibility rate of nutrients.
PRODUCT SPECIFICATIONS
Model | Capacity (kg/h) | Main power (kw) | Feeding power (kw) | Screw diameter ( mm) | Cutting power (kw) |
DGP40 | 40-60 | 7.5kw | 0.4kw | Φ40mm | 0.4kw |
DGP50 | 60-80 | 11kw | 0.4kw | Φ50mm | 0.4kw |
DGP60 | 100-150 | 15kw | 0.4kw | φ60mm | 0.4kw |
DGP70 | 180-250 | 18.5kw | 0.4kw | φ70mm | 0.4kw |
DGP80 | 300-350 | 22kw | 0.4kw | φ80mm | 0.6kw |
DGP100 | 400-450 | 37kw | 1.1kw | φ90mm | 0.6kw |
DGP120 | 500-700 | 55kw | 1.1kw | φ120mm | 1.5kw |
DGP135 | 800-1000 | 75kw | 1.1kw | φ133mm | 2.2kw |
DGP160 | 1200-1500 | 90kw | 1.5kw | φ155mm | 2.2kw |
DGP200 | 1800-2000 | 132kw | 1.5kw | φ195mm | 3.0kw |

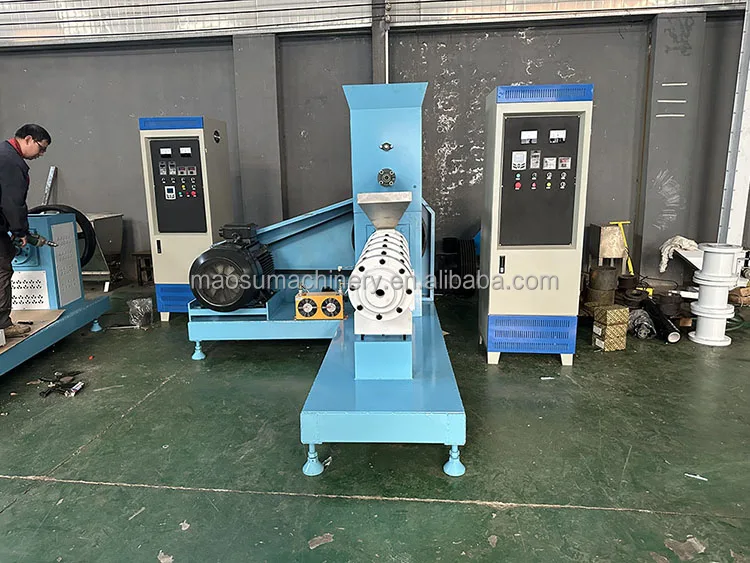

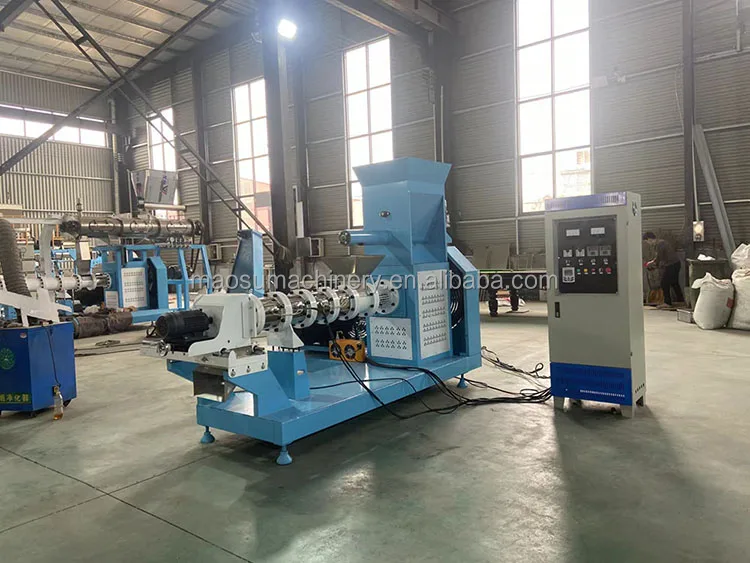

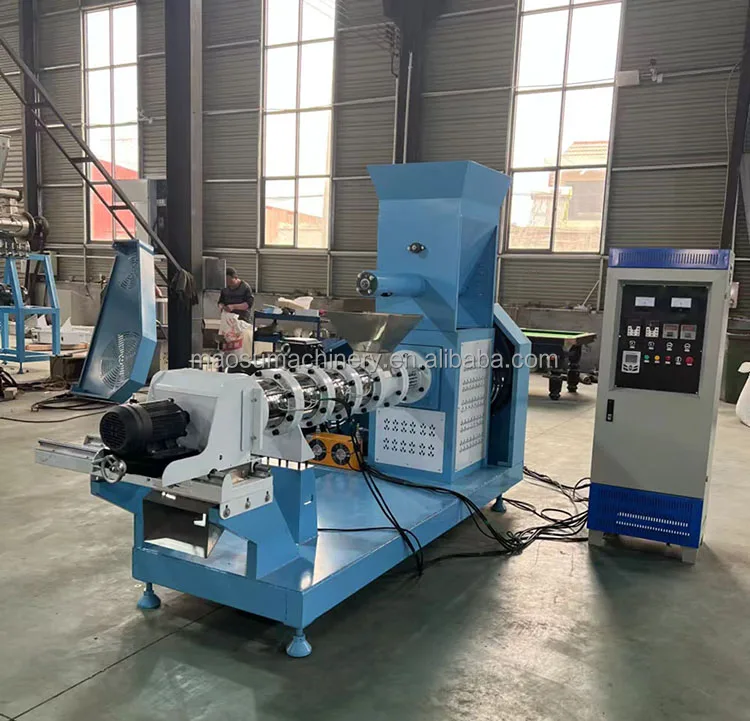

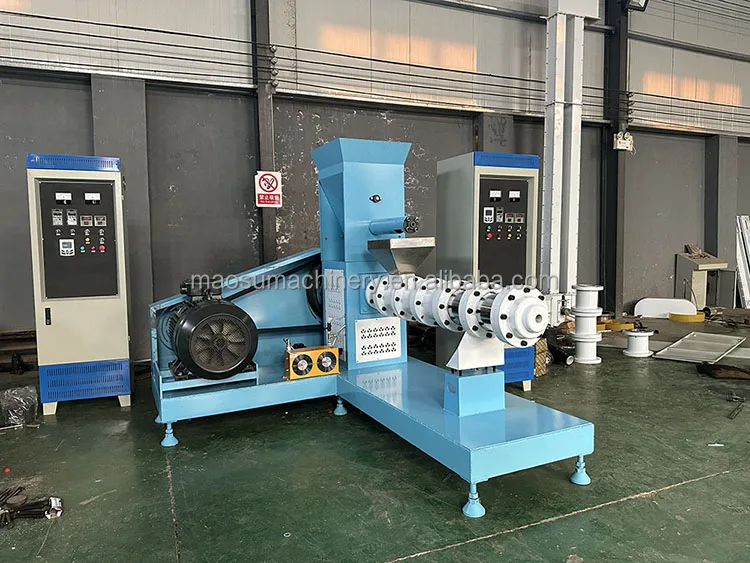

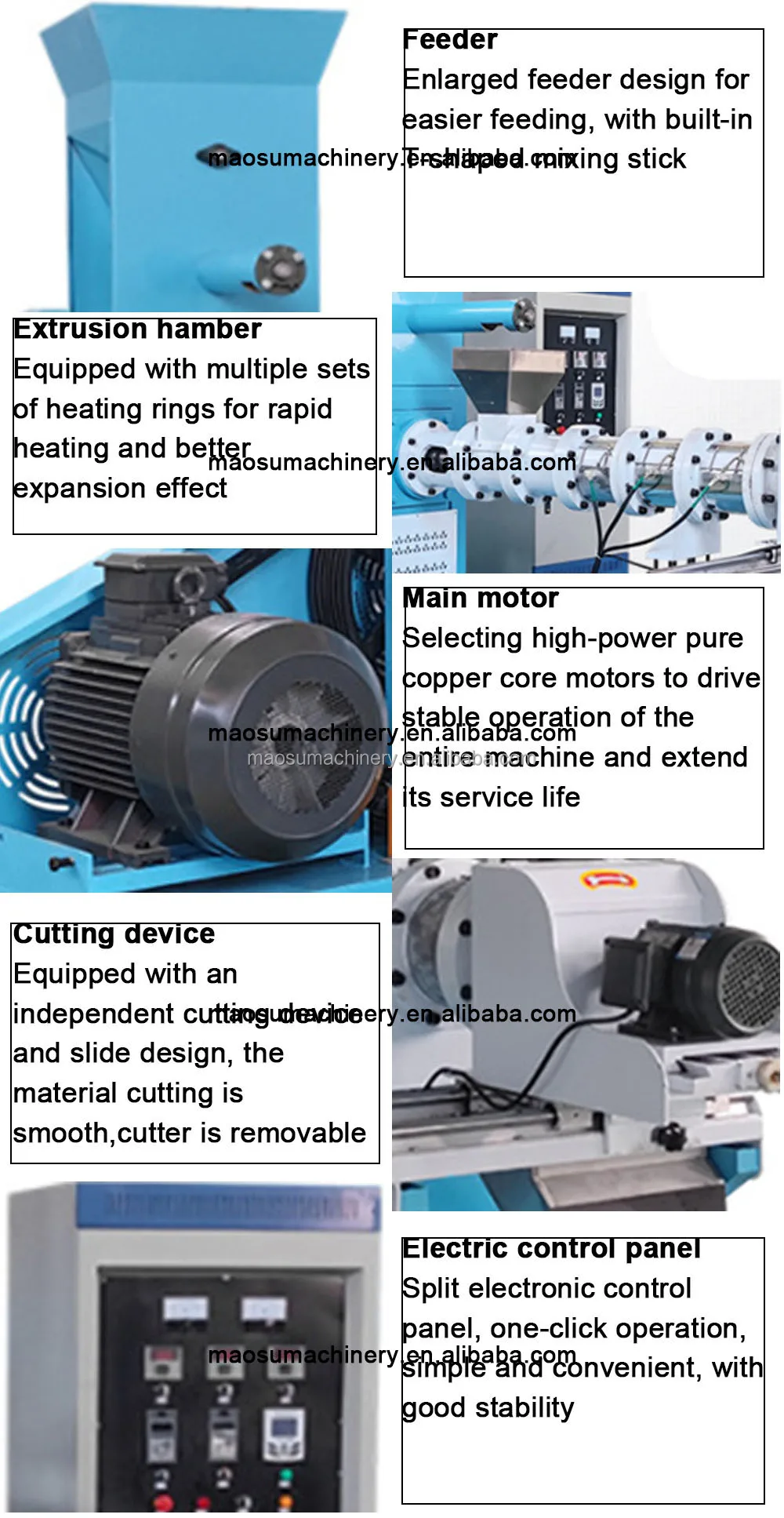

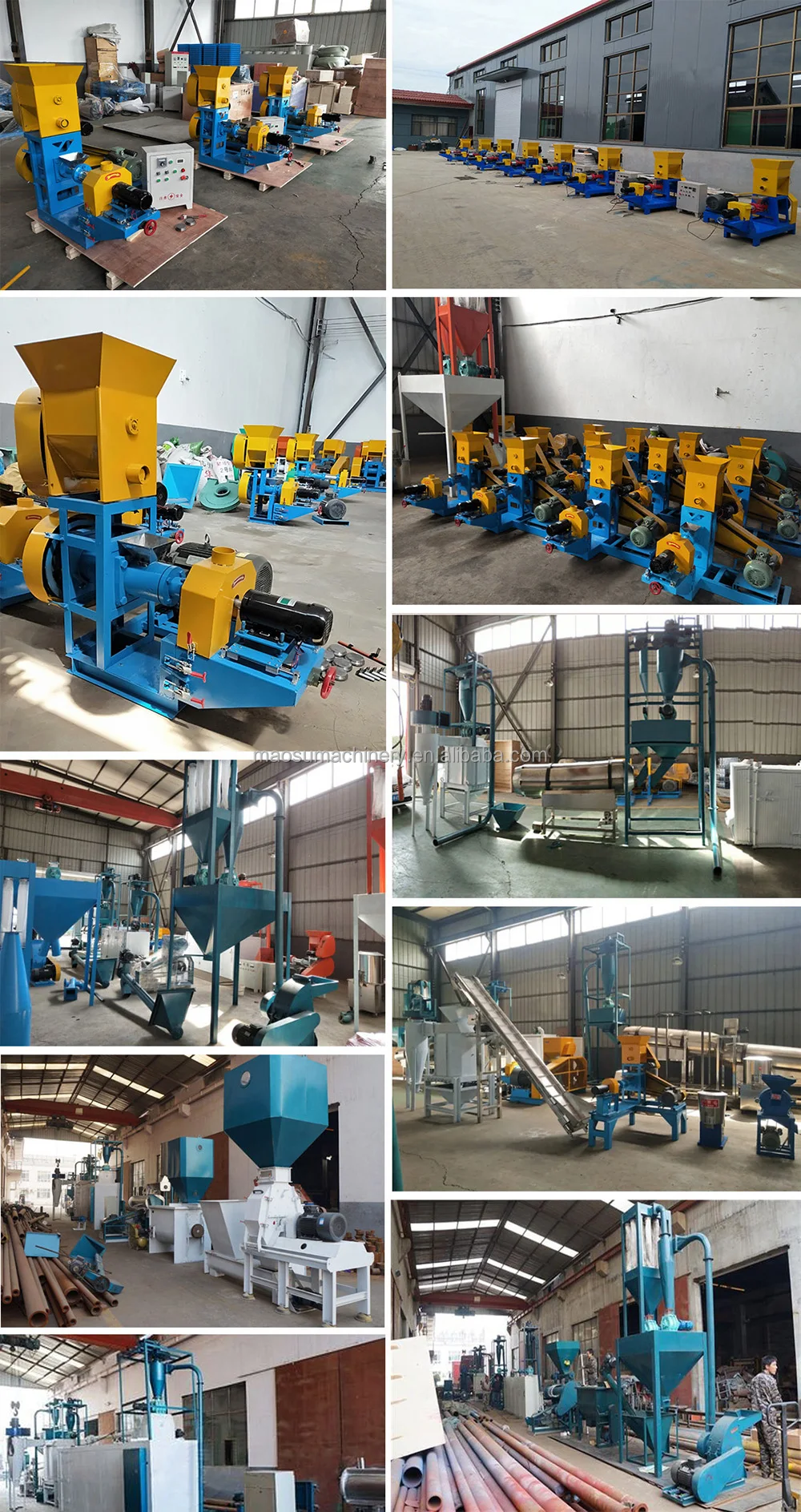

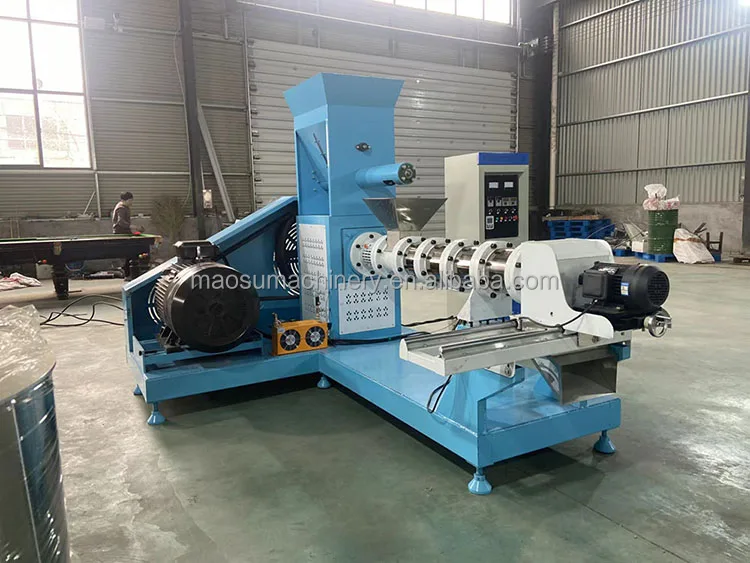

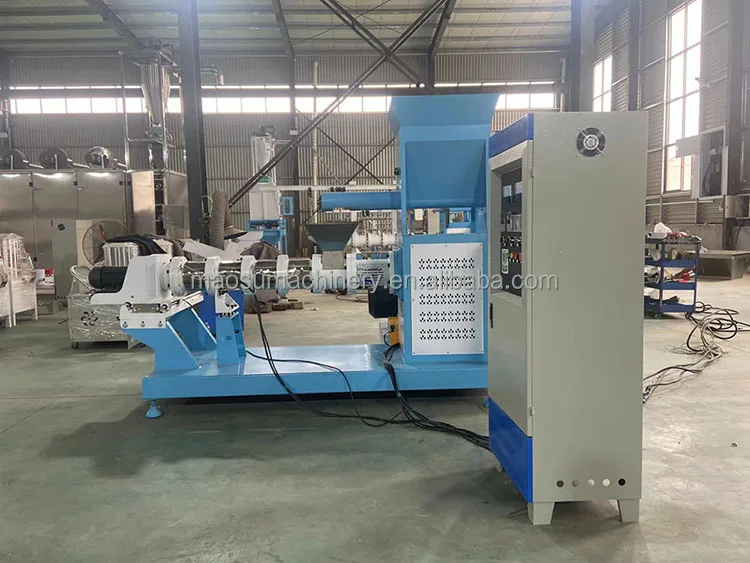

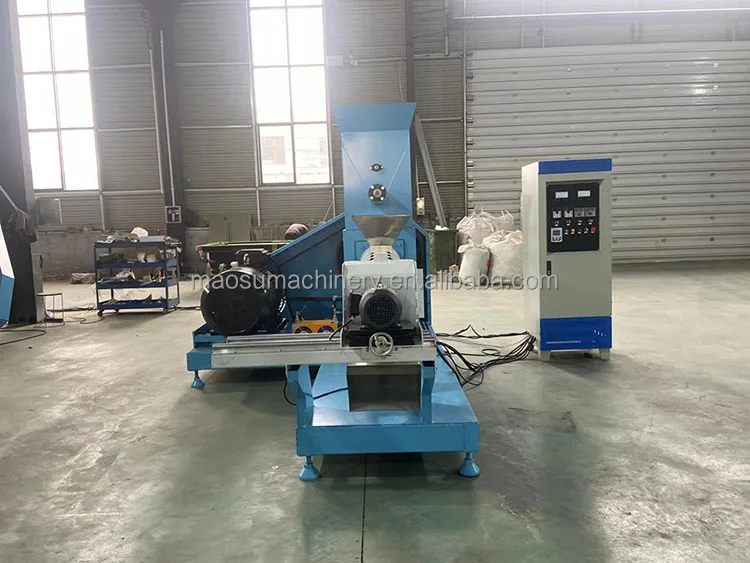

Details Images

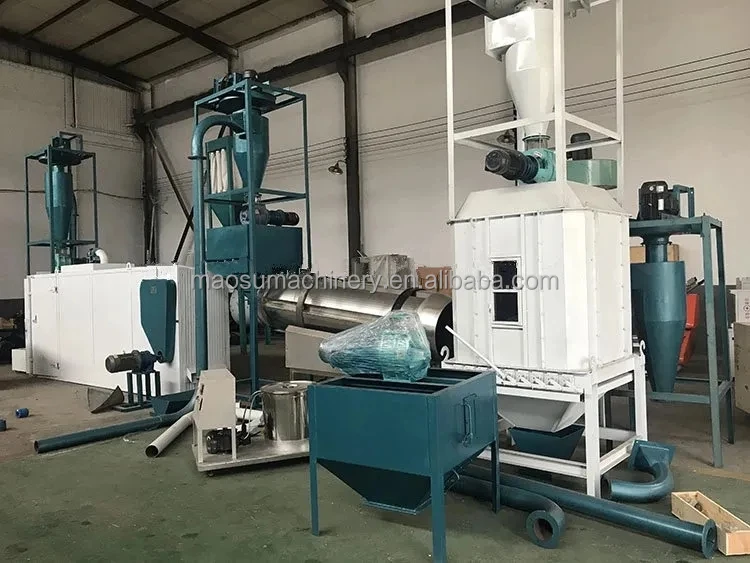

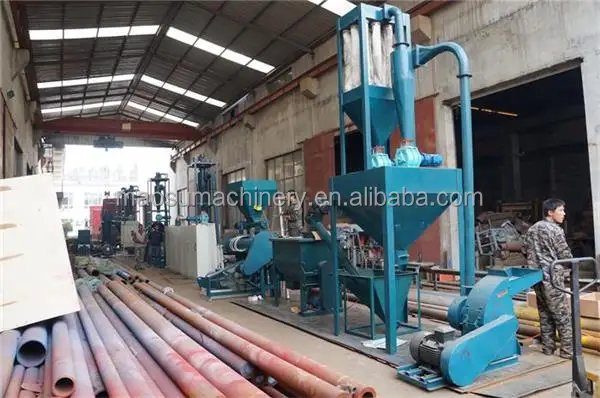

Pet Food Production Line
Recommend Products

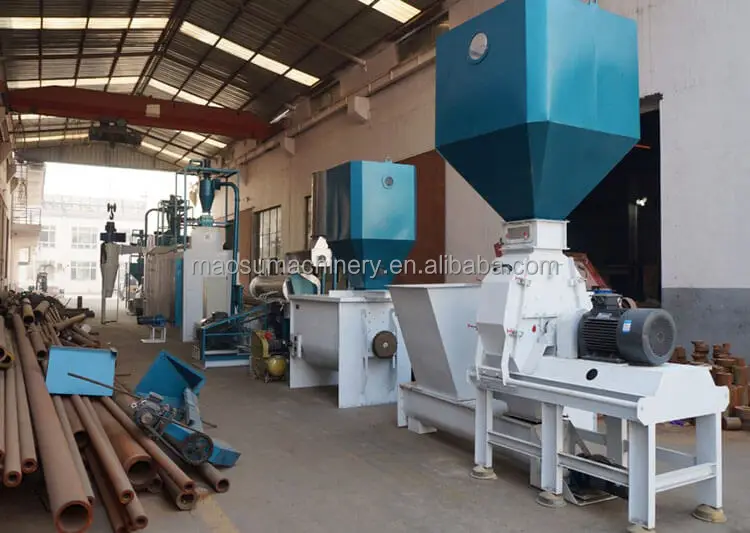

Hammer Mill
The material is crushed by the hammer in the crushing chamber rotating and hitting the material continuously, with a fan on the side, and the crushed material is discharged through the negative pressure generated by the fan to improve the crushing efficiency. To crush different finenesses, only need to replace screens with different apertures.
Screw Conveyor
screw conveyor has the characteristics of simple structure, convenient operation, good sealing and low price. Generally used for conveying raw grain or powder materials, not suitable for conveying viscous, fragile granular, easy to caking materials
Mixer
The material can be fully mixed, and the bottom is designed with a long open door, and the material remains small in the body.Using batch mixing method, the mixture material is more uniform
Drying Machine
The mesh belt is made of stainless steel, which is resistant to high temperature and corrosion. The material is evenly spread on the mesh belt through the feeding device. The dryer is equipped with a circulating hot air fan and an exhaust fan to make the material Drying is more uniform.
Seasoning Machine
The material enters from the higher end of the drum, and the liquid grease, attractant, trace elements, etc. are evenly sprayed on the surface of the particles through the built-in nozzle. The other end of the nozzle is connected to the oil pump and the thermal insulation oil cylinder. The oil cylinder has a heating function. The temperature is adjusted on the electric control box to keep the additives at a certain temperature.
Packing Machine
This automatic packing machine adopt PLC computer control system, configured 9-inch color touch screen operation interface, frequency control. The machine combine function of bag making, filling, sealing, bag marking, automatic feeding. It is Suitable for granule food such as ice candy, peanut, coffee beans, melon seeds, rice, salt, sugar, beans, seeds, monosodium glutamate, corn
particles, solid materials, popcorn, potato chips, coffee powder, washing powder etc
particles, solid materials, popcorn, potato chips, coffee powder, washing powder etc
