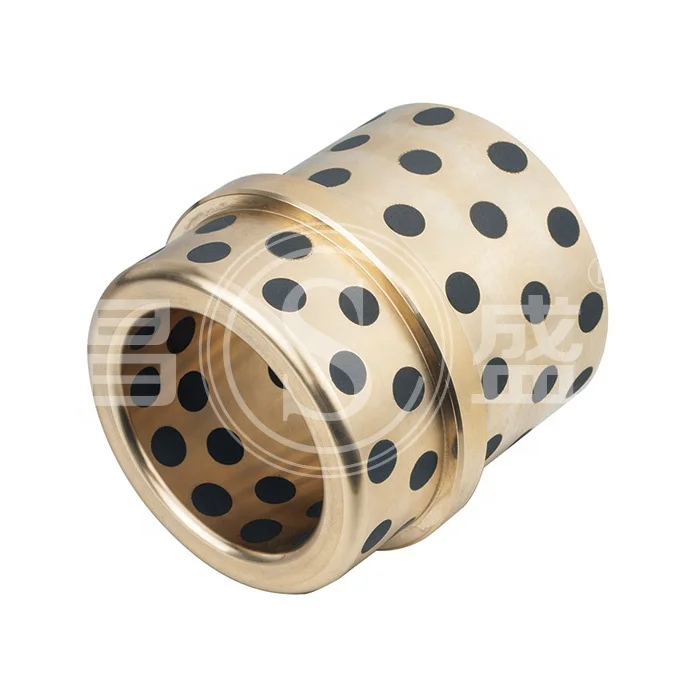

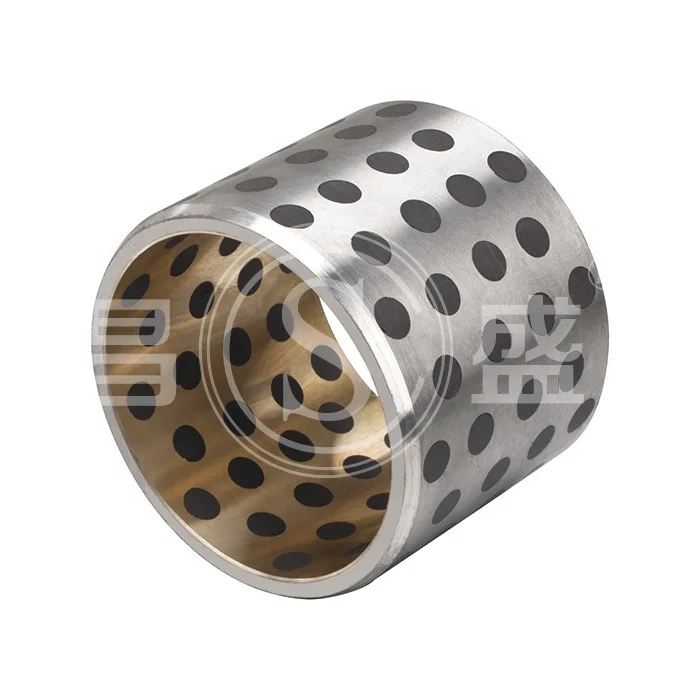

Graphite Plug Lubricant Flat Bushing JDB Oilless Self Lubricating 500# SP Sliding Brass Bearing Bushing
- Category: >>>
- Supplier: Jiashan Changsheng Composite Bearing Factory (General Partner)
Share on (1600877319293):
Product Overview
Description
Product Description

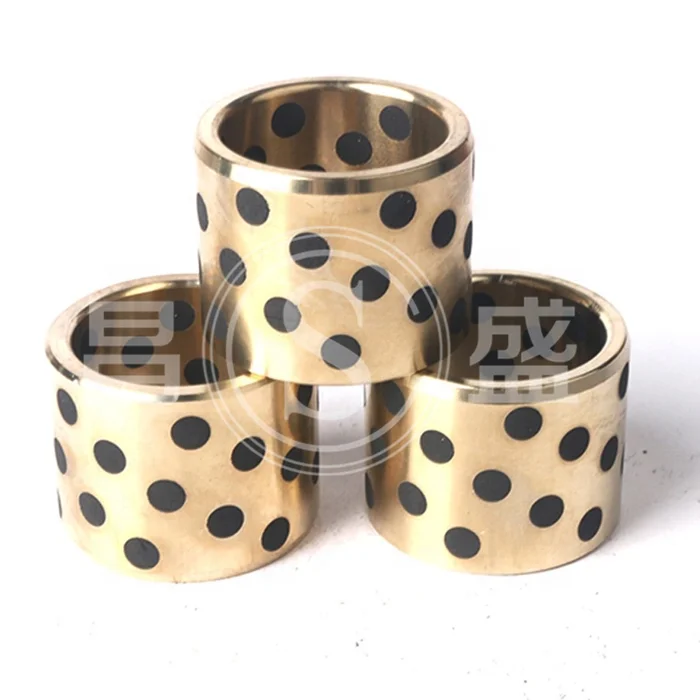

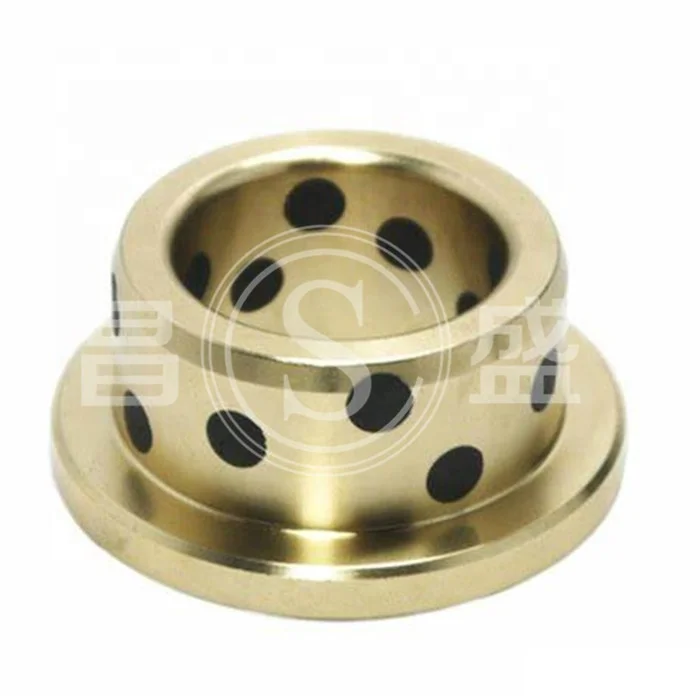

Graphite Plug Lubricant Flat Bushing JDB Oilless Self Lubricating 500# SP Sliding Brass Bearing Bushing
Features:

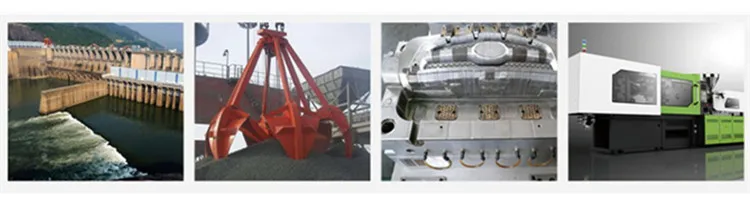

The bronze alloy provides mechanical strength and loading capacity of the bearing and the solid lubricants provides continuous lubricating source to establish the reliable lubricating system. It is suitable for the application conditions of middle to high load and where the frequent restarting operation is needed. The typical applications include the plastic injection machine toggle, tie bar, port machinery, dam gate and mining machinery.
Structure:
1. Initial lubricating film, provides initial lubricating to reduce the friction.
2. Solid Lubricants, aligned according to the bearing motion direction to form lubricating film improving the friction
coefficients and wear resistance feature.
3. Bronze alloy, provides mechanical strength and improve the impact resistance and corrosion resistance.
2. Solid Lubricants, aligned according to the bearing motion direction to form lubricating film improving the friction
coefficients and wear resistance feature.
3. Bronze alloy, provides mechanical strength and improve the impact resistance and corrosion resistance.
Specification
Type | 500#-1 | 500#-2 | 500#-3 | |||
Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuSn12 | |||
Density | 7.8 | 8.9 | 8.9 | |||
HB Hardness | ≥210 | ≥70 | ≥75 | |||
Tensile Strength MPa | ≥750 | ≥250 | ≥270 | |||
Yield Strength MPa | ≥450 | ≥90 | ≥150 | |||
Elongation % | ≥12 | ≥13 | ≥5 | |||
Thermal Expansion Coefficient | 1.9x10-5/°C | 1.8x10-5/°C | 1.8x10-5/°C | |||
Max. Operation Temp. | -40~+250°C | -40~+400°C | ||||
Max. load MPa | 50 | 50 | ||||
Max. speed m/s | Dry | 0.5 | 0.5 | |||
Lubricated | 1 | 2.5 | ||||
Max. PV (N/mm2*m/s) | Dry | 1.65 | 1 | |||
Lubricated | 3.25 | 1.65 | ||||
Packing & Delivery
Bushings packed in roll, then put in carton, finally put in pallets.
Company Profile
We Changsheng Bearing , one of the manufacturers of all kinds of PLAIN BEARING(bushings), within more than 20 years experience of producing bushings.

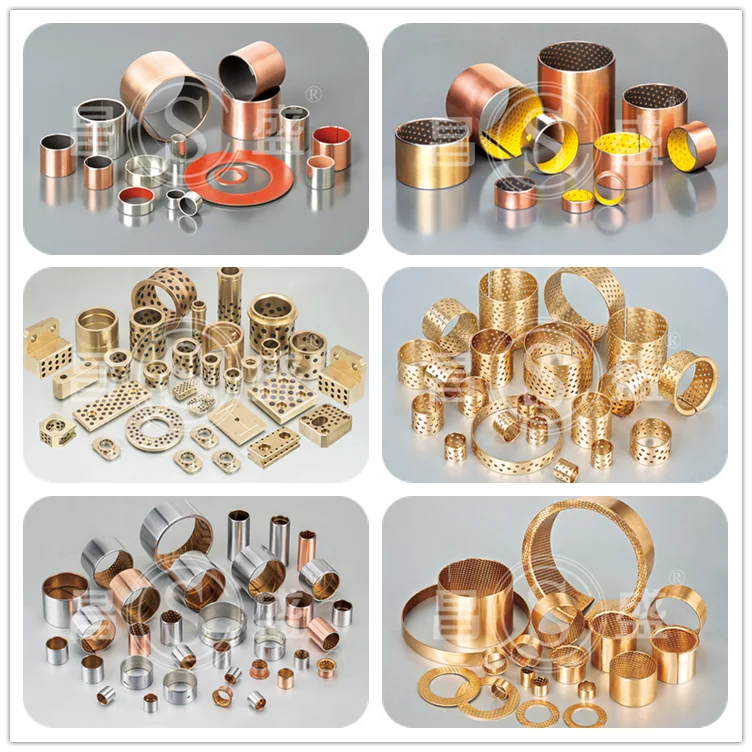

Our main products:
Slide bearing (SF-1)
Self-lubricating bearing (SF-2)
Bi-metallic bushing (JF800)
Bronze bushing (FB090,FB092,FB08G,FB09G)

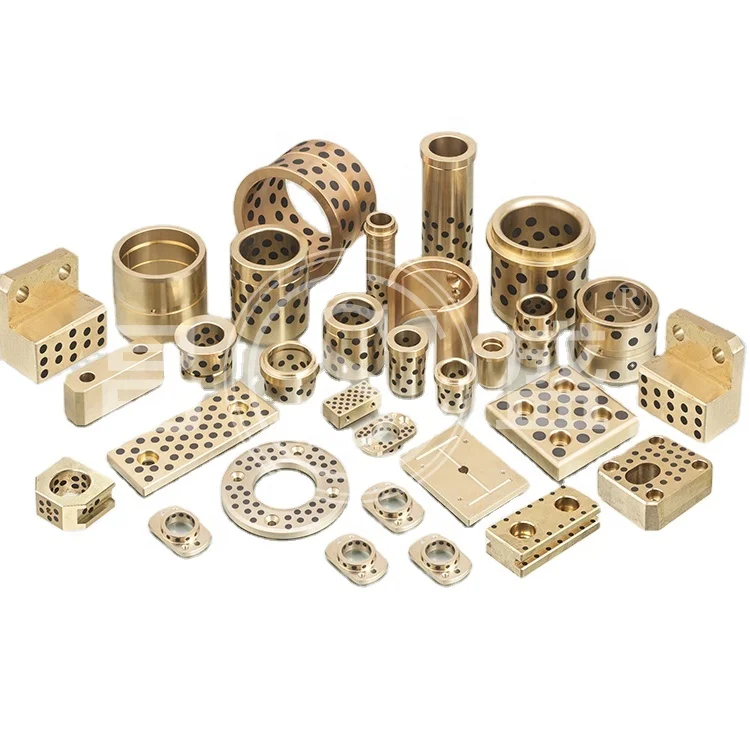

Brass bushing with graphite (500#)
Jiashan Changsheng Composite Bearing Factory is located in Jiashan Dayun Economic Development Zone. We are only 1km from the Dayun Exit of Shanghai-Hangzhou Expressway. Our company enjoys convenient transportation as both Huyong Expressway and Huhang Railway crossing this area.
Our factory has leading production technology, first-class production equipment and outstanding enterprise management concept and technicians. The production technology is advanced, and the detection means is complete. We organize production according to IATF 16949：2016 quality system request strictly.
Our products have the advantages of low noise, wear-resistant and long-life, applying in the fields such as all kinds of machines, electric tools, instrument and apparatus, automobile, and motorcycles. We have won high reputation among domestic and overseas customers.
Our main products:
Slide bearing (SF-1)
Self-lubricating bearing (SF-2)
Bi-metallic bushing (JF800)
Bronze bushing (FB090,FB092,FB08G,FB09G)
Brass bushing with graphite (500#)
Jiashan Changsheng Composite Bearing Factory is located in Jiashan Dayun Economic Development Zone. We are only 1km from the Dayun Exit of Shanghai-Hangzhou Expressway. Our company enjoys convenient transportation as both Huyong Expressway and Huhang Railway crossing this area.
Our factory has leading production technology, first-class production equipment and outstanding enterprise management concept and technicians. The production technology is advanced, and the detection means is complete. We organize production according to IATF 16949：2016 quality system request strictly.
Our products have the advantages of low noise, wear-resistant and long-life, applying in the fields such as all kinds of machines, electric tools, instrument and apparatus, automobile, and motorcycles. We have won high reputation among domestic and overseas customers.
FAQ
Q: Are you trading company or manufacturer?
A: We Changsheng is a professional manufacturer of bushings for more than 19 years and we have our own bushing factory.Our advantages are multiple resource integration, strong quality assurance and excellent service level.
We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system.We have the certificate of IATF 16949:2016 quality system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.
We hope our customers become stronger and stronger to be with us.
A: We Changsheng is a professional manufacturer of bushings for more than 19 years and we have our own bushing factory.Our advantages are multiple resource integration, strong quality assurance and excellent service level.
We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system.We have the certificate of IATF 16949:2016 quality system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.
We hope our customers become stronger and stronger to be with us.
Welcome Your Inquiry and Trial Order !
