High dimensional stability
Transparent or Milky color
Easy coating property
Excellent electrical insulation.

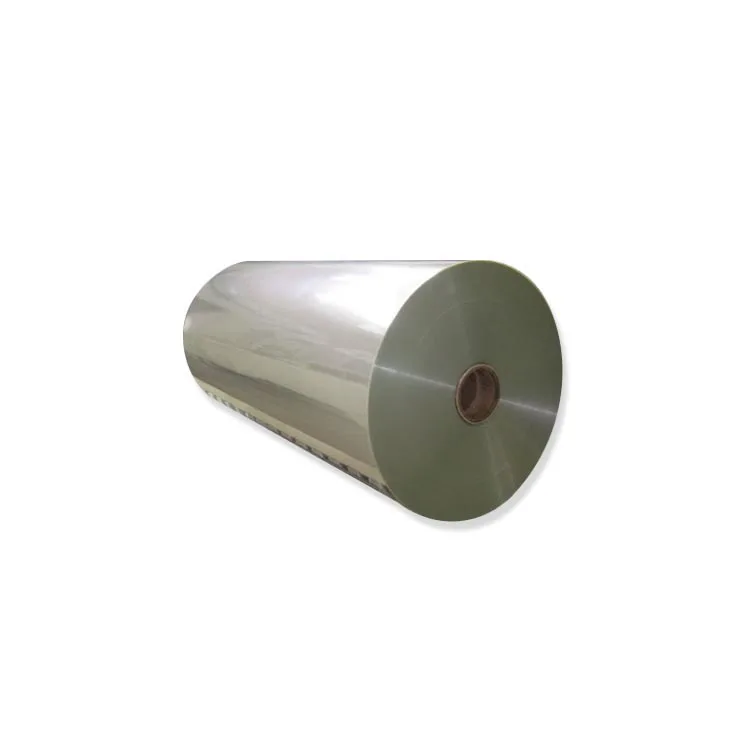

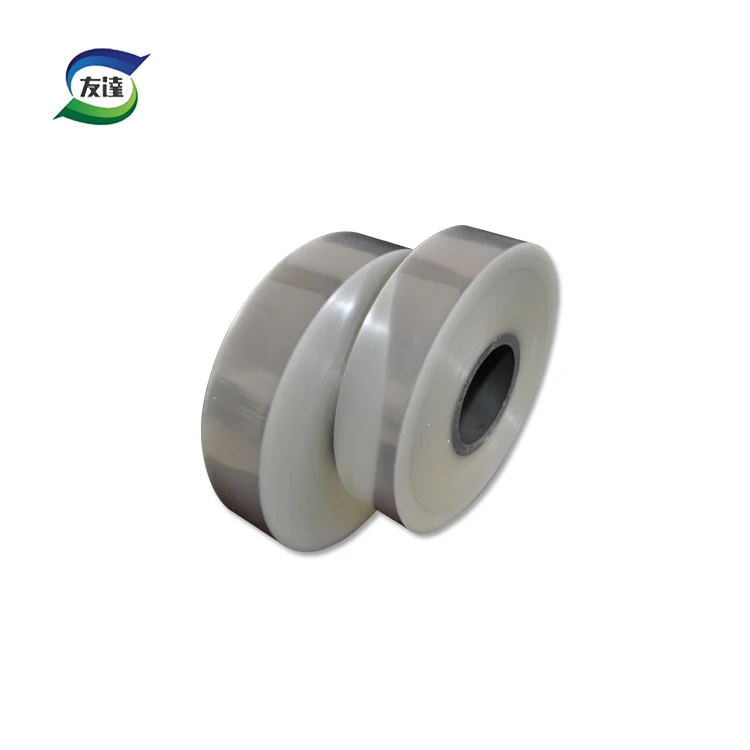

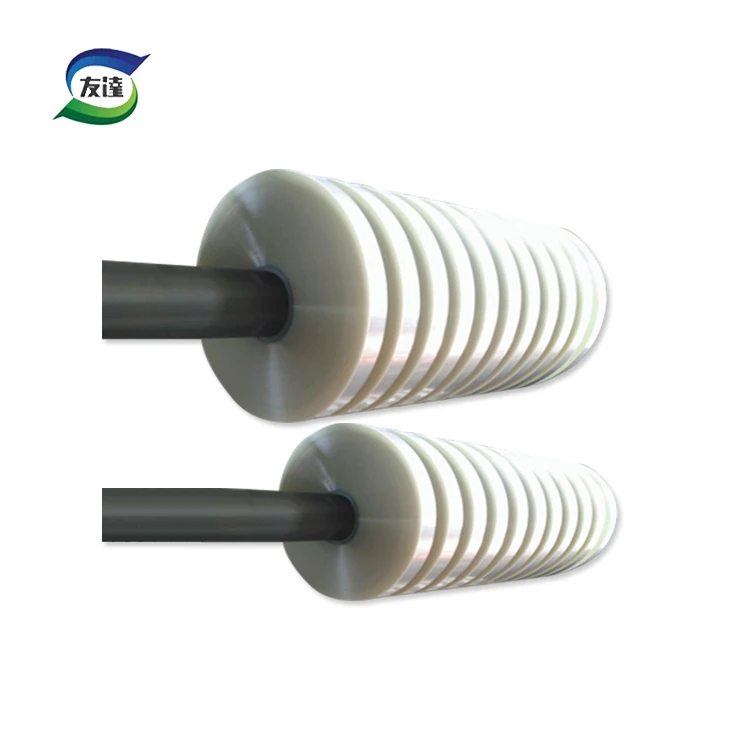

Electrical insulation materials 6020 6021 white polyester insulation mylar film for cable warping
- Category: >>>
- Supplier: Shenyang Youda Insulation Materials Co. Ltd.
Share on (1600877320549):
Product Overview
Description
Product Description

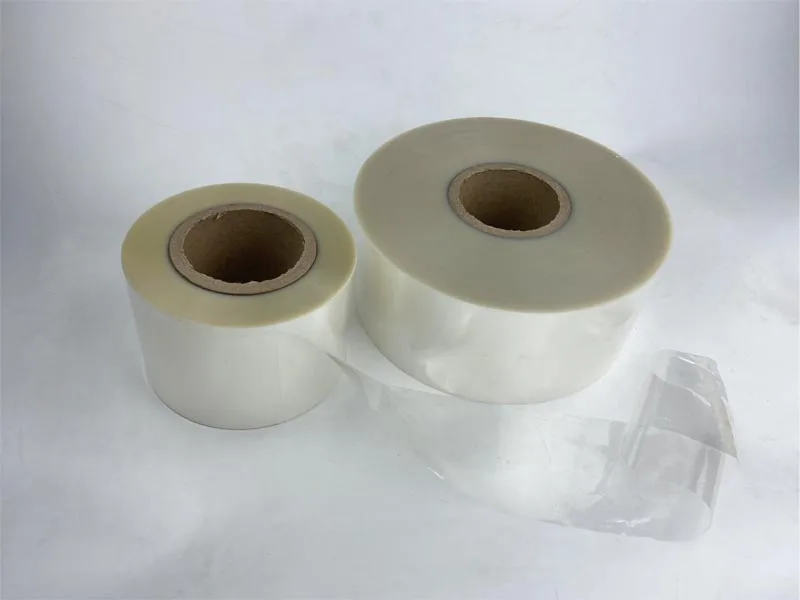

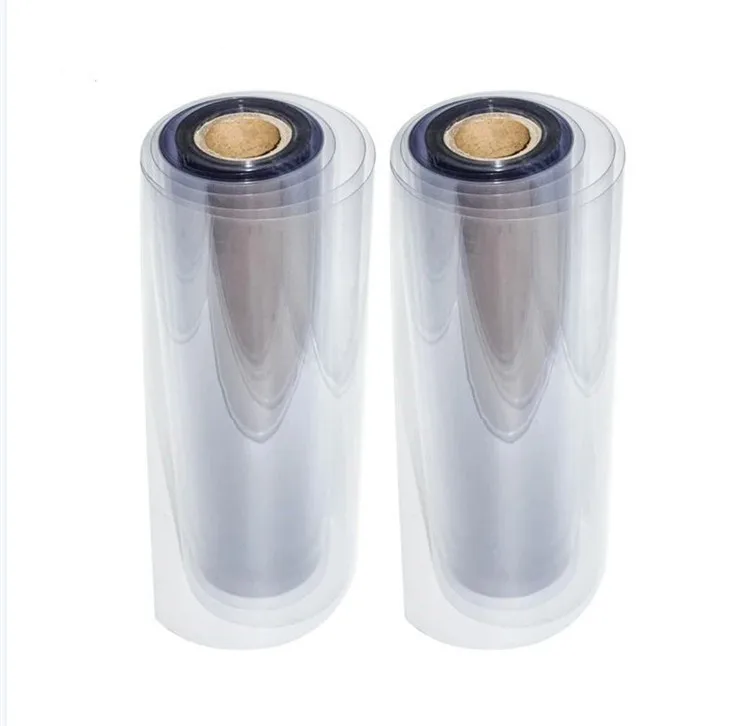

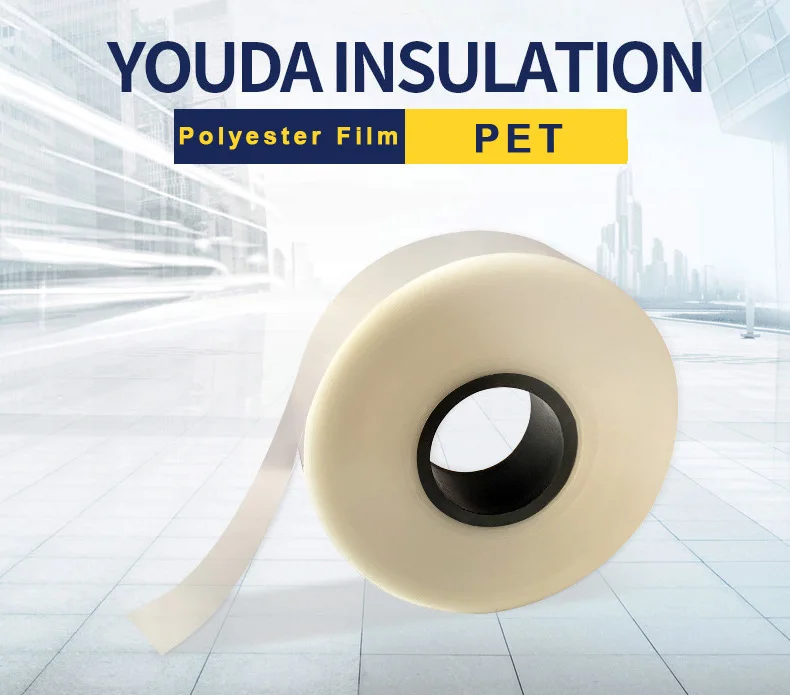

Polyester film is made from stretched polyethylene terephthalate (PET) with high tensile strength, chemical and dimensional stability, transparency, reflectivity, gas and aroma barrier properties, and electrical insulation.
Features
Product Parameters
1.Thickness: 0.025mm 0.05mm 0.1mm 0.125mm 1.188mm 0.25mm 0.3mm 0.35mm 0.4mm 0.5mm
2.Width: 1000m Color: transparent and milky white
3. UL and RoHS certificated.
2.Width: 1000m Color: transparent and milky white
3. UL and RoHS certificated.
No. | Index Name | Unit | Index |
1 | Density | g/cm3 | 1.39±0.1 |
2 | Melting Point | ℃ | ≥256 |
3 | Tensile Strength | MPa | 15-100mm≥150 100-190mm≥140 190≥110 |
4 | Elongation | % | ≥40-80 |
5 | Heat Shrinkage | % | ≤3.5-2.0 |
6 | Volume Resistivity | MΩ/m | ≥1.0x108 |
7 | Relative Dielectric Constant | Hz | 2.9-3.4 |
8 | Dielectric Strength | V/um | ≥250-50(6m-350m) |
9 | Heat resistance grade | E 120℃ |
Applications
High mechanical strength
PET/Mylar film E class, 120 ℃
For motors, transformers, generators

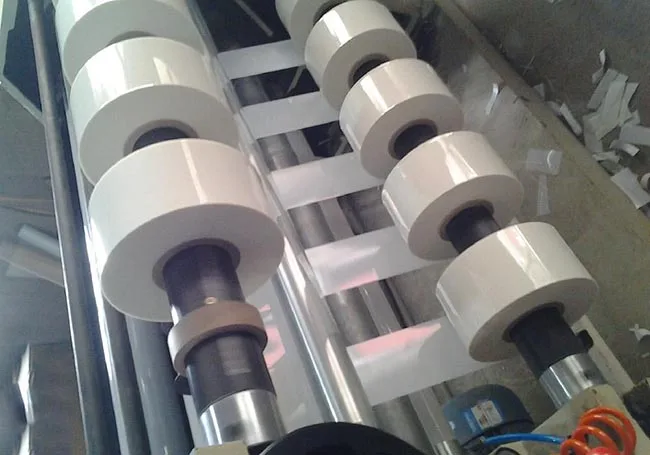

Providing services in slitting ,die cutting ,punching various materials into components as customers request.
PET/Mylar film E class, 120 ℃
For motors, transformers, generators
Providing services in slitting ,die cutting ,punching various materials into components as customers request.
Food packaging(Can Keep food fresh for a longer duration):
Case and tray for confectionery, bakery, fruits, vegetable, fishery, meat productsDairy products, beverage cups, containers Lids for ingredients, lids for ice cream
Stationery:
Notebook Binding, Book Cover, Plastic Bags etc...
Blister packaging:
Toys, accessories, batteries, commodities
Medical packaging:
Containers for medical supplies, optical devices
General usage:
Case for cosmetics, dolls, sports stuffs, writing materials, common box type cases, and other stuffs
Printing:
Silk Printing, UV Offset Printing
Signage:
Clothes Labels, Food Labels, Price tags etc...
Case and tray for confectionery, bakery, fruits, vegetable, fishery, meat productsDairy products, beverage cups, containers Lids for ingredients, lids for ice cream
Stationery:
Notebook Binding, Book Cover, Plastic Bags etc...
Blister packaging:
Toys, accessories, batteries, commodities
Medical packaging:
Containers for medical supplies, optical devices
General usage:
Case for cosmetics, dolls, sports stuffs, writing materials, common box type cases, and other stuffs
Printing:
Silk Printing, UV Offset Printing
Signage:
Clothes Labels, Food Labels, Price tags etc...
Company Profile
FAQ
Q1: How about providing samples?
Of course, we can sent you a sample for free. Customers just need to pay a little shipping charge.
Q2: How about the quality of mass production?
Our warehouse staff will leave another same sample as yours. The production process will be under your requirement.
Q3: How about the delivery time?
It depends on order quantity. Generally speaking, the delivery time will be within 3 to 7 days.
Q4: How about the packaging?
We will use professional craft paper to package on plywood pallet. If you have special packaging requirements, we will pack as your need.
Q5: How about the payment terms?
Payment≤1000 USD, 100% in advance. Payment≥1000 USD, 30% T/T in advance, balance before shipment.
Of course, we can sent you a sample for free. Customers just need to pay a little shipping charge.
Q2: How about the quality of mass production?
Our warehouse staff will leave another same sample as yours. The production process will be under your requirement.
Q3: How about the delivery time?
It depends on order quantity. Generally speaking, the delivery time will be within 3 to 7 days.
Q4: How about the packaging?
We will use professional craft paper to package on plywood pallet. If you have special packaging requirements, we will pack as your need.
Q5: How about the payment terms?
Payment≤1000 USD, 100% in advance. Payment≥1000 USD, 30% T/T in advance, balance before shipment.
