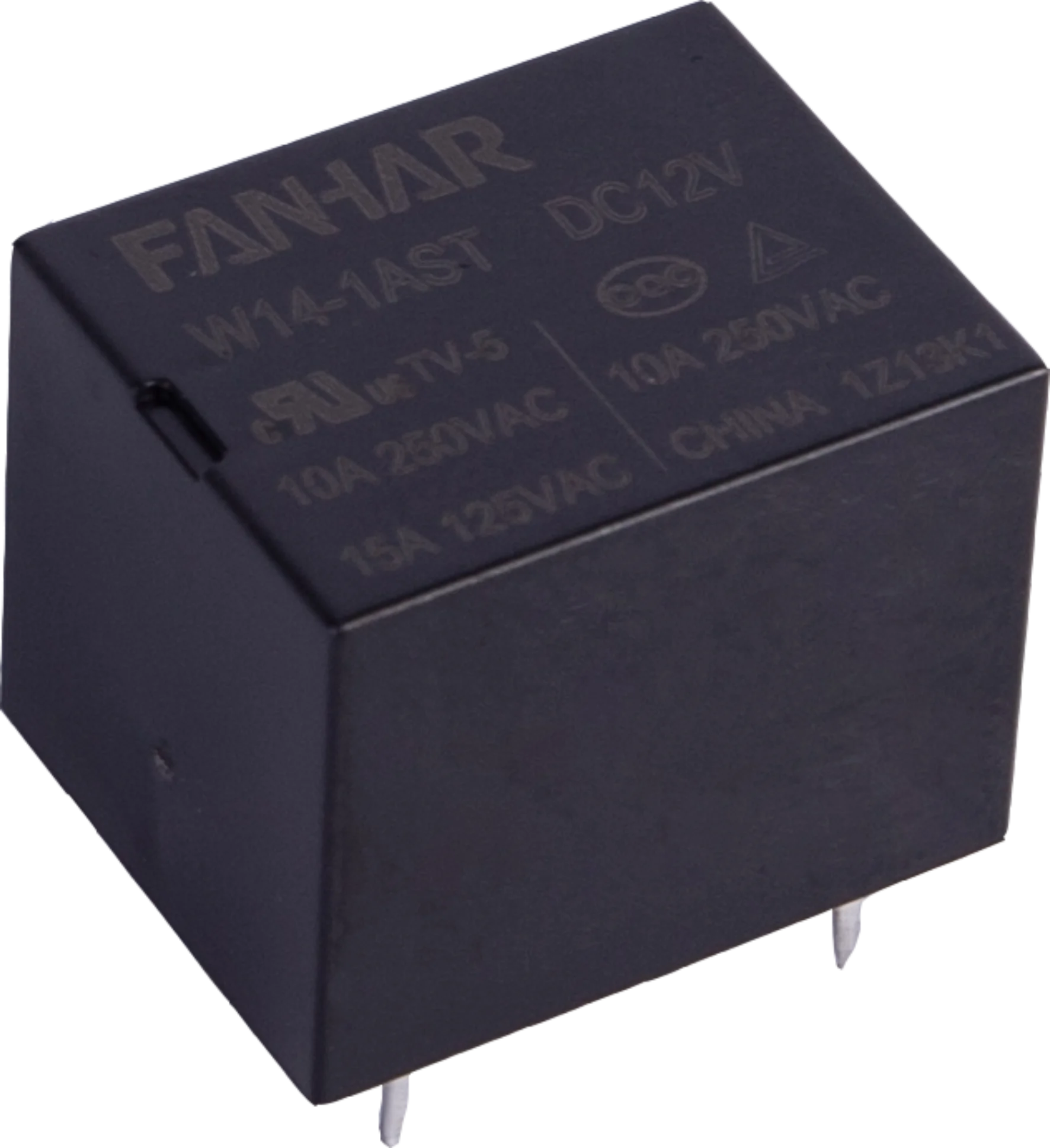

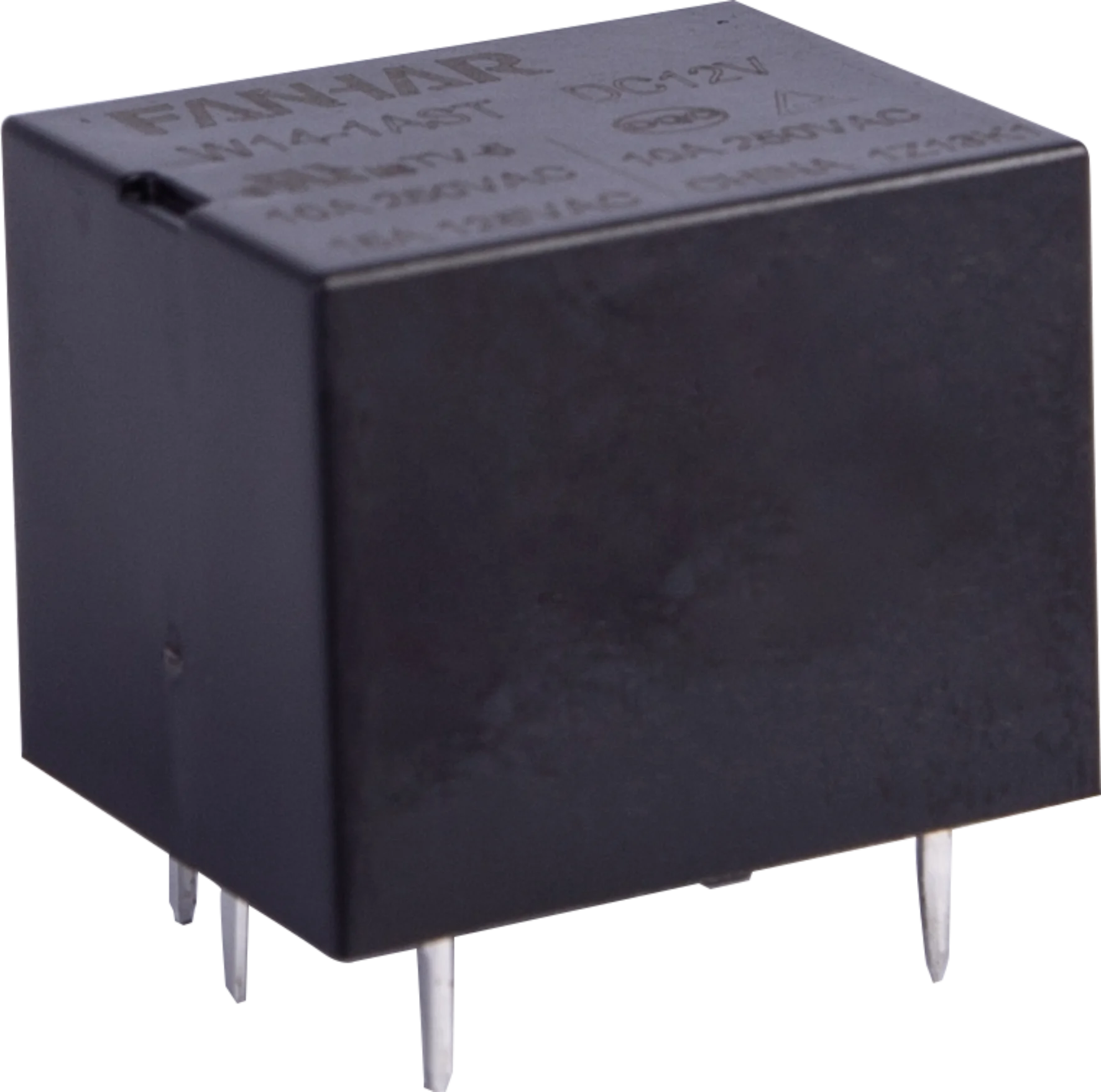

W14 1AST DC12V Power Relay 15A switching capability 1 open contacts

Share on (1600877320748):


Price:$0.50

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Place of Origin
China
Zhejiang
Brand Name
FANHAR
Model Number
W14-1AST-DC12V
Application
Smart home
Type
Power Relay
Output Type
AC DC
Coil Type
N/A
Circuit
N/A
Connector Type
1 open contacts
Voltage - Output
250VAC
Contact Rating (Current)
10A
Voltage - Input
250VAC
Switching Voltage
250VAC
Current - Input
10A
Contact Form
N/A
Voltage - Load
10A 250VAC
On-State Resistance (Max)
400Ω
Current - Output
10A
Termination Style
N/A
Load Current
10A
Relay Type
POWER RELAY
Coil Current
30mA
Coil Voltage
12V
Series
W14
Features
15A switching capability
Mounting Type
PCB
Description
Plastic sealed
Manufacturing Date Code
ACCORDING TO THE PRODUCTION DATE


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile






Zhejiang Fanhar Electronics Co.,Ltd is a National Hi and NewTech enterprise which specialized in research,development,production and sales of Relays.With more than 30 series, hundreds of product specifications, Our relays are widely used in power control,smart home, household appliances,electric vehicles and charging pile,industrial control and emerging new energy fields.
Our company located in Jiaxing,which owns typical south canal towns.It owns obvious traffic advantages,the distance from it to Shanghai\\Hangzhou\\Suzhou and Huzhou is less than 100 kilometers.
Our company has a complete quality assurance system,passes quality management system certification ISO9001,our products through the America UL\\GermanTUV\\China CQC,and meet with ROHS\\REACH requirement.Reliable quality assurance system,meticulous technical service,through sales service network,best price ratio enable"Fanhar Relay"be the best choice of overseas customers.
Technological innovation is the driving force for the survival and development of enterprises.Besides more than 20 national patents,we attach great importance to introduce advanced mold manufacturing \\production facilities.Our high precision and quality mold ensure technology\\quality level of products design\\mold development\\parts manufacturing\\production in the top position of peers.
Our company follows the quality policy"for fine-sorted industry market,we would fast response with best products and services",enterprise spirit"Harmonious innovation,forge ahead in unity",adhere to the operating principle"Honesty and pragmatic,diligent management",hope both side of supply and demand partners to gain win-win situation!


FAQ


1. who are we?
We are based in Zhejiang, China, start from 2014,sell to Domestic Market(55.00%),South Asia(20.00%),Eastern Europe(20.00%),South America(4.00%),Eastern Asia(1.00%),North America(0.00%),Oceania(0.00%),Western Europe(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Africa(0.00%),Mid East(0.00%),Southeast Asia(0.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

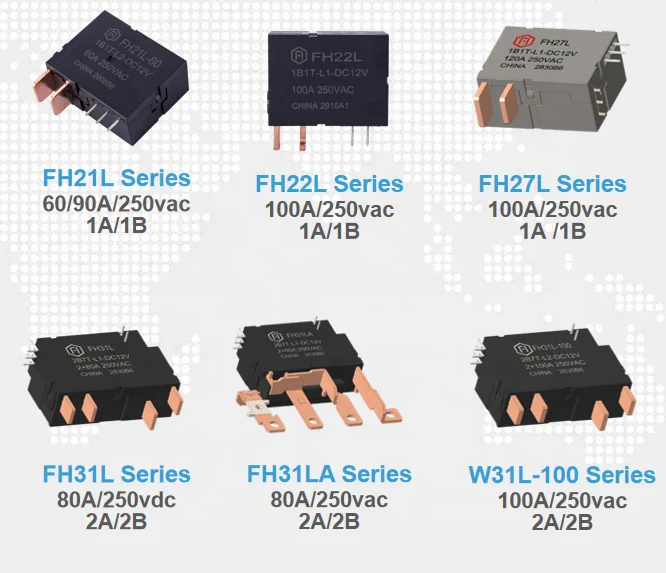

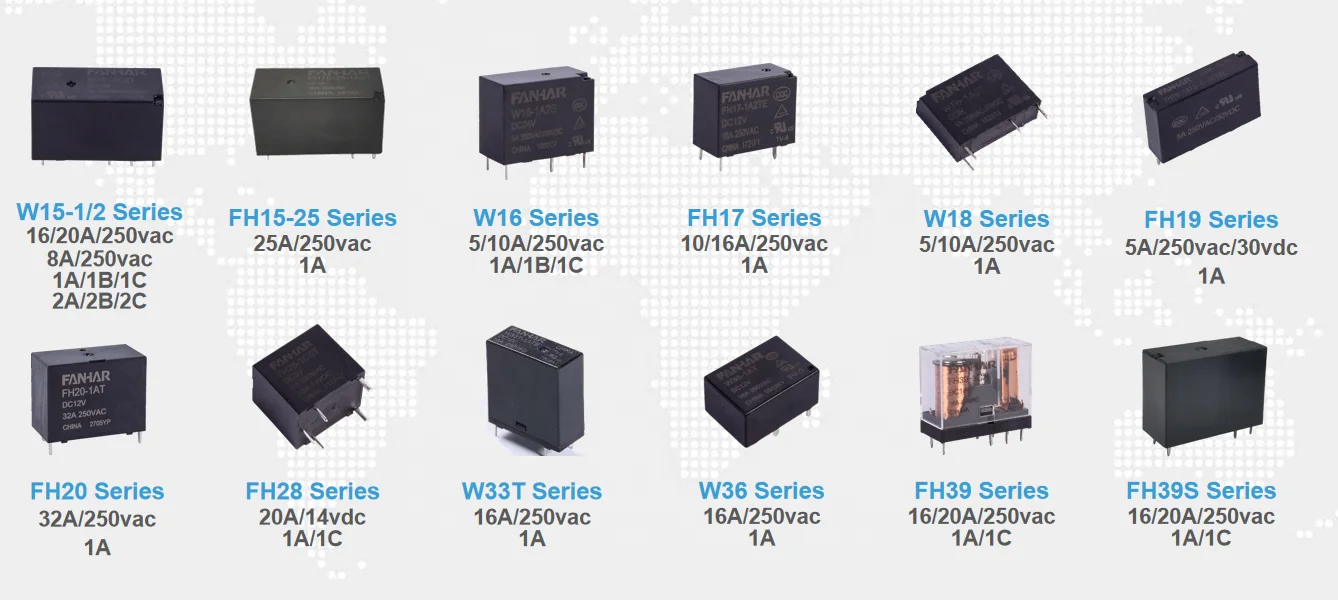

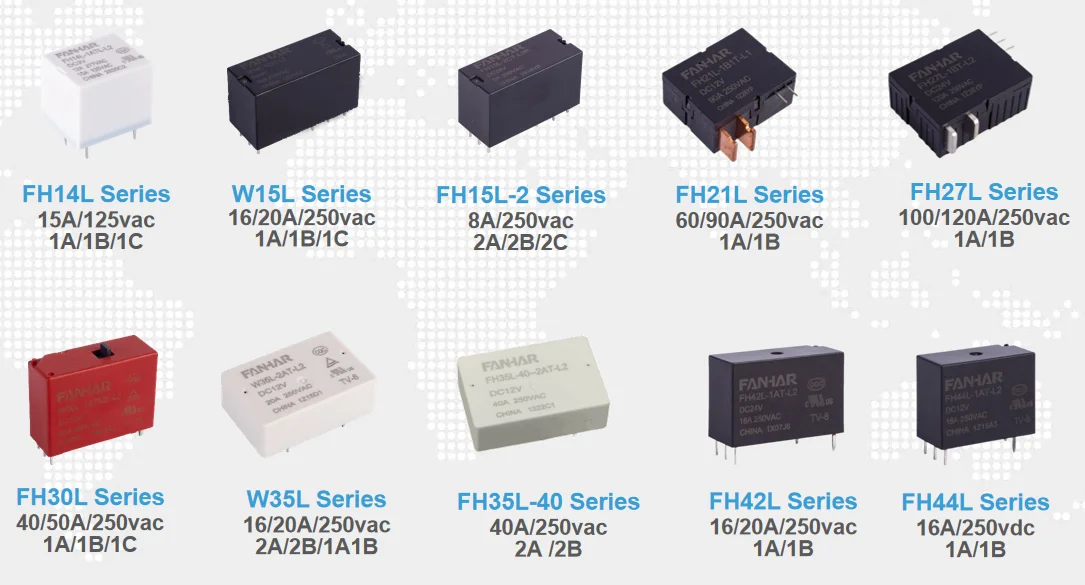

Relay

4. why should you buy from us not from other suppliers?
Our relays have more than 30series,hundreds of product specifications;Our company owns a complete quality assurance system,passes quality management system certification ISO9001,our products through the UL\\TUV\\CQC and meet with ROHS\\REACH requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
