23532554 Cylinder Kit for Detroit Diesel Series 60 12.7L 23530727 23530668 23531502 23531251
- Category: >>>
- Supplier: Shijiazhuang Jialiya Trading Co. Ltd.
Share on (1600877340949):
Product Overview
Description

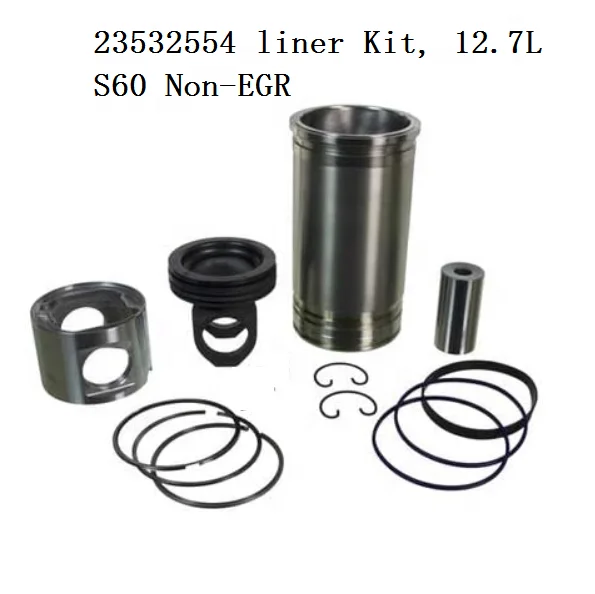

Detroit Diesel 12.7L Series 60 Engine Inframe-Overhaul Rebuild Kit, Cylinder Kit 23532554
Fits Detroit Diesel 12.7L Series 60 Engines Produced 1999-2003
Steel crown articulated 16.5:1,
3mm top ring,
heavy pin 22mm (0.866") ID
Cylinder Kit that contains the Articulated Piston Kit used with Closed End Rod 16.5 Compression Ratio Detroit Diesel Series 50, 60 application

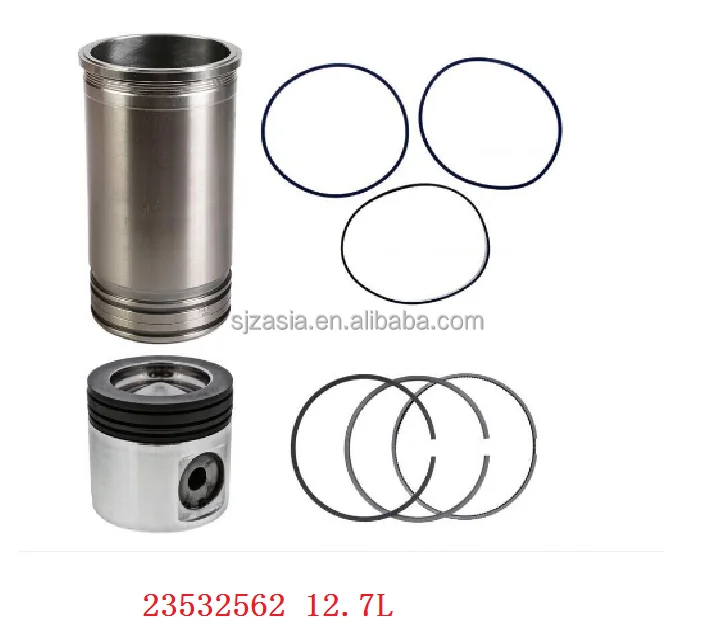

This cylinder kit replaces cylinder kit 23532562 which originally had a 2.5mm top ring, instead of the new 3mm.

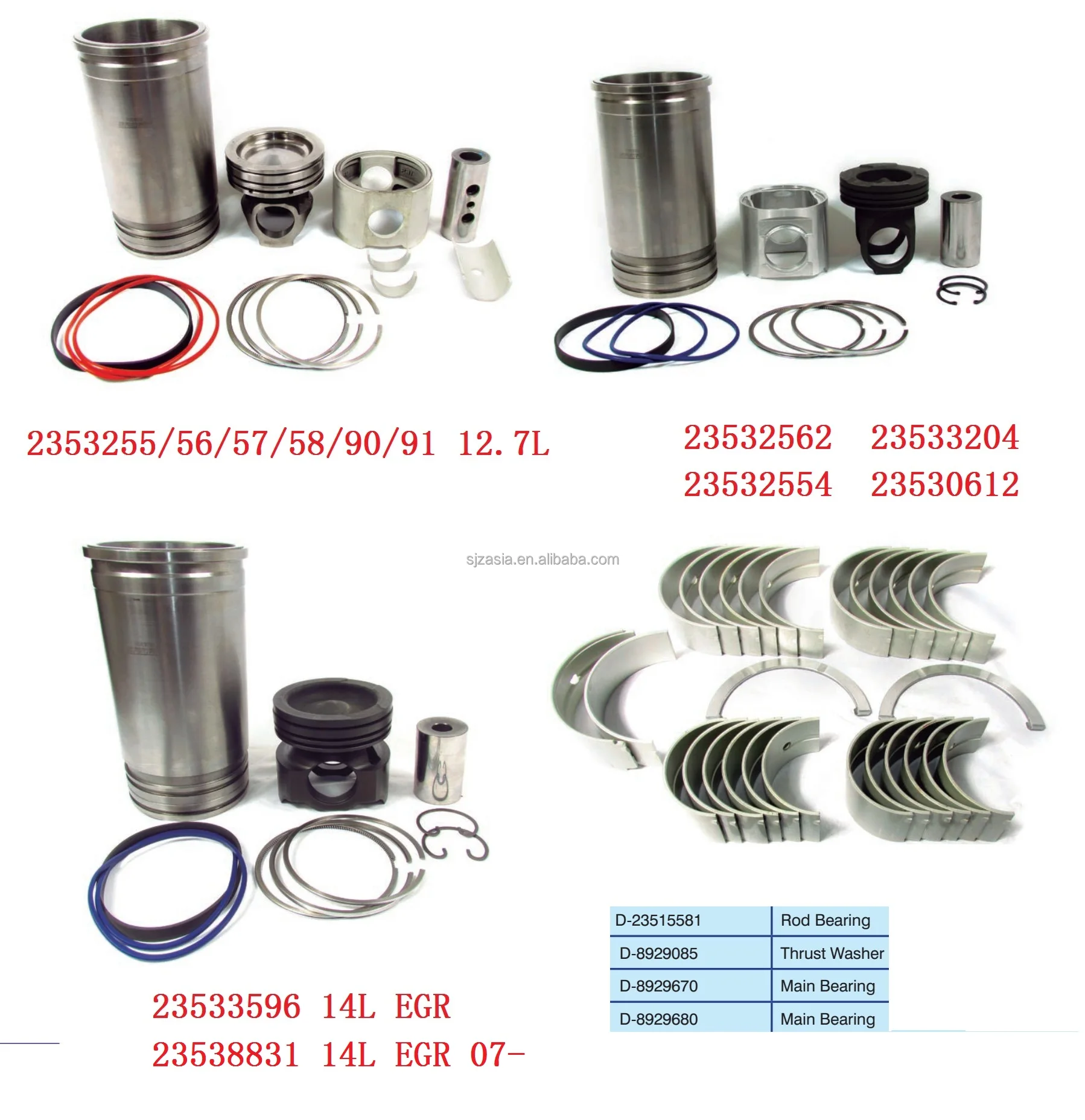

Cylinder Kit includes the following components:
23531502 Cylinder Liner Kit
23531249 Cylinder Liner with O-Rings

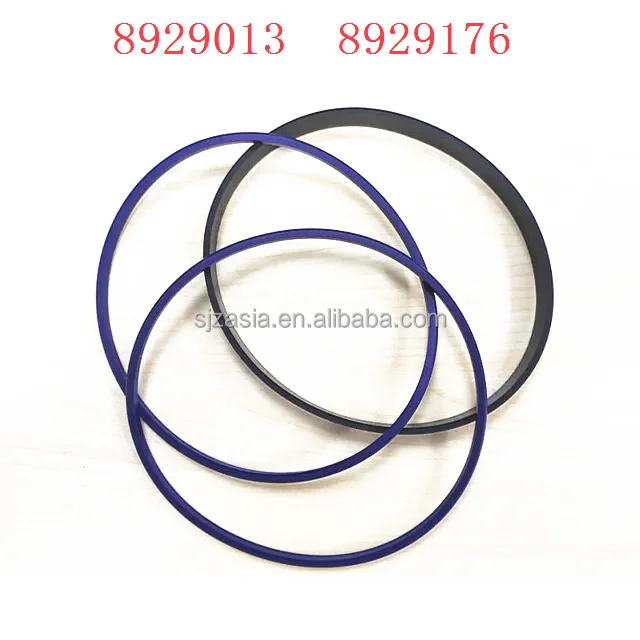

8929013 cylinde liner seal
8929176 cylinder liner seal

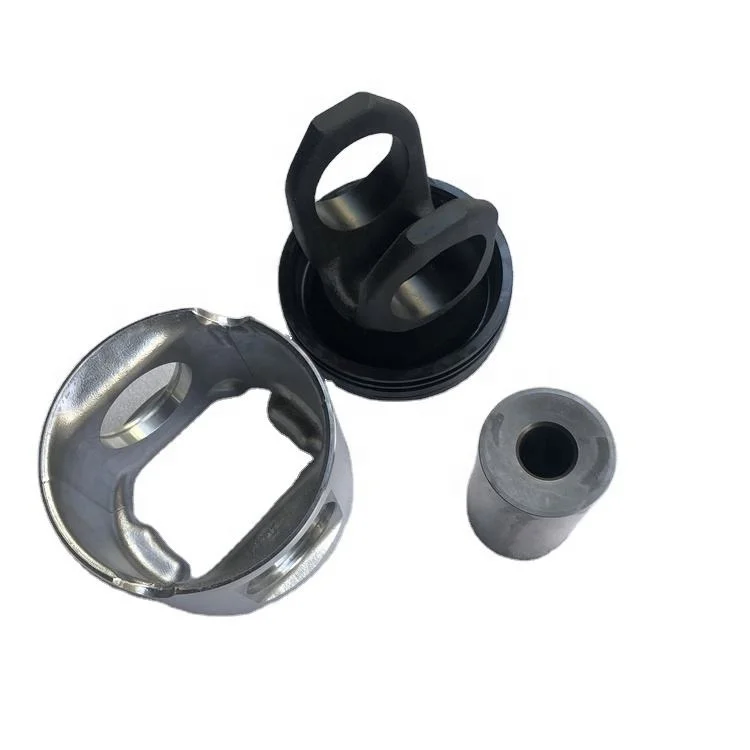

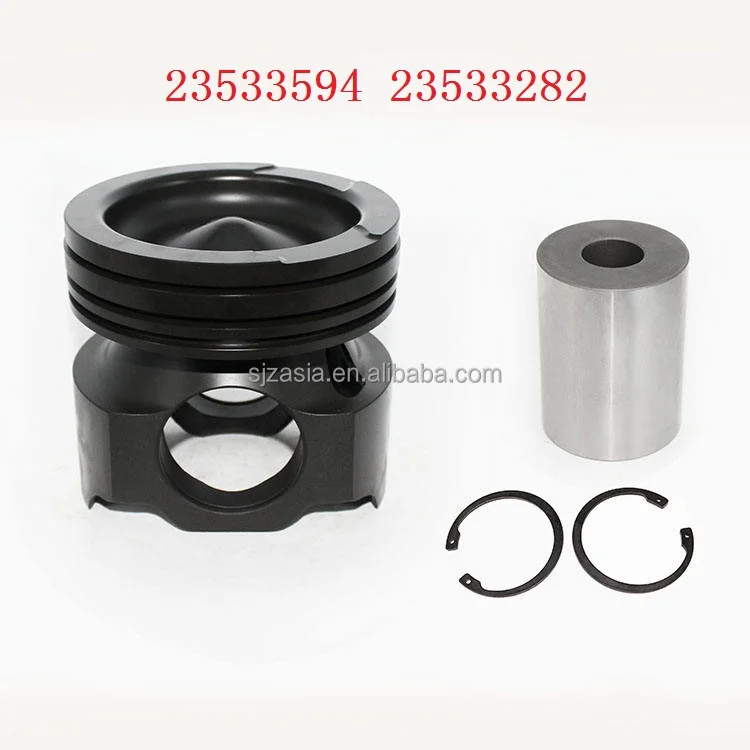

23530668 Piston Kit
23530602 Piston Assembly
23530601 Piston Crown (early)
23532552 piston crown(early)
23530727 piston crown(late)
23521802 piston Skirt
23521781 Wrist Pin Retaining Clips
OEM Cross References: 23524596, 23529171, 23530669, 23532554, 23532562, E23530669, R23532554, R23532562
23525168 piston Wrist Pin
23521781 Wrist Pin Retaining Clips

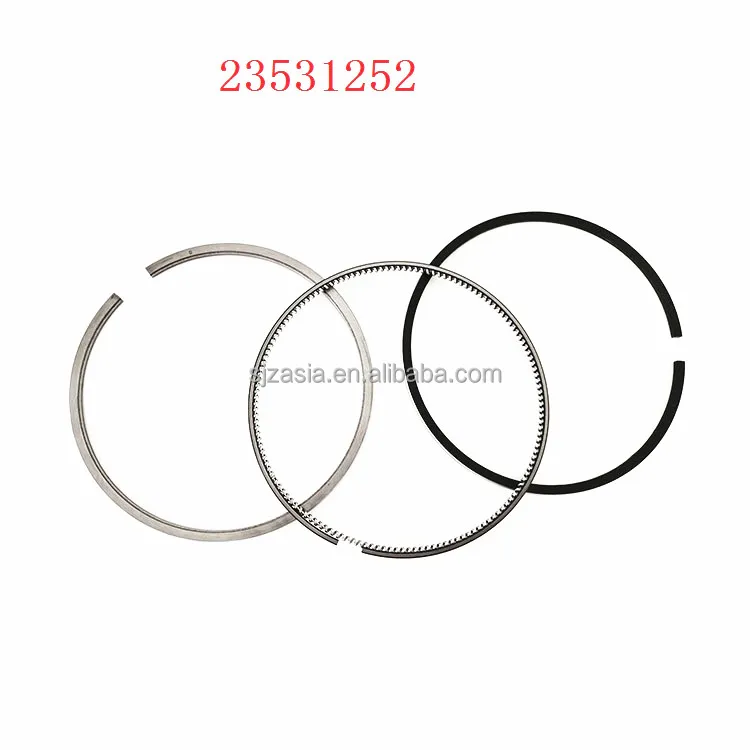

23503747 Piston Ring Set(early)
23531251 piston ring( late)
(6) Connecting Rod Bearing Pair (Part Number 23526142, 23526141)
(1) Main Bearing Set
(6) Main Bearing Shell Set (Part Number 8929670)
(1) Thrust Washer Shell Set (Part Number 8929680)
(2) Thrust Washer (Part Number 8929085)

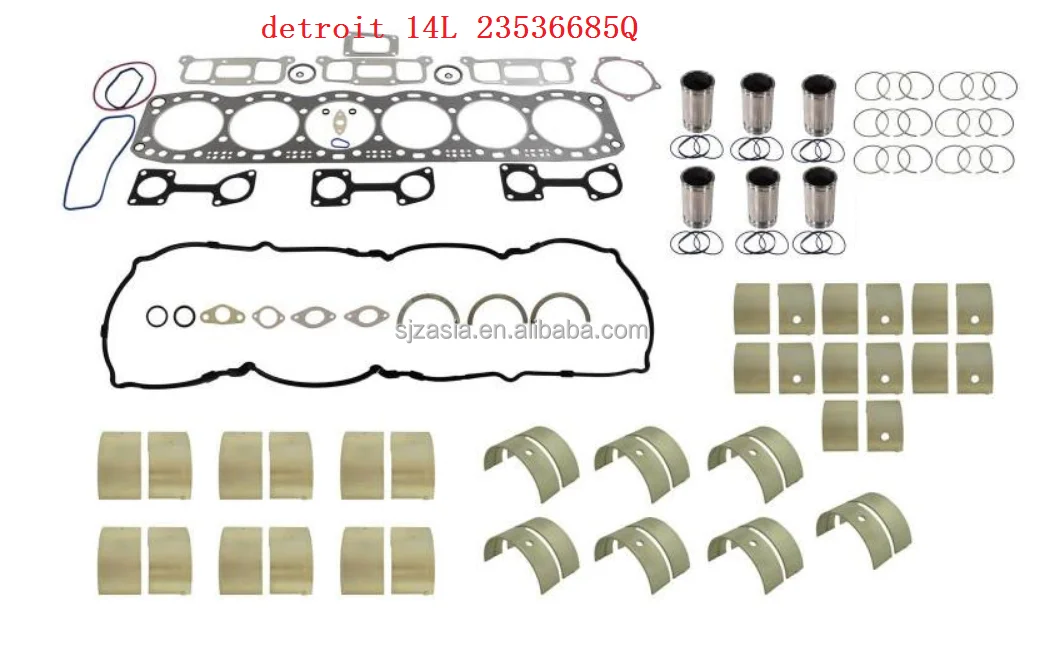

(1) Upper Gasket Set 23536442, 23532333
(1) Complete Lower Gasket Set 23532720
(1) Oil Pan Gasket 23522279 23526411
OEM Cross References: 23524596, 23529171, 23530669, 23532554, 23532562, E23530669, R23532554, R23532562
