Wd200 Weighing Sensor Ampflier Load Cell Transmitter RS485 Weight Transmitter
- Category: >>>
- Supplier: Lascaux Microelectronic Device (tianjin) Co. Ltd.
Share on (1600877342111):
Product Overview
Description
Product Description

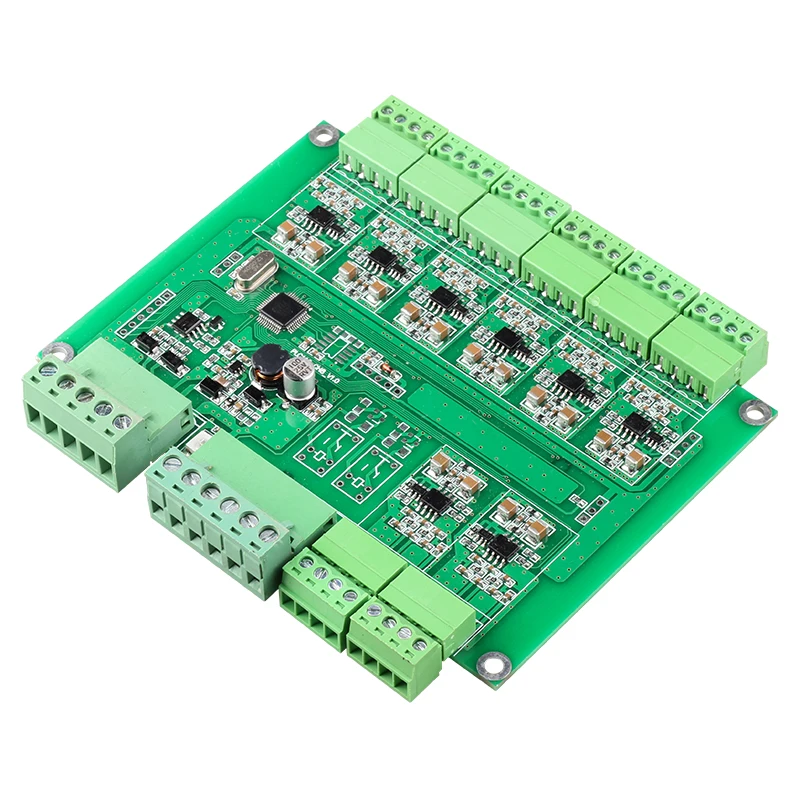

WD200-8 load cell amplifier
Features:
1. Small size, easy to operate
2. Be suitable for all resistance strain sensors
3. Can be connected to 1~8 sensors

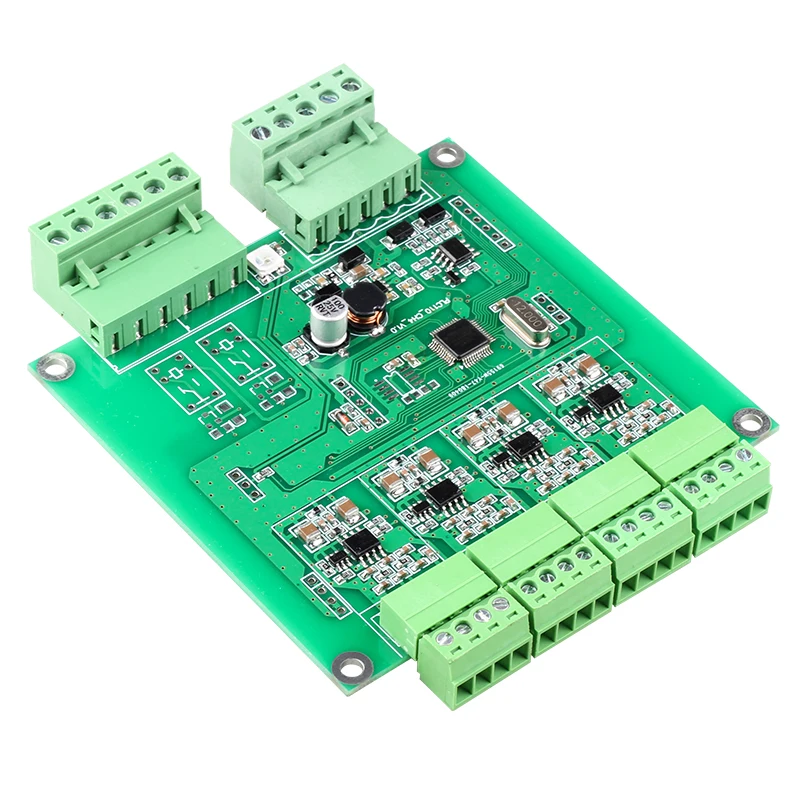

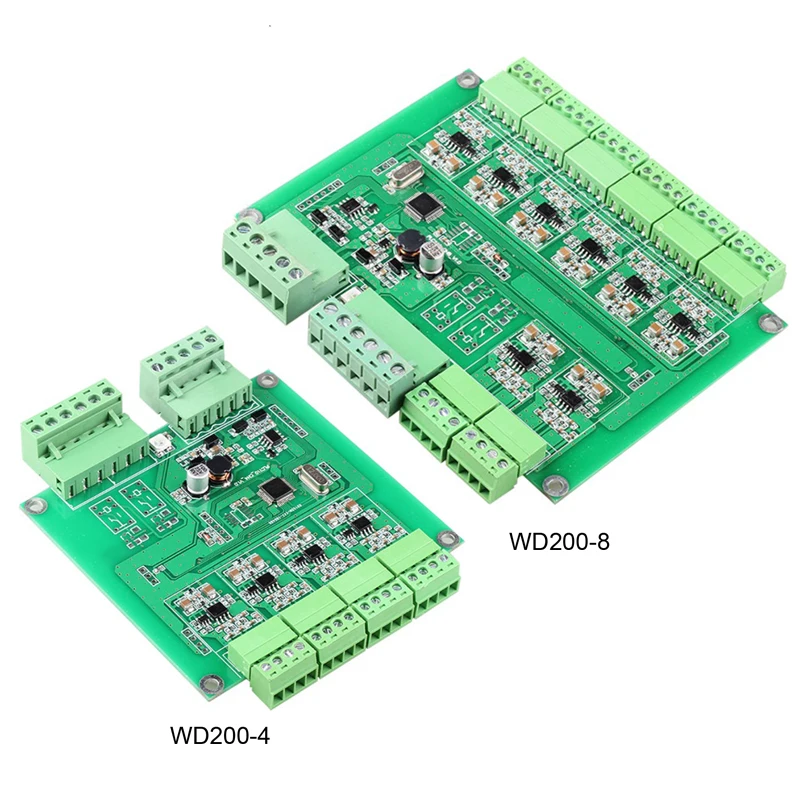

4. WD200-4 can be connected to four sensors at most
5. WD200-8 can be connected to eight sensors at most
6. RS485 or RS232 communication port
Specifications： | ||
Power Supply | DC12-24V | |
Working temperature | -10℃-40℃ | |
Humidity | 90%RH(No condensation) | |
Load cell excitation | DC 5v | |
Consumption power | MAX 10W | |
Communication protocol | Modbus RTU and self-defined protocol | |
Communication port | RS485 or RS232 | |

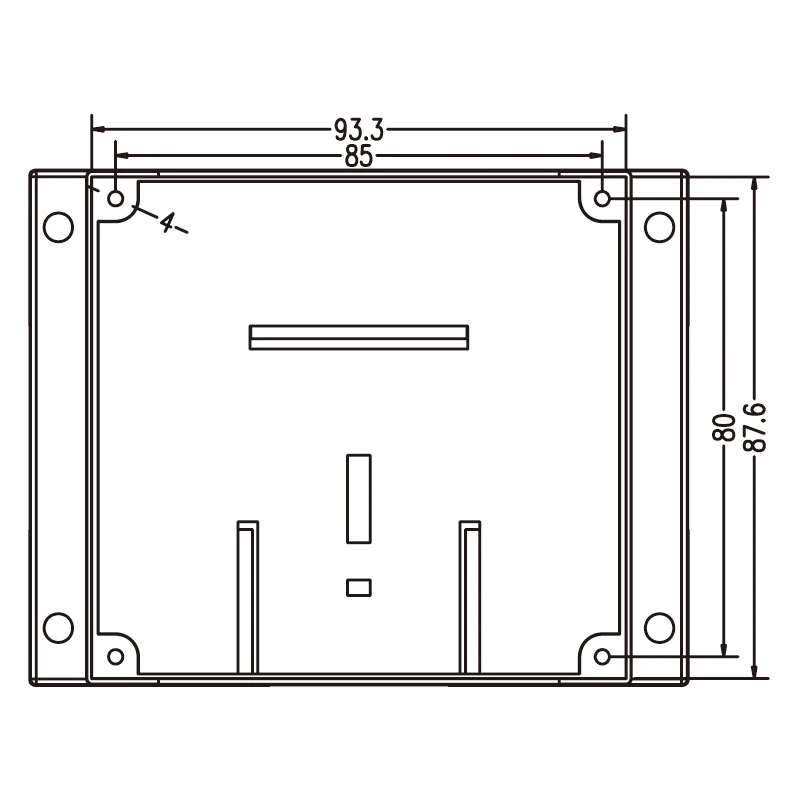

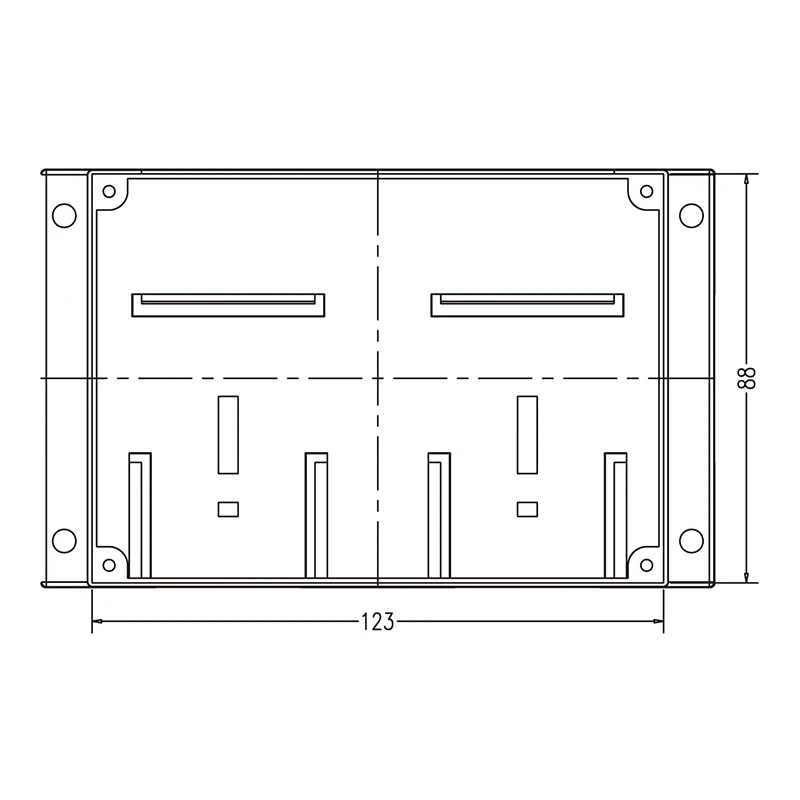

Physical dimension(mm) | 92*87（WD200-4） 122*87(WD200-8) | |
