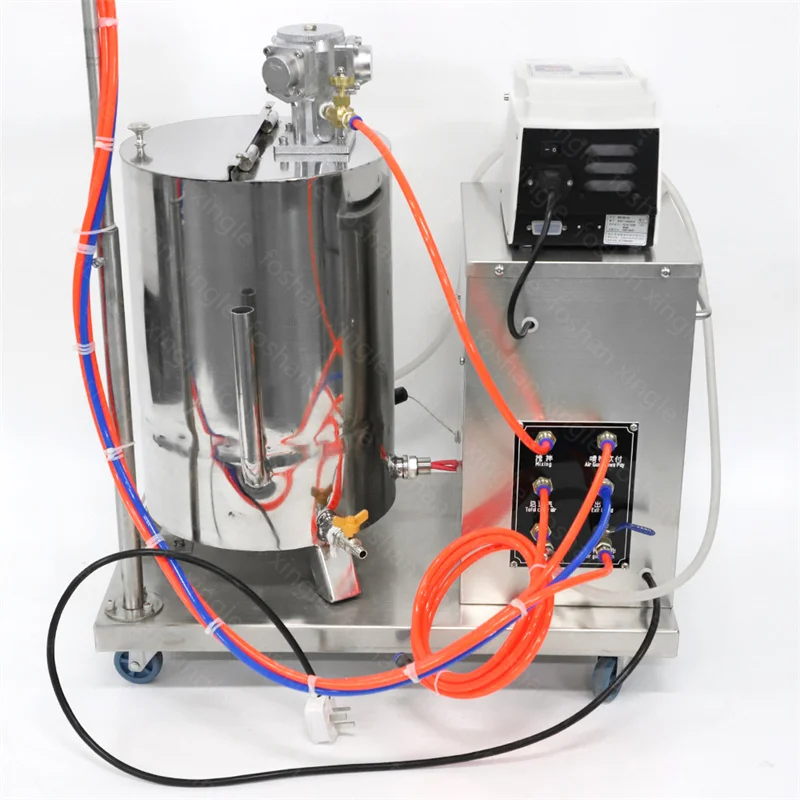

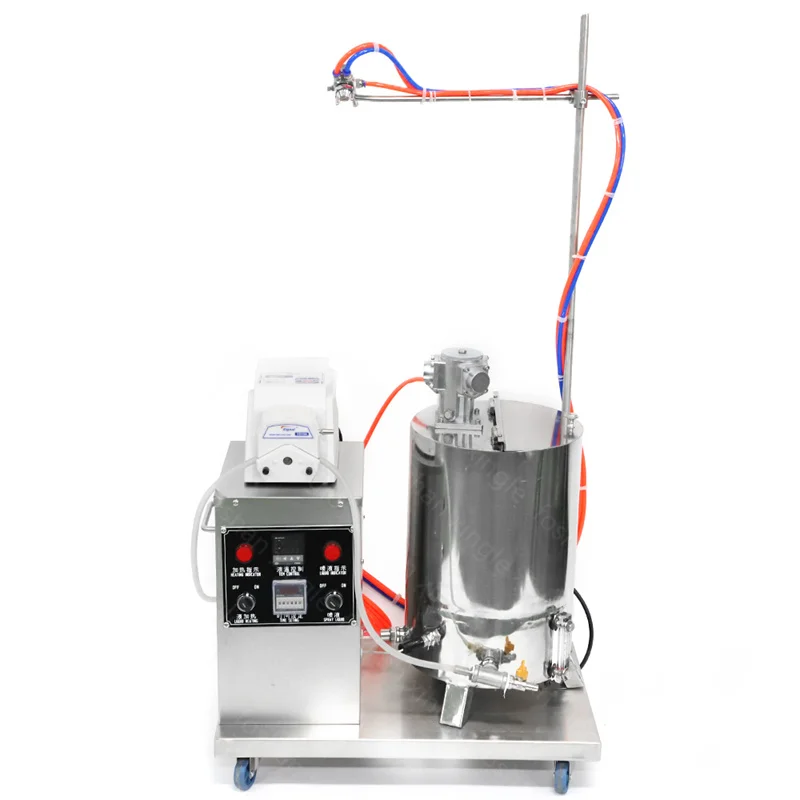

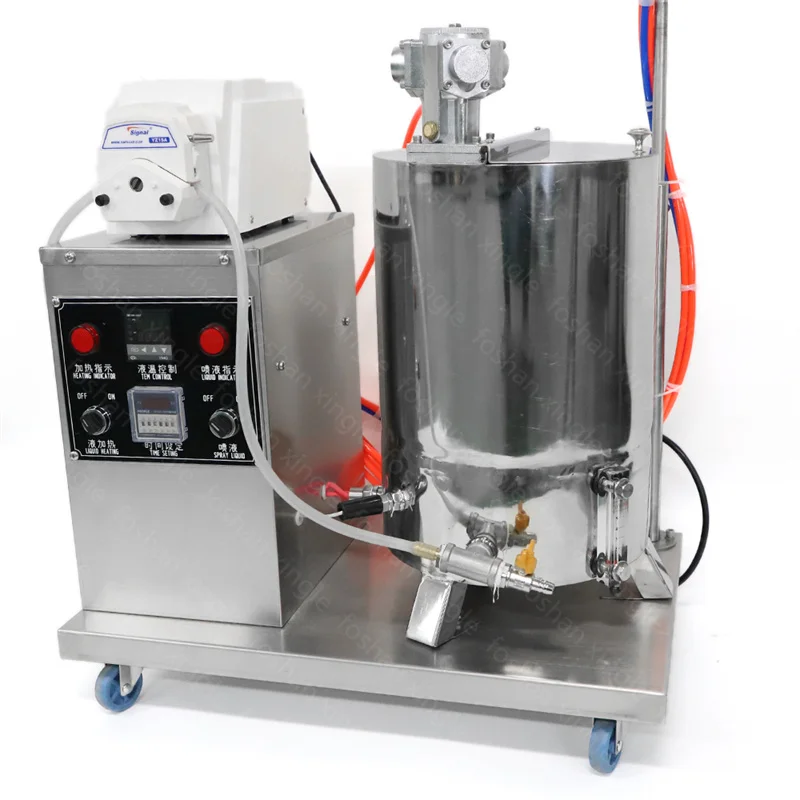

Automatic liquid peristaltic pump spraying system chocolate peanuts sugar coat making syrup spraying machine
- Category: >>>
- Supplier: Foshan Xingle Machinery Equipment Co. Ltd.
Share on (1600877348269):
Product Overview
Description
Products Description
XLY-12/30/50 liquid syrup spray machine for Food Industries
Introduction:
This machine is an auxiliary machine in the coating unit that provides high-atomized coating liquid for the coating machine,and can automatically and evenly spray the coating film on the surface of candy, and granules. However, it is not suitable for spraying solutions with high concentration and viscosity. The machine is easy to operate, convenient and practical.
Working Principle:
Working Principle:

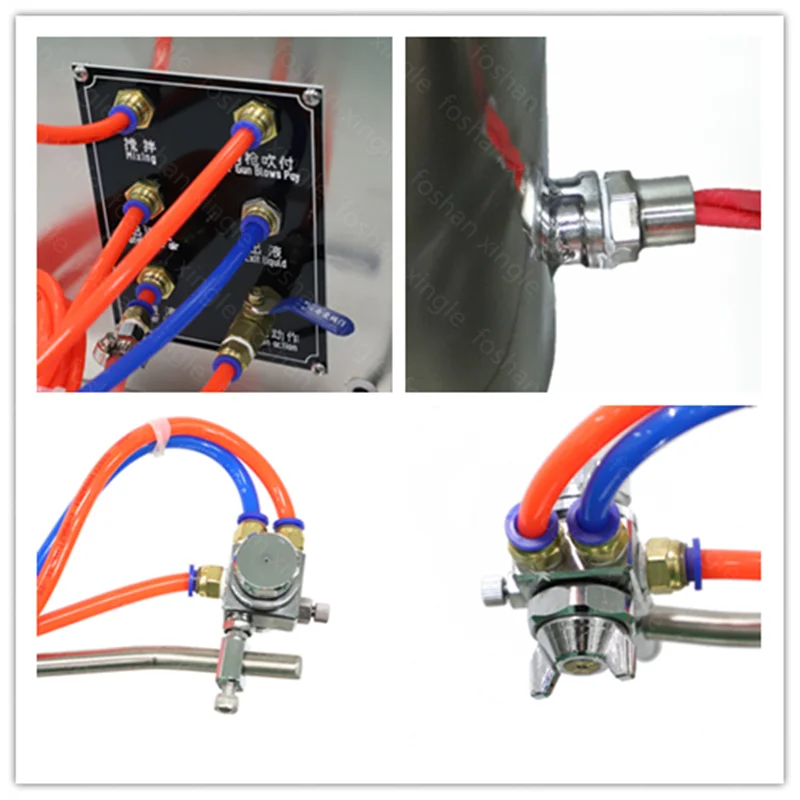

The machine is equipped with adjustable-speed pneumatic stirring, adjustable and controllable liquid temperature, and
adjustable flow. Pneumatic stirring uses a needle valve to adjust the air flow to achieveAdjust the stirring speed. The
conveying pump adopts a constant flow pump, and the conveying pipe is a sanitary silicone pipe, which meets the GMP standard.The spraying liquid adopts the imported atomizing nozzle, and the spraying width can be adjusted evenly, so that the tablets are evenly coated, which is more ideal than the original coating machine. The lower part of the whole machine is equipped with casters, which is easy to move.
adjustable flow. Pneumatic stirring uses a needle valve to adjust the air flow to achieveAdjust the stirring speed. The
conveying pump adopts a constant flow pump, and the conveying pipe is a sanitary silicone pipe, which meets the GMP standard.The spraying liquid adopts the imported atomizing nozzle, and the spraying width can be adjusted evenly, so that the tablets are evenly coated, which is more ideal than the original coating machine. The lower part of the whole machine is equipped with casters, which is easy to move.
Main Parameter：
Model | XLY-12 |
Liquid tank volume (L) | 12 |
Insulation water volume (L) | 6 |
Peristaltic pump power (W) | 60 |
Heating power (KW) | 1 |
Amount of excipients (L/min) | 0.2 |
Compressed air consumption (L/min self-contained) | 270 |
Compressed air pressure (Mpa self-contained) | 0.3-0.8 |
Size（LxWxH）mm | 650*370*1200（customizable） |
Weight（kg） | 24 |
Model | XLY-12 | XLY-34 | XLY-50 | XLY-75 |
Liquid tank volume (L) | 12 | 34 | 50 | 75 |
Insulation water volume (L) | 6 | 9 | 10 | 25 |
Peristaltic pump power (W) | 60 | 60 | 60 | 60 |
Heating power (KW) | 1 | 1.4 | 1.4 | 1.5 |
Amount of excipients (L/min) | 0.2 | 0.2 | 0.2 | 0.2 |
Compressed air consumption (L/min self-contained) | 270 | 270 | 270 | 270 |
Compressed air pressure (Mpa self-contained) | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 |
Size（LxWxH）mm | 650*370*1200（customizable） | 645*450*1250（customizable） | 735*495*1500（customizable） | 760*600*1500（customizable） |
Weight（kg） | 24 | 35 | 41 | 58 |

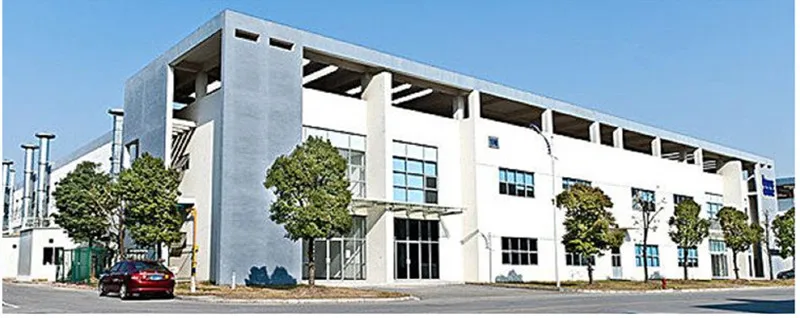

Foshan Xingle Machinery Equipment Co., Ltd. is a professional manufacturer and supplier of machinery and enjoys a good reputation in local and global markets. We are specialized imachines including pulverizes, mixer, Granulator, coating machine, counting machine, blister packaging machine, cartoning machine, labeling machine,ampoule filling and sealing machine, oral liquid filling production line, ampoule printing machine, suppository machine, we can undertake concept design, process design turnkey project and so on.\\nHigh-quality machinery, competitive prices and sincere customer service are highly appreciated by customers. Our machines have been exported to many countries in the world, North America, Europe, Australia, South America, Southeast Asia and Africa. In order to provide the best quality, the products we manufacture comply with GMP, cGMP and other international standards.
Q: Why choose us?
A: We have been supplying machines including blender,counting machine,blister packing machine etc for over 14 years. What we offer is a good product at a reasonably price.
Q: Can I customize the product?
A: Abosolutely. We can customize machine according to your need. Also we can the package the products according to your request.
Q:What's the delivery time?
A:if machine we have in stock we ship in 7 days ,if not have in stock producing time it is around 15- 45days depends on different machine.
Q: Can I customize the product?
A: Abosolutely. We can customize machine according to your need. Also we can the package the products according to your request.
Q:What's the delivery time?
A:if machine we have in stock we ship in 7 days ,if not have in stock producing time it is around 15- 45days depends on different machine.
