640 x 512 thermal & optical bi spectrum forest fire detection PTZ camera 6 19km 86x optical zoom long range thermal ptz camera
- Category: >>>
- Supplier: Shenzhen VeeZoom Technology Corporation
Share on (1600877348528):
Product Overview
Description
640 x 512 thermal & optical bi-spectrum forest fire detection PTZ camera 6-19km 86x optical zoom long range thermal ptz camera
Outstanding Features：
> Powered by deep learning technology
> Uncooled VOx Micro bolometer with 640×512 resolution
> Support thermal + optical Bi-spectrum PTZ camera
> 30~150mm thermal motorized lens optional
> Uncooled VOx Micro bolometer with 640×512 resolution
> Support thermal + optical Bi-spectrum PTZ camera
> 30~150mm thermal motorized lens optional
> 10 ~ 860mm Visible fixed lens, 86x optical zoom
> Temperature measurement range: -20°C ~ 550°C (-4°F ~ 1022°F)
> High Sensitivity ≤40mK
> Support Human & Vehicle detection
> Support Human & Vehicle detection

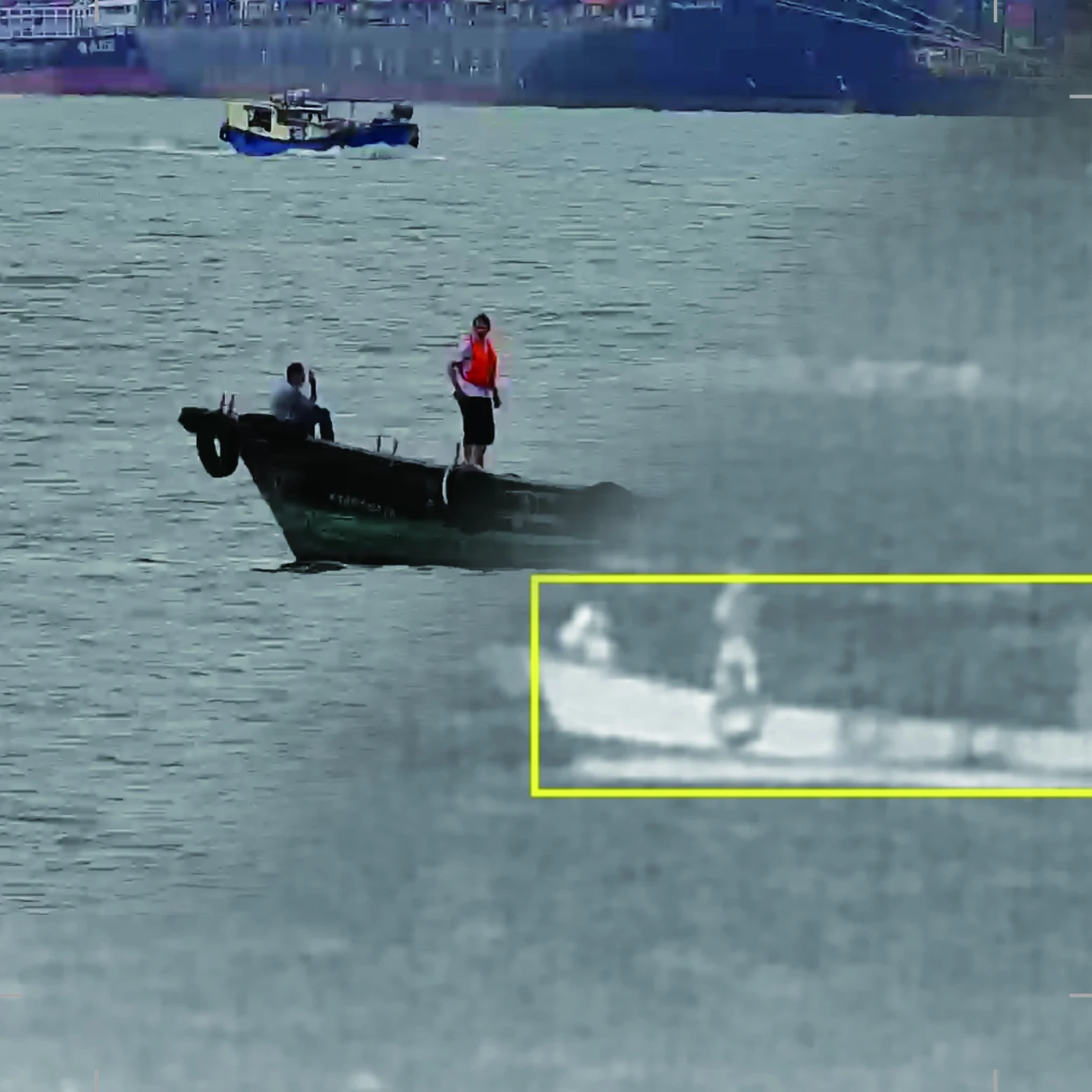

> Support Fire point detection, Ship detection

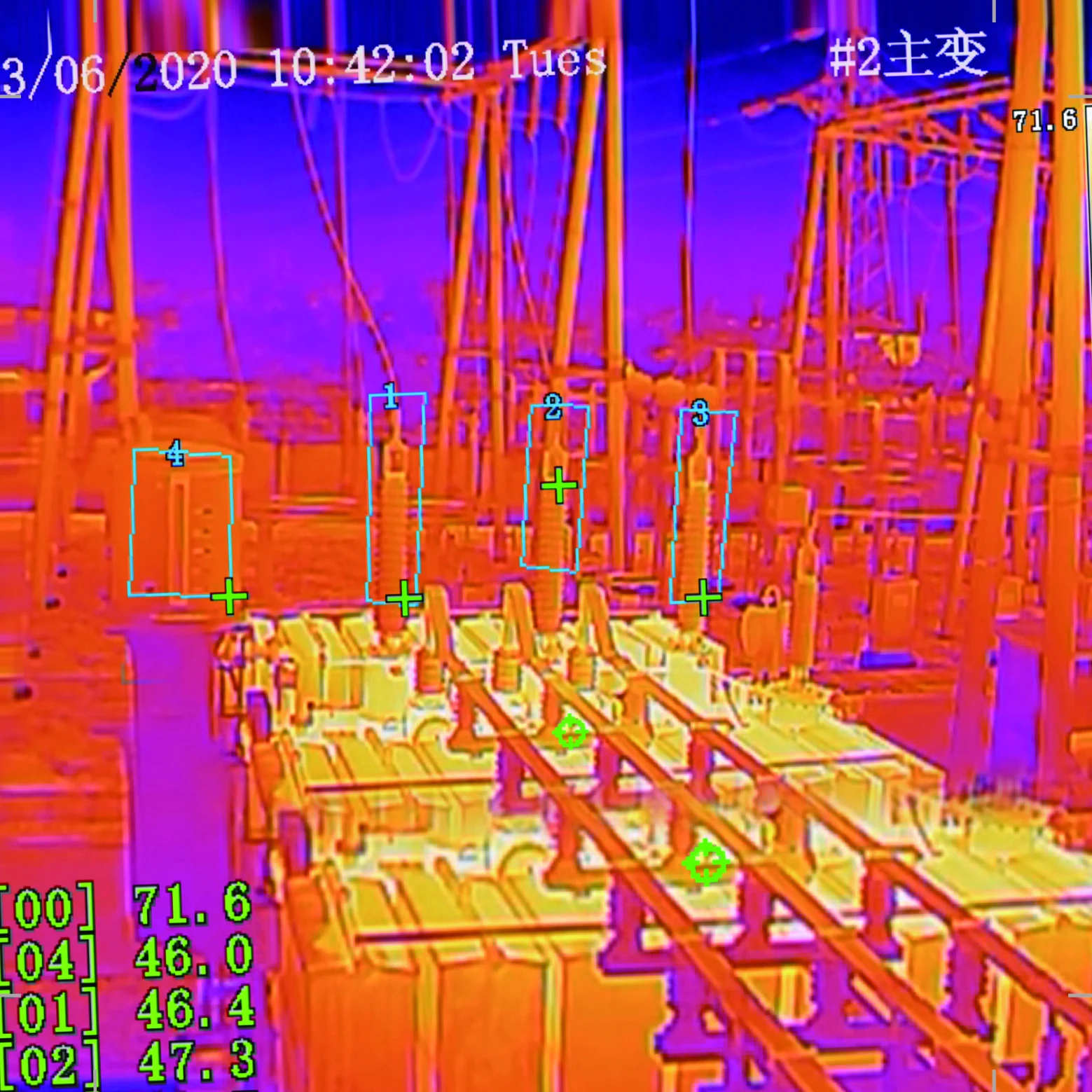

> Support 3 temperature measurement rule types (Spot, Line, Area)
> Support ONVIF, CGI, SDK Interoperability
> Support 3 temperature measurement rule types (Spot, Line, Area)
> Support ONVIF, CGI, SDK Interoperability
> Pan/Tilt Range: Pan: 0° ~ 360° endless, Tilt: +45° ~ -45°
Product Description
Specification
Thermal Module | ||
Image Sensor | Uncooled VOx Focal Plane Arrays | |
Resolution | Sensor is 640×512. Image can be scaled up to 1280×1024 | |
Pixel Pitch | 12µm | |
NETD | ≤ 40 mK | |
Spectral Range | 8 ~ 14 um | |
Image Setting | Brightness, Sharpness, Contrast, Mirror, FFC control, 2D/3D DNR | |
Pseudo-color Setting | White-hot/Black-hot/Rainbow/Ironbow etc. up to 17 modes | |
Thermal Lens | ||
Focus Control | Motorized Focus | |
Focal Length | 30 ~ 150mm | |
Aperture | F1.2 | |
Angle of View | H: 14.5°~ 2.9°, V: 11.6°~ 2.3° | |
Optical Module | ||
Image Sensor | 1/1.8" CMOS | |
Max. Resolution | 2560 (H)×1440 (V), 4MP | |
Shutter Speed | 1/5 ~ 1/20,000s | |
Min. Illumination | Color: 0.0005 Lux @ (F2.1, AGC ON), B/W: 0.0001 Lux | |
WDR | True WDR | |
Focal Length | 10 ~ 860mm, 86x optical zoom | |
Aperture | F2.1 | |
Angle of View | H: 38.4° ~ 0.48° | |
Digital Zoom | 16x | |
Focus Control | Auto/Manual | |
PTZ | ||
Pan/Tilt Range | Pan: 0° ~ 360° endless, Tilt: +45° ~ -45° | |
Pan/Tilt Speed | Pan: 0.01° ~ 30°/s, Tilt: 0.01° ~ 15°/s | |
Wiper | Support | |
Preset Accuracy | ± 0.1° | |
Presets | 400 | |
Scan | 8 scans, up to 32 presets per scan | |
Patrol | 12 patrols, up to 32 presets per scan | |
Track | 6 tracks | |
3D Positioning | Support | |
Speed Setup | Auto/Manual (0-8) | |
Smart Function | ||
Smart Alarm | Motion detection, Disk alarm, I/O alarm, IVS alarm, Temperature detection & alarm | |
Smart Detection | Support human/vehicle detection and fire point detection, (ship detection optional) | |
Intelligent Analysis | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, Enter area, Leave area (these 7 function support accurate detection of people/vehicles), People counting | |
Temperature Detection | ||
Temperature Detection | 3 temperature measurement rule types (point, line, area) | |
Temperature Alarm | Over temperature alarm, Temperature difference alarm | |
Accuracy | ±2℃ / ±2% | |
Response Time | ≤ 30ms | |
Temperature Range | -20℃ to 550℃ (-4°F to 1022°F) Customizable | |
Power Supply | DC48V | |
Power Consumption | Max 150 W | |
Working Temperature | -40°C~60°C (-40°F~140°F) | |
Storage Conditions | 0 ~ 90% RH | |
Certifications | CE /FCC | |
Ingress Protection | IP66 | |
Casing | Metal | |
Company Profile
Packaging & Shipping
FAQ
Q: How long is the warranty ?
A: All goods have been checked before dispatch. Warranty for 1 years, have lifetime technical service.
Q: Could you support OEM&ODM ?
A:Of course you can. Color, logo, function, packaging or other. Welcome to do OEM.
Q: How long is the delivery time ?
A: Normally the package will be sent within 3-7 working days after your payment is verified by Alibaba.
Q: After-sales services ?
A: All goods will be inspected and tested before shipment.Customer's satisfactory is most important to us. If you have any problem or questions regarding our transaction.Please contact us by Trade manager or Skype and so on. It will be responded within 24 hours.
If you any further problem, welcome to contact us.Thanks for your interest.
