Mini Lifting Crane Trucks Small 3.2Ton 5Ton 6.3Ton Mounted Knuckle fold crane arm Hydraulic Crane For Truck
- Category: >>>
- Supplier: Shandong E-Touch Shipping Engineering Co. Ltd.
Share on (1600877352945):
Product Overview
Description

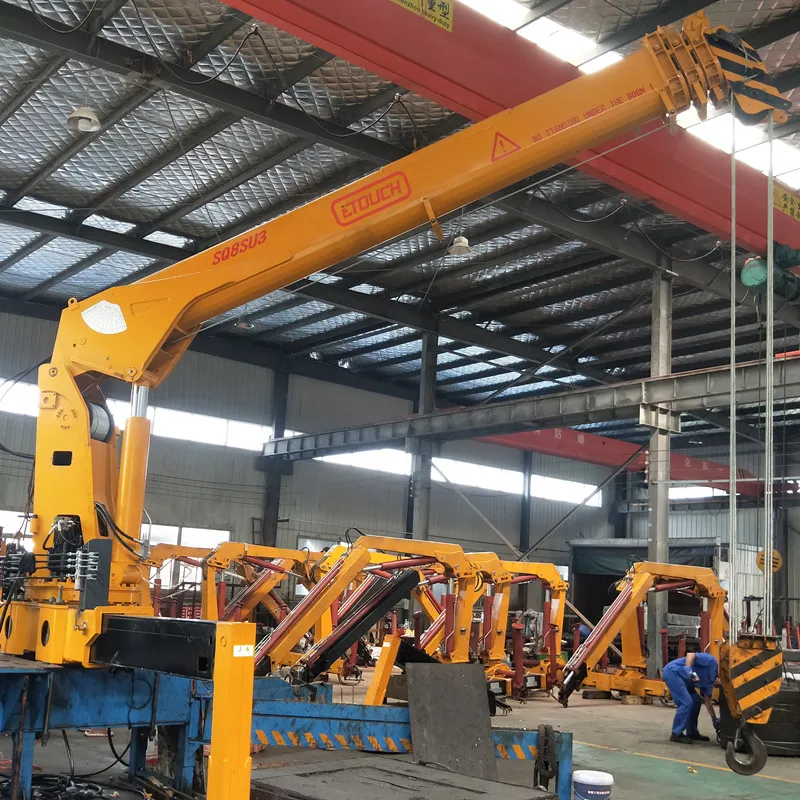

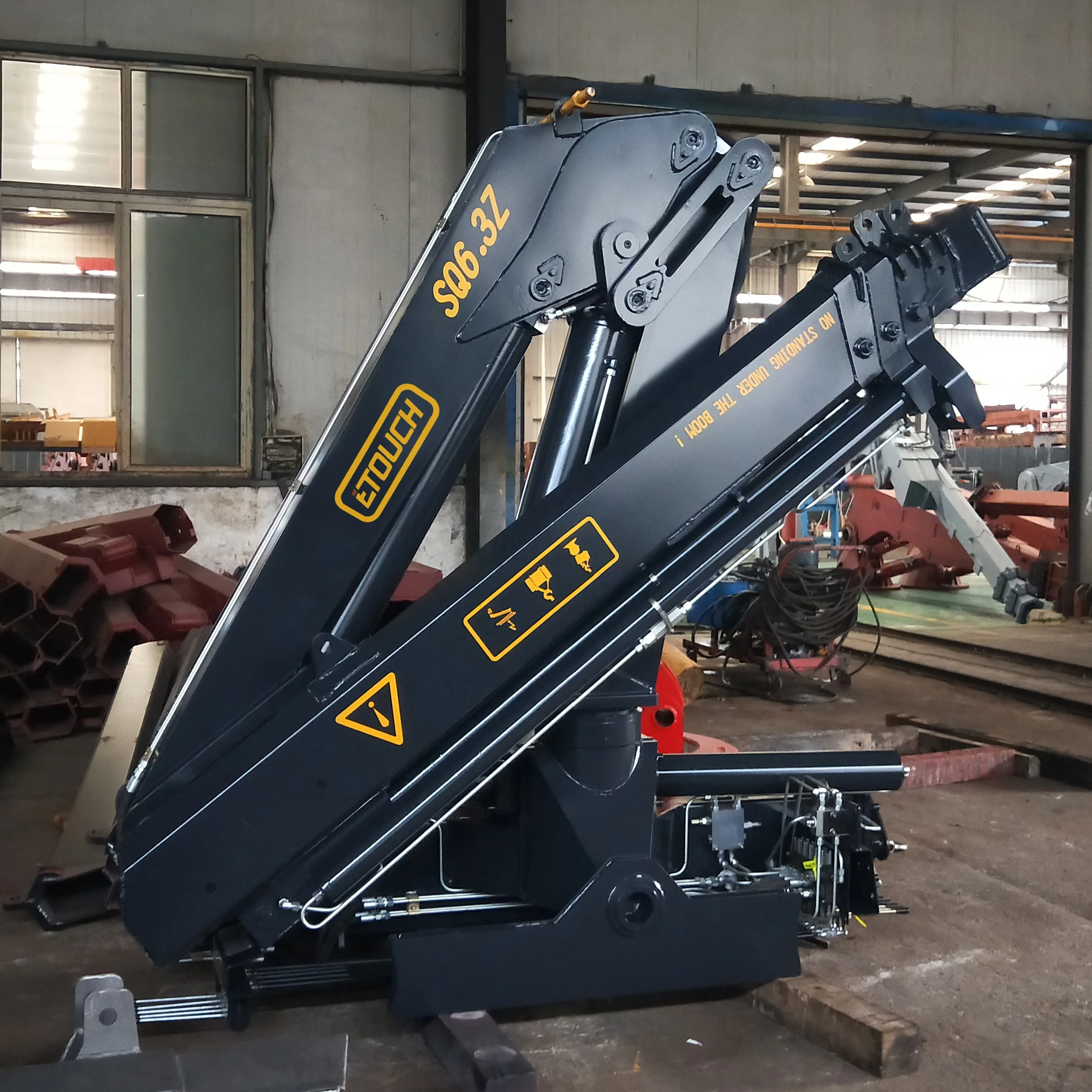

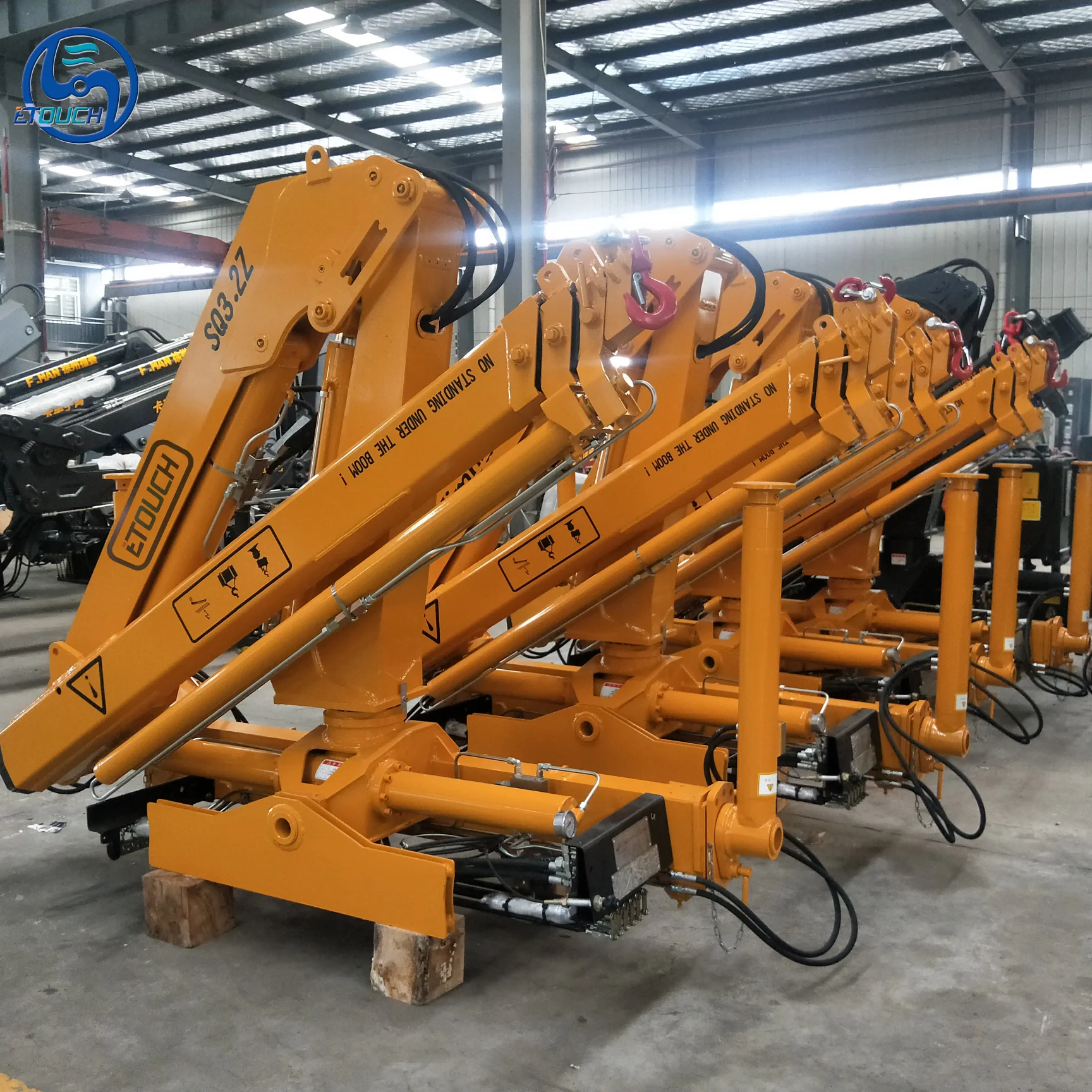

Mini Lifting Crane Trucks Small 3.2Ton 5Ton 6.3Ton Mounted Knuckle Boom Crane Hydraulic Crane For Truck
Products Description

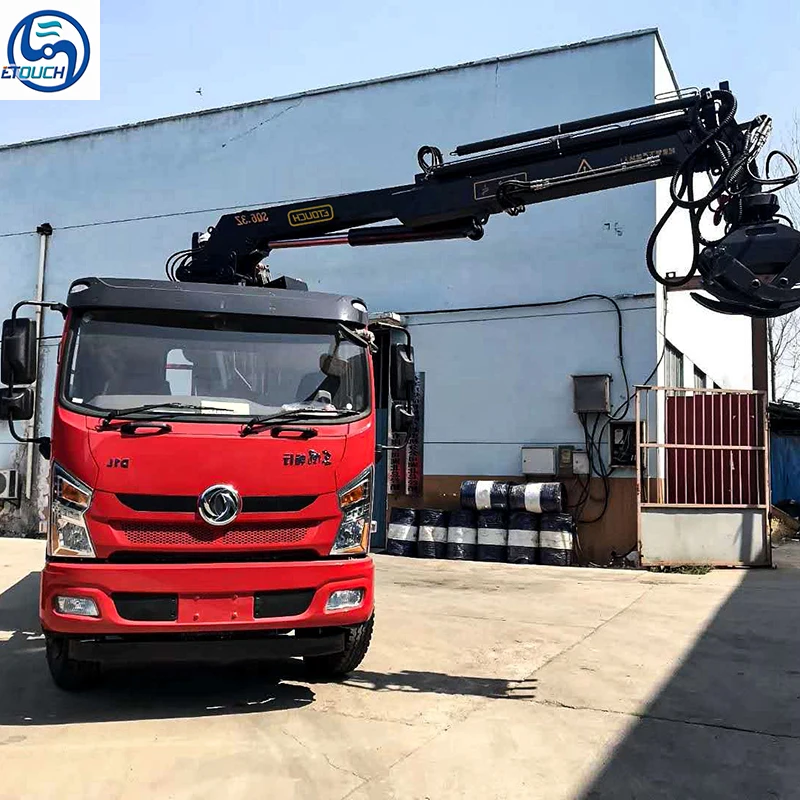

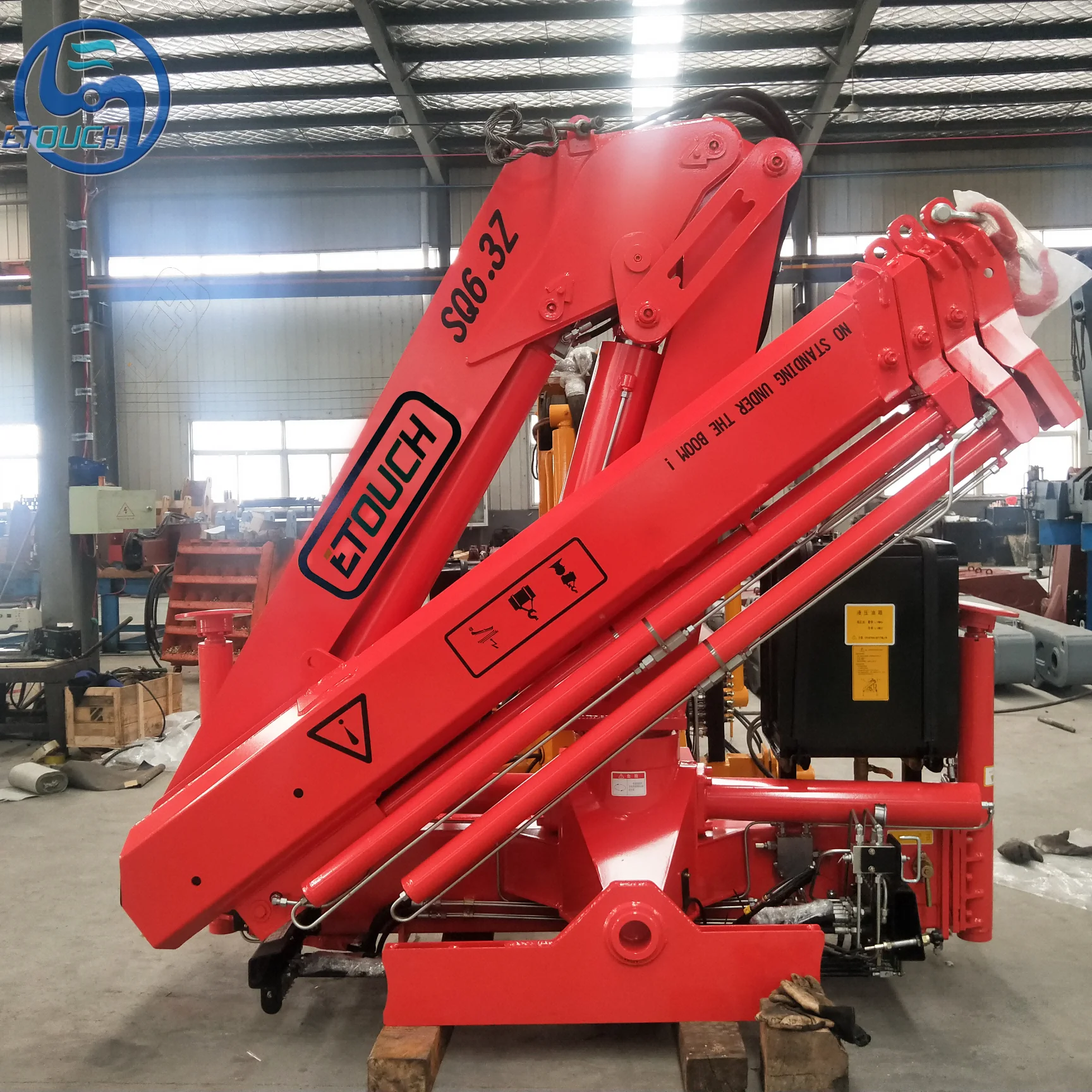

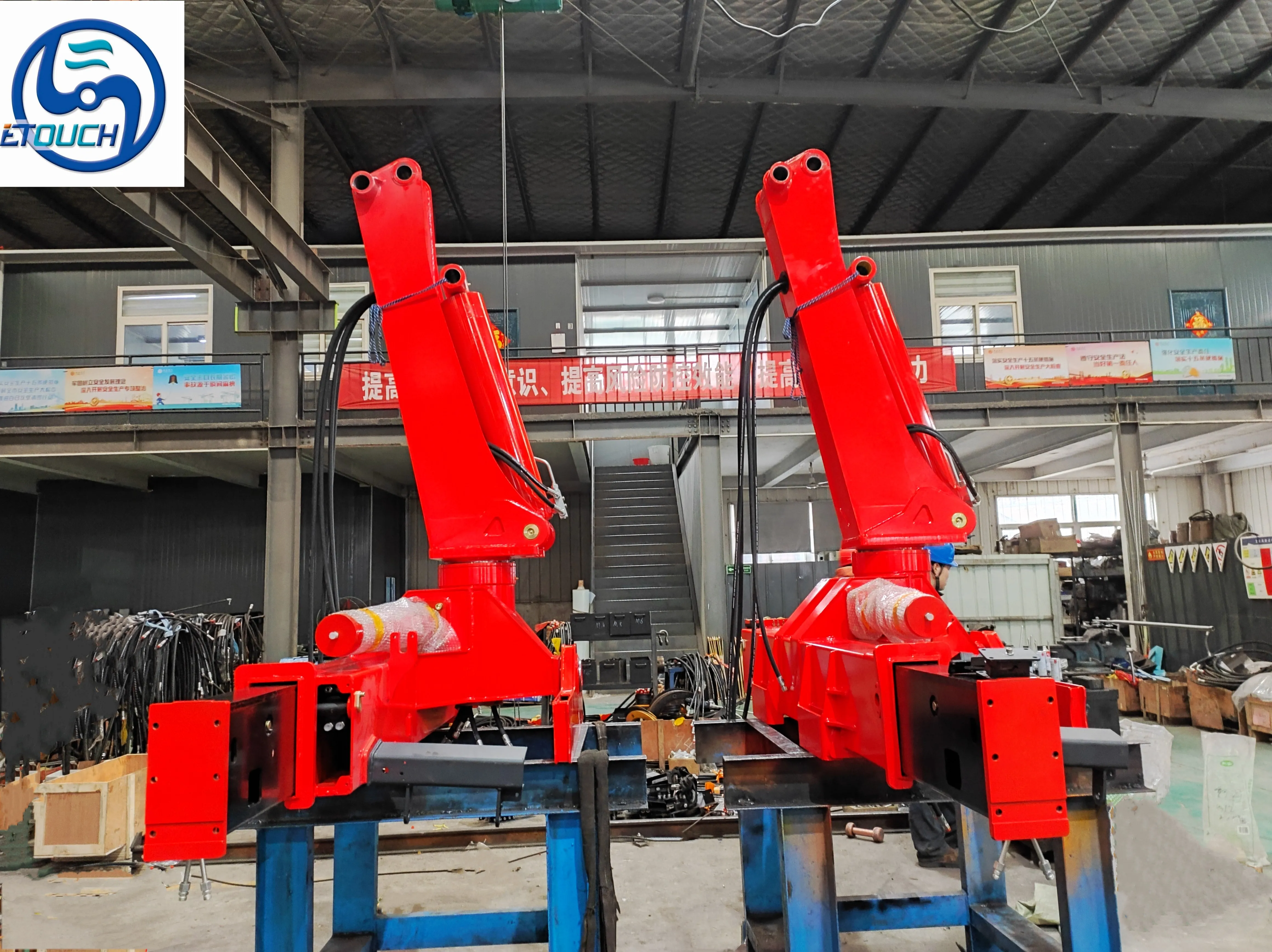

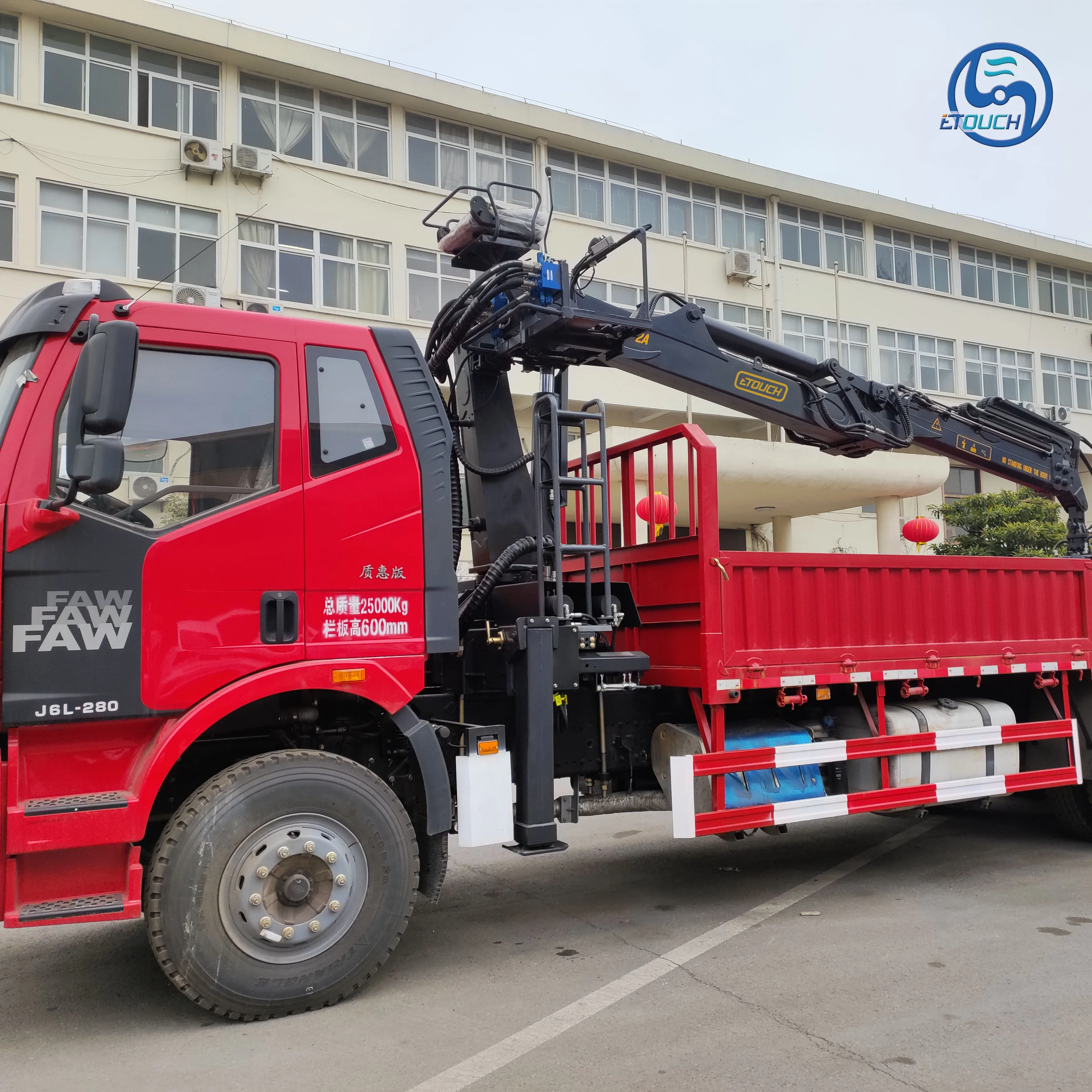

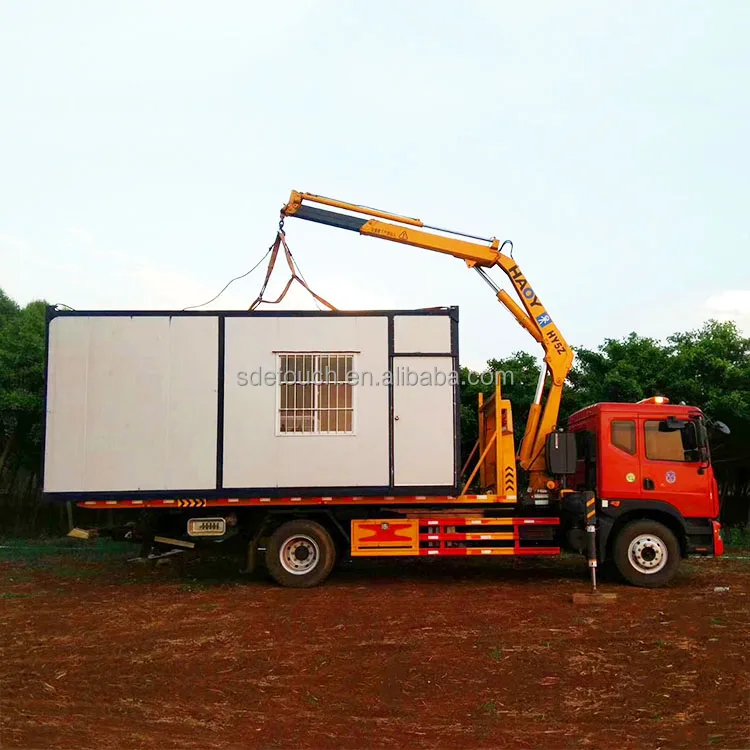

Truck Mounted Crane
Truck crane is a kind of crane mounted on the ordinary automobile chassis or special automobile chassis, its driving cab and lifting
control room are set separately.The product model can meet your needs and support customization.
Product Features
1.Advanced development & analysis means make sure design is very reliable.
2.Using two-section telescopic cylinder design, one of the cylinders push the second large boom, another cylinder
push the rest of the telescopic boom by the pulley block and wirerope. To ensure that the crane has strong lifting
capacity in the middle distance and effectively protect the wire rope in the boom.
3.The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
4.compact boom head and tail design, make the longest boom length, prolong the working life of the crane.
5.The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
Boom head adopting integral structure, greater intensity.
6.Split head design reduces the boom head carrying capacity.
7.Self-design & developed slewing machine with greater drive force can meet varied requirements of working situation.
8.Lifting mechanism hydraulic winch relies on disc spring and friction brake, stable and reliable, efficient, low noise,
small calorific value; Rely on hydraulic balanced valves balancing weights when falling, greatly improve product reliability.
2.Using two-section telescopic cylinder design, one of the cylinders push the second large boom, another cylinder
push the rest of the telescopic boom by the pulley block and wirerope. To ensure that the crane has strong lifting
capacity in the middle distance and effectively protect the wire rope in the boom.
3.The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
4.compact boom head and tail design, make the longest boom length, prolong the working life of the crane.
5.The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
Boom head adopting integral structure, greater intensity.
6.Split head design reduces the boom head carrying capacity.
7.Self-design & developed slewing machine with greater drive force can meet varied requirements of working situation.
8.Lifting mechanism hydraulic winch relies on disc spring and friction brake, stable and reliable, efficient, low noise,
small calorific value; Rely on hydraulic balanced valves balancing weights when falling, greatly improve product reliability.

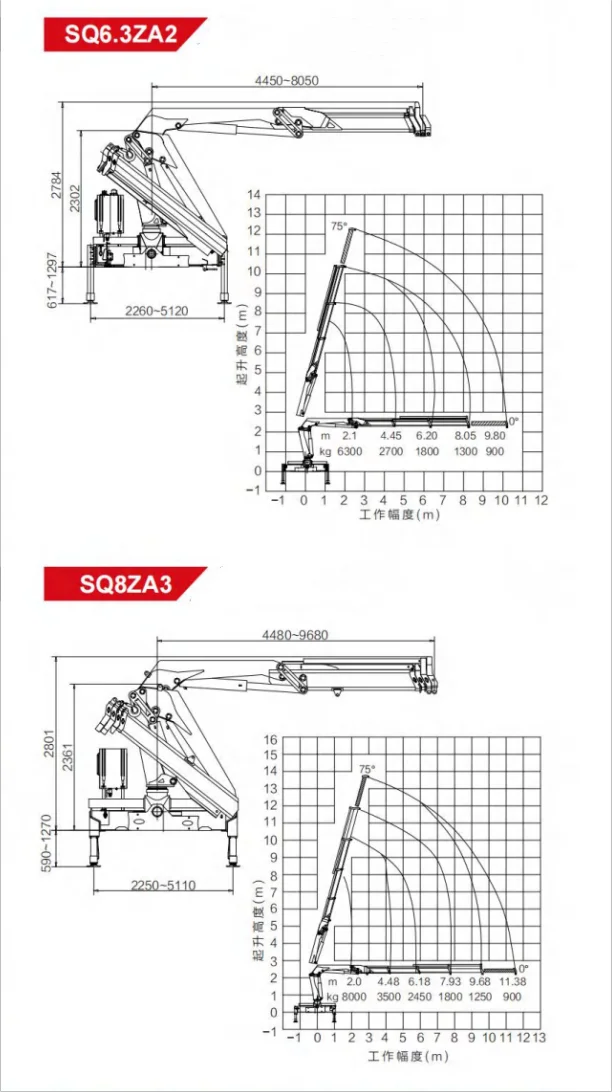

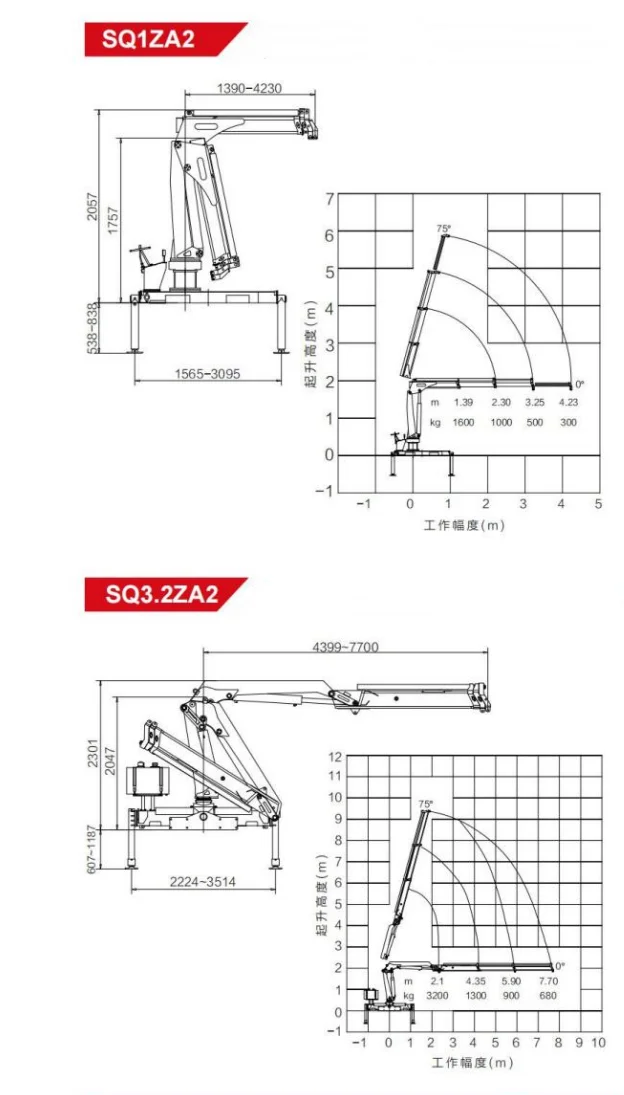

Product Parameter
Item | Unite | SQ1ZA2 | SQ3.2ZA2 | SQ6.3ZA3 | SQ8ZA3 |
Max lifting capacity | kg | 1000 | 3200 | 6300 | 8000 |
Max lifting moment | ton.m | 2.2 | 6.8 | 13 | 16 |
Recommend power | KW | 7.5 | 14 | 22 | 25 |
Hydraulic system flow | L/Min | 15 | 25 | 35 | 40 |
Hydraulic system pressure | MPa | 18 | 25 | 28 | 28 |
Oil tank capacity | L | 25 | 60 | 100 | 160 |
Installation space | mm | 550 | 850 | 1050 | 1150 |
Self weight | Kg | 500 | 1150 | 2200 | 2850 |
Rotation angle | ° | 330 | 400 | 400 | 390 |
Our Advantages
1.The advantages of this crane are good mobillty and rapid transfer.
2.The chassis performance of the truck crane is equal to the same total weight of the truck,in line with the technical requirements of highway vehicles. so it can pass unimpeded on all kinds of highways.
3.The hydraulic system of hydraulic truck crane adopts hydraulic pump.quantitative or variable motor to realize crane liting
slewing, amplitude, boom telescopic and leg telescopic and can act alone orin combination.
4.The boom of hydraulic truck crane is composed of mutiple arm segments. which can be designed according to different requirements of lifting height.
2.The chassis performance of the truck crane is equal to the same total weight of the truck,in line with the technical requirements of highway vehicles. so it can pass unimpeded on all kinds of highways.
3.The hydraulic system of hydraulic truck crane adopts hydraulic pump.quantitative or variable motor to realize crane liting
slewing, amplitude, boom telescopic and leg telescopic and can act alone orin combination.
4.The boom of hydraulic truck crane is composed of mutiple arm segments. which can be designed according to different requirements of lifting height.

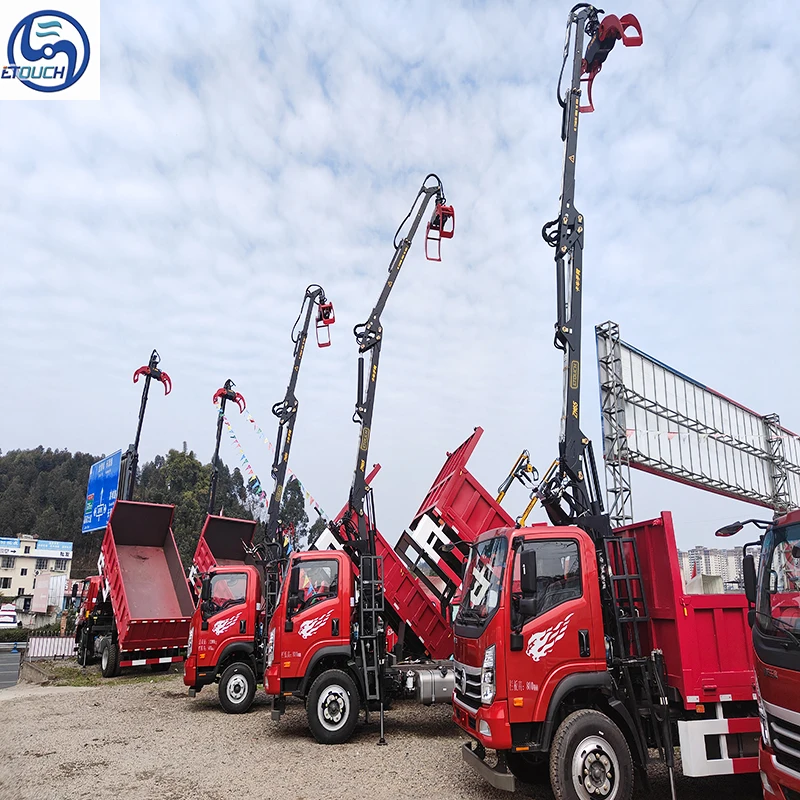

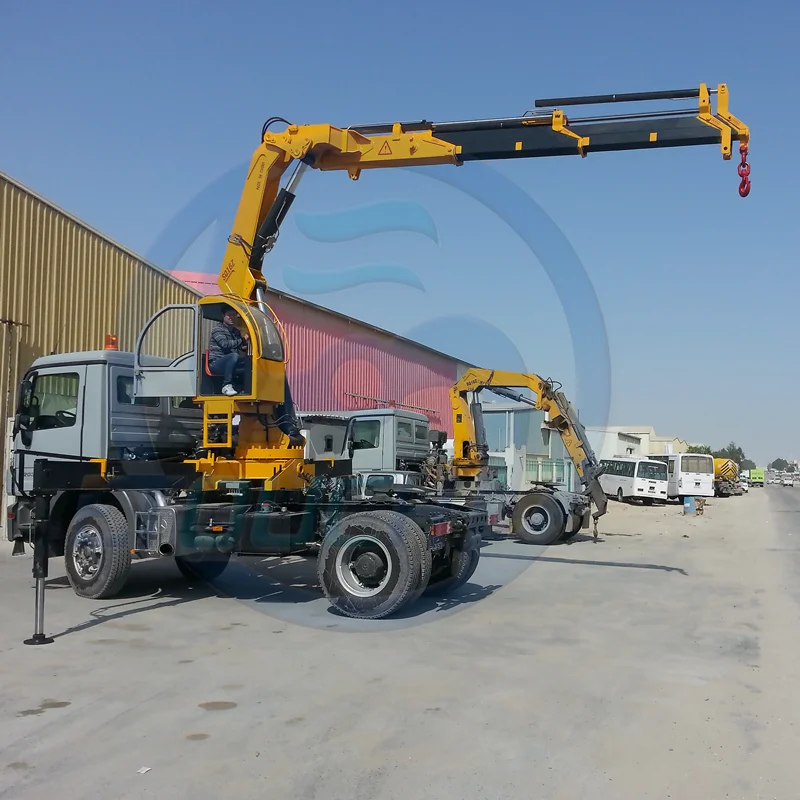

Application

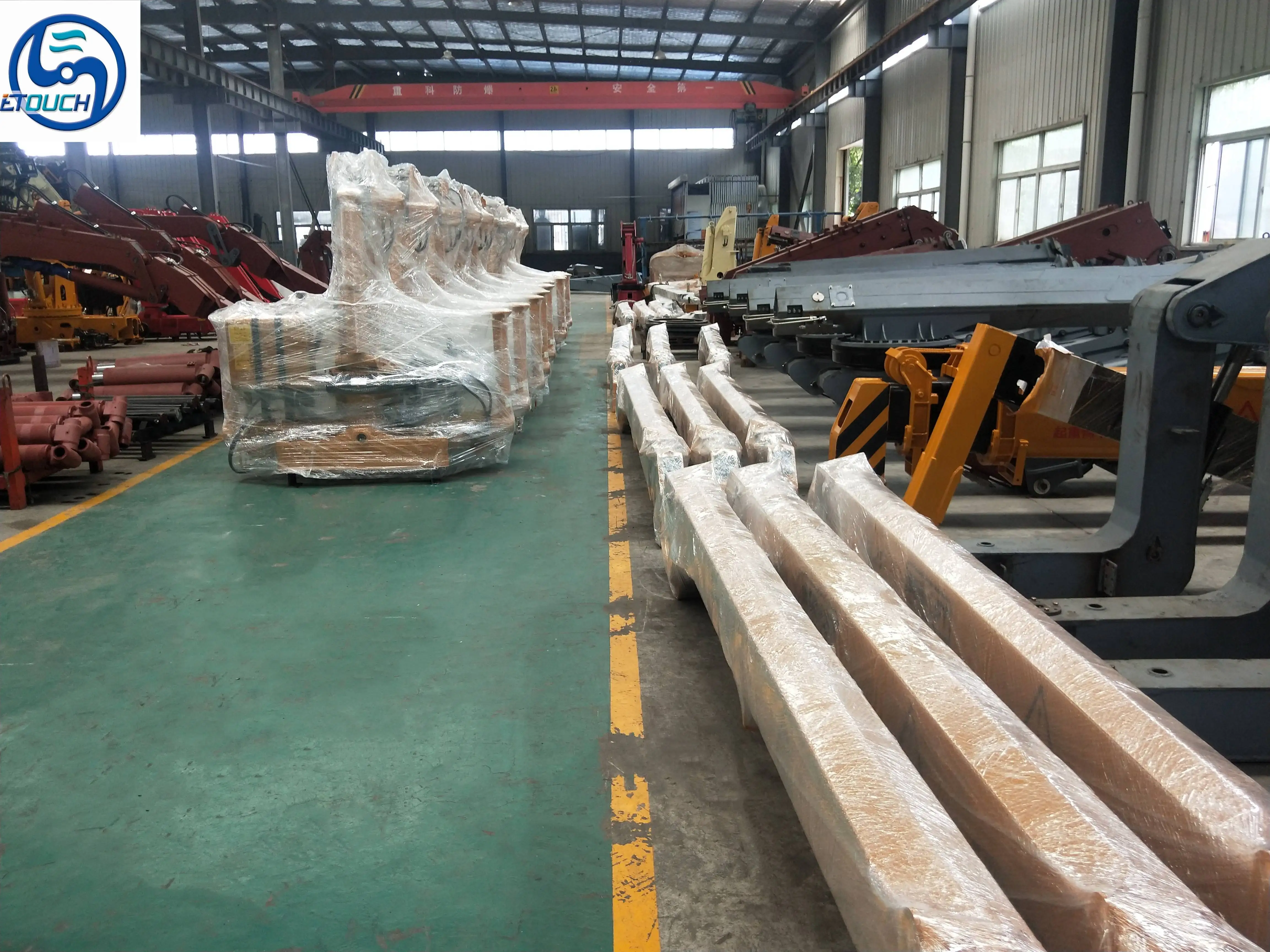

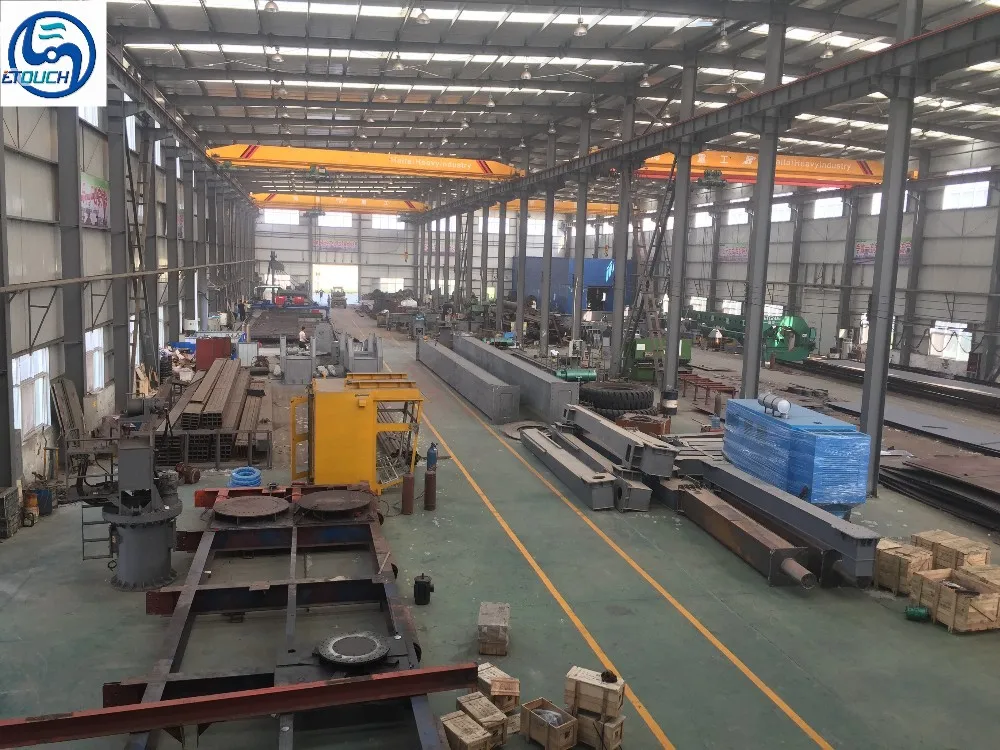

Our company
SHANDONG E-TOUCH SHIPPING ENGINEERING CO., LTD. is on the base of first-rate ship technological achievements, perfect business concepts, high level control on product quality and both rational and humanized business management. Guided by top talented person strategic planning and based on resource market of small and medium eco-friendly ship and related equipment, Yida provides costeffective services for worldwide customers from dredging industry. Located in Wei fang, a perfect manufacturing industry for dredging equipment, E-TOUCH’s major work is to make small and medium sized service ships and it looks to a med-range and high-end products market position. E-TOUCH devoted itself to
solving all the problems occurred in water projects such as dredging in inner rivers and lakes, salvaging waterweeds blocked in the river, under water placer mining, exploiting salt and so on.
solving all the problems occurred in water projects such as dredging in inner rivers and lakes, salvaging waterweeds blocked in the river, under water placer mining, exploiting salt and so on.
Customer visits
Our Service
E-Touch regards customer as the foundation,the customers' satisfaction is our permanent persuit.E-Touch has established perfected strict quality assurance system and service assurance system.E-Touch strictly inspects each product before they leave the factory strictly dwording to the international inspection standard.E-Touch performs each contract strictly,delivers its products on time and managers to supply the spare parts in time.E-Touch sincerely supplies customers with first class products,first quality and first service.
Pre-Sales Service
* 24H/7D online support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Packing & Delivery
FAQ
Q1:who are we?
We are based in Shandong, China, start from 2018,sell to South Asia(45%), Southeast Asia(20%), Africa(10%),Domestic
Market(25.00%).
Q2:Can we visit your factory?
Sure, we sincerely welcome you to visit and check our factory, we would show you around of our workshop.
Q3:What's your main products?
Dredgers, dredge pump, crane, dredging pipe, pump parts,etc.
Q4: Do you also supply the accessories of dredgers?
Yes, we have cooperated companies to supply you the pipes, floaters and other spare parts.
Q5:how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
Q6:why should you buy from us not from other suppliers?
We had exported more than 28 countries With a warm energetic professional service team.We have nearly 20 years experience in producing dredging rubber hose,dredging suction hose,dredging HDPE pipe and floaters. We are the best choice for the dredging pipeline supplier in the world. We have professional workshop and we could produce any specification,shape and size according to customers' requirements.
Q7:what services can we provide?
We believe in building a relationship with our customers and therefore SHANDONG E-TOUCH offers global service.Our service team consists of highly skilled and experienced professionals and dredging specialists who can provides the best desired dredgers and integrated dredging solutions according to the customer's specific project. E-TOUCH also provide technical supports such as operational skills training, repair technology teaching.
Market(25.00%).
Q2:Can we visit your factory?
Sure, we sincerely welcome you to visit and check our factory, we would show you around of our workshop.
Q3:What's your main products?
Dredgers, dredge pump, crane, dredging pipe, pump parts,etc.
Q4: Do you also supply the accessories of dredgers?
Yes, we have cooperated companies to supply you the pipes, floaters and other spare parts.
Q5:how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
Q6:why should you buy from us not from other suppliers?
We had exported more than 28 countries With a warm energetic professional service team.We have nearly 20 years experience in producing dredging rubber hose,dredging suction hose,dredging HDPE pipe and floaters. We are the best choice for the dredging pipeline supplier in the world. We have professional workshop and we could produce any specification,shape and size according to customers' requirements.
Q7:what services can we provide?
We believe in building a relationship with our customers and therefore SHANDONG E-TOUCH offers global service.Our service team consists of highly skilled and experienced professionals and dredging specialists who can provides the best desired dredgers and integrated dredging solutions according to the customer's specific project. E-TOUCH also provide technical supports such as operational skills training, repair technology teaching.
