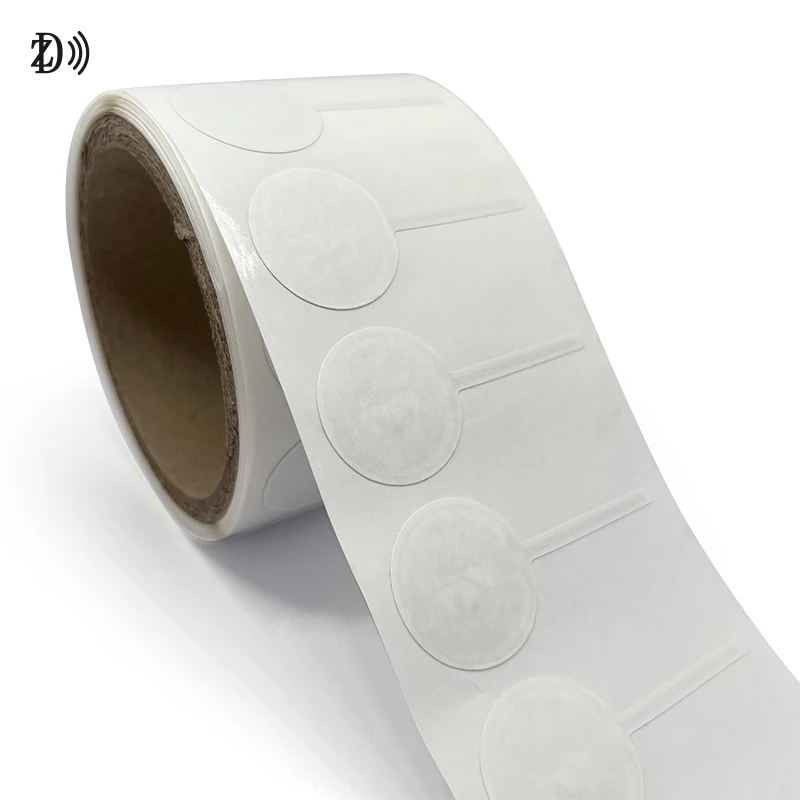

Smart Packaging Tamper Proof NTAG213 TT RFID Sticker NFC Tag Label
Smart Packaging Tamper Proof NTAG213 TT RFID Sticker NFC Tag Label
Smart Packaging Tamper Proof NTAG213 TT RFID Sticker NFC Tag Label
Smart Packaging Tamper Proof NTAG213 TT RFID Sticker NFC Tag Label
Smart Packaging Tamper Proof NTAG213 TT RFID Sticker NFC Tag Label
Smart Packaging Tamper Proof NTAG213 TT RFID Sticker NFC Tag Label
Smart Packaging Tamper Proof NTAG213 TT RFID Sticker NFC Tag Label

Smart Packaging Tamper Proof NTAG213 TT RFID Sticker NFC Tag Label

Share on (1600877384199):


Price:

Quantity:


Product Overview

Description



Product Description


NTAG 213 TagTamper offers extended features compared to the NTAG 213，providing additional benefits for smart packaging and brand protection.

NTAG 213 TagTamper the new TagTamper functionality, which is detecting the status of a TagTamper wire during the startup.




In case of an open detection wire, the NTAG 213 TagTamper permanently stores this event. Information status of the TagTamper wire can be mirrored in ASCII code into the user memory, which contains the NDEF message or can be read with a dedicated command.

Further on the NTAG 213 TagTamper offers the improved originality signature, which can be programmed and locked during the tag initialization.


Material
Coated paper or fragile paper
Size
24*60mm, 20*70mm, 27*77mm, 35*66mm, 35mm*80mm etc.
Printing
Full color printing
Frequency
13.56MHz
Protocol
NFC Forum Type 2 Tag and ISO/IEC14443
Chip
NTAG® 213 Tag Tamper

* 184 bytes organized in 46 pages with 4 bytes per page
* 144 bytes freely available user Read/Write area (36 pages)
Chip Security
• Manufacturer programmed 7-byte UID for each device
• Pre-programmed Capability container with one time programmable bits
• Field programmable read-only locking function
• Pre-programmed ECC-based originality signature, offering the possibility for customizing and permanently locking
• 32-bit password protection to prevent unauthorized memory operations
• Customer programmed Tag Tamper message which is masked until a tamper event has been detected after startup
Read distance
1-10CM(Related to reader performance and working environment)
Feature
Tamper Proof
Customized support
Material, Size, Chip, Print, Encoding, Serial number, Shape, Package Etc.
Certificate
CE RoHS ISO


Application


Different applications of two chips:


NTAG213 TagTamper Applications:
- Smart advertisement
- Product authentication
- Goods and device authentication
- Voucher and coupons
- Bluetooth® or Wi-Fi pairing
- Electronic shelf labels
- Smart packaging(NTAG213 TagTamper chip has smart packaging application)

NTAG213 Applications:
- Smart advertisement
- Product authentication
- Goods and device authentication
- Voucher and coupons
- Bluetooth or Wi-Fi pairing
- Electronic shelf labels
- Business cards
- Call request
- SMS
- Call to action
- Connection handover
- Mobile companion tags

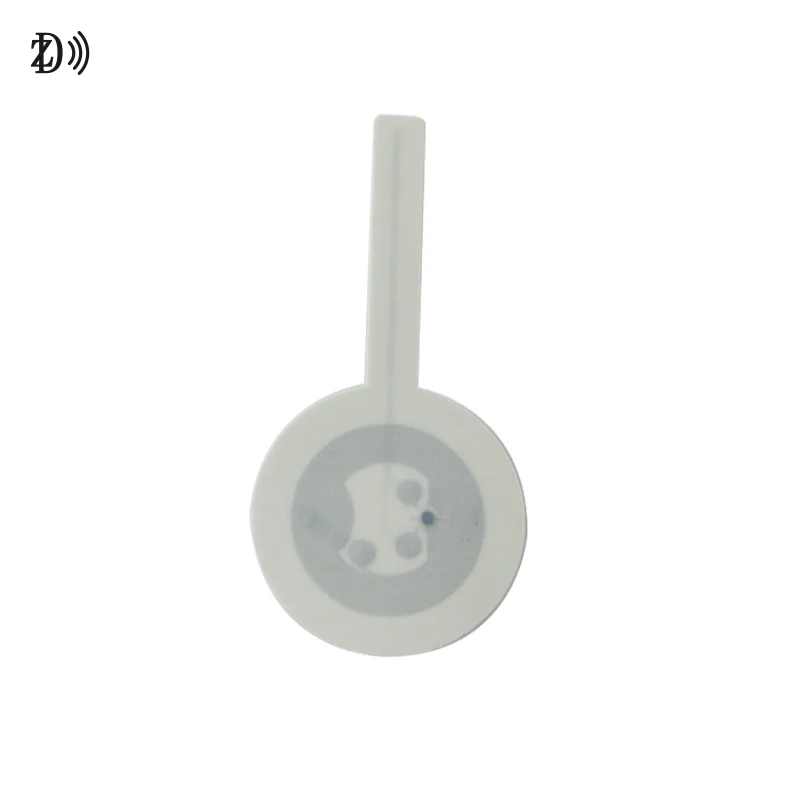

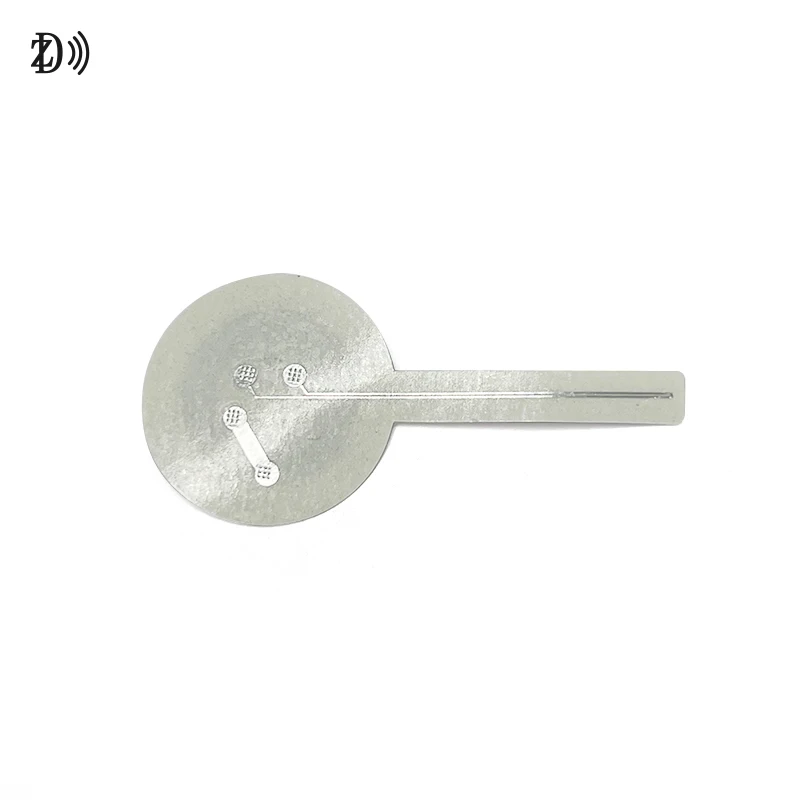

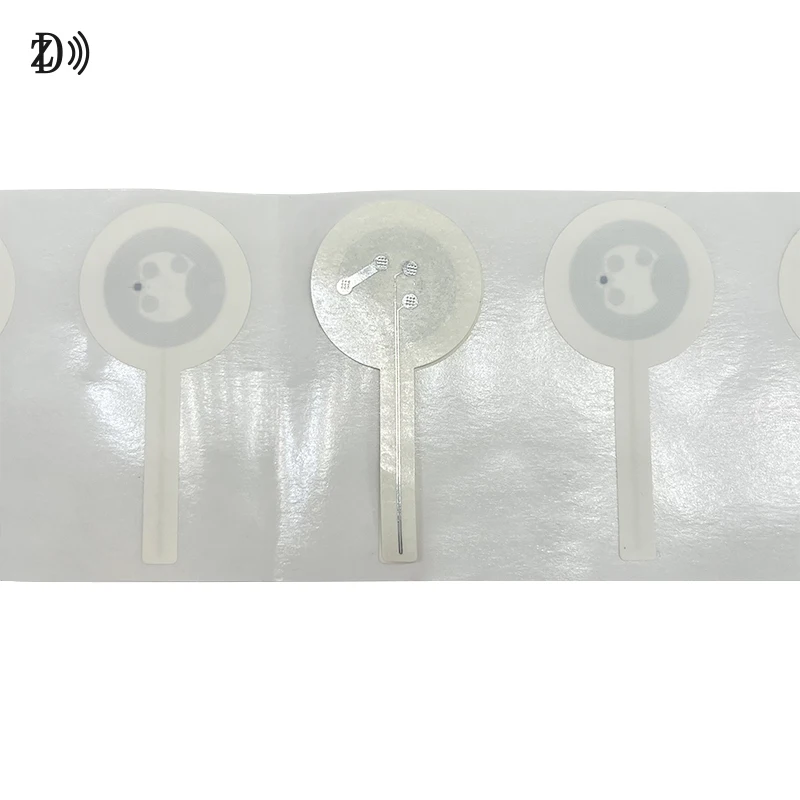

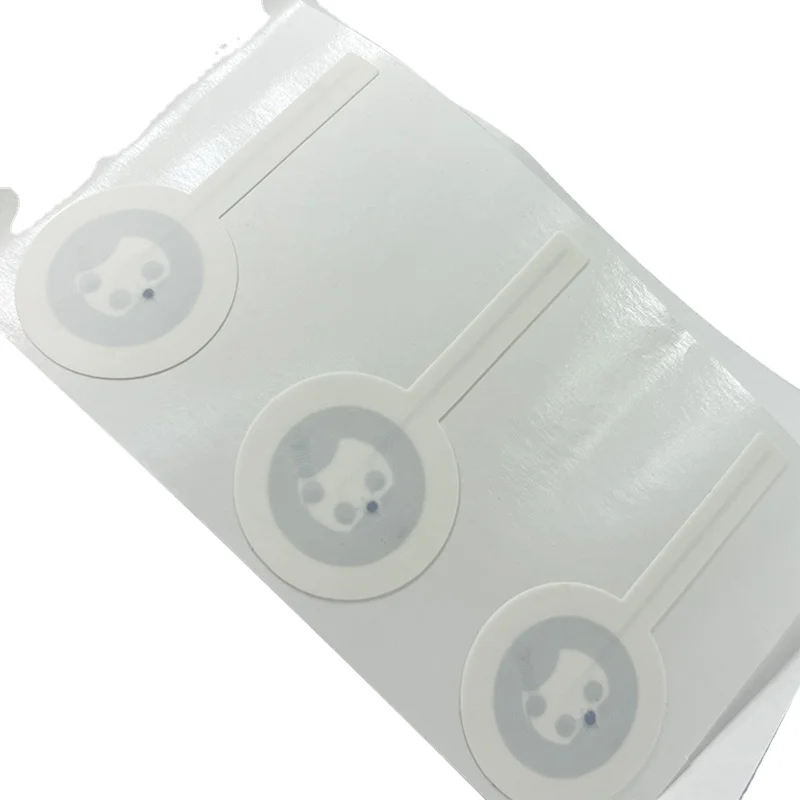

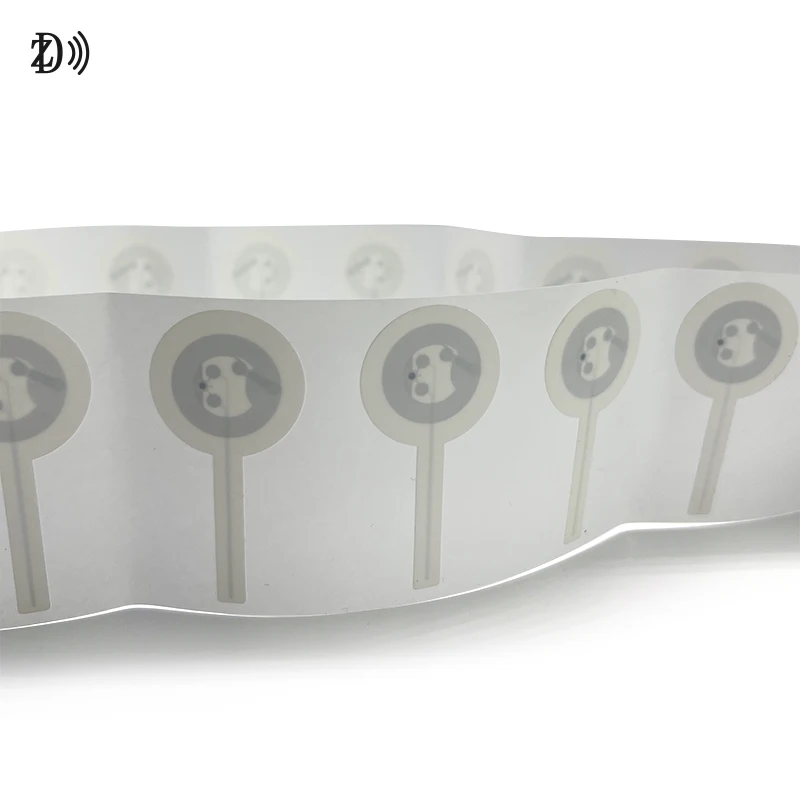

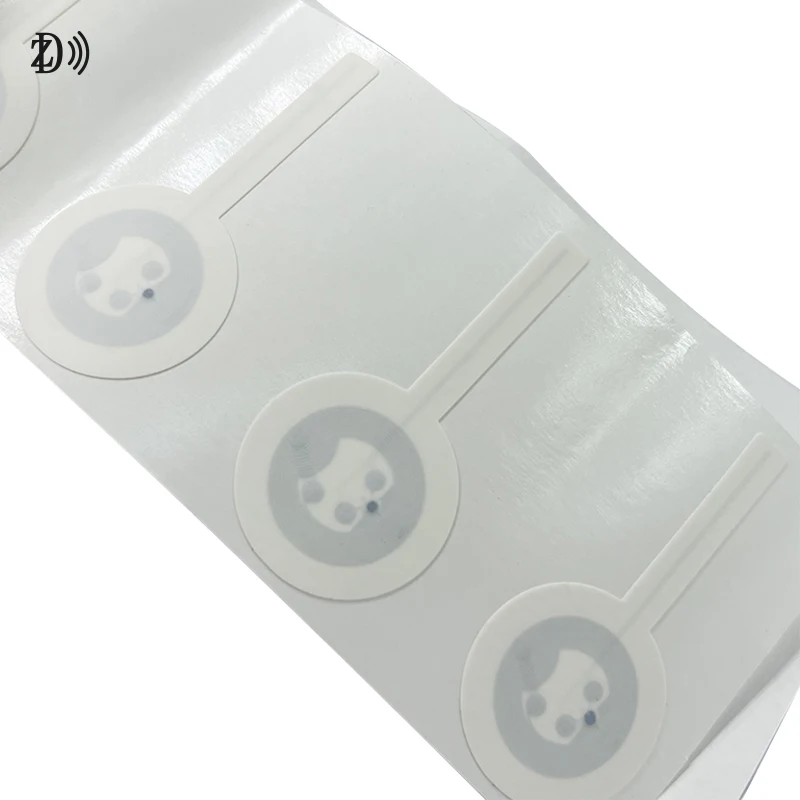

Details Images












NXP HF Chip


Chip type
Capacity
Protocol
Frequency
Function
MIFARE Classic® 1K
1K Byte



ISO14443A



13.56MHz



Read/Write
MIFARE Classic® 4K
4 K Byte
MIFARE Ultralight® EV1
80 Byte
164 Byte
MIFARE Ultralight® C
192 Byte
MIFARE and MIFARE Classic are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
NTAG® 213
180 Byte




ISO14443A




13.56MHz




Read/Write
NTAG® 215
540 Byte
NTAG® 216
924 Byte
NTAG® 213 TagTamper
180 Byte
NTAG® 424 DNA
416 Byte
NTAG® 424 DNA TagTamper
416 Byte
NTAG are registered trademarks of NXP B.V. and are used under license.
MIFARE Plus® EV2
2K Byte
4K Byte

ISO14443A

13.56MHz

Read/Write
MIFARE Plus® SE
1K Byte
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE® DESFire® EV1 2K
2K/4K/8K Byte


ISO14443A


13.56MHz


13.56MHz
MIFARE® DESFire® EV2 2K
2K/4K/8K Byte
MIFARE® DESFire® EV3 2K
2K/4K/8K Byte
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
ICODE® SLI
1024 Bits




ISO15693




13.56MHz




Read/Write
ICODE® SLIX
1024 Bits
ICODE® SLIX 2
2560 Bits
ICODE® SLIX-S
2048 Bits
 ICODE® SLIX-L
512 Bits
ICODE are registered trademarks of NXP B.V. and are used under license.

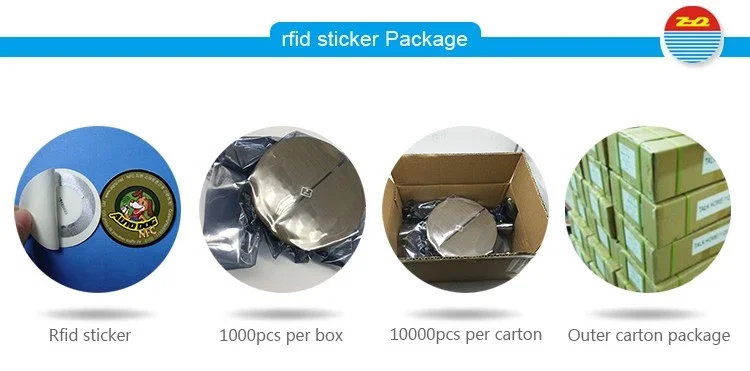

Packing & Delivery






Company Profile


Established in year of 2000 in Shenzhen, China, self-owned 3000㎡ industrial park

State-of-art Equipment:
2 Heidelberg offset printing machines
2 Roland UV printing machines.
Die-cut and lamination machines
Muehlbauer(TAL15K) RFID bonding machines
Muehlbauer (CL-60K) RFID converting machines .....and more, welcome to visit our factory

Certification: ISO Certificate, SGS Factory Audit Report, RoHs, EN71, and REACH Test Report.

Long-Term Partnership: Qatar Airways, Saudi Airlines, McDonald, Shell Oil Group, Nigeria voter's card,
Moscow subway cards, Asia cell, Yemen Mobile, China Mobile, etc.

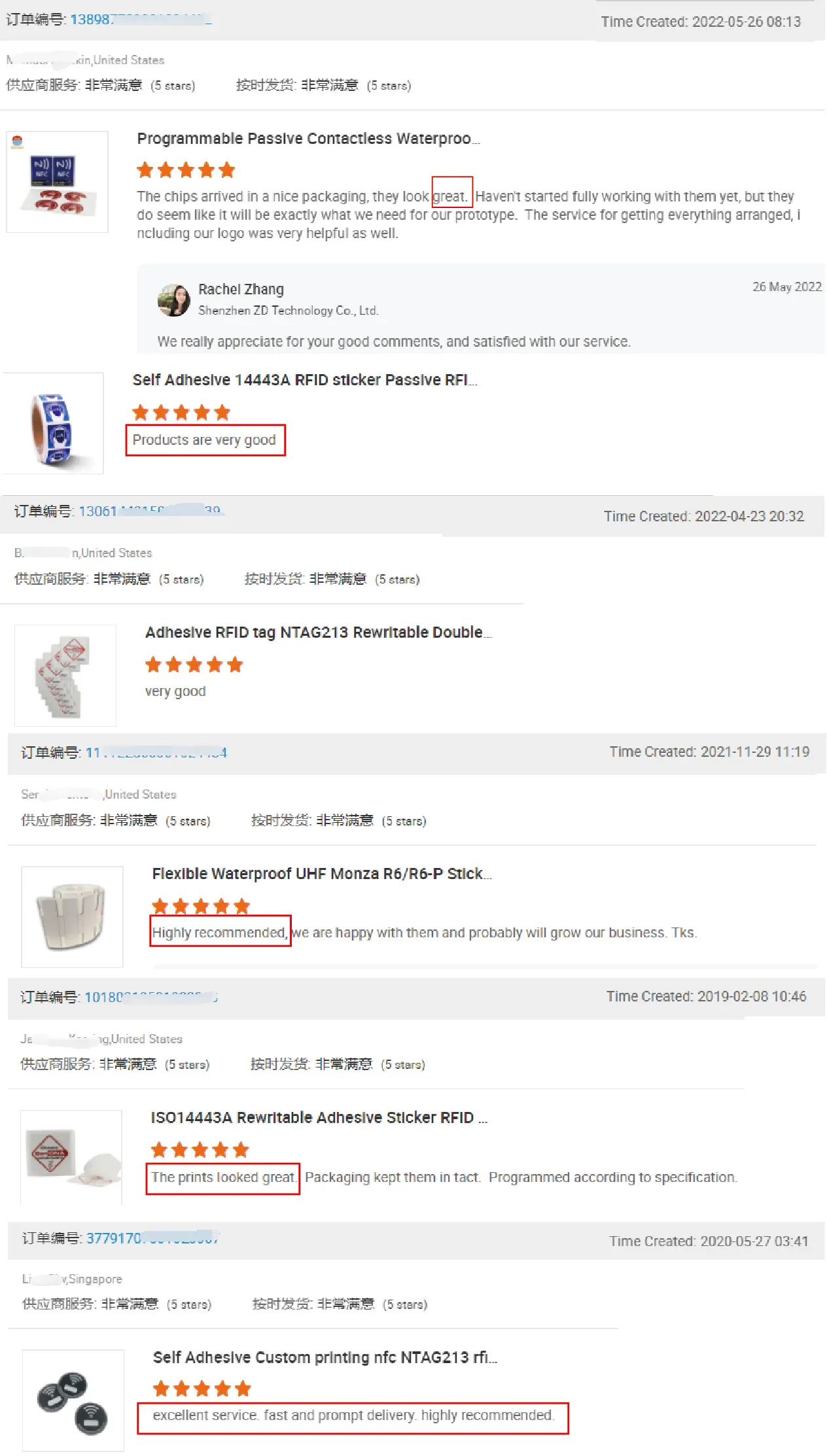

Customers Testimonials
