Industrial Vertical / Pit Type Heat Treatment Vacuum Gas Carburizing Quenching Furnace
- Category: >>>
- Supplier: Wenzhou Shuangming Electrical Technology Co. Ltd.
Share on (1600877419415):
Product Overview
Description
Products Description

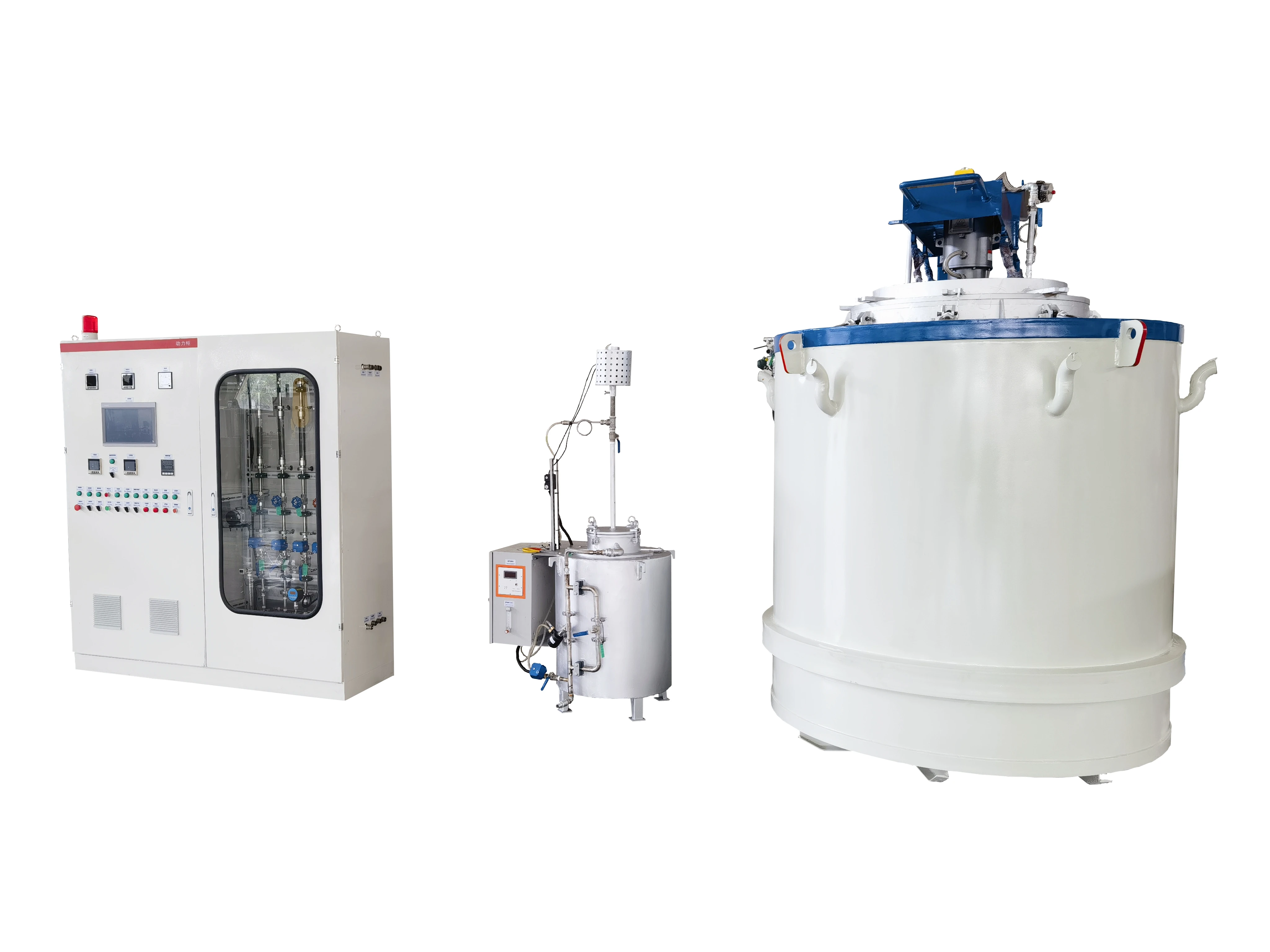

Industrial pit gas carburizing heat treatment furnace
Structure display
Application
This furnace is suitable for gas carburizing/nitriding treatment of various of die mould(especially suitable for H13), measuring tool,
cutting tool (such as: high speed steel cutter) and so on, crankshaft, gear, cylinder liner, mechanical parts and wear-resistant parts heat treatment.
cutting tool (such as: high speed steel cutter) and so on, crankshaft, gear, cylinder liner, mechanical parts and wear-resistant parts heat treatment.
Product Paramenters
Model | Voltage (V) | Power (KW) | Temperature (℃) | Working size (mm) |
RJ3-25-6 | 380 / 3P | 25 | 650 | φ400*500 |
RJ3-35-6 | 380 / 3P | 35 | 650 | φ500*650 |
RJ3-55-6 | 380 / 3P | 55 | 650 | φ700*900 |
RJ3-75-6 | 380 / 3P | 75 | 650 | φ950*1200 |
RQ3-25-9 | 380 / 3P | 25 | 950 | φ300*450 |
RQ3-35-9 | 380 / 3P | 35 | 950 | φ300*600 |
RQ3-60-9 | 380 / 3P | 60 | 950 | φ450*600 |
RQ3-75-9 | 380 / 3P | 75 | 950 | φ450*900 |
RQ3-90-9 | 380 / 3P | 90 | 950 | φ600*900 |
RQ3-105-9 | 380 / 3P | 105 | 950 | φ600*1200 |
Product Details

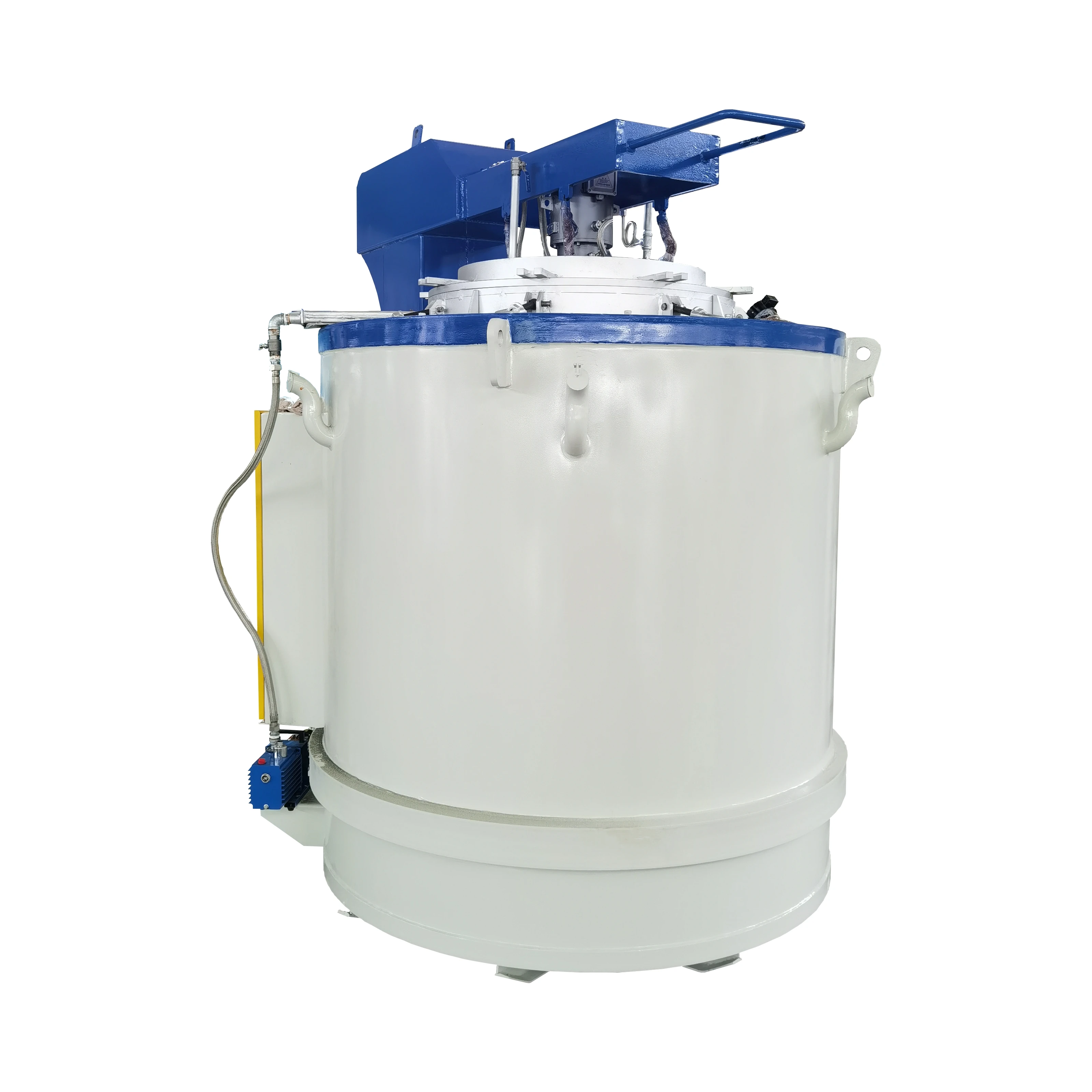

Furnace body
The furnace body frame is welded with high-quality national standard profile steel and Q235 steel plate, with a firm and reliable structure, and all welds are uniform and smooth, without defects such as pores, inclusions, and lack of fusion. The overall strength is high, not easy to deform, and the appearance is flat and smooth.
Furnace lining
Made of Japan ISOLITE high temperature white cotton structure. Precompression treatment shall be conducted again before installation of the fiber folding block. The structure is fixed to a folded block with anchors, and has low thermal conductivity, excellent chemical stability, thermal stability, excellent strength and corrosion resistance..
Muffle tank
Made of SUS316 stainless steel with a thickness of 8mm. A corrugated molding machine is used to press it into a corrugated shape to improve the strength and expansion performance of the muffle tank. The inner layer of the muffle tank is welded by argon arc welding, and the weld seam is dense and free of pores.
Furnace cover
Made of heat resistant steel SUS316, δ 8mm. The bottom adopts a head type structure, and the butterfly shaped head is formed by back pressure. The furnace cover adopts hydraulic lifting.
Cooling fan
Equipped with high quality air blower, the air volume is strong, cooling speed is very fast, greatly reducing the baking time. After the preset process is completed, the system will automatically open the blower for cooling.

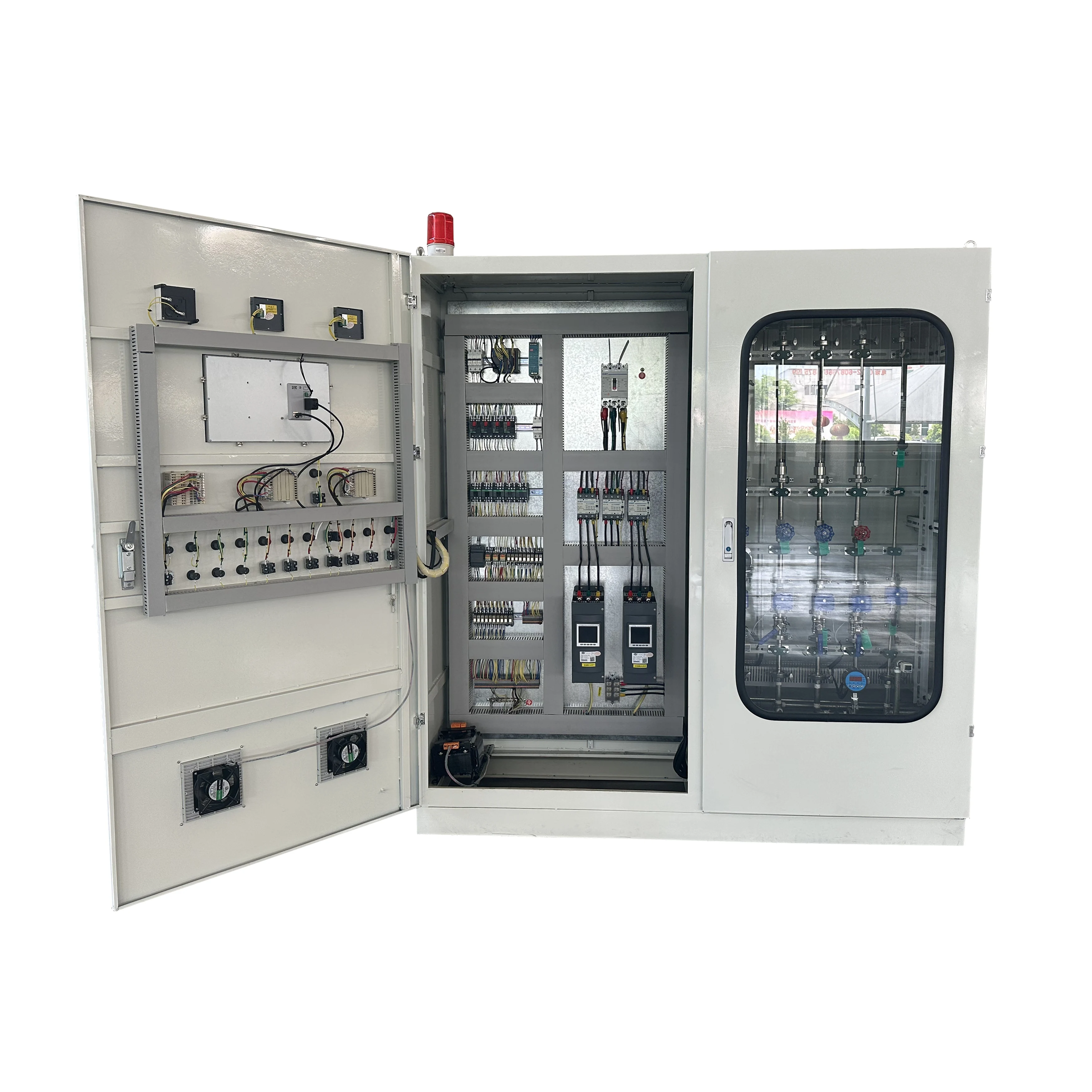

Electric control cabinet
It is equipped with temperature control system, has functions such as PID automatic control, holding time setting function, setting time display, remaining holding time display, multi segment programming system and security alarm system:.

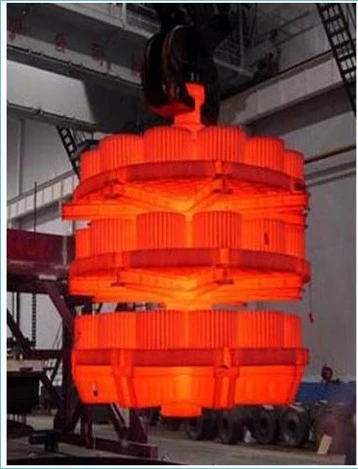

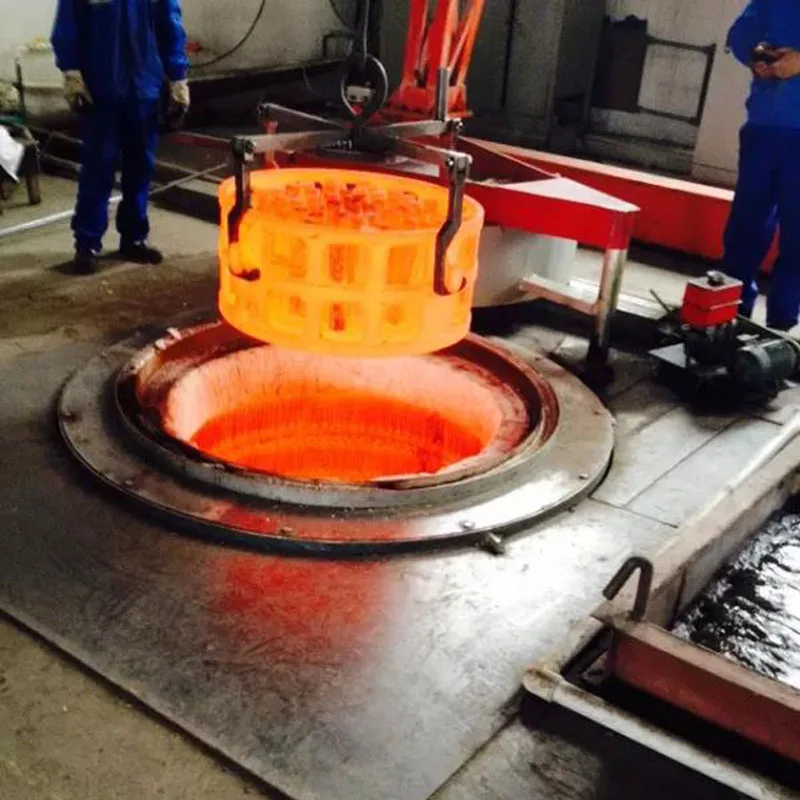

Customer On-site
2), Adopt the energy-saving furnace lining which can make fast temperature rising but saving more than 20% of energy compare with old product.
3), Large fan installed and multiple heating zone controling for improving the temperature uniformity.
4), The control system can be equipped with normal control instrument or instrument with micro-processor program control according to actual need.
5), The Protective atmosphere can be special fed into the furnace to realize little-oxidizing heating if your need.
6), Each product is installed with safety interlock and over-temperature device to provide reliable and safe operation and use.
