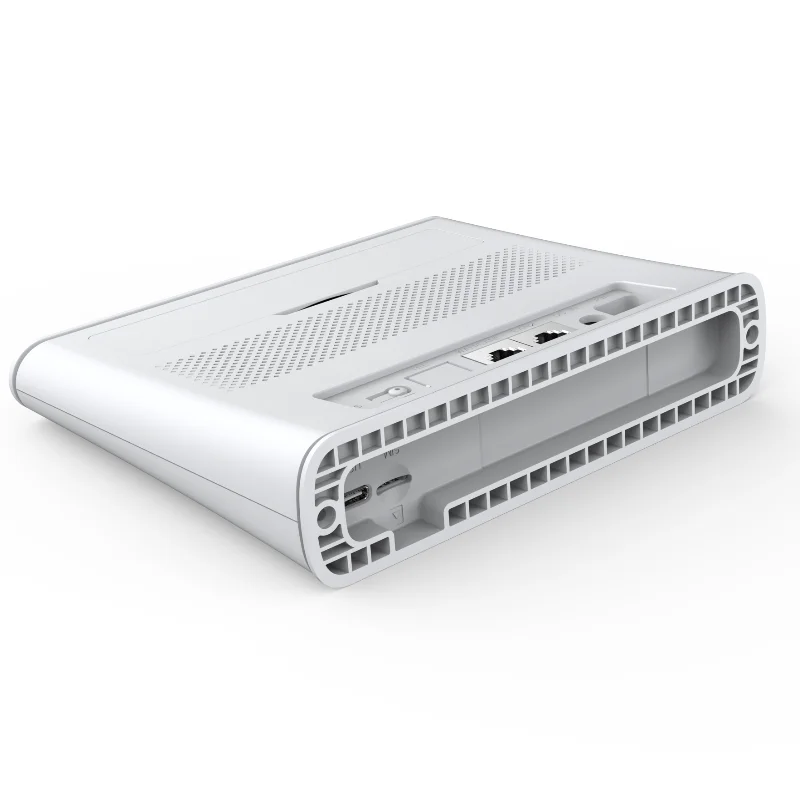

192.168.1.1 LAN/WAN port wireless router TDD/FDD 4G global band WIFI router
- Category: >>>
- Supplier: Shenzhen Ex-Link Technology Co. Ltd.
Share on (1600877449045):
Product Overview
Description
Product Description
Product Name | 192.168.1.1 LAN/WAN port wireless router TDD/FDD 4G global band WIFI router |
WIFI | WIFI5, Supports 20MHz,40MHz,80MHz in 5GHz band, and 20MHz,40MHz bandwidth in 2.4GHz band |
Function | Cat6 and Cat12 Wireless router with LAN/WAN port |
Package | Normal Export Carton |
Product performance description
EX-LINK HIR204 wireless router is a wireless communication product developed based on 4G network requirements. Support 4G LTE
global frequency band. Support 4G LTE CAT 6 or CAT 12 high speed access to the Internet. It can realize the maximum downlink
bandwidth of 300Mbps~600Mbps and the maximum uplink bandwidth of 50Mbps~150Mbps. It supports 2 Gigabit Ethernet ports, providing
stable and high-speed wireless broadband access for home and business users. Support for WIFI 2.4GHz/5GHz dual-band function to
meet the access and sharing needs of more than 60 users' WIFI hotspots.
global frequency band. Support 4G LTE CAT 6 or CAT 12 high speed access to the Internet. It can realize the maximum downlink
bandwidth of 300Mbps~600Mbps and the maximum uplink bandwidth of 50Mbps~150Mbps. It supports 2 Gigabit Ethernet ports, providing
stable and high-speed wireless broadband access for home and business users. Support for WIFI 2.4GHz/5GHz dual-band function to
meet the access and sharing needs of more than 60 users' WIFI hotspots.
Cellular feature | |||||
3G/4G LTE | It provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. | ||||
3G/4G LTE Frequency bands | Version E | Verison A | Version LA | ||
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B41/B42(Optional) /B43(Optional) WCDMA: B1/B3/B5/B8 | LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 LTE-TDD: B41/B48 | LTE-FDD: B2/B4/B5/B7/B8/B28/B66 LTE-TDD: B42(Optional) /B43(Optional) WCDMA: B2/B4/B5/B8 | |||
Remarks. More Bands Demands please contact with us. | |||||
3G/4G LTE Data rates | 4G LTE--CAT 6 | 4G LTE-CAT 12 | |||
LTE-FDD Max 300M(DL) , Max 50Mbps (UL) LTE-TDD Max 226M (DL) , Max 28Mbps (UL). | LTE-FDD. Max 600Mbps (DL)，Max 150Mbps (UL) . LTE-TDD. Max 430Mbps (DL)，Max 90Mbps (UL). | HSPA+. DL 42Mbps, UL 11.2Mbps. WCDMA. DL 384Kbps, UL 384Kbps | |||
SIM card feature | Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional ) | ||||
Hardware feature | CPU | MEMORY | Hardware interface | ||
MTK7621A, MIPS1004KC, 880Mbps,Dual-core. | FLASH 16MByte, DDR3 64 MByte | 1*WAN/1* LAN gigabit Ethernet port. 1*USB2.0 port.1*RJ11 telephone port,VOLTE (Optional) | |||
Key button | Protection level | LED Indicator | |||
Power,Reset,WPS | Ethernet port , Contact electric shock, +/-4KV, air discharge: +/-8KV. | PWR ,WIFI, Net, WAN, LAN | |||
Power Supply | Temperature | Power Consumption | |||
DC input. DC +9/1.5A~12V/1A | Operating Temperature 0ºC ~ +50ºC, Storage Temperature -10ºC ~ +60ºC | Idle. 80mA, 0.96W @12 V Data link. Max 360 mA, 4.32W @12 V Peak. Max 470mA , 5.64W @12V | |||
Wi-Fi | WLAN | Wireless Mode | WLAN Speed | ||
◆ IEEE 802.11b/g/n/ac. ◆ Supports 20MHz,40MHz,80MHz in 5GHz band, and 20MHz,40MHz bandwidth in 2.4GHz band. ◆ Max bandwidth 300Mbps in 2.4GHz band. Max bandwidth 867Mbps in 5GHz band. | Access Point (AP), Client | 300 Mbps @2.4GHz, 867Mbps @5GHz | |||
Protocol | Supports PPTP,L2TP,IPSEC VPN,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH,SNMP etc protocol. | ||||
Embedded system | OpenWRT 18.06 | ||||
Web GUI | HTTP, Firmware Upgrade | ||||
WIFI hotspot sharing | Supports more than 60 users to share WIFI access to the Internet. | ||||

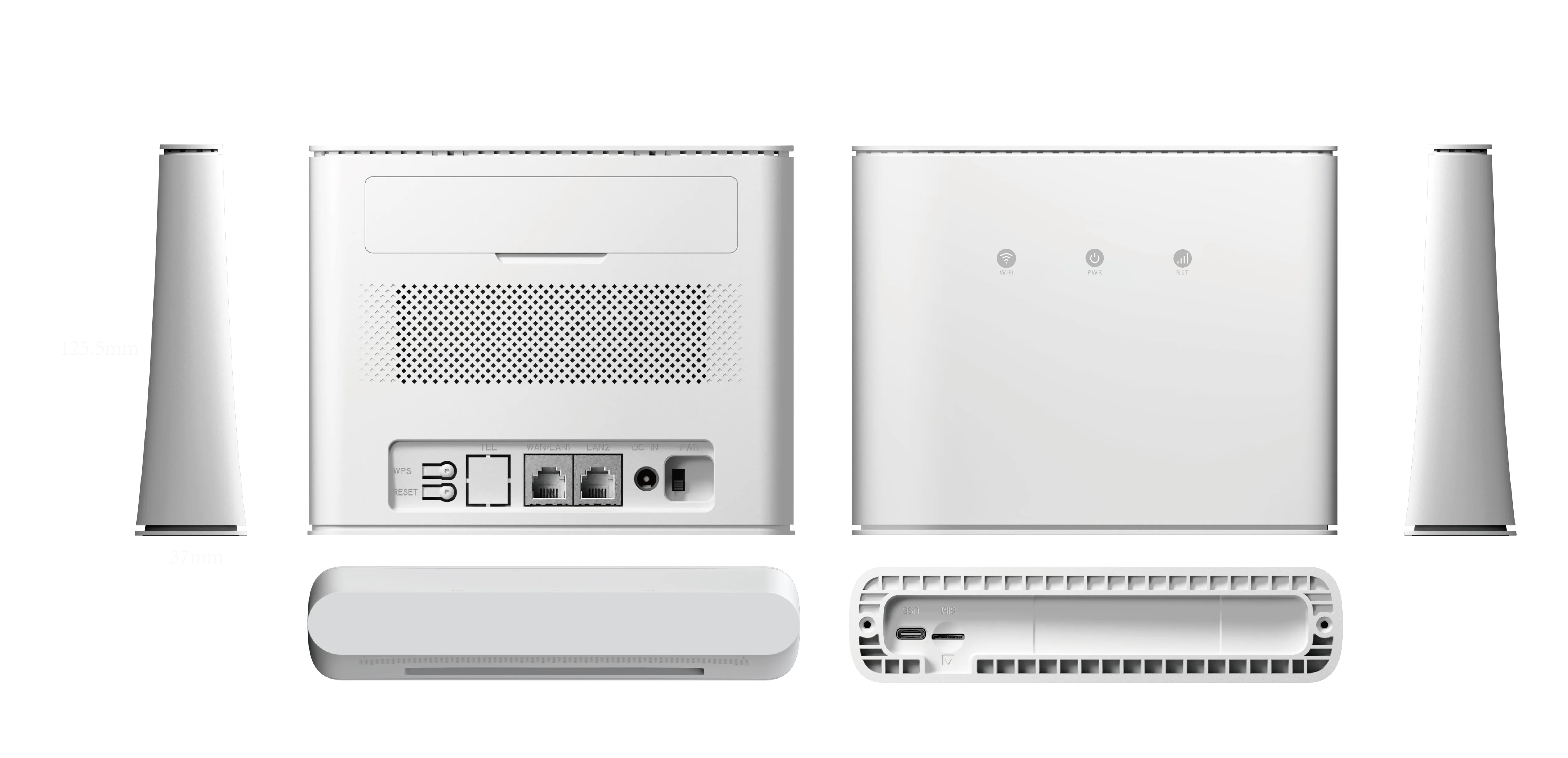

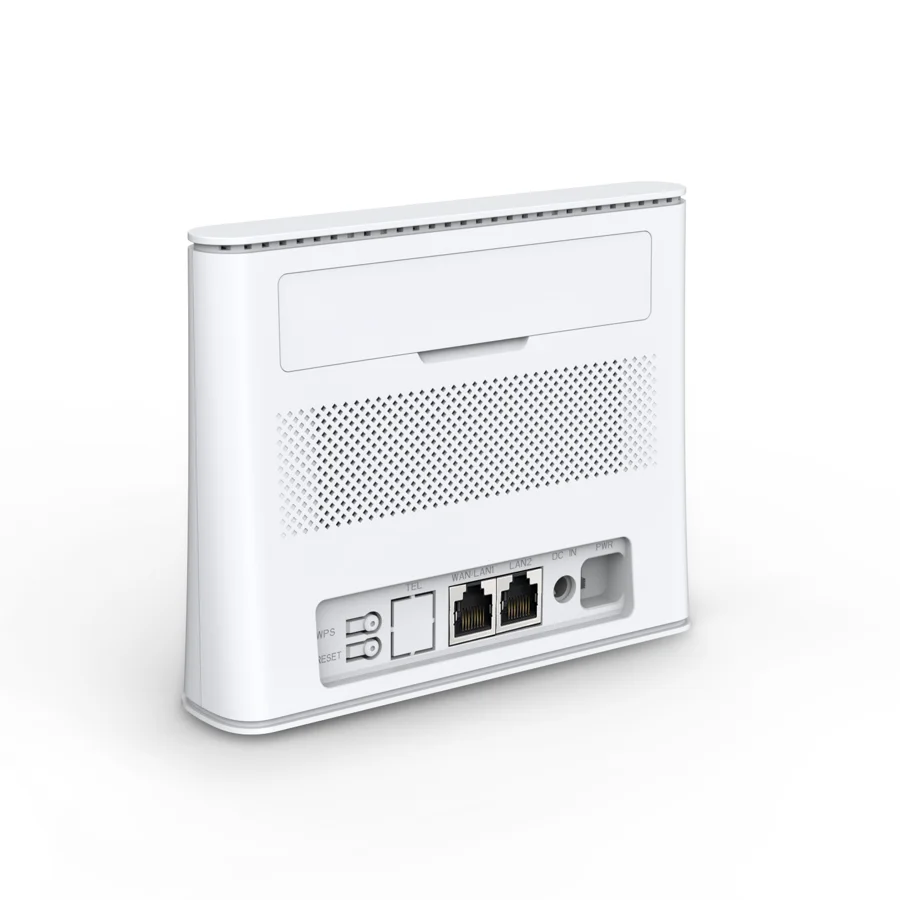

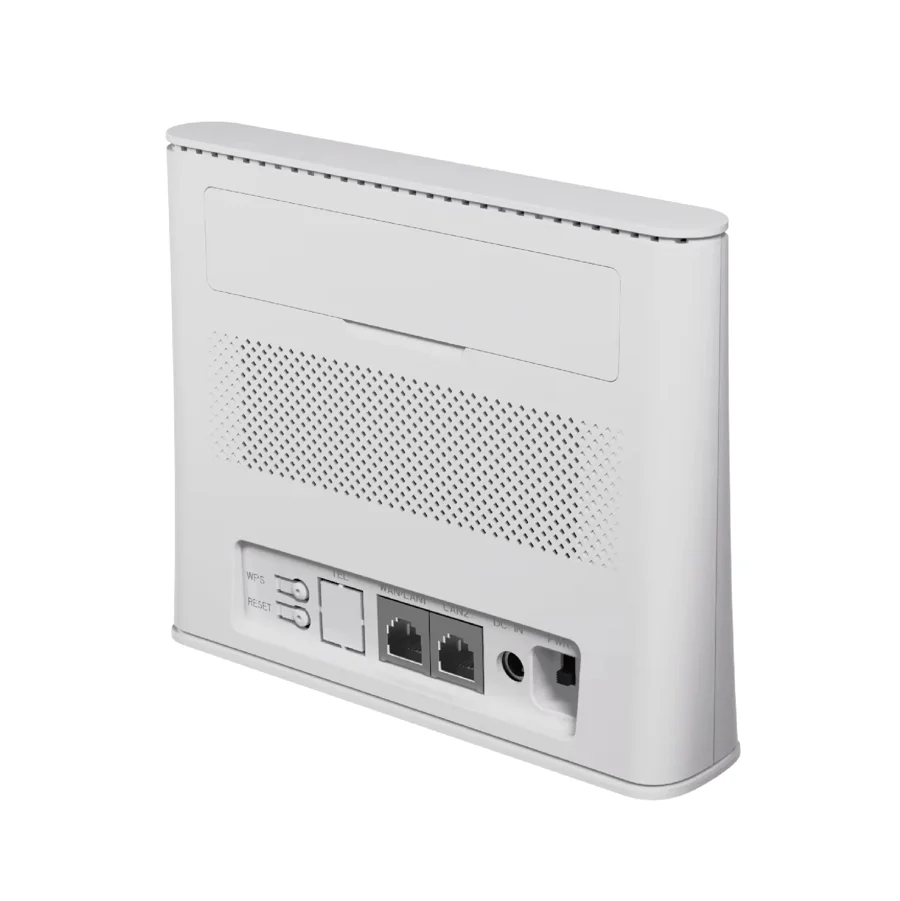

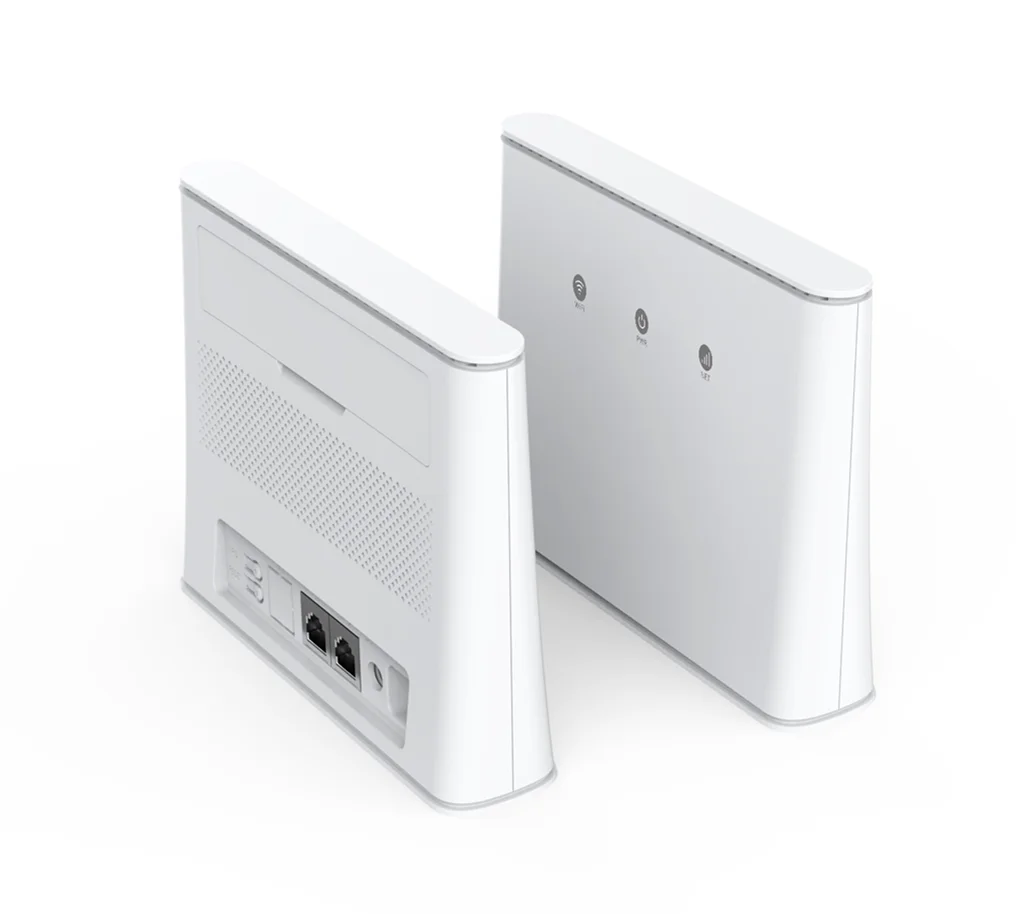

Details Images
◆ Power supply. DC +12V/1.5A .
◆ Supports 2*2 MIMO or 4*4 MIMO internal antenna or external antenna.
◆ Supports 2*2 MIMO or 4*4 MIMO internal antenna or external antenna.
◆ Wireless Mobile Broadband 3G / 4G LTE connection. Support 3G/4G LTE global frequency bands.
◆ System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
◆ System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
◆ Supports Multiple VPN tunnels for data encryption .

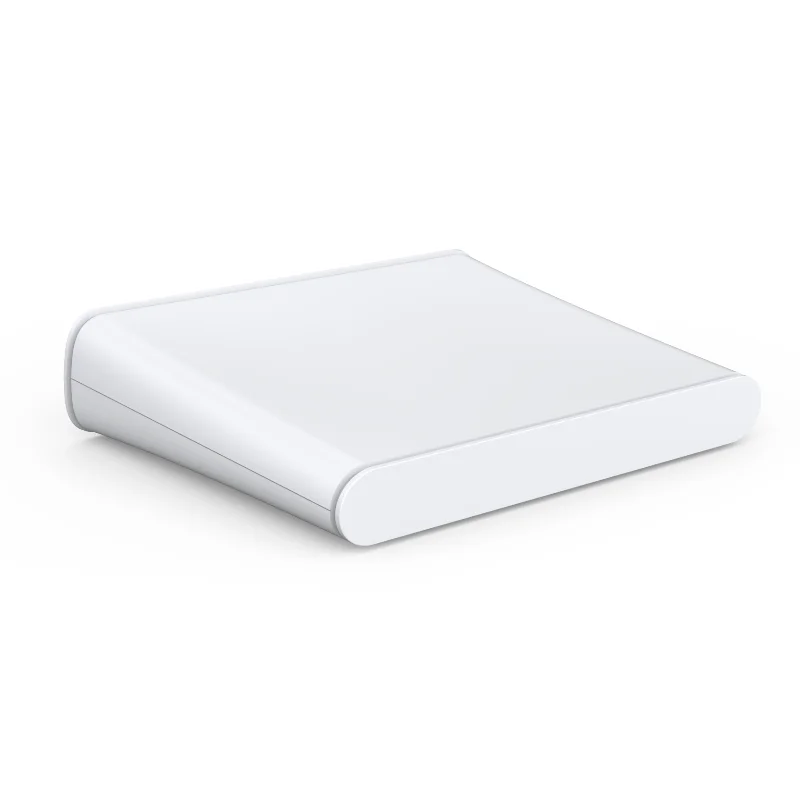

◆ Simple and beautiful, fashionable shell.
◆ Simple and beautiful, fashionable shell.

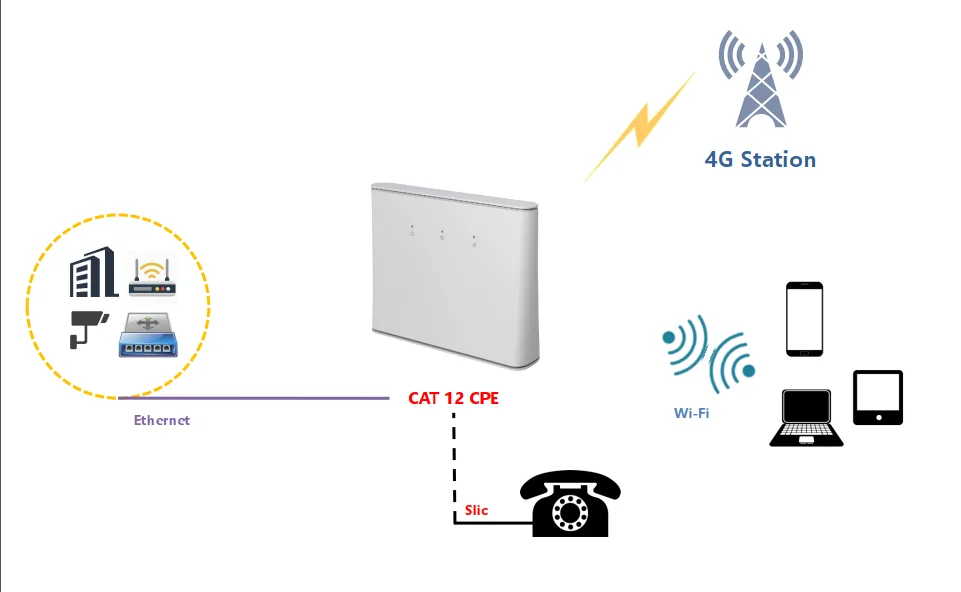

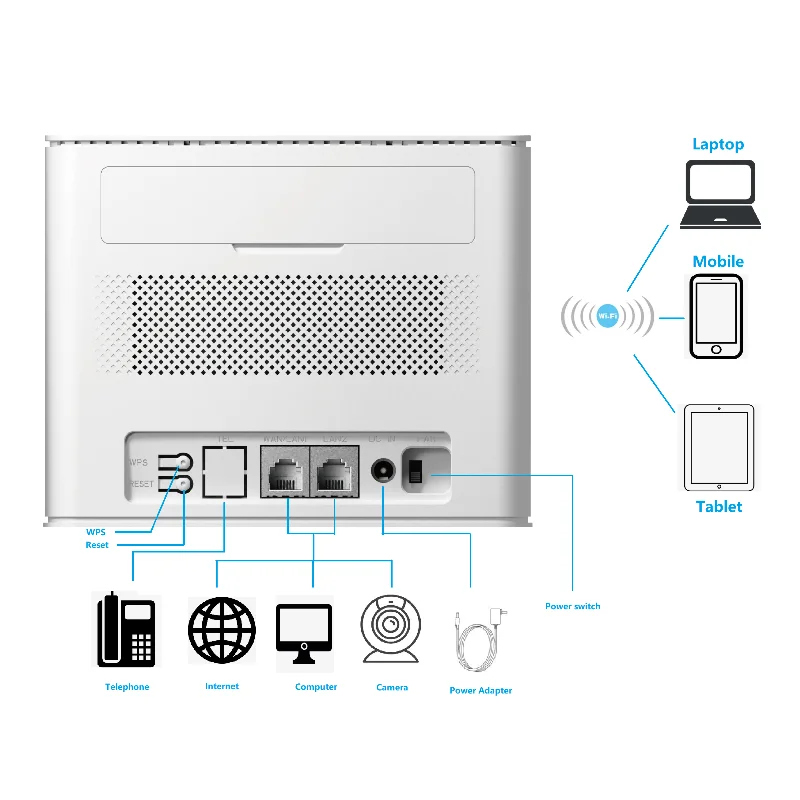

Product Usage
Product usage introduction
产品使用方式介绍
产品使用方式介绍
Easy to use and easy maintenance
◆ User friendly web interface for user interaction.
◆ Supports Remote Management Platform.
◆ Supports local web UI and remote FOTA update firmware.
◆ User friendly web interface for user interaction.
◆ Supports Remote Management Platform.
◆ Supports local web UI and remote FOTA update firmware.
Description of product use effect产品使用效果说明
Operating system
◆ Built-in OpenWRT 18.06 operating system. Support user secondary application development.
◆ Built-in OpenWRT 18.06 operating system. Support user secondary application development.
