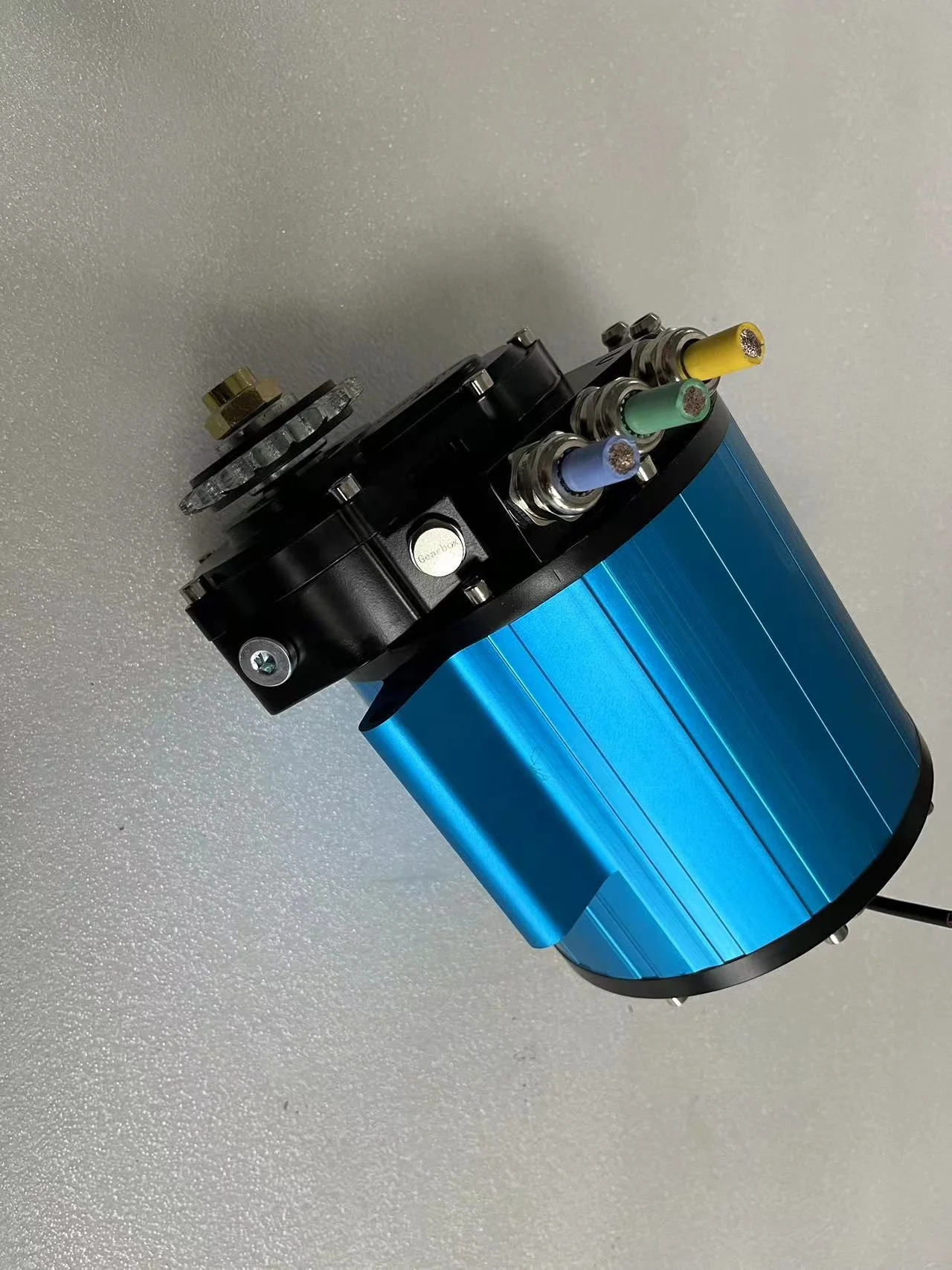

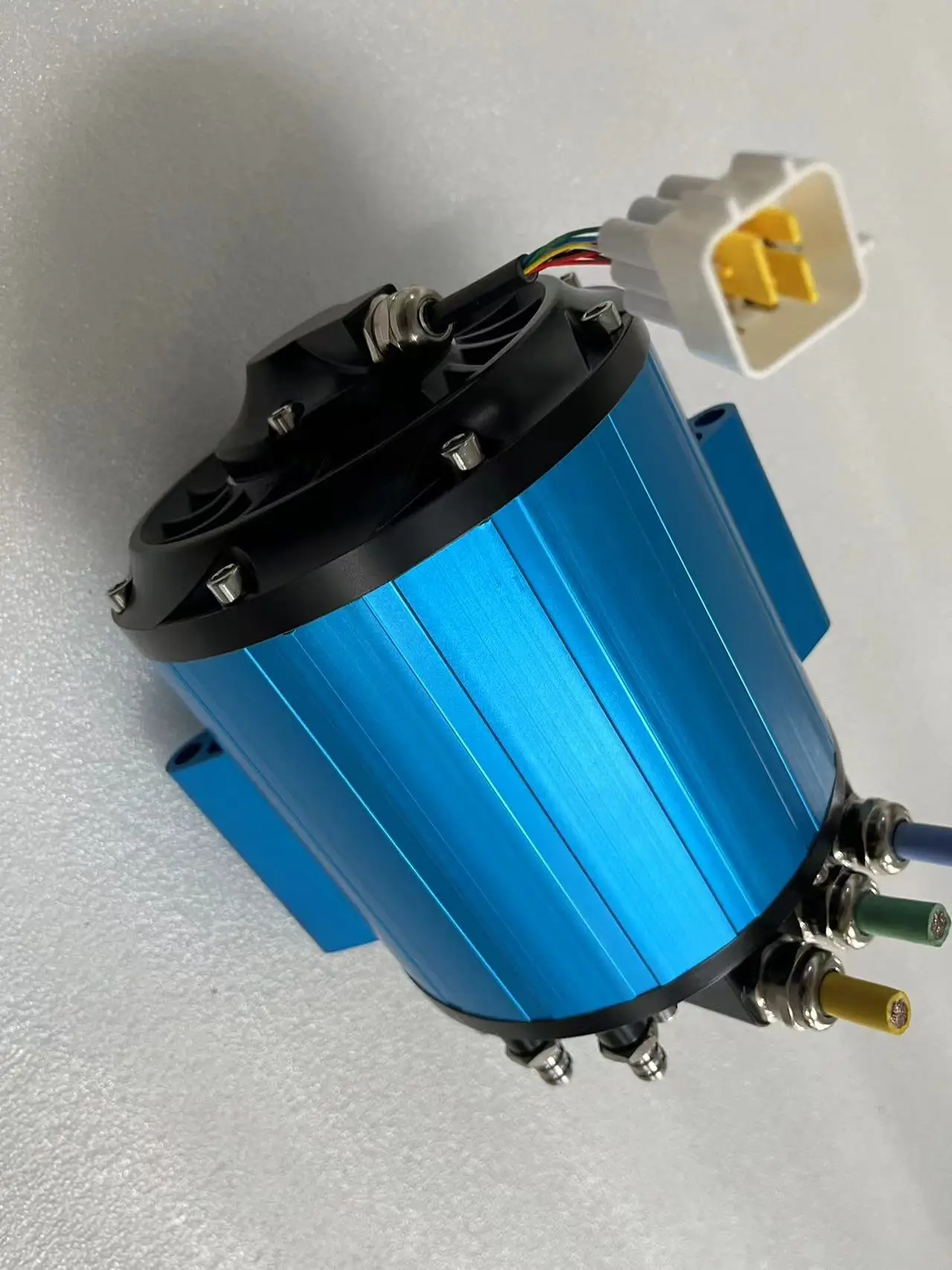

Water cooling Motor mid motor 15KW Dirty bike
- Category: >>>
- Supplier: WUXI SOTION TECHNOLOGY CO. LTD
Share on (1600877700108):
Product Overview
Description
Product Description
Specification
Product Model | FW07 |
Rated Voltage | DC72V |
Rated Power | 15KW |
Peak Power | 30KW |
Rated Torque | 21N.m |
Peak Torque | 70N.m&1000A |
Rated RPM | 6900RPM |
Peak Speed | 10000RPM |
MAX Efficiency | 94% |
Gear Reduce Ratio | 2.52 |
Pole Pairs Number | 5 |
Motor Position Sensor | Encoder |
Temperature Sensor | PT1000 |
Protection Class | IP67 |
Insulation Class | F |
Cooling Method | Water Cooling (10L/min) |

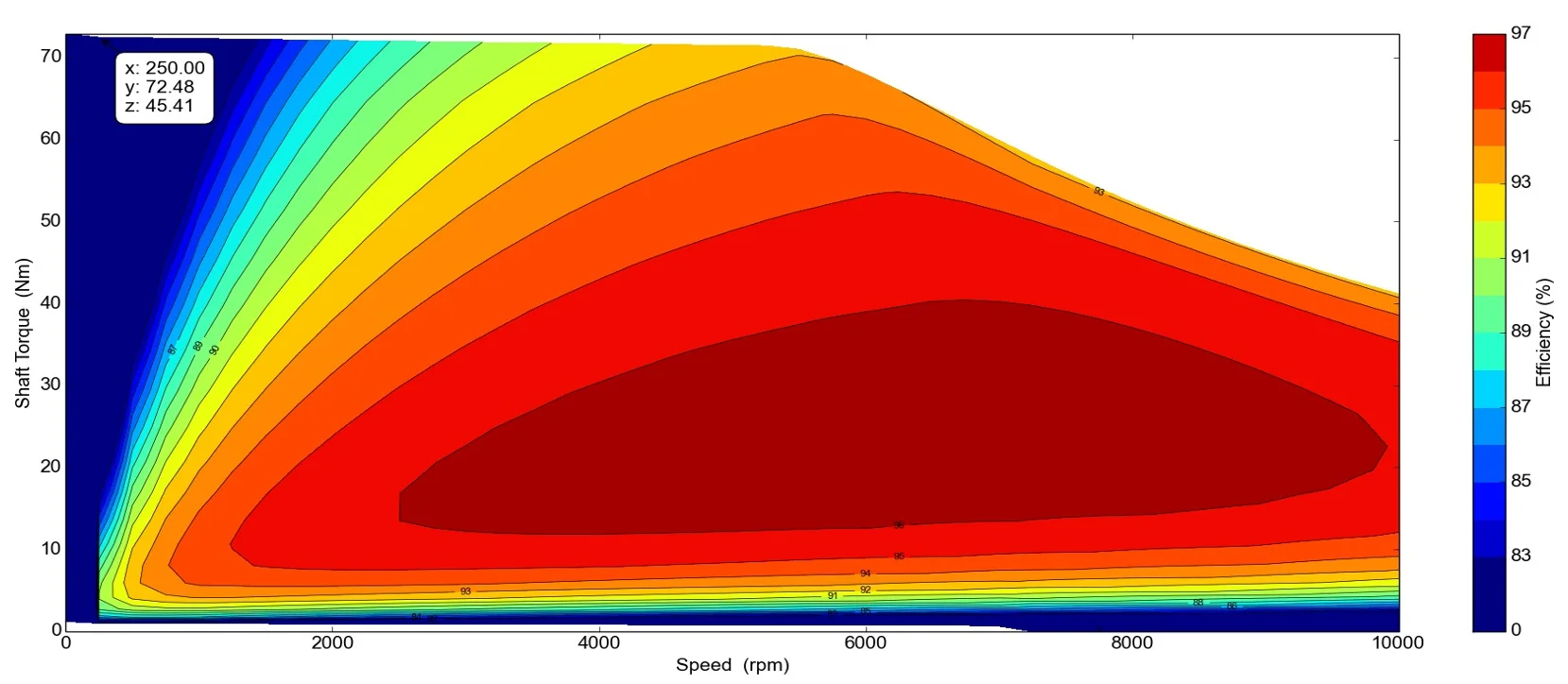

MAP
1.Testing phase peak current is 1000A

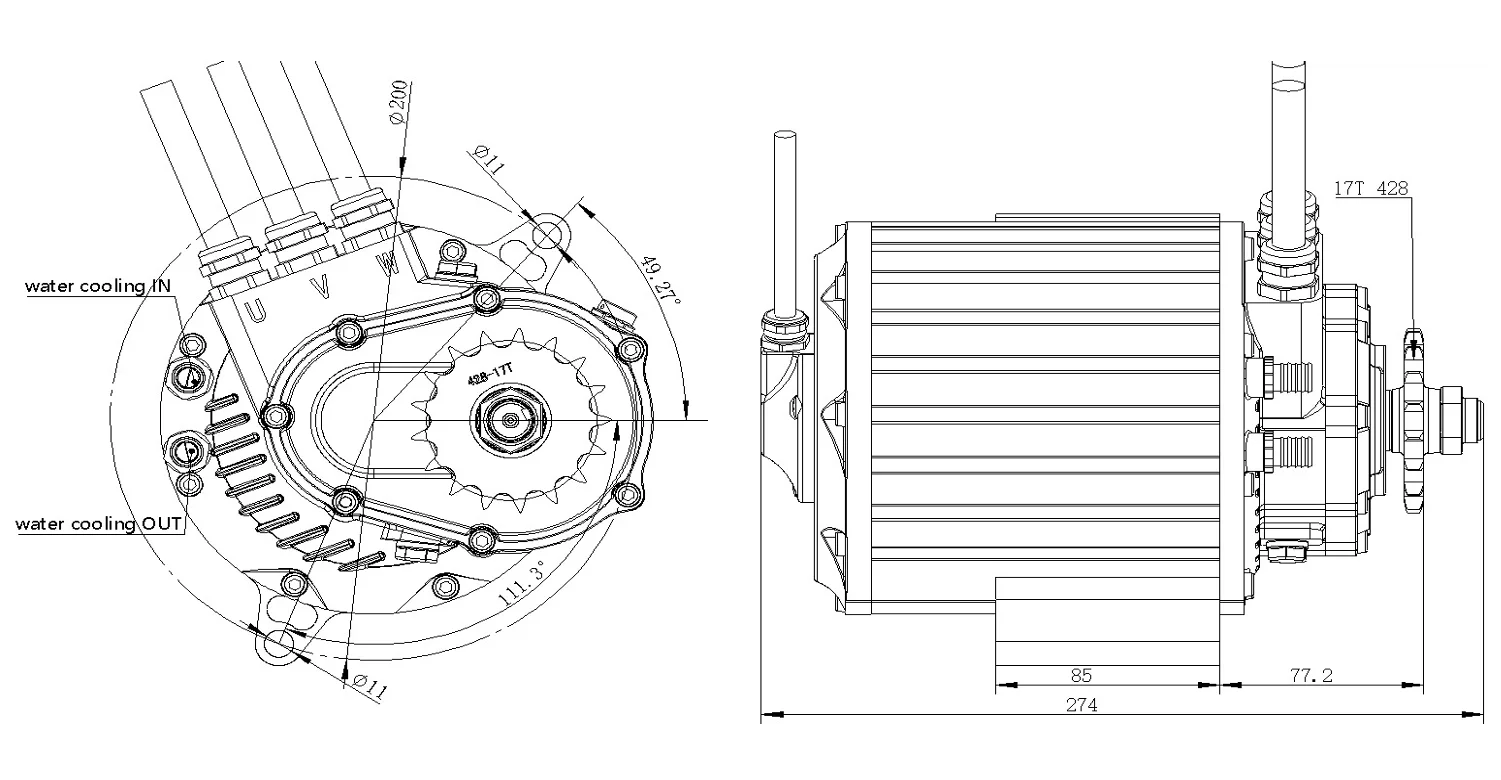

Installation Instructions
Attention
1. * When the motor is installed, please keep the exhaust upward to prevent the leakage of gear oil.
2. * Factory configuration mute sprocket, model 428,17 teeth.
3 * The gear box of the motor is not refueled before delivery, so it needs to be refueled by itself before customer test. The type ofoil is GL-5 85W/90, and the filling volume is 250-280ML
FAQ
Powerful mid permanent magnet synchronous motor, suitable for all kinds of electric motorcycle, off-road vehicle, ATV, kart ect...
Packing & Delivery
* The product is packaged in foam and carton
