3HP VILLO Beveling Machines Heavy Duty Industrial Vacuum Cleaner Manufacturers Price
- Category: >>>
- Supplier: Dongguan Villo Technology Inc.
Share on (1600877762980):
Product Overview
Description

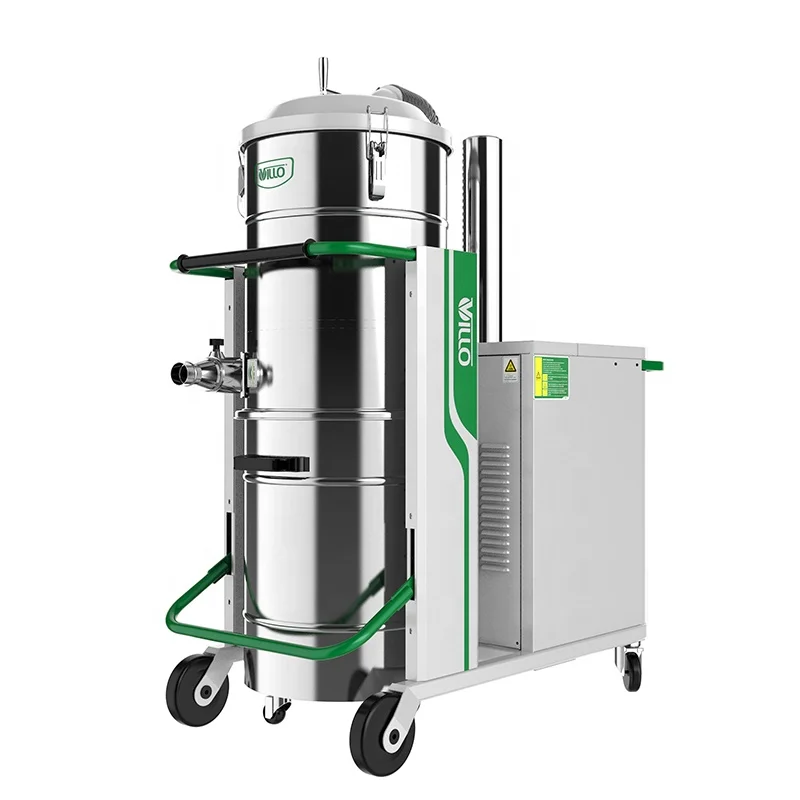

VZS Series Heavy Duty Industrial Vacuum Cleaners
Product description
VZ/VZS Series are the Heavy Duty Industrial Vacuum Cleaners with high pressure, very ideal for sucking/absorbing large mixed particles or chips in continuous applications or installed to centralized extraction units.
Applications
* Suitable for three phase working conditions.
* Suitable for continuous working and heavy dust with fine dust condition.
* Industries: Metal Processing (grinding, cutting, drilling, sandblasting, etc.)
* PCB (cutting, drilling, routing, etc.)
* Machine Cleaning
VZ/VZS Series are the Heavy Duty Industrial Vacuum Cleaners with high pressure, very ideal for sucking/absorbing large mixed particles or chips in continuous applications or installed to centralized extraction units.
Applications
* Suitable for three phase working conditions.
* Suitable for continuous working and heavy dust with fine dust condition.
* Industries: Metal Processing (grinding, cutting, drilling, sandblasting, etc.)
* PCB (cutting, drilling, routing, etc.)
* Machine Cleaning
Features
* Customizable voltage
* Power less than or equal to 2.2 kilowatts can be made into single phase.* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Equipped with filter cleaning device for easy filter cleaning.
* Maintenance free powerful turbine motor can work continuously for 24 hours.
* Pressure gauge to detect filter clogging.
* Easy dust container cleaning
Technology Parameters
VZ-22 | VZ-30 | VZ-40 | VZ-55 | VZ-75 | |||||||
VZS-22 | VZS-30 | VZS-40 | VZS-55 | VZS-75 | |||||||
Voltage(V / Hz) | 380 / 50 | ||||||||||
Power (kW) / (HP) | 2.2/3.0 | 3.0/4.0 | 4.0/5.5 | 5.5/7.5 | 7.5/10.0 | ||||||
Starting current (A) | 30 | 40 | 60 | 85 | 100 | ||||||
Rated current (A) | 5.6 | 7.2 | 9 | 12.9 | 16.7 | ||||||
Max vacuum (mmH₂O) / (kPa) | 2000 / 19.6 | 2100/20.6 | 2200/21.6 | 2200/21.6 | 2300/22.6 | ||||||
Noise dB (A) | 72±2 | 74±2 | 75±2 | 76±2 | 78±2 | ||||||
Dia. air inlet (mm) / (in) | Ø 50 / 2 | ||||||||||
(m²)/(sq.ft) | VZ series | 1.5 / 16.1 | |||||||||
VZS series | 3.0 / 32.3 | ||||||||||
Filter efficiency | >99% | ||||||||||
Capacity of collection barrel (L) / (gal) | 100 / 26.4 | 100 / 26.4 | |||||||||
Dimension [L*W*H] (mm) / (in) | 1360*670*1525 / 53.5*26.4*60 | ||||||||||
Weight(kg)/ (lb) | 132 / 291 | 140 / 308 | 148 / 326 | 171 / 377 | 174 / 384 | ||||||
Product Configuration
PTFE coated filter bag
Manual cleaning device
Pressure gauge

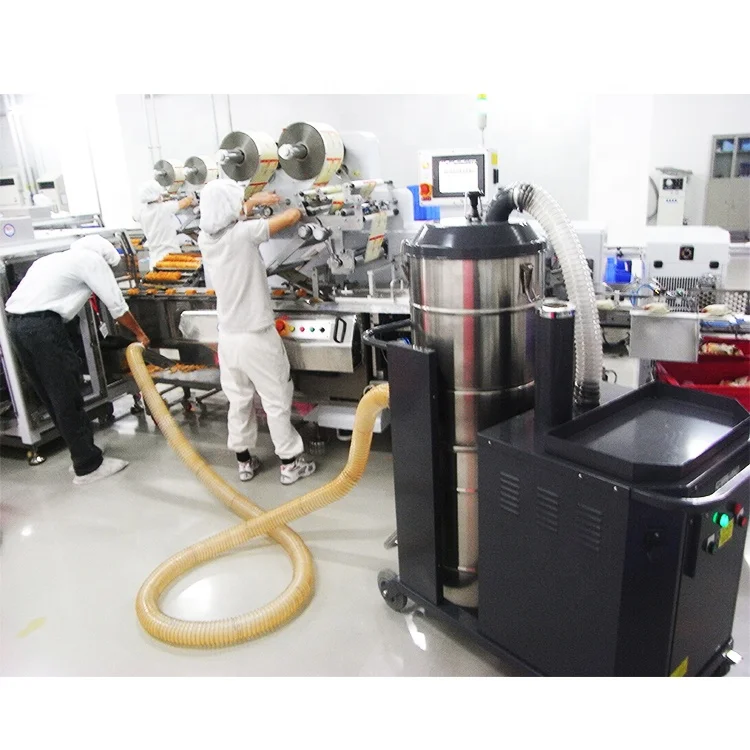

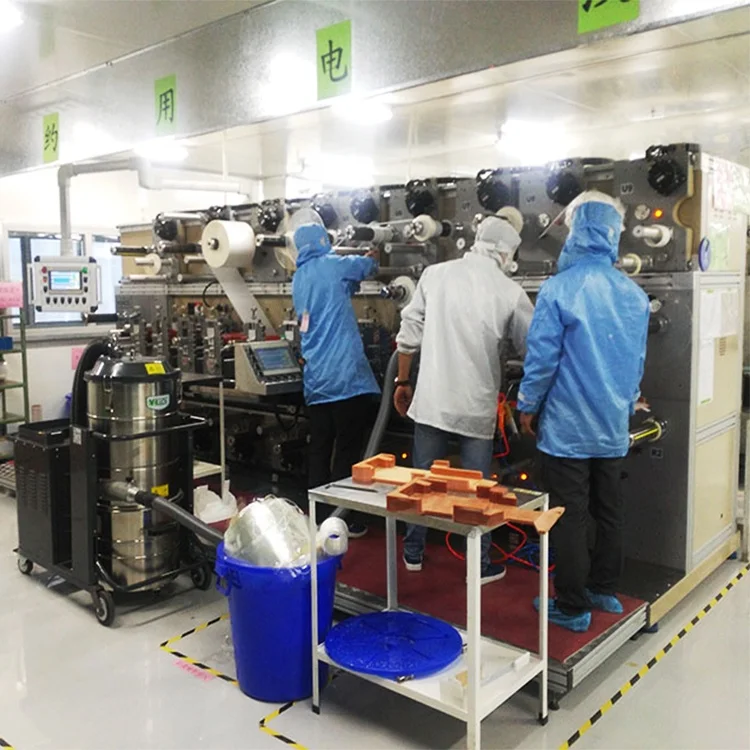

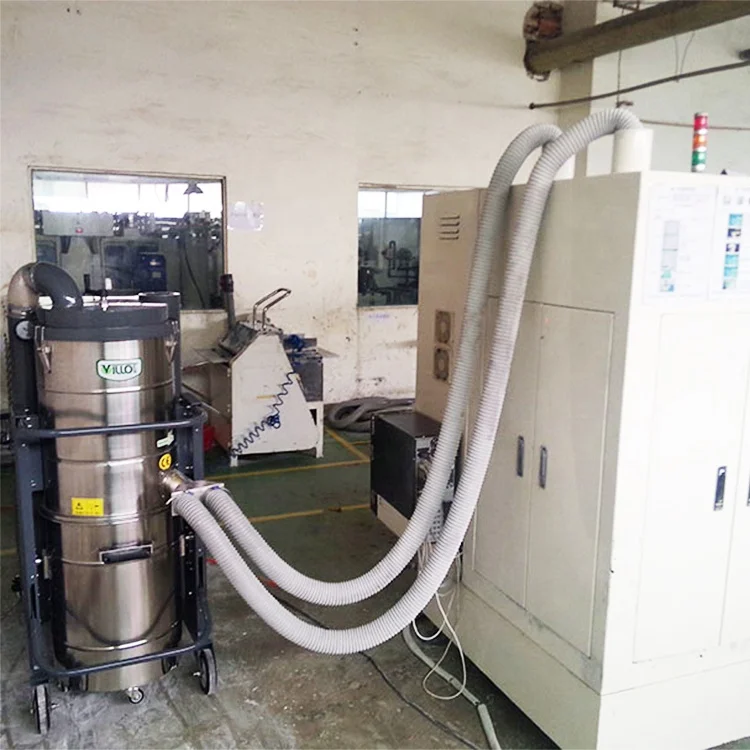

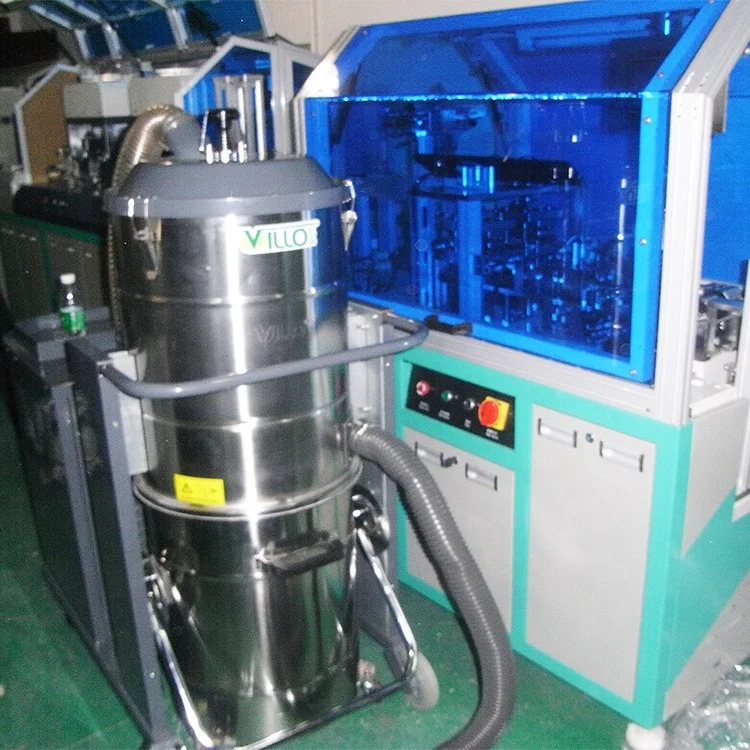

Successful Project
