DC 40GHz 2W Coaxial Fixed Attenuators Connector 2.92mm for Communication Systems
DC-40GHz 2W Coaxial Fixed Attenuators Connector 2.92mm for Communication Systems
DC-40GHz 2W Coaxial Fixed Attenuators Connector 2.92mm for Communication Systems
DC-40GHz 2W Coaxial Fixed Attenuators Connector 2.92mm for Communication Systems
DC-40GHz 2W Coaxial Fixed Attenuators Connector 2.92mm for Communication Systems
DC-40GHz 2W Coaxial Fixed Attenuators Connector 2.92mm for Communication Systems
DC-40GHz 2W Coaxial Fixed Attenuators Connector 2.92mm for Communication Systems

DC 40GHz 2W Coaxial Fixed Attenuators Connector 2.92mm for Communication Systems

Share on (1600877823740):


Price:$1.00

Quantity:


Product Overview

Description





Description:

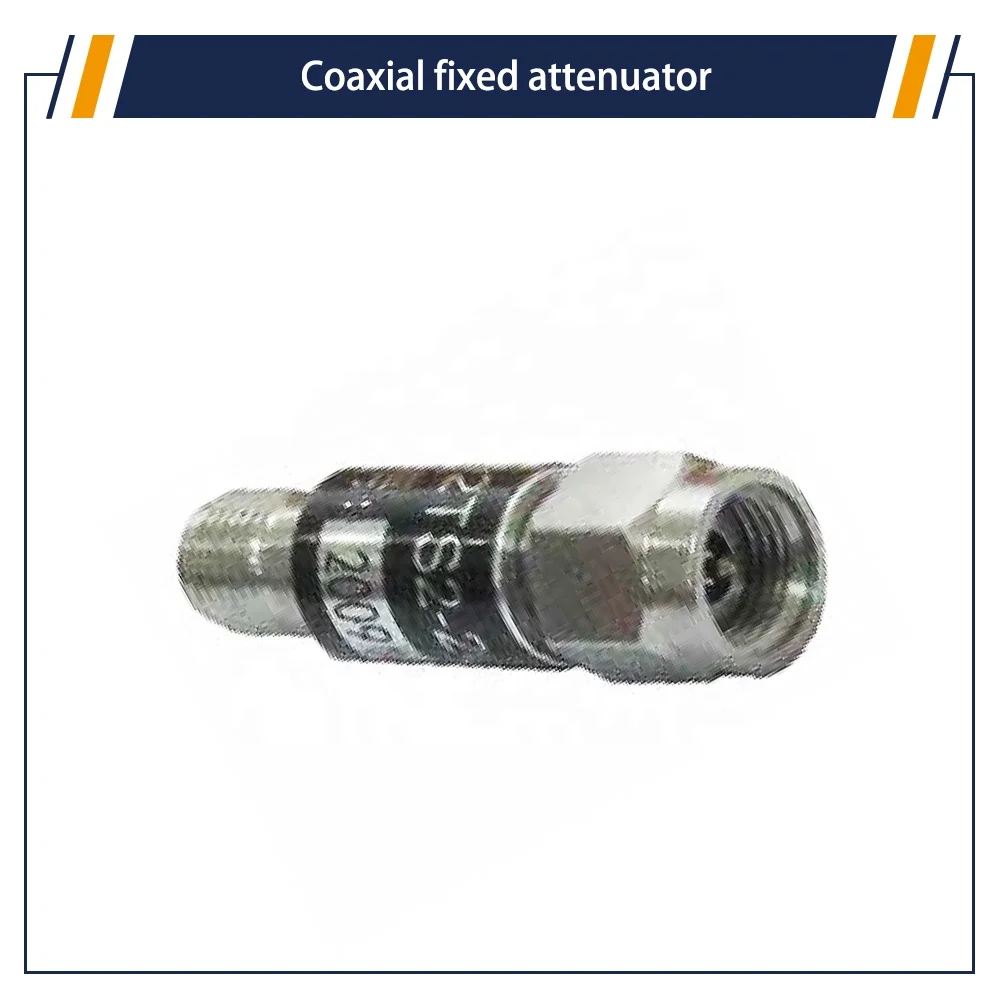

The coaxial fixed attenuator is suitable for any need to reduce the power level or circuit matching, can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be configured with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of
various RF microwave transmitters.

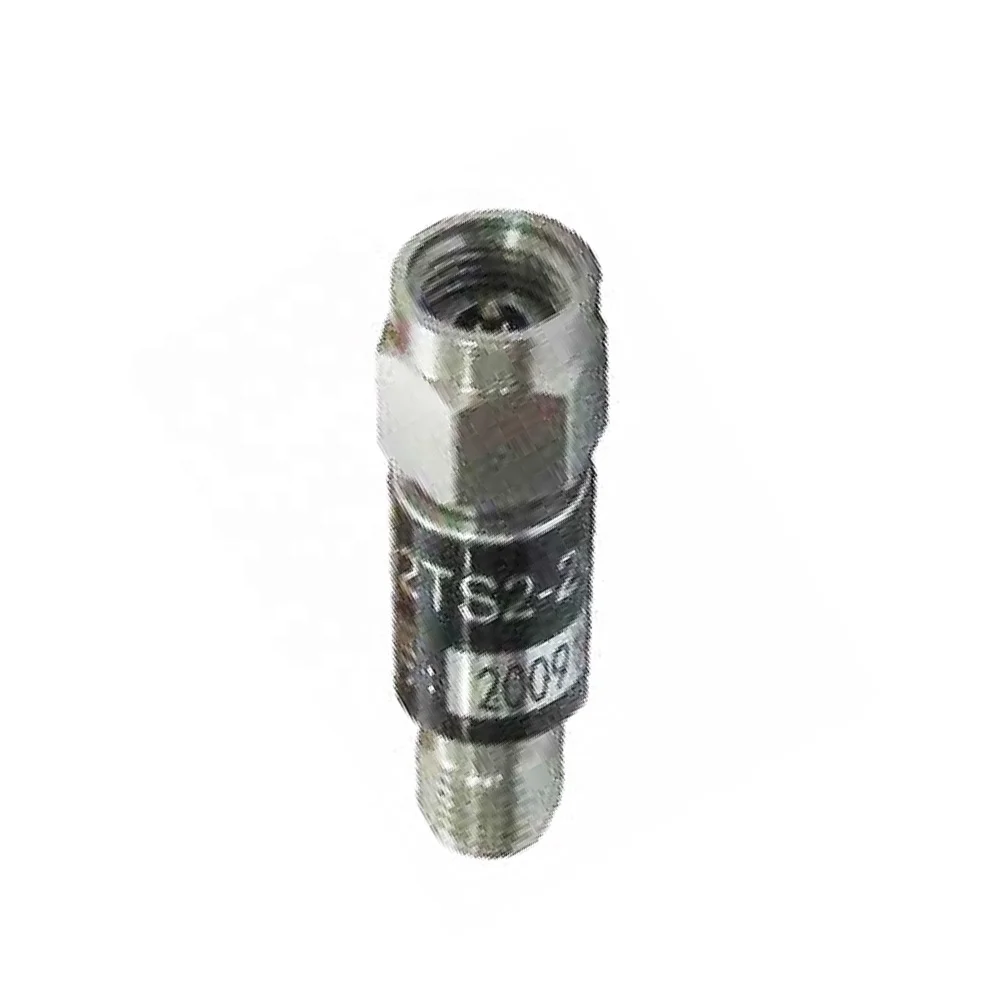

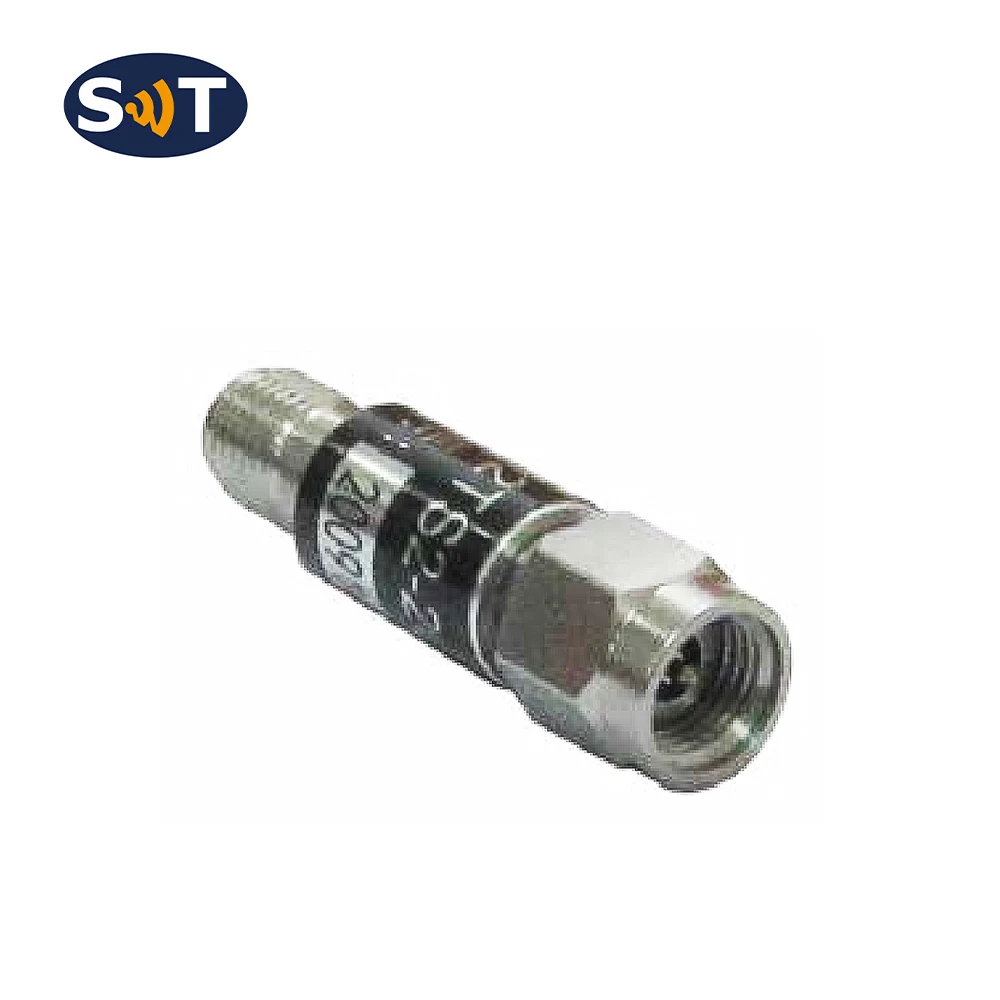

2.92TS2-40 coaxial fixed attenuator average power 2W, frequency range DC-40GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, flat attenuation value, strong anti-pulse and anti-burn ability.

MECHANICAL SPECIFICATIONS


Connector Housing
Stainless Steel
Stainless Steel
Inner positive conductor
Beryllium bronze gold plating
Beryllium bronze gold plating
Cathode conductor
Beryllium bronze gold plating
Beryllium bronze gold plating
Cavity
Aluminum casing
Aluminum casing
Temperature range
-55°C～+125°C
-55°C～+125°C

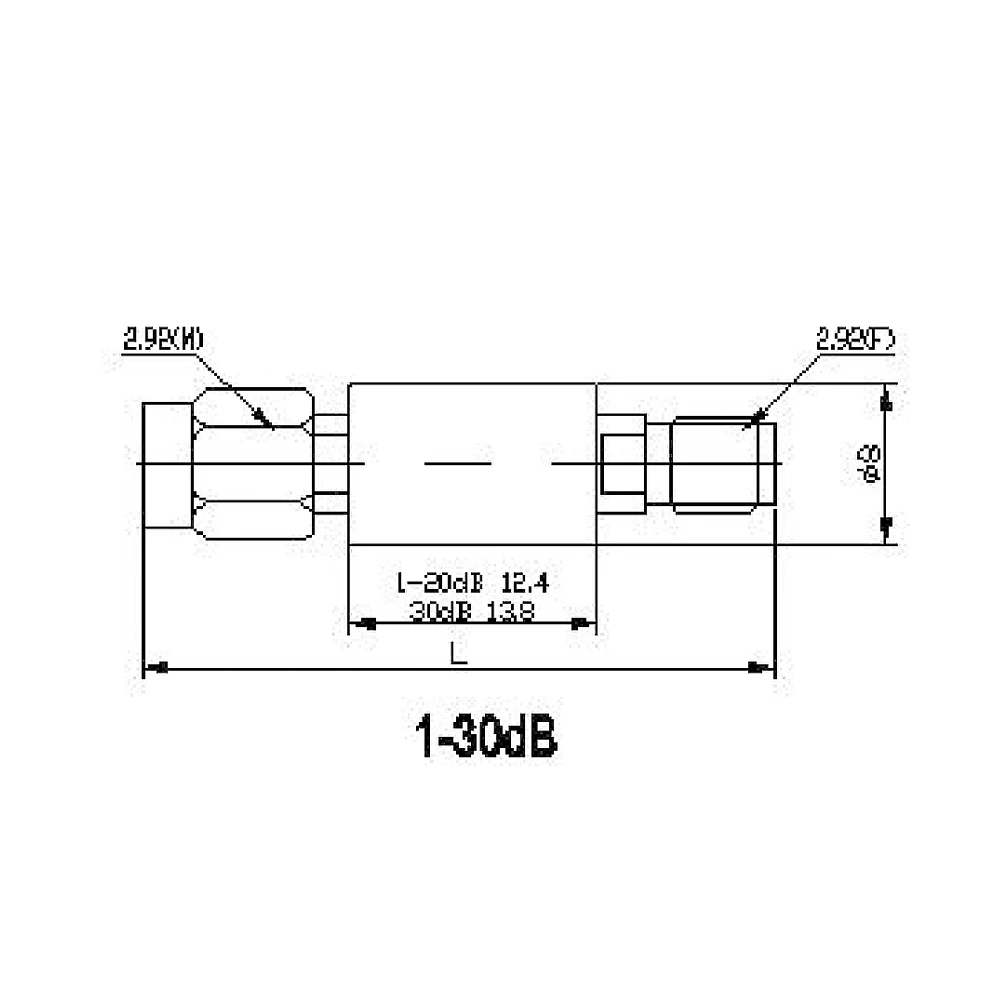

Overall dimensions

Ø8×L mm
≤20dB L=31.4
≥30dB L=33

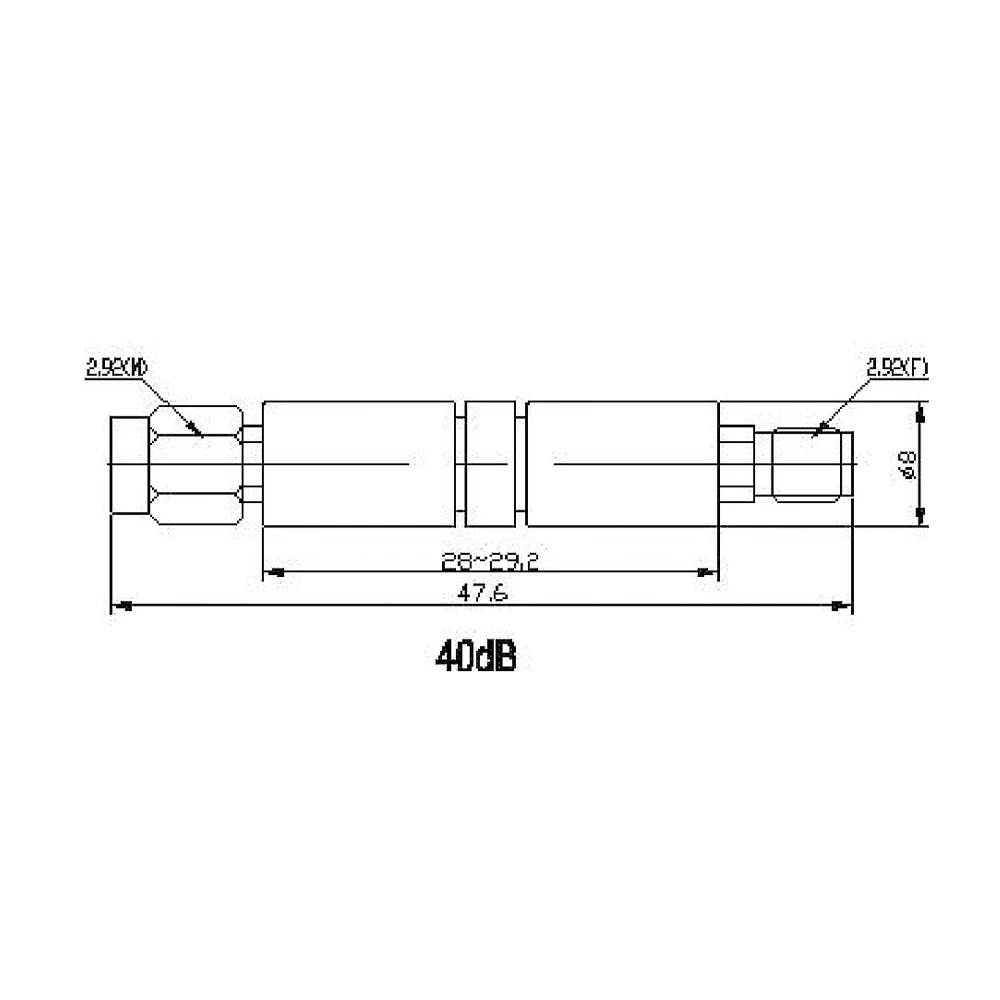

40dB L=47.6
Weight
≤30dB:5g; 40dB:10g
≤30dB:5g; 40dB:10g



Electrical performance:


Type
Frequency (GHz)
Attenuation value and accuracy(dB)
Max VSWR
1-9
10-19
20-30
40
2.92TS2-XX-26.5
DC-26.5
±0.8
±0.8
-0.8/+1.0
±1.0
1.25
2.92TS2-XX-32
DC-32
±0.8
±0.8
±1.0
±1.5
1.30
2.92TS2-XX-40
DC-40
±1.0
±1.0
-1.0/+1.5
-1.0/+2.0
1.35
1.40(40dB)


Note: XX indicates the attenuation

Nominal impedance: 50Ω
Average power: 2W corresponds to an ambient temperature of 25 ° C, and when the temperature rises to 125 ° C, the power linearly decreases to 0.5W.
Peak power: 0.2KW (5μs pulse width, 1% load cycle)
Connector form: 2.92mm

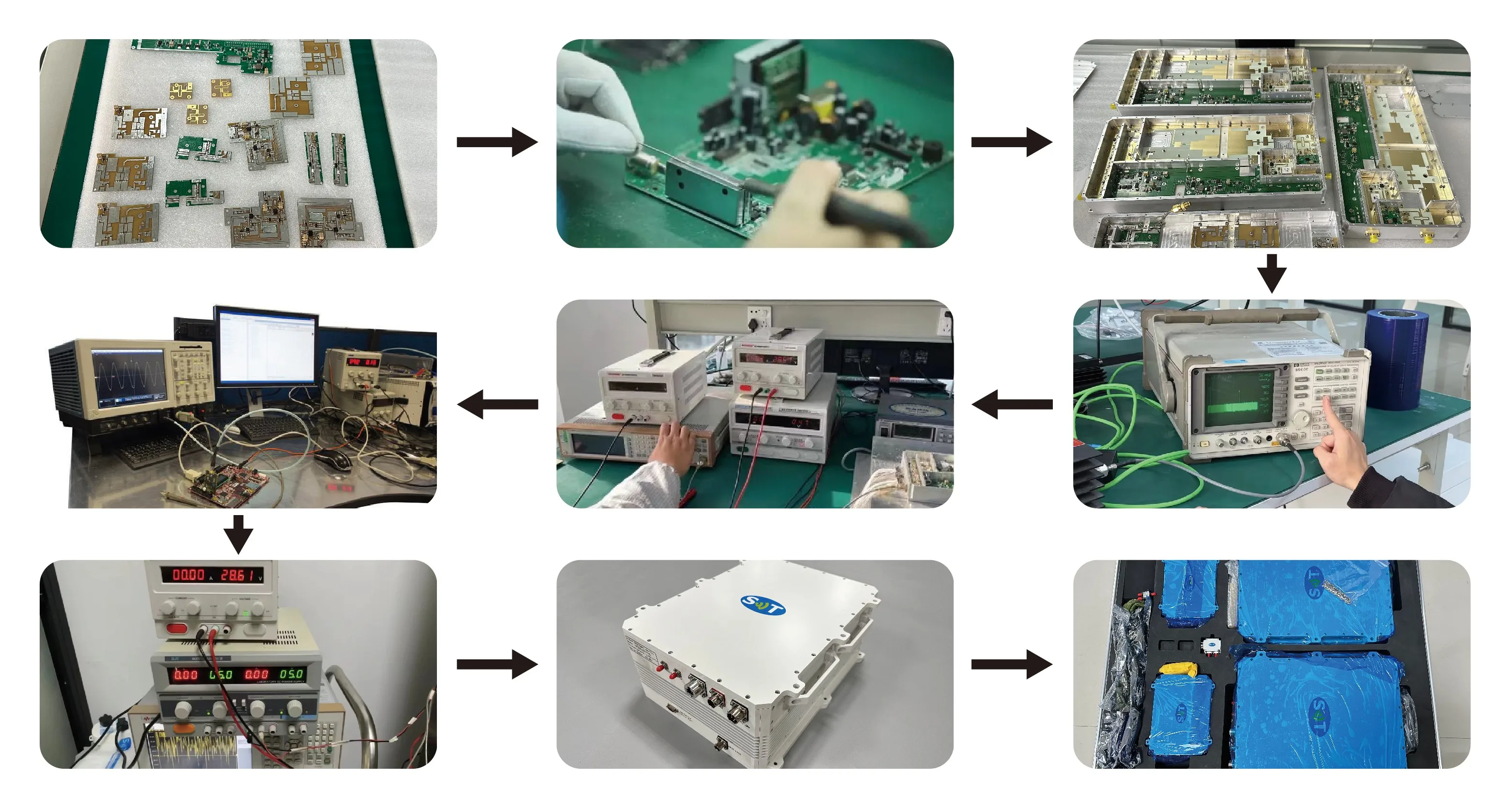

Nanjing Shinewave Technology Co.,Ltd. is established in year 2008,and it's a company specialized in the research and development, production and sales of RF microwave active,passive components and subsystems. Based on the academic research team of Nanjing University of Aeronautics and Astronautics, our company has established an innovative research and development team with doctor and master degree talents, and constantly attracts outstanding talents in the industry and outstanding students from famous universities to expand the team.

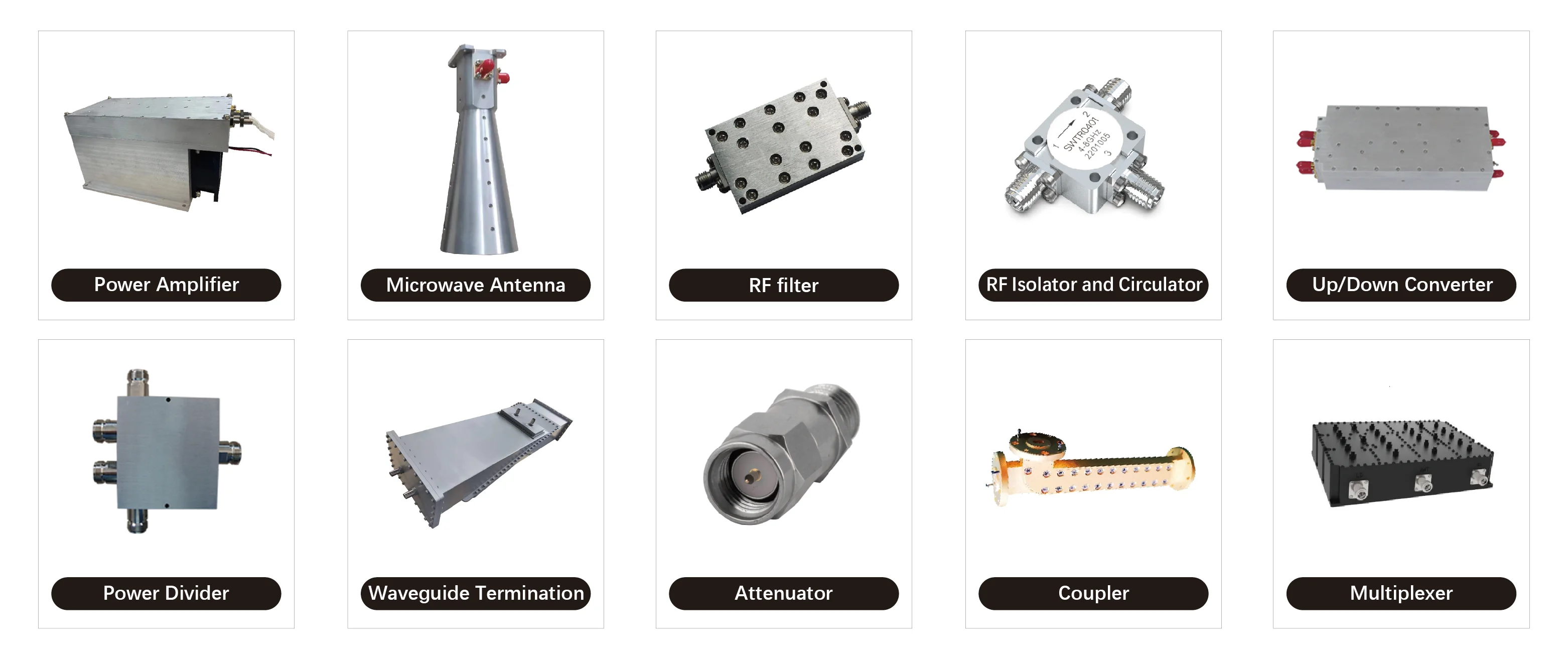

Our company has about 20 authorized invention patents in active,passive device phase shifter reconfigurable antenna, etc. The application fields are related to radar electronic countermeasures, aerospace, navigation and other military fields. At the same time, it is also widely used in microwave communication, mobile communication and other civil market products, covering RF microwave devices components and antennas, among which, active products include high power solid-state microwave power amplifier,
low noise amplifier transceiver module, up and down frequency converter, frequency source, etc.Passive products include microwave filter,
duplexer power divider, coupler, power synthesizer, etc. The antenna products are mainly based on various high gain horn antennas, which covers VHF, UHF, L-band, S-band, C-band, X-band, Ku band and so on.

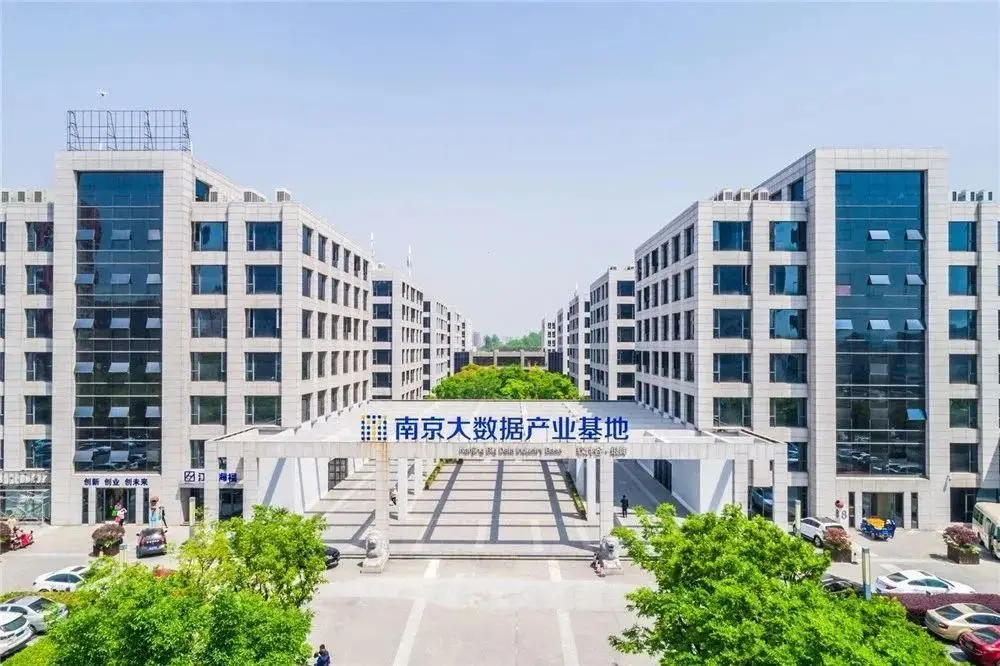

Our company is located in the beautiful ancient capital of six Dynasties, in Nanjing Yuhuatai District Big Data Industrial Base. To meet the special needs of customers and higher index requirements, in addition to the standard products, we also provide customers with customized products development methods, dedicated to provide customers with fast and high-quality products and
services.

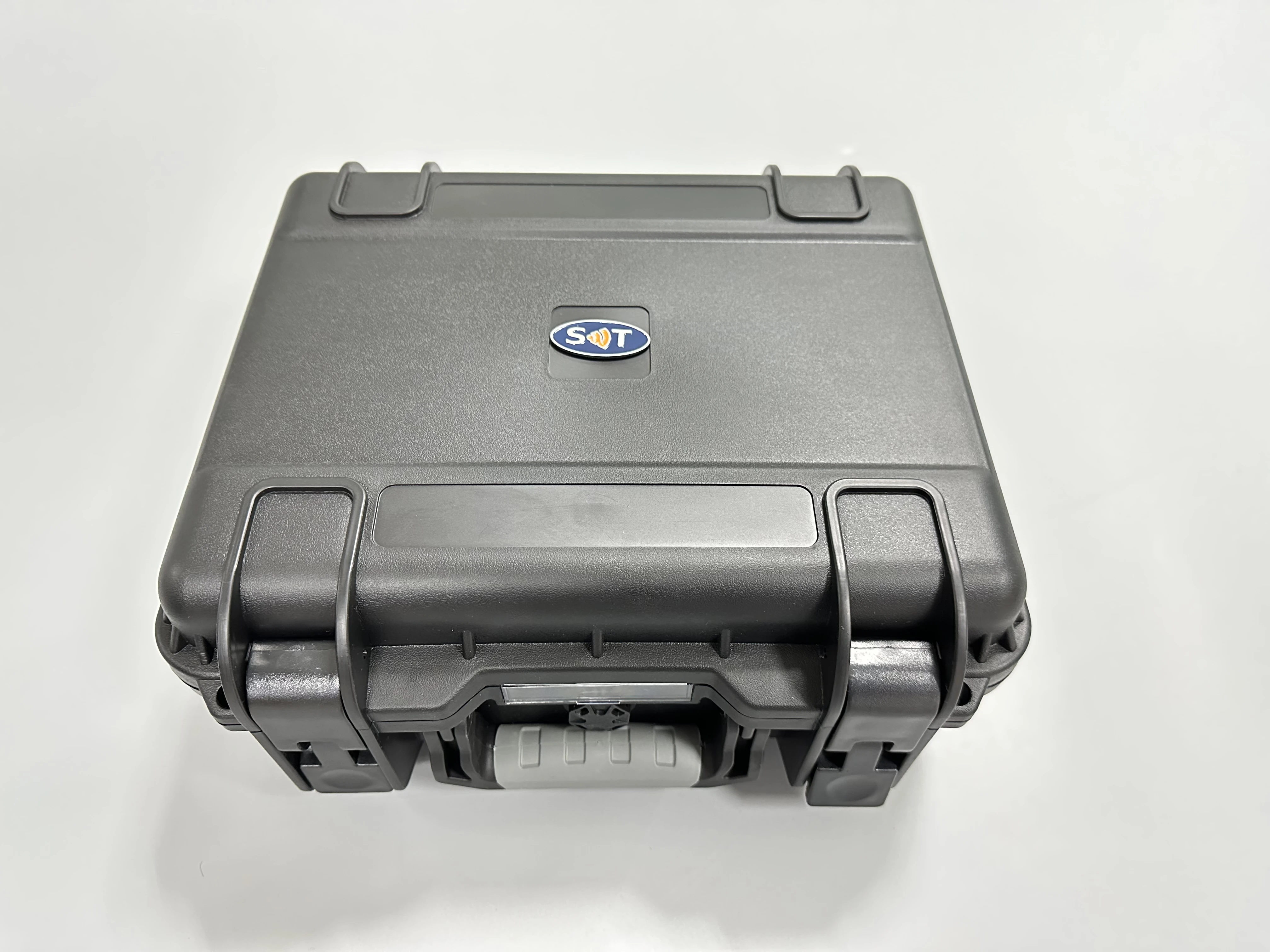

Packaging Details:

Default packaging, Normally carton, the packaging may be different if there is different production batch.

Port of Delivery: Shanghai






FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Sample ususally take within 3 working days.

Q3. Do you have any MOQ (minimum order quality)limit?
A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.

Q4. How to proceed an order?
A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number,
sometimes need email. Then we can draft the order and it will have a alibaba paying link.

Q5. After paid, what info of the supplier provided?
A: Tracking number

Q6: Do you offer guarantee and after-service for the products?
A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate.
