Heavy Duty Big Bore Cnc Lathe For Sale CK6150B 3 On Promotion
- Category: >>>
- Supplier: Taian Haishu Machinery Co. Ltd.
Share on (1600877891332):
Product Overview
Description

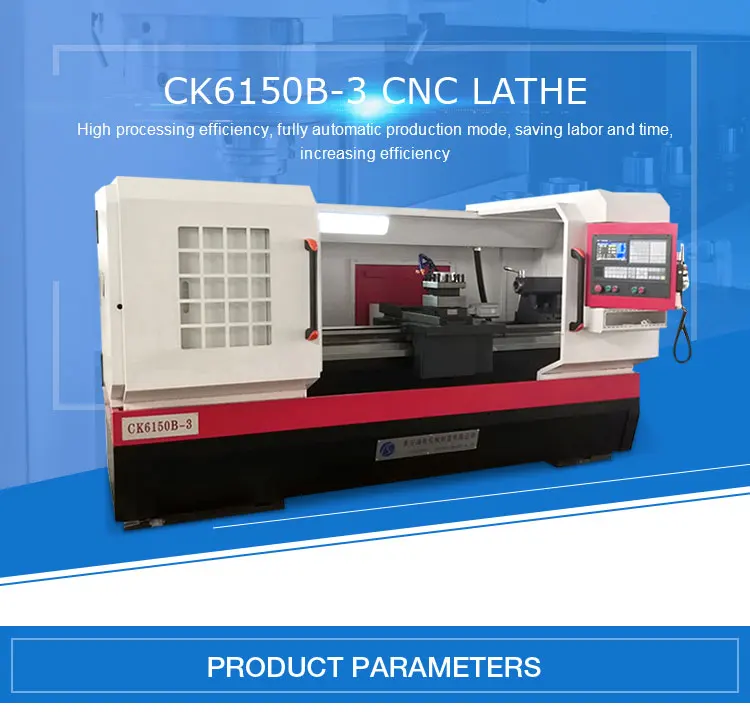

Heavy Duty Big Bore Cnc Lathe For Sale CK6150B-3 On Promotion
items | parameters |
Maximum workpiece swing diameter over bed | Φ500mm |
slide the maximum workpiece swing diameter | Φ290mm |
Maximum length of workpiece | 750/1000/1500mm |

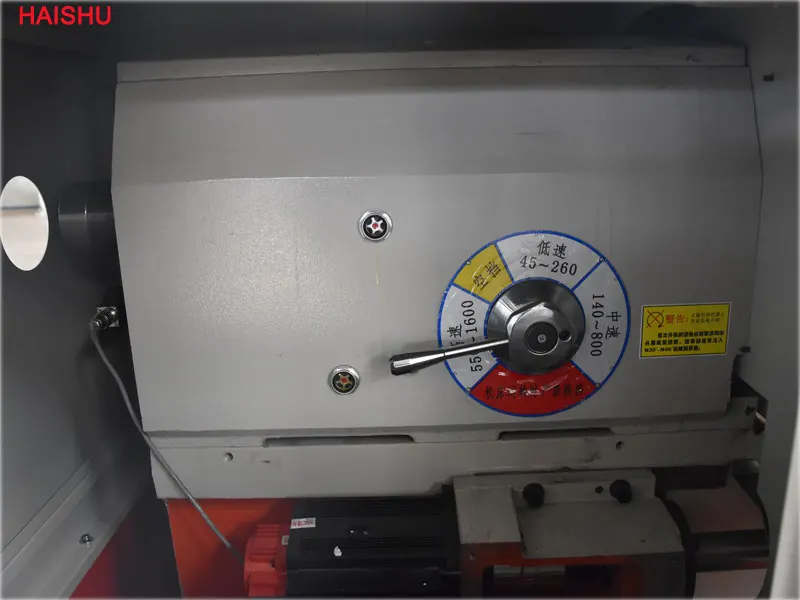

Range of spindle speeds | 20-100;100-550;400-1600rpm |
Spindle bore diameter | Φ82mm |
Width of guide rails | 390mm |
The form of spindle head | 8-D |
Taper of spindle bore | 1:20 |

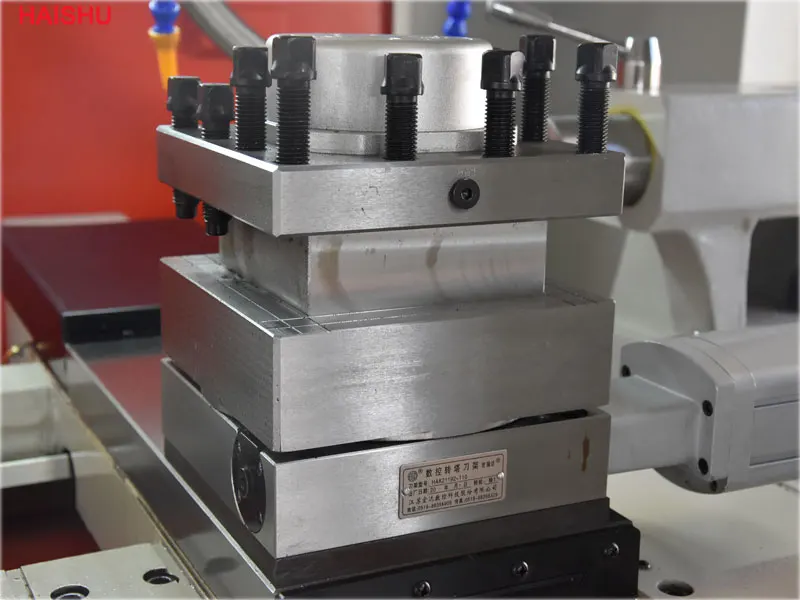

Turret Number of tool | 4/6/8/ or row of knife |
Tool cross-section specifications | 25mm×25mm |
Motor minimum setting unit | Z: 0.001mm , X: 0.001mm |
Arbor fast forward speed | Z: 10m/min, X: 8m/min |

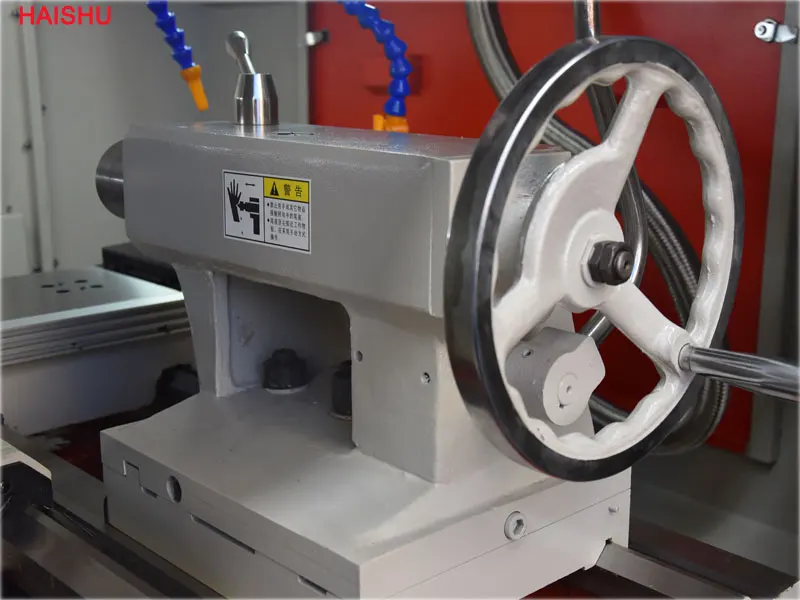

Tailstock quill taper | MT5 |
Tailstock quill maximum moving distance | 150mm |
Power of main motor | 7.5KW |
The lathe Dimensions (L × W × H) | 2600/2850/3350×1300×1750mm |
Lathe Net | 2600/2800/3200kg |
We have a professional R & D team, we can design the machine appearance and can also customize machine according to your requirements. The patent certificate of the machine we designed:
