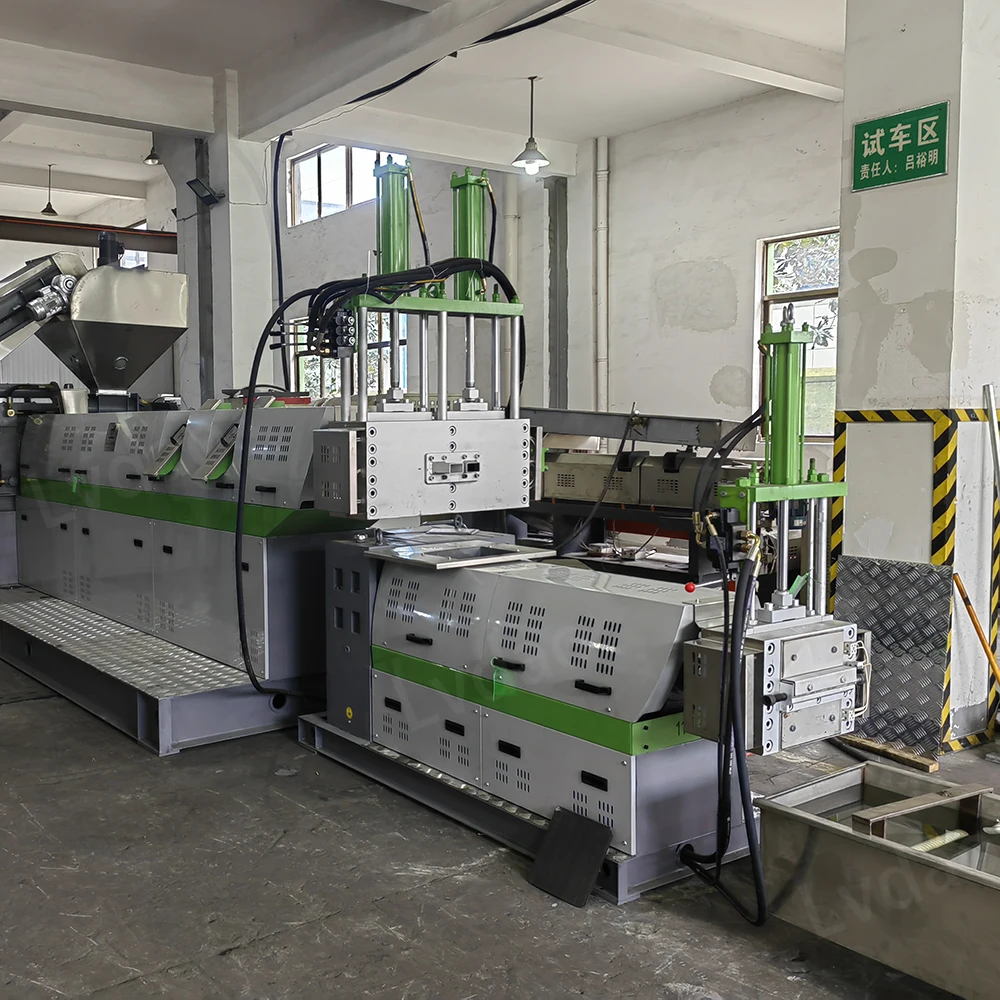

Lvdao plastic pe pp biodegradable Pellet pelletizer granulator granules recycling making extrusion machine
- Category: >>>
- Supplier: Yuyao Lvdao Plastic & Rubber Machinery Co. Ltd.
Share on (1600877936899):
Product Overview
Description
Product Overview

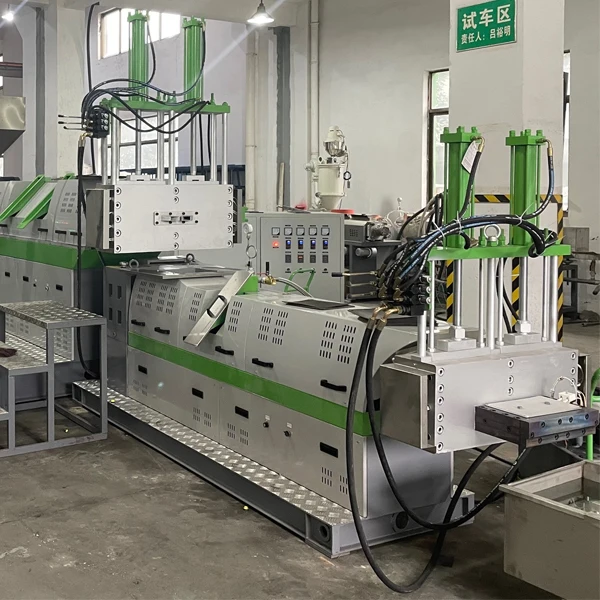

LDD series plastic pelletizing machine
Usage:
This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:
LDD series is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas.It can produce ample,consolidated and fine luster granules.
This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:
LDD series is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas.It can produce ample,consolidated and fine luster granules.
Products Description

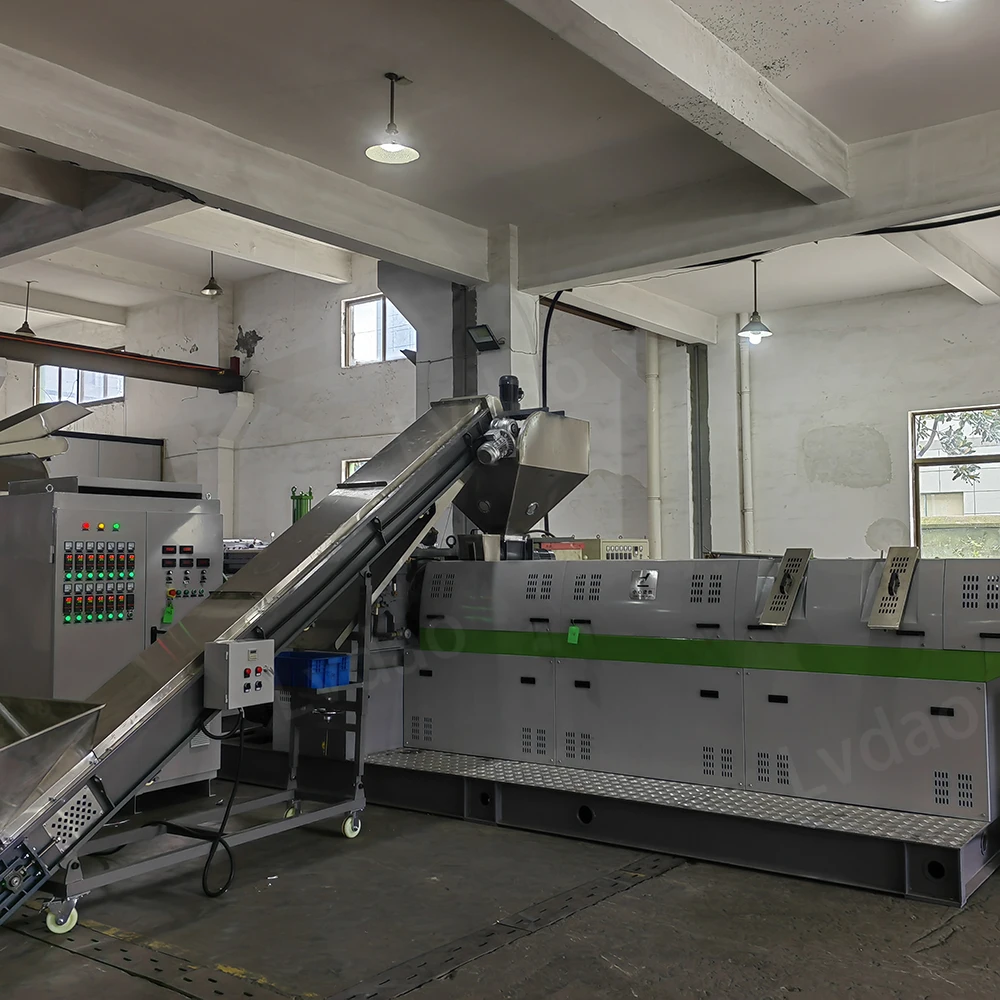

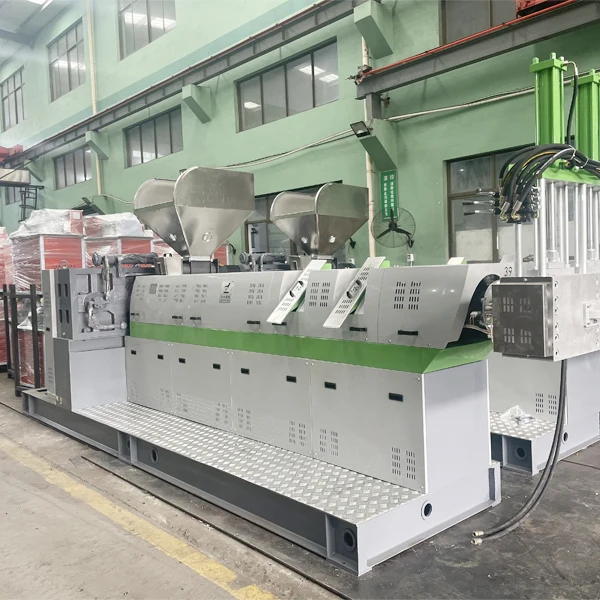

Main extruder :
Melting and mixing the plastic , extruding the material with filter.

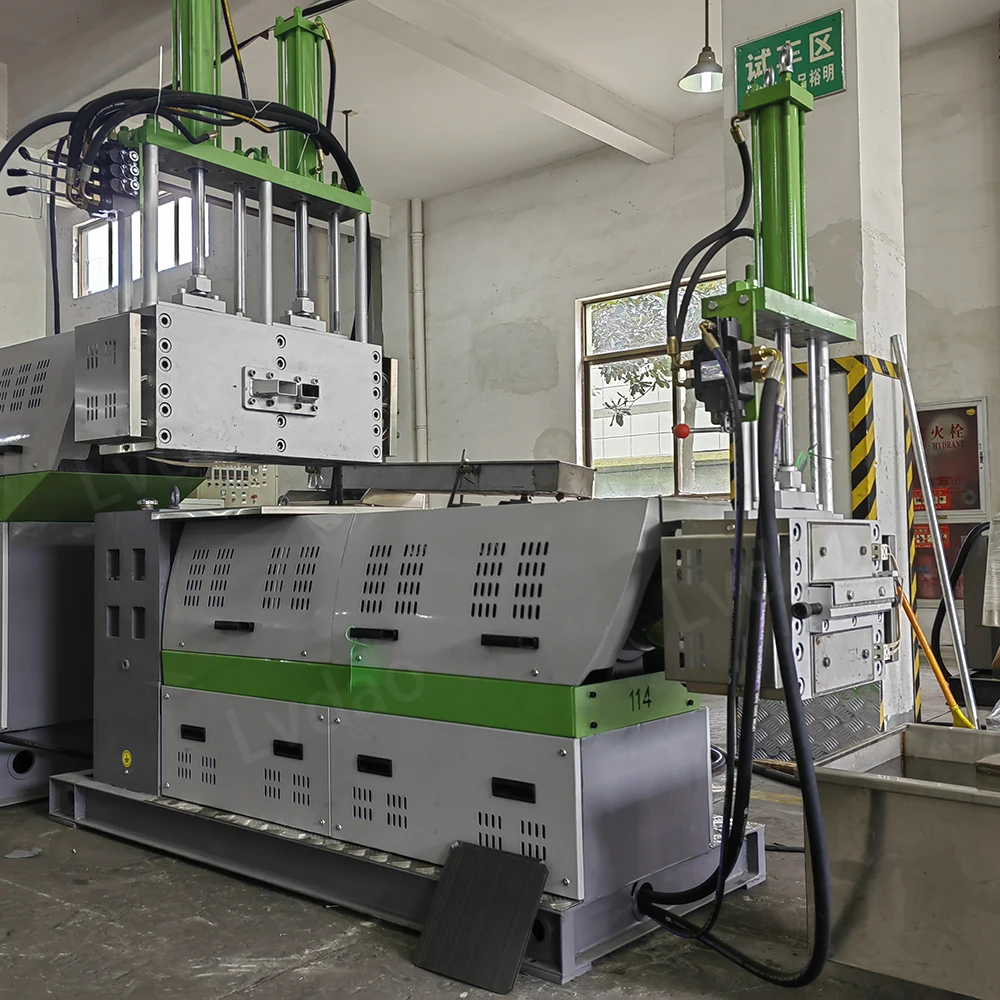

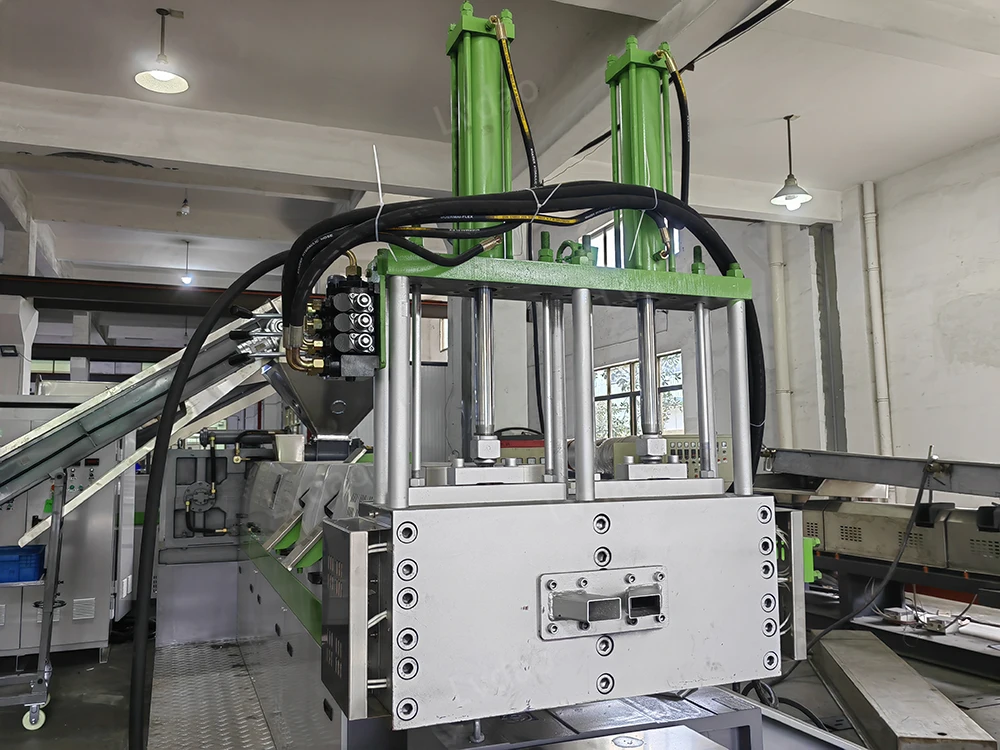

Filtering the impurity from the plastic
Melting and mixing the plastic again , double filtering of the plastic
made of stainless steel

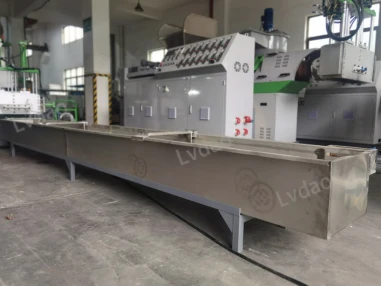

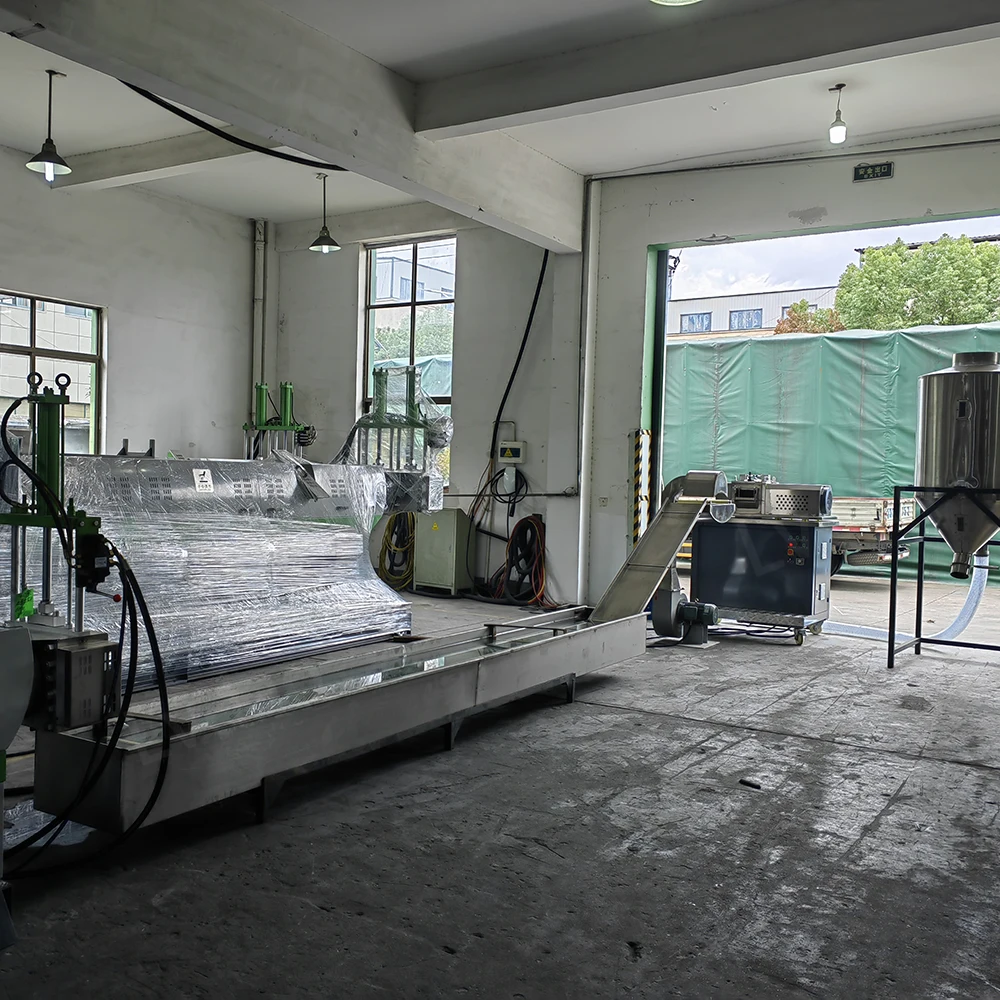

cooling the strip by water

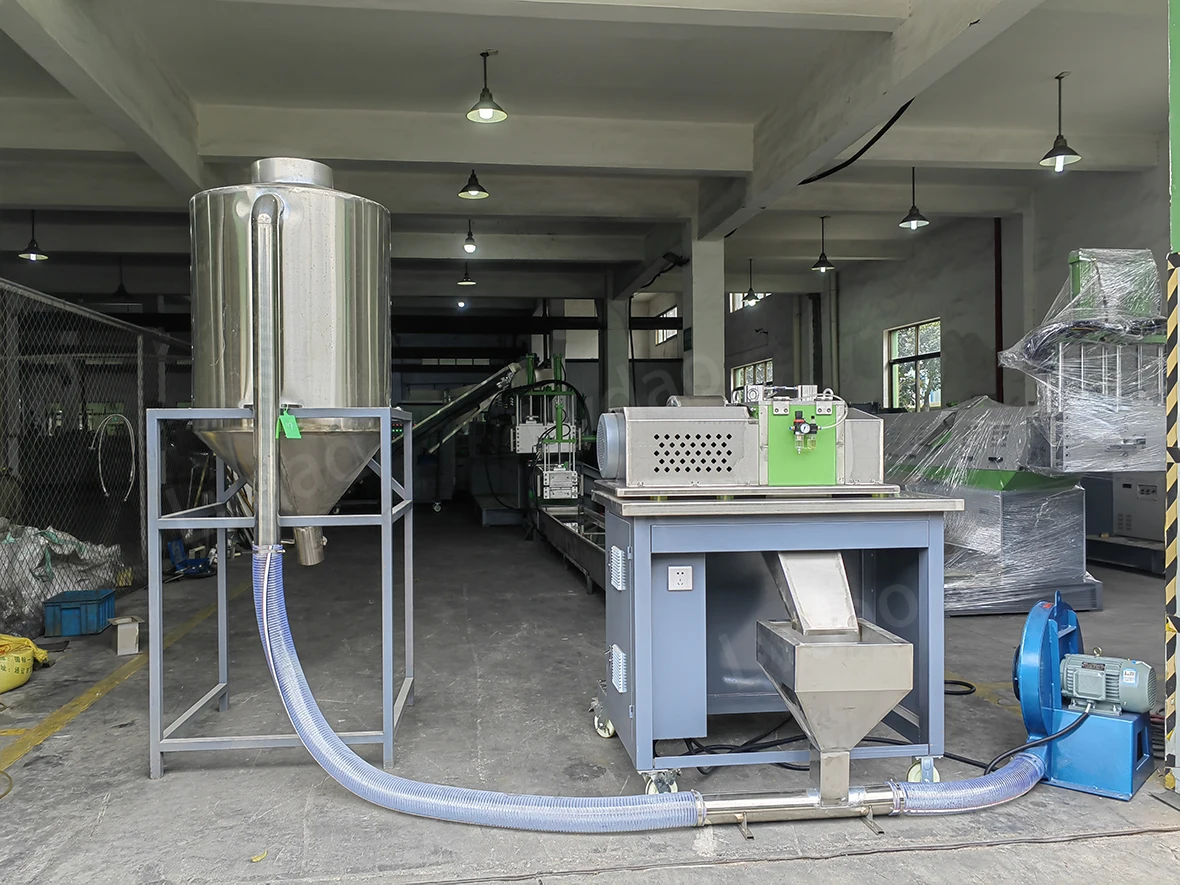

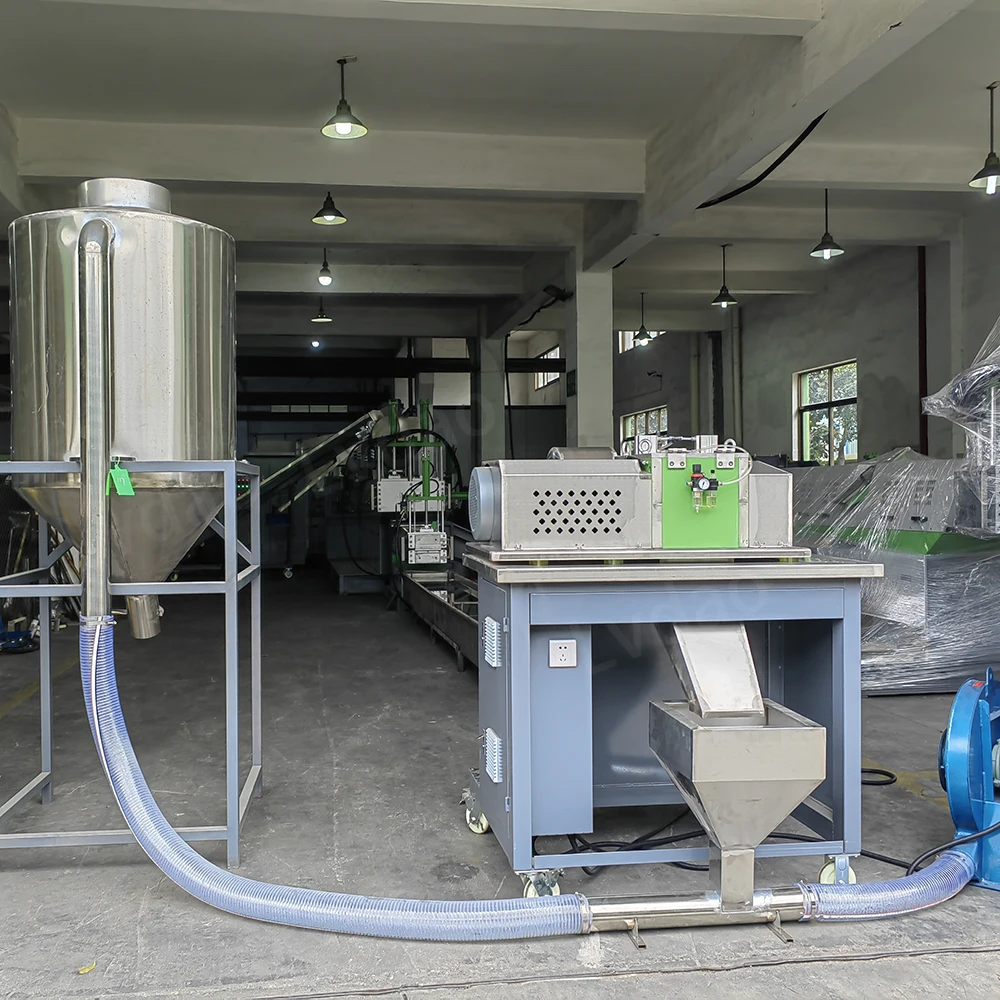

Packing silo with conveying blower
Make the pellet
conveying the pellet into packing storage silo
conveying the pellet into packing storage silo

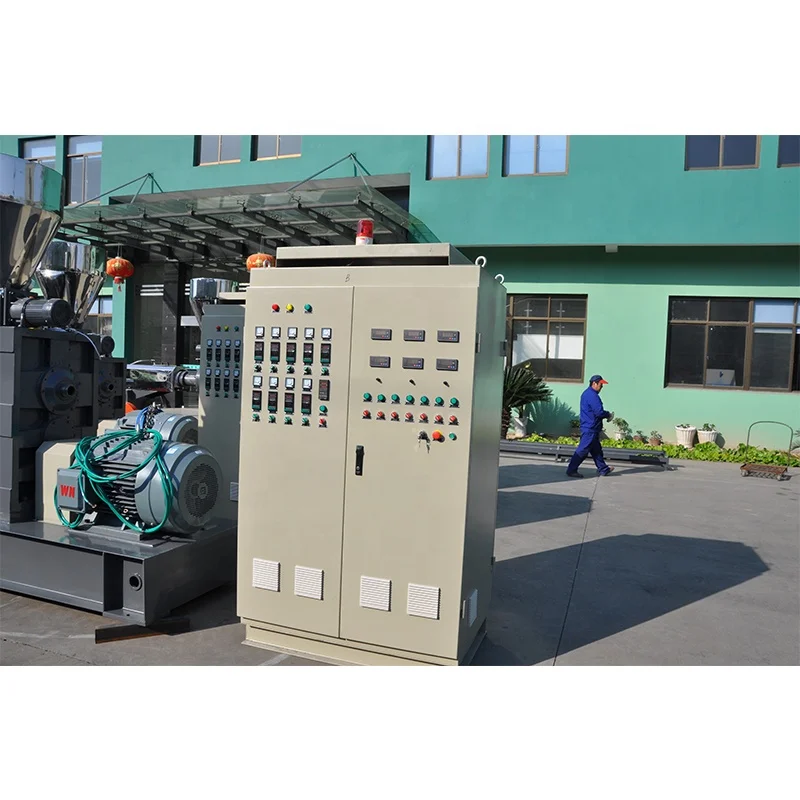

Chnt contactor
huibang Temperature Controller
huibang Temperature Controller
Working Flow:

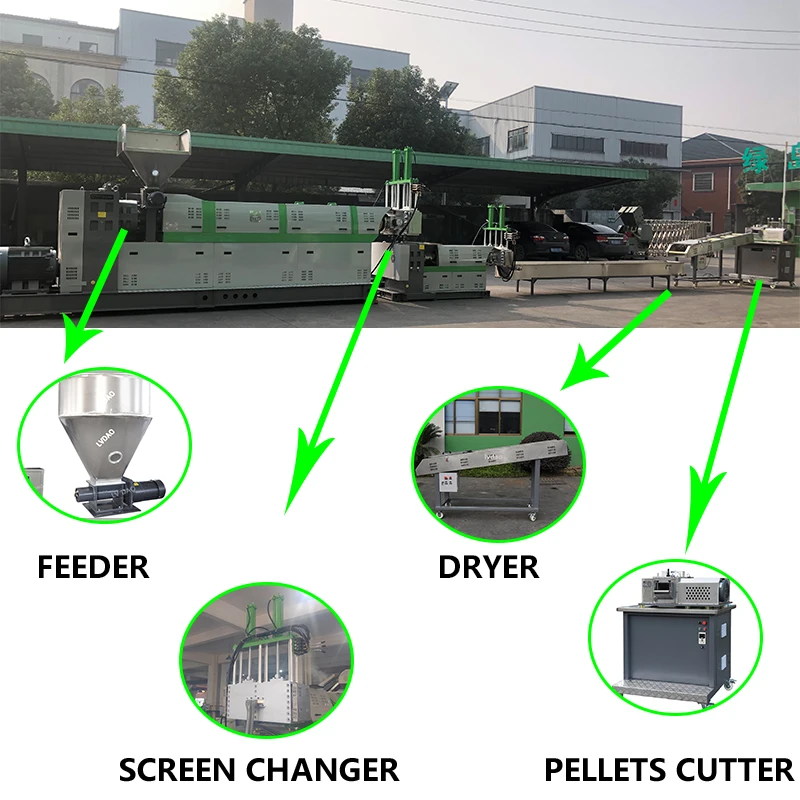

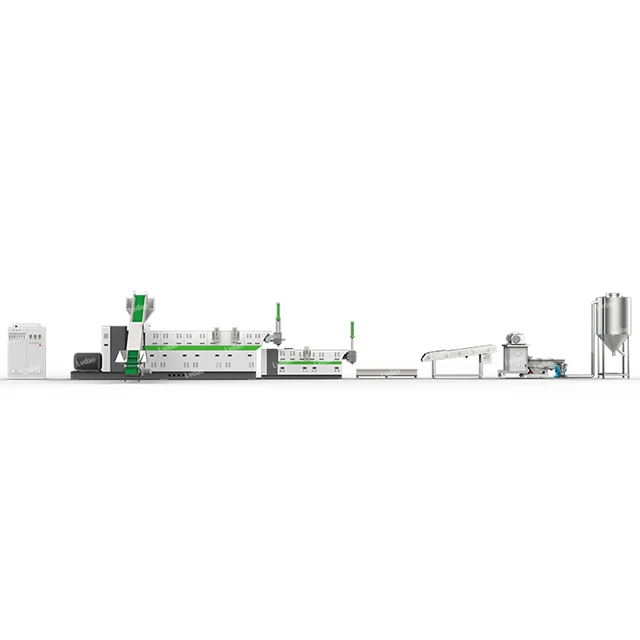

Feeding system→ Main extruder →Main machine screen changer→Baby extruder →Baby machine screen changer→Water cooling tank→Air blow→ Plastic pelletizing→ Packing silo with conveying blower
Product Paramenters
Model | Screw dia.(mm) | Long dia. ratio | Output(kg/h) | Power(kw) | Rotate speed(r/min) |
LDD-SJP-80-70 | Ø80,Ø70 | 28:1,10:1 | 50-100 | 18.5/7.5 | 10-75 |
LDD-SJP-90-85 | Ø90,Ø85 | 28:1,10:1 | 100-150 | 22/7.5 | 10-75 |
LDD-SJP-100-95 | Ø100,Ø95 | 28:1,10:1 | 150-200 | 30/11 | 10-75 |
LDD-SJP-110-105 | Ø110,Ø105 | 28:1,10:1 | 200-250 | 37/11 | 10-75 |
LDD-SJP-120-110 | Ø120,Ø110 | 28:1,10:1 | 250-300 | 45/15 | 10-75 |
LDD-SJP-130-120 | Ø130,Ø120 | 28:1,10:1 | 300-350 | 55/15 | 10-75 |
LDD-SJP-140-130 | Ø140,Ø130 | 28:1,10:1 | 350-400 | 75/18.5 | 10-75 |
LDD-SJP-150-140 | Ø150,Ø140 | 28:1,10:1 | 400-450 | 90/22 | 10-75 |
LDD-SJP-160-150 | Ø160,Ø140 | 28:1,10:1 | 450-500 | 110/30 | 10-75 |
LDD-SJP-180-160 | Ø180,Ø160 | 28:1,10:1 | 500-600 | 132/37 | 10-75 |
