Faygo Union Manual PET Blowing Machine Blow Moulding Machine Including Blower and Oven Plastic Blowing Machine
Faygo Union Manual PET Blowing Machine Blow Moulding Machine Including Blower and Oven Plastic Blowing Machine
Faygo Union Manual PET Blowing Machine Blow Moulding Machine Including Blower and Oven Plastic Blowing Machine
Faygo Union Manual PET Blowing Machine Blow Moulding Machine Including Blower and Oven Plastic Blowing Machine
Faygo Union Manual PET Blowing Machine Blow Moulding Machine Including Blower and Oven Plastic Blowing Machine
Faygo Union Manual PET Blowing Machine Blow Moulding Machine Including Blower and Oven Plastic Blowing Machine
Faygo Union Manual PET Blowing Machine Blow Moulding Machine Including Blower and Oven Plastic Blowing Machine

Faygo Union Manual PET Blowing Machine Blow Moulding Machine Including Blower and Oven Plastic Blowing Machine

Share on (1600877939059):


Price:$75,000.00

Quantity:


Product Overview

Description



Product Description

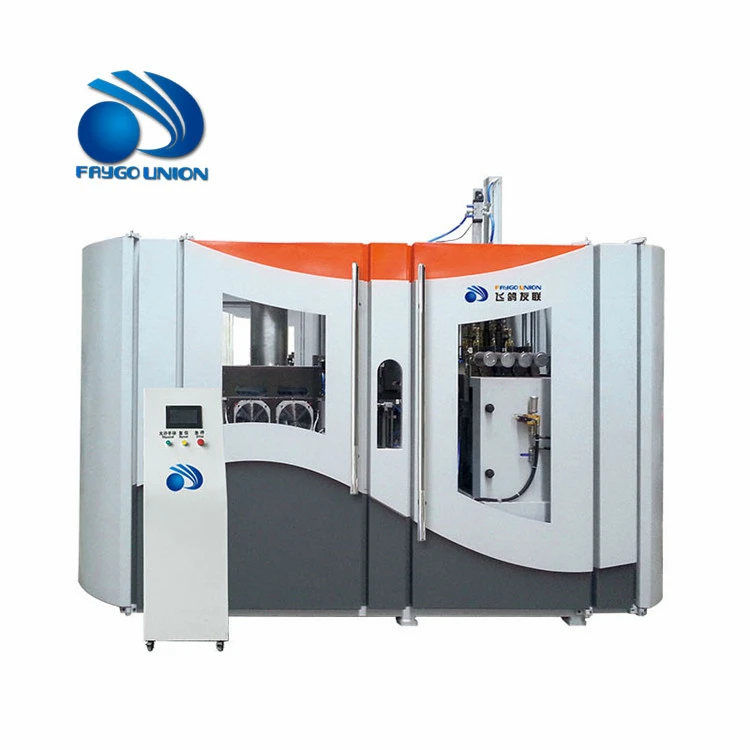

SMART series of blowing machine
SMART series of blowing machine fills the gaps in field of domestic high-speed linear blowing machine. Currently, China linear
single-mold speed still stays around 1200BPH, while international max single-mold speed has reached 1800BPH. High-speed linear
Blowing machines rely on imports. In view of this situation, Faygo Union Machinery developed China first high speed linear blowing
machine: FG4 whose single-mold speed can reach 1800 BPH. FG4 has cavities, production capacity is 6800-7200BPH. It is developed totally independently, has our own intellectual property rights, and has obtained more than 8 national patents. This machine s

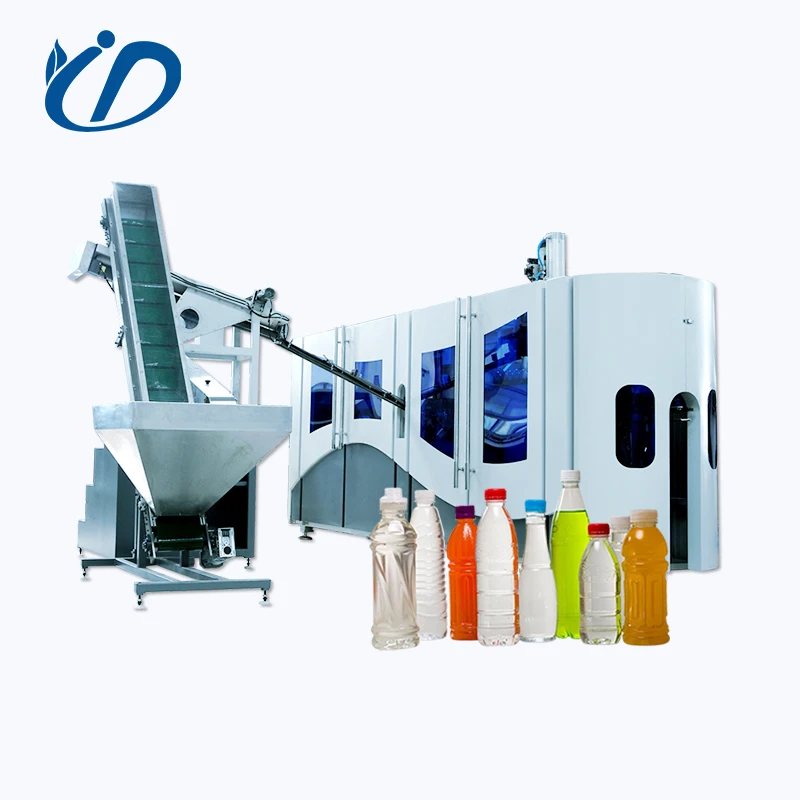

equipped with automatic perform oading and bote system. It is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles. FG4 is composed of three modules: prefrom elevator, perform unscrambler and host machine.


Specification


item
value
Plastic Processed
PET
Max.Bottle Height(mm)
328mm
Neck Diameter(mm)
25mm
Max.Bottle Diameter(mm)
105mm
Bottle Volume(ml)
2000ml
Condition
New
Application
Bottle
Blow Moulding Type
Stretch Blow Moulding
Place of Origin
China
Jiangsu
Brand Name
Year
Faygo Union
Voltage
380V/50HZ
Dimension(L*W*H)
3800*1300*2300
Clamping Force (kN)
Rotary Cylinder Brand
FESTO
PLC Brand
Siemens
Weight (KG)
3500KG
Automation
Automatic
Warranty
1 Year
Key Selling Points
High Productivity
Showroom Location
Egypt, Morocco
Applicable Industries
Beverage Factory
Marketing Type
New Product 2020
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, PLC, Engine
Product name
FG-4
Use
Water Blowing
Mold number
4-6-8
Max capacity
6500-7200-9500
Control
PLC
Color
White(can be customized)
Suitable volume
250ml-2000ml
Air capacity
4m3/min
Air pressure
40bar
Applicable bottle
PET bottle


Packing & Delivery




Film Covered And Wooden box


Company Profile

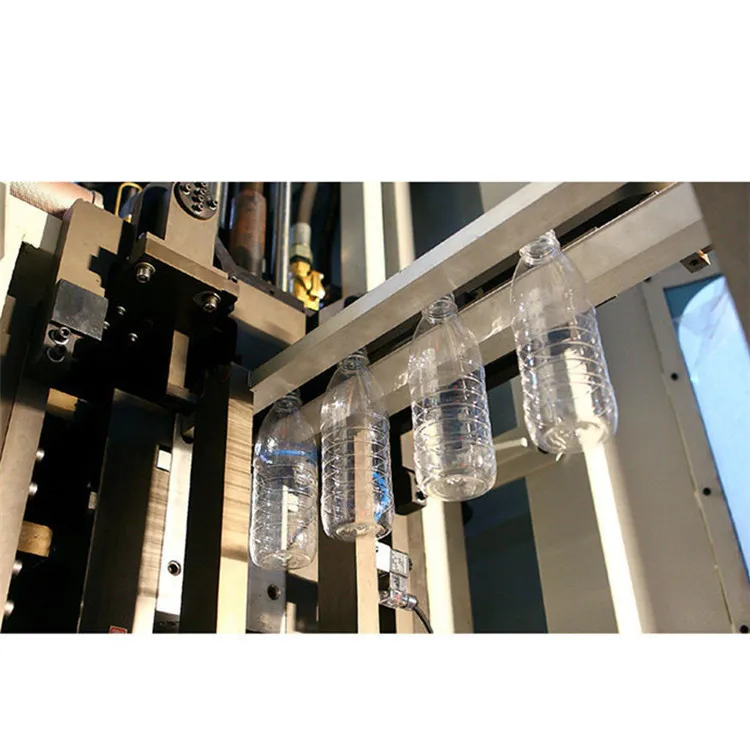

By rotary and soft preform loading system, the speed of preform feeding is ensured, meanwhile, the preform neck is well protected.

The unique cam linking system integrates mold-opening， mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shortens the blowing cycle and accelerates the speed.

The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.

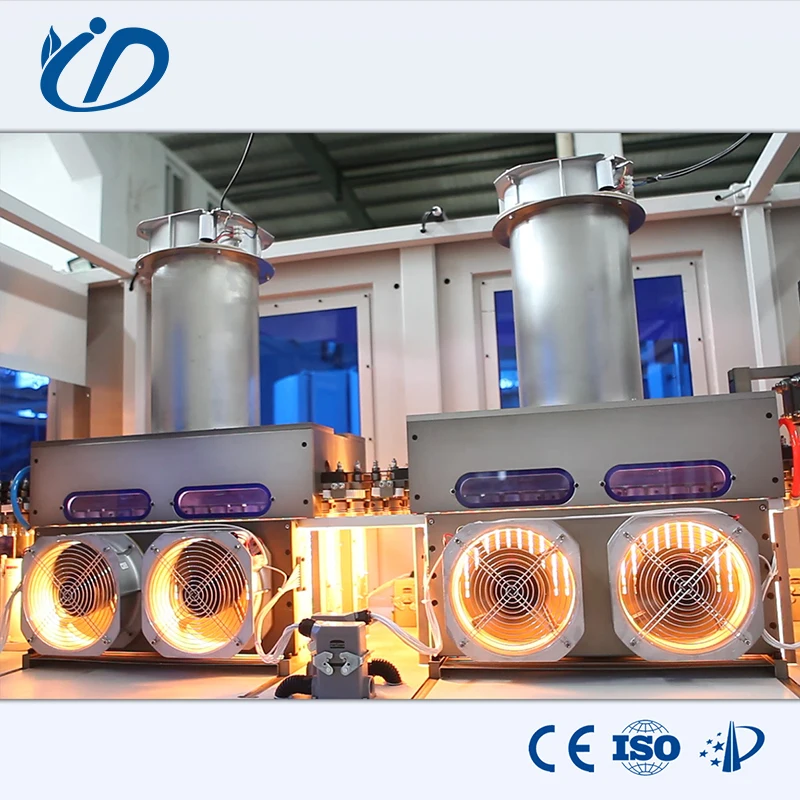

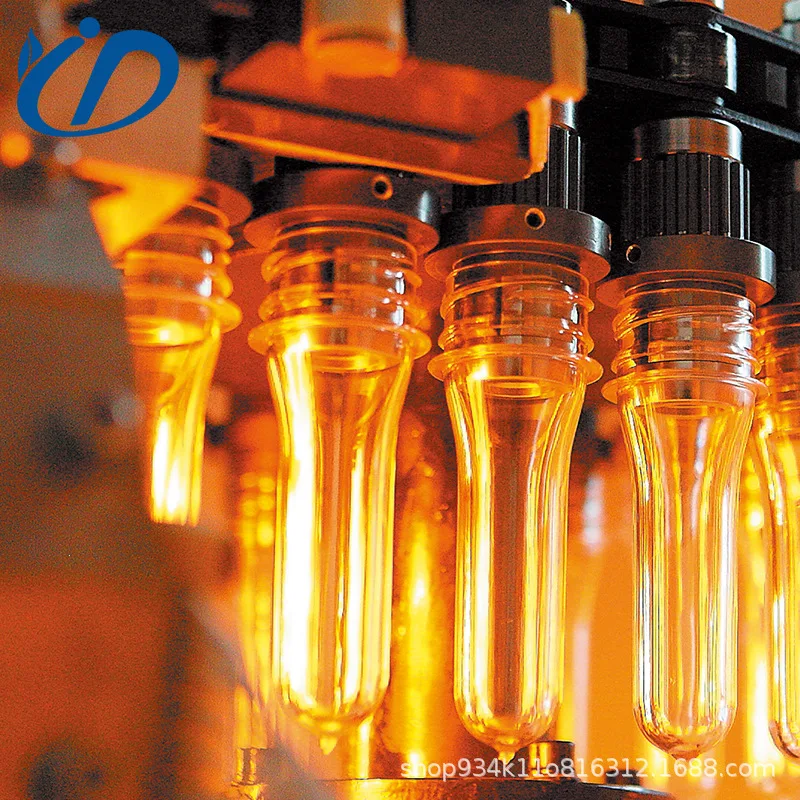

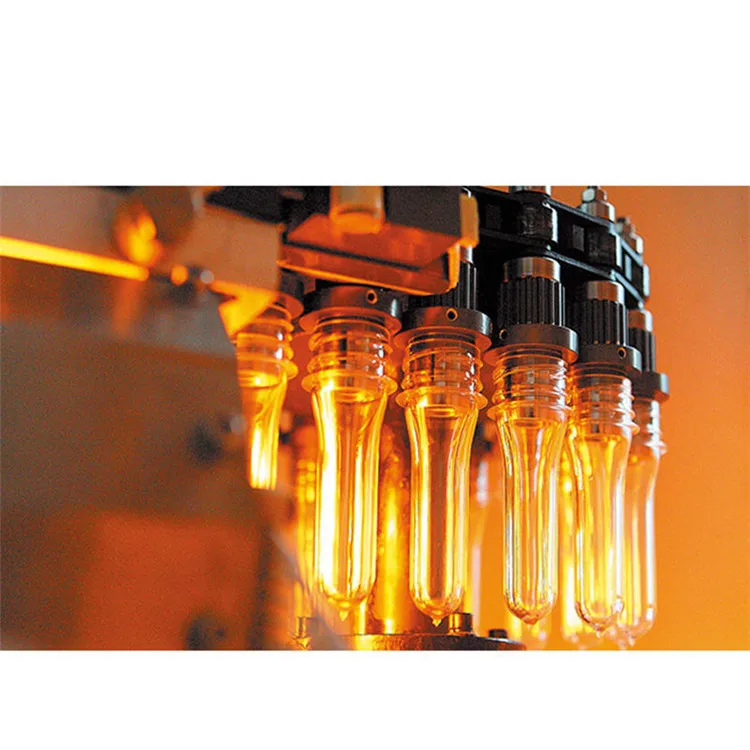

Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven, it saves more than 30% electricity consumption. Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature in the heating zone.

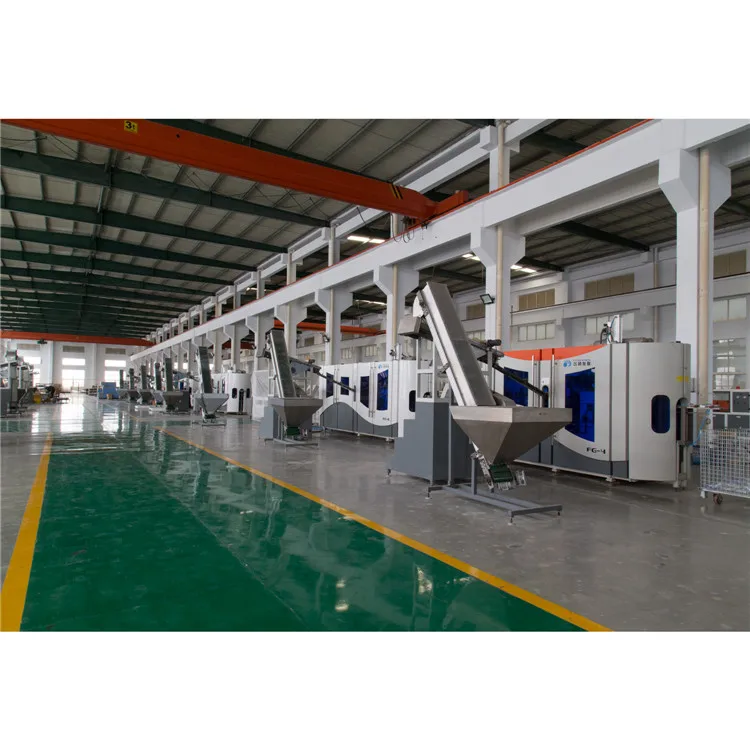

Faygo is a new high-tech entreprise covering 26500㎡, which specializes in reserching and manufacturing blowing blowing machines. Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We've received universal confirmation and trust from our customers.
