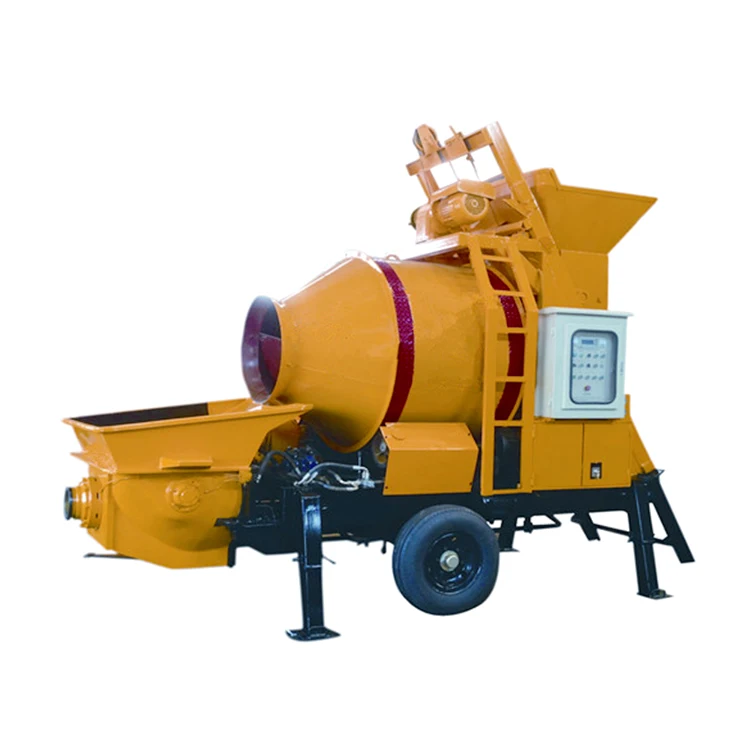

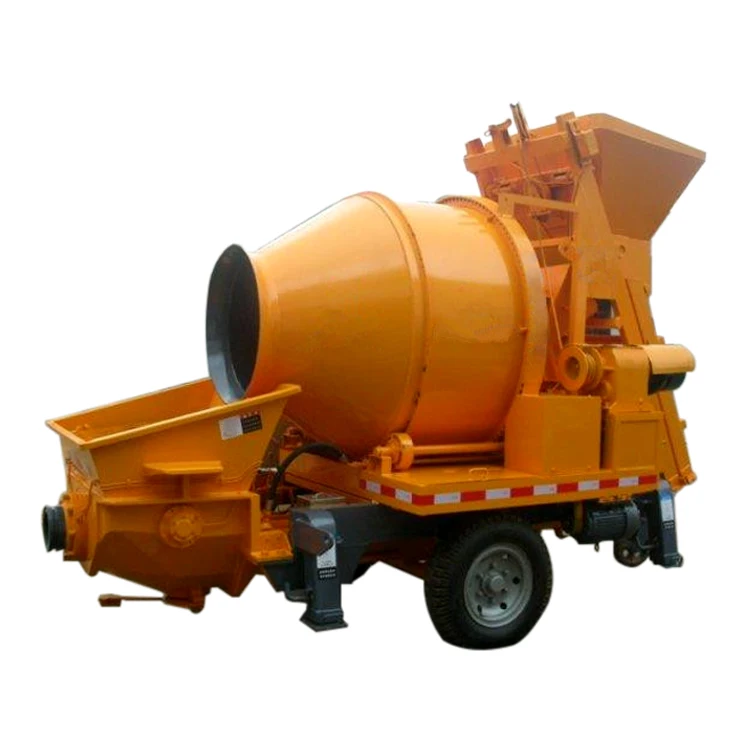

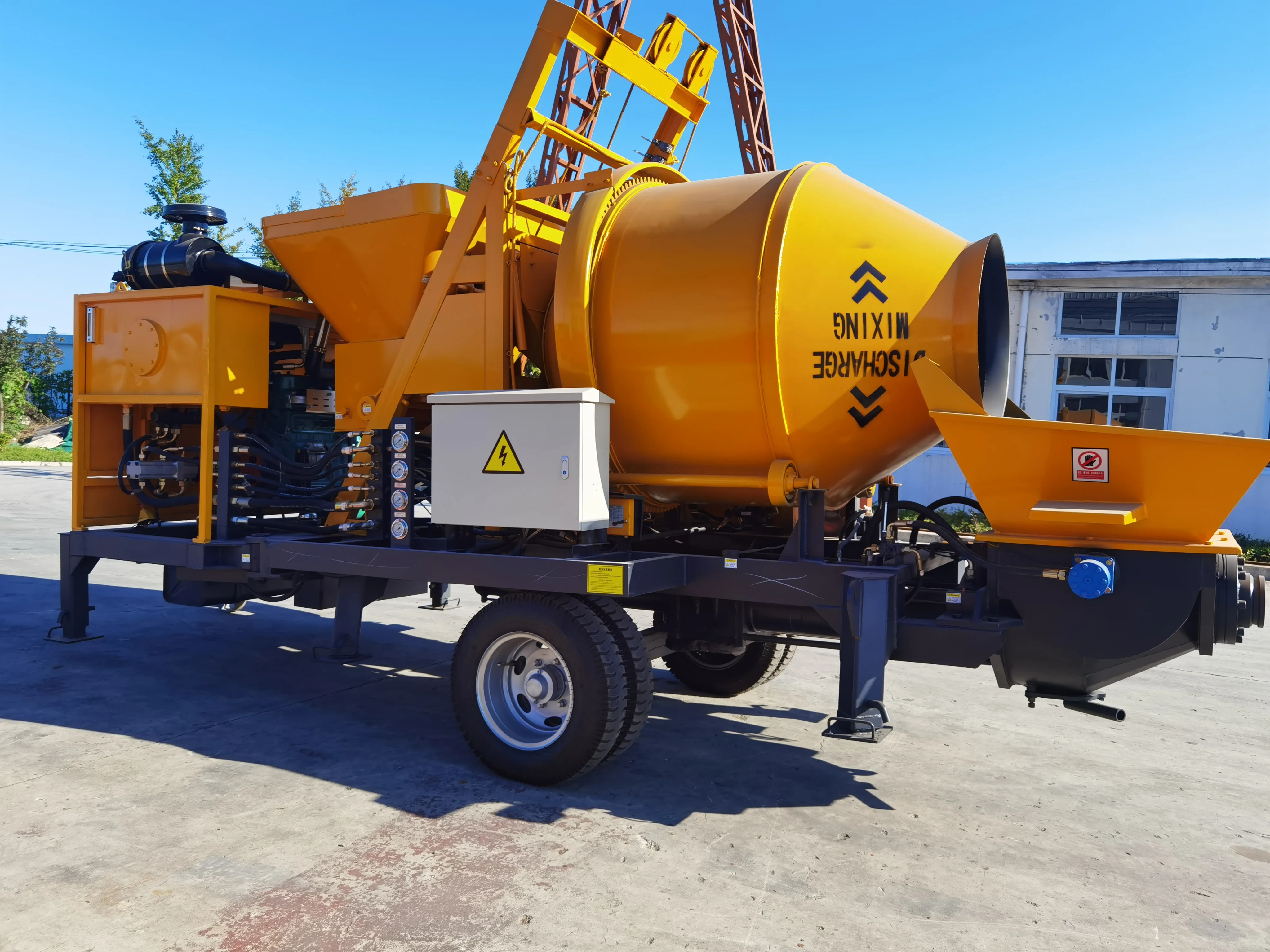

Portable Cheap Price Grout Pumps Mini Concrete Pump With Mixer Concrete Pump Remote Control
- Category: >>>
- Supplier: Henan Yugong Machinery Co. Ltd.
Share on (1600877957370):
Product Overview
Description
Product Description

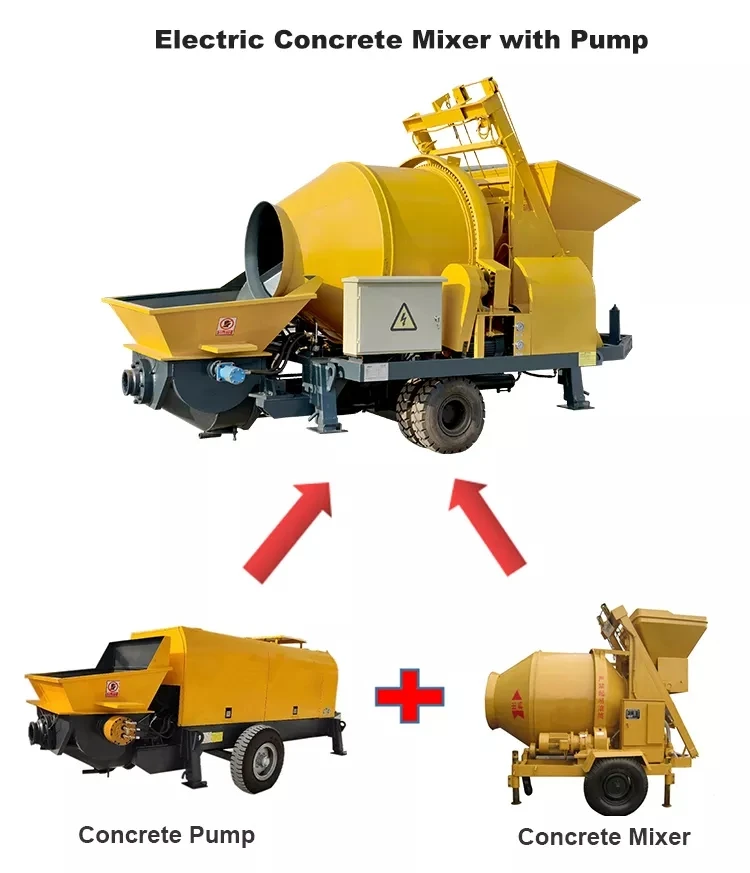

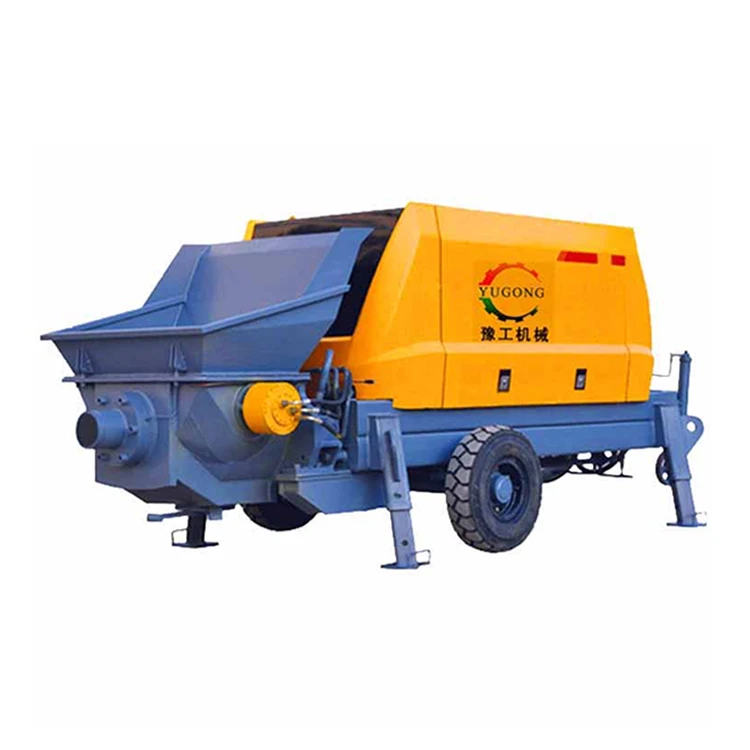

Concrete pump, consists of a pump body and a conveying pipe, is a kind of machinery that uses pressure to continuously transport concrete along pipes. It is mainly used in house construction, bridges and tunnel construction.
1. Using advanced smooth s pipe valve reversing: can meet the transportation of fine stone concrete or commercial fine
stone concrete, it is not suitable to block the pipe;
2. Spectacle plate and cutting ring: high hardness and wear-resistant alloy material, longer life;
3. High export pressure, it can meet the transportation requirements of high-rise buildings and long-distance construction;
4. The hydraulic oil cooling adopts air cooling system: the cooling effect is good, the use is simple, and it is not easy to
pollute the oil;
5. Adopting stepless manual variable displacement: it can meet the different requirements of many users for the discharge speed;
6. Advanced wireless remote control function: Improve remote control distance, facilitate remote control operation, and make
products more humanized;
1. Using advanced smooth s pipe valve reversing: can meet the transportation of fine stone concrete or commercial fine
stone concrete, it is not suitable to block the pipe;
2. Spectacle plate and cutting ring: high hardness and wear-resistant alloy material, longer life;
3. High export pressure, it can meet the transportation requirements of high-rise buildings and long-distance construction;
4. The hydraulic oil cooling adopts air cooling system: the cooling effect is good, the use is simple, and it is not easy to
pollute the oil;
5. Adopting stepless manual variable displacement: it can meet the different requirements of many users for the discharge speed;
6. Advanced wireless remote control function: Improve remote control distance, facilitate remote control operation, and make
products more humanized;
Specification
Model No | HBT601390ES（YG-10） | HBT6016110ES(YG-20) | HBT801390ES(YG-30) | HBT8013110ES(YG-40) | |||
Maximum through (m3/h) | 67/43 | 65/41 | 80/53 | 86/60 | |||
Delivery Pressure (Mpa) | 13/7 | 16/11 | 13/7 | 13/7 | |||
Delivery distance V/H(m) | 280/1200 | 350/1500 | 280/1200 | 310/1400 | |||
Distribution valve | S-Tube valve | ||||||
Conveyor cylinder (mm) | Φ200*1600 | Φ200*1600 | Φ200*1800 | Φ200*1800 | |||
Hopper volume (m3) | 0.8 | 0.8 | 0.8 | 0.8 | |||
Rated power(kw) | 90 | 110 | 90 | 110 | |||
Rated engine speed(r/min) | 1480 | ||||||
Hydraulic tank capacity(L) | 500 | ||||||
