Product Overview
Description
Standard ceramic fiber blanket - working temperature 1050 ℃
High-alumina ceramic fiber blanket - working temperature 1260 ℃
Zirconia ceramic fiber blanket - working temperature 1350 ℃
Zirconia ceramic fiber blanket - working temperature 1350 ℃

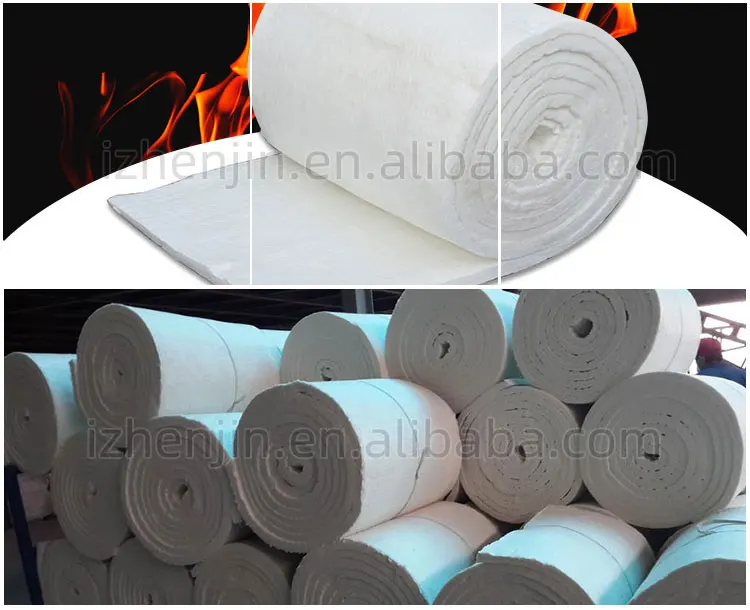

Introduction of Aluminum Silicate Fiber Blanket
Aluminum Silicate Ceramic Fiber Blanket is a kind of thermal insulation refractory material made of aluminum silicate as raw material by resistance furnace process. Aluminum silicate refractory fiber blanket has the characteristics of good extensibility and strong shock resistance, and can be used for fire and heat insulation in aerospace, steel, petrochemical, and electric power.
Phsyical and chemical index of Aluminum Silicate Fiber Blanket
Item | COM | STD | HP | HA | HZ | ||||||
Chemical content (100%) | Al2O3 | 44 | 45-46 | 47-49 | 52-55 | 39-40 | |||||
Al2O3+SiO2 | ≥96 | ≥98 | ≥99 | ≥99 | - | ||||||
ZrO2 | - | - | - | - | 15-17 | ||||||
Al2O3+SiO2+ZrO2 | - | - | - | - | ≥99 | ||||||
Fe2O3 | ≤1.0 | ≤0.8 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Na2O+K2O | ≤0.4 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
CaO+MgO | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Working Temp. | <1000 ℃ (1832℉) | 1050℃ (1922℉) | 1100℃ (2012℉) | 1260℃ (2192℉) | 1350℃ (2462℉) | ||||||
Color | white | white | white | white | white | ||||||
Density(kg/m3) | 96-128 (6-8 lb/ft3) | 96-128 (6-8 lb/ft3) | 96-128 (6-8 lb/ft3) | 128-160 (8-10 lb/ft3) | 128-160 (8-10 lb/ft3) | ||||||
Linear Shrinkage (％) (24 hrs,density 128 kg/m³) | -4 (1000℃/ 2012℉) | -3 (1000℃/1832℉) | -3 (1100℃/2012℉) | -3 (1250℃/2282℉) | -3 (1350℃/2462℉) | ||||||
Thermal conductivity(W/M.K) Density 128kg/m³( 8 lb/ft3) | 0.09 | 0.09 | 0.09 | 0.12 | 0.16 | ||||||
0.16 | 0.16 | 0.16 | 0.20 | 0.20 | |||||||
Tensile Strength (Mpa) (Density 128kg/m³) | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | ||||||

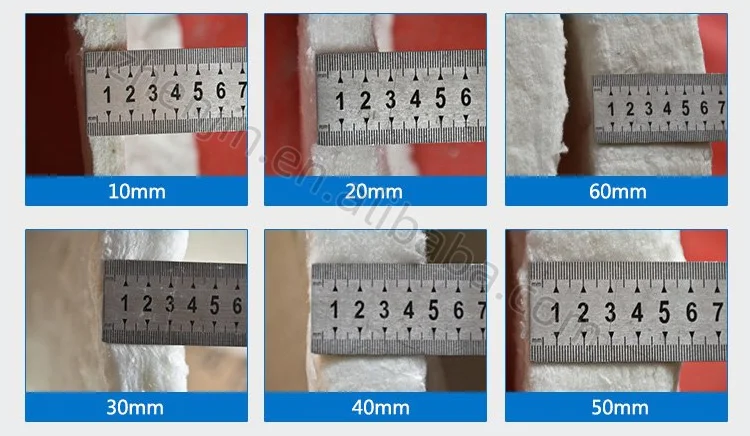

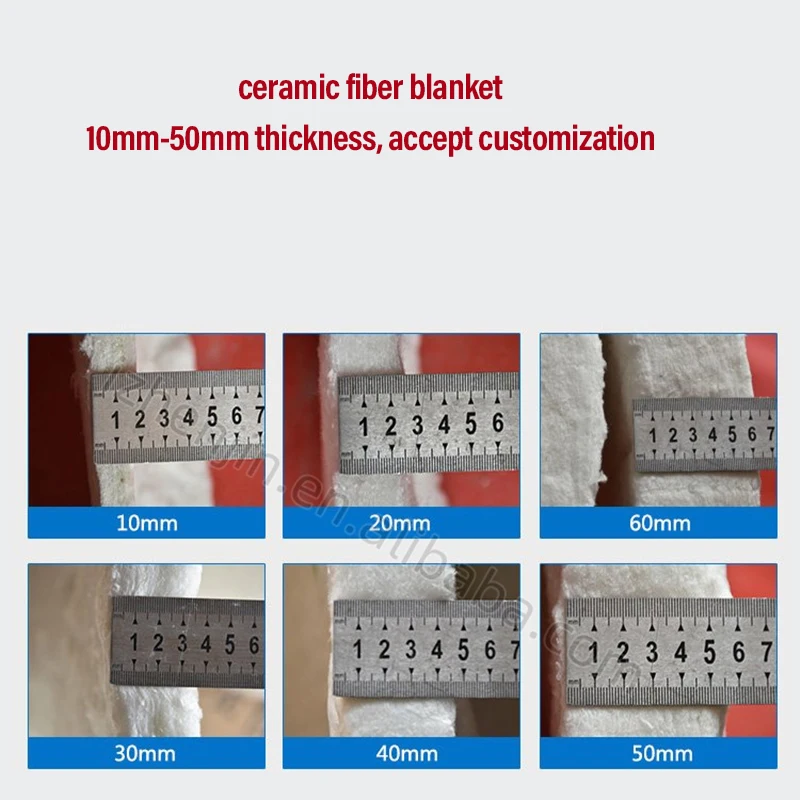

Size (mm) | 7200/3600*610/1220*10-50mm or customized as your specification | ||||||||||

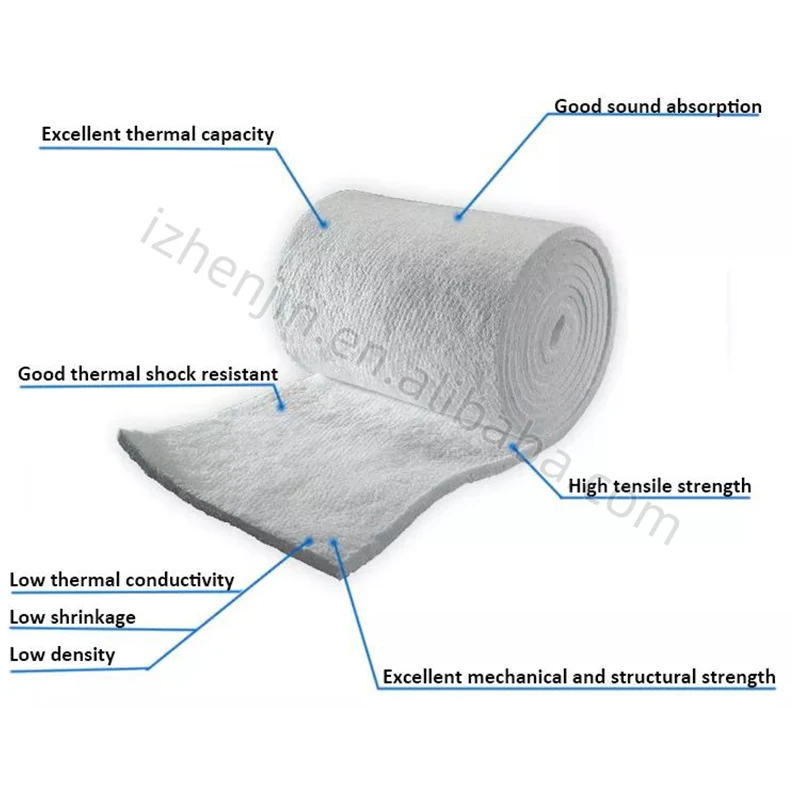

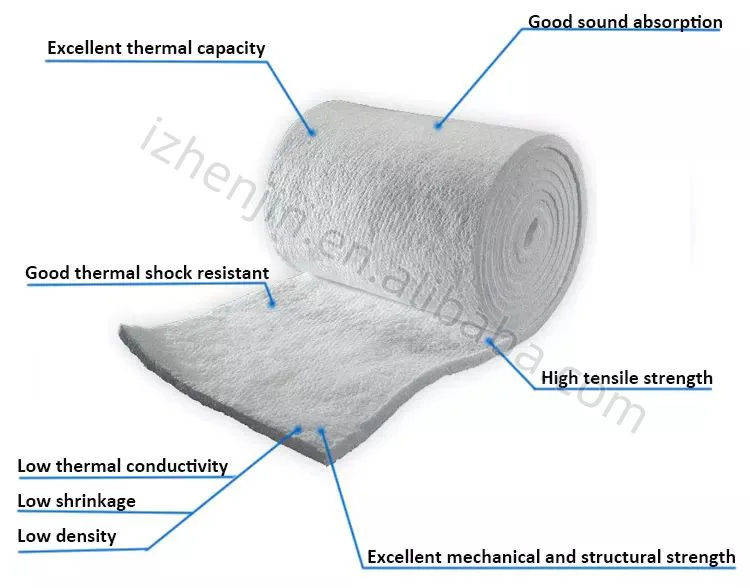

Advantages of Aluminum Silicate Fiber Blanket
1. High tensile strength
2. Low thermal conductivity and heat storage
3. Excellent insulating performance
4. Excellent chemical stability
5. Excellent resistance to shock
6. Good sound absorption
3. Excellent insulating performance
4. Excellent chemical stability
5. Excellent resistance to shock
6. Good sound absorption

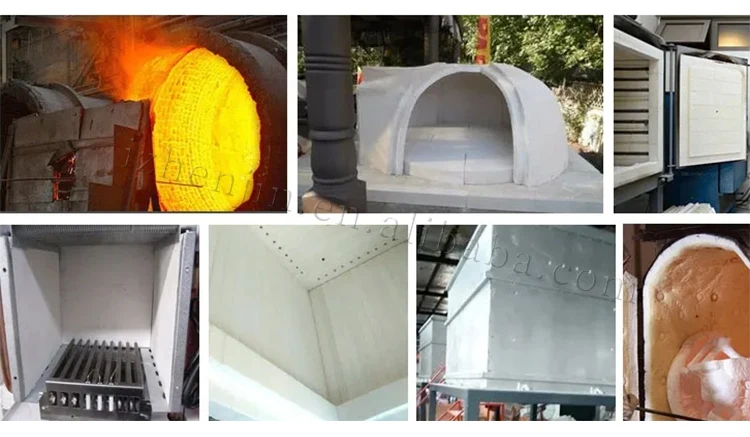

Application scenarios of Aluminum Silicate Fiber Blanket
1. Industrial kilns: Ceramic fiber blankets can be used for lining and insulation layers of various industrial kilns, such as high-temperature equipment in the fields of iron and steel smelting, glass production, and ceramic manufacturing.
2. Pipeline insulation: ceramic fiber blankets can be used for insulation and fire prevention of pipelines, storage tanks and other equipment,which can effectively prevent heat loss and accidents caused by media during transportation.
3. Ships aerospace: ceramic fiber blankets can be used as high-temperature insulation materials in the fields of ships,aerospace,etc., and can provide good heat insulation, fire prevention and corrosion resistance.
4. Building decoration: ceramic fiber blankets can also be used for building heat insulation decoration, such as sound-absorbing panels, wall partitions, etc., which can effectively improve the heat insulation performance and comfort of buildings.
3. Ships aerospace: ceramic fiber blankets can be used as high-temperature insulation materials in the fields of ships,aerospace,etc., and can provide good heat insulation, fire prevention and corrosion resistance.
4. Building decoration: ceramic fiber blankets can also be used for building heat insulation decoration, such as sound-absorbing panels, wall partitions, etc., which can effectively improve the heat insulation performance and comfort of buildings.
Zhengzhou Zhenjin refractory material CO., Ltd. founded in 1985, is located in Xinmi City, Henan Province of China. ZHENJIN REFRACTORIES is a refractory-manufacturing enterprise integrating research and development, production, sales, international trade and technical services. The company is committed to cement industry, glass industry, non-ferrous smelting and steel & iron industry to provide products, construction and installation and tailor services.

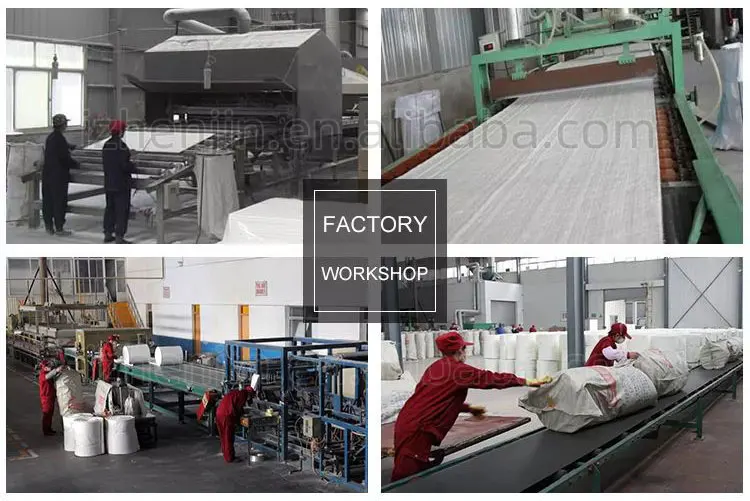

ZHENJIN REFRACTORIES has two lines of burnt basic bricks, one line of alumina-silica shaped refractory, as well as one line of unshaped refractory production. There are three super-high temperature tunnel kilns up to 1850℃, with the total capacity of about 100,000 tons/annual of various type refractories. ZHENJIN REFRACTORIES has long focused on technological innovation and modern equipment investment, automatic production of programming dosage, two hydraulic presses of 2500-ton. All the cement bricks have to pass the multi-functional finishing line, imported from Europe, in order to sort bricks beyond the tolerance, to stick card board and to mark brand.
78 professional engineering personnel work on research & development, production, quality control and brick inspection. The company has important Japanese X-ray fluorescence spectrometer for chemical tests. It can quickly and accurately monitor the quality of raw materials and finished products, to ensure the stable properties of raw materials and finished products with in the standards. Strong research and development team and advance inspection equipment provide a guarantee of the product quiddity, in the help of the technology and innovation.
Packaging
1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
(1)Wooden pallet size:Usually0.92*0.92m(standard brick),but 1*1m (special shape brick) at most,
(2)Load weight of each pallet:Usually 0.5-1.2Tons, max 1.5 Tons.
(3)20 Foot Container can be loaded max 25-26Tons, about 20-24Pallets.
2.Can make the package according to customer's requirements.
Shipping
1.FEDEX/DHL/UPS/TNT for samples.
2.By Sea for batch goods.
3.Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time:
(1)Samples:3 days for common shape samples;15 days for special shape samples.
(2)Batch goods:Within 7-10days for in stock bricks from ordering shipping space to deliver goods and within20-30 days for NO in stock bricks.
Payment Terms
(1)T/T, Western Union,LC;
(2)Usually 30% deposits,70% balance to be paid before delivery or against copy of BL or negotiations
1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
(1)Wooden pallet size:Usually0.92*0.92m(standard brick),but 1*1m (special shape brick) at most,
(2)Load weight of each pallet:Usually 0.5-1.2Tons, max 1.5 Tons.
(3)20 Foot Container can be loaded max 25-26Tons, about 20-24Pallets.
2.Can make the package according to customer's requirements.
Shipping
1.FEDEX/DHL/UPS/TNT for samples.
2.By Sea for batch goods.
3.Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time:
(1)Samples:3 days for common shape samples;15 days for special shape samples.
(2)Batch goods:Within 7-10days for in stock bricks from ordering shipping space to deliver goods and within20-30 days for NO in stock bricks.
Payment Terms
(1)T/T, Western Union,LC;
(2)Usually 30% deposits,70% balance to be paid before delivery or against copy of BL or negotiations
Q1: Are you trading company or manufacturer ?
A1: We are Manufacturer of refrcatory , We can provide you with high quality products at more competitive prices.
A2 : For each production processing, ZhenJin have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q3 : What is your lead time?
A3 : It usually needs about 15- 20 days after receiving the PO.
Q4 : Can we visit your company?
A4 : Yes, surely. You are very welcome to China and we will be honored to have a customer and friend.
Q5 : What is the warranty of your products?
A5 : Our products have at least 1 year warranty,if any quality problems,we will take responsibility of the cost of the shipment and the replacement.
Q6. What's your payment terms?
A6:We can accept 30% deposit, 70% balance before shipment for ordrs over $ 2000.
Q7.What are the payment terms?
A7:Usually T/T,but L/C,Western Union etc are available for us.
Notice : Please note that the price on alibaba is a rough price.The actual price will depends on raw materials, exchange rate, wage and your order quantity. Hope to cooperation with you, Thanks !
