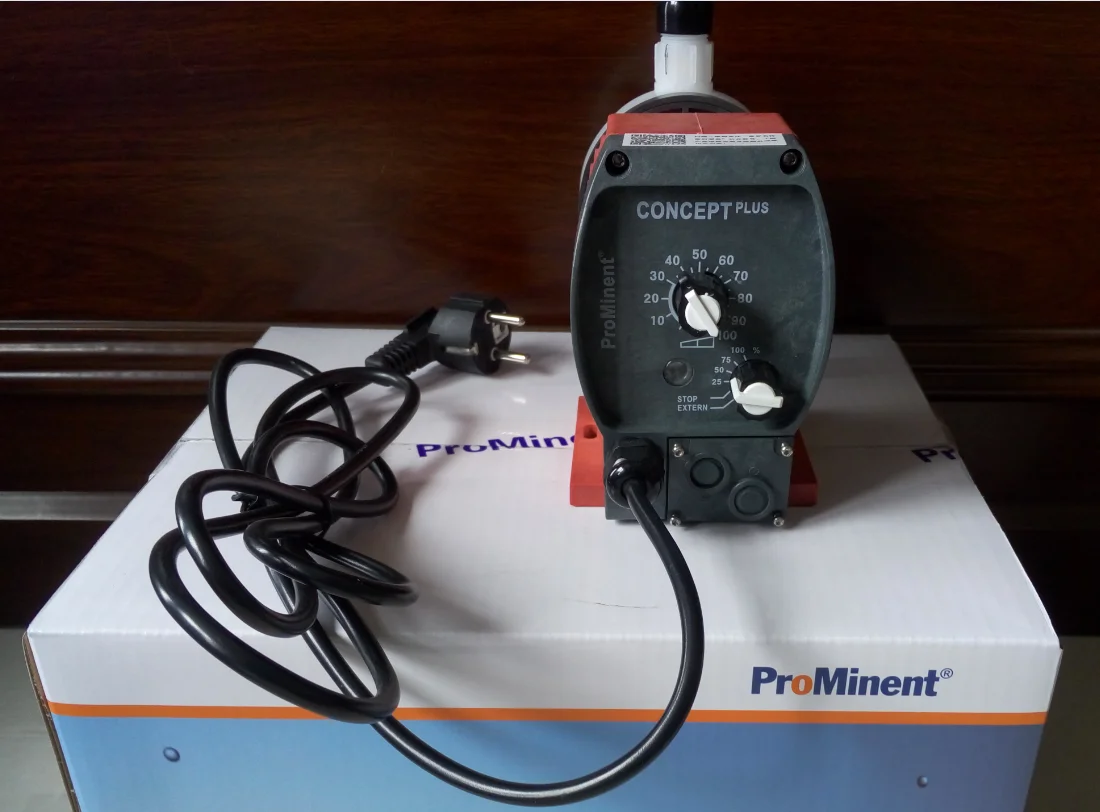

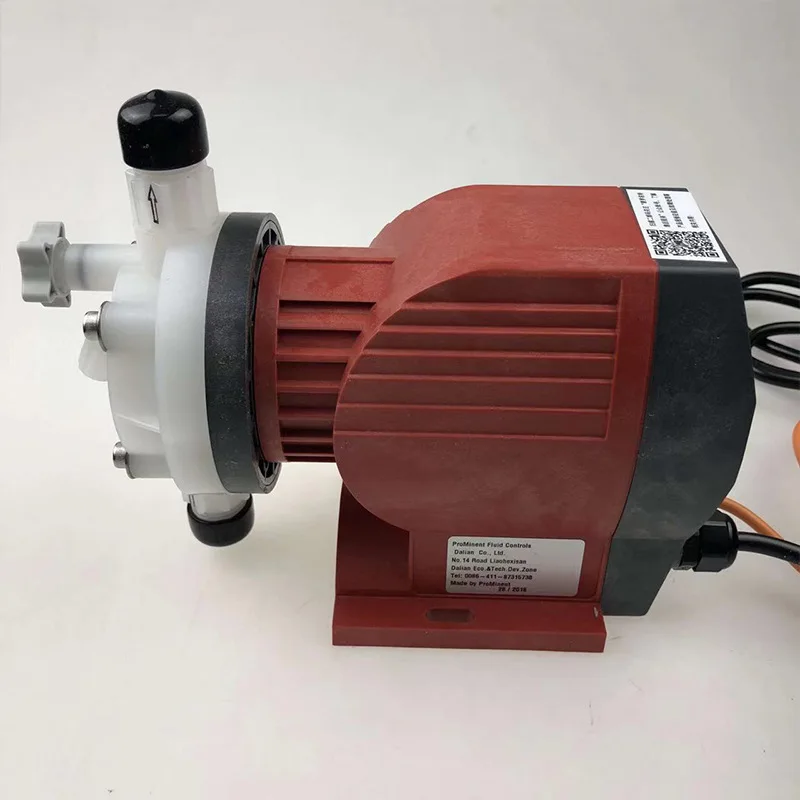

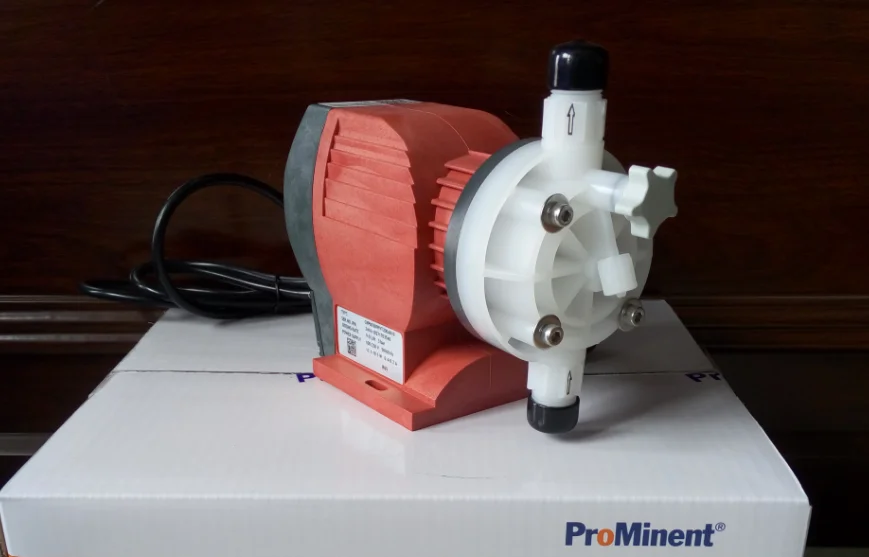

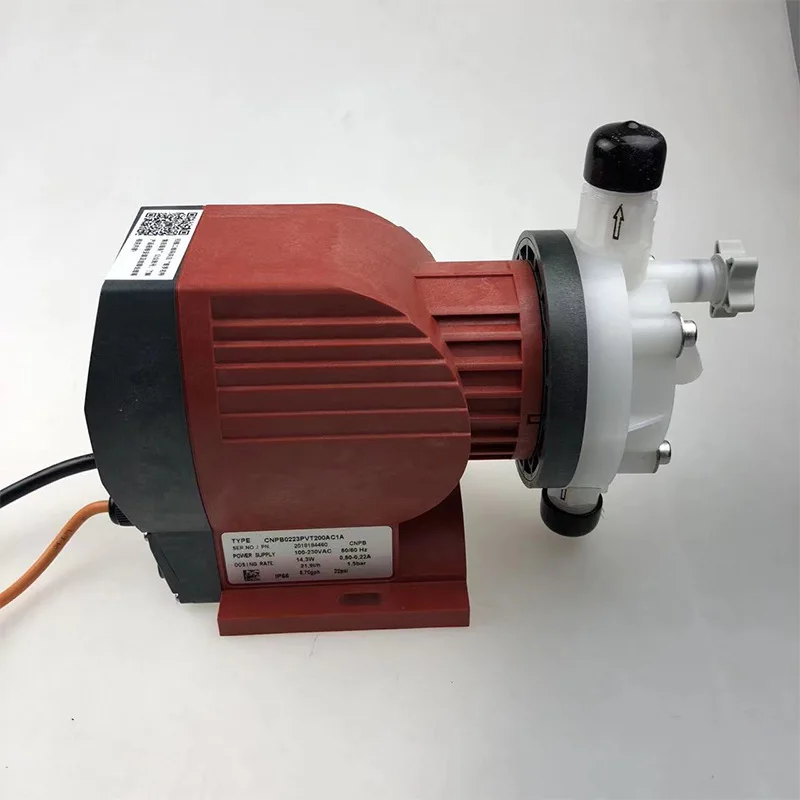

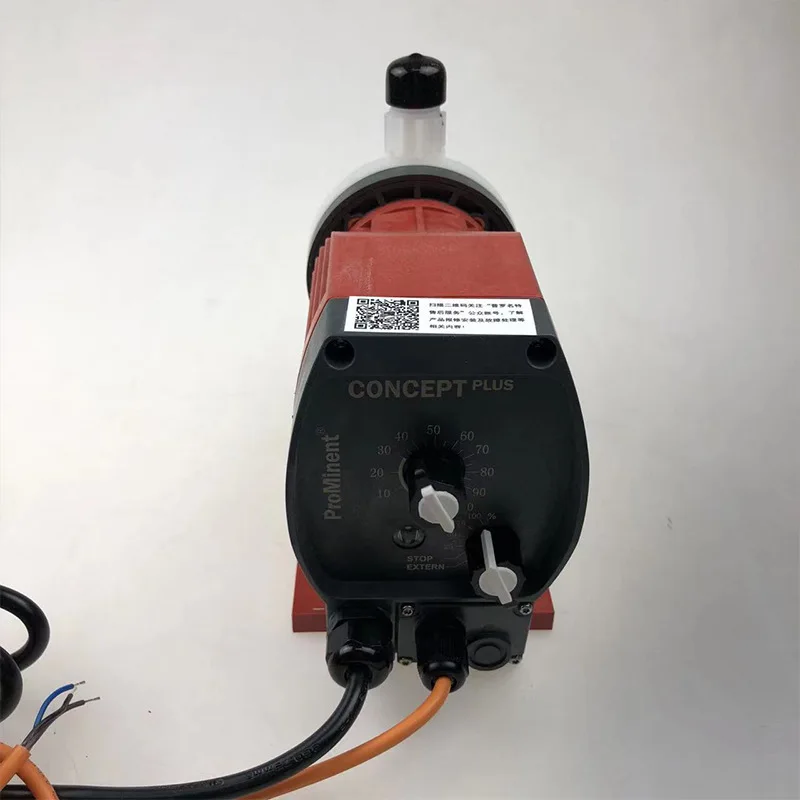

dosing pump prominent Metering Pump CONCEPTplus CNPb1000PVT200A010
- Category: >>>
- Supplier: Wuxi Ewater Water Treatment Co. Ltd.
Share on (1600878018080):
Product Overview
Description
Products Description
The FIRST CHOICE for modern water treatment and chemical metering.

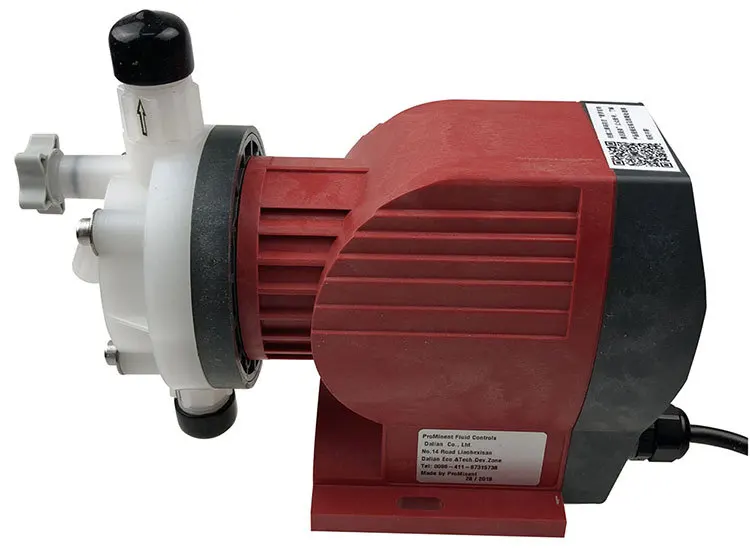

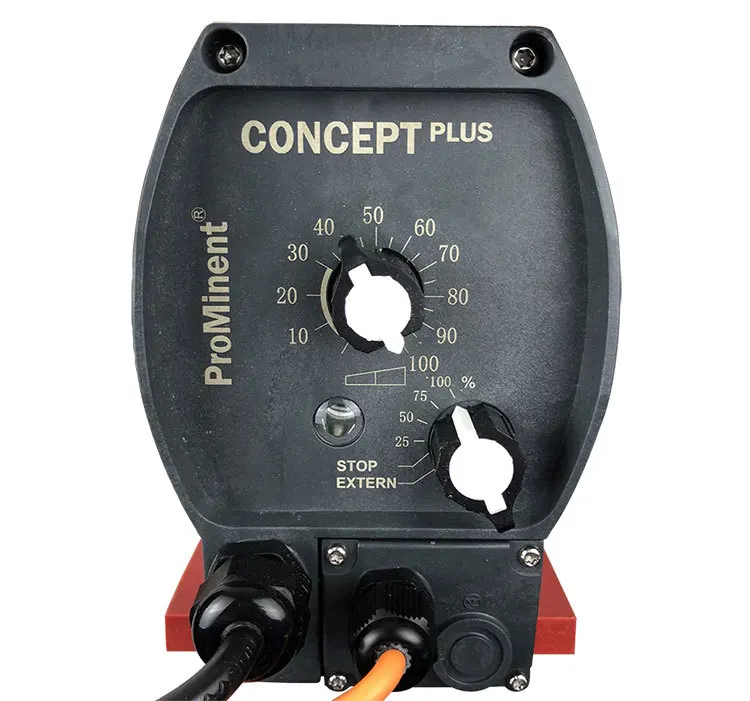

Prominent Dosing Pump/Metering Pump
Technical data
CNPb performance table for 180 strokes/minType | Minimum pump capacity at maximum back pressure | Minimum pump capacity at medium back pressure | Suc- tionlift* | Pri- ming lift** | Max.priming pres-sure on the suction side | |||||||||||||
bar | mll stroke | bar | lh | r strokel | m ws | m ws | bar | |||||||||||
Conceptplus | ||||||||||||||||||
1000 | 10 | 0.74 | 0.07 | 5 | o.97 | 0.09 | 6 | 6 | 1.8 | |||||||||
1601 | 16 | 1.1 | 0.1 | 8.o | 1.4 | 0.13 | 6 | 6 | 2 | |||||||||
1002 | 10 | 2.4 | 0.19 | 5.o | 2.6 | 0.24 | 5 | 5 | 2.5 | |||||||||
704 | 7 | 3.9 | 0.36 | 3.5 | 4.4 | 0.41 | 4 | 4 | 3 | |||||||||
309 | 3 | 9 | 0.83 | 1.5 | 13 | 1.2 | 2 | 2 | 2 | |||||||||
215 | 1.5 | 16.4 | 1.45 | 1 | 18.3 | 1.7 | 1.5 | 1.5 | 1.5 | |||||||||
CNPb performance table for 240 strokes/min
Type | Minimum pump capacity at maximum back pressure | Minimum pump capacity at medium back pressure | Suc- tionlift* | Pri- ming lift** | Max.priming pres-sure on the suction side | |||||||||||||
bar | l/h | mll stroke | bar | lh | mll stroke | m ws | m Ws | bar | ||||||||||
Conceptlus | ||||||||||||||||||
1001 | 10 | 1 | 0.07 | 5 | 1.3 | 0.09 | 6 | 6 | 1.8 | |||||||||
1602 | 16 | 1.5 | 0.1 | 8 | 1.9 | 0.13 | 6 | 6 | 2 | |||||||||
1003 | 10 | 3 | 0.21 | 5 | 4.3 | 0.24 | 5 | 5 | 2.5 | |||||||||
705 | 7 | 5.2 | 0.36 | 3.5 | 5.9 | 0.41 | 4 | 4 | 3 | |||||||||
312 | 3 | 12 | 0.83 | 1.5 | 17.3 | 1 | 2 | 2 | 2 | |||||||||
223 | 1.5 | 21.9 | 1.52 | 1 | 25.2 | 1.63 | 1.5 | 1.5 | 1.5 | |||||||||
Contact Us
Company Information
Advantages
※Widely applicable
※The drive has almost no wear
※Excellent stable operating performance
※High cost-effectiveness
※Efficient and energy-saving 50%
※The drive has almost no wear
※Excellent stable operating performance
※High cost-effectiveness
※Efficient and energy-saving 50%
Product Paramenters
Applications
※Adding chemicals in the water preparation process according to flow rate and proportion, such as sodium hypochlorite required for disinfection of drinking water.

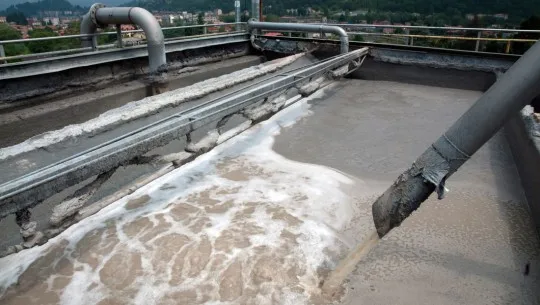

※Chemical addition depending on measured values, such as acid and alkali metering used to neutralize pH values in wastewater treatment applications.
※Chemical addition for time control in the cooling water circulation system.
※Pulse controlled metering for filling different volumes, such as filling glycerol into a pressure gauge.
※Chemical addition depending on measured values, such as acid and alkali metering used to neutralize pH values in wastewater treatment applications.
※Chemical addition for time control in the cooling water circulation system.
※Pulse controlled metering for filling different volumes, such as filling glycerol into a pressure gauge.
Please contact us to discuss the use of this product in your personal application.
Accessories
Foot Valve (Non-return Valve)
It is used to prevent the suction pipe from flowing empty and prevent solid particles from entering the metering pump.
In addition, the foot valve is also used as a suction auxiliary device.
Injection Valve
The injection valve accurately measures the flow inside the pipeline and reliably isolates it from the surrounding environment.
Back Pressure Valve (Relief Valve)
The back pressure valve is used to generate a constant back pressure and achieve precise dosing in an open system.
In addition, it is also used in conjunction with pulsation dampers for low pulsation dosing.
※ For more information on accessories, please contact us.
