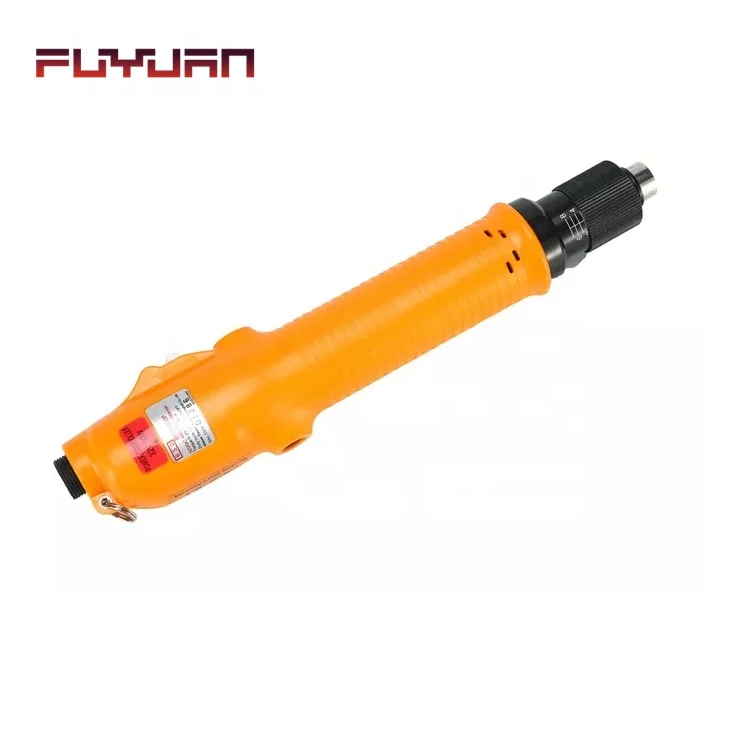

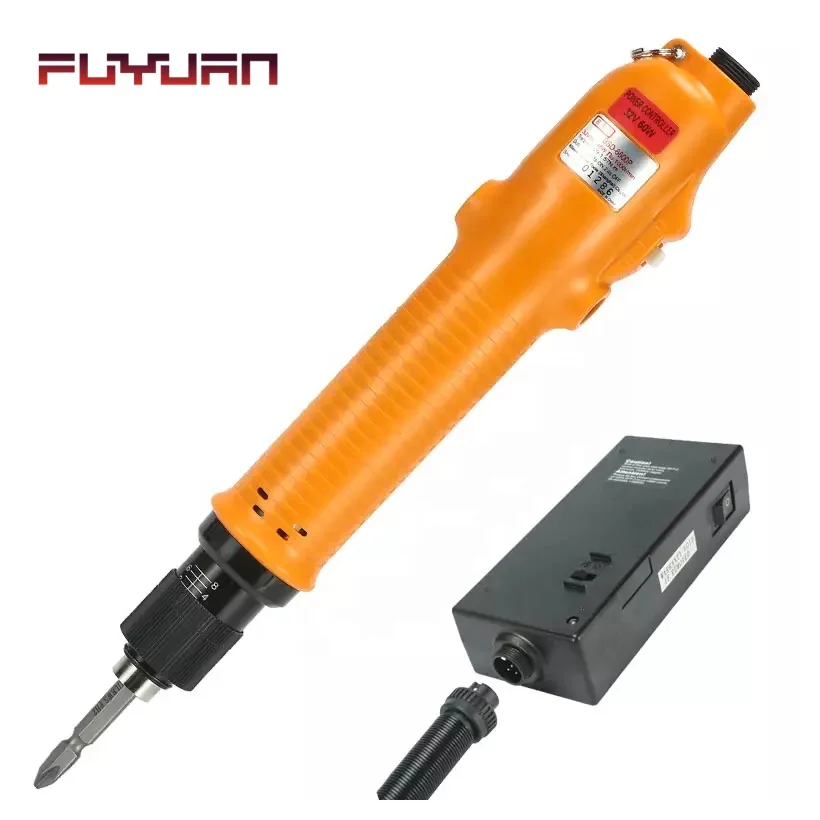

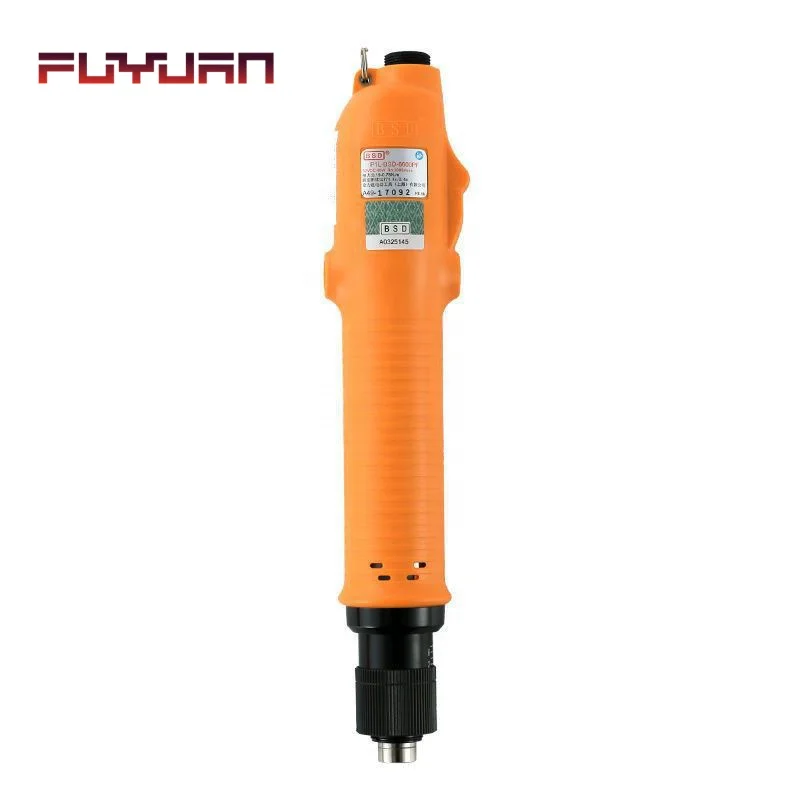

Factory Price 0.15~0.78N.m DC TYPE Push Start Medium Torque Compact Automatic Electric Screw Driver Electric Screwdriver
- Category: >>>
- Supplier: Shenzhen Fuyuan Technology Co. Ltd.
Share on (1600878093553):
Product Overview
Description
Products Profile
Product Name | DC Medium Torque Electric Screwdriver | Brand Name | BSD |
Model Number | BSD-6600PF | Rated Voltage | AC 100~240V |
Torque Range | 0.15~0.78N.m/ 1.5~8kgf.cm | Frequency | 50/60HZ |
Torque Adjustment | Stepless | Torque Accuracy | ±3% |
Dimensions | Length 230mm | Weight | 480g |

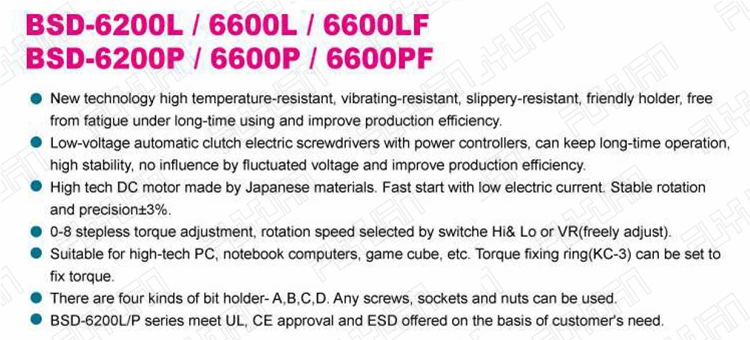

Product Features
Medium torque Compact DC Automatic Electric Screwdriver (electric screw driver for assembly)
1) The power controller features:
a) Model: BSP-32HL-60W
b) Input voltage: AC 100~240V 50/60HZ
c) Output voltage: 32V DC
d) Outside dimensions: 145*60*35mm
e) Weight: 0.25KG
1) The power controller features:
a) Model: BSP-32HL-60W
b) Input voltage: AC 100~240V 50/60HZ
c) Output voltage: 32V DC
d) Outside dimensions: 145*60*35mm
e) Weight: 0.25KG
f) Remark: RoHS
2) Screwdriver features:
a) Torque range: 0.15~0.78N.m/ 1.5~8kgf.cm
b) High stability, not impact of Voltage changes, free from fatigue under long-time using
c) Small, light body, specially design for the precise needing of tiny screws
d) Best applied to Small appliances.Electronics, Toys, Processing and assembly industry
2) Screwdriver features:
a) Torque range: 0.15~0.78N.m/ 1.5~8kgf.cm
b) High stability, not impact of Voltage changes, free from fatigue under long-time using
c) Small, light body, specially design for the precise needing of tiny screws
d) Best applied to Small appliances.Electronics, Toys, Processing and assembly industry

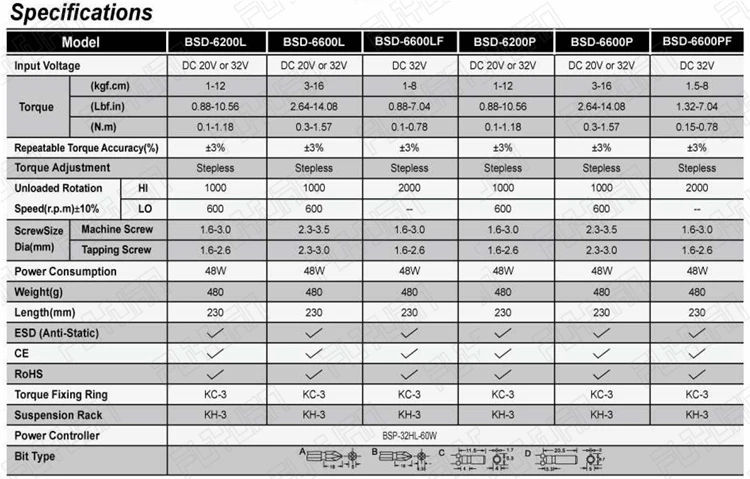

Product Specifications
No | Item | Data | ||
1 | Torque | 0.15~0.78N.m | 1.5~8kgf.cm | 1.32~7.04Lbf.in |
2 | Unloaded Rotation Speed(r.p.m) | 2000 | ||
3 | Torque Adjustment | Stepless | ||
4 | Screw Size Dia(mm) | 1.6~3.0(Machine Screw) | 1.6~2.6(Tapping Screw) | |
5 | Power Consumption | 48W | ||
6 | Weight(g) | 480 | ||
7 | Length(mm) | 230 | ||
8 | Repeatable Torque Accuracy (%) | ±3% |

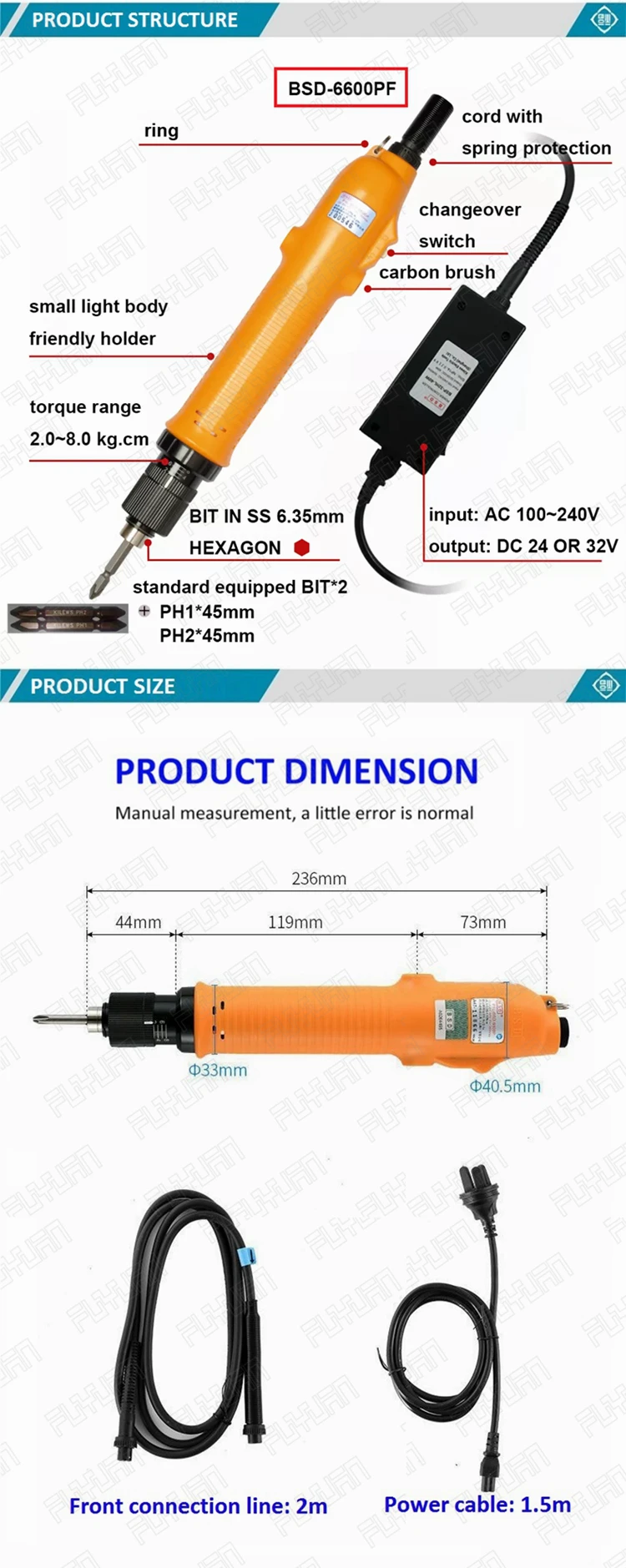

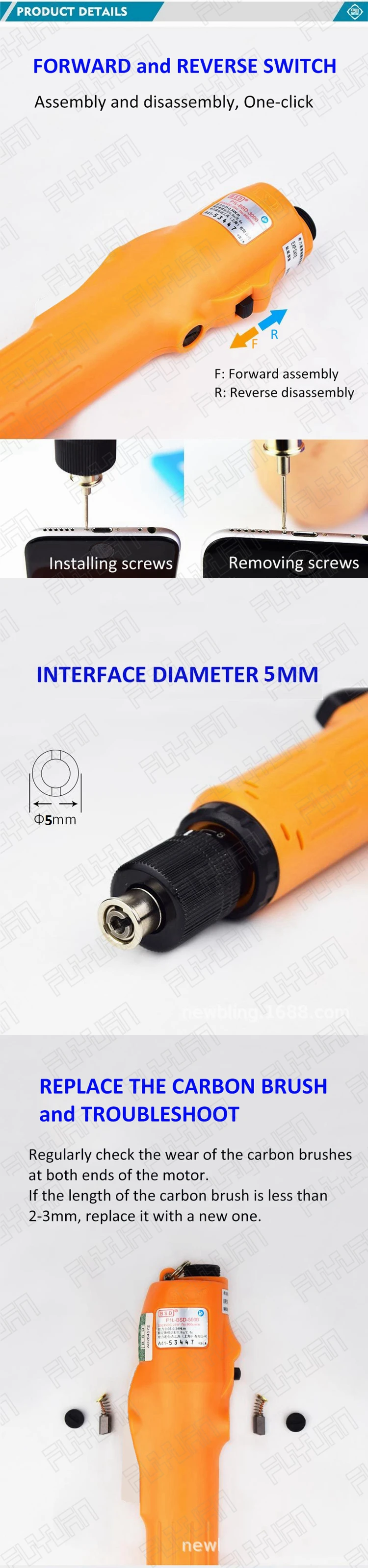

Product Details
Product Applications
