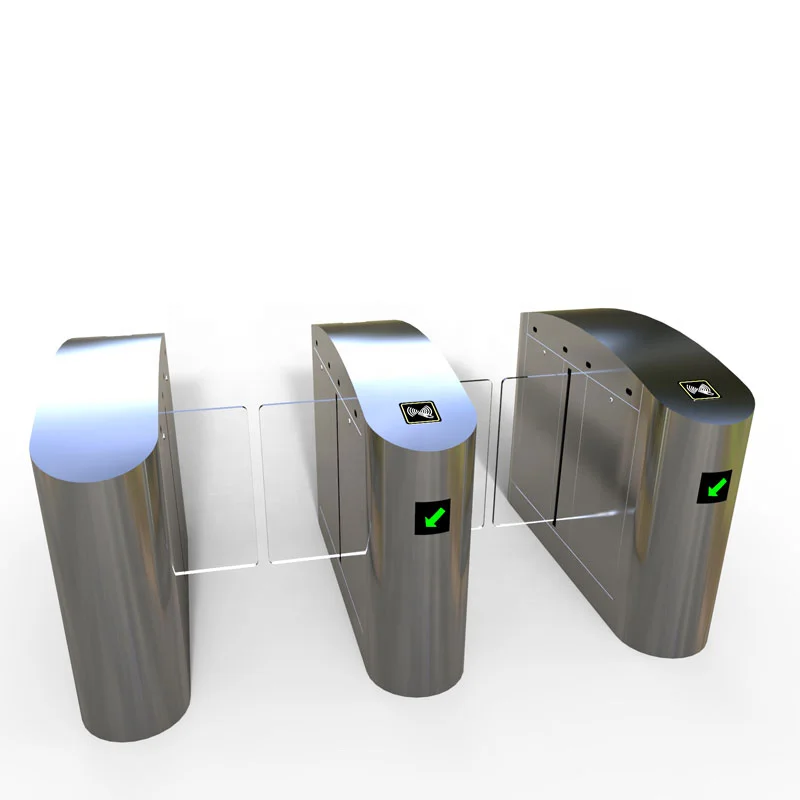

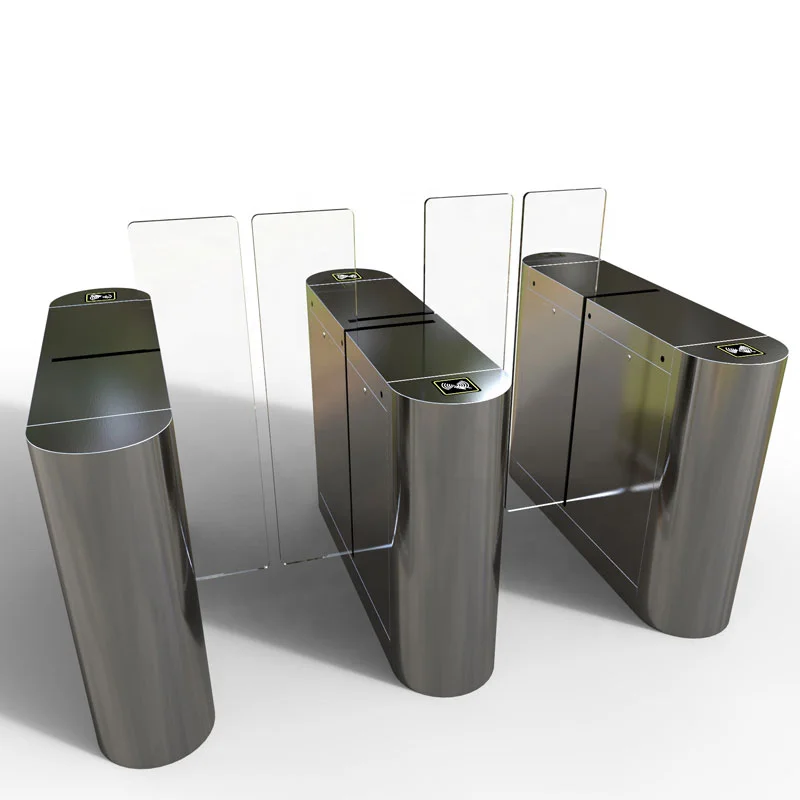

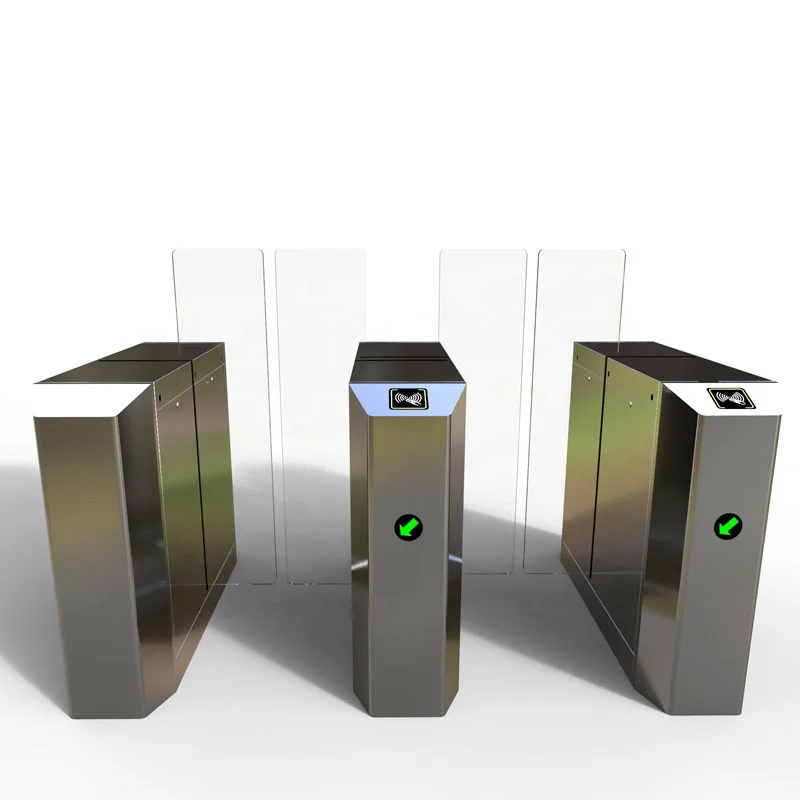

Security Automatic Acrylic Glass Pedestrian QR Code Scanner Sliding Barrier Turnstile Access Control System Gate For Gym

Share on (1600878212092):


Price:$890.00 - $930.00

Quantity:


Product Overview

Description



Product Description

















































































Model


JS-PYZ005


Case Material


SS304 (1.5mm, 2.0mm Optional)/Baking varnish


Barrier Arm material


SS304 (Acrylic Available)


Production Process

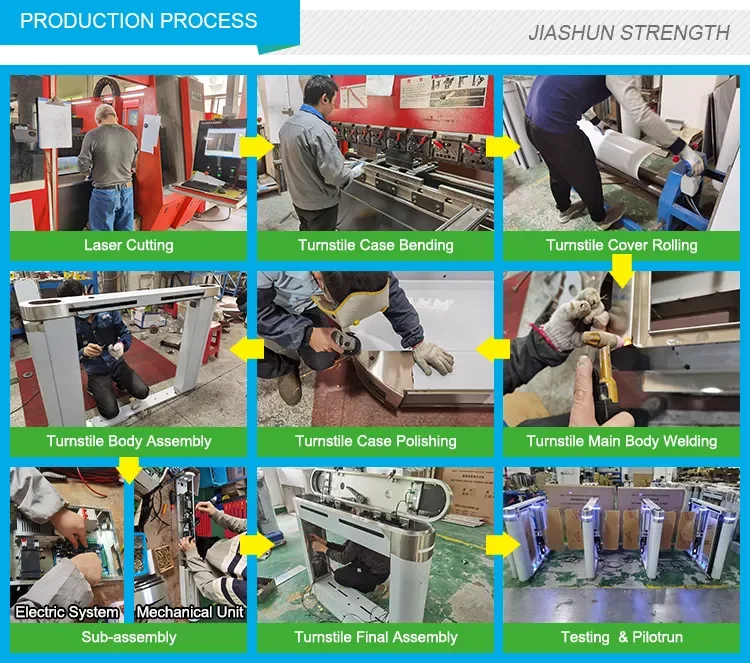

CNC Laser Cutting, Grooving, Welding, Grinding, Assembly


Power input


AC 100-240V, 50/60HZ


Operation voltage


DC 24V, 3A, Power: 40W( Brushless Motor Optional)


Electromagnetic


Duty Cycle 100%


Passage Width


≤ 550MM (Customization acceptable)


Passage direction


Single directional/Bi-directional (Optional)


Throughput Rate


30-45 persons/minute


MCBF


5,000,000 Cycles


Automatic Reset Function


Automatically locked within set time (Time Adjustable)


LED Indicator


Yes


Operation Humidity


0~95% (No Freezing)


Operation Temperature


-10℃ ~ 50℃


Operation Environment


Indoor, Outdoor (Shelter)


Communication Interface


Standard RS485 interface, distance ≤ 1200 meters


Input Interface


Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA





Sliding Barrier Turnstile

Security Automatic Acrylic Glass Pedestrian QR Code Scanner Sliding Barrier Turnstile Access Control System Gate For Gym



Sliding turnstile is a high-tech product mainly for intelligent management of personnel channels.
Compared with ordinary swing turnstile, it has the effect of anti climbing and anti drilling, its an upgrade products of normal swing turnstile .

The product adopts industrial circuit control system and humanized and scientific mechanical transmission design.

The product has stable performance, complete functions, humanized classic design.

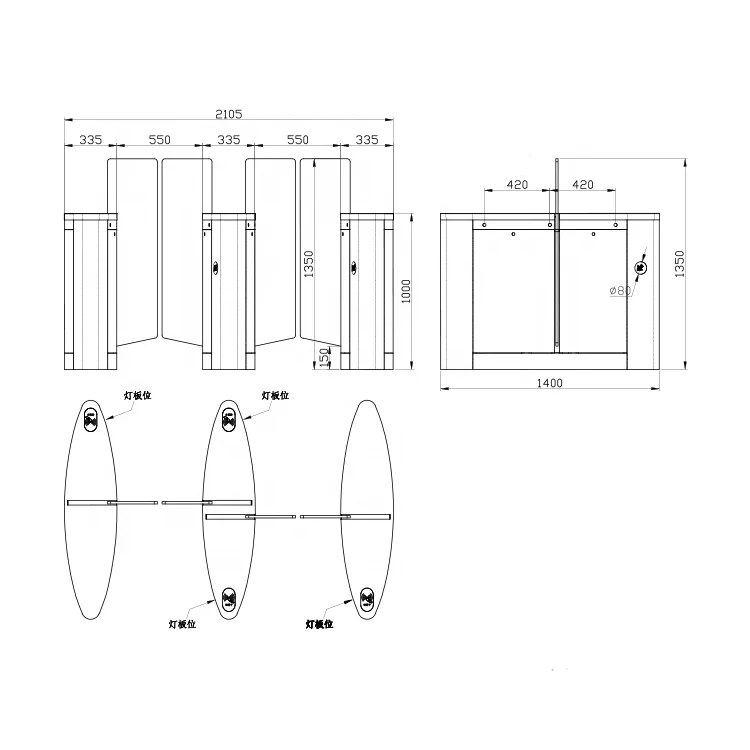

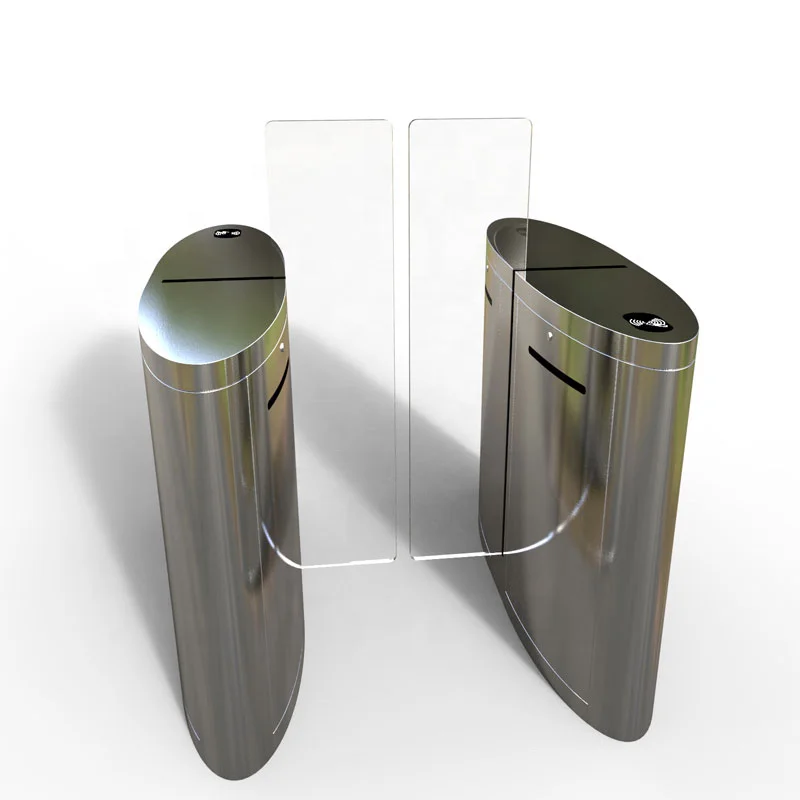

JS-PYZ1400x335x1000SS1

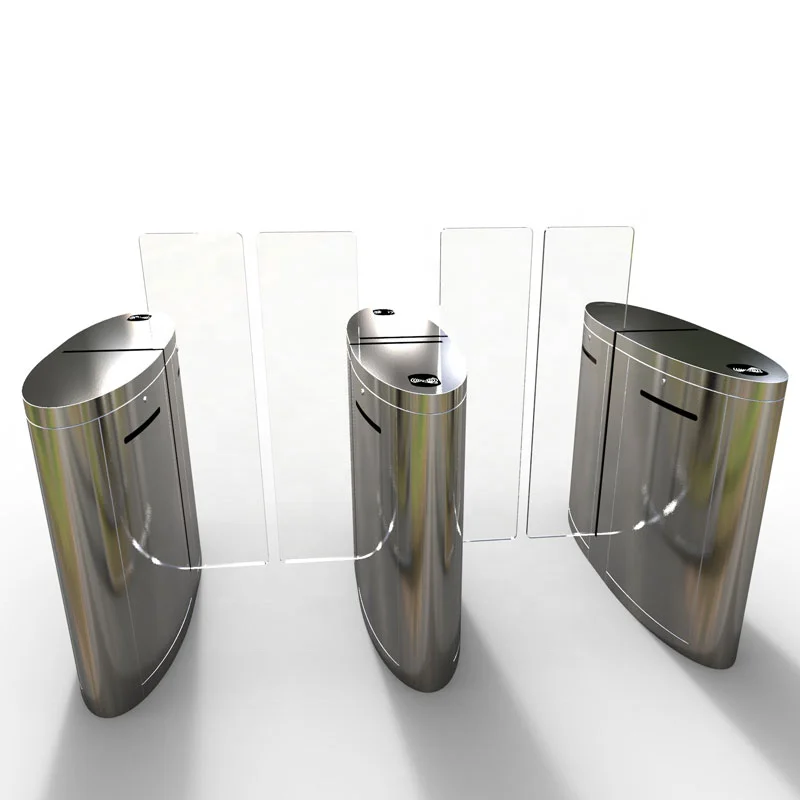

JS-PYZ1400x335x1000SS2

JS-PYZ1400x335x1000SS3






.jpg





.jpg

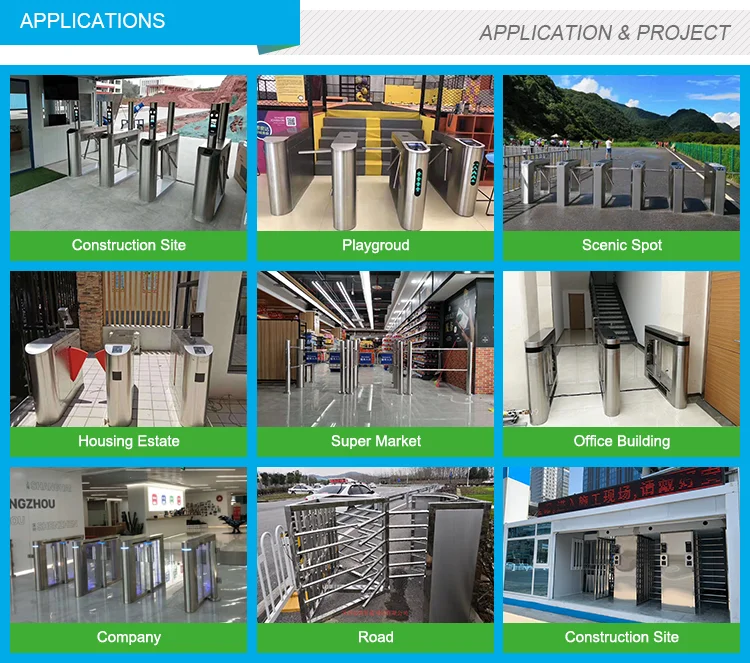

Sliding Barrier Turnstile application to all kinds of public places requiring pedestrians going through orderly:





1. Places requiring authorization to enter, such as corporate buildings, factories, dining halls, golf courses, clubs, schools, hospitals, residential areas, construction sites, hotels, etc..

2. Public places requiring ticket checking, such as scenic spots, parks, gyms, swimming pools, gymnasiums, theaters, stations, docks, subways, airports, etc.

3. Places with strict security measures, such as government agencies, private clubs, research institutes, financial units, electronic engineering anti-static control area, etc.





.png

.jpg


FAQ

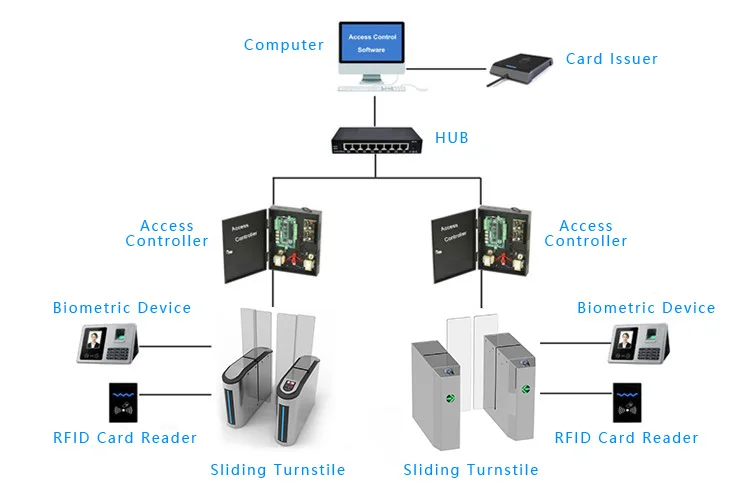

Q1: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.


Q2: Are your turnstile / barrier gates waterproof?

A: Yes, our turnstile / barrier gates have water proof feature.



Q3: How can we install those turnstile/barrier gates? Is it easy to do?

A:Yes, it's really easy to install. We have done most of the jobs before sending our products.

You just need fix the gates with screws, and connect power supply cables and internet cables.



Q4: Can you produce as per our size?

A: We can offer the customization service as per your detail requirement,

and we also can design the unique turnstile products according to your real site to make different size, software and features.
