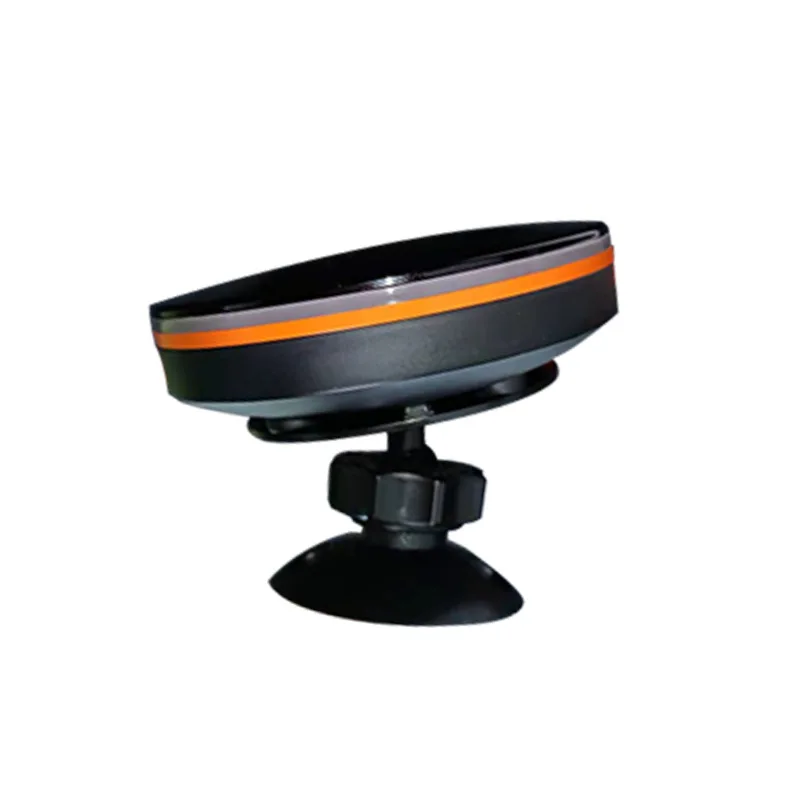

Zigbee Human Presence sensor Millimeter Wave Radar Sensor Human Presence Sensor Motion Detection
- Category: >>>
- Supplier: Shenzhen Home Warning Security Technology Co. Ltd.
Share on (1600878643153):
Product Overview
Description
Product Paramenters
Zigbee Human Presence sensor Millimeter Wave Radar Sensor Human Presence Sensor Motion Detection
Life detection radar is based on millimeter-wave radar to realize human biological presence perception and human motion perception, continuously record human presence, residence time, and body motion amplitude, and can trigger other intelligent devices through wireless signals to realize scene linkage. It is recommended that the product be installed at the top of the room. The human presence detection function is not affected by

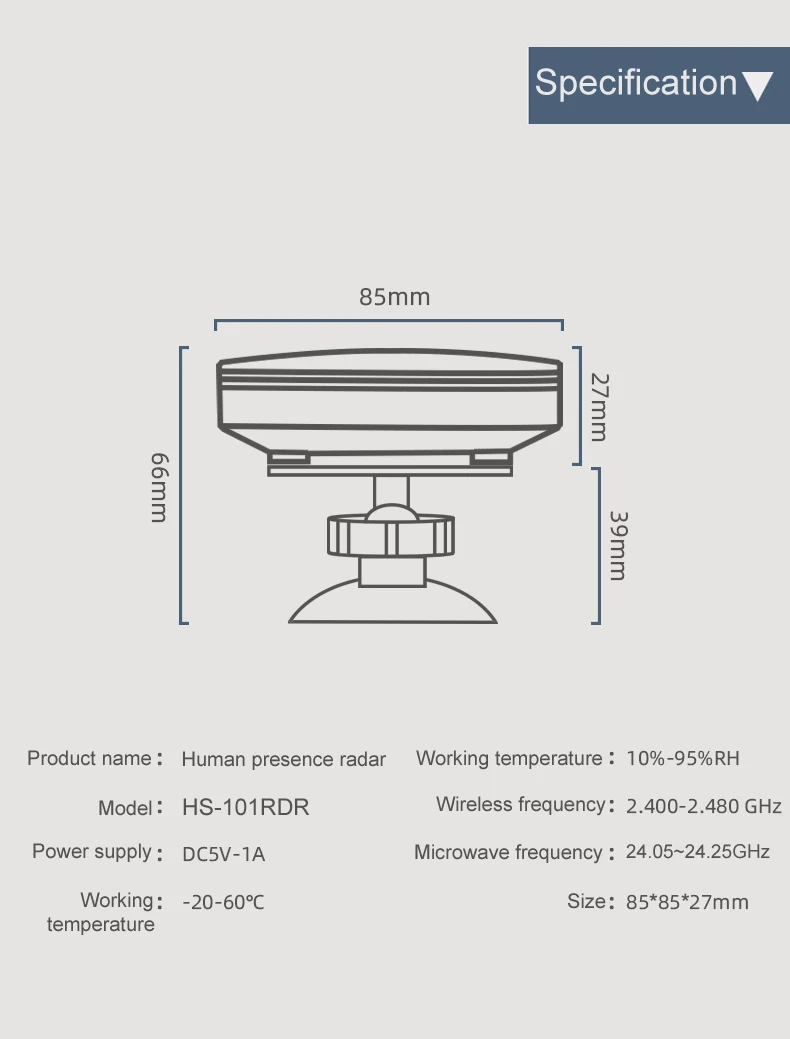

Specification for Human Body Presence Sensor | ||
Power supply | USB input 5V/1A | |
Wireless frequency | 2.400-2.480GHz | |
Radar operating frequency | 24.05~24.25GHz | |
Detecting angle | Horizontal 90°& vertical 60° | |
Detection distance | 3-6m | |
Installation height | 1.8~2.4m | |
Standard | Zigbee 3.0 | |
Fireproof protection | ABS material | |
Main function | Alarms/Intelligent linkage | |
Operation environment: | -10℃-50℃ | |
Size | Φ85*66mm(with bracket) | |
Packing & Delivery
Packing Details for Human Body Presence Sensor | ||
PACKING | Neutral color box or customer's packing | |
PCS/CARTON | 50PCS | |
GW/CARTON | 5.85KG | |
CARTON SIZE | 45*35*30CM | |
Products Description

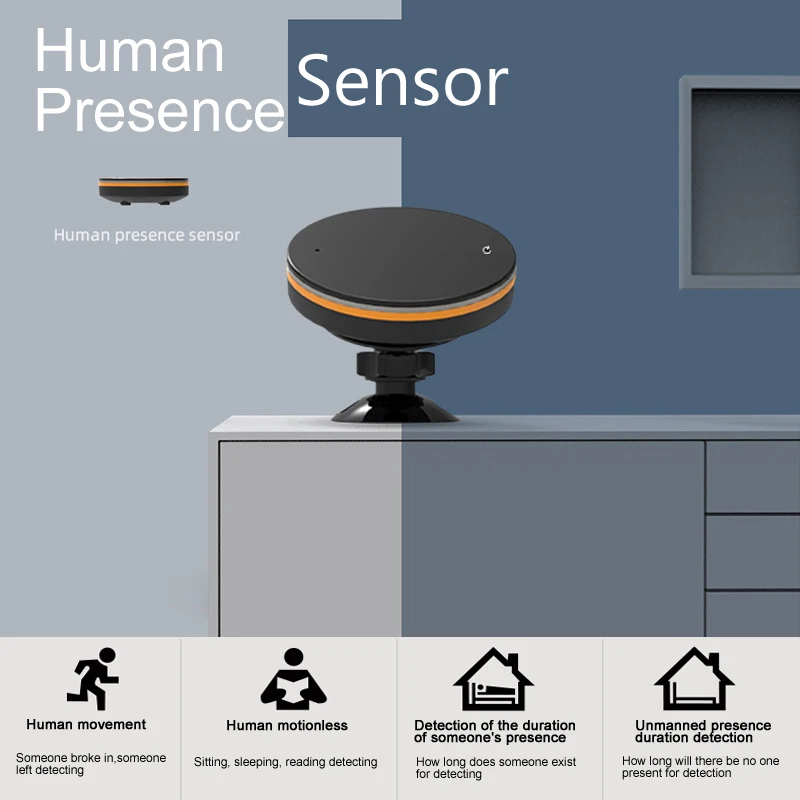

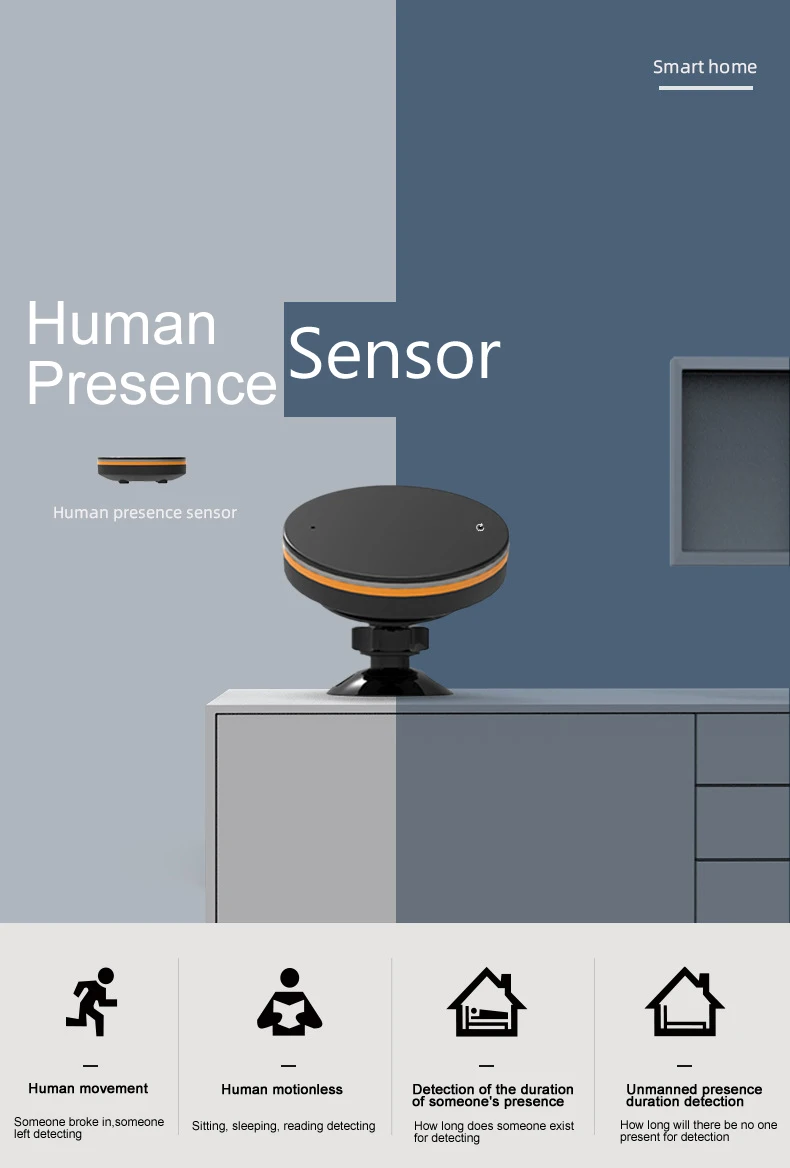

Tuya Zigbee Human Body Presence Sensor
Human movement: Someone broke in,someone left detecting
Human motionless: Sitting, sleeping, reading detecting
Detection of the duration of someone's presence: How long does someone exist for detecting
Unmanned presence duration detection: How long will there be no one present for detection
Human motionless: Sitting, sleeping, reading detecting
Detection of the duration of someone's presence: How long does someone exist for detecting
Unmanned presence duration detection: How long will there be no one present for detection

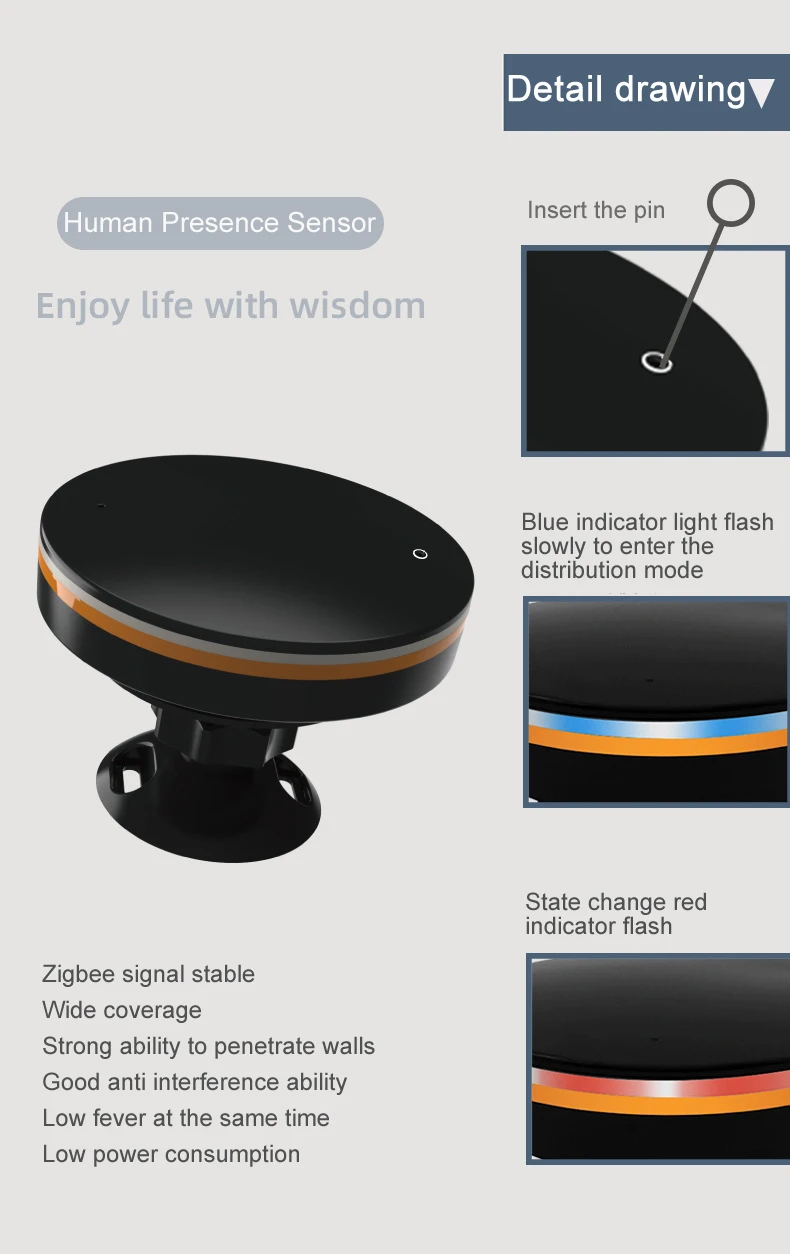

Detail Drawing
Zigbee signal stable
Wide coverage
Strong ability to penetrate walls
Good anti interference ability
Low fever at the same time
Low power consumption
Wide coverage
Strong ability to penetrate walls
Good anti interference ability
Low fever at the same time
Low power consumption

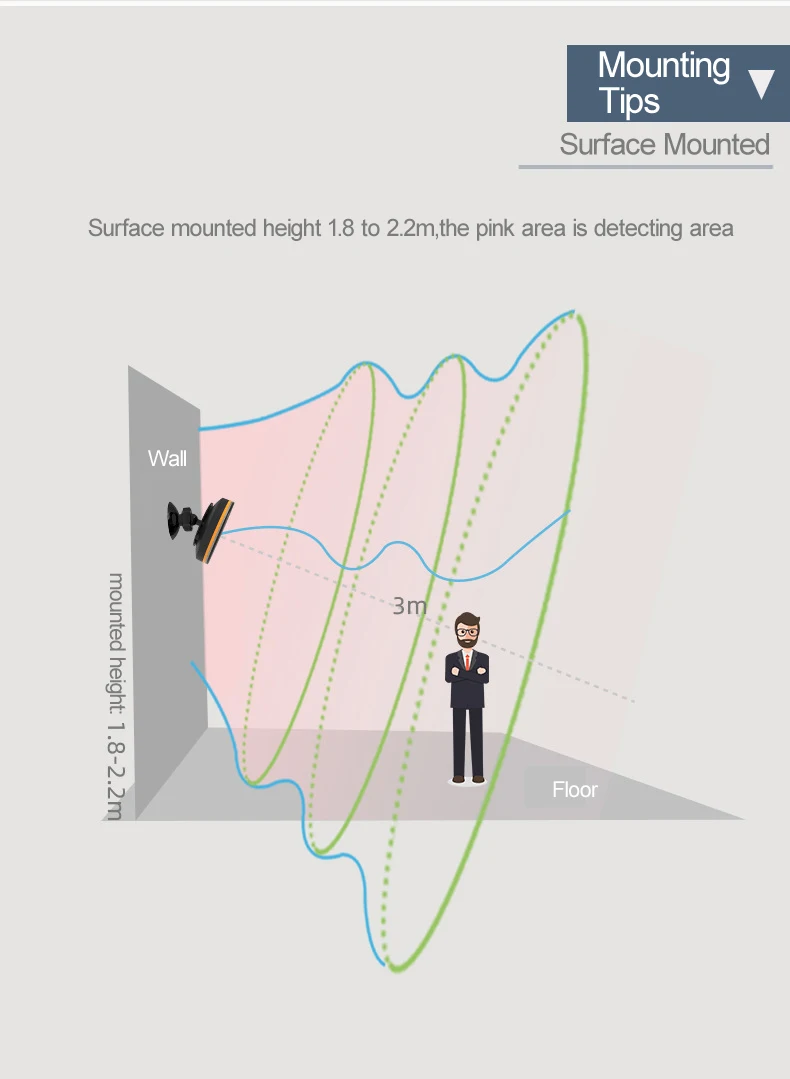

Mounting tips
Surface mounted
Surface mounted height 1.8 to 2.2m,the pink area is detecting area
Surface mounted height 1.8 to 2.2m,the pink area is detecting area
