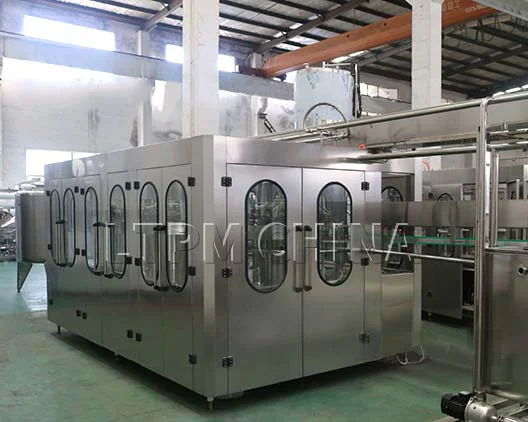

Water bottling filler machine plants / water filling machine equipment low price with CE and ISO
- Category: >>>
- Supplier: Zhejiang Leadtop Pharmaceutical Machinery Co. Ltd.
Share on (1600878713768):
Product Overview
Description
Product introduction
Whether you want to fill carbonated drinks, fruit juice drinks or mineral water, beer or alcoholic drinks, disinfectant, laundry
detergent or shower gel, or others, you can trust LTPM CHINA.
LTPM CHINA have 15 years of rich experience. We can tailor and optimize our solutions to your requirements, whether for a complete new plant, a new process or packaging line.
LTPM CHINA's machinery comply with international quality and hygiene standards, and are designed for easy installation and maintenance, which can help to reduce operating costs and downtime.
detergent or shower gel, or others, you can trust LTPM CHINA.
LTPM CHINA have 15 years of rich experience. We can tailor and optimize our solutions to your requirements, whether for a complete new plant, a new process or packaging line.
LTPM CHINA's machinery comply with international quality and hygiene standards, and are designed for easy installation and maintenance, which can help to reduce operating costs and downtime.
Product Description
01.
-It adopts human-machine interface touch screen control, PLC computer control, frequency converter control and other technologies;
02.

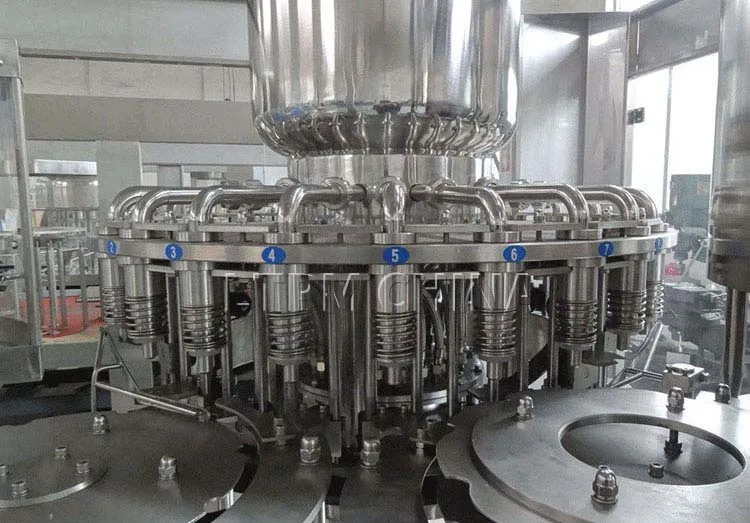

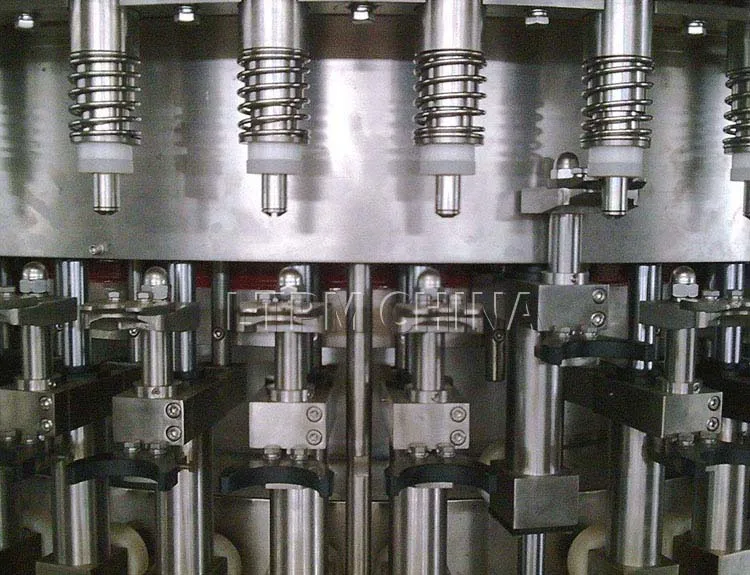

-It adopts the process design of card bottle neck suspension and automatic lifting of filling valve; it can meet the technical
requirements of hot filling below 95℃;
requirements of hot filling below 95℃;
03.
-After rigorous analysis and calculation, the machine can automatically align the bottle mouth with the fixed bottle cup of the conveying chain, and the use effect is good.
04.
-The main motor, reducer, main bearing, sealing parts, electrical components and pneumatic components of the whole machine are stable and durable.
05.
-All the parts in contact with the beverage are made of SUS304 stainless steel, and meet the hygienic standard.
06.
-The bottle after capping is dried by a bloweer to effectively ensure the drying of the bottle body when labeling.
07.
-The speed and accuracy of the machine are stable and the filling speed can be displayed.
Machine Data
Model | RotaFill-12 | RotaFill-15 | RotaFill-36 | ||
Capacity | 12000BPH (500ml) | 15000BPH (500ml) | 36000BPH (500ml) | ||
Bottle Height(mm) | 120～310 | 120～310 | 120～310 | ||
Bottle Diameter(mm) | ф50～ф96 | ф50～ф96 | ф50～ф96 | ||
Mouth Diameter(mm) | 26mm～40 | 26mm～40 | 26mm～40 | ||
Washing Head | 24pcs | 50pcs | 80pcs | ||
Washing Time | ＞2second | 1.5-2 second | ＞2second | ||
Filling Heads | 24 | 50 | 80 | ||
Filling Temperature | 85-90℃ | 85-90℃ | 85-90℃ | ||
Filling Pressure | 0.2～0.4Mpa | 0.2～0.4Mpa | 0.2～0.4Mpa | ||
Filling Valve Flow | 120～150ml/s | 140～160ml/s | 120～150ml/s | ||
Filling Pipe | SUS304, High temperature affordable | ||||
Capping Head | 8 | 12 | 18 | ||
Capping Strength | 0.6～2.8Nm | 0.6～2.8Nm | 0.6～2.8Nm | ||
Main Power | 5.5 KW | 13 KW | 15 KW | ||
Air Consumption | 1m 3/min | 1m 3/min | 1m 3/min | ||
Sterilized Water Consumption | 1.2m3/h | 1.5m3/h | 1.5m3/h | ||
Overall Dimension（mm) | 3000×2750×2500 | 3000×2750×2500 | 3000×2750×2500 | ||
Weight(kg) | 6000 | 12500 | 12500 | ||
Main Feature

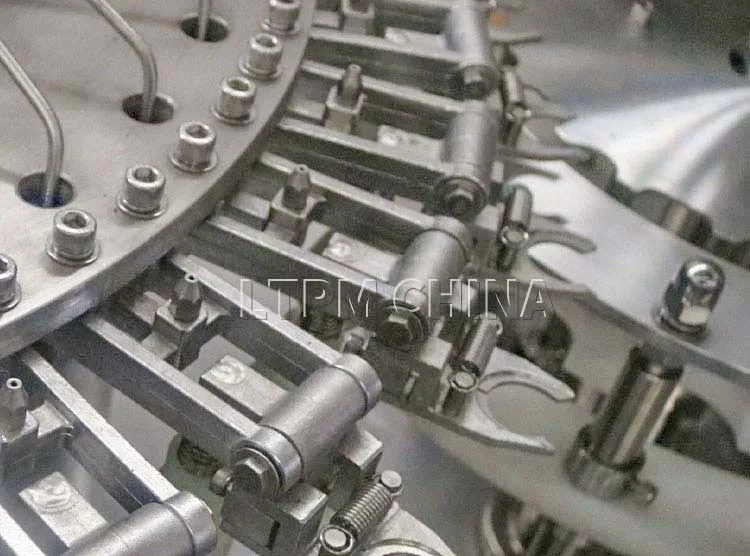

1.Only exchanging “star wheel”, ”feeding screw” and “arc guide plate” while exchanging model of bottle to be need.
2.Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
3.Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet.
4.High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
5.The “capping head” is adopted magnetic-constant-torque device to ensure the high capping quality and without damages.
6.Adopting efficient cap settling system which carried perfect cap feeding and protection device.
7.Carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.
2.Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
3.Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet.
4.High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
5.The “capping head” is adopted magnetic-constant-torque device to ensure the high capping quality and without damages.
6.Adopting efficient cap settling system which carried perfect cap feeding and protection device.
7.Carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.
The primary electric components such as touch screen\\PLC\\transducer etc. are all adopted with world famous products.
Company Introduction
Our Company
- LTPM CHINA is one of China's leading system suppliers for the pharmaceutical, beverage and food sectors.
- Our portfolio includes machinery and plants as well as advanced process technology, components and comprehensive services. Used across diverse industries, they enhance the sustainability and efficiency of production processes globally.
- Our business model has evolved significantly since our founding in 1996 as a Pharmaceutical Machinery Company. Our machinery manufacturing bases all have been in this field for more than 15years which can give our client more reliable service. Professional, Service, Genuineness, Enthusiasm are our value. LTPM CHINA exports pharmaceutical machinery to more than 30countries which includes European country and Americans. Through serving different pharmaceutical companies in different country, we believe in success would affect success.
- Our company mission is creating a professional platform for the industry and achieving individual value. LTPM CHINA, Your best pharmaceutical production solution!
- Our portfolio includes machinery and plants as well as advanced process technology, components and comprehensive services. Used across diverse industries, they enhance the sustainability and efficiency of production processes globally.
- Our business model has evolved significantly since our founding in 1996 as a Pharmaceutical Machinery Company. Our machinery manufacturing bases all have been in this field for more than 15years which can give our client more reliable service. Professional, Service, Genuineness, Enthusiasm are our value. LTPM CHINA exports pharmaceutical machinery to more than 30countries which includes European country and Americans. Through serving different pharmaceutical companies in different country, we believe in success would affect success.
- Our company mission is creating a professional platform for the industry and achieving individual value. LTPM CHINA, Your best pharmaceutical production solution!
Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q1: how many different liquid filling machine you have?
A: 5 years free warranty.
Q7: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q8: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q9: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
Q10: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
A: according to Machine filling style, we have linear type and Rotary Type.
Q2: When did your factory start manufacturing liquid filling machine?
A: Since Year 2005 we had started manufacturing Liquid Filling Line. We are focused on Pharmaceutical Field, Food field and Cosmetics Field. Our Clients includes Japanese Sysmex, US Southern Pharma, Qarshie Industry, Abbott Group, Victoria's Secret, etc.
Q3: Does one liquid filling machine can work for all kinds viscosity of liquid or paste?
A: Theoretically yes, by changing parts and filling pump we can achieve this. But normally this option is only recommended for our client who is doing R&D, but not production purpose. So we suggest client to use specific pump for specific material for achieving higher filling accuracy.
Q4: Why there are so many liquid filler looks same, but in huge difference on price?
A: Because different manufacturers are using different method to manufacture the machine which will effect the filling accuracy and machine running life a lot. The same Oil material or cream material, A cheap manufacturer may use Pneumatic piston Pump for filling while a professional manufacturer is using Servo Stainless Steel Piston pump.
Q5: We have big filling range for our bottle, from 100-2000ml, can it work on the same machine?
A: Yes, these filling range is absolutely ok for our either Linear type machine or rotary type machine, we can easily achieve.
Q6: What is the warranty period for your machine?
A: 5 years free warranty.
Q7: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q8: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q9: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
Q10: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
